DANCHEE Ridgerock CRAWLER User manual

INSTRUCTION MANUAL
MAN-RIDGEROCK-BG-2018-08-13
•To ensure you are using the most recent version of this manual visit: www.redcatracing.com/RIDGEROCK_BG_MANUAL.pdf

TYPE
TECHNICAL DATA:
LENGTH WIDTH HEIGHT WHEELBASE GROUND
CLEARANCE
WHEEL
DIAMETER
WHEEL
WIDTH
GEAR RATIO
CRAWLER 440mm 230mm 275mm 320mm 81mm 132mm 57mm 40:1
MAIN FEATURES:
-2.4GHz Radio System
-4 Wheel Drive/4 Wheel Steering
-Solid Axles with 4-Link Suspension
-Aluminum Capped Oil Filled Shocks
-2x RC380 Electric Motors (Front and Rear)
-Scale Roll Cage With Realistic Cockpit And Drivers
-TVP Chassis Design
-Li-ion 7.4V, 1500mAH Battery Pack, w/ USB Balance Charger
-Battery Tray Allows Room For Optional Battery
PLEASE READ AND UNDERSTAND
ALL INSTRUCTIONS CAREFULLY BEFORE USE.
This manual is subject to change without prior notification.
This product is NOT a toy, and not intended for users under 14 years of age, unless closely supervised by an adult.
The specifications and images in the manual may vary from the actual product.
Use caution when operating this vehicle, keeping a safe distance from yourself and others.
RIDGEROCK
1:10 SCALE FOUR WHEEL STEERING ELECTRIC POWERED ROCK CRAWLER

GENERAL SAFETY INFORMATION:
Never operate the vehicle in crowds of people. Serious injury may occur. Never operate the vehicle on public streets
as traffic accidents, personal injury and/or property damage may occur. This vehicle is ONLY to be driven in open
areas safe for RC cars.
Do NOT use this vehicle to chase pets or other animals. The receiver, steering servo and other electronics installed
in this vehicle are merely splash-resistant, and are not intended to be submerged in water. Do not use or put this
vehicle into water. Check the transmitter (radio controller) power level often and replace the batteries if they get low
on power. Remove the batteries from the transmitter (radio controller) when not in use. Replace with fresh batteries
if necessary. NEVER run this vehicle with low or old transmitter batteries. When this vehicle becomes stuck, do NOT
try to muscle it out with the throttle. Doing so may cause damage to the motor and/or the ESC (Electronic Speed
Controller). If the vehicle is stuck, pick it up by hand and set it down in a safe area. Check and clean obstacles
before running again. Before running this vehicle, be sure the battery connectors are plugged in firmly.
Any malfunction caused by unauthorized upgrading and modification of this vehicle, or related components, will void
the warranty.
Be careful not to touch any moving parts when the vehicle is in use, or when servicing this vehicle as this may cause
injury. To prevent excessive R.P.M. from damaging the motor, and/or the drive-train components, we suggest
reducing the throttle while in the air during jumps. Never attempt to disassemble the motor, ESC, servo, or receiver.
These electrical components have been calibrated for precision at the factory.
If you purchase upgraded parts for this vehicle, be sure to install all the parts that come in the package. For example,
if you upgrade the motor, you must upgrade the ESC and available drive-train components as well. This will limit
component damage and failure. To run this vehicle, turn on the transmitter (radio controller) first and then the
receiver. When you are done running this vehicle, turn off the receiver first, and then the transmitter (radio controller).
Always have the transmitter (radio controller) turned on any time the vehicle is turned on to prevent a runaway
vehicle. Never cut the receiver antenna, as it will lessen the radio signal to the vehicle, causing damage and/or injury.
When the vehicle is not in use, always switch off the power and unplug the battery pack. Always allow the battery to
completely cool before charging it. Never overcharge the battery pack as it will damage the battery and may cause a
fire, damage, and/or injury/death. Be sure to check the battery pack for excessive heat build-up during charging. If the
battery pack is too hot to touch, STOP CHARGING and disconnect the battery from the charger. Do NOT charge
battery pack unattended. Only charge the battery on a fire proof surface, away from anything flammable or
combustible.
Children are NOT allowed to charge the battery pack unless closely supervised by an adult. Do NOT attempt to
dismantle and modify the battery pack or the charger in ANY way.
Do NOT attempt to repair a damaged or swollen battery pack. Discontinue use immediately and dispose of the
battery pack according to your local laws and ordinances. You may buy a new battery pack to continue having fun
with your RC vehicle.
OPERATING PRECAUTIONS:
RIDGEROCK

•This 1:10 scale, four wheel steering rock crawler is designed to be fun and uses quality parts for
durability and performance.
•This vehicle requires regular maintenance for best performance.
•Failure to maintain this vehicle will harm its performance. The spare parts pages in the manual make
buying broken or worn out parts easy. Be sure to clean this vehicle from dirt and debris after each use.
•This vehicle is not a toy, but an authentic hobby grade vehicle which is not suitable for users under 14
years of age unless supervised by an adult.
•Use ONLY the factory manufactured parts to upgrade your vehicle. To avoid broken parts, we
recommend upgrading the drive train when upgrading the motor and ESC.
•Any malfunction caused by unauthorized custom modifications will void the warranty.
•Be careful not to touch any moving parts when servicing this vehicle. Serious injury could result.
•To prevent excessive R.P.M. from damaging the motor, and/or the drivetrain components, we suggest reducing
the throttle while the vehicle is in the air during jumps.
•Never attempt to disassemble the motor, ESC, servo, or receiver. These electrical components have been
calibrated for performance at the factory.
•If you purchase upgraded parts for this vehicle, be sure to install all the parts that come in the package. For
example, if you upgrade the motor, you must upgrade the ESC and available drivetrain components as well.
This will limit component damage and failure.
•To run this vehicle, turn on the transmitter (radio controller) first and then the receiver.
•When you are done running this vehicle, turn off the receiver first, and then the transmitter (radio controller).
Always have the transmitter (radio controller) turned on any time the vehicle is turned on to prevent a runaway
vehicle.
•Never cut the receiver antenna, as it will lessen the radio signal to the vehicle, causing damage
and/or injury.
•Always switch off the power and unplug the battery pack when not in use.
•Always allow the battery to completely cool before charging it.
•Never overcharge the battery pack as it will damage the battery and may cause a fire, damage, and/or injury/
death.
•Be sure to check the battery pack for excessive heat build-up during charging. If the battery pack is too hot to
touch, STOP CHARGING and disconnect the battery from the charger.
•Do NOT charge battery pack unattended. Only charge the battery on a fire proof surface, away from anything
flammable or combustible.
•Children are NOT allowed to charge the battery pack unless closely supervised by an adult.
•Do NOT attempt to dismantle and modify the battery pack or the charger in ANY way.
•Do NOT attempt to repair a damaged or swollen battery pack. Discontinue use immediately and dispose of the
battery pack according to your local laws and ordinances. You may buy a new battery pack to continue having
fun with your RC vehicle.
•1x Ready-To-Run Rock Crawler (battery and USB charger provided.)
•1x Full-Function 3-Channel 2.4GHz Radio Controller (requires 3x AA size Batteries - not included)
•1x Instruction Manual
•Note: Fully charge the battery pack before use. Install 3x AA batteries (not included) into the radio
controller. Unplug and remove the battery pack from the vehicle when not in use.
RIDGEROCK
INTRODUCTION:
SAFETY NOTES:
PACKAGING:

Read this section to familiarize yourself with the features of the 3-Channel 2.4GHz radio system included with
this vehicle. Read and understand all warnings to ensure the safe operation of your radio control system.
Steering Wheel
Throttle Trigger
Battery compartment
Steering Trim
(Front wheel)
Steering Reverse
Power Indicator (Red)
Power Switch(ON/OFF)
Throttle Trim
Throttle Reverse
Steering Trim
(Rear wheel)
Power Indicator (Green)
Steering Mode Switch
Steering Wheel: Proportional steering (left/right). Turn the steering wheel to make the vehicle turn left or right.
Throttle Trigger: Proportional throttle (forward and reverse). This controls the speed of your vehicle, both forward and
reverse. Pull it to accelerate forward, release it to stop, and push it to drive in reverse.
Battery Compartment: Holds three AA size batteries to power the transmitter. (AA size batteries not included.)
Steering Trim (Front): Left Knob. Used to set the steering neutral point for the front wheels. If the vehicle veers to one
direction, while trying to drive straight, because the front wheels are not centered correctly, turn this knob in the opposite
direction until the vehicle drives straight.
Steering Trim (Rear): Middle Knob. Used to set the steering neutral point for the rear wheels. If the vehicle veers to one
direction, while trying to drive straight, because the rear wheels are not centered correctly, turn this knob in the opposite
direction until the vehicle drives straight.
Throttle Trim: Right Knob. Used to set the throttle neutral point. If the vehicle moves forward or reverse while the throttle
trigger is centered, turn this knob until the vehicle remains still.
Steering Reverse Switch: Used to change steering orientation. If the vehicle turns right when you steer left,
flip this switch.
Throttle Reverse Switch: Used to change throttle direction. If the vehicle goes backwards when you pull the trigger, flip
this switch.
Power Indicators (Red/Green):
The lights indicate the current status of the transmitter batteries. When both power indicator lights are illuminated, the
batteries have sufficient capacity to power the transmitter safely. If the green power indicator light begins to flash, the
batteries are losing power and should be replaced soon. If both power indicator lights begin to flash, the batteries have
only limited capacity to power the transmitter. In this case, the batteries should be replaced as soon as is safely possible.
Power Switch (ON/OFF): Switching the transmitter on or off.
Steering Mode Button: Used to cycle through the steering modes.
2.4GHz RADIO SYSTEM:RIDGEROCK

FRONT AND REAR WHEEL
STEER IN OPPOSITE DIRECTION.
FRONT AND REAR WHEEL
STEER IN SAME DIRECTION
PRESS IT TO CHANGE THE STEERING MODE PRESS IT TO CHANGE THE STEERING MODE
PRESS IT TO CHANGE THE STEERING MODE PRESS IT TO CHANGE THE STEERING MODE
STEERING MODE - 1
STEERING MODE - 3
STEERING MODE - 2
STEERING MODE - 4
FRONT WHEEL STEERING.
Light is on solid. Light is on solid.
Light is on solid.
REAR WHEEL STEERING
The battery cover is located on bottom. Slide the battery cover off, load 3x AA batteries into the battery
compartment (line up (+ to +) & (- to -)), then replace the battery cover.
Note:
1) Do not mix old and new batteries.
2) Use batteries of same type and brand.
3) Remove the batteries when not in use.
4) Never reverse the polarities.
5) Alway line up the battery “+” to the
radio “+” mark.
6) NEVER line up the “+” marks to the “-”
marks.
7) When the radio battery levels get low,
replace with all new batteries.
RIDGEROCK
Light is on solid.
INSTALLING/REPLACING THE TRANSMITTER BATTERIES

1 TURNING ON THE RADIO
1) With the steering wheel centered, the vehicle will run in a straight line.
2) With the steering wheel turned to the left, the vehicle will steer to the left.
3) With the steering wheel turned to the right, the vehicle will steer to the right.
If the vehicle turns right when you steer left,
flip the “Steering Reverse” switch.
If the vehicle turns left when you steer right,
flip the “Steering Reverse” switch.
With a fully charged battery installed and properly
plugged in, press and hold the power button,
located on the chassis, to power up the vehicle.
Slide the radio power switch to the
“ON” position.
"O" = OFF "I" = ON
CENTER
With the radio and vehicle turned on:
TURN LEFT TURN RIGHT
RUNNING THE VEHICLE:RIDGEROCK
3 CHECK THE STEERING
2 TURNING ON THE VEHICLE

Pull the trigger to drive forward, release it to stop,
and push it to drive in reverse.
MOVE FORWARDSMOVE BACKWARDS STOP
If the vehicle drives backwards when you pull the trigger, flip
the “Throttle Reverse” switch.
If the vehicle drives forwards when you push the trigger, flip the
“Throttle Reverse” switch.
Steering Trim (Front):
Used to set the steering neutral point
for the front wheels. If the vehicle veers
to one direction, while trying to drive
straight, because the front wheels are
not centered correctly, turn this knob in
the opposite direction until the vehicle
drives straight.
RUNNING THE VEHICLE: RIDGEROCK
Steering Trim (Rear):
Used to set the steering neutral point
for the rear wheels. If the vehicle veers
to one direction, while trying to drive
straight, because the rear wheels are
not centered correctly, turn this knob in
the opposite direction until the vehicle
drives straight.
4 CHECKING THE THROTTLE

Throttle Trim:
Used to set the throttle neutral
point. If the vehicle moves forward
or reverse while the throttle trigger
is centered, turn this knob until the
vehicle remains still.
Slide the radio power switch to the “OFF”
position to turn off the radio.
1) Check the wheels for tightness.
2) Check all wires and connections for stripped
insulation or breakage. Be sure the battery is
unplugged and removed from the vehicle. (See 3)
3) Use a soft cloth or clean paintbrush to wipe away
dirt. Store the car in a clean dry place.
Press and hold the power button, located on the
chassis, for 1-2 seconds to switch off the vehicle.
The LED turns off when the ESC is switched off.
RUNNING THE VEHICLE: RIDGEROCK
1 TURNING OFF THE VEHICLE 2 TURNING OFF THE RADIO
3
DISCONNECT AND REMOVE THE BATTERY PACK
3
DISCONNECT AND REMOVE THE BATTERY PACK
"O" = OFF "I" = ON
Unplug the battery pack and remove it from the
vehicle when not in use.
Charge the battery pack before storing it in a clean
and dry place.
Do not expose the battery pack to any source of heat
or humidity.
Check and clean the vehicle before storing it.

Be sure to always disconnect the battery pack and remove it from
vehicle when not in use.
ONLY use the USB charger supplied with this vehicle to charge the
included battery.
NEVER charge a battery pack
while it is still in the vehicle.
NEVER completely drain the
battery pack while running
the vehicle.
NEVER leave the battery pack
uncharged for long periods of time.
NEVER charge the battery
under any wet or damp
conditions. Only charge in
dry conditions.
NEVER expose the battery
to heat.
A smart Phone charger adapter
(5V, 1A - Not Included) can be
used for charging the battery
pack. This will shorten the
charging time. Under this
condition, charging time will be
approx. 3.5 - 4 hours.
Smart Phone Charger Adapter
CHARGING THE BATTERY PACK:RIDGEROCK
Connect the battery pack to the
USB charger (provided), and
plug the USB charger into an
appropriate USB power supply.
Charging time is approx. 5 - 5.5 hours.
Red LED (Charging LED) flashes
while the battery pack is
being charged.
Green LED (Power LED) lights
up solid when the battery
pack is fully charged.
2 x SERVO PLUG LOCATION
AUX. POWER CHANNEL
POWER SWITCH PLUG LOCATION
PLUGGING IN THE ELECTRONICS:
NOT INCLUDED
Failure to follow these warnings greatly increases the risk of damage. fire. or explosion.

We recommend that you check and maintain this vehicle after each use. Follow the suggestions below
to help ensure consistent performance of this vehicle.
•Disconnect and remove the batteries from both the vehicle and the radio.
•Inspect the vehicle for any obvious damage.
•Check the gears for wear, loose debris or broken/stripped teeth.
•Check the wheels for tightness. Tighten the wheel nuts if needed.
•Check the chassis for loose screws. Tighten if needed.
•Check the wiring for frayed or damaged wires and/or connectors.
•Check the batteries in the vehicle and in the radio controller for damage. Replace old AA batteries in the radio.
•Keep the chassis clean and free of sand, dust and moisture.
•Make sure the drive-train is free from binding (twisted grass, hair, or string) and clean if necessary.
•Clean the motor if necessary. (Never attempt to disassemble the motor.)
•Clean the body with a soft lint-free cloth.
•Store the vehicle in a clean and dry place out of children's reach. Storage conditions should be dry and cool.
Never expose the vehicle or components to heat or water.
•Check the steering servo for looseness or clicking. This component will wear out over time and may need to
be replaced.
The vehicle does not work at all:
•Be sure the radio and vehicle are both turned on.
•Check for damaged parts/wires/connectors, repair or replace if necessary.
•Be sure the radio has fresh AA batteries and the vehicle has a fully charged battery pack plugged in correctly.
The vehicle runs slowly:
•Vehicle battery is low. Charge the battery pack (after it has time to cool).
•Be sure the vehicle is geared properly and there aren’t any dirty or stripped gears. Be sure the motor
pinion and spur gear are set with correct gear mesh.
•Be sure all moving parts can move freely and clean them if needed.
The throttle works but the steering doesn’t:
•Check if the servo feels jammed, and try centering it gently if it is the case.
•Be sure the servo links are connected and not binding. Be sure the servo isn’t broken and replace if necessary.
It steers, but the throttle doesn’t work:
•Check for damaged drive-train parts.
•Be sure there are charged, or new, batteries in both the vehicle and radio.
The vehicle runs, but it is very noisy:
•Check gear mesh between the spur gear and the motor pinion gear.
•Check if there are stripped and/or dirty gears.
•Check for damaged drive-train parts.
One direction of steering travel greater than the other:
•Set the steering trim to the steering center point.
The battery pack won’t charge:
•Check to see if the battery pack or charger is damaged. Be sure the battery pack hasn’t been
discharged beyond its safe limit.
REGULAR MAINTENANCE:RIDGEROCK
TROUBLESHOOTING:

DRIVE SHAFT ASSEMBLY (FRONT/REAR)
AXLE ASSEMBLY (FRONT/REAR)
RIDGEROCK
EXPLODED VIEW - 1
Finished
R5622
R5612
59300
H007
S102
R5621
79513
R5612
R5635
H022 R5612
79513
59300
H007
H007
R5609
R5610
R5606
R5628
R5624
79513
R5607
R5609 R5608
R5610
R5607
79513
79513
R5606
R5612
R5626
R5626
S216
S216
S216
S216
S089
S089
S089
S089
S018
S018
S018
S018
S018 S018
S018
R5606
S101
R5608
R5618
R5618
79513
H032
H032
R5620
R5619
R5619
S103
S103

SERVO SAVER ASSEMBLY
SERVO INSTALLATION (FRONT/REAR)
ROLL CAGE AND BODY INSTALLATION
EXPLODED VIEW - 2
R5627
R5611
R5611
R5611
R5623 R5623
S139
H013
H013
R5607
R5607
R5603
S215
S215
S107
S160
S160
S160
S160
H013
Roof Of
Body
S093
S093
S093
S093
R5602
R5602
R5602
R5616
S093
S093
S093
S093
S051
S051
S093
S093
S093
S093
Finished
R5632DECH
R5632DECH
RIDGEROCK

CENTER UNIT ASSEMBLY
EXPLODED VIEW - 3
12225TA
R5604
R5617
R5604
R5603
R5603
R5601
R5603
R5604
R5631
R5630
R5630
R5630
R5630
H016
R5629TA
H016
H016
R5631+S097
R5631
+S097
S030
S030
S004
S004
S085
S085
S002 S002
RIDGEROCK

CONNECT CENTER UNIT TO FRONT/REAR AXLE
EXPLODED VIEW - 4
Finished
S107
S107
S085
S107
S107 S085
S107
S085
TO FRONT AXLE (LEFT VIEW)TO FRONT AXLE (RIGHT VIEW)
TO REAR AXLE (LEFT VIEW)
S085 S107
TO REAR AXLE (RIGHT VIEW)
RIDGEROCK

INSTALLING WHEELS COMPLETE TO FRONT/REAR AXLE
EXPLODED VIEW - 5
R5605P R5614 R5613 (sponge included)
R5605P
S031
S031
S031
S031
Finished
Wheel Complete
R5615P
R5615P
H003
P120
R5615P
P120
H003
H022
H022
RIDGEROCK

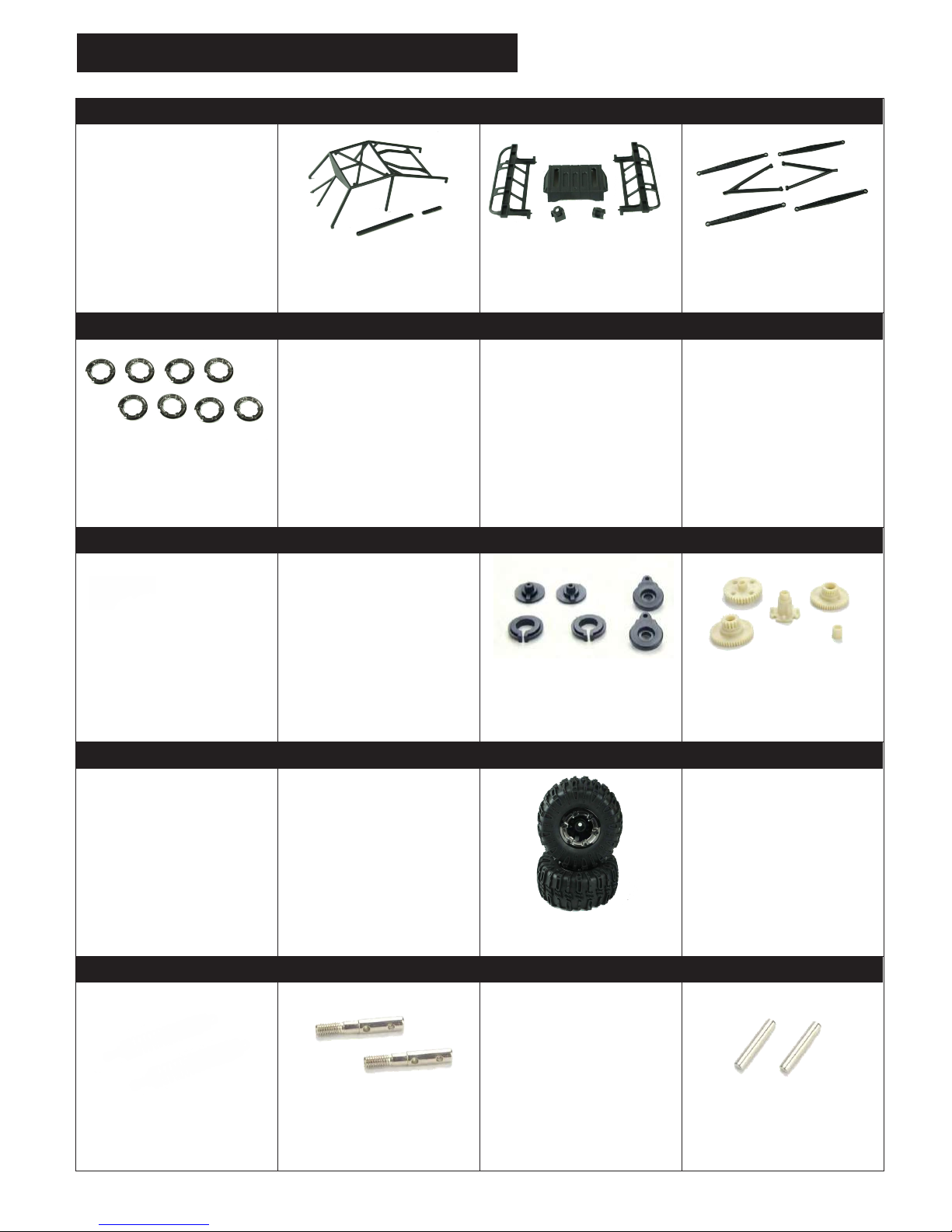

Chassis Roll Cage Lower Chassis Plate
and Slider Rails Suspension Links
Wheel Bead Lock Rings
(PLATED)
Axle Housings w/Motor
Guard
Steering Links + Rings Steering Hub Carriers
Steering Hubs Wheel Shaft Outdrive
Cups
Servo Saver Assembly Gears Assembly
Tires w/Foam InsertsWheels x 2 Driver Helmets
R5617 R5618 R5619 R5620
Aluminum Capped Oil
Filled Shocks
Threaded Wheel Axles Axle Shaft Pins Front Axle Shaft
Wheels/Tires Complete
(Plated Wheel Bead-lock)
R5613 R5614 R5615P R5616
R5605P R5606 R5607 R5608
R5601 R5602 R5603 R5604
R5609 R5610 R5611 R5612
RIDGEROCK
PARTS IDENTIFICATION - 1

R5625 R5626 HX-6CP R5628
PARTS IDENTIFICATION - 2
R5621 R5622 R5623 R5624
R5629TA R5630 R5631 R5632DECH
Front Axle Shaft Rear Axle Shaft Servo Saver Spring Ring Pinion Gears (8T)
Gear Pins 2*12 Wheel Shaft Pins 2*8 3-Wire Servo (6KGS) RC-380 Motor
Ball Stud 4.8*6.8 Ball Stud 4.8*7.8 Body (Blue)
Ball Stud 5.8 Wheel Hex (12mm) Wheel Hex Pin (2*10mm) E-Clip (2mm)
H013 H003 P010 P011
Ball Stud 4.8*11.2 Flange Lock Nut M4 Cable Ties (Large) Cable Ties (Small)
ESC/Receiver
(W/Tamiya Plug)
H016 P120 H022 H153

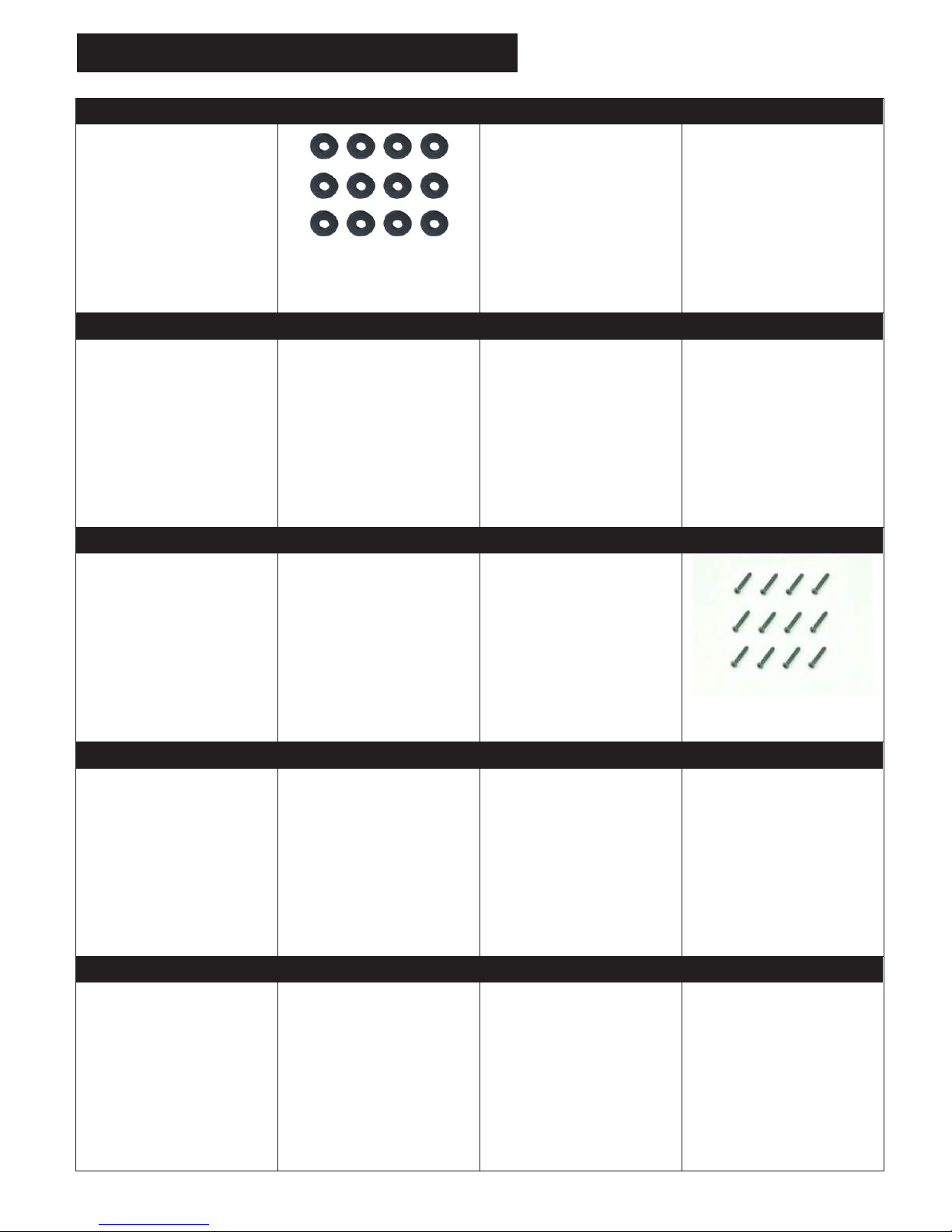

RIDGEROCK

H020 P100 H032 H007
59300 79513 S002 S004
S018 S030 S031 S051
Body Clip A/B- Large Body Post Pads Ball Bearing 4*7*2 Ball Bearing 5*11*4
Ball Bearing 5*9*3 Ball Bearing 7.95*13*3.5
S085 S089 S093 S101
S102 S107 S139 S160
Round Head Self
Tapping Screw 3*12mm
Round Head Self Tapping
Screw 3*18mm
Cap Head Screw
2*8mm
Round Head Self
Tapping Screw 2.3*6mm
Round Head Self Tapping
Screw 2.6*8mm
Round Head Self Tapping
Screw 3*10mm
Round Head Self
Tapping Screw 2*6mm
Round Head Screw
2.5*6mm
Round Head Self
Tapping Screw 3*15mm
Round Head Self Tapping
Screw 2.6*6mm
Flange Self Tapping
Screw 2.6*10mm
Flange Self Tapping
Screw 2.6*8mm
Countersunk Head Self
Tapping Screw 2*6mm
Round Head Self Tapping
Screw 2.6*15mm
PARTS IDENTIFICATION - 3RIDGEROCK

S215 S216
Step Screw 3*6.5-3.5*5 Step Screw 4*6.5-5*6.3
Li-ion Battery Pack
(7.4V, 1500mAH
W/Small Tamiya Plug)
USB Charger Spur Gear Spacer
PARTS IDENTIFICATION - 4
INCLUDED: There are two additional servo horns and asmall wrench included in this box. The additional
servo arms are optional parts, which differ in shape from the servo arms installed on the vehicle from the
factory. There is also a small "T" wrench to help tighten the wheel nuts or to remove/install the wheels.
ADDITIONAL ACCESSORIES:
Set Screw 2.5*2.5mm
12225TA 18859E-E001 R5635
S103
S097
Round Head Self
Tapping Screw 3*22mm
RIDGEROCK
