E17 YAK55 Instruction Manual
EPP Airplane Suggested Equipment
Motor: 2212 1400KV
ESC: 20A
Propeller: SF 9047
Servos: 9g*4
Battery: 3s 1500mAh
Radio≥4CH
Speci�ication
Wingspan: 800mm
Length: 867mm
Flying Weight≈400g
推荐配置
马达: 2212 1400KV
电调: 20A
桨叶: SF 9047
舵机: 9g*4
电池: 3s 1500mAh
通道≥4CH
参数
翼展: 800mm
机长: 867mm
起飞重量≈400g
Preparation Tool
Power System（Optional）动力配件（选配）

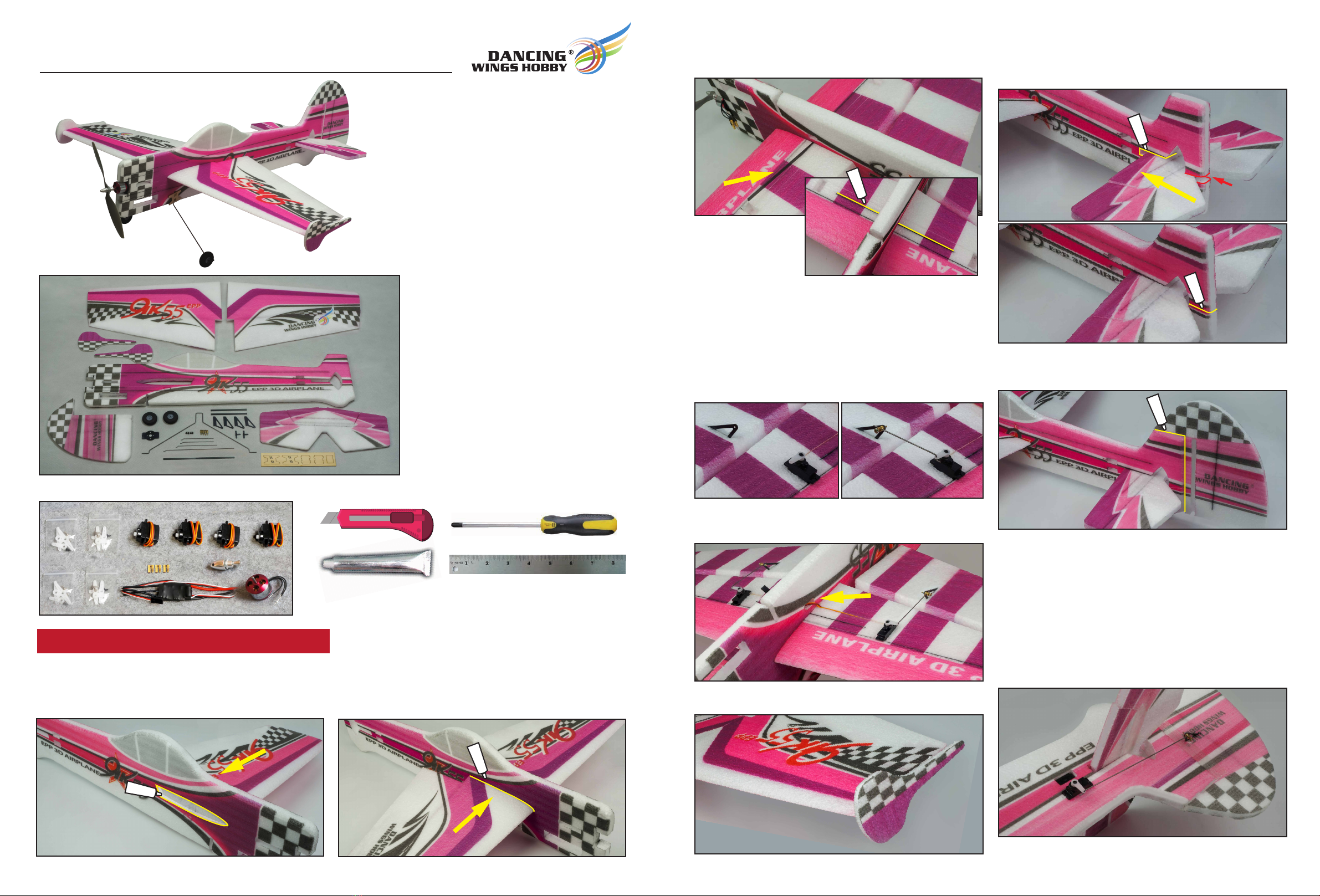

How to Assemble
安装步骤
A1
A2
B
C1
C2
D1 D2
E
F1
F2
G
I
K
L
JD3
1.在机身（B）机翼安装孔和机翼（A1）切面涂泡沫胶，然后把机翼
插入机身。
Smear the foam glue along the installation hole of the fuselage
B and wing A1 section,insert the wing into the fuselage.
2.插入另一半机翼，粘合牢固，并调整机翼平直定型，保持与机身垂
直。
Insert and glue the other wing,adjust the wing,make sure it's
straight and vertical with fuselage.
Glue
Glue
3.待上一步胶水干后，在机翼预留的切口内嵌入碳片（F2），并用泡
沫胶粘合固定。
After the glue is dry,insert and glue the carbon plate F2 inside
the reserved cut on the wing.
4.在机翼背面舵机预留孔内安装舵机，用胶水粘合，把舵机线埋入预
切槽内。在副翼上对应位置安装舵角，用胶水粘合。
Install and glue the servos inside the reserved hole on the
back of the wing,bury the servo wires into the groove;install
and glue the servo horns on the aileron.
5.在舵角上安装快装接头，用Z型钢丝连杆连接舵臂与舵角，并用快
装接头锁定连杆。
Install the EZ-conectors on the servo horns,connect the servo
arm and horn with Z-shape steel wire linkage,lock the linkage
by EZ-connectors.
Glue
6.安装好两边舵机后，把舵机线从机身上开孔处穿入，整理到同一侧。
After the both servos are installed,penetrate the servo wires
through the hole on the fuselage and collect on the same side.
7.在机翼两侧粘贴A2，如下图。
Paste the A2 on both sides of the wing as picture shown.
8.在机身尾部用刀切开一个开口，然后装入水平尾翼（C2），用泡沫
胶粘合固定住，并调整水平尾翼与机身垂直，最后用胶水封住切口。
Cut a slit at the end of the fuselage by a knife,install the
horizontal tail C2,adjust and keep it vertical with
fuselage,finally seal the slit with glue.
Glue Glue
切开
CUT
9.在机身尾部粘贴垂直尾翼，用泡沫胶粘合，与机身保持平直。
Paste the vertical tail at the end of the fuselage,adjust and
keep it straight with fuselage.
10.在机身尾部舵机预留槽内安装舵机，用泡沫胶粘合。把舵角安装到
转向舵和升降舵，在舵角上安装快装接头，用Z型钢丝连杆连接舵臂与
舵角，并用快装接头锁定连杆。
Install and paste the servos into the reserved hole on the
tail;install the servo horns on the horizontal and vertical
tail,install the EZ-connectors on the servo horn,connect the
servo arm and horn with Z-shape steel wire linkage,lock the
linkage by EZ-connectors.
11.把舵机线埋入机身预切的槽内，整理舵机线汇总到步骤5的舵机线
处。
Bury the servo wires inside the reserved the groove,and collect
the servo wires together with ones from step 5.
Glue
A1-2:机翼部件 Wing parts
B:机身部件 Fuselage parts
C1:垂直尾翼 Vertical tail
C2:水平尾翼 Horizontal tail
D1:机轮 wheel
D2:起落架钢丝 Steel wire of landing gear
E:马达座 Motor mount
F1-2:碳片 Carbon plate
G:钢丝连杆 Steel wire linkage
I:舵角 servo horn
J:螺丝 screws
K:快装接头 EZ-connector

12.用桨夹把桨叶固定到马达上，然后把马达安装马达座上，用螺丝
固定马达。
Fix the propeller with adapter,install the motor onto the motor
mount and fix with screws.
舵机线埋入
Bury the servo wires
螺丝
screws
13.把步骤11装好的马达固定到机身头部，并卡入预埋的碳片内以固定
住，用泡沫胶粘合加固。
Install the motor onto the head of the fuselage,stuck into the
pre-bury carbon plates,finally seal with foam glue.
14.在另外一面，嵌入2个碳片并卡住马达座，调整马达到合适角度后，
用胶水粘合固定住。
On the other side,insert two carbon plates and stuck the motor
mount,adjust the motor at suitable angle and fix with glue.
15.从木件L上取下如下部件，如图拼装在一起，组成起落架固定座。
然后把钢丝起落架嵌入固定住。各连接部件用502胶水粘合。
Take off the following parts from wood L,and assemble as a
landing gear mount;Insert the steel wire landing gear and glue
at junctions with 502.
16.把装好的起落架安装到机身，用泡沫胶粘合固定。
Install and glue the landing gear onto the fuselage.
17.在起落架钢丝上安装机轮。
Install the wheels on the steel wire of the landing gear.
18.安装电子设备。下图标记出电子设备安装位置，供参考。
Install the power system,mark out the suggested positions for
your reference as picture shown below.
19.调整飞机重心，即可试飞。
Adjust the C.G,and test flight.
ESC
battery
电调线埋入
Bury the ESC wires
≈70mm
C.G
finish
