Danfoss FC 300 Interbus User manual

Contents
2. Introduction
5
About this Manual 5
Technical Overview 5
Assumptions 5
Hardware 5
Background Knowledge 5
Abbreviations 6
3. How to Install 7
Cabling 7
Installation of Option 8
LEDs 10
Configure the FC 300 11
4. How to Configure the System 13
Configure the Interbus Network 13
5. How to Control the FC 300 17
Process Data 17
The Drivecom State Machine 21
Drivecom 21 Control Profile 24
Danfoss FC Control Profile 26
6. How to Access the FC 300 Parameters 31
PCP Communication 31
7. Parameters 33
Data Types Supported by FC 300 39
8. Troubleshooting 41
LED Behaviour Stopped Interbus Comm. 43
Index
44
FC 300 Interbus Operating Instructions Contents
MG.33.H3.02 - VLT is a registered Danfoss trademark 1

1. Safety Note - FC 300 Interbus FC 300 Interbus Operating Instructions
2 MG.33.H3.02 - VLT is a registered Danfoss trademark
1

1.1.1. Copyright, Limitation of Liability and Revision Rights
This publication contains information proprietary to Danfoss A/S. By accepting and using this manual the user agrees that the information contained
herein will be used solely for operating equipment from Danfoss A/S or equipment from other vendors provided that such equipment is intended for
communication with Danfoss equipment over an Interbus serial communication link. This publication is protected under the Copyright laws of Denmark
and most other countries.
Danfoss A/S does not warrant that a software program produced according to the guidelines provided in this manual will function properly in every
physical, hardware or software environment.
Although Danfoss A/S has tested and reviewed the documentation within this manual, Danfoss A/S makes no warranty or representation, either express
or implied, with respect to this documentation, including its quality, performance, or fitness for a particular purpose.
In no event shall Danfoss A/S be liable for direct, indirect, special, incidental, or consequential damages arising out of the use, or the inability to use
information contained in this manual, even if advised of the possibility of such damages. In particular, Danfoss A/S is not responsible for any costs including
but not limited to those incurred as a result of lost profits or revenue, loss or damage of equipment, loss of computer programs, loss of data, the costs
to substitute these, or any claims by third parties.
Danfoss A/S reserves the right to revise this publication at any time and to make changes in its contents without prior notice or any obligation to notify
previous users of such revisions or changes.
FC 300 Interbus Operating Instructions 1. Safety Note - FC 300 Interbus
MG.33.H3.02 - VLT is a registered Danfoss trademark 3
1

1.2. Safety Note
The voltage of the frequency converter is dangerous whenever connected to mains. Incorrect installation of the motor, frequency
converter or fieldbus may cause damage to the equipment, serious personal injury or death. Consequently, the instructions in this
manual, as well as national and local rules and safety regulations, must be complied with.
1.2.1. Safety Regulations
1. The frequency converter must be disconnected from mains if repair work is to be carried out. Check that the mains supply has been disconnected
and that the necessary time has passed before removing motor and mains plugs.
2. The [OFF] key on the control panel of the frequency converter does not disconnect the equipment from mains and is thus not to be used as a
safety switch. 3. Correct protective earthing of the equipment must be established, the user must be protected against supply voltage, and the
motor must be protected against overload in accordance with applicable national and local regulations.
3. Correct protective earthing of the equipment must be established, the user must be protected against supply voltage, and the motor must be
protected against overload in accordance with applicable national and local regulations.
4. The earth leakage currents are higher than 3.5 mA.
5. Protection against motor overload is not included in the factory setting. If this function is desired, set par. 1-90 Motor
Thermal Protection to
data value
ETR trip or data value ETR warning . Note: The function is initialised at 1.16 x rated motor current and rated motor frequency. For
the North American market: The ETR functions provide class 20 motor overload protection in accordance with NEC.
6. Do not remove the plugs for the motor and mains supply while the frequency converter is connected to mains. Check that the mains supply has
been disconnected and that the necessary time has passed before removing motor and mains plugs.
7. Please note that the frequency converter has more voltage inputs than L1, L2 and L3, when load sharing (linking of DC intermediate circuit) and
external 24 V DC have been installed. Check that all voltage inputs have been disconnected and that the necessary time has passed before
commencing repair work.
1.2.2. Warning Against Unintended Start
1. The motor can be brought to a stop by means of digital commands, bus commands, references or a local stop, while the frequency converter
is connected to mains. If personal safety considerations make it necessary to ensure that no unintended start occurs, these stop functions are
not sufficient.
2. While parameters are being changed, the motor may start. Consequently, the stop key [STOP/RESET] must always be activated; following which
data can be modified.
3. A motor that has been stopped may start if faults occur in the electronics of the frequency converter, or if a temporary overload or a fault in
the supply mains or the motor connection ceases.
1.2.3. Warning
Touching the electrical parts may be fatal - even after the equipment has been disconnected from mains.
Also make sure that other voltage inputs have been disconnected, such as external 24 V DC, load sharing (linkage of DC intermediate circuit), as well as
the motor connection for kinetic back up.
Please refer to the relevant Operating Instructions for further safety guidelines.
1. Safety Note - FC 300 Interbus FC 300 Interbus Operating Instructions
4 MG.33.H3.02 - VLT is a registered Danfoss trademark
1

2. Introduction
2.1.1. About this Manual
First time users can obtain the most essential information for quick installation and set-up in these chapters:
Introduction
How to Install
How to Configure the System
For more detailed information including the full range of set-up options and diagnosis tools please refer to the chapters:
How to Control the FC 300
How to Access FC 300 Parameters
Parameters
Troubleshooting
2.2.1. Technical Overview
The Interbus system is divided into two different systems: remote and local.
The remote system enables the user to connect up to 256 stations on a single system with a maximum of 400m cable length between stations.
The local bus system enables the user to establish communication to Input/Output devices through a single twisted pair of Cables. This type of commu-
nication typical uses simple devices, e.g. Digital I/O devices.
The Interbus option described in this manual supports remote bus only. For communication on the remote bus, the Interbus system provides two different
types of communication: Process Data and PCP (Peripherals Communication Protocol). The Process Data is cyclic communication to devices with high
priority.
Examples of this type of communication are digital and analogue I/O or control word and reference to frequency converters.
PCP communication is used for communications which do not require high speed and typically only are activated on request from the user-written program.
Typical time to read/write a single value is 100 to 200 milliseconds. Examples of this type of communication are configuration data, or reading of service
parameters such as running hours, numbers of power ups and kWh.
2.3.1. Assumptions
This manual assumes that you are using a Danfoss Interbus Option in conjunction with a Danfoss FC 300 Automation Drive. It is also assumed that your
master is a PLC or PC that is equipped with a serial communication card supporting all the Interbus communication services required by your application,
and that all requirements stipulated in the Interbus standard as well as those set up in the Drivecom frequency converter Profile and its company-specific
implementation, as well as those pertaining to the VLT frequency converter are strictly observed as well as all limitations therein fully respected.
2.4.1. Hardware
This manual relates to the Interbus option type no. 130B1211.
2.5.1. Background Knowledge
The Danfoss Interbus Option is designed to communicate with any master abiding by the Interbus standard. It is therefore assumed that you have full
knowledge of the PC or PLC you intend to use as a master in your system. Any questions pertaining to hardware or software produced by any other
manufacturer are beyond the scope of this manual and are of no concern to Danfoss.
If you have questions about how to set up master-to-master communication or communication to a non-Danfoss slave, please consult the appropriate
manuals.
FC 300 Interbus Operating Instructions 2. Introduction
MG.33.H3.02 - VLT is a registered Danfoss trademark 5
2

The following literature is available for the , 200 and series.
Title Literature no.
Operating Instructions MG.11.AX.YY
Design Guide MG.11.BX.YY
Programming Guide MG.11.CX.YY
VLT AQUA Drive FC 200 Operating Instructions MG.20.NX.YY
VLT AQUA Drive FC 200 Design Guide MG.20.MX.YY
VLT AQUA Drive FC 200 Programming Guide MG.20.OX.YY
VLT AutomationDrive FC 300 Operating Instructions MG.33.AX.YY
VLT AutomationDrive FC 300 Design Guide MG.33.BX.YY
VLT AutomationDrive FC 300 Programming Guide MG.33.MX.YY
VLT AutomationDrive , 200 and 300 PROFIBUS Operating Instructions MG.33.CX.YY
VLT AutomationDrive , 200 and 300 DeviceNet Operating Instructions MG.33.DX.YY
VLT AutomationDrive FC 300 MCT 10 Software Dialogue MG.33.EX.YY
PROFIBUS DP V1 Design Guide MG.90.EX.YY
2.7.1. Abbreviations
ACK ACKnowledge
BOOL Boolean
CTW Control Word
EDS Electronic Data Sheet
EMC Electromagnetic Compatibility
HF High Frequency
HPFB High Performance Field Bus
IBS Interbus
I/O Input/Output
LCD Liquid Crystal Display
LCP Local Control Panel
LED Light Emitting Diode
LSB Least Significant Bit
MSB Most Significant Bit
MAV Main Actual Value
MRV Main Reference Value
N/A Not applicable
PC Personal Computer
PCD Process Data
PCP Peripherals Communication Protocol
PIW Peripheral input word
PLC Programmable Logic Control
PNU Parameter NUmber
PPO Parameter-Process Data Object
SINT Signed integer
STW Status Word
VSD Variable Speed Drive
UDINT Unsigned double integer
UNIT Unsigned integer
2. Introduction FC 300 Interbus Operating Instructions
6 MG.33.H3.02 - VLT is a registered Danfoss trademark
2

3. How to Install
3.1.1. Cabling

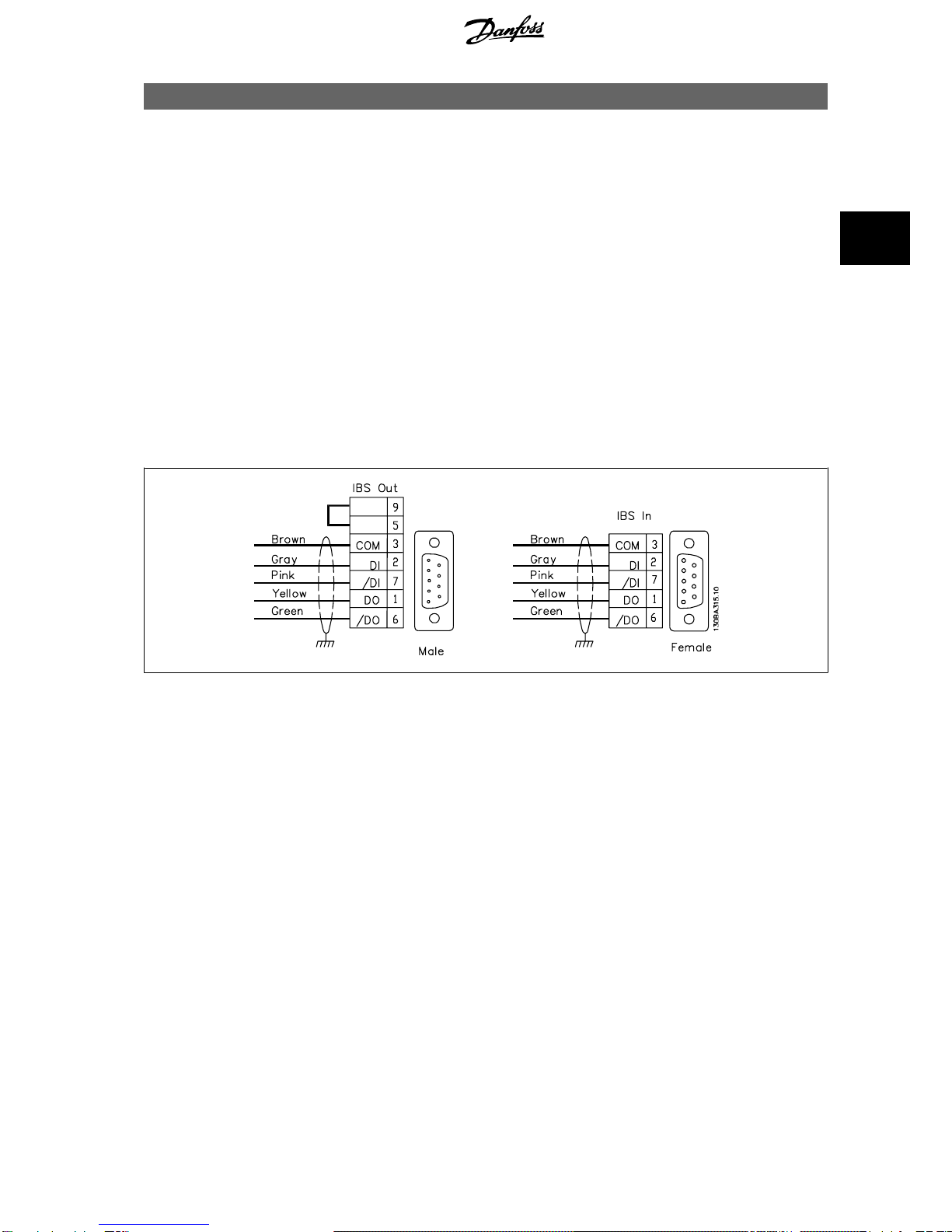

The Interbus network topology is based on a logical ring structure, implemented in a one-cable structure, making a physical bus structure with a bit rate
of 500 kbps.
Interbus supports networks with a total cable length of up to 12.8 km, with a maximum of 400 meters between nodes.
The maximum cable length is only achievable when the bus cable has the following properties:
Impedance: 120 ohm ±20% @ 64kHz, 100 ohm ±15% @ >1 MHz.
Resistance: < 9.6 ohm/100 m
Capacity: < 60 nF/km
Cross section: minimum 0.2 mm2, corresponding to AWG 25
Cable type: twisted in pairs, 3 x 2 wires
Screening: Copper-braided screen or braided screen and foil screen
Use of the same cable type throughout the entire network is recommended in order to avoid impedance mismatch.
The Interbus option has two network interfaces, one for the incoming bus and one for the outgoing bus. Both are D-sub 9 type.
FC 300 Interbus Operating Instructions 3. How to Install
MG.33.H3.02 - VLT is a registered Danfoss trademark 7
3

3.2.1. EMC Precautions
The following EMC precautions are recommended in order to achieve interference-free operation of the Interbus network. Additional EMC information is
available in the FC 300 series Operating Instructions (MG33AXYY) and Design Guide (MG33BXYY).
NB!
Relevant national and local regulations, for example regarding protective earth connection, must be observed.
The Interbus communication cable must be kept away from motor and brake resistor cables to avoid coupling of high frequency noise from one cable to
the other. Normally a distance of 200 mm (8 inches) is sufficient, but maintaining the greatest possible distance between the cables is recommended,
especially where cables run in parallel over long distances. If the Interbus cable has to cross a motor and brake resistor cable they must cross each other
at an angle of 90 degrees.
3.3.1. Installation of Option
The Interbus option is installed in its own cabinet, designed for DIN-rail mounting.
The option is connected to the FC 302 via terminal X22 on the option to terminal 68 and 69 on the frequency converter. Screened cable is recommended
(120 cm cable supplied with frequency converter).
3. How to Install FC 300 Interbus Operating Instructions
8 MG.33.H3.02 - VLT is a registered Danfoss trademark
3

The RS-485 termination switch on the FC 300 (BUS-TER.) must be set to “ON”.
Interbus option FC 302

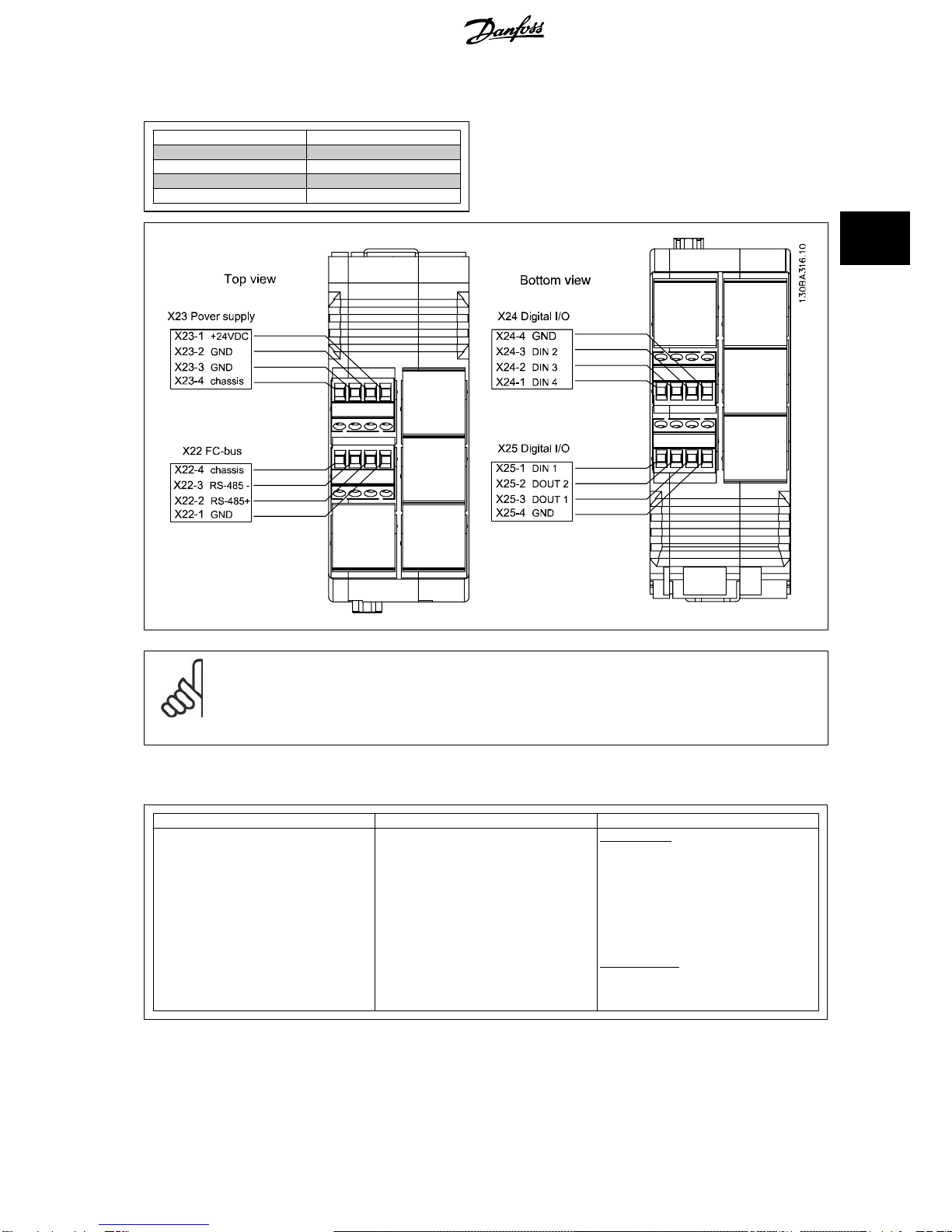

X22-1 61 (RS 485 com)
X22-2 68 (RS 485 +)
X22-3 69 (RS 485 -)
X22-4 chassis on FC 300
NB!
Grounding of the Interbus option is mandatory and can be achieved in several ways:
-Via the DIN-rail
-Via the connections X23-4 or X22-4
3.3.2. I/O Specifications
X22: FC-bus X23: Power supply X24+25: Digital I/O
RS-485 Voltage level: 24 V dc ± 15%
Current consumption: max. 160 mA ex-
cluding load on digital outputs.
Digital inputs:
Voltage level: 0-24 V DC
Voltage level, logic “0”:< 5 V DC
Voltage level, logic “1”:> 9 V DC
Maximum input voltage: 28 V DC
Minimum input voltage: -28 V DC
Frequency range: DC to 250 Hz
Duty cycle min. pulse width: 2 ms
Input resistance: approx. 4 kΩ
Digital outputs:
Voltage level: 0-24 V DC (open collector
PNP) short-circuit protected.
Maximum output current: 25 mA
FC 300 Interbus Operating Instructions 3. How to Install
MG.33.H3.02 - VLT is a registered Danfoss trademark 9
3

3.3.3. General Specifications
Operating temperature ÷10 - +55°C
Max. relative humidity 5% - 95% non condensing
Enclosure IP 20
3.4.1. LEDs

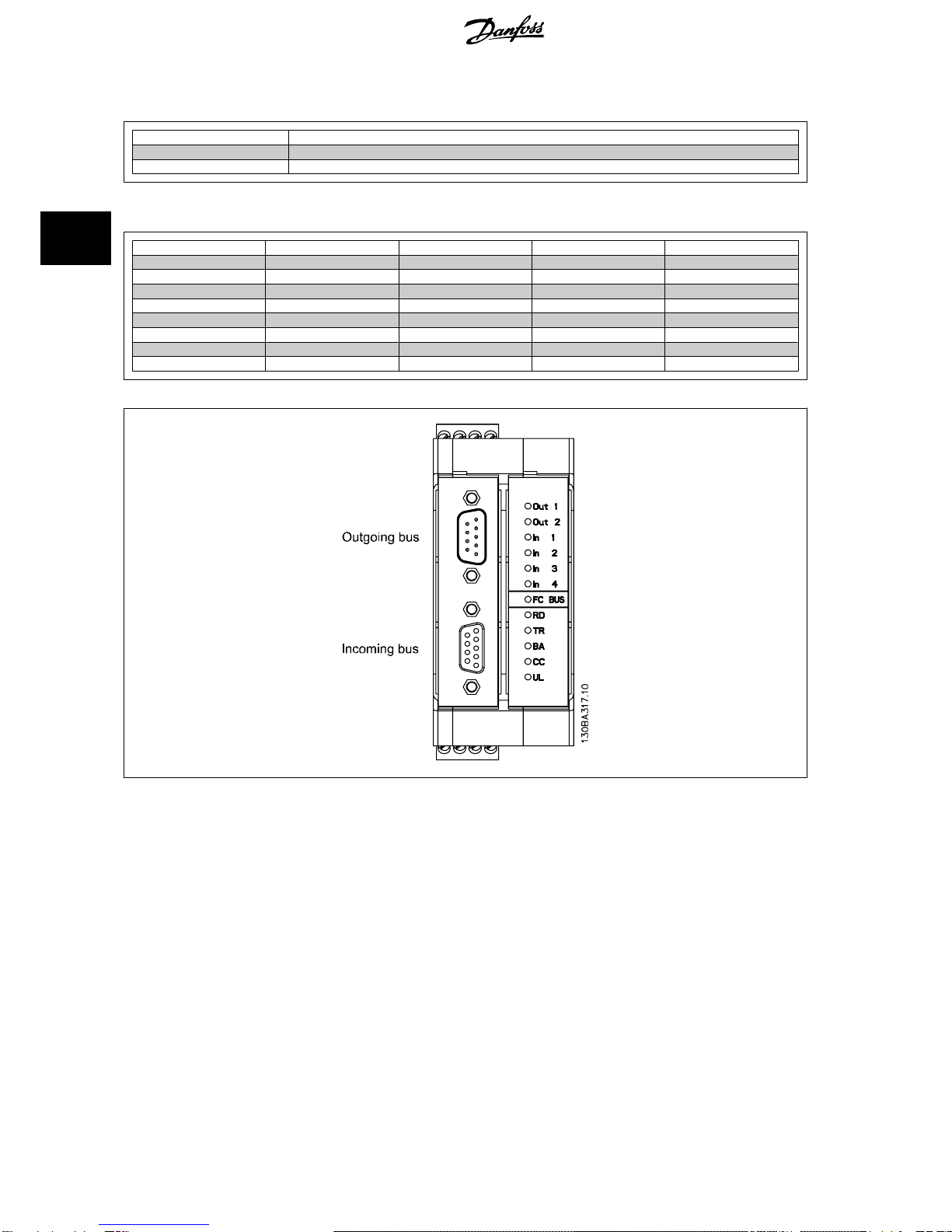

Name Colour Indicates ON OFF
Out 1 - Out 2 Green State of outputs* Output high Output low
In 1 - In 4 Green State of inputs Input high Input low
FC BUS Green Activity on FC-Bus
RD Red Status of outgoing bus Out. bus stopped Out. bus active
TR Green Transmit/Receive PCP comm. running No PCP comm.
BA Green Bus Active Bus active Bus stopped
CC Green Cable check Incoming bus active Incoming bus off
UL Green Power O.K. Voltage O.K. No voltage
*= Flashing by external short circuit.
3. How to Install FC 300 Interbus Operating Instructions
10 MG.33.H3.02 - VLT is a registered Danfoss trademark
3

3.5. Configure the FC 300
3.5.1. VLT Parameters
Pay particular attention to the following parameters when configuring an FC 300 with an Interbus interface. Please refer to the Parameters chapter for
more details of each parameter.
3.5.2. Basic Communication Parameters
These parameters are necessary to establish communication between the Interbus option and the FC 300.
Parameter Parameter name Setting
8-01 Control Site [0] Control Word only
8-32 FC Port Baud Rate [4] 38400 baud
8-35 Minimum Response Delay 1 ms
The Interbus option is capable of operating with two different telegram-types for process data:
• Standard Telegram 1, is a telegram with 4 PCD’s. The two first PCD’s is for holding Control word and reference for Master-to-slave comm. And
Status word and Main Actual Value for Slave-to-master comm. The last two PCD’s (3 and 4) is reserved for future use, and contains only 0’s.
• Custom Telegram 1, is a telegram with 4 PCD’s that in addition also holds information on digital and analogue I/O’s and torque limit.
3.5.3. Standard Telegram 1
In order to interface with the Interbus option, running Standard Telegram 1, the following parameters must be set on the FC 300:
Parameter Parameter name Setting
8-40 Telegram Selection [1] Standard Telegram 1
3-15 Reference Resource 1 [0] No Function
3-16 Reference Resource 2 [0] No Function
8-10 Control Word Profile [0] FC profile
[1] PROFIdrive profile (= Drivecom)
NB!
Setting par. 8-10 to [1] PROFIdrive profile, enables the Drivecom Profile on the Interbus option, i.e. Control word and Status word are
interpreted as Drivecom.
Setting par. 8-10 to [0] FC Profile will enable the FC profile on the frequency converter.
See section
How to Control the FC 300 for more information on the different profiles.
FC 300 Interbus Operating Instructions 3. How to Install
MG.33.H3.02 - VLT is a registered Danfoss trademark 11
3

3.5.4. Custom Telegram 1
In order to interface with the Interbus option, running Custom Telegram 1, the following parameters must be set on the FC 300:
Parameter Parameter name Setting
8-40 Telegram Selection [200] Custom Telegram 1
3-15 Reference Resource 1 [0] No Function
3-16 Reference Resource 2 [0] No Function
5-01 Terminal 27 mode [1] Output
5-02 Terminal 29 mode [1] Output
5-10 Terminal 18 Digital Input [0] No Operation
5-11 Terminal 19 Digital Input [0] No Operation
5-12 Terminal 27 Digital Input [0] No Operation
5-15 Terminal 33 Digital Input [0] No Operation
5-30 Terminal 27 Digital Output [45] Bus controlled
[46] Bus controlled, 1 if timeout
[47] Bus controlled, 0 if timeout
5-31 Terminal 29 Digital Output [45] Bus controlled
[46] Bus controlled, 1 if timeout
[47] Bus controlled, 0 if timeout
5-40 [0] Function Relays, Relay 1 [45] Bus controlled
[46] Bus controlled, 1 if timeout
[47] Bus controlled, 0 if timeout
5-40 [1] Function Relays, Relay 2 [45] Bus controlled
[46] Bus controlled, 1 if timeout
[47] Bus controlled, 0 if timeout
8-10 Control Word Profile [0] FC profile
[1] PROFIdrive profile (= Drivecom)
NB!
If the Interbus option is powered up without connection to a FC300 frequency converter, it will run Standard Telegram 1.
This means that it will not be possible to use any I/O’s.
NB!
For the digital- and relay-outputs the reaction in case of a bus-timeout can be selected.
Bus ctrl. [45]: The output is controlled via bus. In case of a bus-timeout the output state is kept at the last known state.
Bus ctrl. 1 if timeout [46]: The output is controlled via bus. In case of a bus-timeout the output state is set to logical 1.
Bus ctrl. 0 if timeout [47]: The output is controlled via bus. In case of a bus-timeout the output state is set to logical 0.
NB!
Setting par. 8-10 to [1]
PROFIdrive profile , enables the Drivecom Profile on the Interbus option, i.e. Control word and Status word are
interpreted as Drivecom.
Setting par. 8-10 to [0]
FC Profile will enable the FC profile on the frequency converter.
See section
How to Control the FC 300 for more information on the different profiles.
NB!
Par. 0-40 [Hand on] key on LCP.
If the Hand button on the FC 300 is activated, control of the frequency converter via the Interbus interface is disabled.
3. How to Install FC 300 Interbus Operating Instructions
12 MG.33.H3.02 - VLT is a registered Danfoss trademark
3

4. How to Configure the System
4.1.1. Configure the Interbus Network
This section describes how to set up Interbus communication between a Danfoss FC 300 frequency converter and the Phoenix Interbus CMD G4.
4.1.2. Configuring of the CMD and FC 300
The first step is to connect all Interbus slaves to the master and power
up all units. Start the IBS CMD software and choose a new project from
File and New. The screen should now look like this:
The next step is to read the slaves into the bus system. Click on Config-
uration frame and click on the right mouse button. Select Read In (from
memory).
The state will be changed from Offline to Online when the Read In is
finished. Please look at the bottom of the screen. After the Read In, CMD
will indicate each VLT frequency converter with a DriveCom symbol, a
station number and an ID number.
The next step is to configure the Interbus system. This is done by clicking
on the VLT symbol and pressing the right mouse button. Select:
Descrip-
tion
.
Here it is possible to type in a Station name, Device name and a Device
number. Click on:
Parameter Channel .
For message length transmit and receive enter 246 byte and select Get-
OD (long format). The message length now corresponds to the internal
buffer in the VLT frequency converter. Get-OD (long format) means that
the master will read the English parameter description text from the VLT
frequency converter. Press OK twice.
FC 300 Interbus Operating Instructions 4. How to Configure the System
MG.33.H3.02 - VLT is a registered Danfoss trademark 13
4

4.1.3. Setting up PCP Communication
Via the CMD tool it is possible to read and write to parameters, and read
the English parameter text of each parameter.
To start PCP communication you must be in Monitor state.
Click on the station number and click on the right mouse button and
choose: Device
Parameterization .
The dialog box will now show Danfoss, VLT FC 300, Profile: 21.
In order to be able to read all parameters into the frequency converter,
select:
Device and Read Parameter List .
The CMD tool will now start reading all parameters, which takes 3-4 mi-
nutes.
When all parameters have been read, CMD will show the first parameter
55F1hex Par. 1 at the first row.
55F1hex corresponds to 22001dec.
This means that all FC 300 parameters can be accessed simply by adding
22000dec to the FC 300 parameter.
For example if you want to write to par. 3-41
Ramp 1 ramp up time , you
must write to 22341dec (5745hex).
The CMD tool can only indicate parameters using hexadecimal numbers.
The two first indexes are for handling the “Max Torque Limit” (par. 4-16
and 4-17) when running Custom Telegram 1.
If you want to change the value of par. 3-41 Ramp 1 ramp up time to 10
sec you must write 1000 in column next to index 5745 Hex.
You have to enter 1000 because par. 3-41 has a conversion index of -2
(= 0.01). Highlight the row and click on F5 Write Value.
The ramp up time in par. 3-41 has now been changed to 10 sec.
To activate the new settings with PCD, the CMD needs to read the con-
figuration from the VLT frequency converter again.
Click on the controller board and select Process data. The Process data
should now be 64 bits, corresponding to 4 words: control word, reference,
PCD 1 and PCD 2.
4. How to Configure the System FC 300 Interbus Operating Instructions
14 MG.33.H3.02 - VLT is a registered Danfoss trademark
4

When the system is running, change the state to: Monitor .
Click on the controller board and select:
Address Monitor .
The Address Monitor shows the I/O area.
E0 Input:
Shows the status word from the frequency converter.
A0 Output:
Is used for sending the control word to the frequency converter.
E2 Input:
Shows the actual output frequency of the frequency converter.
A2 Output:
This I/O area is used to send a speed reference to the frequency con-
verter.
N.B:
Custom Telegram 1 only ! For Standard
telegram 1 the below I/O’s contain no
data.
E4 Input (PCD 3 read):
This I/O area reads the digital inputs. (See section:
Process
Data
.)
A4 Output (PCD 4 write):
Writes settings to digital outputs. (See section:
Process Da-
ta
.)
E6 Input (PCD 3 read):
This I/O area reads the analogue inputs. (See section:
Process Data .)
A6 Output (PCD 4 write):
This I/O area is used to send a torque limit to the frequency
converter. (See section:
Process Data .)
NB!
I/O area: E/A 4 to 6 apply only for Custom Telegram 1.
For Standard Telegram 1 these I/O’s contains no data.
See section
How to Control the FC 300 for more information on the different profiles.
The frequency converter is now set up and the program can be down-
loaded to the PLC master.
This is done by clicking with the right mouse button on the Controller
board.
Select:
Parameterization and Execute .
After the parameterization is done, the master will start to run. If you are
using a Siemens S7 or S5 master, the LCD will look like this:
FC 300 Interbus Operating Instructions 4. How to Configure the System
MG.33.H3.02 - VLT is a registered Danfoss trademark 15
4

4.1.4. Drivecom Profile
The Interbus option has implemented the Drivecom control profile.
By changing the operating state from Online to Monitor it is possible to
write the control word and reference to the frequency converter. In Mon-
itor mode it is also possible to read and write to parameters.
NB!
The Drivecom profile is only active if the PROFIdrive
profile has been selected in par. 8-10
Control Word
Profile
.
Now the built in Drivecom monitor in the CMD tool can be started by right-
clicking on the controller board and selecting
Drivecom .
The Drivecom monitor will now show Danfoss, VLT FC 300, Profile: 21,
in the upper left corner.
The Drivecom monitor is split up into three parts:
Analog Display, Control Word and Status word.
In the Analog Display part the reference can be set.
In the Control word part, start and stop-commands can be send to the
frequency converter.
In the Status word part the actual status word from the frequency con-
verter is read out. By clicking Settings you can setup the Drivecom
monitor.
Click on Device Control to begin controlling the VLT frequency converter.
Please note that the control word will change when the state changes.
Click 4 for Ready to Switch On and click 2 for Switch On.
Upon clicking 5 the VLT frequency converter should start the motor.
The control word is now 7F Hex.
Press Close.
4. How to Configure the System FC 300 Interbus Operating Instructions
16 MG.33.H3.02 - VLT is a registered Danfoss trademark
4

5. How to Control the FC 300
5.1.1. Process Data
The Process Data provides an agile way of controlling the FC 300 frequency converter. Two different telegram-types are for process data are supported:
• Standard Telegram 1, is a telegram with 4 PCD’s. The two first PCD’s is for holding Control word and reference for Master-to-slave comm. And
Status word and Main Actual Value for Slave-to-master comm. The last two PCD’s (3 and 4) is reserved for future use, and contains only 0’s.
• Custom Telegram 1, is a telegram with 4 PCD’s that in addition also holds information on digital and analogue I/O’s and torque limit.
See section
How to Install for more information on how to select the different telegram profiles.
5.1.2. Standard Telegram 1
The Process Data length is fixed to 4 words, each of two bytes, with the following format:
Master slave→
PCD Name Function
1Control Word Sends the Control Word to the frequency converter. The format depends of the setting of par.
8-10.
2Reference Sends the reference in %. See section: Bus speed reference value .
Slave master→
PCD Name Function
1Status Word Sends the Status word from the frequency converter. The format depends of the setting of par.
8-10.
2Actual value Sends actual output frequency in %. See section: Bus speed reference Value .
FC 300 Interbus Operating Instructions 5. How to Control the FC 300
MG.33.H3.02 - VLT is a registered Danfoss trademark 17
5

5.1.3. Custom Telegram 1
The Process Data length is fixed to 4 words, each of two bytes, with the
following format:
5. How to Control the FC 300 FC 300 Interbus Operating Instructions
18 MG.33.H3.02 - VLT is a registered Danfoss trademark
5

Master slave→
PCD Name Function
1Control Word Sends the Control Word to the frequency converter. The format depends of the setting of par.
8-10.
2Reference Sends the reference in %. See section: Bus speed reference value .
3Digital outputs
(bit=1 output=high)→
Bit 0: Output 27
Bit 1: Output 29
Bit 2: Relay 1
Bit 3: Relay 2
Bit 4-13: Reserved
Bit 14: Output DOUT 1 (X25-2) on Interbus option
Bit 15: Output DOUT 2 (X25-3) on Interbus option
4Torque Sets torque limits in Motor and Generator mode, par. 4-16 and 4-17.
N.B.: A value of “0” (zero) is not accepted, but discarded by the option.
FC 300 Interbus Operating Instructions 5. How to Control the FC 300
MG.33.H3.02 - VLT is a registered Danfoss trademark 19
5

Slave master→
PCD Name Function
1Status Word Sends the Status word from the frequency converter. The format depends of the setting of
par. 8-10.
2Actual value Sends actual output frequency in %. See section: Bus speed reference Value .
3Digital inputs (bit=1 →
input=high)
Bit 0: Input 33
Bit 1: Input 32
Bit 2: Input 29
Bit 3: Input 27
Bit 4: Input 19
Bit 5: Input 18
Bit 6-11: Reserved
Bit 12: Input DIN 1 (X25-1) on Interbus option
Bit 13: Input DIN 2 (X24-2) on Interbus option
Bit 14: Input DIN 3 (X24-3) on Interbus option
Bit 15: Input DIN 4 (X24-4) on Interbus option
4Analogue input Reads out analogue input 53 as an absolute value. Term.53 can work as a voltage (0-10V) or
a current (0-20mA) input, depending on the setting of S201.
S201=0 voltage, S201=1 current.→→
NB!
If the connection to the Interbus master is lost, all outputs on the Interbus option are set to 0.
NB!
Setting par. 8-10 to [1]
PROFIdrive profile , enables the Drivecom Profile on the Interbus option, i.e. Control word and Status word are
interpreted as Drivecom.
Setting par. 8-10 to [0]
FC Profile will enable the FC profile on the frequency converter.
See section
How to Control the FC 300 for more information on the different profiles.
NB!
If the Interbus option is powered up without connection to a FC300 frequency converter, it will run Standard Telegram 1. This means
that it will not be possible to use any I/O’s.
Examples:
Setting the torque limit in PCD 4 (master slave):
→
Conversion index is -1.
500hex = 1280dec = 128% torque.
Reading the analogue input in PCD 4 (slave master):
→
Conversion index is -3.
3456dec = 3,456 volt.
5.1.4. Timing of PCDs
Function Time
CTW, MRV, STW, MAV 15ms from sending CTW/MRV until receipt of STW/MAV
Update of I/O on frequency converter 60-200ms
Update of I/O on option 1-2ms
5. How to Control the FC 300 FC 300 Interbus Operating Instructions
20 MG.33.H3.02 - VLT is a registered Danfoss trademark
5
