Danfoss VLT HVAC FC 100 User manual

MAKING MODERN LIVING POSSIBLE
Operating Instructions D-Frame
VLT® HVAC Drive FC 100

Safety
WARNING
HIGH VOLTAGE!
Frequency converters contain high voltage when
connected to AC mains input power. Installation, start up,
and maintenance should be performed by qualified
personnel only. Failure to perform installation, start up, and
maintenance by qualified personnel could result in death
or serious injury.
High Voltage
Frequency converters are connected to hazardous mains
voltages. Extreme care should be taken to protect against
shock. Only trained personnel familiar with electronic
equipment should install, start, or maintain this equipment.
WARNING
UNINTENDED START!
When the frequency converter is connected to AC mains,
the motor may start at any time. The frequency converter,
motor, and any driven equipment must be in operational
readiness. Failure to be in operational readiness when the
frequency converter is connected to AC mains could result
in death, serious injury, equipment, or property damage.
Unintended Start
When the frequency converter is connected to the AC
mains, the motor may be started by means of an external
switch, a serial bus command, an input reference signal, or
a cleared fault condition. Use appropriate cautions to
guard against an unintended start.
WARNING
DISCHARGE TIME!
Frequency converters contain DC-link capacitors that can
remain charged even when the frequency converter is not
powered. To avoid electrical hazards, disconnect AC mains,
any permanent magnet type motors, and any remote DC-
link power supplies, including battery backups, UPS and
DC-link connections to other frequency converters. Wait for
the capacitors to fully discharge before performing any
service or repair work. The amount of wait time is listed in
the Discharge Time table. Failure to wait the specified time
after power has been removed before doing service or
repair could result in death or serious injury.
Voltage [V] Power range [kW] Minimum waiting time
[min]
3x400 90-250 20
3x400 110-315 20
3x500 110-315 20
3x500 132-355 20
3x525 75-250 20
3x525 90-315 20
3x690 90-250 20
3x690 110-315 20
Discharge Time
Safety VLT®HVAC Drive D-Frame
Operating Instructions
MG16D102 - VLT®is a registered Danfoss trademark

Safety VLT®HVAC Drive D-Frame
Operating Instructions
MG16D102 - VLT®is a registered Danfoss trademark

Contents
1 Introduction 4
1.1 Interior Views 4
1.2 Purpose of the Manual 5
1.3 Additional Resources 5
1.4 Product Overview 5
1.5 Internal Frequency Converter Controller Functions 5
1.6 Frame Sizes and Power Ratings 6
2 Installation 7
2.1 Planning the Installation Site 7
2.2 Frequency Converter and Motor Pre-Installation Checklist 7
2.3 Mechanical Installation 7
2.3.1 Cooling 7
2.3.2 Lifting 8
2.3.3 Wall Mounting - IP21 (NEMA 1) and IP54 (NEMA 12) Units 8
2.4 Electrical Installation 8
2.4.1 General Requirements 8
2.4.2 Earth (Ground) Requirements 11
2.4.2.1 Leakage Current (>3.5 mA) 11
2.4.2.2 Earthing (Grounding) IP20 Enclosures 12
2.4.2.3 Earthing (Grounding) IP21/54 Enclosures 12
2.4.3 Motor Connection 12
2.4.4 Motor Cable 15
2.4.5 Motor Rotation Check 15
2.4.6 AC Mains Input Connection 15
2.5 Control Wiring Connection 15
2.5.1 Access 16
2.5.2 Using Screened Control Cables 16
2.5.3 Earthing (Grounding) of Screened Control Cables 16
2.5.4 Control Terminal Types 17
2.5.5 Wiring to Control Terminals 17
2.5.6 Control Terminal Functions 18
2.6 Serial Communication 18
3 Start Up and Commissioning 19
3.1 Pre-start 19
3.2 Applying Power to the Frequency Converter 20
3.3 Basic Operational Programming 20
3.4 Local-control Test 21
3.5 System Start Up 22
Contents VLT®HVAC Drive D-Frame
Operating Instructions
MG16D102 - VLT®is a registered Danfoss trademark 1

4 User Interface 23
4.1 Local Control Panel 23
4.1.1 LCP Layout 23
4.1.2 Setting LCP Display Values 24
4.1.3 Display Menu Keys 24
4.1.4 Navigation Keys 25
4.1.5 Operation Keys 25
4.2 Back Up and Copying Parameter Settings 25
4.2.1 Uploading Data to the LCP 26
4.2.2 Downloading Data from the LCP 26
4.3 Restoring Default Settings 26
4.3.1 Recommended Initialisation 26
4.3.2 Manual Initialisation 26
5 Programming 27
5.1 Introduction 27
5.2 Programming Example 27
5.3 Control Terminal Programming Examples 29
5.4 International/North American Default Parameter Settings 29
5.5 Parameter Menu Structure 30
5.5.1 Main Menu Structure 31
5.6 Remote Programming with MCT 10 Set-up Software 35
6 Application Examples 36
6.1 Introduction 36
6.2 Application Examples 36
7 Status Messages 41
7.1 Status Display 41
7.2 Status Message Definitions Table 41
8 Warnings and Alarms 44
8.1 System Monitoring 44
8.2 Warning and Alarm Types 44
8.2.1 Warnings 44
8.2.2 Alarm Trip 44
8.2.3 Alarm Trip-lock 44
8.3 Warning and Alarm Displays 44
8.4 Warning and Alarm Definitions 46
8.5 Fault Messages 48
9 Basic Troubleshooting 55
Contents VLT®HVAC Drive D-Frame
Operating Instructions
2 MG16D102 - VLT®is a registered Danfoss trademark

9.1 Start Up and Operation 55
10 Specifications 58
10.1 Power-dependent Specifications 58
10.2 General Technical Data 59
10.3 Fuse Tables 64
10.3.1 Protection 64
10.3.2 Non UL Compliance 64
10.3.3 UL Compliance 65
10.3.4 Connection Tightening Torques 65
Index 66
Contents VLT®HVAC Drive D-Frame
Operating Instructions
MG16D102 - VLT®is a registered Danfoss trademark 3

1 Introduction
1.1 Interior Views
1
15 14
8
9
12
13 (IP 20/Chassis)
13
(IP 21/54
NEMA 1/12)
11
10
130BC252.10

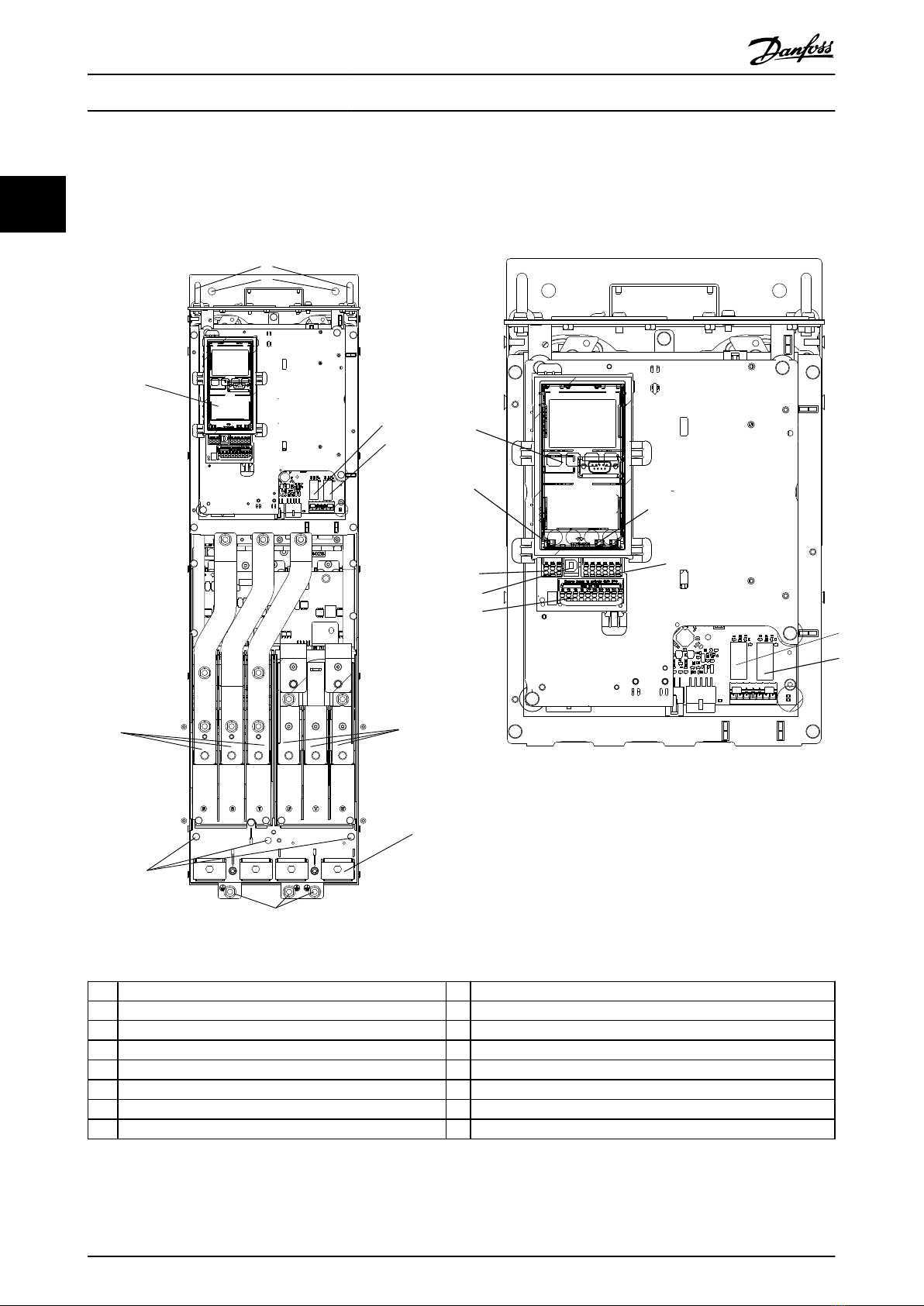

Illustration 1.1 D1 Interior Components
130BC301.10
1
2
3
4
5
6
7
8
9
Illustration 1.2 Close-up View: LCP and Control Functions
1LCP (Local Control Panel) 9 Relay 2 (04, 05, 06)
2 RS-485 serial bus connector 10 Lifting ring
3 Digital I/O and 24 V power supply 11 Mounting slot
4 Analog I/O connector 12 Cable clamp (PE)
5 USB connector 13 Earth (ground)
6 Serial bus terminal switch 14 Motor output terminals 96 (U), 97 (V), 98 (W)
7 Analog switches (A53), (A54) 15 Mains input terminals 91 (L1), 92 (L2), 93 (L3)
8 Relay 1 (01, 02, 03)
Table 1.1
Introduction VLT®HVAC Drive D-Frame
Operating Instructions
4 MG16D102 - VLT®is a registered Danfoss trademark
11

1.2 Purpose of the Manual
This manual is intended to provide detailed information for
the installation and start up of the frequency converter.
2 Installation provides requirements for mechanical and
electrical installation, including input, motor, control and
serial communications wiring, and control terminal
functions. 3 Start Up and Commissioning provides detailed
procedures for start up, basic operational programming,
and functional testing. The remaining chapters provide
supplementary details. These include user interface,
detailed programming, application examples, start-up
troubleshooting, and specifications.
1.3 Additional Resources
Other resources are available to understand advanced
frequency converter functions and programming.
•The VLT
®
Programming Guide, MG33MXYY
provides greater detail on working with
parameters and many application examples.
•The VLT
®
Design Guide, MG33BXYY is intended to
provide detailed capabilities and functionality to
design motor control systems.
•Supplemental publications and manuals are
available from Danfoss.
See http://www.danfoss.com/Products/Literature/
Technical+Documentation.htm for listings.
•Optional equipment is available that may change
some of the procedures described. Reference the
instructions supplied with those options for
specific requirements. Contact the local Danfoss
supplier or go to http://www.danfoss.com/
Products/Literature/Technical+Documentation.htm
for downloads or additional information.
1.4 Product Overview
A frequency converter is an electronic motor controller
that converts AC mains input into a variable AC waveform
output. The frequency and voltage of the output are
regulated to control the motor speed or torque. The
frequency converter can vary the speed of the motor in
response to system feedback, such as position sensors on a
conveyor belt. The frequency converter can also regulate
the motor by responding to remote commands from
external controllers.
In addition, the frequency converter monitors the system
and motor status, issues warnings or alarms for fault
conditions, starts and stops the motor, optimizes energy
efficiency, and offers many more control, monitoring, and
efficiency functions. Operation and monitoring functions
are available as status indications to an outside control
system or serial communication network.
1.5 Internal Frequency Converter Controller
Functions

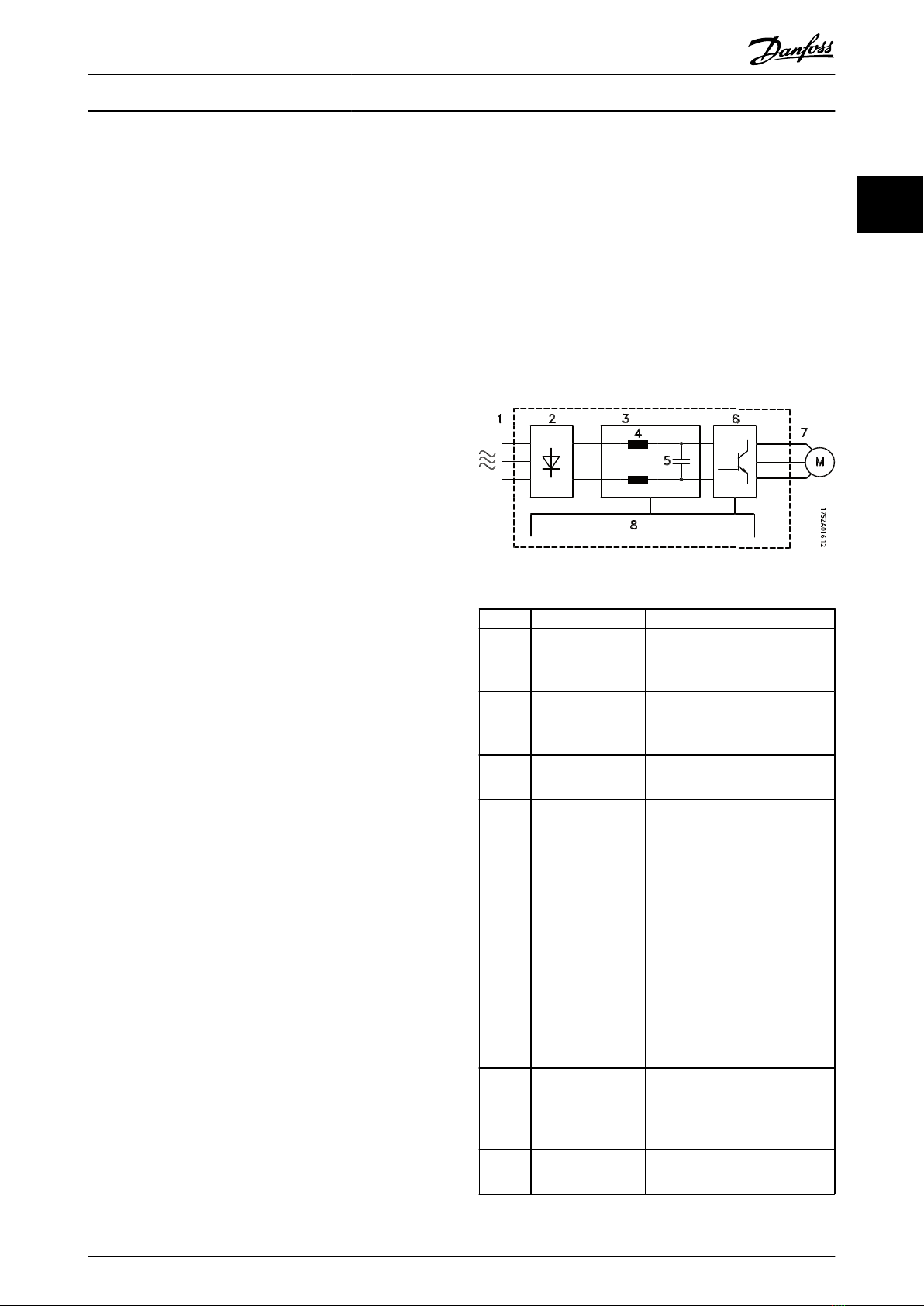

Illustration 1.3 is a block diagram of the frequency
converter's internal components. See Table 1.2 for their
functions.
Illustration 1.3 Frequency Converter Block Diagram
Area Title Functions
1 Mains input •Three-phase AC mains power
supply to the frequency
converter
2 Rectifier •The rectifier bridge converts
the AC input to DC current to
supply inverter power
3 DC bus •Intermediate DC-bus circuit
handles the DC current
4 DC reactors •Filter the intermediate DC
circuit voltage
•Prove line transient protection
•Reduce RMS current
•Raise the power factor
reflected back to the line
•Reduce harmonics on the AC
input
5 Capacitor bank •Stores the DC power
•Provides ride-through
protection for short power
losses
6 Inverter •Converts the DC into a
controlled PWM AC waveform
for a controlled variable
output to the motor
7 Output to motor •Regulated three-phase output
power to the motor
Introduction VLT®HVAC Drive D-Frame
Operating Instructions
MG16D102 - VLT®is a registered Danfoss trademark 5
11

Area Title Functions
8 Control circuitry •Input power, internal
processing, output, and motor
current are monitored to
provide efficient operation
and control
•User interface and external
commands are monitored and
performed
•Status output and control can
be provided
Table 1.2 Frequency Converter Internal Components
1.6 Frame Sizes and Power Ratings
kW rated frequency converters
kW High Overload 75 90 110 132 160 200 250 315 315
kW Normal Overload 90 110 132 160 200 250 315 355 400
400 V D3h D3h D3h D4h D4h D4h
500 V D3h D3h D3h D4h D4h D4h
525 V D4h D3h D3h D4h D4h D4h D4h
690 V D3h D3h D3h D4h D4h D4h
Table 1.3
Horsepower rated frequency converters
HP High
Overload
100 125 150 200 250 300 350 350
HP Normal
Overload
125 150 200 250 300 350 400 450
460 V D3h D3h D3h D4h D4h D4h
575 V D3h D3h D3h D4h D4h D4h D4h
Table 1.4
Introduction VLT®HVAC Drive D-Frame
Operating Instructions
6 MG16D102 - VLT®is a registered Danfoss trademark
11

2 Installation
2.1 Planning the Installation Site
CAUTION
Before performing the installation it is important to plan
the installation of the frequency converter. Neglecting this
may result in extra work during and after installation.
Select the best possible operation site by considering the
following (see details on the following pages, and the
respective Design Guides):
•Ambient operating temperature
•Installation method
•How to cool the unit
•Position of the frequency converter
•Cable routing
•Ensure the power source supplies the correct
voltage and necessary current
•Ensure that the motor current rating is within the
maximum current from the frequency converter
•If the frequency converter is without built-in
fuses, ensure that the external fuses are rated
correctly.
Installation in High Altitudes
Voltage Altitude Restrictions
380-500 V At altitudes above 3 km, contact Danfoss regarding
PELV
525-690 V At altitudes above 2 km, contact Danfoss regarding
PELV.
Table 2.1
2.2 Frequency Converter and Motor Pre-
Installation Checklist
•Before unpacking the frequency converter, ensure
the packaging is intact. If any damage has
occurred, immediately contact the shipping
company to claim the damage.
•Before unpacking the frequency converter, locate
it as close as possible to the final installation site.
•Compare the model number on the nameplate to
what was ordered to verify the proper
equipment.
•Ensure each of the following are rated for the
same voltage:
Mains (power)
Frequency converter
Motor
•Ensure that frequency converter output current
rating is equal to or greater than motor full load
current for peak motor performance.
Motor size and frequency converter
power must match for proper overload
protection.
If frequency converter rating is less than
motor, full motor output cannot be
achieved.
2.3 Mechanical Installation
2.3.1 Cooling
•Top and bottom clearance for air cooling must be
provided. Generally, 225 mm (9 in) is required.
•Improper mounting can result in over heating
and reduced performance
•Derating for temperatures starting between 45°C
(113°F) and 50°C (122°F) and elevation 1000 m
(3300 ft) above sea level must be considered. See
VLT
® Design Guide, MG33BXYY for detailed
information.
The high power Danfoss VLT frequency converters utilize a
back-channel cooling concept that removes heatsink
cooling air, which carries approximately 90% of the heat
out of the back channel of the frequency converters. The
back-channel air can be redirected from the panel or room
using one of the kits below.
Duct cooling
A back-channel cooling kit is available to direct the
heatsink cooling air out of the panel when an IP20/chassis
frequency converters is installed in a Rittal enclosure. Use
of this kit reduces the heat in the panel and smaller door
fans can be specified on the enclosure.
Cooling out the back (top and bottom covers)
The back channel cooling air can be ventilated out of the
room so that the heat from the back channel is not
dissipated into the control room.
A door fan(s) is required on the enclosure to remove the
heat not contained in the backchannel of the frequency
converters and any additional losses generated by other
components inside the enclosure. The total required air
flow must be calculated so that the appropriate fans can
be selected.
Installation VLT®HVAC Drive D-Frame
Operating Instructions
MG16D102 - VLT®is a registered Danfoss trademark 7
22

Airflow
The necessary airflow over the heat sink must be secured.
The flow rate is shown in Table 2.2.
The fan runs for the following reasons:
•AMA
•DC Hold
•Pre-Mag
•DC Brake
•60% of nominal current is exceeded
•Specific heatsink temperature exceeded (power
size dependent).
•Specific Power Card ambient temperature
exceeded (power size dependent)
•Specific Control Card ambient temperature
exceeded
Frame Door fan/top fan Heatsink fan
D1h/D3h 102 m3/hr (60 CFM) 420 m3/hr (250 CFM)
D2h/D4h 204 m3/hr (120 CFM) 840 m3/hr (500 CFM)
Table 2.2 Airflow
2.3.2 Lifting
Always lift the frequency converter using the dedicated
lifting eyes. Use a bar to avoid bending the lifting holes.
130BC253.10
Illustration 2.1 Position Lifting Straps where Indicated
WARNING
The angle from the top of the frequency converter to the
lifting cables should be 60° or greater.
2.3.3 Wall Mounting - IP21 (NEMA 1) and
IP54 (NEMA 12) Units
Consider the following before selecting the final instal-
lation site:
•Free space for cooling
•Access to open the door
•Cable entry from the bottom
2.4 Electrical Installation
2.4.1 General Requirements
This section contains detailed instructions for wiring the
frequency converter. The following tasks are described:
•Wiring the motor to the frequency converter
output terminals
•Wiring the AC mains to the frequency converter
input terminals
•Connecting control and serial communication
wiring
•After power has been applied, checking input
and motor power; programming control terminals
for their intended functions
Installation VLT®HVAC Drive D-Frame
Operating Instructions
8 MG16D102 - VLT®is a registered Danfoss trademark
2
2

*
230 VAC
50/60Hz
230 VAC
50/60Hz
TB6 Contactor
TB5
R1
Regen +
Regen -
83
Regen
1
2
Brake Temp
(NC)
91 (L1)
92 (L2)
93 (L3)
PE
88 (-)
89 (+)
50 (+10 V OUT)
53 (A IN)
54 (A IN)
55 (COM A IN)
0/4-20 mA
12 (+24V OUT)
13 (+24V OUT)
18 (D IN)
20 (COM D IN)
15mA 200mA
(U) 96
(V) 97
(W) 98
(PE) 99
(COM A OUT) 39
(A OUT) 42 0/4-20 mA
03
0-10Vdc
+10Vdc
0-10Vdc
0/4-20 mA
24Vdc
02
01
05
04
06 240Vac, 2A
24V (NPN)
0V (PNP)
0V (PNP)
24V (NPN)
19 (D IN)
24V (NPN)
0V (PNP)
27
24V
0V
(D IN/OUT)
0V (PNP)
24V (NPN)
(D IN/OUT)
0V
24V
29
24V (NPN)
0V (PNP)
0V (PNP)
24V (NPN)
33 (D IN)
32 (D IN)
1 2
ON
S201
ON
21
S202
ON=0-20mA
OFF=0-10V
95
400Vac, 2A
P 5-00
(R+) 82
(R-) 81
37 (D IN)
+ - + -
130BC300.10
(P RS-485) 68
(N RS-485) 69
(COM RS-485) 61
0V
5V
S801
RS-485
RS-485
21
ON
S801
3 Phase
power
input
Load Share Switch Mode
Power Supply
Motor
Analog Output
Interface
relay1
relay2
ON=Terminated
OFF=Open
Brake
resistor
(NPN) = Sink
(PNP) = Source
= ==
240Vac, 2A
400Vac, 2A
Illustration 2.2
WARNING
EQUIPMENT HAZARD!
Rotating shafts and electrical equipment can be hazardous.
All electrical work must conform to national and local
electrical codes. It is strongly recommended that instal-
lation, start up, and maintenance be performed only by
trained and qualified personnel. Failure to follow these
guidelines could result in death or serious injury.
CAUTION
WIRING ISOLATION!
Run input power, motor wiring and control wiring in three
separate metallic conduits or use separated shielded cable
for high frequency noise isolation. Failure to isolate power,
motor and control wiring could result in less than
optimum frequency converter and associated equipment
performance.
Installation VLT®HVAC Drive D-Frame
Operating Instructions
MG16D102 - VLT®is a registered Danfoss trademark 9
22

For your safety, comply with the following requirements
•Electronic controls equipment is connected to
hazardous mains voltage. Extreme care should be
taken to protect against electrical hazards when
applying power to the unit.
•Run motor cables from multiple frequency
converters separately. Induced voltage from
output motor cables run together can charge
equipment capacitors even with the equipment
turned off and locked out.
•Field wiring terminals are not intended to receive
a conductor one size larger.
Overload and Equipment Protection
•An electronically activated function within the
frequency converter provides overload protection
for the motor. The overload calculates the level of
increase to activate timing for the trip (controller
output stop) function. The higher the current
draw, the quicker the trip response. The overload
provides Class 20 motor protection. See
8 Warnings and Alarms for details on the trip
function.
•Because the motor wiring carries high frequency
current, it is important that wiring for mains,
motor power, and control are run separately. Use
metallic conduit or separated shielded wire. See
Illustration 2.3. Failure to isolate power, motor,
and control wiring could result in less than
optimum equipment performance.
•All frequency converters must be provided with
short-circuit and over-current protection. Input
fusing is required to provide this protection, see
Illustration 2.4. If not factory supplied, fuses must
be provided by the installer as part of installation.
See maximum fuse ratings in 10.3.1 Protection.
Motor
Line Power
Stop
Start
Speed
Control
130BX370.10
Illustration 2.3 Example of Proper Electrical Installation Using
Conduit
Installation VLT®HVAC Drive D-Frame
Operating Instructions
10 MG16D102 - VLT®is a registered Danfoss trademark
2
2

•All frequency converters must be provided with
short-circuit and over-current protection. Input
fusing is required to provide this protection, see
Illustration 2.4. If not factory supplied, fuses must
be provided by the installer as part of installation.
See maximum fuse ratings in 10.3.1 Protection.

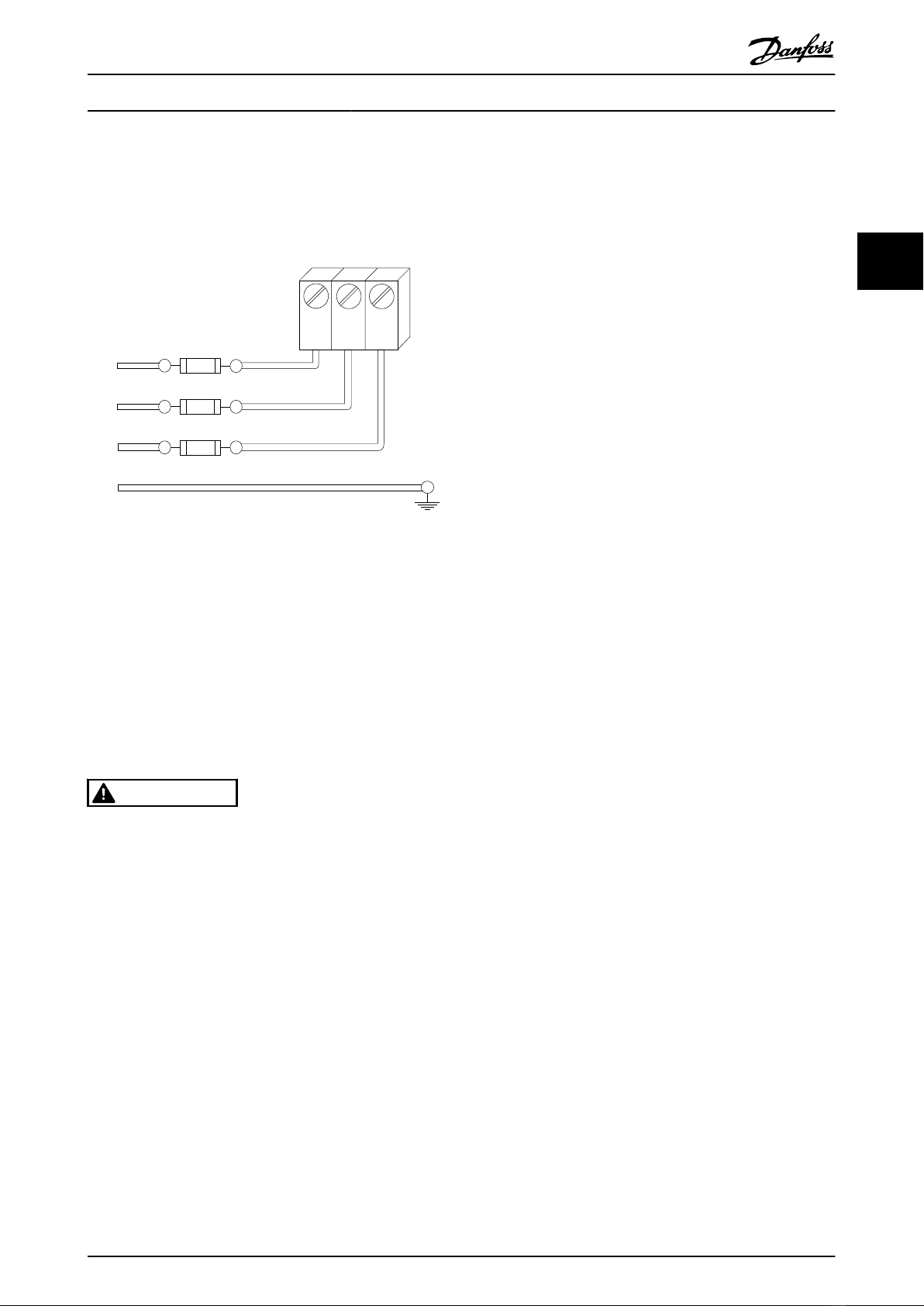

L1
L1
L2
L2
L3
L3
GND
91 92 93
Fuses
130BB460.10
Illustration 2.4 Frequency Converter Fuses
Wire Type and Ratings
•All wiring must comply with local and national
regulations regarding cross-section and ambient
temperature requirements.
•Danfoss recommends that all power connections
be made with a minimum 75°C rated copper
wire.
2.4.2 Earth (Ground) Requirements
WARNING
EARTHING (GROUNDING) HAZARD!
For operator safety, it is important to earth (ground) the
frequency converter properly in accordance with national
and local electrical codes as well as instructions contained
within this document. Earth (ground) currents are higher
than 3.5 mA. Failure to earth (ground) the frequency
converter properly could result in death or serious injury.
NOTE
It is the responsibility of the user or certified electrical
installer to ensure correct earthing (grounding) of the
equipment in accordance with national and local electrical
codes and standards.
•Follow all local and national electrical codes to
earth (ground) electrical equipment properly.
•Proper protective earthing (grounding) for
equipment with earth (ground) currents higher
than 3.5 mA must be established, see
2.4.2.1 Leakage Current (>3.5 mA).
•A dedicated earth wire (ground wire) is required
for input power, motor power and control wiring.
•Use the clamps provided with the equipment for
proper earth connections (ground connections).
•Do not earth (ground) one frequency converter to
another in a “daisy chain” fashion.
•Keep the earth (ground) wire connections as
short as possible.
•Using high-strand wire to reduce electrical noise
is recommended.
•Follow motor manufacturer wiring requirements.
2.4.2.1 Leakage Current (>3.5 mA)
Follow national and local codes regarding protective
earthing of equipment with a leakage current > 3.5 mA.
Frequency converter technology implies high frequency
switching at high power. This will generate a leakage
current in the earth connection. A fault current in the
frequency converter at the output power terminals might
contain a DC component, which can charge the filter
capacitors and cause a transient earth current. The earth
leakage current depends on various system configurations
including RFI filtering, screened motor cables, and
frequency converter power.
EN/IEC61800-5-1 (Power Drive System Product Standard)
requires special care if the leakage current exceeds 3.5 mA.
Earthing (grounding) must be reinforced in one of the
following ways:
•Earth (ground) wire of at least 10 mm2
•Two separate earth (ground) wires both
complying with the dimensioning rules.
See EN 60364-5-54 § 543.7 for further information.
Using RCDs
Where residual current devices (RCDs)–also known as earth
leakage circuit breakers (ELCBs)–are used, comply with the
following:
Use RCDs of type B only, which are capable of
detecting AC and DC currents.
Use RCDs with an inrush delay to prevent faults
due to transient earth currents.
Dimension RCDs according to the system configu-
ration and environmental considerations.
Installation VLT®HVAC Drive D-Frame
Operating Instructions
MG16D102 - VLT®is a registered Danfoss trademark 11
22

2.4.2.2 Earthing (Grounding) IP20
Enclosures
The frequency converter can be earthed (grounded) using
conduit or shielded cable. For earthing (grounding) of the
power connections, use the dedicated earthing
(grounding) points as shown in Illustration 2.6.
130BC303.10
Illustration 2.5 Earthing (Grounding) Points for IP20 (Chassis)
Enclosures
CAUTION
GROUNDING HAZARD!
Do not use conduit connected to the frequency converter
as a replacement for proper grounding. Ground currents
are higher than 3.5 mA. Improper grounding can result in
personal injury or electrical shorts.
2.4.2.3 Earthing (Grounding) IP21/54
Enclosures
The frequency converter can be earthed (grounded) using
conduit or shielded cable. For earthing (grounding) of the
power connections, use the dedicated earthing
(grounding) points as shown in Illustration 2.6.
130BC304.10
Illustration 2.6 Earthing (Grounding) for IP21/54 Enclosures.
CAUTION
GROUNDING HAZARD!
Do not use conduit connected to the frequency converter
as a replacement for proper grounding. Ground currents
are higher than 3.5 mA. Improper grounding can result in
personal injury or electrical shorts.
2.4.3 Motor Connection
WARNING
INDUCED VOLTAGE!
Run output motor cables from multiple frequency
converters separately. Induced voltage from output motor
cables run together can charge equipment capacitors even
with the equipment turned off and locked out. Failure to
run output motor cables separately could result in death
or serious injury.
•For maximum cable sizes, see 10.1 Power-
dependent Specifications.
•Comply with local and national electrical codes
for cable sizes.
•Gland plates are provided at the base of IP21/54
and higher (NEMA1/12) units.
•Do not install power factor correction capacitors
between the frequency converter and the motor.
Installation VLT®HVAC Drive D-Frame
Operating Instructions
12 MG16D102 - VLT®is a registered Danfoss trademark
2
2

•Do not wire a starting or pole-changing device
between the frequency converter and the motor.
•Connect the 3-phase motor wiring to terminals
96 (U), 97 (V), and 98 (W).
•Earth (ground) the cable in accordance with the
instructions provided.
•Torque terminals in accordance with the
information provided in 10.3.4 Connection
Tightening Torques
•Follow motor manufacturer wiring requirements.
A
A
B
B
33
1.3[ ]
0
0.0[ ]
62
2.4[ ]
101
4.0[ ]
140
5.5[ ] 163
6.4[ ]
185
7.3[ ]
224
8.8[ ]
263
10.4[ ] 293
11.5[ ]
GROUND88
3.5[ ]
0
0.0[ ]
200
7.9[ ]
94
3.7[ ]
244
9.6[ ]
0
0.0[ ]
272
10.7[ ]
0
0.0[ ]
SUW
R T V
3X M8x20 STUD
WITH NUT
SECTION A-A
MAINS TERMINALS
MAINS TERMINAL
SECTION B-B
MOTOR TERMINALS
MOTOR
TERMINAL
130BC305.10

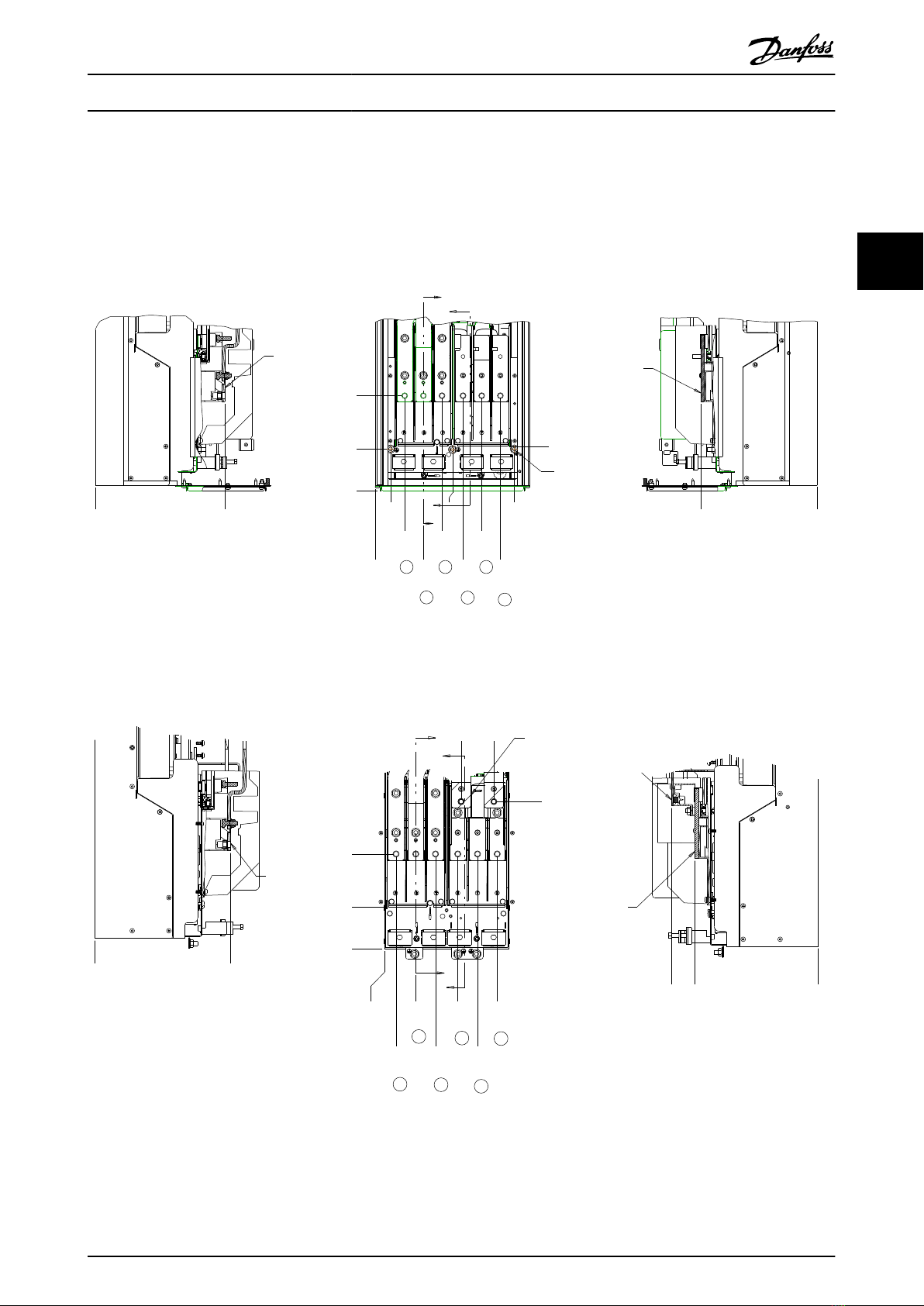

Illustration 2.7 Terminal Locations D1h
A
A
B
B
83
3.3[ ]
0
0.0[ ]
188
7.4[ ]
244
9.6[ ]
0
0.0[ ]
290
11.4[ ]
272
10.7[ ]
0
0.0[ ]
22
0.9[ ]
0
0.0[ ]
62
2.4[ ]
101
4.0[ ]
145
5.7[ ]
184
7.2[ ]
223
8.8[ ]
152
6.0[ ]
217
8.5[ ]
292
11.5[ ]
R
S
T
U
V
W
BRAKE
SECTION A-A
MAINS TERMINALS
MAINS
TERMINAL
SECTION B-B
MOTOR TERMINALS AND
BRAKE TERMINALS
MOTOR TERMINAL
BRAKE
TERMINAL
130BC302.10
Illustration 2.8 Terminal Locations D3h
Installation VLT®HVAC Drive D-Frame
Operating Instructions
MG16D102 - VLT®is a registered Danfoss trademark 13
22

B
B
A
A
254.7
10[ ]
0.0
0[ ]
GROUND143.4
6[ ]
0.0
0[ ]
GROUND168.4
7[ ]
331.2
13[ ]
211.1
8[ ]
GROUND168.4
7[ ]
GROUND143.4
6[ ]
42.4
2[ ]
0.0
0[ ]
68.1
3[ ]
125.8
5[ ]
183.5
7[ ]
245.8
10[ ]
299.8
12[ ]
353.8
14[ ] 377.6
15[ ]
284.2
11[ ]
0.0
0[ ]
R
S
T
U
V
W
4X M10x20 STUD
WITH NUT
SECTION B-B
MOTOR TERMINALS AND
BRAKE TERMINALS
MOTOR TERMINAL
SECTION A-A
MAINS TERMINALS
MAINS TERMINAL
130BC332.10
Illustration 2.9 Terminal Locations D2h
A
A
B
B
33
1.3[ ]
0
0.0[ ]
91
3.6[ ]
149
5.8[ ]
211
8.3[ ]
265
10.4[ ]
319
12.6[ ]
200
7.9[ ]
0
0.0[ ]
319
12.6[ ]
376
14.8[ ]
293
11.5[ ]
255
10.0[ ]
0
0.0[ ]
306
12.1[ ]
284
11.2[ ]
0
0.0[ ]
236.8
9[ ]
R
S
T
U
V
W
BRAKE
TERMINALS
SECTION A-A
MAINS TERMINALS
MAINS TERMINAL
SECTION B-B
MOTOR TERMINALS AND
BRAKE TERMINALS
TERMINAL
BRAKE / REGEN
MOTOR TERMINAL
130BC333.10
Illustration 2.10 Terminal Locations D4h
Installation VLT®HVAC Drive D-Frame
Operating Instructions
14 MG16D102 - VLT®is a registered Danfoss trademark
2
2

2.4.4 Motor Cable
The motor must be connected to terminals U/T1/96, V/
T2/97, W/T3/98. Earth (ground) to terminal 99. All types of
three-phase asynchronous standard motors can be used
with a frequency converter unit. The factory setting is for
clockwise rotation with the frequency converter output
connected as follows:
Terminal No. Function
96, 97, 98, 99 Mains U/T1, V/T2, W/T3
Earth (ground)
Table 2.3

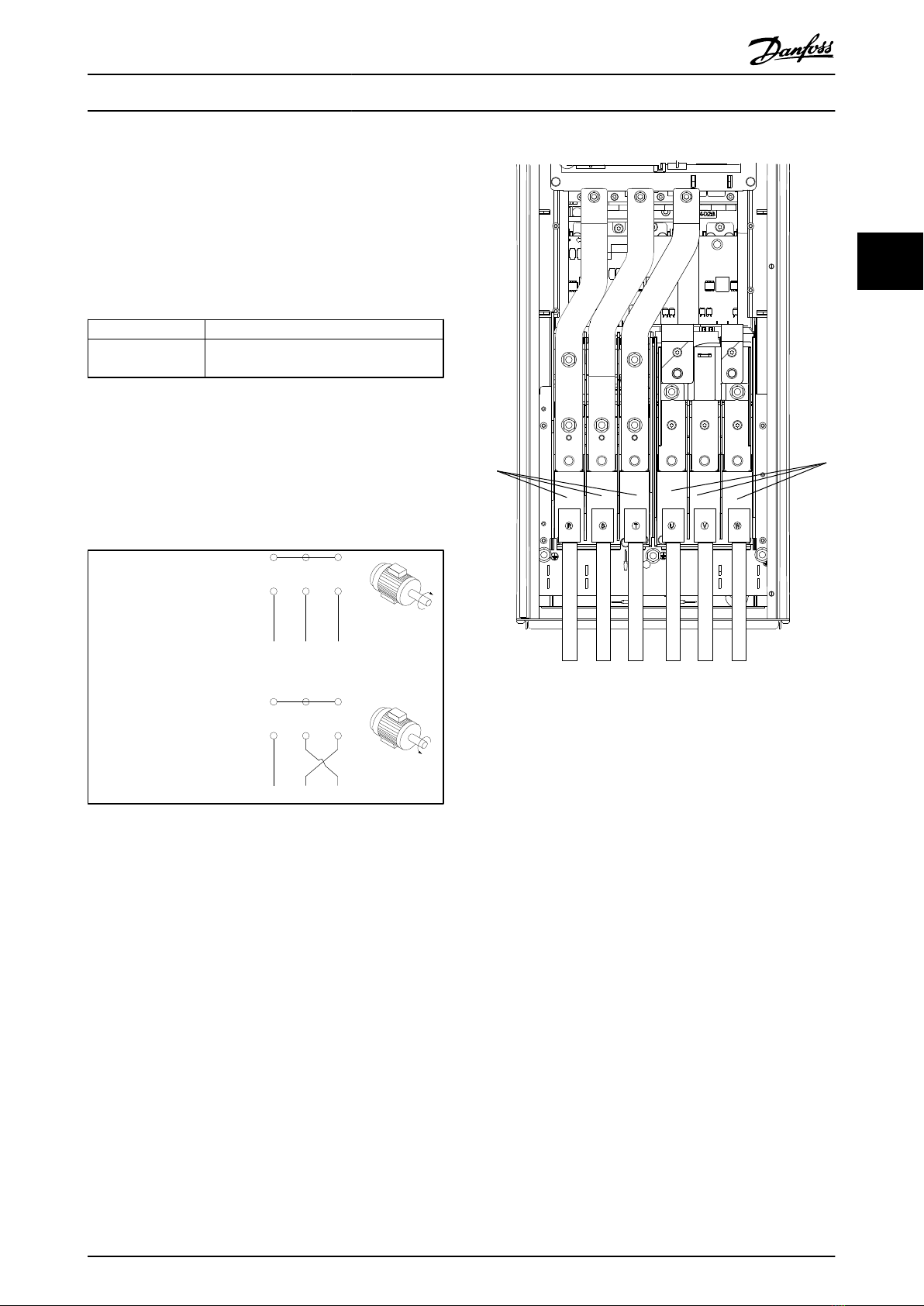

2.4.5 Motor Rotation Check
The direction of rotation can be changed by switching two
phases in the motor cable or by changing the setting of
4-10 Motor Speed Direction.
•Terminal U/T1/96 connected
to U-phase
•Terminal V/T2/97 connected
to V-phase
•Terminal W/T3/98
connected to W-phase
96 97
U V
96 97 98
U V W
98
W
130HA036.10
Table 2.4
A motor rotation check can be performed using1-28 Motor
Rotation Check and following the steps shown in the
display.
2.4.6 AC Mains Input Connection
•Size wiring is based upon the input current of the
frequency converter.
•Comply with local and national electrical codes
for cable sizes.
•Connect 3-phase AC input power wiring to
terminals L1, L2, and L3 (see Illustration 2.11).
130BC254.10
2
1
Illustration 2.11 Connecting to AC Mains
1 - Mains connection
2 - Motor connection
•Earth (ground) the cable in accordance with the
instructions provided.
•All frequency converters may be used with an
isolated input source as well as with earth
(ground) reference power lines. When supplied
from an isolated mains source (IT mains or
floating delta) or TT/TN-S mains with a grounded
leg (grounded delta), set 14-50 RFI Filter to OFF.
When off, the internal RFI filter capacitors
between the chassis and the intermediate circuit
are isolated to avoid damage to the intermediate
circuit and to reduce earth (ground) capacity
currents in accordance with IEC 61800-3.
2.5 Control Wiring Connection
•Isolate control wiring from high power
components in the frequency converter.
•If the frequency converter is connected to a
thermistor, for PELV isolation, optional thermistor
control wiring must be reinforced/double
insulated. A 24 V DC supply voltage is
recommended.
Installation VLT®HVAC Drive D-Frame
Operating Instructions
MG16D102 - VLT®is a registered Danfoss trademark 15
22

2.5.1 Access
All terminals to the control cables are located underneath
the LCP on the inside of the frequency converter. To
access, open the door (IP21/54) or remove the front panel
(IP20).
2.5.2 Using Screened Control Cables
Danfoss recommends braided screened/armoured cables to
optimise EMC immunity of the control cables and the EMC
emission from the motor cables.
The ability of a cable to reduce the incoming and
outgoing radiation of electric noise depends on the
transfer impedance (ZT). The screen of a cable is normally
designed to reduce the transfer of electric noise; however,
a screen with a lower transfer impedance (ZT) value is
more effective than a screen with a higher transfer
impedance (ZT).
Transfer impedance (ZT) is rarely stated by cable manufac-
turers but it is often possible to estimate transfer
impedance (ZT) by assessing the physical design of the
cable.
Transfer impedance (ZT) can be assessed on the basis of
the following factors:
-The conductibility of the screen material.
-The contact resistance between the individual
screen conductors.
-The screen coverage, i.e. the physical area of the
cable covered by the screen - often stated as a
percentage value.
-Screen type, i.e. braided or twisted pattern.
a. Aluminium-clad with copper wire.
b. Twisted copper wire or armoured steel wire cable.
c. Single-layer braided copper wire with varying
percentage screen coverage.
This is the typical Danfoss reference cable.
d. Double-layer braided copper wire.
e. Twin layer of braided copper wire with a
magnetic, screened/armoured intermediate layer.
f. Cable that runs in copper tube or steel tube.
g. Lead cable with 1.1 mm wall thickness.
175ZA166.13
0,01 0,1 1 10 100 MHz
10
10
10
1
10
10
10
10
10
a
b
c
d
e
f
g
The lower the Z the better the cable screening performance
Transfer impedance, Z t
mOhm/m
Illustration 2.12
2.5.3 Earthing (Grounding) of Screened
Control Cables
Correct screening
The preferred method in most cases is to secure control
and serial communication cables with screening clamps
provided at both ends to ensure best possible high
frequency cable contact. If the earth (ground) potential
between the frequency converter and the PLC is different,
electric noise may occur that will disturb the entire system.
Solve this problem by fitting an equalizing cable next to
the control cable. Minimum cable cross section: 16 mm2.
1
2
PE
FC
PE
PLC
130BB922.11
PE PE
Illustration 2.13
Installation VLT®HVAC Drive D-Frame
Operating Instructions
16 MG16D102 - VLT®is a registered Danfoss trademark
2
2

50/60 Hz earth (ground) loops
With very long control cables, earth loops (ground loops)
may occur. To eliminate earth (ground) loops, connect one
end of the screen-to-earth (ground) with a 100 nF
capacitor (keeping leads short).
100nF
FC
PE PE
PLC
130BB609.11
Illustration 2.14
Avoid EMC noise on serial communication
This terminal is connected to earth (ground) via an internal
RC link. Use twisted-pair cables to reduce interference
between conductors. The recommended method is shown
below:
PE
FC
PE
FC
130BB923.11
PE PE
69
68
61
69
68
61
1
2
Illustration 2.15
Alternatively, the connection to terminal 61 can be
omitted:
PE
FC
PE
FC
130BB924.11
PE PE
69
69
68
68
1
2
Illustration 2.16
2.5.4 Control Terminal Types
Terminal functions and default settings are summarized in
2.5.6 Control Terminal Functions.
1
4
2
3
130BA012.11
61 68 69
39 42 50 53 54 55
12 13 18 19 27 29 32 33 20 37
Illustration 2.17 Control Terminal Locations
•Connector 1 provides four programmable digital
input terminals, two additional digital terminals
programmable as either input or output, a 24 V
DC terminal supply voltage, and a common for
optional customer supplied 24 V DC voltage.
•Connector 2 terminals (+)68 and (-)69 are for an
RS-485 serial communications connection.
•Connector 3 provides two analog inputs, one
analog output, 10 V DC supply voltage, and
commons for the inputs and output.
•Connector 4 is a USB port available for use with
the MCT 10 Set-up Software.
•Also provided are two Form C relay outputs that
are in various locations depending upon the
frequency converter configuration and size.
•Some options available for ordering with the unit
may provide additional terminals. See the manual
provided with the equipment option.
2.5.5 Wiring to Control Terminals
Terminal plugs can be removed for easy access.
Installation VLT®HVAC Drive D-Frame
Operating Instructions
MG16D102 - VLT®is a registered Danfoss trademark 17
22
