1 Introduction
1.1 Purpose of the Operating Instructions
This instruction manual provides information for safe instal-
lation and commissioning of the adjustable frequency
drive.
This instruction manual is intended for use by qualied
personnel.
Read and follow the instruction manual to use the
adjustable frequency drive safely and professionally, and
pay particular attention to the safety instructions and
general warnings. Keep this instruction manual available
with the adjustable frequency drive at all times.
VLT®is a registered trademark.
1.2 Additional Resources
Other resources are available to understand advanced
frequency converter functions and programming.
•The VLT
®
AQUA Drive FC 202 Programming Guide
provides greater detail on working with
parameters and many application examples.
•The VLT
®
AQUA Drive FC 202 Design Guide
provides detailed information about capabilities
and functionality to design motor control
systems.
•Instructions for operation with optional
equipment.
Supplementary publications and manuals are available
from Danfoss. See www.danfoss.com/BusinessAreas/DrivesSo-
lutions/Documentations/VLT+Technical+Documentation.htm
for listings.
1.3 Document and Software Version
This manual is regularly reviewed and updated. All
suggestions for improvement are welcome. Please send
suggestions via email to
[e-mail], including a
reference to the document version.
Table 1.1 shows the document version and the
corresponding software version.
Edition Remarks Software version
MG20MCxx Replaces MG20MBxx 2.x
Table 1.1 Document and Software Version
1.4 Product Overview
1.4.1 Intended Use
The frequency converter is an electronic motor controller
intended for:
•Regulation of motor speed in response to system
feedback or to remote commands from external
controllers. A power drive system consists of the
frequency converter, the motor, and equipment
driven by the motor.
•System and motor status surveillance.
Depending on conguration, the frequency converter can
be used in standalone applications or form part of a larger
appliance or installation.
The frequency converter is allowed for use in residential,
industrial, and commercial environments in accordance
with local laws, standards, and emission limits as described
in the design guide.
Single phase frequency converters (S2 and S4) installed
in the EU
The following limitations apply:
•Units with an input current below 16 A and an
input power above 1 kW are only intended for
professional use in trades, professions, or
industries and not for sale to the general public.
•Designated application areas are public pools,
public water supplies, agriculture, commercial
buildings, and industries. All other single phase
units are only intended for use in private low-
voltage systems interfacing with public supply
only at a medium or high voltage level.
•Operators of private systems must ensure that
the EMC environment complies with IEC
610000-3-6 and/or the contractual agreements.
NOTICE!
In a residential environment, this product can cause
radio interference, in which case supplementary
mitigation measures may be required.
Foreseeable misuse
Do not use the frequency converter in applications, which
are non-compliant with specied operating conditions and
environments. Ensure compliance with the conditions
specied in chapter 8 Specications.
Introduction VLT®AQUA Drive FC 202
4 Danfoss A/S © 01/2015 All rights reserved. MG20MC22
11

1.4.2 Features
The VLT®AQUA Drive FC 202 is designed for water and wastewater applications. The range of standard and optional
features includes:
•Cascade control.
•Dry run detection.
•End of curve detection.
•SmartStart.
•Motor alternation.
•Deragging.
•2-step ramps.
•Flow Conrmation.
•Check valve protection.
•Safe Torque O.
•Low ow detection.
•Pre/Post Lubrication.
•Pipe ll mode.
•Sleep mode.
•Real-time clock.
•User congurable info texts.
•Warnings and alarms.
•Password protection.
•Overload protection.
•Smart logic control.
•Dual Power rating (High/Normal Overload).
Introduction Operating Instructions
MG20MC22 Danfoss A/S © 01/2015 All rights reserved. 5
11

1.4.3 Exploded Views
1
2
3
4
5
6
7
8
9
10
11
12 13
16
17
18
19
14
15
FAN MOUNTING
QDF-30
DC- DC+
Removejumper to activate Safe Stop
Max.24 Volt !
12 13 18 19 27 29 32 33 20
61 68 39 42 50 53 54
06 05 04 03 02 01
130BB493.10
1 Local control panel (LCP) 11 Relay 2 (04, 05, 06)
2 Cover 12 Lifting ring
3 RS485 serial bus connector 13 Mounting slot
4 Digital I/O and 24 V power supply 14 Grounding clamp (PE)
5 Analog I/O connector 15 Cable screen connector
6 Cable screen connector 16 Brake terminal (-81, +82)
7 USB connector 17 Load sharing terminal (DC bus) (-88, +89)
8 Serial bus terminal switch 18 Motor output terminals 96 (U), 97 (V), 98 (W)
9 Analog switches (A53), (A54) 19 Mains input terminals 91 (L1), 92 (L2), 93 (L3)
10 Relay 1 (01, 02, 03)

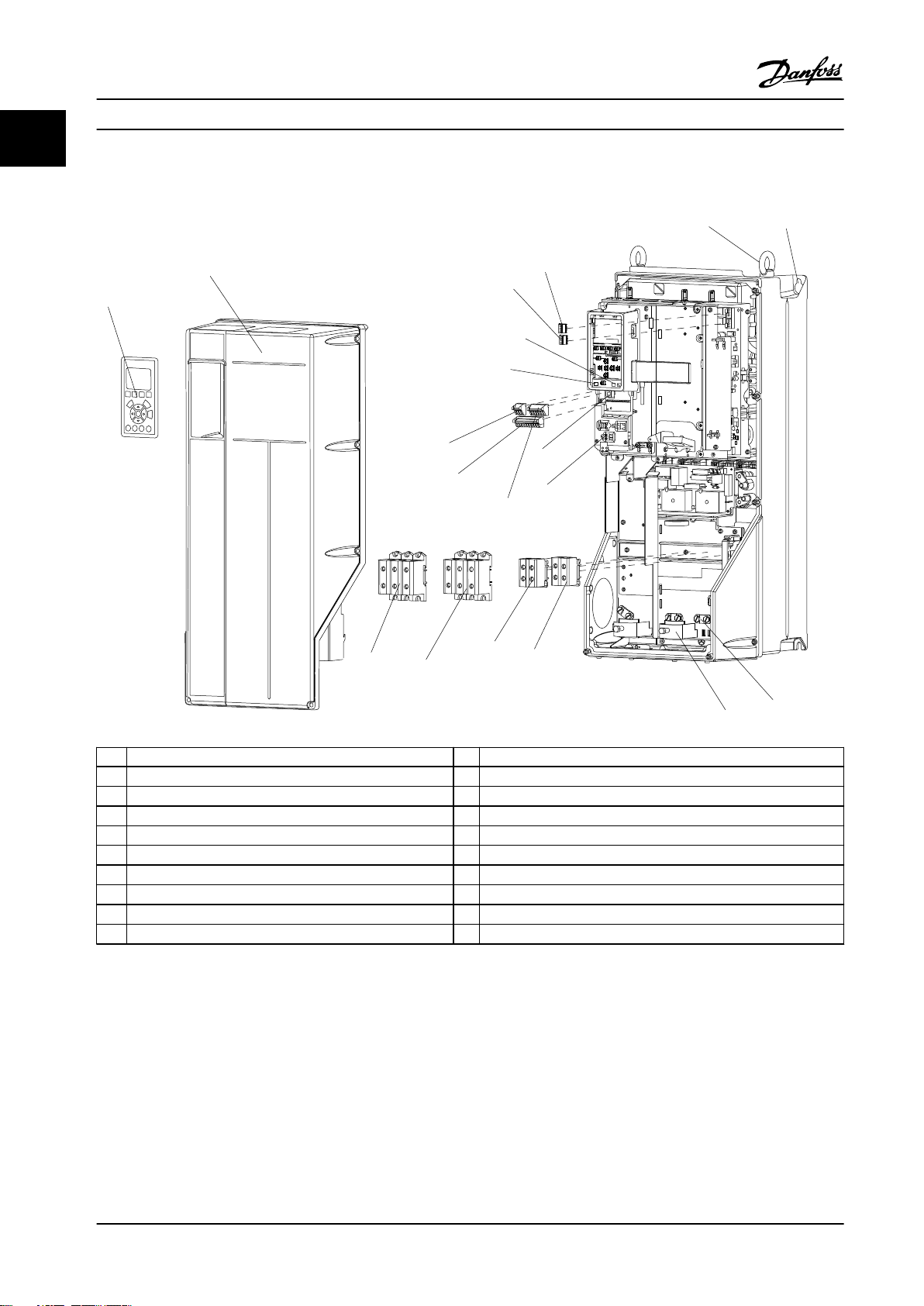

Figure 1.1 Exploded View Enclosure Types B and C, IP55 and IP66
Introduction VLT®AQUA Drive FC 202
6 Danfoss A/S © 01/2015 All rights reserved. MG20MC22
11

1
23
4
5
6
7
8
9
10
11
12
13
14
8
15
16
17
18
130BB492.10
1 Local control panel (LCP) 10 Motor output terminals 96 (U), 97 (V), 98 (W)
2 RS485 serial bus connector (+68, -69) 11 Relay 2 (01, 02, 03)
3 Analog I/O connector 12 Relay 1 (04, 05, 06)
4 LCP input plug 13 Brake (-81, +82) and load sharing (-88, +89) terminals
5 Analog switches (A53), (A54) 14 Mains input terminals 91 (L1), 92 (L2), 93 (L3)
6 Cable screen connector 15 USB connector
7 Decoupling plate 16 Serial bus terminal switch
8 Grounding clamp (PE) 17 Digital I/O and 24 V power supply
9 Screened cable grounding clamp and strain relief 18 Cover
Figure 1.2 Exploded View Enclosure Type A, IP20
Introduction Operating Instructions
MG20MC22 Danfoss A/S © 01/2015 All rights reserved. 7
11

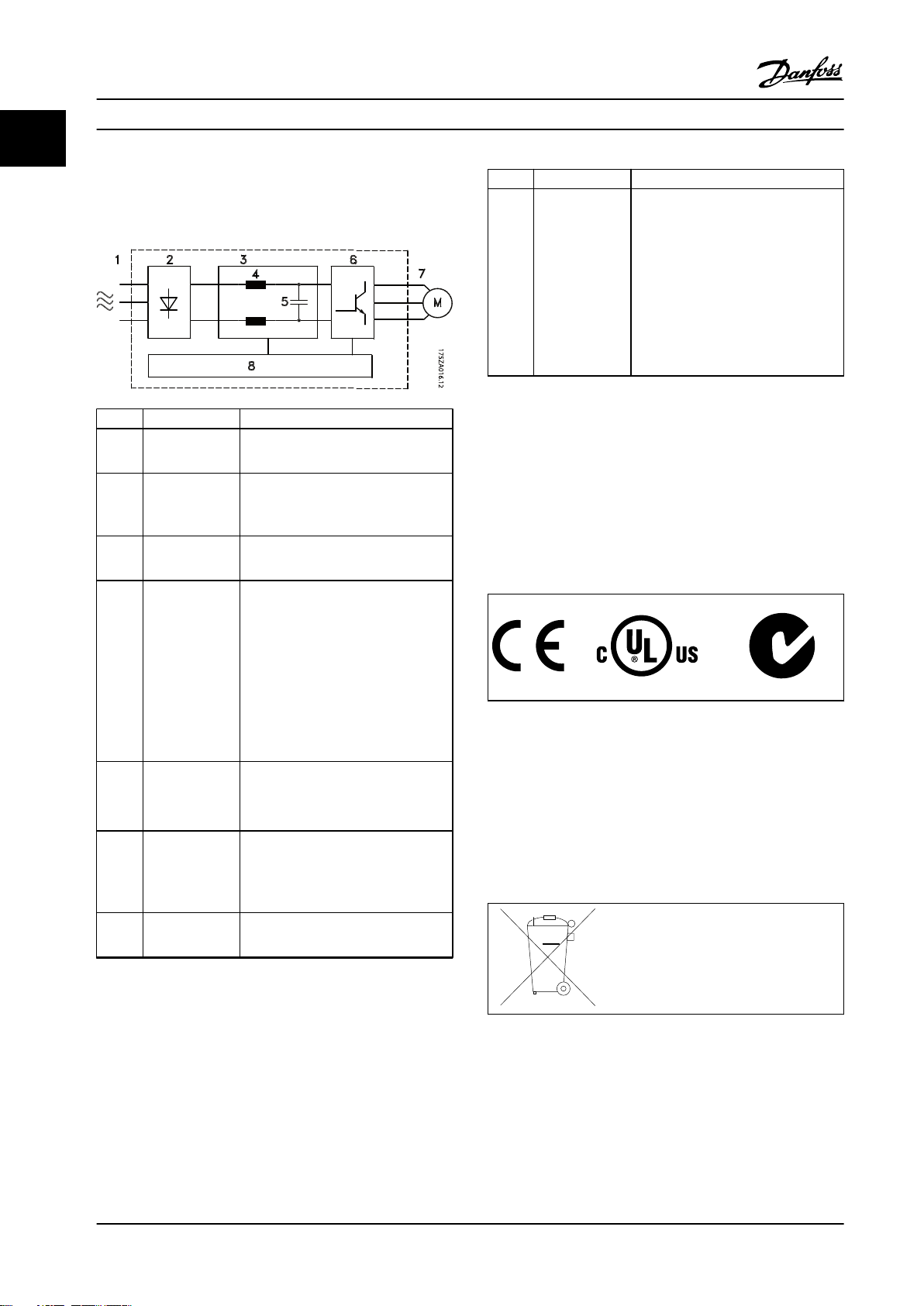

Figure 1.3 is a block diagram of the internal components of
the frequency converter. See the table for Figure 1.3 for
their functions.
Area Title Functions
1 Mains input •3-phase AC mains supply to the
frequency converter.
2Rectier
•The rectier bridge converts the
AC input to DC current to supply
inverter power.
3 DC bus •Intermediate DC bus circuit
handles the DC current.
4 DC reactors
•Filter the intermediate DC circuit
voltage.
•Prove mains transient protection.
•Reduce RMS current.
•Raise the power factor reected
back to the line.
•Reduce harmonics on the AC
input.
5 Capacitor bank
•Stores the DC power.
•Provides ride-through protection
for short power losses.
6 Inverter
•Converts the DC into a controlled
PWM AC waveform for a
controlled variable output to the
motor.
7 Output to motor •Regulated 3-phase output power
to the motor.
Area Title Functions
8 Control circuitry
•Input power, internal processing,
output, and motor current are
monitored to provide ecient
operation and control.
•User interface and external
commands are monitored and
performed.
•Status output and control can be
provided.
Figure 1.3 Frequency Converter Block Diagram
1.4.4 Enclosure Types and Power Ratings
For enclosure types and power ratings of the frequency
converters, refer to chapter 8.9 Power Ratings, Weight, and
Dimensions.
1.5 Approvals and Certications
More approvals and certications are available. Contact the
local Danfoss partner. Frequency converters of enclosure
type T7 (525–690 V) are UL certied for only 525–600 V.
The frequency converter complies with UL508C thermal
memory retention requirements. For more information,
refer to the section Motor Thermal Protection in the product
specic design guide.
1.6 Disposal
Do not dispose of equipment containing
electrical components together with
domestic waste.
Collect it separately in accordance with
local and currently valid legislation.
Introduction VLT®AQUA Drive FC 202
8 Danfoss A/S © 01/2015 All rights reserved. MG20MC22
11

2 Safety
2.1 Safety Symbols
The following symbols are used in this manual:
WARNING
Indicates a potentially hazardous situation that could
result in death or serious injury.
CAUTION
Indicates a potentially hazardous situation that could
result in minor or moderate injury. It can also be used to
alert against unsafe practices.
NOTICE!
Indicates important information, including situations that
can result in damage to equipment or property.
2.2 Qualied Personnel
Correct and reliable transport, storage, installation,
operation, and maintenance are required for the trouble-
free and safe operation of the frequency converter. Only
qualied personnel are allowed to install or operate this
equipment.
Qualied personnel are dened as trained sta, who are
authorised to install, commission, and maintain equipment,
systems, and circuits in accordance with pertinent laws and
regulations. Additionally, the qualied personnel must be
familiar with the instructions and safety measures
described in these operating instructions.
2.3 Safety Precautions
WARNING
HIGH VOLTAGE
Frequency converters contain high voltage when
connected to AC mains input, DC supply, or load sharing.
Failure to perform installation, start-up, and maintenance
by qualied personnel can result in death or serious
injury.
•Installation, start-up, and maintenance must be
performed by qualied personnel only.
WARNING
UNINTENDED START
When the adjustable frequency drive is connected to AC
line power, DC supply, or load sharing, the motor may
start at any time. Unintended start during programming,
service, or repair work can result in death, serious injury,
or property damage. The motor can start via an external
switch, a serial bus command, an input reference signal
from the LCP, or after a cleared fault condition.
To prevent unintended motor start:
•Disconnect the adjustable frequency drive from
line power.
•Press [O/Reset] on the LCP before
programming parameters.
•Fully wire and assembly the adjustable
frequency drive, motor, and any driven
equipment before connecting the adjustable
frequency drive to AC line power, DC supply, or
load sharing.
WARNING
DISCHARGE TIME
The frequency converter contains DC-link capacitors,
which can remain charged even when the frequency
converter is not powered. Failure to wait the specied
time after power has been removed before performing
service or repair work, could result in death or serious
injury.
1. Stop the motor.
2. Disconnect the AC mains, permanent magnet
type motors, and remote DC-link power
supplies, including battery back-ups, UPS, and
DC-link connections to other frequency
converters.
3. Wait for the capacitors to discharge fully before
performing any service or repair work. The
duration of waiting time is specied in Table 2.1.
Safety Operating Instructions
MG20MC22 Danfoss A/S © 01/2015 All rights reserved. 9
22

Voltage [V]
Minimum waiting time (minutes)
4 7 15
200–240 0.25–3.7 kW 5.5–45 kW
380–480 0.37–7.5 kW 11–90 kW
525–600 0.75–7.5 kW 11–90 kW
525–690 1.1–7.5 kW 11–90 kW
High voltage may be present even when the warning LED
indicator lights are o.
Table 2.1 Discharge Time
WARNING
LEAKAGE CURRENT HAZARD
Leakage currents exceed 3.5 mA. Failure to ground the
frequency converter properly can result in death or
serious injury.
•Ensure the correct grounding of the equipment
by a certied electrical installer.
WARNING
EQUIPMENT HAZARD
Contact with rotating shafts and electrical equipment
can result in death or serious injury.
•Ensure that only trained and qualied personnel
perform installation, start-up, and maintenance.
•Ensure that electrical work conforms to national
and local electrical codes.
•Follow the procedures in this manual.
WARNING
UNINTENDED MOTOR ROTATION
WINDMILLING
Unintended rotation of permanent magnet motors
creates voltage and can charge the unit, resulting in
death, serious injury, or equipment damage.
•Ensure that permanent magnet motors are
blocked to prevent unintended rotation.
CAUTION
INTERNAL FAILURE HAZARD
An internal failure in the adjustable frequency drive can
result in serious injury when the adjustable frequency
drive is not properly closed.
•Ensure that all safety covers are in place and
securely fastened before applying power.
Safety VLT®AQUA Drive FC 202
10 Danfoss A/S © 01/2015 All rights reserved. MG20MC22
22

3 Mechanical Installation
3.1 Unpacking
3.1.1 Items Supplied
Items supplied may vary according to product congu-
ration.
•Make sure the items supplied and the information
on the nameplate correspond to the order conr-
mation.
•Check the packaging and the frequency converter
visually for damage caused by inappropriate
handling during shipment. File any claim for
damage with the carrier. Retain damaged parts
for clarication.
130BD666.10
CHASSIS/ IP20 Tamb.45 C/113 F
V LT
MADE IN
DENMARK
R
P/N: 131F6653 S/N: 038010G502
45kW(400V) / 60HP(460V)
IN: 3x380-480V 50/60Hz 82/73A
OUT: 3x0-Vin 0-590Hz 90/80A
o
CAUTION:
See manual for special condition/mains fuse
voir manual de conditions speclales/fusibles
WARNING:
Stored charge, wait 15 min.
Charge residuelle, attendez 15 min.
* 1 3 1
F
6 6 5 3 0 3 8 0 1 0 G 5 0 2 *
`
AQUA Drive
www.danfoss.com
T/C: FC-202P45KT4E20H1XGXXXXSXXXXAXBXCXXXXDX
Listed 76X1 E134261 Ind. Contr. Eq.
o
`
1
2
4
5
6
78
9
10
3

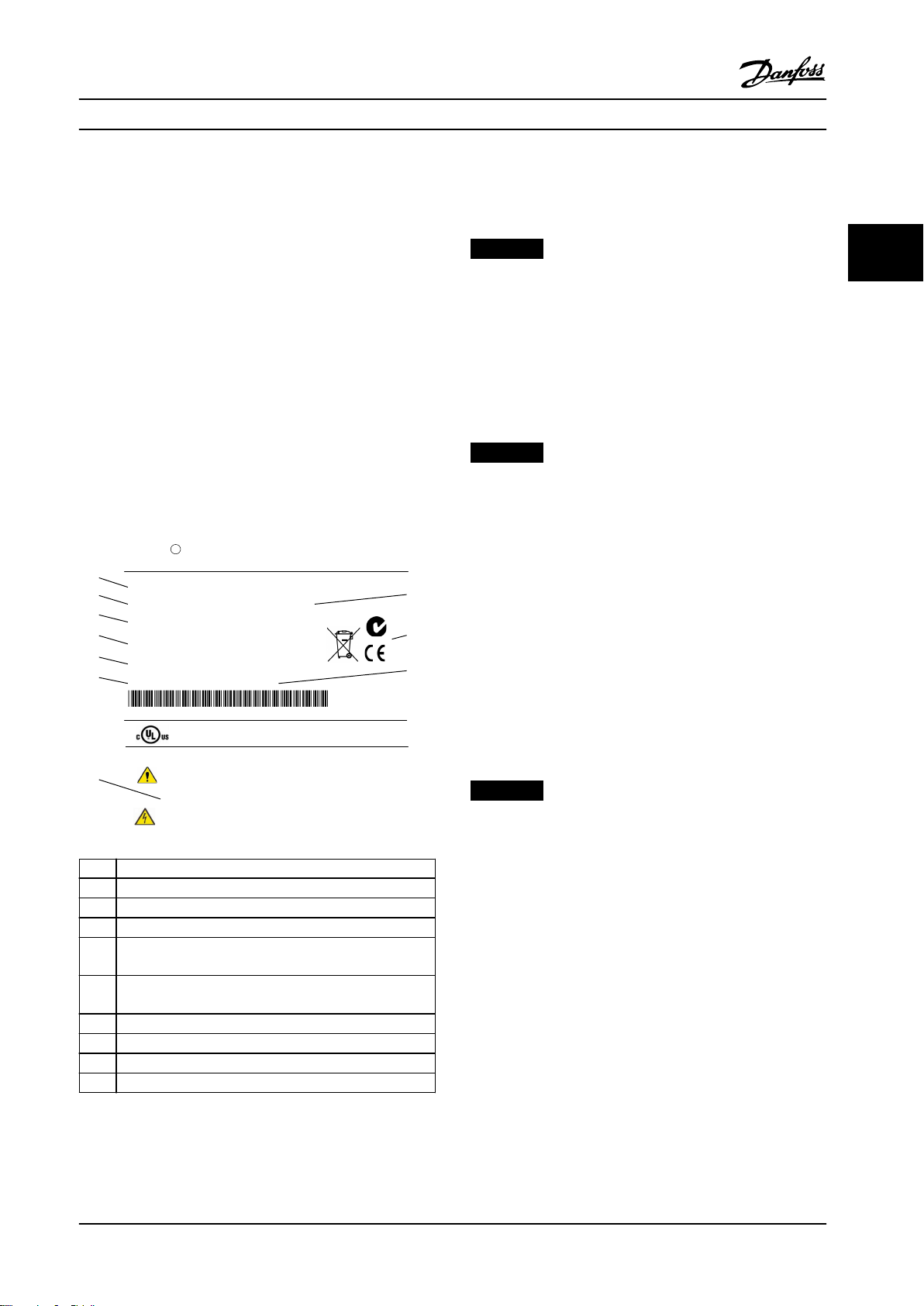

1 Type code
2 Order number
3 Serial number
4 Power rating
5Input voltage, frequency and current (at low/high
voltages)
6Output voltage, frequency and current (at low/high
voltages)
7 Enclosure type and IP rating
8 Maximum ambient temperature
9Certications
10 Discharge time (Warning)
Figure 3.1 Product Nameplate (Example)
NOTICE!
Do not remove the nameplate from the frequency
converter. Removing the nameplate voids the warranty.
3.1.2 Storage
Ensure that the requirements for storage are fullled. Refer
to chapter 8.4 Ambient Conditions for further details.
3.2 Installation Environments
NOTICE!
In environments with airborne liquids, particles, or
corrosive gases, ensure that the IP/type rating of the
equipment matches the installation environment. Failure
to meet requirements for ambient conditions can reduce
the lifetime of the frequency converter. Ensure that
requirements for air humidity, temperature, and altitude
are met.
Vibration and shock
The frequency converter complies with requirements for
units mounted on the walls and oors of production
premises, as well as in panels bolted to walls or oors.
For detailed ambient conditions specications, refer to
chapter 8.4 Ambient Conditions.
3.3 Mounting
NOTICE!
Improper mounting can result in overheating and
reduced performance.
Cooling
•Ensure that top and bottom clearance for air
cooling is provided. See Figure 3.2 for clearance
requirements.
Mechanical Installation Operating Instructions
MG20MC22 Danfoss A/S © 01/2015 All rights reserved. 11
33

a
a
130BD528.10
Enclosure A2-A5 B1-B4 C1, C3 C2, C4
a [mm] 100 200 200 225
Figure 3.2 Top and Bottom Cooling Clearance
Lifting
•To determine a safe lifting method, check the
weight of the unit, see chapter 8.9 Power Ratings,
Weight, and Dimensions.
•Ensure that the lifting device is suitable for the
task.
•If necessary, plan for a hoist, crane, or forklift with
the appropriate rating to move the unit.
•For lifting, use the hoist rings on the unit, when
provided.
Mounting
1. Ensure that the strength of the mounting location
supports the unit weight. The frequency
converter allows side-by-side installation.
2. Locate the unit as near to the motor as possible.
Keep the motor cables as short as possible.
3. Mount the unit vertically to a solid at surface or
to the optional back plate to provide cooling
airow.
4. Use the slotted mounting holes on the unit for
wall mounting, when provided.
Mounting with back plate and railings
130BD504.10
Figure 3.3 Proper Mounting with Back Plate
NOTICE!
A back plate is required when mounted on railings.
C
a
b
130BA648.12
f
e
B
A
a
d
e
b
c
Figure 3.4 Top and Bottom Mounting Holes (See
chapter 8.9 Power Ratings, Weight, and Dimensions)
Mechanical Installation VLT®AQUA Drive FC 202
12 Danfoss A/S © 01/2015 All rights reserved. MG20MC22
33

a
e
f
130BA715.12
Figure 3.5 Top and Bottom Mounting Holes (B4, C3, C4)
Mechanical Installation Operating Instructions
MG20MC22 Danfoss A/S © 01/2015 All rights reserved. 13
33

4 Electrical Installation
4.1 Safety Instructions
See chapter 2 Safety for general safety instructions.
WARNING
INDUCED VOLTAGE
Induced voltage from output motor cables that run
together can charge equipment capacitors even with the
equipment turned o and locked out. Failure to run
output motor cables separately or use screened cables or
metal conduits could result in death or serious injury.
•run output motor cables separately, or
•use screened cables or metal conduits
CAUTION
SHOCK HAZARD
The frequency converter can cause a DC current in the
PE conductor. Failure to follow the recommendation
means that the RCD may not provide the intended
protection.
•When a residual current-operated protective
device (RCD) is used for protection against
electrical shock, only an RCD of Type B is
permitted on the supply side.
NOTICE!
The frequency converter is supplied with Class 20 motor
overload protection.
Overcurrent protection
•Extra protective equipment, such as short-circuit
protection or motor thermal protection between
frequency converter and motor, is required for
applications with multiple motors.
•Input fusing is required to provide short-circuit
and overcurrent protection. If not factory-
supplied, the installer must provide fuses. See
maximum fuse ratings in chapter 8.8 Fuses and
Circuit Breakers.
Wire type and ratings
•All wiring must comply with local and national
regulations regarding cross-section and ambient
temperature requirements.
•Power connection wire recommendation:
Minimum 75 °C rated copper wire.
See chapter 8.1 Electrical Data and chapter 8.5 Cable Speci-
cations for recommended wire sizes and types.
4.2 EMC-compliant Installation
To obtain an EMC-compliant installation, follow the
instructions provided in chapter 4.3 Grounding,
chapter 4.4 Wiring Schematic, chapter 4.6 Motor Connection,
and chapter 4.8 Control Wiring.
4.3 Grounding
WARNING
LEAKAGE CURRENT HAZARD
Leakage currents exceed 3.5 mA. Failure to ground the
frequency converter properly could result in death or
serious injury.
•Ensure the correct grounding of the equipment
by a certied electrical installer.
For electrical safety
•Ground the frequency converter in accordance
with applicable standards and directives.
•Use a dedicated ground wire for input power,
motor power, and control wiring.
•Do not ground one frequency converter to
another in a daisy chain fashion.
•Keep the ground wire connections as short as
possible.
•Follow motor manufacturer wiring requirements.
•Minimum cable cross-section: 10 mm2(or 2 rated
ground wires terminated separately).
For EMC-compliant installation
•Establish electrical contact between the cable
screen and the frequency converter enclosure by
using metal cable glands or by using the clamps
Electrical Installation VLT®AQUA Drive FC 202
14 Danfoss A/S © 01/2015 All rights reserved. MG20MC22
44

provided on the equipment (see chapter 4.6 Motor
Connection).
•Use high-strand wire to reduce electrical
interference.
•Do not use pigtails.
NOTICE!
POTENTIAL EQUALISATION
Risk of electrical interference, when the ground potential
between the frequency converter and the control system
is dierent. Install equalising cables between the system
components. Recommended cable cross-section: 16 mm2.
Electrical Installation Operating Instructions
MG20MC22 Danfoss A/S © 01/2015 All rights reserved. 15
44

4.4 Wiring Schematic
+ - + -
S202
**
*
Motor
Analog Output
relay1
relay2
ON=Terminated
OFF=Open
50 (+10 V OUT)
53 (A IN)
54 (A IN)
55 (COM A IN)
12 (+24 V OUT)
13 (+24 V OUT)
37 (D IN)
18 (D IN)
(COM D IN)
(COM A OUT) 39
(A OUT) 42
(P RS-485) 68
(N RS-485) 69
(COM RS-485) 61
0/4–20 mA
240 V AC, 2 A
24 V (NPN)
0 V (PNP)
0 V (PNP)
24 V (NPN)
19 (D IN)
24 V (NPN)
0 V (PNP)
(D IN/OUT)
0 V (PNP)
24 V (NPN)
(D IN/OUT)
24 V (NPN)
0 V (PNP)
0 V (PNP)
24 V (NPN)
33 (D IN)
32 (D IN)
: Chassis
: Ground
240 V AC, 2 A
400 V AC, 2 A
91 (L1)
92 (L2)
93 (L3)
PE
88 (-)
89 (+)
20
10 V DC
15 mA 130/200 mA
(U) 96
(V) 97
(W) 98
(PE) 99
0 V
5 V
S801
RS-485
03
24 V DC
02
01
05
04
06
27
24 V
0 V
0 V
24 V
29
1 2
ON
S201
ON
21
ON=0/4–20 mA
OFF=0/-10 V DC -
+10 V DC
95
P 5-00
21
ON
S801
(R+) 82
(R-) 81
130BD552.10
3-phase
power
input
DC bus
+10 V DC
0/-10 V DC-
+10 V DC
0/4–20 mA
0/-10 V DC-
+10 V DC
0/4–20 mA
Switch Mode
Power Supply
Brake
resistor
RS-485
Interface
Figure 4.1 Basic Wiring Schematic
A=Analog, D=Digital
*Terminal 37 (optional) is used for Safe Torque O. For Safe Torque O installation instructions, refer to the VLT
®
Frequency
Converters - Safe Torque O Operating Instructions.
**Do not connect cable screen.
NOTICE!
Actual congurations vary with unit types and optional equipment.
Electrical Installation VLT®AQUA Drive FC 202
16 Danfoss A/S © 01/2015 All rights reserved. MG20MC22
44

130BD529.12
1
2
3
4
5
6
7
8
9
L1
L2
L3
PE
10 11 PE
u
v
w

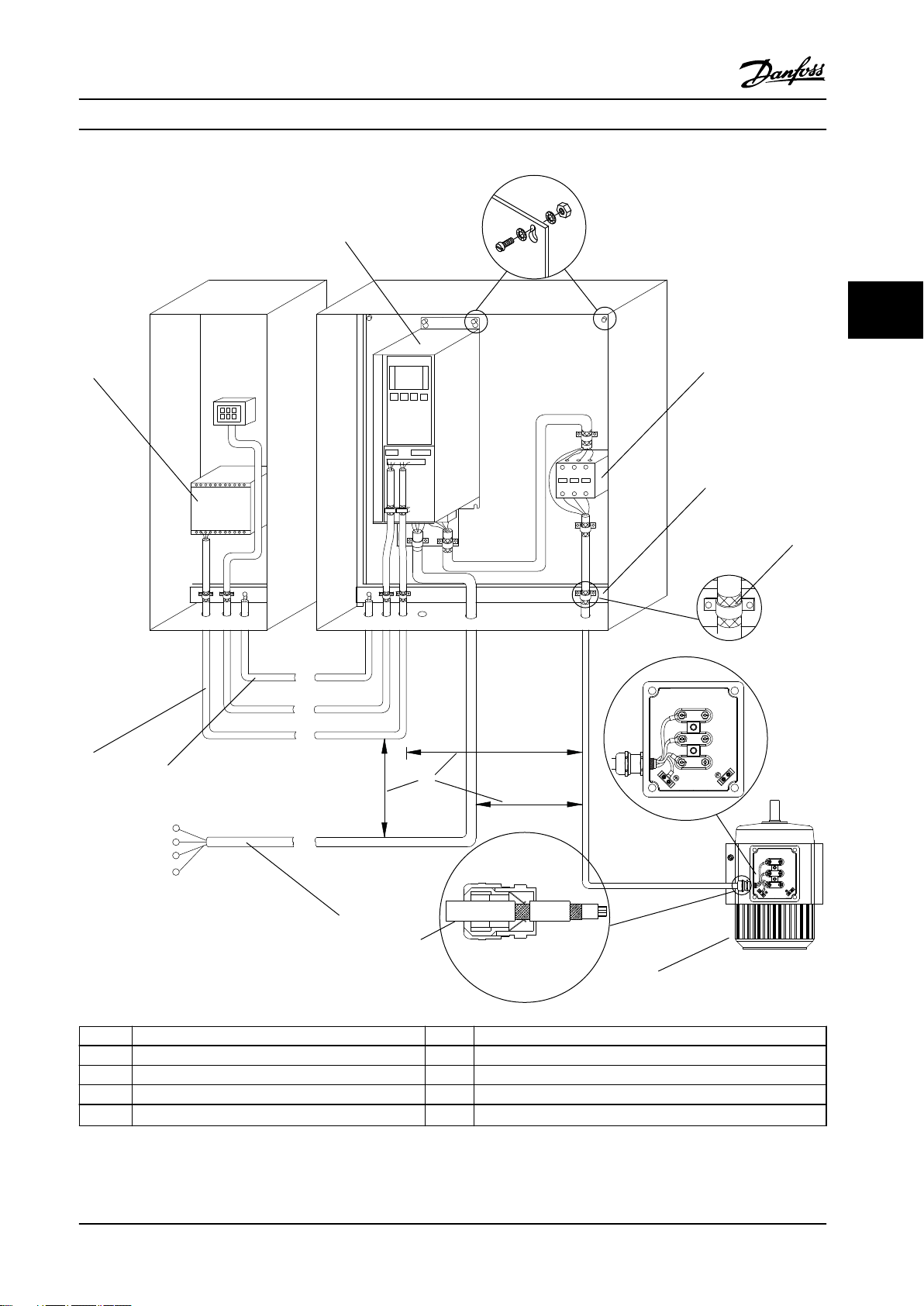

1 PLC 6 Cable gland
2 Frequency converter 7 Motor, 3-phase and PE
3 Output contactor 8 Mains, 3-phase and reinforced PE
4 Grounding rail (PE) 9 Control wiring
5 Cable insulation (stripped) 10 Equalising min. 16 mm2(0.025 in2)
Figure 4.2 EMC-compliant Electrical Connection
Electrical Installation Operating Instructions
MG20MC22 Danfoss A/S © 01/2015 All rights reserved. 17
44

NOTICE!
EMC INTERFERENCE
Run cables for input power, motor wiring and control
wiring in 3 separate metallic conduits. Failure to isolate
power, motor, and control cables can result in
unintended behaviour or reduced performance.
Minimum clearance requirement between power, motor
and control cables is 200 mm (7.9 in).
4.5 Access
•Remove the cover with a screw driver (See
Figure 4.3) or by loosening the attaching screws
(See Figure 4.4).
130BT248.10
Figure 4.3 Access to Wiring for IP20 and IP21 Enclosures
130BT334.10
Figure 4.4 Access to Wiring for IP55 and IP66 Enclosures
Tighten the cover screws using the tightening torques
specied in Table 4.1.
Enclosure IP55 IP66
A4/A5 2 2
B1/B2 2.2 2.2
C1/C2 2.2 2.2
No screws to tighten for A2/A3/B3/B4/C3/C4.
Table 4.1 Tightening Torques for Covers [Nm]
4.6 Motor Connection
WARNING
INDUCED VOLTAGE
Induced voltage from output motor cables that run
together can charge equipment capacitors even with the
equipment turned o and locked out. Failure to run
output motor cables separately or use screened cables or
metal conduits could result in death or serious injury.
•Run output motor cables separately, or
•Use screened cables or metal conduits
•Comply with local and national electrical codes
for cable sizes. For maximum wire sizes see
chapter 8.1 Electrical Data.
•Follow motor manufacturer wiring requirements.
•Motor wiring knockouts or access panels are
provided at the base of IP21 (NEMA1/12) and
higher units.
•Do not wire a starting or pole-changing device
(e.g. Dahlander motor or slip ring induction
motor) between the frequency converter and the
motor.
Procedure
1. Strip a section of the outer cable insulation.
2. Position the stripped wire under the cable clamp
to establish mechanical xation and electrical
contact between the cable screen and ground.
3. Connect the ground wire to the nearest
grounding terminal in accordance with the
grounding instructions provided in
chapter 4.3 Grounding, see Figure 4.5.
4. Connect the 3-phase motor wiring to terminals
96 (U), 97 (V), and 98 (W), see Figure 4.5.
5. Tighten the terminals in accordance with the
information provided in chapter 8.7 Connection
Tightening Torques.
Electrical Installation VLT®AQUA Drive FC 202
18 Danfoss A/S © 01/2015 All rights reserved. MG20MC22
44
