Danfoss VLT AQUA Drive FC 202 User manual

MAKING MODERN LIVING POSSIBLE
Operating Instructions
VLT® AQUA Drive FC 202
315-1400 kW
www.danfoss.com/drives

Contents
1 Introduction 4
1.1 Purpose of the Manual 4
1.2 Additional Resources 4
1.3 Document and Software Version 4
1.4 Approvals and Certifications 4
1.5 Disposal 5
1.6 Abbreviations and Conventions 5
2 Safety 7
2.1 Qualified Personnel 7
2.2 Safety Regulations 7
2.2.1 Discharge Time 7
2.2.2 Safe Torque Off (STO) 8
3 Mechanical Installation 9
3.1 Pre-installation 9
3.1.1 Planning the Installation Site 9
3.1.1.1 Inspection on Receipt 9
3.1.2 Receiving the Frequency Converter 9
3.1.3 Transportation and Unpacking 9

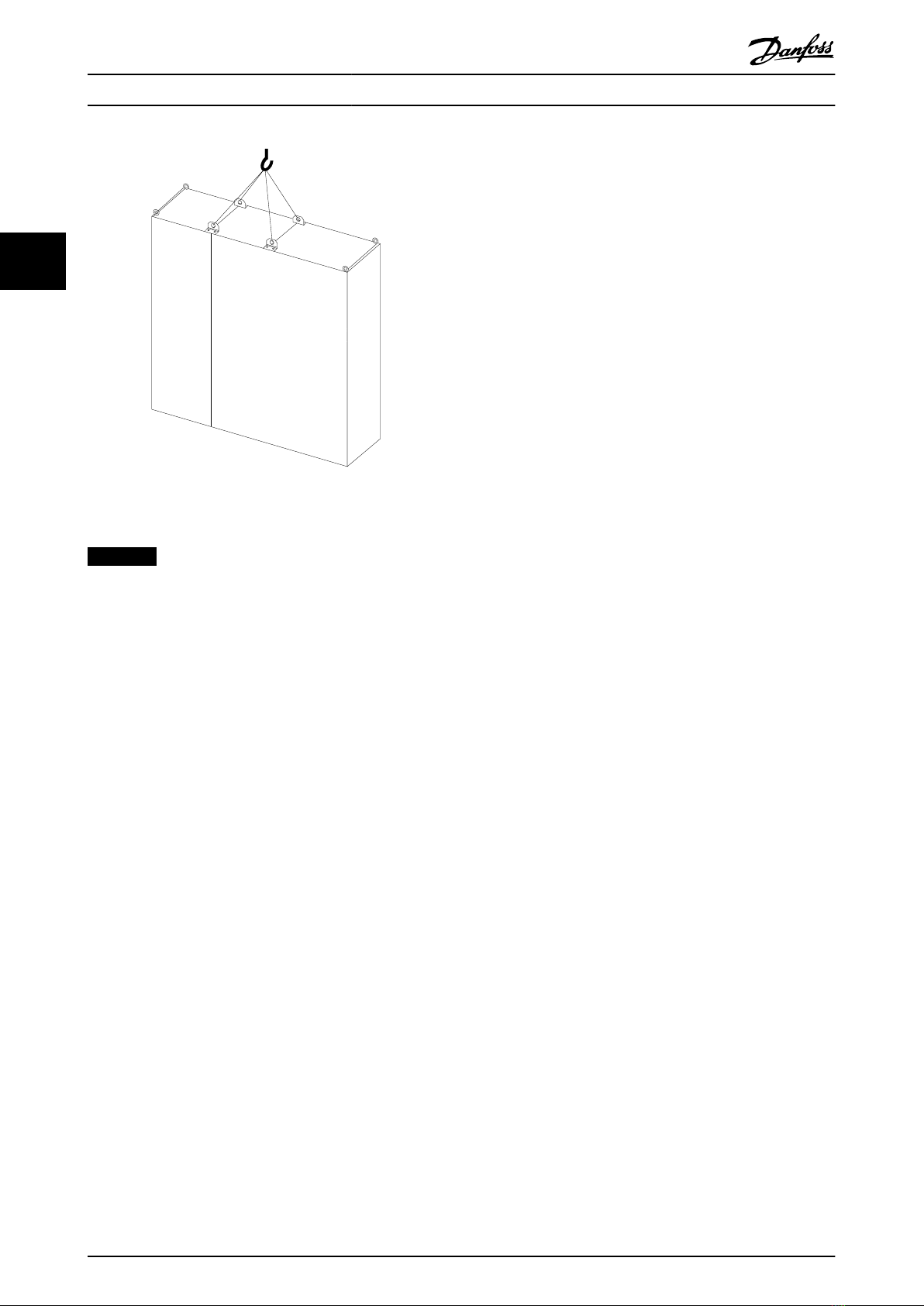

3.1.4 Lifting 9

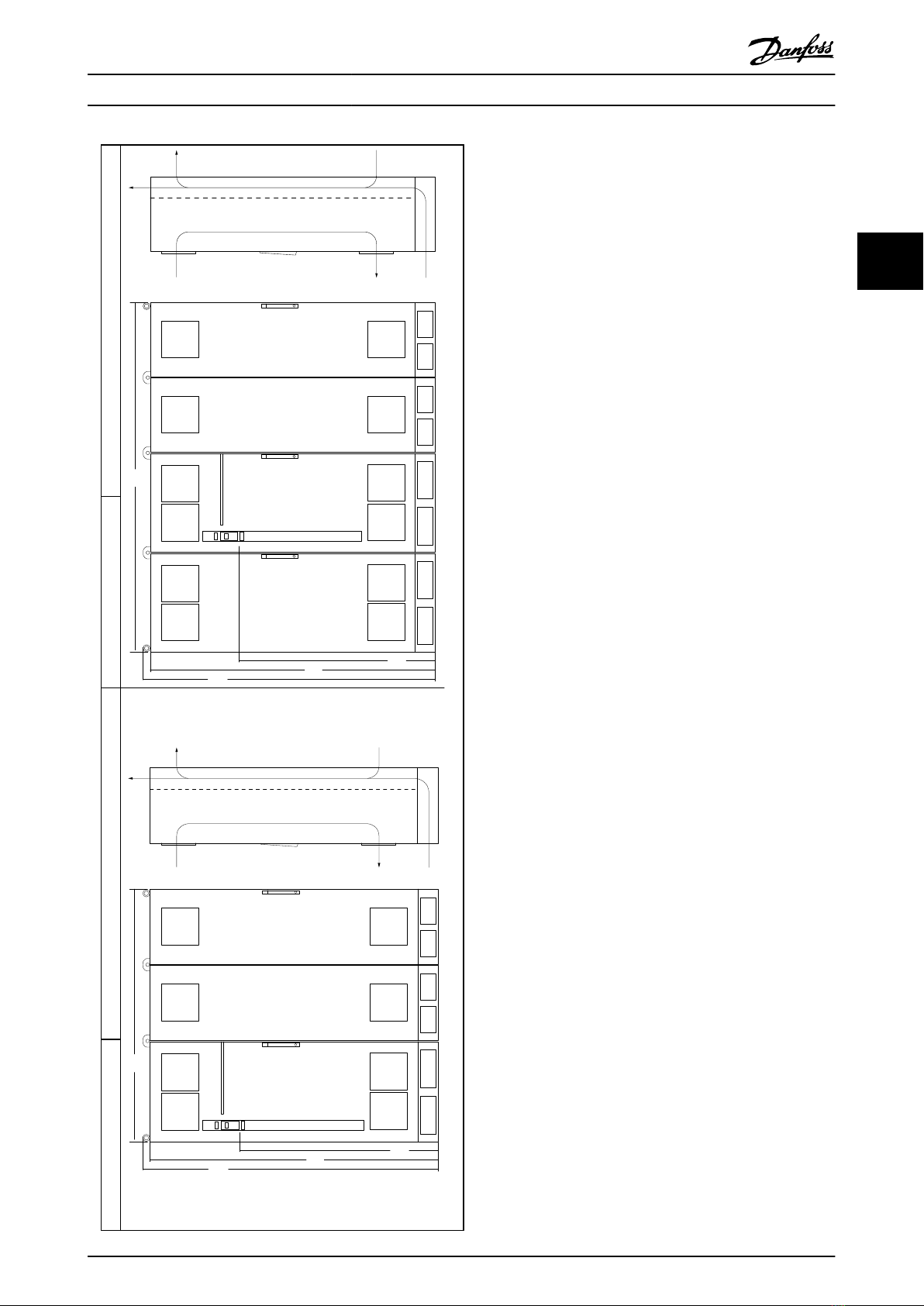

3.1.5 Mechanical Dimensions 11
3.2 Mechanical Installation 15
3.2.1 Preparation for Installation 15
3.2.2 Tools Required 15
3.2.3 General Considerations 15

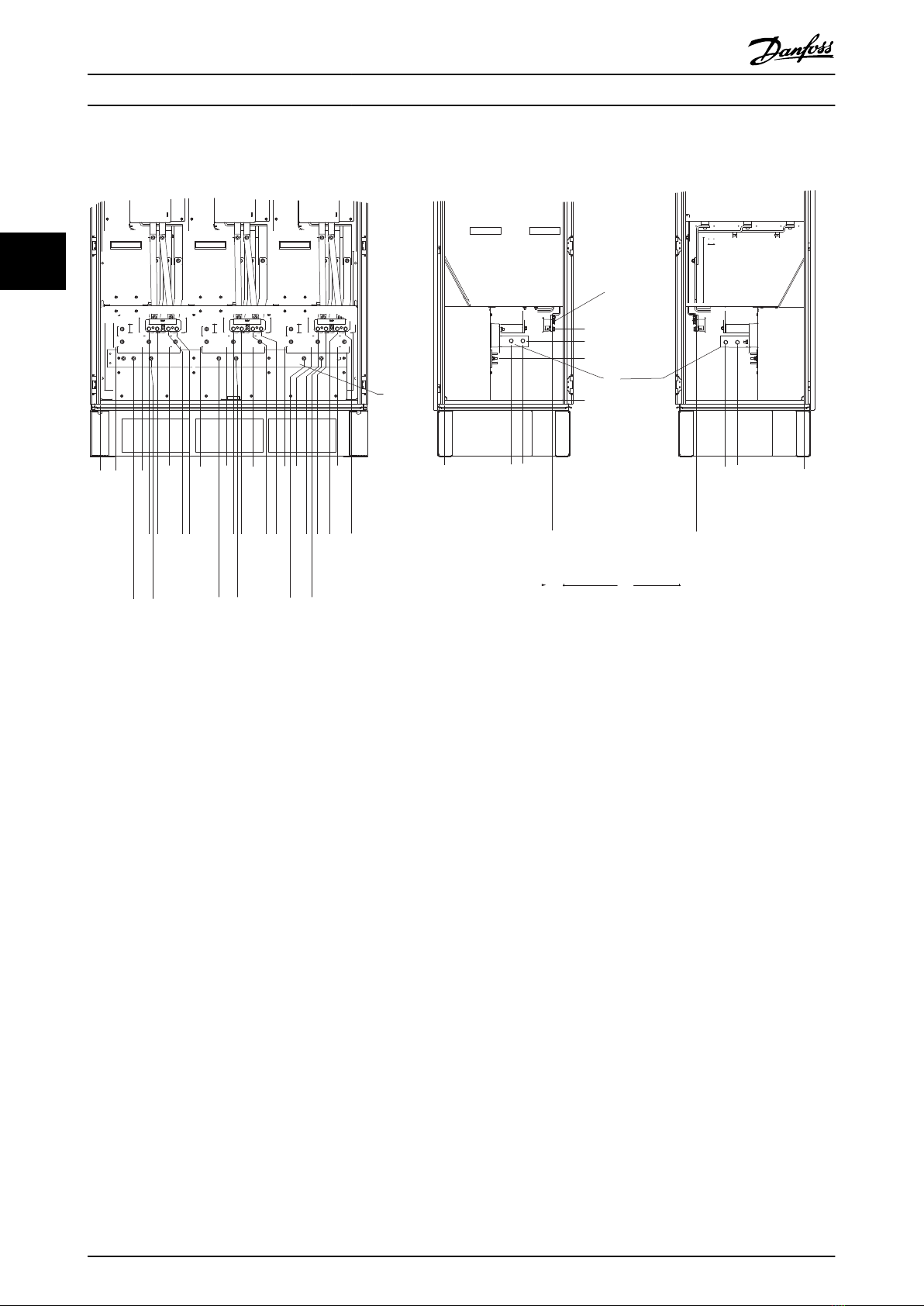

3.2.4 Terminal Locations, F8-F14 16
3.2.4.1 Inverter and Rectifier, Enclosure Sizes F8 and F9 16
3.2.4.2 Inverter, Enclosure Sizes F10 and F11 17
3.2.4.3 Inverter, Enclosure Sizes F12 and F13 18
3.2.4.4 Inverter, Enclosure Size F14 19
3.2.4.5 Rectifier, Enclosure Sizes F10, F11, F12 and F13 19
3.2.4.6 Rectifier, Enclosure Size F14 20
3.2.4.7 Options Cabinet, Enclosure Size F9 21
3.2.4.8 Options Cabinet, Enclosure Sizes F11/F13 22
3.2.5 Cooling and Airflow 22
3.3 Frame size F Panel Options 26
3.3.1 Panel Options 26
4 How to Install 28
Contents Operating Instructions
MG20Y202 Danfoss A/S © Rev. 06/2014 All rights reserved. 1

4.1 Electrical Installation 28
4.1.1 Power Connections 28
4.1.2 Grounding 35
4.1.3 Extra Protection (RCD) 35
4.1.4 RFI Switch 35
4.1.5 Torque 35
4.1.6 Screened Cables 36
4.1.7 Motor Cable 36
4.1.8 Brake Cable for Frequency Converters with Factory-installed Brake Chopper Op-
tion 37
4.1.9 Shielding against Electrical Noise 37
4.1.10 Mains Connection 37
4.1.11 External Fan Supply 38
4.1.12 Fuses 38
4.1.13 Motor Insulation 41
4.1.14 Motor Bearing Currents 41
4.1.15 Brake Resistor Temperature Switch 41
4.1.16 Control Cable Routing 41
4.1.17 Access to Control Terminals 42
4.1.18 Electrical Installation, Control Terminals 42
4.2 Connection Examples 43
4.2.1 Start/Stop 43
4.2.2 Pulse Start/Stop 43
4.3 Electrical Installation - additional 45
4.3.1 Electrical Installation, Control Cables 45
4.3.2 Switches S201, S202 and S801 47
4.4 Final Set-up and Test 48
4.5 Additional Connections 49
4.5.1 Mechanical Brake Control 49
4.5.2 Parallel Connection of Motors 49
4.5.3 Motor Thermal Protection 50
5 How to operate the frequency converter 51
5.1.1 How to operate graphical LCP (GLCP) 51
5.1.2 How to Operate Numeric LCP (NLCP) 54
5.1.3 Changing Data 56
5.1.4 Changing a Text Value 56
5.1.5 Changing a Group of Numeric Data Values 56
5.1.6 Changing of Data Value, Step-by-Step 57
5.1.7 Readout and Programming of Indexed Parameters 57
5.1.8 Tips and Tricks 57
Contents Operating Instructions
2 Danfoss A/S © Rev. 06/2014 All rights reserved. MG20Y202

5.1.9 Quick Transfer of Parameter Settings when Using GLCP 57
5.1.10 Initialisation to Default Settings 57
5.1.11 RS-485 Bus Connection 58
5.1.12 How to Connect a PC to the Frequency Converter 58
5.1.13 PC Software Tools 59
6 How to programme the frequency converter 60
6.1 How to programme 60
6.1.7 Main Menu Mode 64
6.1.8 Parameter Selection 64
6.2 Commonly Used Parameters - Explanations 65
6.2.2 0-** Operation/Display 65
6.3 Parameter Options 93
6.3.1 Default Settings 93
7 General Specifications 98
8 Troubleshooting 109
Index 121
Contents Operating Instructions
MG20Y202 Danfoss A/S © Rev. 06/2014 All rights reserved. 3

1 Introduction
1.1 Purpose of the Manual
The frequency converter is designed to provide high shaft
performance on electrical motors. Read these operating
instructions carefully for proper use. Incorrect handling of
the frequency converter may cause improper operation of
the frequency converter or related equipment, shorten
lifetime or cause other troubles.
These operating instructions provide information on:
•Start-up
•Installation
•Programming
•Troubleshooting
•Chapter 1 Introduction introduces the manual and
informs about approvals, symbols, and abbrevi-
ations used in this manual.
•Chapter 2 Safety entails instructions on how to
handle the frequency converter in a safe way.
•Chapter 3 Mechanical Installation guides through
the mechanical installations.
•Chapter 4 How to Install guides through the
electrical installations.
•Chapter 5 How to operate the frequency converter
explains how to operate the frequency converter
via the LCP.
•Chapter 6 How to programme the frequency
converter explains how to programme the
frequency converter via the LCP.
•Chapter 7 General Specifications contains technical
data about the frequency converter.
•Chapter 8 Troubleshooting assists in solving
problems that may occur when using the
frequency converter.
VLT®is a registered trademark.
1.2 Additional Resources
•VLT
®
AQUA Drive FC 202 Operating Instructions
provide the neccessary information for getting
the frequency converter up and running.
•VLT
®
AQUA Drive FC 202, 110-1400 kW Operating
Instructions provide the neccessary information
for getting the high power frequency converter
up and running.
•VLT
®
AQUA Drive FC 202 Design Guide entails all
technical information about the frequency
converter and customer design and applications.
•VLT
®
AQUA Drive FC 202 Programming Guide
provides information on how to programme and
includes complete parameter descriptions.
•VLT
®
AQUA Drive FC 202 Profibus
•VLT
®
AQUA Drive FC 202 DeviceNet
•Output Filters Design Guide
•VLT
®
AQUA Drive FC 202 Cascade Controller
•Application Note MN20A: Submersible Pump
Application
•Application Note MN20: Master/Follower Operation
Application
•Application Note MN20F: Drive Closed Loop and
Sleep Mode
•Installation Instruction for Mounting Brackets
Enclosure type A5, B1, B2, C1 and C2 IP21, IP55 or
IP66
•Instruction for Analog I/O Option MCB109
•Instruction for Panel through mount kit
•VLT
®
Active Filter Operating Instruction
Danfoss technical literature is also available online at
www.danfoss.com/BusinessAreas/DrivesSolutions/Documen-
tations/Technical+Documentation.htm.
1.3 Document and Software Version
This manual is regularly reviewed and updated. All
suggestions for improvement are welcome. Table 1.1 shows
the document version and the corresponding software
version.
Edition Remarks Software version
MG21Y2xx Replaces MG21Y1xx 2.2x
Table 1.1 Document and Software Version
1.4 Approvals and Certifications
Introduction Operating Instructions
4 Danfoss A/S © Rev. 06/2014 All rights reserved. MG20Y202
1
1

The frequency converter complies with UL508C thermal
memory retention requirements. For more information,
refer to the section Motor Thermal Protection in the
product specific design guide.
NOTICE
Imposed limitations on the output frequency
(due to export control regulations):
From software version 6.72 onwards, the output
frequency of the frequency converter is limited to 590
Hz. Software versions 6x.xx also limit the maximum
output frequency to 590 Hz, but these versions cannot
be flashed, that is, neither downgraded nor upgraded.
1.5 Disposal
Do not dispose of equipment containing
electrical components together with
domestic waste.
Collect it separately in accordance with
local and currently valid legislation.
1.6 Abbreviations and Conventions
60°AVM 60°Asynchronous vector modulation
A Ampere/AMP
AC Alternating current
AD Air discharge
AEO Automatic energy optimisation
AI Analog input
AMA Automatic motor adaptation
AWG American wire gauge
°CDegrees Celsius
CD Contant discharge
CM Common mode
CT Constant torque
DC Direct current
DI Digital input
DM Differential mode
D-TYPE Drive dependent
EMC Electro magnetic compatibility
ETR Electronic thermal relay
fJOG Motor frequency when jog function is
activated.
fMMotor frequency
fMAX The maximum output frequency the frequency
converter applies on its output.
fMIN The minimum motor frequency from
frequency converter
fM,N Nominal motor frequency
FC Frequency converter
g Gramme
Hiperface®Hiperface®is a registered trademark by
Stegmann
hp Horsepower
HTL HTL encoder (10-30 V) pulses - High-voltage
transistor logic
Hz Hertz
IINV Rated inverter output current
ILIM Current limit
IM,N Nominal motor current
IVLT,MAX The maximum output current
IVLT,N The rated output current supplied by the
frequency converter
kHz Kilohertz
LCP Local control panel
lsb Least significant bit
m Meter
mA Milliampere
MCM Mille circular mil
MCT Motion control tool
mH Millihenry inductance
min Minute
ms Millisecond
msb Most significant bit
ηVLT Efficiency of the frequency converter defined
as ratio between power output and power
input.
nF Nanofarad
NLCP Numerical local control panel
Nm Newton meters
nsSynchronous motor speed
On-line/Off-line
Parameters
Changes to on-line parameters are activated
immediately after the data value is changed.
Pbr,cont. Rated power of the brake resistor (average
power during continuous braking).
PCB Printed circuit board
PCD Process data
PELV Protective extra low voltage
PmFrequency converter nominal output power as
HO.
PM,N Nominal motor power
PM motor Permanent magnet motor
Process PID The PID regulator maintains the desired speed,
pressure, temperature, etc.
Rbr,nom The nominal resistor value that ensures a
brake power on motor shaft of 150/160% for 1
minute
RCD Residual current device
Regen Regenerative terminals
Rmin Minimum permissible brake resistor value by
frequency converter
RMS Root mean square
RPM Revolutions per minute
Rrec Resistor value and resistance of the brake
resistor
s Second
Introduction Operating Instructions
MG20Y202 Danfoss A/S © Rev. 06/2014 All rights reserved. 5
11

SFAVM Stator flux-oriented asynchronous vector
modulation
STW Status word
SMPS Switch mode power supply
THD Total harmonic distortion
TLIM Torque limit
TTL TTL encoder (5 V) pulses - transistor transistor
logic
UM,N Nominal motor voltage
V Volts
VT Variable torque
VVC+Voltage vector control
Table 1.2 Abbreviations
Conventions
Numbered lists indicate procedures.
Bullet lists indicate other information and description of
illustrations.
Italicised text indicates
•Cross reference
•Link
•Footnote
•Parameter name, parameter group name,
parameter option
All dimensions are in mm [inch].
* indicates a default setting of a parameter.
Introduction Operating Instructions
6 Danfoss A/S © Rev. 06/2014 All rights reserved. MG20Y202
1
1

2 Safety
The following symbols are used in this document:
WARNING
Indicates a potentially hazardous situation which could
result in death or serious injury.
CAUTION
Indicates a potentially hazardous situation which could
result in minor or moderate injury. It can also be used to
alert against unsafe practices.
NOTICE
Indicates important information, including situations that
can result in damage to equipment or property.
2.1 Qualified Personnel
Correct and reliable transport, storage, installation,
operation, and maintenance are required for the trouble-
free and safe operation of the frequency converter. Only
qualified personnel are allowed to install or operate this
equipment.
Qualified personnel are defined as trained staff, who are
authorised to install, commission, and maintain equipment,
systems, and circuits in accordance with pertinent laws and
regulations. Additionally, the personnel must be familiar
with the instructions and safety measures described in
these operating instructions.
2.2 Safety Regulations
WARNING
HIGH VOLTAGE
Frequency converters contain high voltage when
connected to AC mains input, DC power supply, or load
sharing. Failure to perform installation, start-up, and
maintenance by qualified personnel can result in death
or serious injury.
•Installation, start-up, and maintenance must be
performed by qualified personnel only.
WARNING
UNINTENDED START
When the frequency converter is connected to AC mains,
DC power supply, or load sharing, the motor may start at
any time. Unintended start during programming, service,
or repair work can result in death, serious injury, or
property damage. The motor can start by means of an
external switch, a serial bus command, an input
reference signal from the LCP, or after a cleared fault
condition.
To prevent unintended motor start:
•Disconnect the frequency converter from the
mains.
•Press [Off/Reset] on the LCP before
programming parameters.
•The frequency converter, motor, and any driven
equipment must be fully wired and assembled
when the frequency converter is connected to
AC mains, DC power supply, or load sharing.
2.2.1 Discharge Time
Voltage [V] Minimum waiting time (minutes)
30 40
380-500 V 315-1000 kW
525-600 V 400-1400 kW
Table 2.1 Discharge Time
WARNING
LEAKAGE CURRENT HAZARD
Leakage currents exceed 3.5 mA. Failure to ground the
frequency converter properly can result in death or
serious injury.
•Ensure the correct grounding of the equipment
by a certified electrical installer.
Safety Operating Instructions
MG20Y202 Danfoss A/S © Rev. 06/2014 All rights reserved. 7
22

WARNING
EQUIPMENT HAZARD
Contact with rotating shafts and electrical equipment
can result in death or serious injury.
•Ensure that only trained and qualified
personnel perform installation, start up, and
maintenance.
•Ensure that electrical work conforms to national
and local electrical codes.
•Follow the procedures in these operating
instructions.
WARNING
UNINTENDED MOTOR ROTATION
WINDMILLING
Unintended rotation of permanent magnet motors can
result in serious injury or equipment damage.
•Ensure that permanent magnet motors are
blocked to prevent unintended rotation.
CAUTION
INTERNAL FAILURE HAZARD
An internal failure in the frequency converter can result
in serious injury, when the frequency converter is not
properly closed.
•Ensure that all safety covers are in place and
securely fastened before applying power.
2.2.2 Safe Torque Off (STO)
STO is an option. To run STO, additional wiring for the
frequency converter is required. Refer to VLT
®
Frequency
Converters Safe Torque Off Operating Instructions for further
information.
Safety Operating Instructions
8 Danfoss A/S © Rev. 06/2014 All rights reserved. MG20Y202
22

3 Mechanical Installation
3.1 Pre-installation
3.1.1 Planning the Installation Site
NOTICE
Plan the installation of the frequency converter before
commencing the installation. Neglecting this may result
in extra work during and after installation.
Select the best possible operation site by considering
the following (see details on the following pages, and
the respective Design Guides):
•Ambient operating temperature
•Installation method
•How to cool the unit
•Position of the frequency converter
•Cable routing
•Ensure that the power source supplies the correct
voltage and necessary current.
•Ensure that the motor current rating is within the
maximum current from the frequency converter.
•If the frequency converter is without built-in
fuses, ensure that the external fuses are rated
correctly.
3.1.1.1 Inspection on Receipt
After receiving the delivery, immediately check whether
the scope of delivery matches the shipping documents.
Danfoss does not honour claims for faults registered at a
later time. Register a complaint immediately:
•With the carrier in case of visible transport
damage.
•With the responsible Danfoss representative in
case of visible defects or incomplete delivery.
3.1.2 Receiving the Frequency Converter
When receiving the frequency converter, make sure that
the packaging is intact, and be aware of any damage that
might have occurred to the unit during transport. In case
damage has occurred, immediately contact the shipping
company to claim the damage.
3.1.3 Transportation and Unpacking
Locate the frequency converter as close as possible to the
final installation site before unpacking.
Remove the box and handle the frequency converter on
the pallet, as long as possible.
3.1.4 Lifting
Always lift the frequency converter via the dedicated lifting
eyes.
130BB753.10
Illustration 3.1 Recommended Lifting Method, Enclosure Size
F8.
130BB688.10
Illustration 3.2 Recommended Lifting Method, Enclosure Size
F9/F10.
Mechanical Installation Operating Instructions
MG20Y202 Danfoss A/S © Rev. 06/2014 All rights reserved. 9
33

130BB689.10
Illustration 3.3 Recommended Lifting Method, Enclosure Size
F11/F12/F13/F14.
NOTICE
The plinth is provided in the same packaging as the
frequency converter, but is not attached during
shipment. The plinth is required to allow airflow cooling
to the frequency converter. Position the frequency
converter on top of the plinth in the final installation
location. The angle from the top of the frequency
converter to the lifting cable should be >60°.
In addition to Illustration 3.1 to Illustration 3.3, a spreader
bar can be used to lift the frequency converter.
Mechanical Installation Operating Instructions
10 Danfoss A/S © Rev. 06/2014 All rights reserved. MG20Y202
33

3.1.5 Mechanical Dimensions
F8 IP 21/54 - NEMA 1/12 F9 IP 21/54 - NEMA 1/12
130BB754.10
800 607
IP/21 NEMA 1
IP/54
NEMA 12
1400 m3/Hr 824 CFM
618
CFM
1050
m3/Hr
1160 CFM 1970 m3/Hr
2280
2205
1497
130BB568.10
1400
607
IP/21 NEMA 1
IP/54
NEMA 12
2100 m3/Hr 1236 CFM
927
CFM
1575
m3/Hr
1160 CFM 1970 m3/Hr
2280
2205
1497
All dimensions in mm
Table 3.1
Mechanical Installation Operating Instructions
MG20Y202 Danfoss A/S © Rev. 06/2014 All rights reserved. 11
33

F10 IP 21/54 - NEMA 1/12 F11 IP 21/54 - NEMA 1/12
130BB569.10
1600
607
IP/21 NEMA 1
IP/54
NEMA 12
2800 m3/Hr 1648 CFM
1236
CFM
2100
m3/Hr
2320 CFM 3940 m3/Hr
2280
2205
1497
130BB570.10
2400
607
IP/21 NEMA 1
IP/54
NEMA 12
4200 m3/Hr 2472 CFM
1854
CFM
3150
m3/Hr
2320 CFM 3940 m3/Hr
2280
2205
1497
All dimensions in mm
Table 3.2
Mechanical Installation Operating Instructions
12 Danfoss A/S © Rev. 06/2014 All rights reserved. MG20Y202
33

F12 IP 21/54 - NEMA 1/12 F13 IP 21/54 - NEMA 1/12
130BB571.10
2000
607
IP/21 NEMA 1
IP/54
NEMA 12
2800 m3/Hr 2472 CFM
1854
CFM
3150
m3/Hr
2900 CFM 4925 m3/Hr
2280
2205
1497
130BB572.10
2800
607
IP/21 NEMA 1
IP/54
NEMA 12
4200 m3/Hr 2472 CFM
1854
CFM
3150
m3/Hr
2900 CFM 4925 m3/Hr
2280
2205
1497
All dimensions in mm
Table 3.3
Mechanical Installation Operating Instructions
MG20Y202 Danfoss A/S © Rev. 06/2014 All rights reserved. 13
33

Enclosure size F8 F9 F10 F11 F12 F13
F9 F8
130BB690.10
F11 F10
130BB691.10
F13 F12
130BB692.10
High overload rated
power - 160%
overload torque
315 - 450 kW
(380 - 500 V)
400 - 630 kW
(525-690 V)
500 - 710 kW
(380 - 500 V)
710 - 900 kW
(525-690 V)
800 - 1000 kW
(380 - 500 V)
1000 - 1400 kW
(525-690 V)
IP
NEMA
21, 54
Type 12
21, 54
Type 12
21, 54
Type 12
Shipping
dimensions
[mm]
Height
2324 2324 2324 2324 2324 2324
Width 970 1568 1760 2559 2160 2960
Depth 1130 1130 1130 1130 1130 1130
Drive
dimensions Height 2204 2204 2204 2204 2204 2204
Width 800 1400 1600 2200 2000 2600
Depth 606 606 606 606 606 606
Max
weight
[kg]
440 656 880 1096 1022 1238
Table 3.4 Mechanical Dimensions, Enclosure Sizes E and F
NOTICE
The F frames are available in 6 different sizes, F8, F9, F10, F11, F12 and F13 The F8, F10 and F12 consist of an inverter
cabinet on the right and rectifier cabinet on the left. The F9, F11 and F13 have an additional options cabinet left of the
rectifier cabinet. The F9 is an F8 with an additional options cabinet. The F11 is an F10 with an additional options
cabinet. The F13 is an F12 with an additional options cabinet.
Mechanical Installation Operating Instructions
14 Danfoss A/S © Rev. 06/2014 All rights reserved. MG20Y202
33

3.2 Mechanical Installation
3.2.1 Preparation for Installation
Make the following preparations to ensure reliable and
effective installation of the frequency converter:
•Provide a suitable mounting arrangement. The
mounting arrangement depends on the design,
weight, and torque of the frequency converter.
•Examine the mechanical drawings to ensure that
the space requirements are met.
•Ensure that all wiring is done in accordance with
national regulations.
3.2.2 Tools Required
•Drill with 10 or 12 mm bit.
•Tape measure.
•Wrench with relevant metric sockets (7-17 mm).
•Extensions to wrench.
•Sheet metal punch for conduits or cable glands
in IP21/Nema 1 and IP54 units
•Lifting bar to lift the unit (rod or tube max. Ø 25
mm (1 inch), able to lift minimum 400 kg (880
lbs)).
•Crane or other lifting aid to place the frequency
converter in position.
3.2.3 General Considerations
Space
Ensure sufficient space above and below the frequency
converter to allow airflow and cable access. In addition,
allow for enough space in front of the unit to open the
panel door, see Illustration 3.4 to Illustration 3.10.
776
(30.6)
130BB531.10
Illustration 3.4 Space in Front of Enclosure Size F8
130BB003.13
578
(22.8)
776
(30.6)
Illustration 3.5 Space in Front of Enclosure Size F9
776
(30.6)
776
(30.6)
130BB574.10
Illustration 3.6 Space in Front of Enclosure Size F10
776
(30.6)
(2x)
130BB575.10
Illustration 3.7 Space in Front of Enclosure Size F11
624
(24.6)
579
(22.8)
130BB576.10
776
(30.6)
Illustration 3.8 Space in Front of Enclosure Size F12
624
(24.6)
579
(22.8)
776
(30.6)
776
(30.6)
130BB577.10
Illustration 3.9 Space in Front of Enclosure Size F13
776
(30.6)
(2x)
130BB575.10
Illustration 3.10 Space in Front of Enclosure Size F14
Wire access
Ensure that proper wire access is present including the
necessary bending allowance.
NOTICE
All cable lugs/shoes must mount within the width of the
terminal bus bar.
Mechanical Installation Operating Instructions
MG20Y202 Danfoss A/S © Rev. 06/2014 All rights reserved. 15
33

3.2.4 Terminal Locations, F8-F14
The F enclosures are available in 7 different sizes, F8, F9, F10, F11, F12, F13, and F14. The F8, F10, F12, and F14 consist of an
inverter cabinet on the right and rectifier cabinet on the left. The F9, F11 and F13 have an additional options cabinet left of
the rectifier cabinet. The F9 is an F8 with an additional options cabinet. The F11 is an F10 with an additional options
cabinet. The F13 is an F12 with an additional options cabinet.
3.2.4.1 Inverter and Rectifier, Enclosure Sizes F8 and F9
4
3
239.6 [ 9.43 ]
0.0 [ 0.00 ]
0.0 [ 0.00 ]
160.0 [ 6.30 ]
56.6 [ 2.23 ]
39.8 [ 1.57 ] 91.8 [ 3.61 ]
174.1 [ 6.85 ] 226.1 [ 8.90 ]
130BB534.11
R2/L12
R1/L11
91-1
91
S2/L22
S1/L21
92-1 T2/L32 93-1
92 T1/L31 93
U/T1 96 V/T2 97 W/T3 98
0.0 [ 0.00 ]
57.6 [ 2.27 ] 74.0 [ 2.91 ] 100.4 [ 3.95 ] 139.4 [ 5.49 ] 172.6 [ 6.80 ] 189.0 [ 7.44 ] 199.4 [ 7.85 ]
287.6 [ 11.32 ] 304.0 [ 11.97 ] 407.3 [ 16.04 ] 464.4 [ 18.28 ] 522.3 [ 20.56 ] 524.4 [ 20.65 ] 629.7 [ 24.79 ] 637.3 [ 25.09 ]
1 2
Illustration 3.11 Terminal Locations - Left, Front and Right Views. The gland plate is 42 mm below .0 level.
1) Ground bar
Mechanical Installation Operating Instructions
16 Danfoss A/S © Rev. 06/2014 All rights reserved. MG20Y202
33

3.2.4.2 Inverter, Enclosure Sizes F10 and F11
130BA849.13
.0 [.0] 54.4[2.1]
169.4 [6.7]
284.4 [11.2]
407.3 [16.0]
522.3 [20.6]
637.3 [25.1]
287.4 [11.3]
253.1 [10.0]
.0 [.0]
.0 [.0]
339.4 [13.4]
287.4 [11.3]
.0 [.0]
339.4 [13.4]
308.3 [12.1]
465.6 [18.3]
465.6 [18.3]
198.1[7.8]
234.1 [9.2]
282.1 [11.1] 318.1 [12.5]
551.0 [21.7] 587.0 [23.1] 635.0 [25.0]
671.0 [26.4]
44.40 [1.75]
244.40 [9.62]
204.1 [8.0]
497.1 [19.6] 572.1 [22.5]
180.3 [7.1]
129.1 [5.1]
4
6
4
12
3
5
Illustration 3.12 Terminal Locations - Left, Front and Right Views. The gland plate is 42 mm below .0 level.
1) Ground bar
2) Motor terminals
3) Brake terminals
Mechanical Installation Operating Instructions
MG20Y202 Danfoss A/S © Rev. 06/2014 All rights reserved. 17
33

3.2.4.3 Inverter, Enclosure Sizes F12 and F13
287.4 [11.32]
0.0 [0.00]
339.4 [13.36]
253.1 [9.96]
0.0 [0.00]
287.4 [11.32]
0.0 [0.00]
339.4 [13.36]
465.6 [18.33]
465.6 [18.33]
308.3 [12.14]
180.3 [7.10]
210.1 [8.27]
0.0 [0.00]
66.4 [2.61]
181.4 [7.14]
296.4 [11.67] 431.0 [16.97] 546.0 [21.50] 661.0 [26.03] 795.7 [31.33] 910.7 [35.85]
1025.7 [40.38]
246.1 [9.69]
294.1 [11.58] 330.1 [13.00]
574.7 [22.63] 610.7 [24.04] 658.7 [25.93] 694.7 [27.35] 939.4 [36.98] 975.4 [38.40]
1023.4 [40.29]
1059.4 [41.71]
144.3 [5.68] 219.3 [8.63]
512.3 [20.17] 587.3 [23.12] 880.3 [34.66] 955.3 [37.61]
6
4
130BA850.12
FASTENERTORQUE: MIO19 Nm (14 FT -LB)
U/T1 96 V/T2 97 W/T3 98
FASTENERTORQUE: MIO19 Nm (14 FT -LB)
U/T1 96 V/T2 97 W/T3 98
FASTENERTORQUE: MIO19 Nm (14 FT -LB)
U/T1 96 V/T2 97 W/T3 98
123
4
5
Illustration 3.13 Terminal Locations - Left, Front and Right Views. The gland plate is 42 mm below .0 level.
1) Ground bar
Mechanical Installation Operating Instructions
18 Danfoss A/S © Rev. 06/2014 All rights reserved. MG20Y202
33
