Danish Interpretation Systems DCS 6000 User manual

DCS 6000
User Manual
Danish Interpretation Systems DIS
Digital Conference System
PS 6000 Power Supply

Danish Interpretation Systems User Manual
Copyright © 2004 Danish Interpretation Systems
No part of this publication may be reproduced or utilised in any form or by any means without permission in writing from the
publisher.

Danish Interpretation Systems User Manual
Copyright © 2004 Danish Interpretation Systems
No part of this publication may be reproduced or utilised in any form or by any means without permission in writing from the
publisher.
List of Contents
List of Contents .....................................................3
Document version..............................................3
Important...............................................................4
Compliancy ........................................................4
Safety ..................................................................4
Installation precautions.....................................4
Cleaning & Repacking......................................4
Warranty............................................................4
Description of the DCS 6000 system....................5
Features..............................................................5
System components ...........................................6
Central equipment etc......................................6
Interpreter equipment.......................................6
Conference equipment and channel selectors..6
PS 6000 Power Supply.......................................7
General description..........................................7
Features............................................................7
Connectors.......................................................7
System design.....................................................7
Use of PS 6000................................................ 8
System Setup.........................................................9
General guidelines............................................. 9
Max. number of units to be connected..........10
CM/DM 60x0P Chairman/Delegate Units .... 10
CM/DM 60x0P Chairman/Delegate Units & JB
6002 Junction Box......................................... 10
CM/DM 6060F/6510F Chairman/Delegate
Units.............................................................. 11
CM/DM 6560F Chairman/Delegate Units .... 11
MU 6040 C/D without connected loudspeaker
....................................................................... 12
IS 6132P Interpreter Units............................. 12
IS 6132P w/JB 6004 and LS 6032................. 13
CS 6032F Channel Selector w/back light on. 13
Appendix.............................................................. 14
Technical appendix.........................................14
Cabling .......................................................... 14
Accessories (not supplied)............................. 14
Technical specifications ................................ 14
Document version
Printed: 12-10-2004 Version:
Name: PS6000.DOC

Danish Interpretation Systems User Manual
Manual 01 18 04450
4
Important
Compliancy
The equipment has been tested and found to comply
with the limits of the following standards for digital
devices:
•EN55103-1 (Emission)
•EN55103-2 (Immunity
•EN60065 safety
•UL6500 safety
•FCC rules part 15, class A (Emission)
This device complies with part 15 of the FCC rules.
Operation is subject to the following conditions: (1)
This device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
These limits are designed to provide reasonable
protection against harmful interference when the
equipment is operated in residential, commercial or
light industrial environments. The equipment
generates, uses, and can radiate radio frequency
energy and if not installed and used in accordance
with the user manual it may cause harmful
interference to radio communications.
You are cautioned that any changes or
modifications not expressly approved in this manual
could void your authority to operate this equipment.
Safety
Check that the voltage of your local power supply is
within the operating voltage of the unit (100-240V
AC). If a voltage conversion is required, consult
your DIS dealer or qualified personnel.
Should any liquid or solid object fall into the
cabinet, unplug the unit and have it checked by
qualified personnel before operating it further.
Set the Power switch to OFF if it is not used for
several days.
The equipment must be connected to earth
Installation precautions
Allow adequate air circulation to prevent internal
heat built-up. Do not place the unit on a surface
(rugs, blankets, etc.) that may block the ventilation
holes.
Do not install the unit in a location near heat
sources such as radiators or air ducts, or in a place
exposed to direct sunlight, excessive dust or
humidity, mechanical vibration or shock.
To avoid moisture condensations do not install the
unit where the temperature may rise rapidly.
When installing the unit inside a 19” rack, observe
that the rack is properly ventilated. The maximum
allowed temperature inside the rack is 40 °C.
Cleaning & Repacking
To keep the cabinet in its original condition,
periodically clean it with a soft cloth. Stubborn
stains may be removed with a cloth lightly
dampened with a mild detergent solution. Never use
organic solvents such as thinners or abrasive
cleaners since these will damage the cabinet.
Save the original shipping cardboard box and
packing material; they will become handy if you
ever have to ship the unit. For maximum protection,
re-pack the unit as originally packed from the
factory.
Warranty
The unit is minimum covered by 12 months
warranty against defects in materials or work-
manship.

Danish Interpretation Systems User Manual
Manual 01 18 04450 5
Description of the DCS 6000 system
Features
The DCS 6000 system has the following main
features:
•Fully digital
•Excellent sound quality
•“State of the Art” fully digital integrated
interpretation, discussion and voting system
offering interpretation, language distribution,
conference microphone and voting facilities
with attendance check with Chip Card ™.
•New, unique digital DATA and AUDIO bus.
•39 incoming channels (8 floor channels + 31
interpreted channels) and one Line input.
•33 distributed channels (2 x floor + 31
interpreted channels)
•The Delegate and Interpreter units are powered
and controlled by the CU 6010 Central Unit,
which drives up to app. 200 units on 4 chains.
•EX 6010 Extension Units or PS 6000 Power
Supplies available if more units are required
•A total of 4000 units (delegate and/or
interpreter units) can be connected to the
system.
•Using screened CAT5 or CAT5e cabling (FTP
or STP) ensuring a very cost effective
installation and easy set-up of portable systems
•Firmware in Delegate units, Interpreter Units,
Central Units etc. upgradeable through serial
PC-connection (RS232 or RS422)
•Can be operated with or without a PC.
•Added functionality and comprehensive
features provided by SW 6000 software
package running on PC
RS232/RS422 connection on CU 6010 for
external operation of the system of a PC or
control system such as AMX or Crestron
The SW 6000 is an optional software package,
which expands the functionality of the DCS 6000
system. The software runs on standard computer
technology (Standard PC with Windows 2000 or
XP).
Main features of the SW 6000 are:
•Microphone management
•Mimic panel operation
•Interpretation management
•Voting management
•Message handling
•Agenda handling
•Data stored on SQL data base for easy
export/import of data as well as easy links to
external databases
•Multi language user interfaces
•Supports different User types with different
priorities, user interfaces and control
possibilities
•Variety of printing facilities such as speaker’s
log, voting results, delegates list etc.

Danish Interpretation Systems User Manual
Manual 01 18 04450
6
System components
The CU 6010 Central Unit supports all available
units in the DCS 6000 series:
Central equipment etc.
EX 6010 Extension Unit
PS 6000 Power Supply
AO 6008 Audio Output box
RP 6004 Repeater for four chains
JB 6002 Junction Box with 2 outputs
JB 6004 Junction Box with 4 outputs
Interpreter equipment
IS 6032P Interpreter Set
IS 6132P Interpreter Set
LS 6032P Interpreter Loudspeaker
Conference equipment and channel
selectors
CS 6032FV/H Channel Selector (flush mounted)
CM/DM 6010P Conference Unit (portable)
CM/DM 6020P Conference Unit (portable) with
XLR microphone connector
CM/DM 6070P Conference Unit (portable) with
two built-in channel selectors
CM/DM 6090P Conference Unit (portable) with
two built-in channel selectors and
XLR microphone connector
CM/DM 6060F Conference Unit (flush mounted)
with one built-in channel
selectors
CM/DM 6510FConference Unit (flush mounted)
with Chip-card and 3 voting
buttons
CM/DM 6560F Conference Unit (flush mounted)
with one built-in channel
selector, Chip-card and 3 voting
buttons
MU 6040C/D Microphone Unit for use with
customised front plate with
Loudspeaker, Microphone and
Buttons. Available in Delegate
(D) and Chairman (C) version
AM 6040 Ambient Noise
MicrophoneOperating
instructions

Danish Interpretation Systems User Manual
Manual 01 18 04450 7
PS 6000 Power Supply
General description
The PS 6000 Power Supply provides additional
Power for the DCS 6000 system.
One CU 6010 Central Unit is needed in each DCS
6000 system, however for expansion of the system
the PS 6000 Power Supply is suitable. The PS 6000
consist of:
•One Power Supply
•Control electronic for detecting system power
Features
The main features of the PS 6000 Power Supply
are:
•Built in Power Supply for app 60 units
(Delegates) or app. 150 Channel Selectors
•One connector for connection to Delegate
Units, Interpreter Units etc.
•One connector for connection previous unit (i.e.
CU 6010.
•Delayed switching on of power to minimise the
total ‘switch-on’ current on the Mains supply.
Designed in a small size easy-to-install cabinet.
Connectors
The PS 6000 Power Supply features the following
connectors:
qPower connector
Connection for main power.
qLoop through connectors
RJ45 connector, 2 pieces
DCS-LAN connectors used for connection to the
CU 6000/CU 6010 and for connection to other units
with DCS-LAN connectors such as more PS 6000.
qPower LED
Those green LED light up when Power is available
on the connector next to the LED

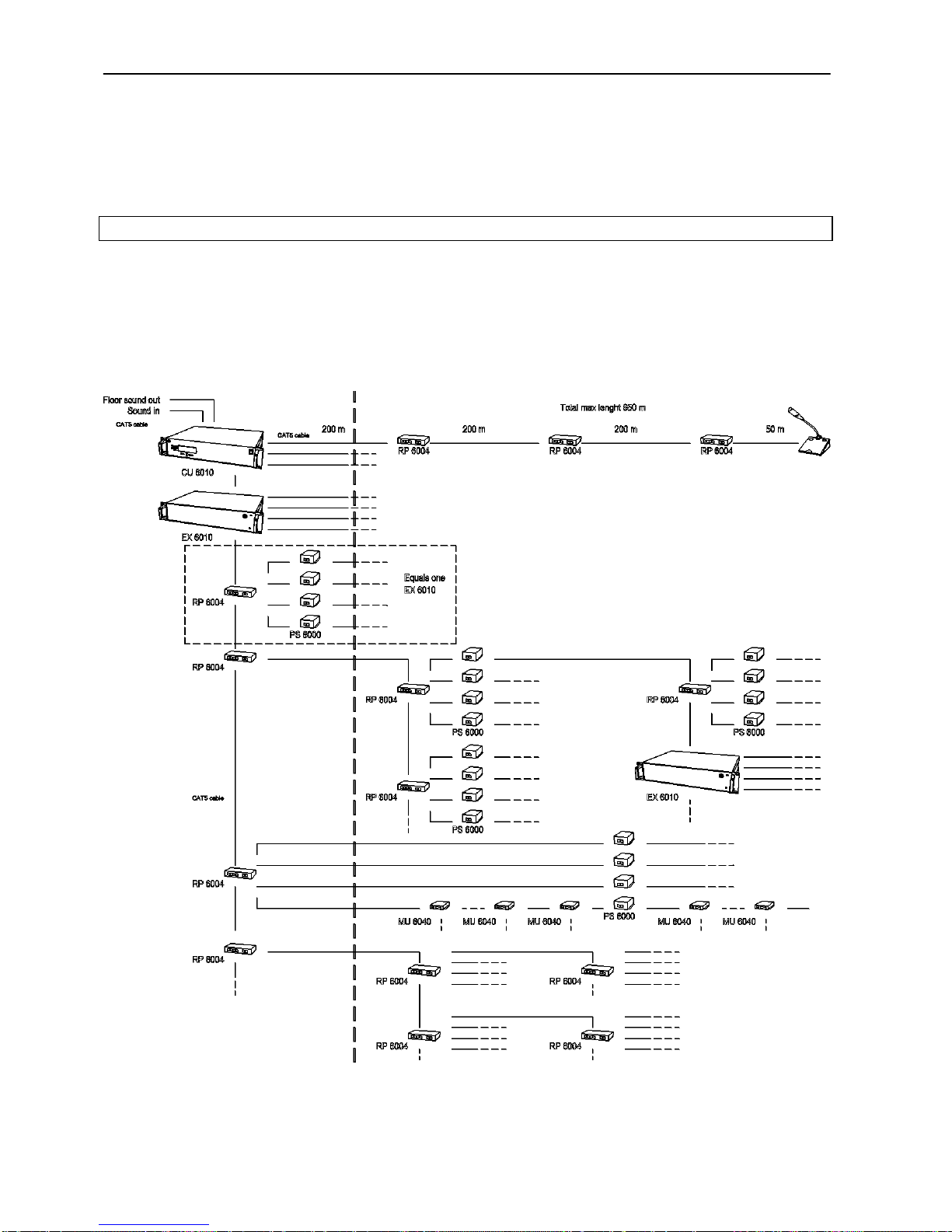

System design
There are no settings to be done on the PS 6000
Power Supply.
However it is important to observe, that the unit is
only adding power to one of the chains on the CU
6010 Central Unit.
And as so, the specification, which applies to each
of the chain outputs on the CU 6010 Central Unit,
does also apply to the output on the PS 6000.
And the PS 6000 is NOT a repeater, which means
that the maximum cable length in a chain (which
without repeater is 200 m) has to be calculated from
the last unit with repeater functionality (typically a
CU 6000, CU 6010, EX 6010 or RP 6004) to the
last unit connected to the PS 6000.
This includes interconnection cables between the
units.

Danish Interpretation Systems User Manual
Manual 01 18 04450
8
Use of PS 6000
The PS 6000 can be inserted at any point in a DCS
6000 chain, where extra power is needed. The PS
6000 is used, when extra power is needed typically,
where long feeding cables are needed.
A typical application is to place a PS 6000 in the
first Interpreter Booth to compensate for a long
feeding cable.
The following schematic shows various was in how
to use the PS 6000 Power Supply:

Danish Interpretation Systems User Manual
Manual 01 18 04450 9
System Setup
General guidelines
Connect the PS 6000 to the various DCS 6000 units
using Cat5 or Cat5e FTP or STP screened cables.
Please observe the following guidelines:
•Maximum cable length in one chain is 200
m without repeater. This includes
interconnection cables between the units.
The max. usable cable length depends on
the units connected and length of feeding
cables etc.
•Maximum cable length in one chain when
using repeaters is 650 m.
•Although the output on the PS 6000 have a
100W supply, this 100W power is not all
usable with long cables, as there will be a
voltage drop in the feeding cable from the
PS 6000 to the units connected. If the
feeding cables are short and the cables
between the units are short, more units can
be connected than if the feeding cable is
long and/or the cables are long between the
units. Please consult the next section (Max.
Number of units to be connected)
•If the last unit in one chain is a CS 6032
Channel Selector, this unit has to be
terminated with an external termination, as
the CS 6032 does not have an internal
termination.
It is desirable that the square of the feeding cables
especially, but also the interconnection cables are as
big as possible to minimize the voltage drop in the
cables. Cat 5/Cat5E cables are delivered in various
gauges:
The following table is showing the Diameter/square
for various AWG types
Type Diameter Square
AWG22 0.64 mm 0.32 mm2
AWG23/1 0.57 mm 0.25 mm2
AWG24 0,53 mm 0.22 mm2
AWG26 0,42 mm 0.14 mm2

Danish Interpretation Systems User Manual
Manual 01 18 04450
10
Max. number of units to be connected
The following tables show the maximum number of
units, which can be connected to each of the four
outputs (A1, A2, B1 or B2) on a CU 6010 Central
Unit or on each output on an EX 6010 Extension
Unit or on the output of a PS 6000.
CM/DM 60x0P Chairman/Delegate Units
Length of Feeding Cable
Type CAT5 AWG24 Length of inter connecting Cable, Type CAT5 AWG24 Total cable length Max. number of CM/DM 60x0 pr output
10 m 1 m 51 m 42
30 m 1 m 67 m 38
50 m 1 m 83 m 34
100 m 1 m 123 m 24
150 m 1 m 165 m 16
10 m 2 m 88 m 40
30 m 2 m 98 m 35
50 m 2 m 108 m 30
100 m 2 m 142 m 22
150 m 2 m 180 m 16
CM/DM 60x0P Chairman/Delegate Units & JB 6002 Junction Box
This configuration shows two CM/DM 60x0
Delegate/Chairman Units connected to one JB 6002
Junction Box with 3m cables between each JB
6002. Maximum 5 m cable from JB 6002 to
CM/DM 60x0 and max. one CM/DM 60x0 on each
output of JB 6002.
Length of Feeding Cable,
Type CAT5 AWG24 Length of Ca
ble between each
JB 6002, Type CAT5 AWG24 Total cable length Number of JB 6002 Max. number of DM 60x0
10 m 3 m 61 m 18 36
30 m 3 m 75 m 16 32
50 m 3 m 89 m 14 28
100 m 3 m 127 m 10 20
150 m 3 m 168 m 714

Danish Interpretation Systems User Manual
Manual 01 18 04450
11
CM/DM 6060F/6510F Chairman/Delegate Units
The following tables show the maximum number of
units, which can be connected to each of the four
outputs (A1, A2, B1 or B2) on a CU 6000 Central
Unit or on each output on an EX 6010 Extension
Unit or on the output of a PS 6000.
.
Length of Feeding Cable
Type CAT5 AWG24 Length of inter connecting Cable, Type CAT5 AWG24
Total cable length Max. number of
CM/DM 60x0 pr output
10 m 1 m 39 m 30
30 m 1 m 56 m 27
50 m 1 m 73 m 24
100 m 1 m 115 m 16
150 m 1 m 160 m 11
10 m 2 m 64 m 28
30 m 2 m 78 m 25
50 m 2 m 94 m 23
100 m 2 m 130 m 16
150 m 2 m 170 m 11
CM/DM 6560F Chairman/Delegate Units
Length of Feeding Cable
Type CAT5 AWG24 Length of inter-connecting Cable, Type CAT5 AWG24
Total cable length Max. number of CM/DM
60x0 pr output
10 m 1 m 35 m 27
30 m 1 m 53 m 24
50 m 1 m 70 m 21
100 m 1 m 113 m 14
150 m 1 m 159 m 10
10 m 2 m 58 m 25
30 m 2 m 72 m 22
50 m 2 m 88 m 20
100 m 2 m 126 m 14
150 m 2 m 166 m 9

Danish Interpretation Systems User Manual
Manual 01 18 04450
12
MU 6040 C/D without connected loudspeaker
This table shows the maximum number of MU
6040 Microphone Units, which can be connected.
The numbers are with no audio in loudspeaker (no
loudspeaker connected to each unit). If
loudspeakers are used, then use the figures for
CM/DM 60x0 above.
Length of Feeding Cable,
Type CAT5 AWG24 Cable length between each MU 6040 Total cable length Max. number of MU 6040
10 m 2 m 168 m 80
30 m 2 m 178 m 75
50 m 2 m 188 m 70
100 m 2 m 200 m (202 m) 51 (52*)
150 m 2 m 200 m (232 m) 26 (42*)
100 m 1 m 151 m 52
150 m 1 m 191 m 42
Numbers in (‘) are the number of units, which could
have been connected CU/EX, but where the total number of units has been lowered due to the restriction of the maximum length of cable (200 m).
IS 6132P Interpreter Units
This table shows the maximum number of IS 6132P
Interpreter Sets, which can be connected. The
numbers are with no audio in loudspeaker (no
loudspeaker connected to each unit).
If loudspeakers are used, then use the figures for
CM/DM 60x0 above.
Note: The number of units is dependant of how
many interpreter sets there are per booth (or
language), as there only can be one set switched ON
per language (channel).
Length of Feeding Cable,
Type CAT5 AWG24 Length of inter-connecting Cables, Type CAT5 AWG24 Max. number of units pr output All ON ½ ON 1/3 ON
10m 2 m 54 x x
30m 2 m 49 57 60
50m 2 m 44 51 x
100m 2 m 35 40 x
150m 2 m 25 30 x

Danish Interpretation Systems User Manual
Manual 01 18 04450
13
IS 6132P w/JB 6004 and LS 6032
Length of Feeding Cable,
Type CAT5 AWG24 Length of cable between booths Number of booths Number of IS 6132/ booths Number of LS 6032/ booths
10 m 5 m 19 40
10 m 5 m 12 44
30 m 5 m 17 40
30 m 5 m 10 44
50 m 5 m 15 40
50 m 5 m 944
100 m 5 m 11 40
100 m 5 m 744
150 m 5 m 840
150 m 5 m 544
CS 6032F Channel Selector w/back light on
Length of Feeding Cable
Type CAT5 AWG24 Length of Inter-connecting cable, Type CAT5 AWG24
Total cable length Max. number of CS 6032 pr
output
30 m 1 m 139 m 110
50 m 1 m144 m 95
100 m 1 m 184 m 85
150 m 1 m 200 m 51 (67’)
10 m 2 m 200 m 96
30 m 2 m 200 m 86 (90’)
50 m 2 m 200 m 76 (85’)
100 m 2 m 200 m 51 (70’)
150 m 2 m 200 m 26 (60’)
Numbers in (‘) are the number of units, which could
have been connected to the CU/EX, but where the total number of units has been lowered due to the restriction of the maximum length of cable (200 m).

Danish Interpretation Systems User Manual
Manual 01 18 04450
14
Appendix
Technical appendix
Cabling
CAT5
The DCS 6000 system uses CAT5, CAT5e or
CAT6 FTP or STP cables with screened RJ45
connectors.
EIA 568-Bwiring shall be used.
It is important to use only FTP or STP
(screened) cables and screened RJ45 connectors
and not UTP cable, which is unscreened.
How to wire a CAT5 (EIA 568-B) Cable:
Pin
Function Connector #1
Connector #2
1 In-going + ORG/WHT ORG/WHT
2 In-going -ORG ORG
3 +48V GRN/WHT GRN/WHT
4 0V BLU BLU
5 0V BLU/WHT BLU/WHT
6 +48V GRN GRN
7 Outgoing -BRN/WHT BRN/WHT
8 Outgoing + BRN BRN
Note. If other colour codes are used then the four
pairs are connected as follows:
Pair 1: Pin 1 & 2
Pair 2: Pin 3 & 6
Pair 3: Pin 4 & 5
Pair 4: Pin 7 & 8
The phase of the pairs must be correct and the
wiring spec. as stated in CAT5 (EIA 568-B) have to
be followed.
Note: CAT6 cables can normally only be
terminated in sockets (female) and not in cable
plugs.
CAT6 can thus only be used for longer cable draws
terminating in wall outlets or patch panels.
Accessories (not supplied)
Cat 5e Connection Cables (AWG24)
EC 6000-..5 Connection Cable 0,5 m......................10 03 12500
EC 6000-01 Connection Cable 1 m.........................10 03 13101
EC 6000-02 Connection Cable 2 m.........................10 03 13201
EC 6000-05 Connection Cable 5 m.........................10 03 13501
EC 6000-10 Connection Cable 10 m.......................10 03 14102
EC 6000-20 Connection Cable 20 m.......................10 03 14202
EC 6000-50 Connection Cable 50 m.......................10 03 14502
Technical specifications
General
Power consumption ...............................................max. 150VA
Mains voltage: ........................................100 -240V, 50...60Hz
Supply voltage for units............................................ 48V/100W
Temperature to guarantee specified performance
..............................5 Deg C. to 40 Deg C. (35 to 80% humidity)
Storage temperature
.......................... -20 Deg C. to 60 Deg C. (10 to 80% humidity)
Weight..................................................................................1 kg
Dimensions (W x H x D) ................... 100 (125) x 50 x 205 mm
Dimensions in bracket are including the fixing bracket
Accessories supplied.................................................Main cable
Connectors
DCS-LAN loop through........................................2 pieces RJ45
Specifications are subject to change without notice.
