DANLERS HASE 1RF Quick start guide

DANLERS Limited, Vincients Road, CHIPPENHAM, Wiltshire, SN14 6NQ, UK.
Telephone: [phone] Fax: [phone]
E-mail: [email protected] Web: www.danlers.co.uk
Company Registered Number 2570169 VAT Registration Number 543 5491 38
Also available from DANLERS
• PIR occupancy switches • Daylight linked dimmers • Manual high frequency dimmers
• Photocells • Radio remote controls • Time lag switches • Outdoor security switches
• Dimmers • Heating, ventilation and air-conditioning controls • Bespoke / O.E.M. products
Please call for more information or a free catalogue, or visit our website.
This product conforms to BS EN 60669-2-1.
Please ensure the most recent edition of the appropriate local wiring regulations are observed
and suitable protection is provided e.g. 6 amps over current, 1kV over voltage. Please ensure
that this device is disconnected from the supply if an insulation test is made.
This product is covered by a warranty which extends to 5 years from the date of manufacture.
Precautions and Warranty
Installation notes
Radio remote control hand senders
HASE 1RF HASE 2RF HASE 12RF
DANLERS radio remote control hand senders are used to control
DANLERS radio receiver switches and receiver dimmers, details of
the full range of receivers are in the DANLERS product catalogue and
on the DANLERS web site.
The hand senders incorporate either 1, 2 or 12 channels as identied
by the appropriate product code number. The 12 channel hand sender
has 6 pre-selector buttons with the switching and/or dimming controlled
by the 2 pairs of larger buttons. The left hand pair serves channels
1-6, the right hand pair serves channels 7-12. For more details see
diagrams overleaf.
A quick up press will switch on a receiver switch or receiver dimmer
and a holding up press will dim a receiver dimmer up. A quick down
press will switch off a receiver switch or receiver dimmer and a holding
down press will dim down a receiver dimmer.
Each button pair uses a unique code to identify it to the radio receiver.
Each radio receiver can be programmed to respond to up to 15 different
codes. This is done by the installer by following the installation notes
supplied with the receiver switch or dimmer.
RF range reduction
The radio remote control hand senders can transmit up to 100m in free-
air. This distance is reduced by the following obstacles as shown:
Approximate transmission distance reduction from 100m:
Brick wall 10-50m Metal reinforced wall 40-80m
Partition wall 5-20m Metalised wall 90-100m
Glass sheet 10-30m Plastic sheet 5-20m
Vaporised metal coated glass 40-70m
The distance will be further reduced by multiple obstacles or particularly
thick or damp obstacles, such as the walls of an old property.
26/01/11 INS965 HASE
Troubleshooting
Radio receiver switch does not respond to sender:
• Ensure the sender is correctly associated to the radio receiver.
• The sender is too far away or RF absorbed by building or trees.
Move sender closer to receiver or consider using a repeater.
• The sender battery is at (average life approx. 5 years).
Change battery, see ‘changing batteries’ section.
• DANLERS hand senders are only compatible with DANLERS radio
receiver switches and dimmers.
Load and receiver LED ash twice every time the sender is pressed:
• Ensure the radio receiver switch is not in programming mode.
Radio receiver switch relay clicks but load does not switch on / off:
• The load or in-rush current is too large and has damaged receiver.
Use a contactor to switch over limit loads.
Radio receiver dimmer stops working:
• The load or in-rush current is too large and has damaged receiver.
Ensure halogen lamps include a thermal safety fuse.

With the HASE 12RF one of the
6 pre-selector buttons must be
pressed before either of the up
or down buttons are pressed,
the presses are conrmed by
a green LED.
The HASE 12RF remembers
the last pre-selector number
used, so if the same pair of
channels is required again the
pre-selector does not have to
be pressed again.
The HASE 2RF includes a red
conrmation LED.
Please note the conrmation
LEDs just conrm that the
command was sent, not that
it was received.
Preprogrammed receivers
If, by special request, any receivers have been factory preprogrammed
to any particular hand senders, do not try to program the receivers to
any hand senders yourself. Please just follow the instructions on how
to install a receiver, along with any additional instructions.
If you wish the hand sender to control any EXTRA receivers then they
can be user programmed by following the programming procedure
included in the installation notes of the receiver.

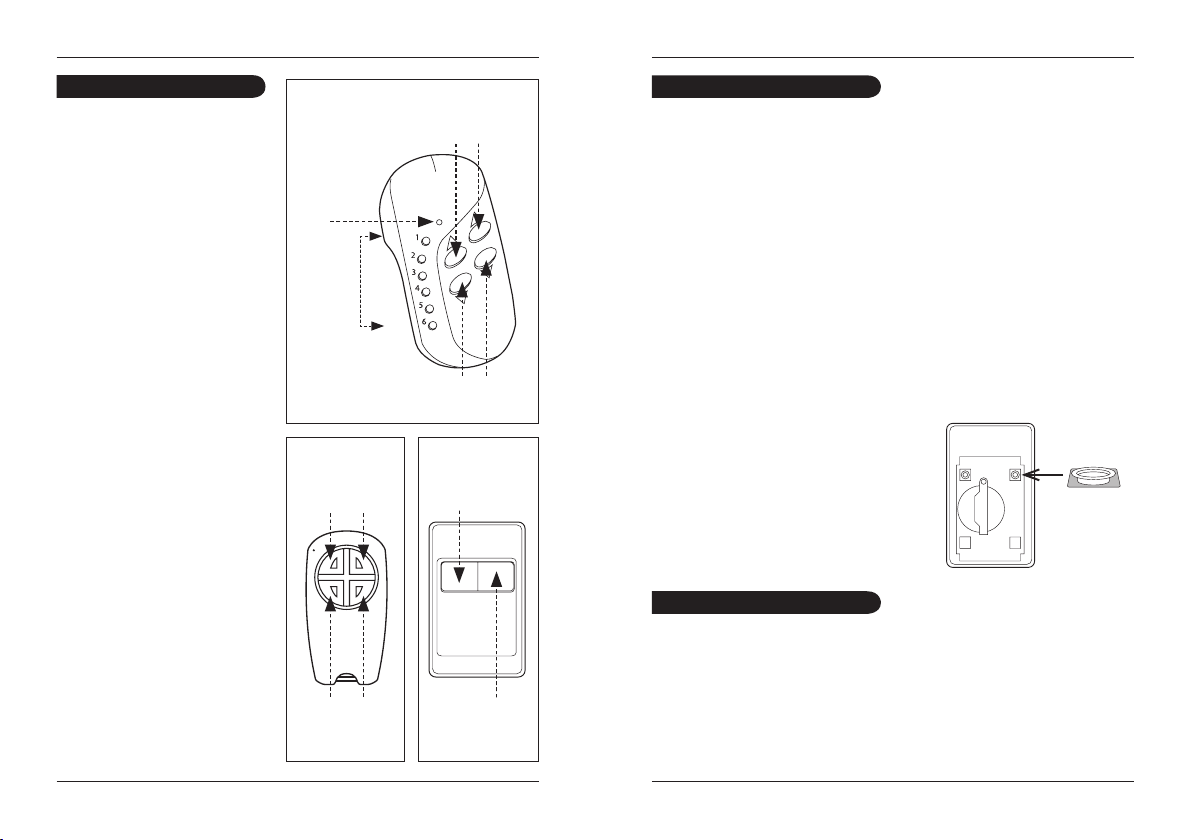

Hand Sender operation
Brass
eyelets
in correct
position
Changing batteries
The batteries in the hand senders should last approximately ve
years, since they are only used when a command is sent (this can
be severely reduced if the sender buttons are accidentally held down
down). If the transmission range of the hand sender starts to reduce
it is quite a simple process to change the batteries.
HASE 12RF:
• Remove the back cover and replace the two AAA cells.
HASE 2RF:
• Unscrew the back plate, remove the outer frame and lever off the
rocker cover using a screwdriver to reveal the battery. Remove
the battery retaining clip and replace the CR2430 battery with the
positive terminal facing up. Reassemble in reverse order.
HASE 1RF:
• Remove the two screws from the
back of the casing, keep the casing
closed and turn it over, with the blue
buttons on top remove the top half
of the casing. Do not remove the two
brass eyelets which are part of the
push button mechanism. Remove
the battery retaining clip and replace
the CR2430 battery with the positive
terminal facing up. Reassemble in
reverse order, ensuring brass eyelets
Short press to switch on, long press to
dim up. Channels 1 to 6 use left button.
Channels 7 to 12 use left button.
6 Pre-
selector
buttons
Green
Conrmation
LED
Short press to switch off, long press to
dim down. Channels 1 to 6 use left button.
Channels 7 to 12 use left button.
HASE 12RF
Short press to
switch on, long
press to dim up.
Short press to
switch off, long
press to dim
down.
HASE 1RFHASE 2RF
Short press to
switch on, long
press to dim up.
Short press to
switch off, long
press to dim
down.
