DAPAudio IR-100 User manual

IR-100 V1
Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands
Ordercode: D1249
MANUAL
ENGLISH

IR-100
Ordercode: D1249
Table of contents
Warning ...............................................................................................................................................................................3
Safety Instructions.........................................................................................................................................................3
Operating Determinations..........................................................................................................................................4
Connection with the mains.........................................................................................................................................4
Return Procedure..........................................................................................................................................................5
Claims..............................................................................................................................................................................5
Description of the device.................................................................................................................................................6
Overview ........................................................................................................................................................................6
Frontside..........................................................................................................................................................................7

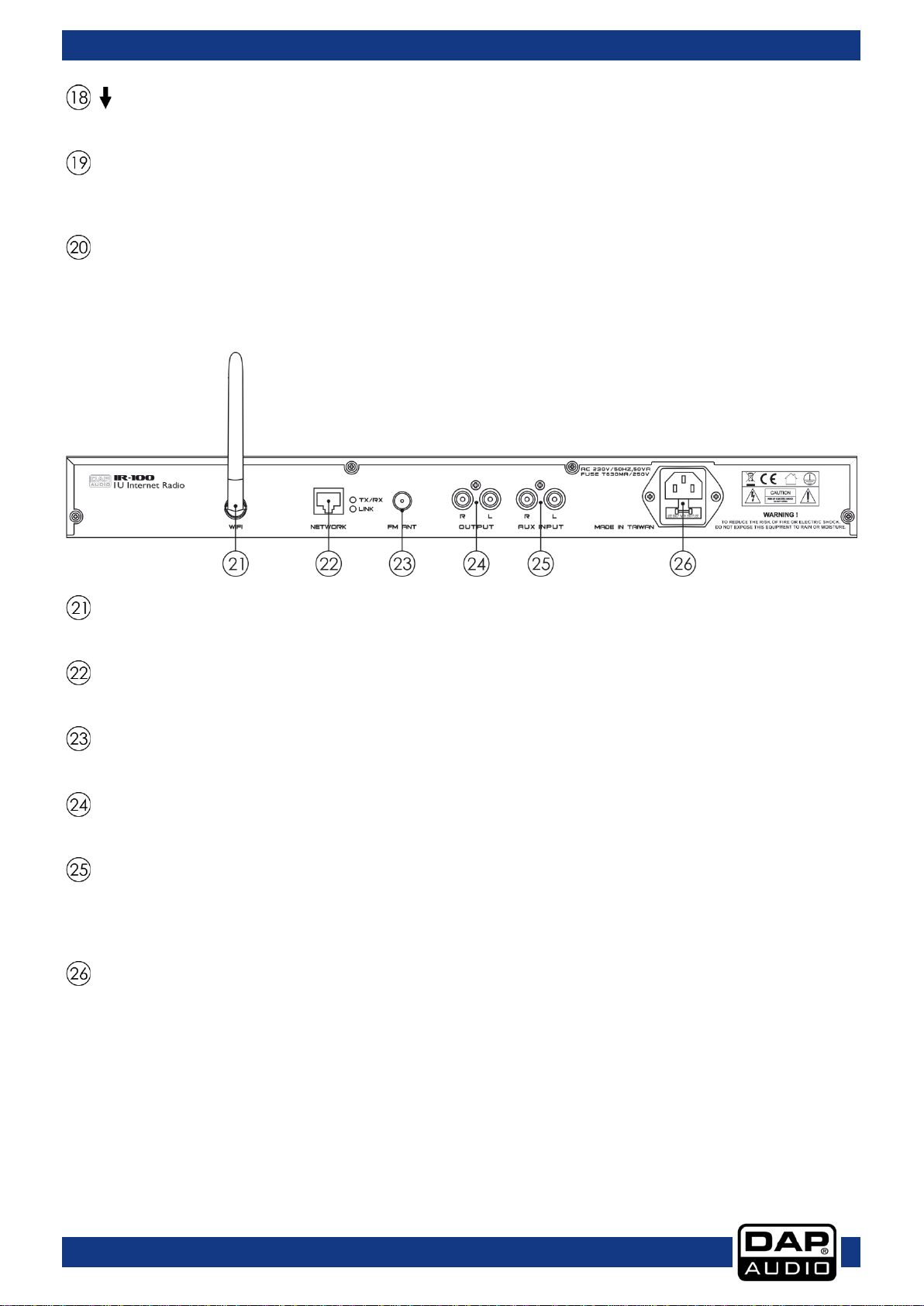

Backside .........................................................................................................................................................................9
Remote Control...........................................................................................................................................................10
Installation.........................................................................................................................................................................11
Set Up and Operation.....................................................................................................................................................12
Main Menu Options.........................................................................................................................................................12
1. Local Radio..............................................................................................................................................................13
1.1. Add to My Favorite ..........................................................................................................................................13
1.2. Auto Scan ..........................................................................................................................................................13
1.3. Play......................................................................................................................................................................13
2. Internet Radio..........................................................................................................................................................13
2.1. My Favorite........................................................................................................................................................13
2.2. Radio Station/Music.........................................................................................................................................14
2.3. Local Radio........................................................................................................................................................14
2.4. History..................................................................................................................................................................14
2.5. Service................................................................................................................................................................14
Search Radio Station.........................................................................................................................................14
Add New Radio Station....................................................................................................................................14
3. Media Center..........................................................................................................................................................15
3.1. USB.......................................................................................................................................................................15
3.2. UPnP....................................................................................................................................................................15
3.3. My Playlist...........................................................................................................................................................15
3.4. Clear My Playlist................................................................................................................................................15
4. FM ..............................................................................................................................................................................16
5. Information Center.................................................................................................................................................16
5.1. Weather Information........................................................................................................................................16
5.2. Financial Information.......................................................................................................................................16
5.3. System Information...........................................................................................................................................16
Version..................................................................................................................................................................16
Wired/Wireless Info.............................................................................................................................................16
6. AUX............................................................................................................................................................................17
7. Configuration ..........................................................................................................................................................17
7.1. Mode ..................................................................................................................................................................17
7.2. Manage My MediaU .......................................................................................................................................17
7.3. Network ..............................................................................................................................................................18
Wired Network Configuration..........................................................................................................................18
Wireless Network Configuration......................................................................................................................18
Wireless Network (WPS PBC) ............................................................................................................................18
Manual Configuration.......................................................................................................................................18
Check Network when Power On....................................................................................................................19
7.4. Date & Time.......................................................................................................................................................19
Set Date and Time.............................................................................................................................................19
Set Time Format..................................................................................................................................................19
Set Date Format.................................................................................................................................................19
Daylight Saving Time (DST)...............................................................................................................................19
1

IR-100
Ordercode: D1249
7.5. Alarm...................................................................................................................................................................20
Alarm 1 and Alarm 2 .........................................................................................................................................20
NAP Alarm ...........................................................................................................................................................20
Alarm Volume.....................................................................................................................................................20
7.6. Timer....................................................................................................................................................................20
7.7. Language ..........................................................................................................................................................20
7.8. Dimmer...............................................................................................................................................................20
7.9. Display ................................................................................................................................................................21
7.10. Power Management.....................................................................................................................................21
7.11. Sleep Timer.......................................................................................................................................................21
7.12. Buffer.................................................................................................................................................................21
7.13. Weather ...........................................................................................................................................................21
Set Location........................................................................................................................................................21
Temperature Unit................................................................................................................................................21
Show on Standby...............................................................................................................................................21
7.14. FM Setup ..........................................................................................................................................................22
Mode....................................................................................................................................................................22
Threshold..............................................................................................................................................................22
7.15. Local Radio Setup..........................................................................................................................................22
Manual Setup (Country)...................................................................................................................................22
Manual Setup (City) ..........................................................................................................................................22
Auto Detect ........................................................................................................................................................22
7.16. Playback Setup...............................................................................................................................................23
7.17. DLNA Setup......................................................................................................................................................23
7.18. Equaliser...........................................................................................................................................................23
7.19. Resume When Power On..............................................................................................................................23
7.20. Software Update............................................................................................................................................23
7.21. Reset to Default..............................................................................................................................................23
Maintenance....................................................................................................................................................................24
Replacing the Fuse.....................................................................................................................................................24
Troubleshooting ...............................................................................................................................................................24
Product Specifications....................................................................................................................................................25
2

IR-100
Ordercode: D1249
Warning
Unpacking Instructions
Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure
that all parts are present, and have been received in good condition. Notify the dealer immediately and
retain packing material for inspection if any parts appear damaged from shipping or the carton itself
shows signs of mishandling. Save the carton and all packing materials. In the event that a device must be
returned to the factory, it is important that the device is returned in the original factory box and packing.
Your shipment includes:
•DAP Audio IR-100
•Remote control (batteries not included)
•Wi-Fi antenna
•IEC power cable (1,5 m)
•User manual
Safety Instructions
Every person involved with the installation, operation and maintenance of this system has to:
•be qualified
•follow the instructions of this manual
Before you initial start-up, please make sure that there is no damage caused by transportation. Should
there be any, consult your dealer and do not use the system.
To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to
follow the safety instructions and warning notes written in this manual.
Please consider that damages caused by manual modifications to the system are not subject to
warranty.
This system contains no user-serviceable parts. Refer servicing to qualified technicians only.
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the non-observance of
this manual or any unauthorized modification to the system.
•Never let the power cord come into contact with other cables! Handle the power cord and all
connections with the mains with particular caution!
•Never remove warning or informative labels from the unit.
•Never use anything to cover the ground contact.
3

IR-100
Ordercode: D1249
•Never leave any cables lying around.
•Do not connect this system to a dimmerpack.
•Do not switch the system on and off in short intervals, as this would reduce the system’s life.
•Do not open the device and do not modify the device.
•Only use system indoors, avoid contact with water or other liquids.
•Avoid flames and do not put close to flammable liquids or gases.
•Always disconnect power from the mains, when system is not used. Only handle the power cord by
the plug. Never pull out the plug by tugging the power cord.
•Always operate the unit with the AC ground wire connected to the electrical system ground.
•Make sure that you do not use the wrong kind of cables or defective cables.
•Make sure that the available voltage is not higher than stated on the rear panel.
•Make sure that the power cord is never crimped or damaged. Check the system and the power cord
from time to time.
•Please turn off the power switch, when changing the power cord or signal cable, or select the input
mode switch.
•Avoid ground loops! Always be sure to connect the power amps and the mixing console to the same
electrical circuit to ensure the same phase!
•If system is dropped or struck, disconnect mains power supply immediately. Have a qualified engineer
inspect for safety before operating.
•If the system has been exposed to drastic temperature fluctuation (e.g. after transportation), do not
switch it on immediately. The arising condensation water might damage your system. Leave the
system switched off until it has reached room temperature.
•If your Dap Audio device fails to work properly, discontinue use immediately. Pack the unit securely
(preferably in the original packing material), and return it to your Dap Audio dealer for service.
•Repairs, servicing and electric connection must be carried out by a qualified technician.
•For replacement use fuses of same type and rating only.
•WARRANTY: Till one year after date of purchase.
Operating Determinations
This system is not designed for permanent operation. Consistent operation breaks will ensure that the
system will serve you for a long time without defects.
If this system is operated in any other way, than the one described in this manual, the product may suffer
damages and the warranty becomes void.
Any other operation may lead to dangers like short-circuit, burns, electric shock, etc.
You endanger your own safety and the safety of others!
Improper installation can cause serious damage to people and property !
Connection with the mains
Connect the device to the mains with the power-plug.
Always pay attention, that the right color cable is connected to the right place.
International
EU Cable
UK Cable
US Cable
Pin
L
BROWN
RED
YELLOW/COPPER
PHASE
N
BLUE
BLACK
SILVER
NEUTRAL
YELLOW/GREEN
GREEN
GREEN
PROTECTIVE GROUND
Make sure that the device is always connected properly to the earth!
Improper installation can cause serious damage to people and property!
4

IR-100
Ordercode: D1249
Return Procedure
Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.
Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned
without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.
Call Highlite 0031-455667723 or mail [e-mail] and request an RMA prior to shipping the fixture.
Be prepared to provide the model number, serial number and a brief description of the cause for the
return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the
customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace
product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.
Note: If you are given an RMA number, please include the following information on a piece of paper
inside the box:
01) Your name
02) Your address
03) Your phone number
04) A brief description of the symptoms
Claims
The client has the obligation to check the delivered goods immediately upon delivery for any short-
comings and/or visible defects, or perform this check after our announcement that the goods are at their
disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be
reported to the carrier upon receipt of merchandise.
It is the customer's responsibility to notify and submit claims with the shipper in the event that a fixture is
damaged due to shipping. Transportation damage has to be reported to us within one day after receipt
of the delivery.
Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with
a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless
otherwise agreed in writing.
Complaints against us must be made known in writing or by fax within 10 working days after receipt of the
invoice. After this period complaints will not be handled anymore.
Complaints will only then be considered if the client has so far complied with all parts of the agreement,
regardless of the agreement of which the obligation is resulting.
5

IR-100
Ordercode: D1249
Description of the device
Features
The DAP IR-100 is a professional 1U internet radio with Wi-Fi and RJ45 connectors. It is also equipped with a
conventional FM tuner and a USB media player, which can be used in case of network-related problems.
The multilingual menu is very user-friendly, with its full color display and multifunctional selector. The
device is equipped with such advanced features as playlists, EQ presets, sleep timer, clock and DNLA.
You can also select your desired display background and decide whether it displays the radio stations,
clock, weather forecast or financial information. It is easy to make presets or search for your favorite
stations, by keyword, genre or region. The mini jack on the front side allows to connect an MP3 player or
a mobile device, which makes it possible to listen to your own music. The DAP IR-100 remembers its last
active function, even if the device is switched off.
•Built-in Wi-Fi
•USB media player & tuner
•Full color display
•DNLA
General
•Input voltage: 230V AC, 60/50 Hz
•Power consumption: 50W
•Fuse: T630mAL/250V
•Dimensions:
482 x 200 x 44 mm (LxWxH)
19” x 1HE (LxH)
•Weight: 2,3 kg
Internet radio
•Features: Favorites, Genre, Local, Search, DNLA tuner
•FM band: 87,5-108 MHz
•Presets: 5
Media player
•Source: USB type A
•Supported files: MP3, WMA
•Format: FAT32, 32GB
•Playback: Program, Repeat, Continuous
Output
•Output level: 1,2 V +/- 2 dB
•THD: < 0,1% at 1 kHz
•S/N Ratio: > 70dB at 1 kHz
Connections
•AUX IN: 3,5 mm jack & RCA
•Output: RCA
•Antenna: 75 Ohm antenna terminal socket
•Network: Wi-Fi & RJ45
Overview
Fig. 01
6

IR-100
Ordercode: D1249
Frontside
Fig. 02
Power switch ON/OFF
Press the button to switch the device ON/OFF.
LCD display
AUX IN – 3,5 mm jack
Connect an external music source, for example an MP3 player or a mobile device. Please note, that
it is not possible to connect your external devices to both inputs (3/25) at the same time. Always use
only one input at a time.
USB – A connector
Insert a USB flash drive, containing music files.
Fig. 03
IR receiver
Function control
Turn the control to the left/right to toggle through the menu or to set the volume. Press the control to
enter the menus/confirm settings.
7

IR-100
Ordercode: D1249
Fig. 04
POWER button
Press the button to activate/deactivate the stand-by mode.
VOL (-) button
Press this button to lower the volume.
MUTE button
Press the button to mute the output.
VOL (+) button
Press the button to turn up the volume.
SLEEP button
Repeatedly press the button to set the amount of time after which the device will turn off. The
available settings are: OFF, 15, 30, 60, 90, 120, 150 and 180 minutes.
DIMMER button
Press the button to darken/brighten the LCD display.
MENU button
Press the button to return to the main menu.
FAV button
Press the button to recall your radio presets or press and hold down to save a newly found radio
station.
button
Press this button to return to the previous menu/toggle through the options/search backward for
radio stations.
button
Press the button to toggle through the options/fine-tune a radio station.
button
Press this button to proceed to the next menu/toggle through the options/search forward for radio
stations.
8

IR-100
Ordercode: D1249
button
Press the button to toggle through the options/fine-tune a radio station.
MODE button
Press the button to toggle through the available signal sources (FM, AUX, UPnP and USB). Press and
hold down the button for 3 seconds to switch between stand-by and active.
ENTER button
Press the button to open the desired menu/confirm settings.
Backside
Fig. 05
Wi-Fi antenna connector
Connect the included Wi-Fi antenna.
RJ45 connector - IN
Connect the IR-100 to your wired network.
FM antenna connector
Connect the included FM antenna.
RCA OUT
Connect the device to the line input on your mixer.
Recording device – RCA IN
Connect an external music source, for example an MP3 player or a mobile device. Please note, that
it is not possible to connect your external devices to both inputs (3/25) at the same time. Always use
only one input at a time.
IEC power connector 240V + Fuse T630mAL/250V
Connect the device to the appropriate power supply.
9
