1. PCIe-DIO6400 Block Diagram
PCI Target
Express PCI
BUS
Local Bus
Address
Data(Mem,I/O)
DIO
32bit Input
External
Interface
IO Decoder
To each IO
Module
PCIe-DIO6400 INTERNAL BLOCK
MEM Decoder
BUS Mux
DIO
32bit Output
[Figure 1-1. PCIe-DIO6400 Internal Block Diagram]
The PCIe-DIO6400 is designed for high performance digital logger with Express PCI x1 Interface. It
has two Isolated 32 Digital Input/Output port for external interface like Figure 1-1.

PCIe-DIO6400 Users Manual (Rev 1.0)
-4- http://www.daqsystem.com
2. Connector Pin Map
The PCIe-DIO6400 board is equipped with 37 pin D-SUB connector for external digital output in
standard Express PCI Bracket. Figure 2-1 shows the bracket and connector of the board.
1
20
19
37
3
10
9
8
7
6
1
2
5
4
19
18
17
16
15
14
13
12
11
25
24
23
22
21
20
DOUT14
GROUND
DOUT18
DOUT16
GROUND
DOUT20
DOUT22
DOUT28
DOUT26
DOUT24
DOUT30
POWER
DOUT13
DOUT15
GROUND
OUT_VDD
DOUT17
DOUT19
DOUT21
DOUT23
DOUT25
DOUT27
DOUT29
DOUT31
33
32
31
30
29
28
27
26
37
36
35
34
DOUT10
DOUT8
DOUT6
DOUT12
DOUT4
DOUT2
DOUT0
DOUT1
DOUT3
DOUT5
DOUT7
DOUT9
DOUT11
[Figure 2-1. PCIe-DIO6400 D-SUB 37 Connector J4 Pin]
[Table 1. PCIe-DIO6400 DOUT Connector Pin Description]
Pin#
Pin Name
Description
Remark
1
DOUT0
Isolated Digital Output 0
2
DOUT2
Isolated Digital Output 2
3
DOUT4
Isolated Digital Output 4
4
DOUT6
Isolated Digital Output 6
5
DOUT8
Isolated Digital Output 8

PCIe-DIO6400 Users Manual (Rev 1.0)
-5- http://www.daqsystem.com
6
DOUT10
Isolated Digital Output 10
7
DOUT12
Isolated Digital Output 12
8
DOUT14
Isolated Digital Output 14
9
GROUND
External Ground
10
GROUND
External Ground
11
DOUT16
Isolated Digital Output 16
12
DOUT18
Isolated Digital Output 18
13
DOUT20
Isolated Digital Output 20
14
DOUT22
Isolated Digital Output 22
15
DOUT24
Isolated Digital Output 24
16
DOUT26
Isolated Digital Output 23
17
DOUT28
Isolated Digital Output 28
18
DOUT30
Isolated Digital Output 30
19
OUT_POWER
Board Power Output
20
DOUT 1
Isolated Digital Output 1
21
DOUT 3
Isolated Digital Output 3
22
DOUT 5
Isolated Digital Output 5
23
DOUT 7
Isolated Digital Output 7
24
DOUT 9
Isolated Digital Output 9
25
DOUT 11
Isolated Digital Output 11
26
DOUT 13
Isolated Digital Output 13
27
DOUT 15
Isolated Digital Output 15
28
GROUND
External Ground
29
OUT_VDD
Clamp Diode Common Input Pin
Refer Figure 4-1
30
DOUT 17
Isolated Digital Output 17
31
DOUT 19
Isolated Digital Output 19
32
DOUT 21
Isolated Digital Output 21
33
DOUT 23
Isolated Digital Output 23
34
DOUT 25
Isolated Digital Output 25
35
DOUT 27
Isolated Digital Output 27
36
DOUT 29
Isolated Digital Output 29
37
DOUT 31
Isolated Digital Output 31

PCIe-DIO6400 Users Manual (Rev 1.0)
-6- http://www.daqsystem.com
It is used to a header (JP2) of 40 pin (20x2, 2.54mm Pitch) Right-angle for external digital input.
3
109
87
6
1 2
5
4
19
1817
1615
1413
1211
25
2423
2221
20
33
3231
3029
2827
26
37
3635
34
38
39 40
DIN0
DIN2
DIN4
DIN6
DIN8
DIN10
DIN12
DIN14
IN_COM0
IN_COM2
DIN16
DIN18
DIN20
DIN22
DIN24
DIN26
DIN28
DIN30
IN_POWER
N.C
DIN1
DIN3
DIN5
DIN7
DIN9
DIN11
DIN13
DIN15
IN_COM1
IN_COM3
DIN17
DIN19
DIN21
DIN23
DIN25
DIN27
DIN29
DIN31
N.C
N.C
[Figure 2-2. PCIe-DIO6400 BOX 40 Pin Connector]
[Table 2. PCIe-DIO6400 DIN Connector (HIROSE HIF3F-40PA-2.54DS) Pin Description]
Pin#
Pin Name
Description
Remark
1
DIN0
Isolated Digital Input 0
2
DIN1
Isolated Digital Input 1
3
DIN2
Isolated Digital Input 2
4
DIN3
Isolated Digital Input 3
5
DIN4
Isolated Digital Input 4
6
DIN5
Isolated Digital Input 5
7
DIN6
Isolated Digital Input 6
8
DIN7
Isolated Digital Input 7

PCIe-DIO6400 Users Manual (Rev 1.0)
-7- http://www.daqsystem.com
9
DIN8
Isolated Digital Input 8
10
DIN9
Isolated Digital Input 9
11
DIN10
Isolated Digital Input 10
12
DIN11
Isolated Digital Input 11
13
DIN12
Isolated Digital Input 12
14
DIN13
Isolated Digital Input 13
15
DIN14
Isolated Digital Input 14
16
DIN15
Isolated Digital Input 15
17
IN_COM0
Isolated Digital Input common 0
(DIN0~7 Common Input)
Refer Figure 4-1
18
IN_COM1
Isolated Digital Input common 1
(DIN8~15 Common Input)
Refer Figure 4-1
19
IN_COM2
Isolated Digital Input common 2
(DIN16~23 Common Input)
Refer Figure 4-1
20
IN_COM3
Isolated Digital Input common 3
(DIN24~31 Common Input)
Refer Figure 4-1
21
DIN16
Isolated Digital Input 16
22
DIN17
Isolated Digital Input 17
23
DIN18
Isolated Digital Input 18
24
DIN19
Isolated Digital Input 19
25
DIN20
Isolated Digital Input 20
26
DIN21
Isolated Digital Input 21
27
DIN22
Isolated Digital Input 22
28
DIN23
Isolated Digital Input 23
29
DIN24
Isolated Digital Input 24
30
DIN25
Isolated Digital Input 25
31
DIN26
Isolated Digital Input 26
32
DIN27
Isolated Digital Input 27
33
DIN28
Isolated Digital Input 28
34
DIN29
Isolated Digital Input 29
35
DIN30
Isolated Digital Input 30
36
DIN31
Isolated Digital Input 31
37
N.C
NO CONNECTION
38
N.C
NO CONNECTION
39
N.C
NO CONNECTION
40
N.C
NO CONNECTION

PCIe-DIO6400 Users Manual (Rev 1.0)
-8- http://www.daqsystem.com
3. Digital Input Circuit
IN_COM0
DIN0
in0
2.4K
VCC
DIN1
in1
VCC
DIN7
In7
VCC
2.4K
2.4K
[Figure 3-1. Digital Input Circuit]
Figure 3-1 shows that digital input is isolated by photo-coupler. When applying plus(+) voltage to
“IN_COM0”, and applying minus(-) voltage to digital input(DIN0 ~ DIN7), the current is flowing through
diode in the inside to photo-coupler and an output direction transistor is applied an electric current
according to flow electric current.
There are 4 circuits as above picture to a board. In other words, there is a IN_COM signal each 8
photo-couplers, total IN_COM signals are 4 (IN_COM0 ~ IN_COM3).
If you want completely isolated circuit, it is good to use the external power better than to use the
board power.

PCIe-DIO6400 Users Manual (Rev 1.0)
-9- http://www.daqsystem.com
4. Digital Output Circuit
out0
DOUT0
330
out1
DOUT1
out31
DOUT31
330
330
+3.3V
OUT_POWER
OUT_VDD
[Figure 4-1. Digital Output Circuit]
Figure 4-1 shows that the digital output is isolated by photo-coupler. The “OUT_POWER” is
connected commonness to an output circuit. "OUT_POWER" is an external power supply or 5V PCI or
ISO 5V (DC-DC output power) inside the board, depending on the jumper setting of connector J2. The
“OUT_VDD” connects an anode of Clamp-Diode for protecting board’s circuits. Generally, it had better
use the external power 5V.

PCIe-DIO6400 Users Manual (Rev 1.0)
-10- http://www.daqsystem.com
5. External Connection (INPUT)
DC
IN0
IN1
IN_COM0~3
EXT
POWER
[Figure 5-1. Input Port External Connection]
Ordinary noise and ground issue can occur if industry equipments operate to connect each other.
In ways to solve these issues, it use the isolated connection way that it was completely cut
electrically off. It is good example that used a photo-coupler.
As the Photo-coupler exchange a signal by the light not electrical signal, it can protect equipment
from noises and over-voltage. At this time, if board connect to external equipment and want
completely isolated connection, you should use an external power.
The above mentioned picture is a connection of an input part. If it connect external power to
IN_COM0 ~ IN_COM3 and give to minus(-) power at signal input part, it will be activated.
* 1. The input power voltage range is 5 –24V.

PCIe-DIO6400 Users Manual (Rev 1.0)
-11- http://www.daqsystem.com
6. External Connection (OUTPUT)
DC-DC󲣙󲞥
PCI 󲣙󲞥
J1 󲣥󳑑󲇹󲣪
3
1
2
OUT31-0 330
+3.3V
OUT_POWER
DOUT 31 - 0
GROUND
DC
󲝍󱹕 GROUND
󱹕󳘭
PCIe-DIO6400 󱷉󱖱
󲝍󱹕 󰶅󲇵
[Figure 6-1. Output Port External Connection]
The OUTPUT can use to select the external power or internal power. When use the external power,
perfect isolated input works if you shall not connect a jumper J1.
You can select a DC-DC converter or PCI 5V power in case of internal power. If DC-DC converter
use, jumper set up only J1 (3-2 short), JP1 do not connect to a jumper. If PCI 5V power use, J2
jumper set up (1-2 short).
*1. The Output power voltage range is 5 –24V.

PCIe-DIO6400 Users Manual (Rev 1.0)
-12- http://www.daqsystem.com
7. Board Option Setup
DC-CD
Converter
(󲇵󳆲󲆁󲙦)
JP1
POWER
GROUND
2 1
SW1

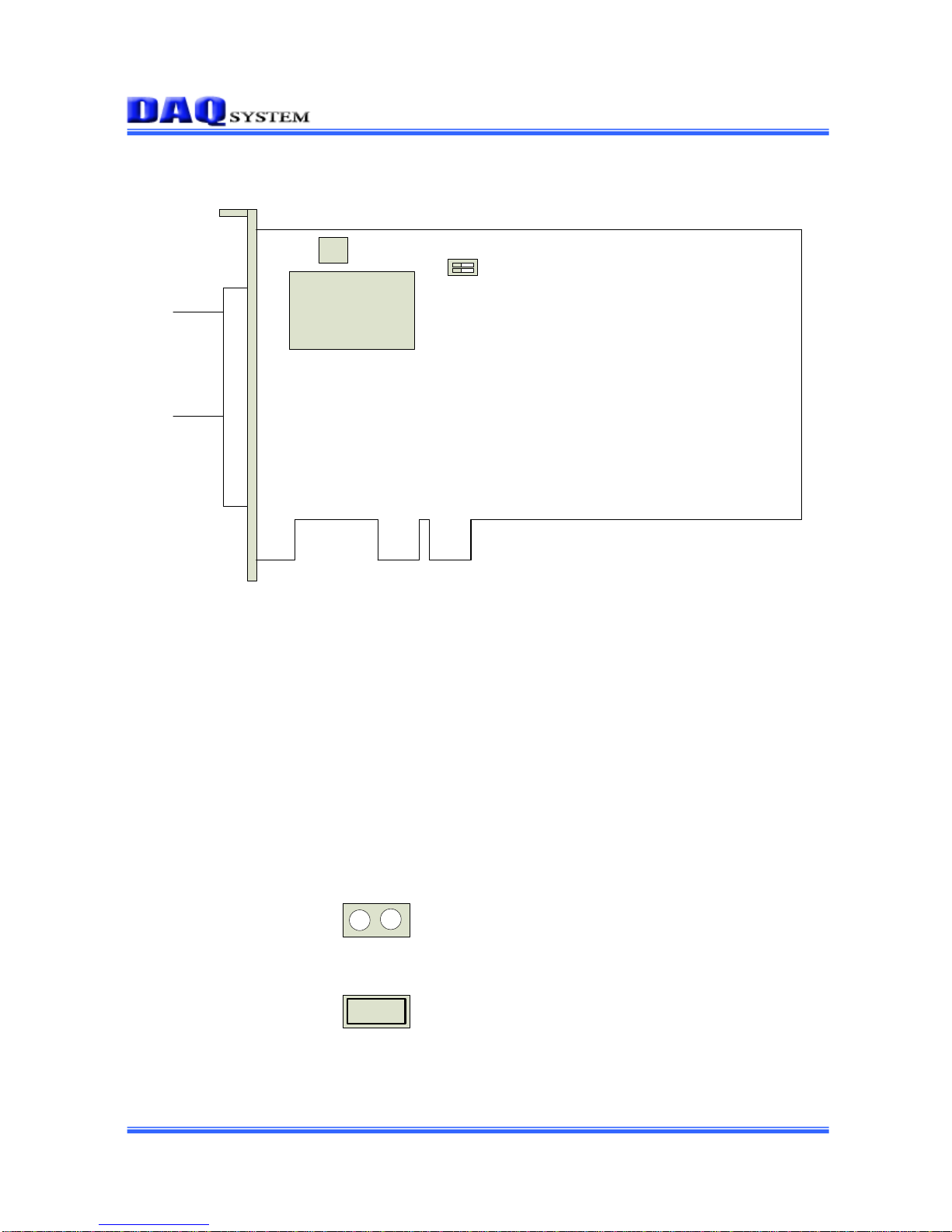

[Figure 7-1. PCIe-DIO6400 Appearance]
7-1. Power Option Setup
If usable environment don’t use external power, it can use at boards which it supplied the power.
At this time it can set up by jumper whether or not output to power of isolated DC-DC Converter
(option) or output to power of PC Internal Power (+5V).
Also the GROUND can select whether or not output to DC-DC Converter (option) GROUND or
output to internal PC GROUND. If it uses PC internal power, it shall certainly set up to PC GROUND.
* The basic option doesn’t work to include a DC-DC Converter.
1
2
JP1 Jumper Setup
PC GROUND
* The basic option doesn’t work to set up a jumper setting in case of shipment.

PCIe-DIO6400 Users Manual (Rev 1.0)
-13- http://www.daqsystem.com
7-2. Board Address Setup
Several DIO6400 series boards classify each board address, you shall use it at systems that a lot
of I/O ports was required.
Distribution of each board sets it up through 4 pin switch (SW1) in a board. A system is designed of
4 maximum boards at the same time so as usable.
SW1 Setup
2 1 ON
OFF
1 2 Board No.
OFF OFF 0
ON OFF 1
OFF ON 2
ON ON 3

PCIe-DIO6400 Users Manual (Rev 1.0)
-14- http://www.daqsystem.com
8. Installation
The installation order is as follows, explain Windows XP basis if there isn’t special explanation.
(1) If new hardware is found, Wizard will ask you to install the corresponding driver. For installation
of the driver, select the item “Install from a list or specific location (Advanced)”and click “Next”
as in the below figure.
[Figure 8-1. PCI-DIO6400 Search Window]
(2) After find a driver folder of the CD, press “next”button.
ex) F:\PCI-DIO6400\driver
The driver folder includes a file of “pci_dio6400.inf”and “pci_dio6400.sys”that it is
necessary for driver installation.

PCIe-DIO6400 Users Manual (Rev 1.0)
-15- http://www.daqsystem.com
(3) When you click Next, the driver files are installed.
(4) When the installation is complete, normally same as the picture below.

PCIe-DIO6400 Users Manual (Rev 1.0)
-16- http://www.daqsystem.com
(5) If the installation is completely finished, you confirm it in the following ways. Do the following
steps to show up the “Device Manager” window. [My Computer -> properties -> Hardware ->
Device Manager -> Multifunction Adaptors -> PCI-DIO6400]
[Figure 8-2. “Select “My computer”->”Properties”]
[Figure 8-3. “System Properties” window-“Hardware” Tab]

PCIe-DIO6400 Users Manual (Rev 1.0)
-17- http://www.daqsystem.com
[Figure 8-4. “Device Manager” window]
If you can see the “PCI-DIO6400” at Multifunction Adaptors, the driver installation is to have
been over. (Check the red circle)
Notice : After installation, you should re-boot the system for the proper operation.

PCIe-DIO6400 Users Manual (Rev 1.0)
-18- http://www.daqsystem.com
9. Sample Program Explanation
9-1 Program Interface
DAQ system provides a sample program to make the user be familiar with the board operation and
to make the program development easier. You can find the sample program in the CDROM
accompanying with the board. One of the execution file is “PCI_DIO6400.exe”.
Sample program is provided in source form in order to show the usage of API (Application
Programming Interface) of the board and may be modified for customer’s own usage.
[Figure 9-1. When Sample program “PCI_DIO6400.exe’ is executed]
To run the sample application program, you need to use API, it is a form of client DLL. To compile
the sample source to make its executable file, you have to use Import Library files and header files.
You can find them in the CDROM. To run the .exe file, the API DLL file (PCI_DIO6400.DLL) must be in
the same directory with the .exe file or Windows system folder. Another method is to add the directory
of API DLL file to PATH environmental variable.
1
2
3
4
5
6
7
9
8

PCIe-DIO6400 Users Manual (Rev 1.0)
-19- http://www.daqsystem.com
9-2 Function Explanation
No.
Name
Description
Note
1
Model No
Select the Model Name
PCI-DIO6400 selection
2
Board No
Select the Board Number (Board#0 ~ #3)
By SW1 Setup
3
Open Device
Open the selected Board
4
List Device
It displays a board number which installed in a
system.
Not Used currently.
5
DIN Read
When the button click, a value to read an input
port is marked to hex number at a window
beside “DIN 31..0”.
Example) If it reads to ”00008001”, the number
15 and 0 get to “On”state.
When “Auto DIN Read”check, you confirm it
right now.
The “DIN 63..32”is a
reservation window
for future.
6
DOUT Read
When the button click, a value to read an output
port is marked to hex number at a window
beside DOUT ”31..0”.
The “DOUT 63..32”is
a reservation window
for future.
7
DOUT Write
Press this button after a value that will be written
an output port at a window beside “DOUT 31..0”,
a value of each bit will be display.
Example) If it reads to ”00008001”, the number
15 and 0 get to “On”state.
When “Auto DOUT Test”check, from bit 0 to bit
31 get to “On”in turn.
The “DOUT 63..32”is
a reservation window
for future.
8
Compact PCI
Front LED Mode
Only use cPCI-DIO6400
9
Exit
Stop the program

PCIe-DIO6400 Users Manual (Rev 1.0)
-20- http://www.daqsystem.com
References
1. PCI System Architecture
-- MindShare Inc.
2. PCI Local Bus Specification
-- PCI-SIG
3. General information on PCI board API
-- DAQ system
4. AN201 How to build application using APIs
-- DAQ system
5. AN242 PCI-DIO64xx API Programming
-- DAQ system
