PCIE-HDMI01 User’s Manual
1
Contents
1. Summary
1-1. Product Specification ------------------------------------------------------------------------ 2
1-2. Product Application ------------------------------------------------------------------------ 3
2. PCIE-HDMI01 Board Description
2-1. Layout ------------------------------------------------------------------------ 4
2-2. I/O Terminal Pin Map ------------------------------------------------------------------------ 5
(1) HDMI Connector ------------------------------------------------------------------------ 5
(2) J3 Connector ------------------------------------------------------------------------ 5
(3) J5 Connector ------------------------------------------------------------------------ 6
(4) J6 Connector ------------------------------------------------------------------------ 6
2-3. Board Size ------------------------------------------------------------------------ 7
3. Installation
3-1. H/W Installation ------------------------------------------------------------------------ 8
3-1-1. Product Contents ------------------------------------------------------------------------ 8
3-1-2. Installation Process ------------------------------------------------------------------------ 8
3-2. Driver Installation ------------------------------------------------------------------------ 9
4. Sample Program ------------------------------------------------------------------------ 12
Appendix
A-1. Repair Regulations -------------------------------------------------------------------------- 16

PCIE-HDMI01 User’s Manual
1
1. Summary
1-1. Product Specification
Item
Description
Remark
HARDWARE
PC Interface
PCI Express 4x
Operation Power
PCI Express 12V
Video Interface
HDMI (High-Definition Multimedia
Interface)
2 Channel (supports Two Ports,
Selectable 1 channel is used)
3GHz Receiver
Display Resolution
480i, 576i, 480p, 576p, 720p, 1080i,
1080p
Max. 4k x 2k (3840 x 2160 at 30Hz)
24bit RGB 444, 24bit YCbCr 422,
24bit YCbCr 444, 36bit RGB 444,
36bit YCbCr 444,
2x24bit 4:4:4 RGB/YCrCb
2x24bit 4:2:2 RGB/YCrCb
On-board Memory
256MB (DDR3) x2
Communication
Simultaneously Use
Max. 4
SOFTWARE
동작 OS
Windows 2000/XP/7/8/10 (32/64bit)
API
Windows Client DLL API
Development
Windows Application by User
Custom USB Device Firmware
Custom Windows Client DLL
Support
Sample Program
VC++
Environmental conditions
Operating temperature
range
0 ~ 60℃
Storage temperature
range
-20 ~ 80℃
Humidity range
Non-condensing
Board Size
132mm X 68mm
PCB Board Size
1-2. Product Application

PCIE-HDMI01 User’s Manual
2
-Image recognition (Pattern, particle, etc.)
-Inspection equipment (Sensor, Semiconductor, Device, etc.)
-Surveillance Security Solution
-Medical Image Capture
-BLU-RAY
-Game Console
PCIe-HDMI01 is a multi-purpose Frame Grabber board capable of capturing high definition video
signals by receiving HDMI (High-Definition Multimedia Interface) signals and transmitting them to a
PC using the PCI Express 4x interface method.
It supports up to 4k x 2k 3840x2160 and can automatically detect and process HDMI signals.
The operation of the board is controlled by the program API, and the figure below shows the
interlocking operation of the board.

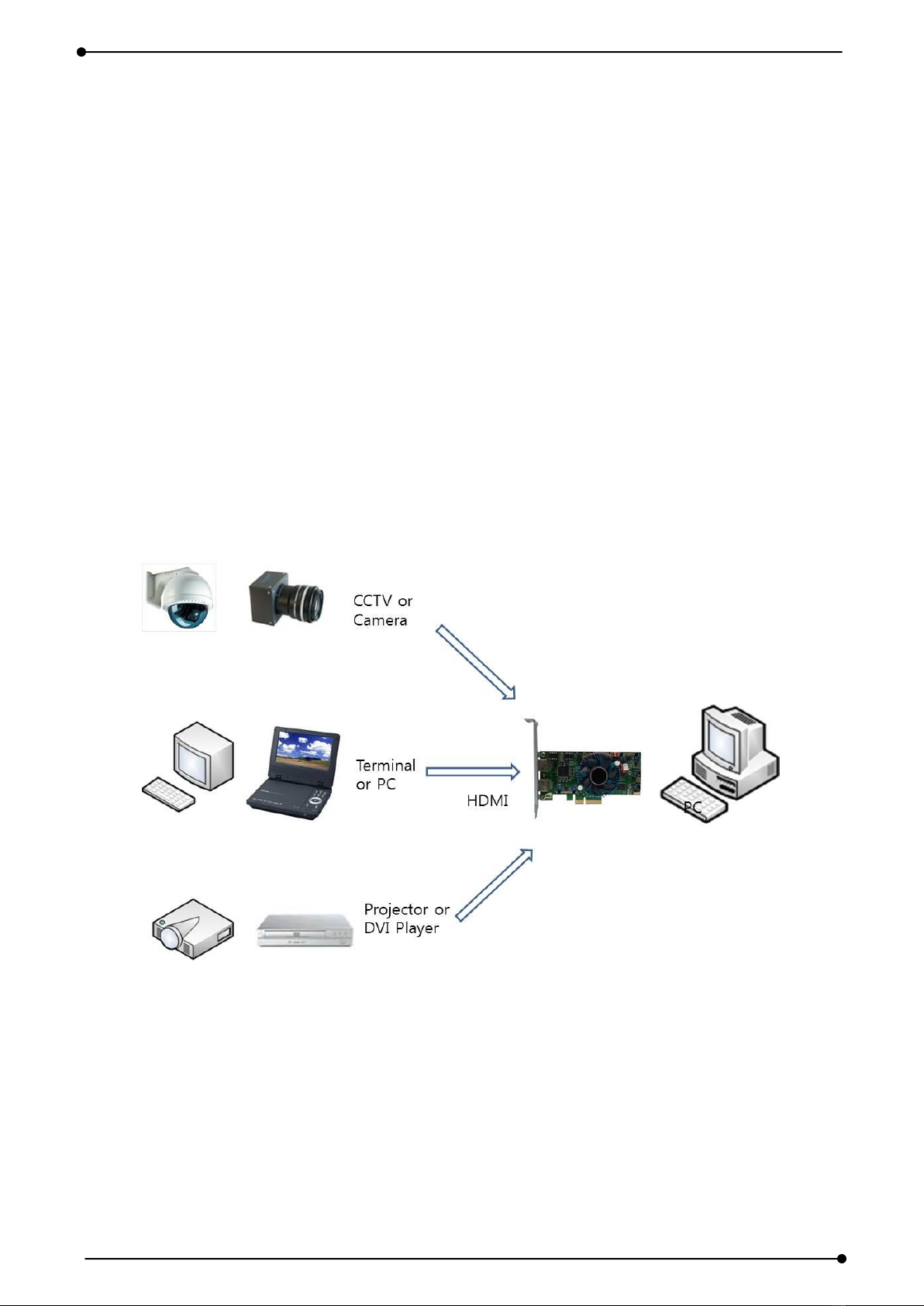

[Figure 1-1. PCIe-HDMI01 Board Usage]
[Figure 1-1] is an example of using the PCIe-HDMI01 board, which is used by connecting the board
to the PCI Express slot of the right PC. Screens of various devices on the left can be transmitted
through the HDMI port, and can also be output through an application program.

PCIE-HDMI01 User’s Manual
3
2. PCIe-HDMI01 Board Description
2-1. Layout
PCI Express 4x Interface
J5
U10
U12 U14
J6
U7
www.daqsystem.com
PCIe-HDMI01
REV. A D13
D14
D15
D16
U11
D10
ON
1 2
U9
U15
U8
REF1 REF2
123 789 123 789
A
C
E
G
J
L
N
R
A
C
E
G
J
L
N
R
U18
Y1
J7
J3
J1
J2
DAQ system
U13
D5
D6 D3
D4
D11
D8 D9
D7
Port A
Port B
[Figure 2-1. PCIe-HDMI01 Layout]
There are several LEDs on the board, and each description is as follows.
D10: Lights when the board is configured and ready for operation.
D3 ~ D6: Test purpose
D7 ~ D9, D11: Test purpose
D13 ~ D16: Test purpose

PCIE-HDMI01 User’s Manual
4
2-2. I/O Terminal Pin Map
(1) HDMI Connector : J1(Port A), J2(Port B)
The connector is an HDMI signal connector, and the pin map is as shown in the figure below.
[Figure 2-2. HDMI pin-out]
[Table 1. HDMI Connector J1, J2 Description]
Pin No.
Pin Name
Description
Remark
1
H_RX2+
TMDS Data2+
2
GND
Green Signal
3
H_RX2-
TMDS Data2-
4
H_RX1+
TMDS Data1+
5
GND
Ground
6
H_RX1-
TMDS Data1-
7
H_RX0+
TMDS Data0+
8
GND
Ground
9
H_RX0-
TMDS Data0-
10
H_RXC+
TMDS Clock+
11
GND
No Connected
12
H_RXC-
TMDS Clock-
13
HDMI_CEC
Consumer Electronics Control
14
N.C
No Connected
15
DDC_SCL
I2C Clock for DDC
16
DDC_SDA
I2C Data for DDC
17
GND
Ground
18
5V_HDMI
+5V DC
19
5V_HDMI
+5V DC
HDMI Detect
(2) J3 Connector
External input 12V power connector.

PCIE-HDMI01 User’s Manual
5
(3) J5 Connector
The PCIE-HDMI01 board is designed so that up to 4 PCIE-HDMI01 boards can be used
simultaneously in one system (PC). The division of each board can be set through a 2-pin DIP
switch in the board.
1
ON 2

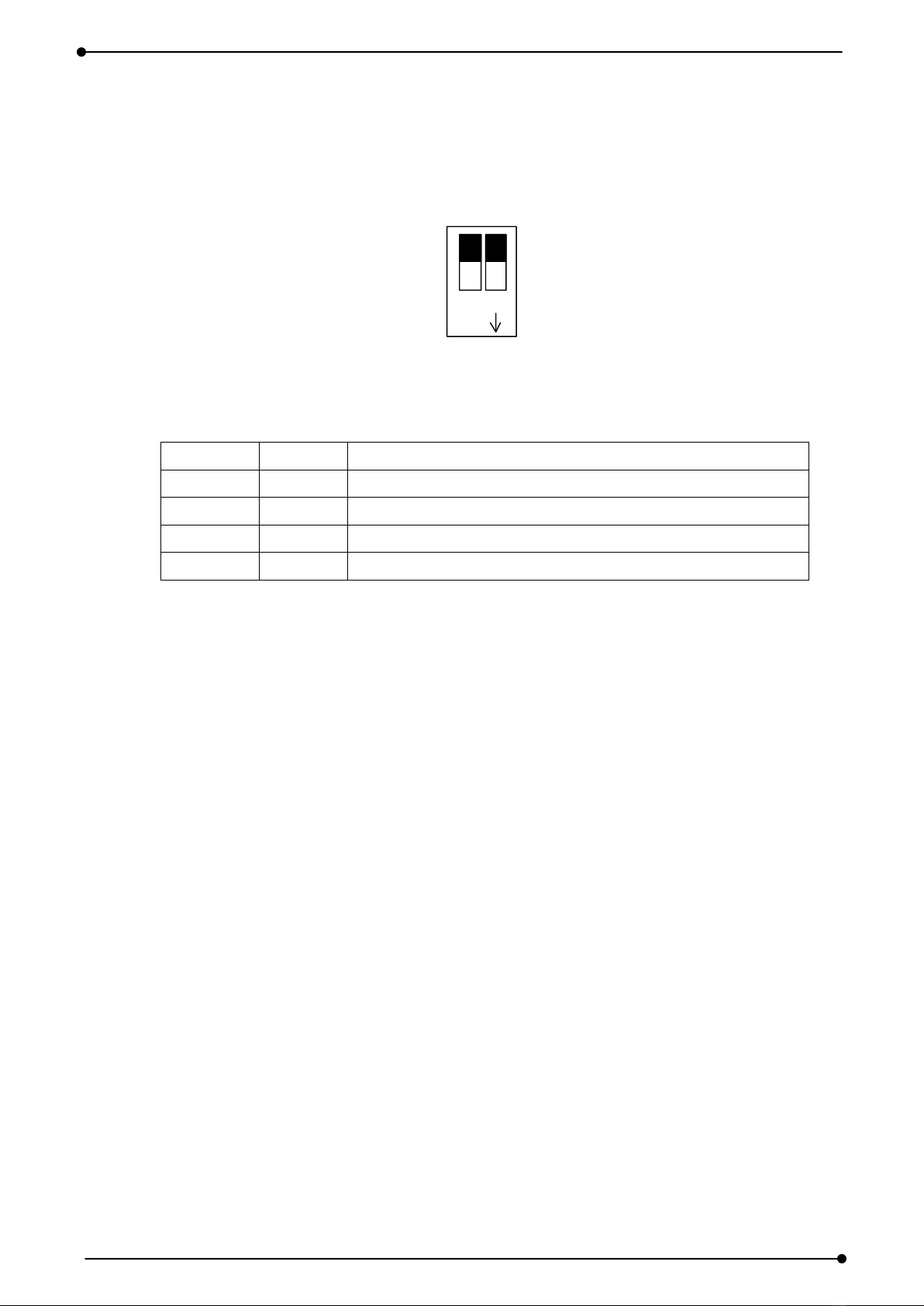

[Figure 2-3. J5 Connector (Top View)]
[Table 2. J5 Connector PIN-OUT Description]
1
2
Description
OFF
OFF
Board No. 0
ON
OFF
Board No. 1
OFF
ON
Board No. 2
ON
ON
Board No. 3
(4) J6 Connector
FAN control 12V power connector.

PCIE-HDMI01 User’s Manual
6

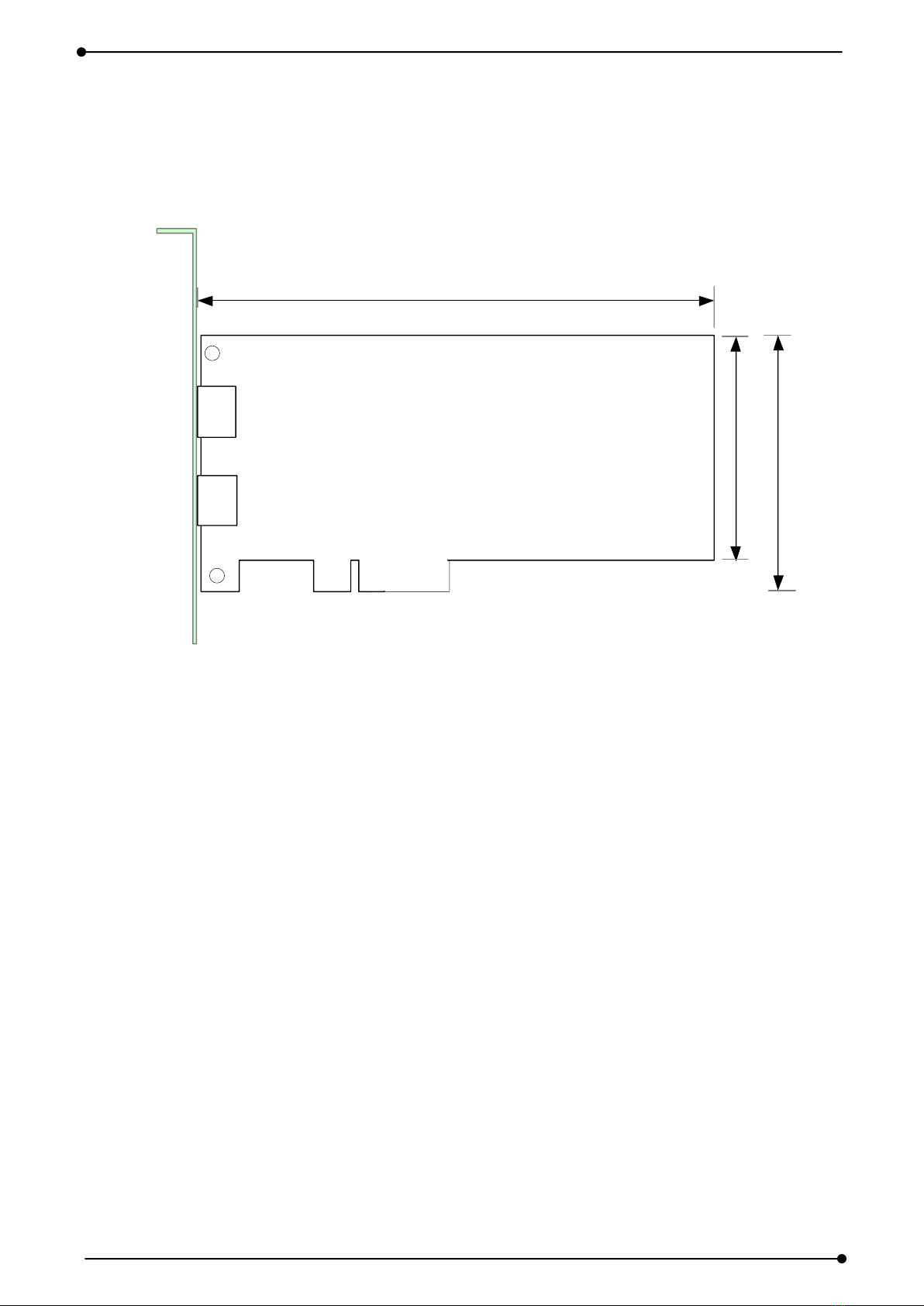

2-3. Board Size
The external dimensions of the board are as follows.
(For detailed dimensions, please ask the person in charge.)
132
55 68

PCIE-HDMI01 User’s Manual
7
3. Installation
Before installing the board, check whether the contents of the package are abnormal.
3-1. H/W Installation
3-1-1. Product Contents
①PCIe-HDMI01 Board
②CD (Driver/User Manual/API/Sample Source etc.)
-Document Folder : Manual and Catalog
-Driver Folder : pci_hdmi01.sys pci-hdmi01.inf
-Sample Folder : Sample Application and DLL
-TestApp Folder : FrmTest.exe (Sample executable file)
3-1-2. Installtion Process
①Turn off the computer.
②Remove the computer cover according to the computer manual.
③Insert the product into an empty PCI Express slot. If possible, install the boards in the order
close to the CPU.
④Remove the blocked part from the back of the computer case in the slot where the board is
inserted, and then tighten the screws to the connection part between the bracket of the board
and the case.
⑤In case of multi-board, repeat from step 3.

PCIE-HDMI01 User’s Manual
8
3-2. Driver Installation
The board environment should be used in Windows 2000 SP4 or higher and Windows XP SP1
or higher. First, power off the PC, plug the PCIe-HDMI01 board into the PCI Express Slot, and
turn on the PC. When the “Start New Hardware Search Wizard” window opens as shown below,
select it as shown below and click the Next button.

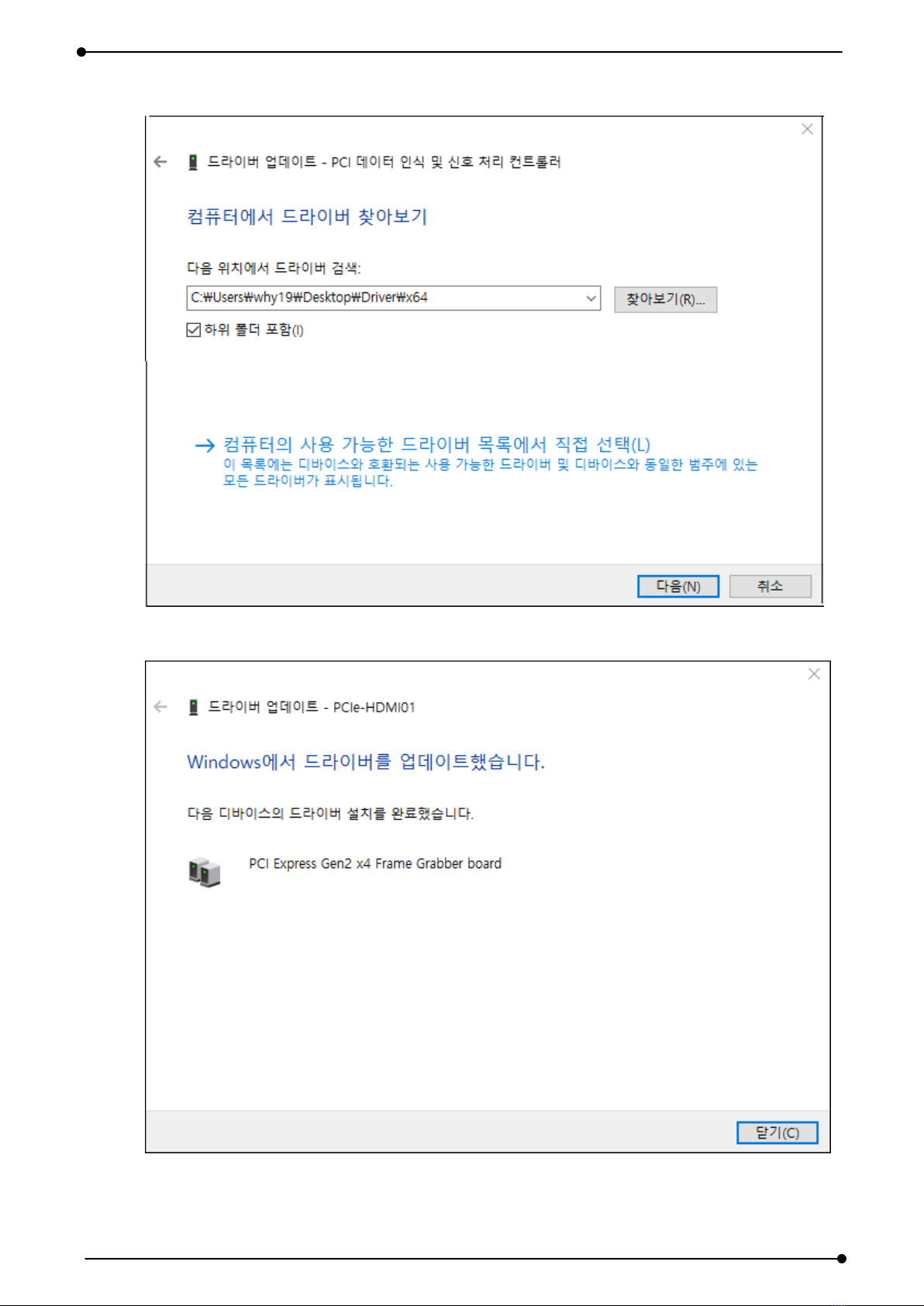

1. Select “Search for driver software on my computer (R)” as shown below and click the Next
button

PCIE-HDMI01 User’s Manual
9
2. Select the Driver folder that is suitable for O.S (32/64bit) and click the Next button.
3. Click the Next button. Check if the driver is installed normally.

PCIE-HDMI01 User’s Manual
10
4. Check if DAQSystem -> “PCIe-HDMI01” is installed in My Computer -> Properties -> Hardware
-> Device Manager.
5. If it appears as shown in the picture below, the installation has been completed normally.
The picture above shows the screen where the PCIe-HDMI01 board is normally installed in the PC.
Note: After initial installation, you must reboot your PC for normal operation.

PCIE-HDMI01 User’s Manual
11
4. Sample Program
A sample program is provided on the CDROM provided with the board so that the board can be
used easily. In order to test the sample program, the driver of the board must be installed first. The
sample program is provided in the form of a source so that the API provided to use the board can be
briefly tested, so users can modify and use it.

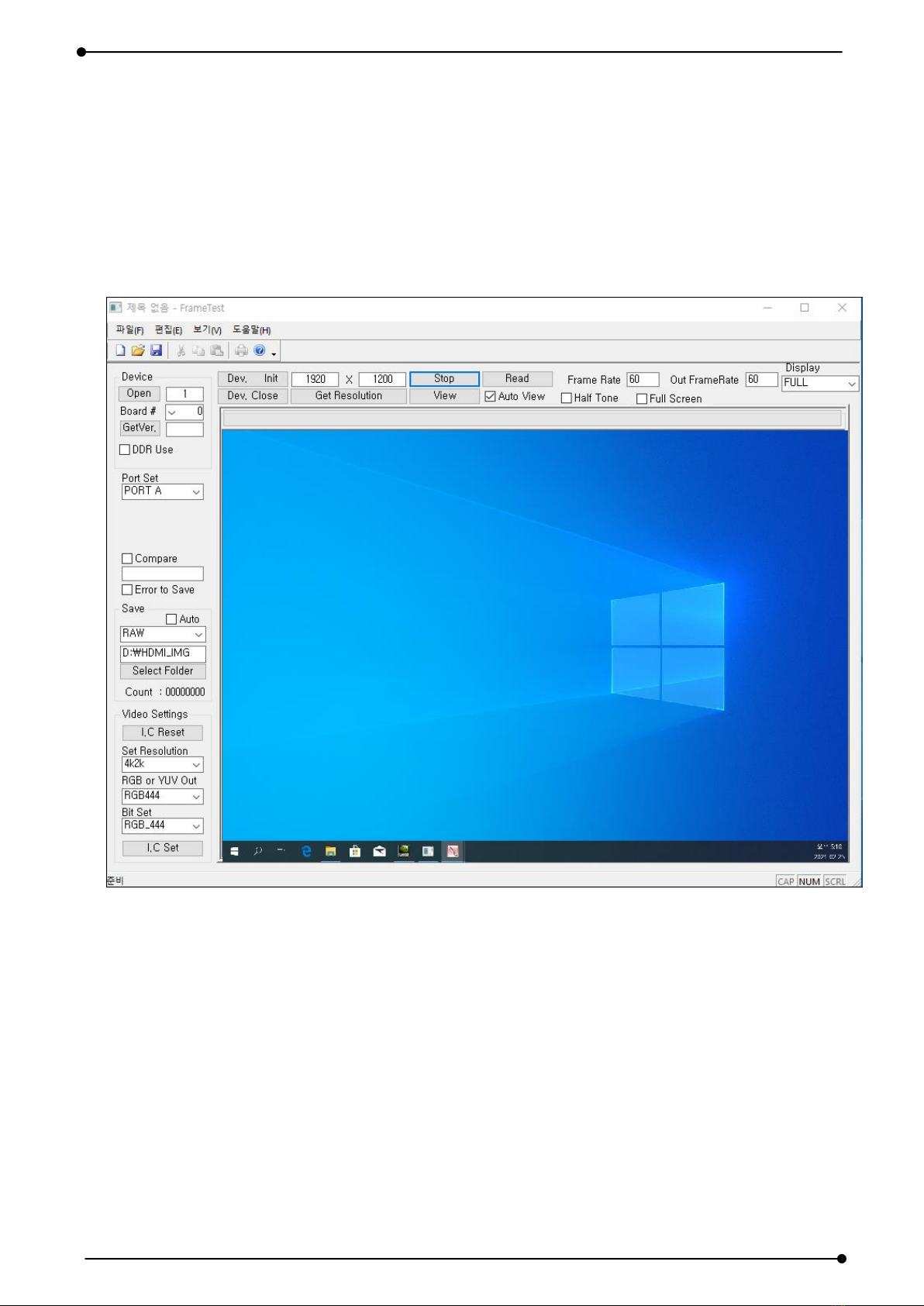

[Figure 4-1. Sample Program Execution Screen]
In order to use the above sample program, API (Application Programming Interface) is required.
API is provided in the form of “DLL”, and import library and header file are required to compile.
All files specified above are included on the supplied CDROM. To run the sample program
normally, the API DLL (PCI_HDMI01.DLL) must be in the folder of the executable file, or in the
Windows system folder or the folder designated by the Path environment variable.

PCIE-HDMI01 User’s Manual
12
The program execution sequence to view the image is as follows.
①“Open” click
②Select from PORT A/B
③After click Set Resolution / RGB or YUV Out / Bit Set. I.C Set click
④“Dev. Init” click
⑤Check the resolution with “Get Resolution”
⑥Click the “Start/Stop” toggle button click to start or stop the video.
(1) “Open” button
Start the device of the selected board.
(2) “Board#” selection
In case of multiple PCI Express boards, 4 board numbers (0 ~ 3) are assigned.
(3) “GetVer.” button
Here comes the FPGA version of the board.
(4) “DDR Use” toggle
Check when using DDR Memory.
(5) “Port Set” Selection
Select when selecting Port A/B. (Default: Port A)
(6) “Device Init” button
Initialize the device. Performed only once when first power is applied.
(7) “Dev. Close” button
Called when the use of the board is complete and the program is ended.
(8) “Get Res.” button
Shows the image resolution.
(9) “Start/Stop” toggle button
The camera transmits or stops the image frame.

PCIE-HDMI01 User’s Manual
13

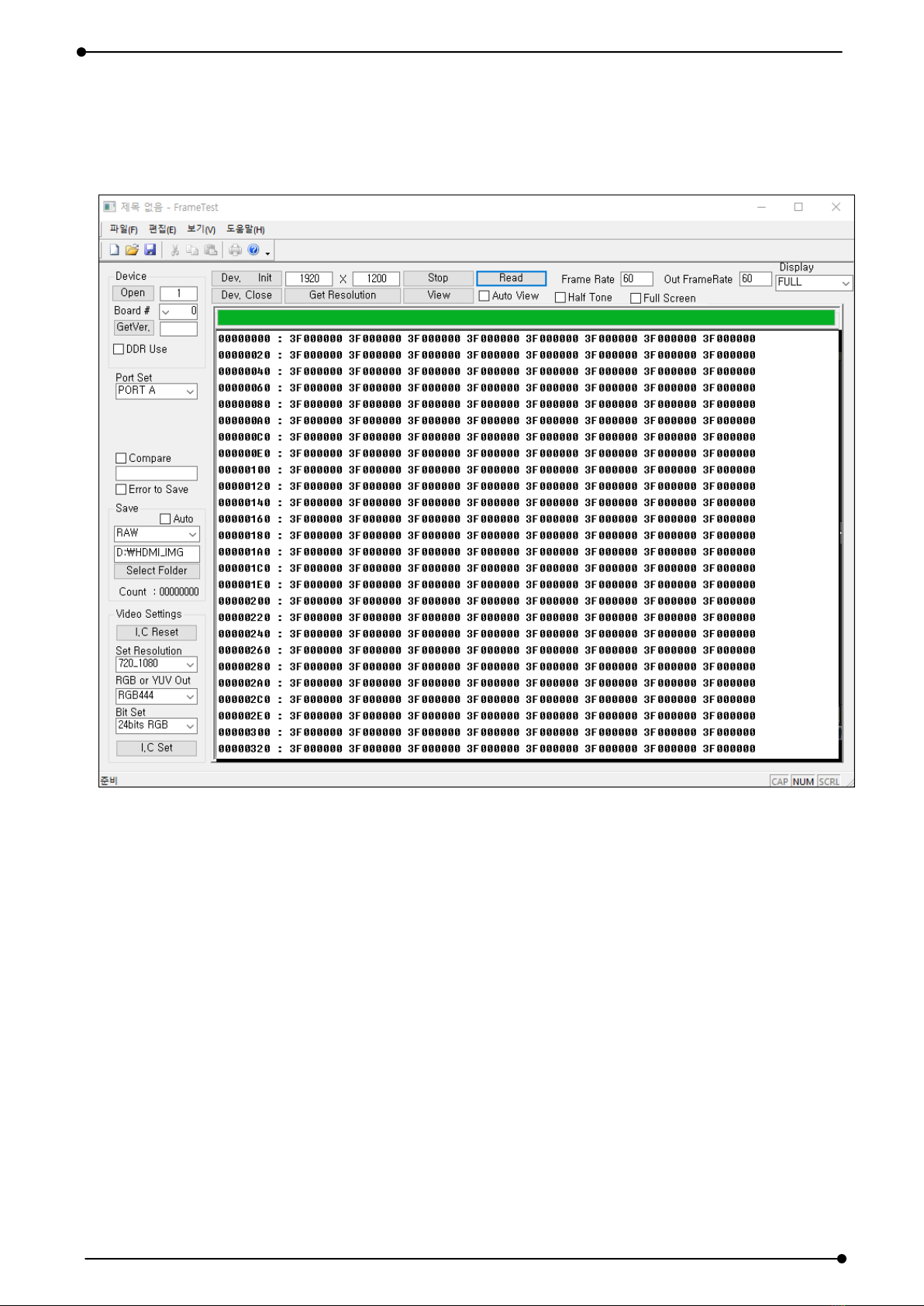

(10) “Read” button
The image frame saved on the board is read to the PC (Hexa value). If the image frame is
not saved on the board, you have to wait until the saving is complete. Use after freeze the
screen.
(11) “View” button
When selected, it shows one screen at a time.
Auto View : When selected, the playback screen is displayed continuously.
(12) “Frame Rate” : It shows the frame rate per second processed by software.
“Out FrameRate“ : It shows the actual frame rate per second.
“Half Tone” : Select the half tone mode.
“Full Screen ” : Shows the screen at its actual resolution size.
(13) “Display” selection
“FULL” : It shows the screen at the actual resolution, and the rest of the selected part shows
an enlarged image of the designated location (Top Left/Top Right/Bot. Left/Bot.
Right).

PCIE-HDMI01 User’s Manual
14
(14) “Compare” selection
When selected, the original file and the saved file are compared, and the Compare folder
is created and saved in the execution folder. (\Release\Compare\Original.bin)
(15) “Error to Save” selection
When Compare is selected, error files are saved in \Release\Compare\\Err%d.bin in the
wrong byte order.
(16) “Auto” selection : It is used to save frame image data read into PC as binary or BMP file.
Select Folder : Select a folder to save. By default, it is saved in d:\HDMI_IMG.
Count : Shows the number of saves.
(17) “I.C Reset” button
Initialize the ADV7619(HDMI Receiver) chip.
(18) “I.C Set” button
After initializing the HDMI Receiver, set the ADV7619(HDMI Receiver) chip according to
the conditions below.
Set Resolution : 480_570, 720_1080, 4k2k
RGB or YUV Out : YCbCr444_422, RGB444
Bit Set : When the set Resolution is 4k_2k, 0: YCbCr444_422, 1: RGB444
Whe the set Resolution is 480_570, 720_1080,
”0” : 24bits RGB, ”1” : 30bits RGB, “2” : 16bits YUV,
“3” : 20bits YUV, “4 “: 24bits YUV
[Table 3. Parameter Selection Table]
Item
Selection
Set Resolution
480_570
720_1080
4K_2K
RGB or YUV Out
YCbCr422
RGB_444
YCbCr422
RGB_444
YCbCr422
RGB_444
Bit Set
24bits RGB
24bits RGB
24bits RGB
24bits RGB
YCbCr444_422
YCbCr444_422
30bits RGB
30bits RGB
30bits RGB
30bits RGB
RGB_444
RGB_444
16bits YUV,
16bits YUV,
16bits YUV,
16bits YUV,
20bits YUV
20bits YUV
20bits YUV
20bits YUV
24bits YUV
24bits YUV
24bits YUV
24bits YUV

PCIE-HDMI01 User’s Manual
15
Appendix
A-1. Repair Regulations
Thank you for purchasing a DAQ SYSTEM product. Please refer to the following regarding
Customer Service regulated by DAQ SYSTEM.
(1) Read the user manual before using the DAQ SYSTEM product and follow the instructions..
(2) When returning the product to be repaired, please write down the symptoms of the failure and
send it to the head office.
(3) The warranty period for all DAQ SYSTEM products is one year.
-. Warranty period counts from the date the product is shipped from DAQ SYSTEM.
-. Peripherals and third-party products not manufactured by DAQ SYSTEM are covered by the
manufacturer's warranty.
-. If you need repairs, please contact the Contact Point below.
(4) Even during the warranty period, repairs will be charged in the following cases.
①Failure or damage caused by use without following the user's manual
②Breakdown or damage caused by customer's negligence during product transportation after
purchase
③Failure or damage due to natural phenomena such as fire, earthquake, flood, lightning,
pollution, or power supply exceeding the recommended range
④Failure or damage caused by inappropriate storage environment (eg, high temperature, high
humidity, volatile chemicals, etc.)
⑤Breakdown or damage due to unfair repair or modification
⑥Products whose serial number has been changed or deliberately removed
⑦If DAQ SYSTEM determines that it is the customer's fault due to other reasons
(5) Customer is responsible for shipping costs for returning the repaired product to DAQ SYSTEM.
(6) The manufacturer is not responsible for any problems caused by incorrect use, regardless of our
warranty terms.

PCIE-HDMI01 User’s Manual
16
MEMO
Contact Point
Web sit : https://www.daqsystem.com
Email : [e-mail]
