Dass OD-0910 User manual

Installation
manual
towel warmer
Model OD-0910
SPECIFICATION
Voltage: AC120V Frequency: 60Hz
Rated power: 100 W (OD-0910-SS, OD-0910-BR) 135 W (OD-0910-MB)
Unit size: 870 X 530 mm
This towel warmer is intended for the use in bathrooms or laundry areas. Read the instruc-
tions carefully before operating.
Please read the wall-mounted installation carefully to understand how to install on your ideal location of the wall.
Please use the services of a certied electrician for the apparent wireless installation of this product.
Make sure to complete the installation before using it.
Plug the power cord into an electrical outlet for the apparent wire installation.
Switch ON/OFF : Press button ON/OFF, product will start to work, if you want to stop it, press the button again.
The timer can be adjusted to 2 h (hour) or 4 h (hour). Press the button to select the right time.
Please turn it off and take the plug out from the outlet if you are not using it.
Hardwire installation
1 3+18 3+1 4 8 1 12 1
Client
TOLERANCES
FINI DE SURFACE : 125
PROJECTION :
± 1/16"
± .01"
± .003"
± .0005"
1/X
.XX
.XXX
.XXXX ± 1°
ANGLE
SAUF CONTRE INDICATION, LES
DIMENSIONS SONT EN POUCES.
C:\dessin classé compagnie\Odass\round tube.asm
Asn Machinerie inc
82 St-Joseph Sud
Rivière-Bleue qc
Canada G0L-2B0
www.asnmachinerie.com
[e-mail]
tel:[phone] fax:[phone]
cell:418-714-1829
round tube ASM.dft
CLI ENT
DATE DESSINÉE
DESSINÉ PAR
NOM
ÉCHELLEPAGE REV
CE DOCUMENT EST LA
PROPRIÉTÉ DE
Asn
Machinerie inc
IL NE DOIT
PAS ÊTRE DÉVOILÉ, UTILISÉ
OU REPRODUIT EN TOUT OU
EN PARTIES SANS
L'AUTORISATION ÉCRITE DE .
Asn Machinerie inc
21-02-2020
1 de 1 N/A
emplacement
70.00 mm
115.00 mm
84.00 mm
bolt
wire hole
92.00 mm
#6-32 screw
0.75" long

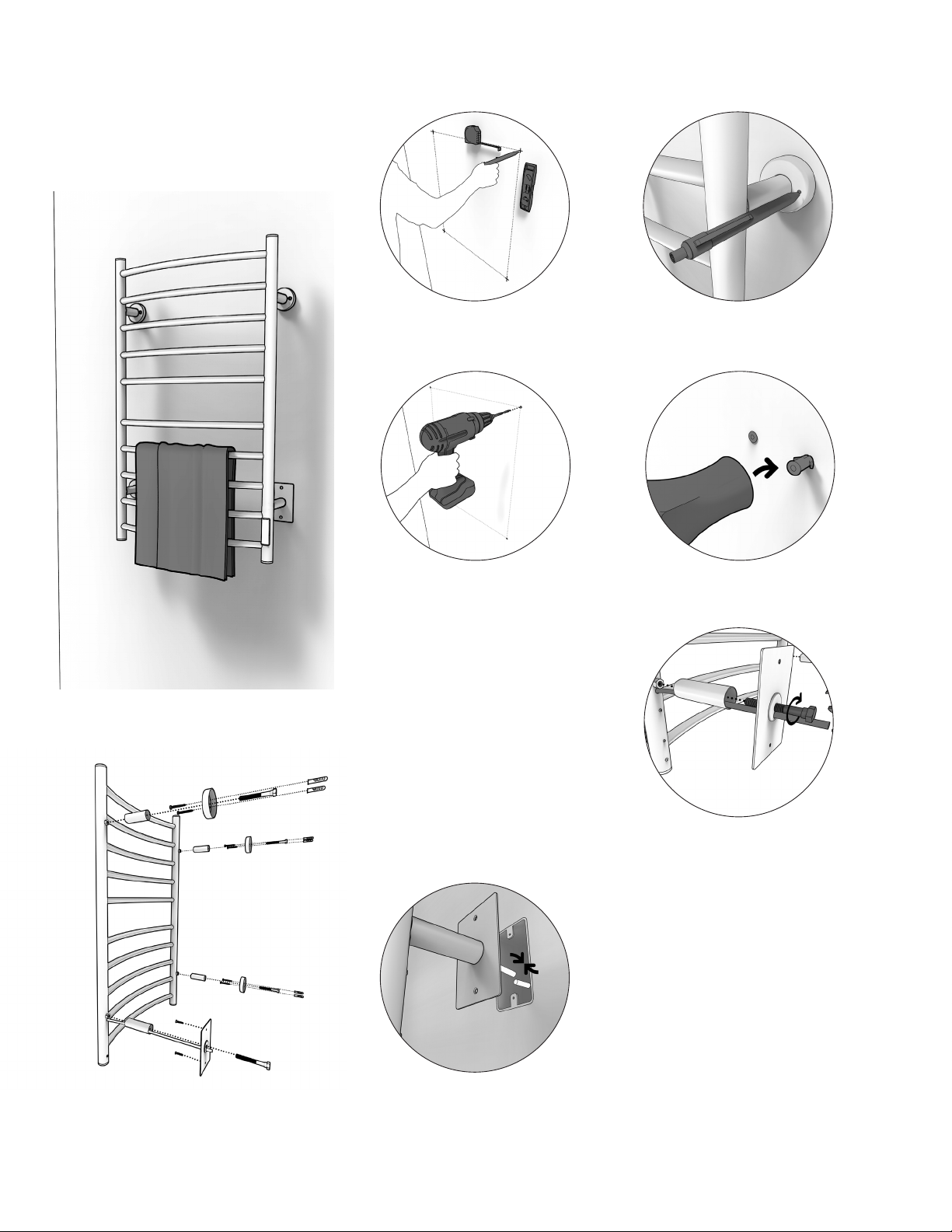

Plug-in
installation
instruction
1. Identify the location
of the holes needed for the screws on the wall.
2. Drill holes in the wall.
4. Rivet the base onto the nut with
the xing screw.
6. The power cable should exit at
the rear of the product.
7. Press the button to turn it on
or off, select on the timer
2 or 4 hours.
3. Insert screw anchor into the
holes.
5. Install the base with the screw.

Hardwire
installation
instruction
2. Drill holes in the wall.
4. Cut the supply cable. Make sure
to keep enough wire to go through
the tube and to plug
into the junction box.
5. Pass the supply cable through
the tube provided for this
purpose and pass the wire
through the plate.
6. Remove the tube already
present on the towel warmer and
replace it with the tube available
in the box provided for hard-wired
installation. Rivet the base onto the
nut with the xing screw.
7. The supply cable should exit
from the rear of the product.
3. Insert screw anchor
into the holes.
8. Connect the supply cable to the
junction box and aim the plate in
the junction box.
1. Identify the location
of the holes needed for the screws on the wall.

9. Install the base with the screws. 10. Press the button to turn it
on or off, select on the timer
2 or 4 hours.
CLEANING MAINTENANCE
To keep the device clean, regular
maintenance is suggested.
To remove dust, use a soft cloth.
To remove a stain, dampen the cloth.
For better efciency of the device,
it is advisable to remove dust and
foams which can accumulate regular-
ly. Never use abrasive or
acetone-based products.
IMPORTANT SAFEGUARDS
Read all instructions before using
this heater.
Extreme caution is necessary when
towel warmer is used by or near
children or persons with reduced
physical, sensory or mental
capabilities and whenever the
heater is left operating unattended.
The device is designed only for
drying textile washed in water.
The heater should be installed at a
minimal distance of 0,6 meter of a
bathtub or a shower.
If the supply cable is damaged, it
should be replaced by the manufac-
turer, manufacturing agent or any
qualied person to avoid potential
dangers.
Always unplug heater
when not in use.
Do not operate the heater with a
damaged cord or plug or if the
heater has malfunctions, has been
dropped or damaged in
any manner.
Return heater to authorized service
facility for examination, electrical or
mechanical adjustment, or repair.
Do not use outdoors.
Never place the heater where it may
fall into a bathtub or other water
containers.
Do not run cord under carpeting.
Do not cover cord with throw rugs,
runners, or the like. Place the cord
away from trafc area and where it
will not be tripped over.
Do not insert or allow foreign objects
to enter any ventilation or exhaust
opening as this may cause an
electric shock, re or damage the
heater.
Do not use it in area where gasoline,
paints, or ammable liquids can be
found.
Use this heater only as described
in this manual. Any other use is not
recommended by the manufacture.
It may cause re, electric shock, or
injury to persons.
Keep these instructions for later
reference.
CAUTION:
THIS HEATER ONLY OPERATES IN
UPRIGHT POSITION.
STORE THE HEATER IN COOL AND
DRY LOCATION WHEN NOT IN USE.
DO NOT STORE UNTIL THE HEATER
HAS COOLED DOWN.
ANY OTHER SERVICING SHOULD
BE PERFOMED BY AN AUTHORIZED
SERVICE REPERSENTATIVE
THE HEATER MUST NOT BE LOCATED
IMMEDIATELY BELOW A SOCKET-
OUTLET.
This appliance is not intended for
use by persons (including children)
with reduced physical, sensory
or mental capabilities, or lack of
experience and knowledge, unless
they have been given supervision or
instruction concerning use of this
appliance by a person responsible
for their safety. Children should be
supervised to ensure that they do
not play with the appliance.

LIMITED WARRANTIES
Odass warrants the product to be free from defects
in workmanship from the date of purchase. These
warranties extend only to the original owner/end-
user for personal household use and start from
the date of purchase/billing. This warranty cannot
be transferred to a third party and additional
limitations apply for commercial uses. In the
eventuality that a manufacturing defect appears,
the owner/ enduser must have in his possession, a
proof of purchase as well as a proof of installation
by a professional recognized by the construction
industry. Odass reserves the right to inspect on
site, the defect by a representative of is choice.
Any return of goods will not be accepted without
the written authorization from Odass. Odass cannot
be held responsible about the defects or breaking
resulting from any act of god, accident, catas-
trophe, abuse, negligence, improper installation/
use/maintenance, intensive variation of tempera-
ture, exposures to chemicals or stains caused by
differents types of water such as ferrous or alkaline
water, etc. The use of abrasives of any kind, gritting
scraper, brushes or any other scouring object which
can damage the surface of the product is to be
proscribe and will cancel the present warranty.
Odass will be repaired or replaced (with a product
of equal value) to her discression of any product
reported to the authorized dealer or to Odass as
being defective within the warranty period. Neither
the distributor, authorized Odass dealer nor any
other person has been authorized to make any afr-
mation, representation or warranty other than those
contained in the warranty; any afrmation, repre-
sentation or warranty other than those contained
in this warranty shall not be enforceable against
Odass or any other person. This warranty excludes
any expenses related to shipping, handling and/or
installation fees. Odass cannot be held responsible
for the fees of labor, wastes of time, expenses of
sundries or replacement of installation material, in-
cluding, but not limited to, tiles, marble, etc. Odass
reserves the right to modify this warranty at any
time, it being understood that such modication
will not alter the warranty conditions applicable at
the time of the sale of the products in question.
LIMITED WARRANTIES
Odass warrants for a period of 10 years, acrylic
unit to be free from defects in workmanship and
materials under normal use and service from the
initial date of purchase by the owner/end-user,
contractor or builder. Odass lifetime warranty,
chrome and nickel faucet nish, rough and car-
tridge. Also, 5 years warranty for the black mat -
nish, hose faucet of shower and bathtub to be free
from defects in workmanship and materials under
normal use and service from the initial date of pur-
chase by the owner/end-user, contractor or builder.
Odass warrants for a period of 10 years, shower
doors to be free from defects in workmanship and
materials under normal use and service from the
initial date of purchase by the owner/end-user,
contractor or builder. Odass warrants for a period of
5 years, sanitary products (toilet, lavatories basin)
to be free from defects in workmanship and mate-
rials under normal use and service from the initial
date of purchase by the owner/end-user, contractor
or builder. Odass warrants for a period of 2 years,
storage modules and vanities to be free from de-
fects in workmanship and materials under normal
use and service from the initial date of purchase
by the owner/end-user, contractor or builder. Odass
warrants for a period of 2 years, glass mirrors to
be free from defects in workmanship and materials
under normal use and service from the initial date
of purchase by the owner/end-user, contractor or
builder. Odass warrants for a period of 2 years,
electrical components to be free from defects in
workmanship and materials under normal use and
service from the initial date of purchase by the
owner/end-user, contractor or builder.
