APW Wyott DWC-17 User manual

Phone: +1
Fax: [phone]
Toll Free: [phone]
Website: www.apwwyott.com
E-mail: [email protected]
[phone]
INSTALLATION
AND
OPERATING
INSTRUCTIONS
INTENDED FOR OTHER THAN HOUSEHOLD USE
Model: DWC-17
RETAIN THIS MANUAL FOR FUTURE REFERENCE
UNIT MUST BE KEPT CLEAR OF COMBUSTIBLES AT ALL TIMES
P/N 77612040 9/05
1
WARMING CABINET
APW WYOTT
729 Third Avenue
Dallas, TX 75226
This equipment has been engineered to provide you with year-round dependable service when used
according to the instructions in this manual and standard commercial kitchen practices.
WARNING: Improper installation, adjustment, alteration, service or maintenance can
cause property damage, injury or death. Read the Installation, Operating and
Maintenance Instructions thoroughly before installing or servicing this equipment.
!!
R
TABLE OF CONTENTS
Safety Precautions
General Information
Installation
Operation Instructions
Cleaning Instructions
Warranty
Troubleshooting
Replacement Parts List
Wiring Diagram
Warranty Procedure
2
2
2
3
3
4
4
6
6
7

IMPORTANT FOR FUTURE REFERENCE
Please complete this information and retain this manual for the life of the equipment. For
Warranty Service and/or Parts, this information is required.
ModelNumber SerialNumber DatePurchased
2
SAFETY PRECAUTIONS
GENERAL INFORMATION
INSTALLATION
APW Wyott equipment is designed, built and sold for commercial use and should be operated by trained
personal only. Make sure all CAUTIONS, WARNINGS and operating instructions are clearly posted near
each unit to insure proper operation and reduce the chance of personal injury and/or equipment damage.
Always disconnect power before cleaning or servicing the unit. Surfaces will remain hot after power has
been removed, allow unit to cool before cleaningor servicing. Never clean the unit by immersing it in water.
The unit is not protected against water jets; DO NOT CLEAN UNIT WITH A WATER JET. Always clean
equipmentbeforefirstuse.
Check the rating label for your model designationand electrical rating.Rating Label is located on the inside
frame of the unit.
18.25 (46.4 cm) W x 18.5(47.0cm) D x 25.12(63.8 cm) H
120VAC, 660W, 60Hz, NEMA5-15 Plug
6 foot, 3 wire grounded cord. If the supply cord is damaged, the manufacturer or an authorized service
agent or a similarly qualifiedperson must replaceit in order to avoid a hazard.
54Lbs. (24.5 Kg.)
1. UnpackUnit
Remove unit from shipping carton, unwrap loose parts and remove any packing tape, plastic wrap
andnylontie-down.
Prior to initial start-up, all removable parts and interior surfaces should be cleaned with
warm soapy water to remove manufacturing oils, then rinsed and dried thoroughly. Please follow
thecleaninginstructionson page 3.
2. Switch the position of the door knobs from inside to outside by using a screw driver. The knobs are
onthe inside for shipping purposes.
Overalldimensions:
Electricalratings:
PowerCord:
ShippingWeight:
NOTE:

OPERATION INSTRUCTIONS
3. Turn Main Power Switch on. Set Temperature Control knob to desired temperature.An initial setting
of 4 or 5 is recommended. Final settings will depend upon product weight, consistency, and
personalpreference.
4. This unit is intended to keep warmfood warm. It is not intended to reheatproduct.
5. PLACE PRODUCT ON THE DISPLAY RACK OR SHEET PANS FOR DISPLAY. Do not place food
directly on inside bottomof the unit.
6. Use HOT PADS or OVEN MITTS when removing rack or other metal objects from the warmer. Use
Utensils to remove Product.
NOTE: Should the temperature setting be changed, allow several minutes for the
temperature to adjust. Once the desired setting has been achieved, note the number and
keep it there.
Door is easily installed by
engaging the door’s half
hinge into it’s counter-part
located where shown.
CLEANING INSTRUCTIONS
3
FIGURE 1
A
B
A
WARNING:
DO NOT
Make sure the unit is in the OFF position
and has been off for ONE hour.
attempt to clean the unit if the unit
components are too hot to touch.
Never spray water on the unit or controls.
Damage to the unit as well as injury could
occur. Injury and burns may occur if you do
notfollowthis instructionsheet.

4
Cleaning should be done Daily.
DO NOT USE ANY
Alwaysask andcheck the following:
1. Remove door by pulling it, in an upward direction. Start the lifting motion with the door in the open
position.
2. In order to effectively clean the interior of the unit, you will need to remove all four Corner Rack
Supports, which are fastened with2 thumbscrews each.
3. To remove the Corner Rack Supports (Item B in Fig.1), turn the thumbscrews in a counter-
clockwise direction. Repeat the process for all four Corner Rack Supports. Note that each Corner
Rack Support is fastenedby two thumb screws whichare shown by (ItemAin Fig.1)
4. Clean with warm soapywater and a soft cloth only.
5. ammonia, alcohol, or chlorine type cleaner will cause cracking of the enclosure
anddoor(s).
6. Once the interior of the cabinet, along with Corner Rack Supports have been cleaned in the
fashion described above,re-install all fourof them using the thumbscrewsprovided with the unit.
1. Is the unit connected to a live powersource of the proper voltage?
2. Checkthe circuitbreaker.
3. Is power switch ON and lightglowing?
4. Check the rating label. Is the unitconnected to the correct powersource?
5. If the above checks out,and you still have problems,call anAPW Wyott authorizedservice agent.
TROUBLESHOOTING
1 77612021 TOP 1
2 77612012 TOP SUB ASSEMBLY 1
3 85830 HEATING ELEMENT 1
4 69127 HIGH-LIMIT SAFETY SWITCH 1
5 85836 BLOWER MOTOR / FAN ASSEMBLY 1
6 75916 LAMP, 40 W, COATED 1
7 46879 LAMP SOCKET 1
8 66725 LIGHT GUARD WIRE RACK 1
9 88890 THUMBSCREW FOR LIGHT 1
10 69128 THERMOMETER 1
11 77612027 PLASTIC DOOR 1
12 77612026 DISPLAY RACK 2
13 89408 MAIN SWITCH, LIGHT ROCKER 1
14 89101 STRAIN RELIEF BUSHING 1
15 55947 POWER CORDSET 1
16 69155 TEMPERATURE CONTROL THERMOSTAT 1
17 89499 INDICATOR KNOB 1
18 77612033 CORNER RACK SUPPORT 4
19 77612041 THUMB SCREW FOR RACK SUPPORTS 8
ITEM PART NUMBER DESCRIPTION QUANTITY
REPLACEMENT PARTS LIST - DWC-17 WARMING CABINET

5
EXPLODED VIEW - DWC-17 WARMING CABINET
17
18
13
14
11
11 16
15
19
12
54
3
1
2
6
10
9
7
8

6
WIRING DIAGRAM - DWC-17 WARMING CABINET
WARRANTY PROCEDURE
If warranty service is neededon yourAPW Wyott equipment, follow thesesteps:
1. Securethe modeland serial number from the rating label on yourwarming cabinet.
2. Consult the enclosed directory, find the service agency nearest you, call the number listed or the 24-
hour toll free service hot line, 1-800-733-2203. If there is not a service agency listed for your area,
the parts distributor will provide service for yourwarming cabinet.
3. To order parts, consult the enclosed directory. The parts distributor is listed at the beginning of each
state listing.The parts distributors have a completestock of parts foryour warming cabinet.

7

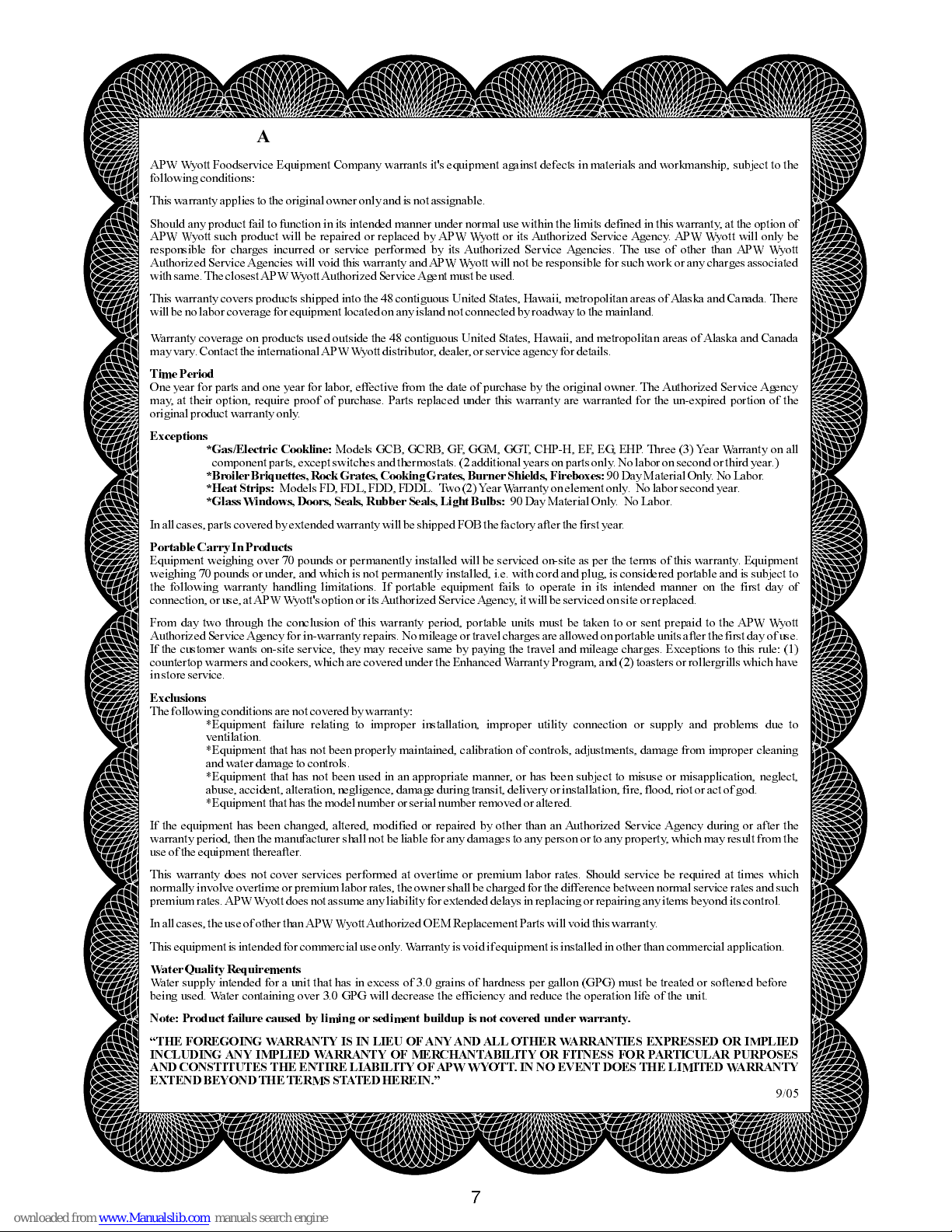

APW WYOTT EQUIPMENT LIMITED WARRANTY
APW Wyott Foodservice Equipment Company warrants it's equipment against defects in materials and workmanship, subject to the
following conditions:
This warranty applies to the original owner only and is not assignable.
Should any product fail to function in its intended manner under normal use within the limits defined in this warranty, at the option of
APW Wyott such product will be repaired or replaced by APW Wyott or its Authorized Service Agency. APW Wyott will only be
responsible for charges incurred or service performed by its Authorized Service Agencies. The use of other than APW Wyott
Authorized Service Agencies will void this warranty and APWWyott will not be responsible for such work or any charges associated
with same. The closestAPW WyottAuthorized Service Agent must be used.
This warranty covers products shipped into the 48 contiguous United States, Hawaii, metropolitan areas ofAlaska and Canada. There
will be no labor coverage for equipment located on any island not connected by roadway to the mainland.
One year for parts and one year for labor, effective from the date of purchase by the original owner. The Authorized Service Agency
may, at their option, require proof of purchase. Parts replaced under this warranty are warranted for the un-expired portion of the
original product warranty only.
Models GCB, GCRB, GF, GGM, GGT, CHP-H, EF, EG, EHP. Three (3) Year Warranty on all
component parts, except switches and thermostats. (2 additional years on parts only.No labor on second or third year.)
In all cases, parts covered by extended warranty will be shipped FOB the factory after the first year.
Equipment weighing over 70 pounds or permanently installed will be serviced on-site as per the terms of this warranty. Equipment
weighing 70 pounds or under, and which is not permanently installed, i.e. with cord and plug, is considered portable and is subject to
the following warranty handling limitations. If portable equipment fails to operate in its intended manner on the first day of
connection, or use, atAPW Wyott's option or itsAuthorized Service Agency, it will be serviced on site or replaced.
From day two through the conclusion of this warranty period, portable units must be taken to or sent prepaid to the APW Wyott
Authorized Service Agency for in-warranty repairs. No mileage or travel charges are allowed on portable units after the first day of use.
If the customer wants on-site service, they may receive same by paying the travel and mileage charges. Exceptions to this rule: (1)
countertop warmers and cookers, which are covered under the Enhanced Warranty Program, and (2) toasters or rollergrills which have
in store service.
The following conditions are not covered by warranty:
*Equipment failure relating to improper installation, improper utility connection or supply and problems due to
ventilation.
*Equipment that has not been properly maintained, calibration of controls, adjustments, damage from improper cleaning
and water damage to controls.
*Equipment that has not been used in an appropriate manner, or has been subject to misuse or misapplication, neglect,
abuse, accident, alteration, negligence, damage during transit, delivery or installation, fire, flood, riot or act of god.
*Equipment that has themodel number or serialnumber removed or altered.
If the equipment has been changed, altered, modified or repaired by other than an Authorized Service Agency during or after the
warranty period, then the manufacturer shall not be liable for any damages to any person or to any property,which may result from the
use of the equipment thereafter.
This warranty does not cover services performed at overtime or premium labor rates. Should service be required at times which
normally involve overtime or premium labor rates, the owner shall be charged for the difference between normal service rates and such
premium rates.APWWyottdoes not assume anyliability for extended delays inreplacing or repairing anyitems beyond its control.
In all cases, the use of other thanAPW WyottAuthorized OEM Replacement Parts will void this warranty.
This equipment is intended for commercial use only.Warranty is void if equipment is installed in other than commercial application.
Water supply intended for a unit that has in excess of 3.0 grains of hardness per gallon (GPG) must be treated or softened before
being used. Water containing over 3.0 GPG will decrease the efficiency and reduce the operation life of the unit.
9/05
Warranty coverage on products used outside the 48 contiguous United States, Hawaii, and metropolitan areas of Alaska and Canada
may vary. Contact the internationalAPWWyott distributor, dealer, orservice agency for details.
Models FD, FDL, FDD, FDDL. Two (2)Year Warranty on element only. No labor second year.
Time Period
Exceptions*Gas/Electric Cookline:
*Glass Windows, Doors, Seals, Rubber Seals, Light Bulbs:
Portable Carry In Products
Exclusions
Water Quality Requirements
Note: Product failure caused by liming or sediment buildup is not covered under warranty.
THE FOREGOING WARRANTY IS IN LIEU OF ANY AND ALL OTHER WARRANTIES EXPRESSED OR IMPLIED
INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR PARTICULAR PURPOSES
AND CONSTITUTES THE ENTIRE LIABILITY OFAPW WYOTT. IN NO EVENT DOES THE LIMITED WARRANTY
EXTEND BEYOND THE TERMS STATED HEREIN.
*BroilerBriquettes,
*Heat Strips: RockGrates,Cooking Grates, BurnerShields, Fireboxes:
90DayMaterial Only. NoLabor.
90 Day Material Only. No Labor.

8
