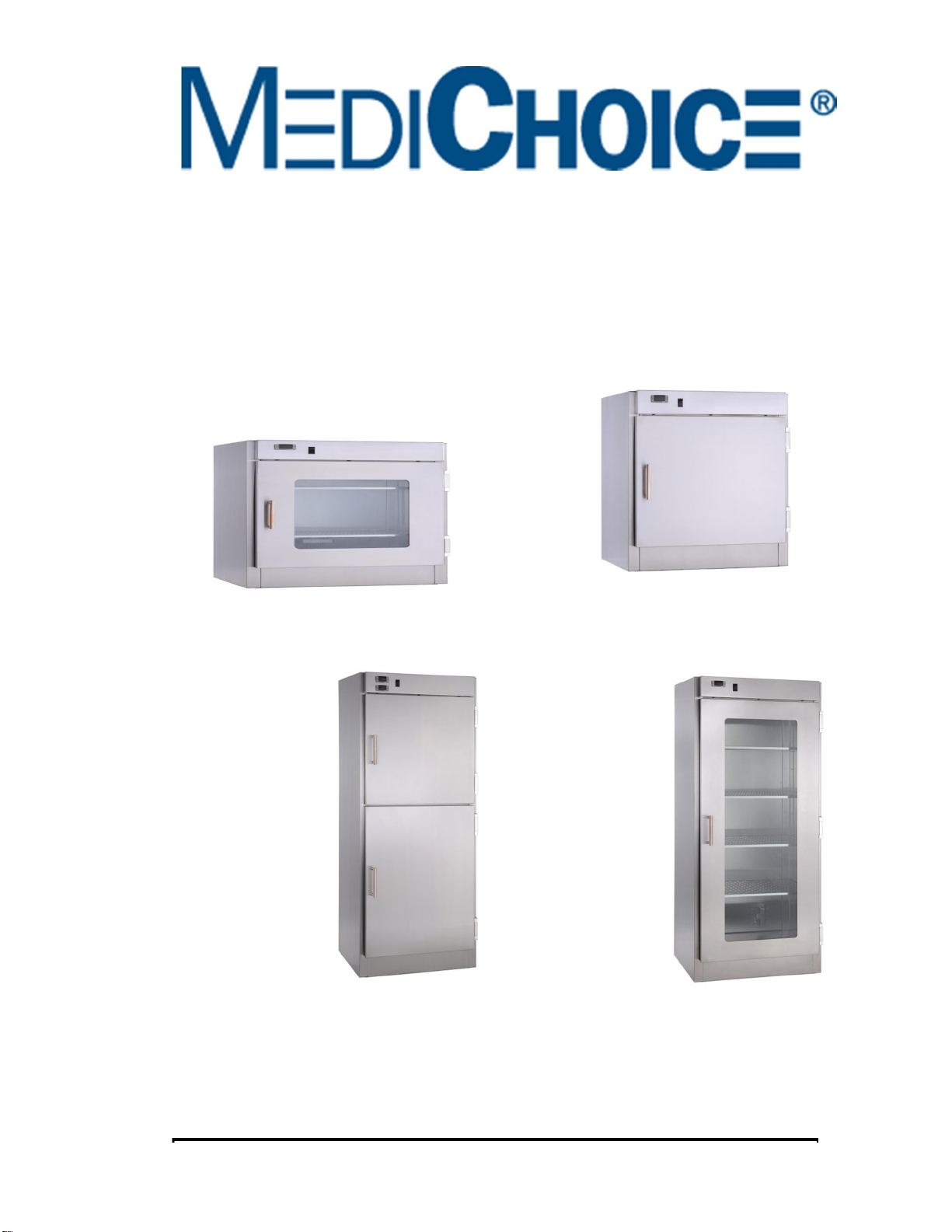

Blanket Warmer Operating Manual

Blanket Warmer Operating Manual
1
GENERAL SPECIFICATIONS.................................................................................2
Single Door Full Size Blanket Warming Cabinets ...............................................3
Double Door Full Size Blanket Warming Cabinets..............................................4
Half Size Blanket Warming Cabinets....................................................................5
Counter Top Blanket Warming Cabinets.............................................................. 6
GENERAL INFORMATION ....................................................................................7
Start Up Instructions.............................................................................................. 8
Display Instructions .............................................................................................. 9
Technical Data on Digital Controller ................................................................. 10
Alarm Settings......................................................................................................11
Maintenance .........................................................................................................12
CUVERRO ANTI-MICROBIAL HANDLES ............................................................ 13
TEMPERATURE RECOMMENDATIONS ............................................................. 14
BLANKET RECOMMENDATIONS........................................................................15
PARTS LIST ..........................................................................................................16
LIMITED WARRANTY........................................................................................... 17

Blanket Warmer Operating Manual
2
General Specifications
The Blanket Warming Cabinet’s interior is constructed utilizing type 300 stainless steel. The
exterior is constructed of all welded and formed 18 gauge magnetic type stainless steel
except for the back and bottom sections. These are manufactured of industrial grade
galvanized steel. The shelving is also perforated 18 gauge type stainless steel.
Insulation for all sides, top and bottom is high density rigid fiberglass covered with a reflective
thermal barrier. Insulation on the doors is of the same type of material.
All doors are energy efficient self- closing, factory adjusted, with commercial spring loaded,
heavy duty double hinges. Gaskets are high quality commercial grade non-latex magnetic
closure for positive “quick seal”to eliminate leakage. Doors are standard hinged on right side
but can be customized for left side with an up charge.
Low Voltage digital controls are programmable and lockable with LED illumination, preset
visual alarms and preset temperature for each compartment and are located on the front top
service compartment. Temperature may be set between 60 and 140 degrees F, plus or minus
2 degrees F. The visual alarm may be set at plus or minus 1 degree F with the temperature at
100 degrees F.
Electrical is 120V with highly visible illuminated on \ off switch located at front on top service
compartment. Optional 220V is available for up charge. Heating is by low voltage 250 watt
heater strips, 1.5”wide for extended life and low energy usage. All wiring is high temperature
with commercial connectors. Heated air is thermostatically controlled by energy efficient
commercial grade fans with forced air and vented stainless steel duct works. All controls,
fans, wiring and heater assemblies are easily accessible for repairs.
CuVerro Anti-microbial Copper Handles that kill more than 99.9% of bacteria left behind by
dirty hands within two hours.
ETL Listed.

Blanket Warmer Operating Manual
3
Single Door Blanket Warming Cabinets –Full Size 72”Tall
vType 300 Solid Stainless Steel Double Walled and Insulated Construction with two door options:
single insulated glass or stainless steel. Insulation for all sides, top and bottom is high-density rigid
fiberglass. Insulation on doors is of the same type of material.
vInterior constructed of all welded and formed 20 gauge type stainless steel.
vExterior is constructed of all welded and formed 18 gauge type stainless steel, except for the back
and bottom sections, which are industrial grade galvanized steel.
vDimensions: Exterior: 30" W x 24" D x 72" H
Interior: 28" W x 17.5" D x 65" H
vCuVerro Anti-microbial Handle
vElectrical is 120V, 50/60 Cycles. Highly visible illuminated on/off switch located at top of service
compartment. Energy efficient, commercial grade fans circulate heated air thru vented stainless
steel ducts
vLow voltage digital controls are programmable and lockable with LED screen, preset alarms and
preset temperature. Temperature may be set between 60º and 140º F, +/- 2º F. Alarms may be
set at +/- 1º with temperature at 100º F
vAll doors are energy efficient self-closing, factory adjusted with commercial spring loaded heavy-
duty double hinges. Gaskets are magnetic and commercial grade for positive “quick seal”to
eliminate leakage. Doors are standard hinged on right side.
vETL Listed with Hospital Grade Plug and Limit Switch
vFIVE Year warranty on ALL Parts and ONE Year on Labor
BW3072G: Full Size, Single Glass Door BW3072S: Full Size, Single Solid Door

Blanket Warmer Operating Manual
4
Double Door Blanket Warming Cabinets –Full Size 72”Tall
vType 300 Solid Stainless Steel Double Walled and Insulated Construction with two door options:
single insulated glass or stainless steel. Insulation for all sides, top and bottom is high-density rigid
fiberglass. Insulation on doors is of the same type of material.
vInterior constructed of all welded and formed 20 gauge type stainless steel.
vExterior is constructed of all welded and formed 18 gauge type stainless steel, except for the back
and bottom sections, which are industrial grade galvanized steel.
vDimensions: Exterior: 30" W x 24" D x 72" H
Interior Upper: 28" W x 17.5" D x 24" H, Lower: 28" W x 17.5" D x 30" H
vCuVerro Anti-microbial Handles
vElectrical is 120V, 50/60 Cycles. Highly visible illuminated on/off switch located at top of service
compartment. Energy efficient, commercial grade fans circulate heated air thru vented stainless
steel ducts
vLow voltage digital controls are programmable and lockable with LED screen, preset alarms and
preset temperature. Temperature may be set between 60º and 140º F, +/- 2º F. Alarms may be
set at +/- 1º with temperature at 100º F
vAll doors are energy efficient self-closing, factory adjusted with commercial spring loaded heavy-
duty double hinges. Gaskets are magnetic and commercial grade for positive “quick seal”to
eliminate leakage. Doors are standard hinged on right side.
vETL Listed with Hospital Grade Plug and Limit Switch
vFIVE Year warranty on ALL Parts and ONE Year on Labor
BW3072DG: Full Size, Double Glass Door BW3072DS: Full Size, Double Solid Door

Blanket Warmer Operating Manual
5
Half Size /Under Counter Blanket Warming Cabinets –36”Tall
vType 300 Solid Stainless Steel Double Walled and Insulated Construction with two door options:
single insulated glass or stainless steel. Insulation for all sides, top and bottom is high-density rigid
fiberglass. Insulation on doors is of the same type of material.
vInterior constructed of all welded and formed 20 gauge type stainless steel.
vExterior is constructed of all welded and formed 18 gauge type stainless steel, except for the back
and bottom sections, which are industrial grade galvanized steel.
vDimensions: Exterior: 30" W x 24" D x 36" H
Interior: 28" W x 17.5" D x 24" H
vCuVerro Anti-microbial Handles
vElectrical is 120V, 50/60 Cycles. Highly visible illuminated on/off switch located at top of service
compartment. Energy efficient, commercial grade fans circulate heated air thru vented stainless
steel ducts
vLow voltage digital controls are programmable and lockable with LED screen, preset alarms and
preset temperature. Temperature may be set between 60º and 140º F, +/- 2º F. Alarms may be
set at +/- 1º with temperature at 100º F
vAll doors are energy efficient self-closing, factory adjusted with commercial spring loaded heavy-
duty double hinges. Gaskets are magnetic and commercial grade for positive “quick seal”to
eliminate leakage. Doors are standard hinged on right side.
vETL Listed with Hospital Grade Plug and Limit Switch
vFIVE Year warranty on ALL Parts and ONE Year on Labor
BW3036G: Half Size, Glass Door BW3036S: Half Size, Solid Door

Blanket Warmer Operating Manual
6
Counter Top Blanket Warming Cabinets –24”Tall
vType 300 Solid Stainless Steel Double Walled and Insulated Construction with two door options:
single insulated glass or stainless steel. Insulation for all sides, top and bottom is high-density rigid
fiberglass. Insulation on the doors is of the same type of material.
vInterior constructed of all welded and formed 20 gauge type stainless steel.
vExterior is constructed of all welded and formed 18 gauge type stainless steel, except for the back
and bottom sections, which are industrial grade galvanized steel.
vDimensions: Exterior: 30" W x 24" D x 24" H
Interior: 28" W x 17.5" D x 16" H
vCuVerro Anti-microbial Handles
vElectrical is 120V, 50/60 Cycles. Highly visible illuminated on/off switch located at top of service
compartment. Energy efficient, commercial grade fans circulate heated air thru vented stainless
steel ducts
vLow voltage digital controls are programmable and password lockable with LED screen, preset
alarms and preset temperature. Temperature may be set between 60º and 140º F, +/- 2º F.
Alarms may be set at +/- 1º with temperature at 100º F
vAll doors are energy efficient self-closing, factory adjusted with commercial spring loaded heavy-
duty double hinges. Gaskets are magnetic and commercial grade for positive “quick seal”to
eliminate leakage. Doors are standard hinged on right side.
vETL Listed with Hospital Grade Plug and Limit Switch
vFIVE Year warranty on ALL Parts and ONE Year on Labor
BW3024G: Counter Top, Glass Door BW3024S: Counter Top, Solid Door

Blanket Warmer Operating Manual
7
GENERAL INFORMATION
Safety Precautions
·See Installation & Operating Instructions for XR01CX, General Warnings
·Check that the supply voltage is correct before connecting the instrument
vFull Size, Single Door: 120 V, 50/60 Cycle, single phase, 3 Wire, 7.3 Amps
vFull Size, Double Door: 120 V, 50/60 Cycle, single phase, 3 Wire, 7.5 Amps
vHalf Size: 120 V, 50/60 Cycle, single phase, 3 Wire, 5.0 Amps
vCounter Top: 120 V, 50/60 Cycle, single phase, 3 Wire, 2.9 Amps
·Do not expose to water or moisture.
·Use the controller only within the operating limits avoiding sudden temperature
changes with high atmospheric humidity to prevent formation of condensation.
·Disconnect all electrical connections before any kind of maintenance.
·The digital controller (Model XR01CX) should only be serviced or opened by
qualified personnel. It is a single stage temperature controller that provides a relay
output to drive the compressor.
Digital Controller XR01CX, format 32 x 74 x 50 mm –Regulation Output

Blanket Warmer Operating Manual
8
START UP INSTRUCTIONS
When you first receive your blanket warmer, plug it in and allow a minimum of 1 hour to heat.
You will know it has reached the pre-set temperature of 130 F °when LED goes off.
On initial start-up, temperature alarm is delayed for 120 minutes to allow temperature to set.
Your warmer has been set to 130 ° F. Temperature will vary + / - 2 degrees.
The Alarm is set at a Minimum 90 °F and a Maximum 150 ° F.
Front Panel Display

Blanket Warmer Operating Manual
9
FRONT PANEL COMMANDS
HOW TO SEE THE SET POINT TEMPERATURE
1. Push and immediately release the SET key. The set point will be shown.
2. The set point temperature displays for 5 seconds or push the SET to return
to the normal display.
HOW TO CHANGE SET POINT TEMPERATURE
1. Press the SET key for more than 2 seconds to change the set point value.
2. The value of the set point temperature will be displayed and the ° C or ° F
LED starts blinking .
3. You can now raise or lower temperature with ▲or ▼keys.
4. After you set your desired temperature, push the SET key again or wait 10
seconds.
Note: You cannot increase the set point temperature higher than the maximum
temperature it was originally set to with the above procedure (150 ° F)
HOW TO LOCK / UNLOCK THE KEYBOARD
To LOCK the keyboard, press for more than 3 seconds both the ▲and ▼keys.
The “OF”message will be displayed and the keyboard will be locked.
To UNLOCK the keyboard, press for more than 3 seconds both the ▲and ▼
until the “ON”message is displayed.

Blanket Warmer Operating Manual
10
DIGITAL CONTROLLER
TECHNICAL DATA
Housing: Self-extinguishing ABS
Case: Frontal 32 x 74 mm, depth 50 mm
Mounting; Panel mounting in a 71 x 29 mm panel cut-out
Protection: IP20, Frontal Protection: IP65
Connections: Screw terminal block </= 2.5 mm wiring
Power Supply: 110VAC ±10%, 50/60 Hz
Power Absorption: 3.5 VA max
Display: 2 digits, red LED, 14.2 mm high, Inputs: 1 NTC
Digital Input: Free voltage contact
Relay Outputs: SPST 20(8) A 250VAc
Data Storing: On the non-volatile memory (EEPROM)
Kind of Action: 1B
Pollution Grade: 2
Rated Impulsive Voltage: 2500V
Overvoltage Category: II
Operating Temperature: 0 + 60 ° C
Storage Temperature: -25 + 60 ° C
Relative Humidity: 20 + 85 % (no condensing)
Measuring/Regulation Range: NTC -40 + 110 ° C
Resolution: 0, 1° C or 1° C or 1° F
Accuracy: Ambient temp 25° C ± 0.1 ° C ± 1 digit

Blanket Warmer Operating Manual
11
DIGITAL CONTROLLER
ALARM SIGNALLING
Message Cause Outputs
P1 Room Probe Failure “Cy”Unit ON time with faulty probe
(0+99 min) time during which the unit
is active in case of faulty thermostat probe.
With Cy=0 unit is always OFF.
“Cn”Unit OFF time with faulty probe
(0+99 min) time during which the unit
is OFF in case of faulty thermostat probe.
With Cn=0 unit is always active
HA Maximum Temperature Alarm Outputs Unchanged
LA Minimum Temperature Alarm Outputs Unchanged
EA External Alarm Outputs Unchanged.
CA Serious External Alarm ALL Outputs OFF
dA Door Open Unit and fans restart
ALARM RECOVERY
Probe alarm P1 starts seconds after the fault in the related probe; the alarm automatically
stops after the probe restarts the normal operation. Check connections before replacing the
probe. Temperature alarms HA and LA automatically stop as soon as the temperature
returns to normal values. Alarms EA and CA recover as soon as the digital input is disabled.

Blanket Warmer Operating Manual
12
MAINTENANCE
Maintaining Air Flow
As you should inspect your clothes drier at home for lint build up it is our recommendation
that the rear air channels of a blanket warmer be inspected every six months to maintain
proper air flow, lower the costs of energy, increase fan life and maintain a fireproof
environment.
Many hospitals have been utilizing low cost “ether blankets”made outside the USA. Many of
these blankets are of very poor quality and produce large amounts of lint that may become
attached to the air channel walls. See recommendation on blankets.
Maintenance Procedure
1. Disconnect blanket warmer from power.
2. Open blanket warmer door.
3. Remove blankets from racks, and remove racks from unit.
4. Remove back wall retaining screws using 5/16”socket.
5. Vacuum out excess lint behind back wall including areas around the back wall, vents,
wiring, heating elements and fan housing.
6. Re-install back wall and secure using retaining screws.
7. Vacuum any lint remaining in blanket warmer compartment.
8. Replace racks to rack clips and restock blankets.
9. Reconnect blanket warmer to power.

Blanket Warmer Operating Manual
13
CuVerro Anti-microbial Copper Handles
CuVerro Anti-microbial Cooper is laboratory tested, EPA registered and proven effective
in clinical trials at killing the pathogens responsible for spreading healthcare associated
infections (HAI). The CuVerro anti-microbial copper surface continuously kills bacteria left
behind by dirty hands, killing more than 99.9% of bacteria within 2 hours.
Pathogens responsible for spreading HAI include: Staphylococcus aureus, Enterobacter
aerogenes, Pseudomonas aeruginosa, E.coli O157:H7, Methicillin-Resistant
Staphylococcus Aureus (MRSA), and Vancomycin-Resistant Enterococcus faecalis
(VRW).
Proper Care and Use
Clean and sanitize according to standard practice. Healthcare facilities must maintain the
product in accordance with infection control guidelines. The use of this surface is a
supplement to and not a substitute for standard infection control practices. Users must
continue to follow all current infection control practices, including those practices related
to cleaning and disinfection of environmental surfaces. This surface has been shown to
reduce microbial contamination, but does not necessarily prevent cross contamination.
This surface may be subject to recontamination and the level of active bacteria at any
particular time will depend on the frequency and timing of recontamination and
cleanliness of the surface (among other factors).In order to have proper antimicrobial
effect, the product must be cleaned and maintained according to the directions for use.
Cleaning agents typically used for traditional hard, non-porous touch surfaces are
permissible. The appropriate cleaning agent depends on the type of soiling and the
measure of sanitization required. Normal tarnishing or wear of this product will not impair
the anti-microbial effectiveness.
DO NOT WAX, PAINT, LACQUER, VARNISH OR OTHERWISE COAT THE HANDLES!
EPA Est. No. 089588-OH-001

Blanket Warmer Operating Manual
14
ECRI and AORN Temperature Recommendations
There are no national standards for blanket and fluid warming cabinet temperature settings.
However, in 2006 the ECRI Institute issued a warning that fluid and blanket warmers should
be limited to a temperature no higher than 43° C (110° F) to decrease the risk of thermal
injuries to patients. In 2009, ECRI published a hazard report update, raising their previous
recommendation for a safe blanket warming temperature limit to 54.44° C (130° F), with the
provision that IV fluids should not be warmed in the same cabinet. When ECRI changed their
recommendations in 2009, AORN also amended their Recommended Practice for a Safe
Environment of Care (2010) to be consistent.
ECRI and AORN recommend that the fluid warmer temperature and the length of time that
fluids should remain in the warming cabinet should be requested from the manufacturer of
each fluid or solution, since the requirements may be different for each. As general guidance,
the AORN Recommendation for the Practice Environment of Care, Recommendation VIII
states that fluids and solutions should be labeled with a date that indicates when the fluids
should be removed or when they were placed in the warmer. They also state that IV Fluids
should be warmed using technology designed for this purpose, that solutions should be
rotated on a first in-first out basis and that IV bags and solution bottles should not be used as
patient warming devices.
AORN also recommends that warming cabinet temperatures should be checked at regular
intervals per the organization’s policy and documented on a temperature log or record,

Blanket Warmer Operating Manual
15
Blanket Recommendations
Many hospitals and surgery centers have been switching to low cost “ether blankets”made
outside the USA.
We Do Not Recommend Woven Ether Blankets
1. These low-cost “ether blankets”are constructed of poorly processed materials that are not
tightly woven.
2. They shrink and deteriorate very quickly via necessarily harsh hospital launderings.
3. Because of their poor insulating quality they do not provide a sustained “patient warmth
factor”and therefore nurses use more than one blanket or increase the blanket warmer
temperature higher than recommended by safety experts. According to clinicians in the
hospital workplace this increase in temperatures above 110F creates a potentially unsafe and
dangerous environment for some patients.
We Do Recommend Knitted Warming Blankets
1. Knitted blankets made of a cotton / polyester blend.
2. They do not shrink or deteriorate as rapidly. (Usually last 5 to 6 times longer than cheap
woven imports)
3. They are thermal and have a far superior insulating capability and will sustain a “patient
warmth factor”much longer.
4. Eliminates the utilization of two cheaper blankets or having the nurse to go back to the
warmer for another blanket.
Placement of Blankets in Cabinet
1. For best results, there should be at least 1”of space between the blanket and the sides,
top and back of the blanket warming compartment. The blankets should be loosely rolled or
stacked as well. This will allow for maximum air circulation and more rapid heating of the
blankets to the set point temperature.

Blanket Warmer Operating Manual
16
PARTS LIST FOR BLANKET WARMERS
Technical Service Call 800-860-4716
PART # DESCRIPTION
3MW1-030004 STAINLESS STEEL WARMING CABINET SHELF CLIP
3MW1-030491 DIGITAL LED CONTROLLER PROGRAMMER (GRAY)
(CUSTOM XR01CX CONTROLLER)
3MW1-060008 CORD, FAN 60" AXIAL
3MW1-060188 FAN, 115V (4.5”), HITEMP
3MW1-070779 MAGNETIC GASKET FOR FULL SIZE, SINGLE
COMPARTMENT BLANKET WARMER DOOR: NON-LATEX,
DARK CHARCOAL GRAY
(FITS GLASS OR SOLID DOOR)
3MW1-070805 MAGNETIC GASKET FOR TOP DOOR OF DOUBLE DOOR
WARMING CABINET: NON-LATEX, DARK CHARCOAL GRAY.
ALSO FITS UNDER-COUNTER (HALF SIZE) CABINETS
3MW1-070818 MAGNETIC GASKET FOR LOWER DOOR OF DOUBLE DOOR
WARMING CABINET: NON-LATEX, DARK CHARCOAL GRAY
3MW1-080163-CHR HEATER BAR, 120 VOLT, 250 WATT
3MW1-190174 ILLUMINATED ON / OFF ROCKER SWITCH
3MW1-190805 SWITCH, LIMIT CONTROL, 120 VOLT
3MW1-190818 SENSOR PROBE FOR WARMING CABINET, 5’CABLE
3MW1-610009 OVERHEAT THERMOSTAT, 40F TO 150F DEGREES

Blanket Warmer Operating Manual
17
LIMITED WARRANTY
The Manufacturer warrants to the original purchaser its new Blanket Warmer (except for components
not warranted under “Exclusions”) to be free from defects in material and workmanship for a period of
5 years under normal use and service. The Manufacturer’s obligation under this warranty is limited to
the repair or replacement, at the Manufacturer’s option, of the parts or the product defects of which
are reported to the Manufacturer within the applicable warranty period and which, upon examination
by the Manufacturer prove to be defective. The Manufacturer reserves the right to require the Buyer to
return the Blanket Warmer for work covered under this warranty at the Buyer’s expense.
The applicable warranty period, measured from the date of delivery to the original user, shall be 5
years. After the first year, the Manufacturer’s obligation shall be further limited to cover only the cost
of replacement parts and shall exclude labor costs.
Exclusions:
This warranty does not cover and the manufacturer shall not be liable for the following:
vRepairs and replacements because of misuse, abuse, negligence, alteration, accident, freight
damage or tampering
vProducts considered to be of a consumable nature
vAccessories or parts not manufactured by the Manufacturer
vCharges by anyone for adjustments, repairs, replacement parts, installation, or other work
performed upon or in connection with such products which is not expressly authorized in writing in
advance by the Manufacturer
UNLESS EXPRESSLY SET FORTH IN THIS WARRANTY THERE ARE NO OTHER WARRANTIES
WHETHER EXPRESS OR IMPLIED, OF FITNESS AND/OR MERCHANTABILITY OR ANY OTHER
WARRANTY IMPLIED BY CUSTOM, USAGE OR COURSE OF DEALING.
The Manufacturer’s only obligation under this warranty is the repair or replacement of defective parts.
The Manufacturer shall not be liable for any direct, special, indirect, incidental, exemplary, or
consequential damages or delay, including, but not limited to, damages for loss of profits or loss of
use. No representative has any authority to change the above warranty or the Manufacturer’s liability.
This document supersedes all other previous warranty provisions. No other warranty is applicable to
this product.
This warranty is only in effect in the United States and Canada.
