Datecs BlueLite v2 User manual

1 DATECS
BlueLite v2
User Manual

1 DATECS BLUELITE V2 USER MANUAL
2
THE INFORMATION IN THIS DOCUMENT CANNOT BE REPRODUCED IN ANY MECHANICAL, ELECTRICAL
OR ELECTRONIC WAY AND UNDER ANY CIRCUMSTANCES WITHOUT THE WRITTEN CONSENT FROM DATECS LTD.
Address: 4 Datecs Street, Sofia 1592, Bulgaria
Phone: [phone]
Fax: [phone]
E-mail: [email protected]

1 DATECS BLUELITE V2 USER MANUAL
3
REVISION HISTORY
Version
Data
Change description
1.0.0
05.01.2018
First Release
1.1.0
22.01.2019
Updated specification and added section “Scan to Pairing”
1.2.0
13.11.2019
Added section “REGULATORY”

1 DATECS BLUELITE V2 USER MANUAL
4
REGULATORY
FCC ID: YRW-BLUELITEV2
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications to this device not explicitly approved by manufacturer could
void your authority to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
RF Exposure Information
The device has been evaluated to meet general RF exposure requirement. The device can be used in
portable exposure condition without restriction.

1 DATECS BLUELITE V2 USER MANUAL
5
CONTENTS
TECHNICAL SPECIFICATIONS ................................................................................................................................................... 6
GENERAL VIEW........................................................................................................................................................................ 7
GETTING STARTED................................................................................................................................................................... 9
PERIODIC INSPECTION AND MAINTENANCE ........................................................................................................................ 10
OPERATION MODES .............................................................................................................................................................. 11
APPLICATION DOWNLOAD MODE,SYSTEM MODE AND CLEARING BLUETOOTH PARING INFO.................................................................. 11
STATUS LEDS........................................................................................................................................................................ 11
BLUETOOTH PAIRING.............................................................................................................................................................. 13
BLUETOOTH PAIRING TO APPLE DEVICE (IOS) WITH BLE (SCAN TO PAIRING)..................................................................................... 14
MAGNETIC CARDS READING ..................................................................................................................................................... 15
CONTACTLESS CARDS READING.................................................................................................................................................. 16
SMART CARDS READING........................................................................................................................................................... 17
CARE, MAINTENANCE AND WARRANTY............................................................................................................................... 18
SERVICE AND SUPPORT......................................................................................................................................................... 18

1 DATECS BLUELITE V2 USER MANUAL
6
TECHNICAL SPECIFICATIONS
Processor
ARM Cortex® M3 Security Microcontroller
Memory
64KB Internal ROM
256KB Internal RAM
1MB Internal Flash
Application Memory
4MB Serial Flash
Keypad
•ON / OFF key
•Bluetooth pairing button
Magnetic Card Reader
• 3-track bi-directional reading
• ISO 7810, 7811 and 7813
Smart Card Reader
ISO7816, EMV L1 certified
Contactless Card Reader
for payment applications
(option)
• AMEX ExpressPay
• Discover D-PAS
• MasterCard Contactless
• VISA PayWave
Contactless Card Reader
(option)
ISO/IEC 14443 Type-A/MIFARE:
- MIFARE MINI
- MIFARE CLASSIC-1K, MIFARE CLASSIC-4K
- MIFARE ULTRALIGHT, ULTRALIGHT-C
- MIFARE PLUS 2K/4K
- MIFARE DESFire
- and others
ISO/IEC 14443 Type-B
- supports most of the cards
ISO/IEC 15693
- supports most of the cards
JIS X 6319-4
- compatible with FeliCa
Battery
Rechargeable lithium-Polymer battery 3.7V, 500 mAh
Connectivity
• USB
- Device
• Bluetooth Low Energy 4.2
Audio indication
Electro-Magnetic Buzzer
OS compatibility
iOS, Android, Windows
Reliability
•500 000 chip card cycles
• 1 000 000 magnetic card swipes
Certifications*
PCI 5.x, EMV Level 1, CE
Dimensions (W x D x H), mm
69 x 74.9 x 14
Weight, g
75
Environmental
Operating: -10oC to +40oC / 5 to 90% RH
Storage: -15oC to +50oC / 5 to 90% RH
Drop Test
Power Supply
DC 5 V, 1 A through micro USB connector
* Specification can be change without any notice.
* For actual certifications please contact to your local distributor.
Use only original equipped DATECS cable USB-A to USB-B micro
Use only UL approved USB adapters. The minimum requirements of USB
adapter is 5V/1A.
Waste Electrical & Electronic Equipment
The symbol means that according to local laws and regulations your product
shall be disposed of separately from household waste at the end of its working
life. To prevent possible harm to the environment or human health from
uncontrolled waste disposal, please separate this from other types of wastes
and recycle it responsibly to promote the sustainable reuse of material
resources.

1 DATECS BLUELITE V2 USER MANUAL
7

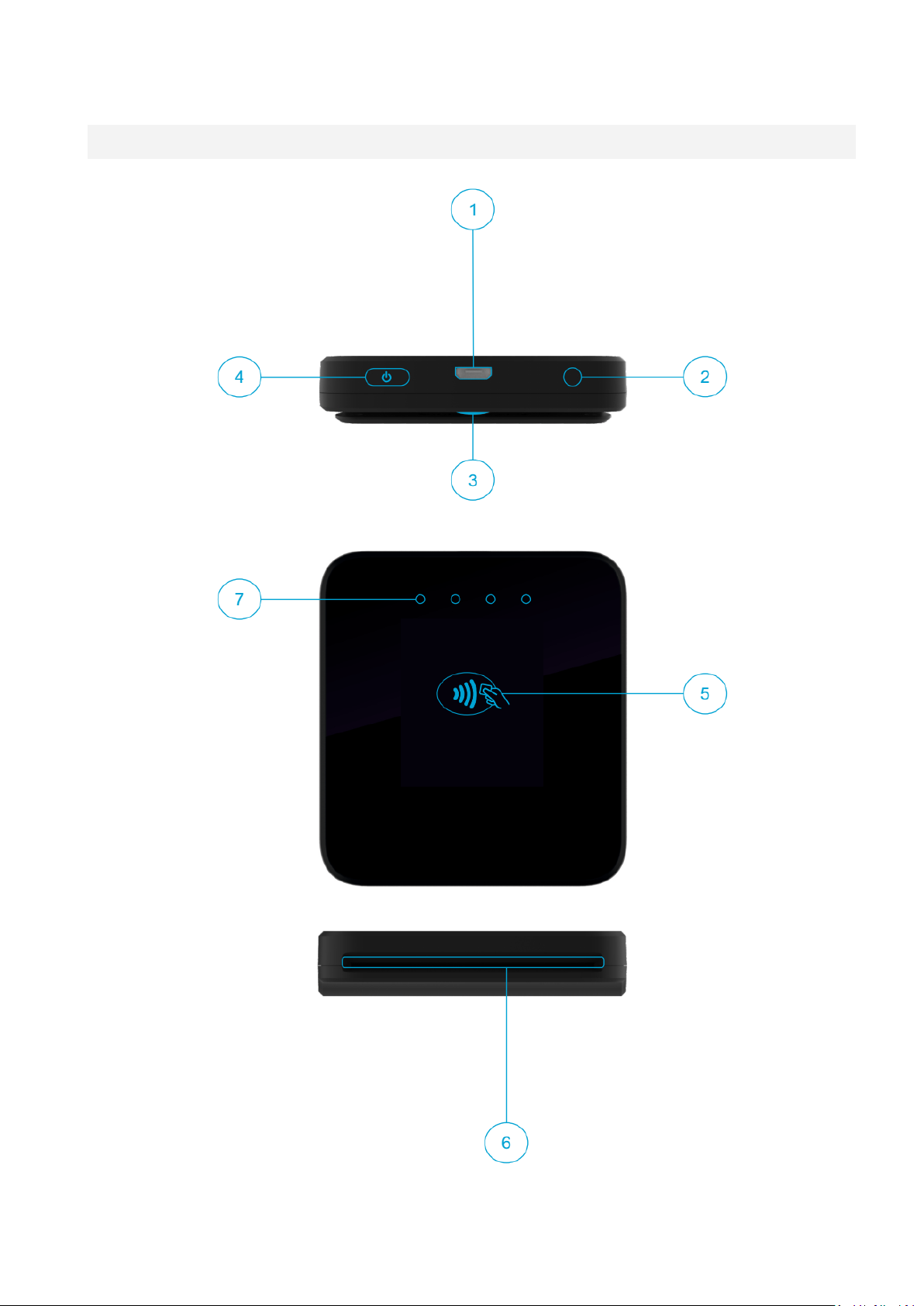

GENERAL VIEW
Figure 1

1 DATECS BLUELITE V2 USER MANUAL
8
1. Micro USB port
2. Button for Bluetooth pairing
3. Magnetic Card Reader
4. On/Off Button
5. Contactless reader
6. Opening for inserting smart card
7. LEDs indication for Contactless transaction / LEDs indication for device status

1 DATECS BLUELITE V2 USER MANUAL
9
GETTING STARTED
BlueLite v2 has rechargeable Li-Po battery. Can be charge from micro USB port.
Before first use, battery must be fully charged.
If the device is fully discharged, charging time to fully charged would be approx.
1 hour and 30min.
Charging form USB adapter:
Figure 2
Main battery replacement:
To replace the main battery of BlueLite v2 please contact with your local Datecs
representative or service provider.

1 DATECS BLUELITE V2 USER MANUAL
10
PERIODIC INSPECTION AND MAINTENANCE
The following inspections must be performed on a regular basis after initial receipt and installation of
BlueLite v2:
• There are no visual indications for trying unauthorized opening of the device
• There are no unusual wires connected to the ICC acceptor or any of the ports on the terminal.
• There is no shim device in the ICC acceptor slot.
• The terminal serial number (on the label) corresponds to the one in the inventory paperwork.

1 DATECS BLUELITE V2 USER MANUAL
11
OPERATION MODES
For start operating with BlueLite v2 is need to be paired to another Bluetooth BLE device with installed
application. For downloading the latest SDKs for iOS, Android and Windows please contact with your
distributor.
Application download mode, System mode and Clearing Bluetooth paring info
Application download mode - to enter application download mode on the BlueLite v2, the power
button has to be maintained pressed. A characteristic sound is played and first white LED will start to
light. Power button must be hold until second white LED is light on, then is releasing the power button.
When device is in Boot Loader/Application download mode will be played characteristic sound.
System mode - to enter in “SYSTEM MODE” on the BlueLite v2, the power button has to be maintained
pressed. A characteristic sound is played and first white LED will start to light. Power button must be
hold until third white LED is light on, then is releasing the power button.
Clear Bluetooth paring information - to enter in “Clear Bluetooth Pairing Info” on the BlueLite v2, the
power button has to be maintained pressed. A characteristic sound is played and first white LED will
start to light. Power button must be hold until fourth white LED is light on, then is releasing the power
button. When paring info will be played characteristic sound.
Status LEDs
LED indication
White LED continuously light on and Red
LED flashing
Red LED flashing
Red LED continuously light on
White LED continuously light on
White LED flashing

1 DATECS BLUELITE V2 USER MANUAL
12
LED indication
Description
Device operating
No indication
Device is turned off
First red LED is flashing
Device is turned on
Second red LED is
continuously light on
Device battery is charging
Operating modes when is press power button
First white LED is
continuously light on
Device will go to normal operating mode
Second white LED is
continuously light on
Device will enter in Boot loader
Third white LED is
continuously light on
Device will enter in System mode
Fourth white LED is
continuously light on
Device will clear Bluetooth pairing info
Bluetooth status
All four white LEDs are
flashing one after
another
Waiting for confirm Bluetooth pairing.
Fourth red LED is
flashing
Bluetooth is connected
System errors
First and second red
LEDs flashing
continuously
Device is TAMPERED
All four red LEDs is
continuously light on
Device error (General Exception)

1 DATECS BLUELITE V2 USER MANUAL
13
Bluetooth Pairing
Turn on BlueLite v2, connect it to PC via USB cable. When device is connected to PC, will create virtual
COM port. Check on device manager on which port is connected. After that run the special application
for PC (Fig. 3). Press “Search” button on the app, and in right side will be show all available COM ports.
Select on which is connected device, then press “Connect to device”. From Bluetooth management on
mobile device (equipped with BLE 4.2) select connect to BlueLite v2, then on mobile device screen will
be show PASSKEY (Fig. 6). White LEDs will start to light one by one continually, on special app will be
show Passkey (Fig. 4), if they are same press “Paring button” on BlueLite v2 to confirm (Fig. 5), then
special app return message “THE DEVICES ARE CONNECTED” (Fig.7 when on both device is confirming
pairing). If Passkey is being different press “On/Off” button on BlueLite v2 to cancel pairing.
Figure 7
Figure 3
Figure 4
Figure 5
Figure 6

1 DATECS BLUELITE V2 USER MANUAL
14

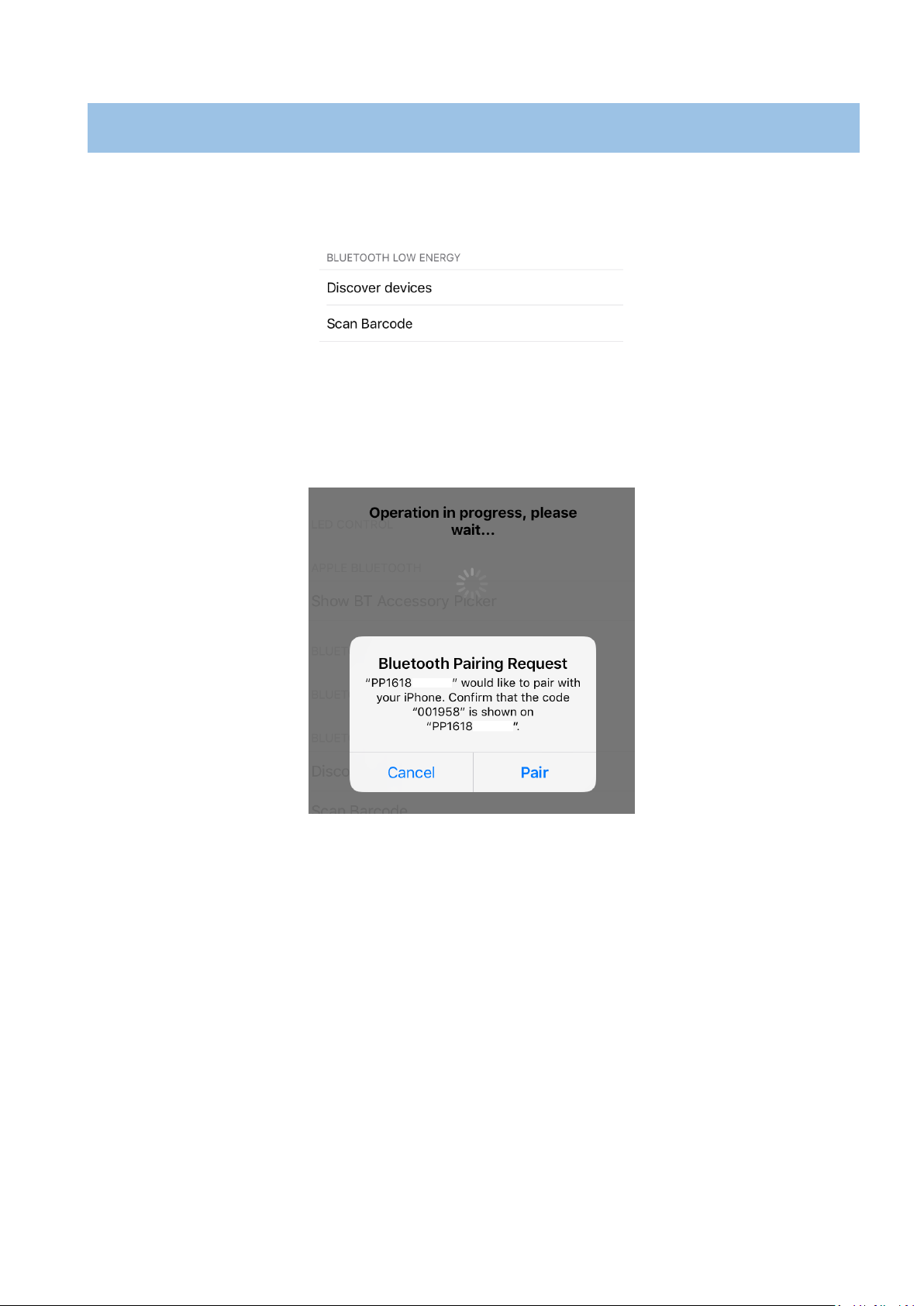

Bluetooth Pairing to Apple device (iOS) with BLE (Scan to Pairing)
1. Turn on BlueLite v2 (hold On/Off button, around ~2sec).
2. Run the iOS application, go to the settings “Scan barcode”:
Figure 8
Then the camera of the phone will be activate
3. Scan the serial number on the label of BlueLite v2 with back camera.
4. Then of the screens on both devices will be showed the “Pairing Request”.
Figure 9
5. Please confirm if the passkey is same on both devices
* This function is depends of the BlueLite v2 Application.

1 DATECS BLUELITE V2 USER MANUAL
15
Magnetic cards reading
The BlueLite v2 has a built-in magnetic card reader. The card reader incorporates a (3) track magnetic
read head, requiring a single swipe to read field data from all three tracks.
The magnetic reading head faces down, towards the top of the bottom cover of the cradle. When
swiping the card into the reader, the magnetic stripe must be facing as shown in the figure below.
Keep the edge of the card flat on the inner base of the reader to ensure that the magnetic stripe passes
over the reading head evenly.
Figure 10

1 DATECS BLUELITE V2 USER MANUAL
16
Contactless cards reading
The contactless card transaction procedure can vary depending on the application loaded on the
BlueLite v2. Verify the proper procedure with your application provider before performing a
contactless card transaction.
In order to use the Contactless card reading function, special software must be used. Please contact
your distributor in order to get the latest demo application and SDK.
To Conduct a Contactless Credit/Debit Card Transaction
1. Place a contactless card to shown on the BlueLite v2 contactless logo.
2. Remove the card when the display indicates the transaction is completed.
Figure 11

1 DATECS BLUELITE V2 USER MANUAL
17

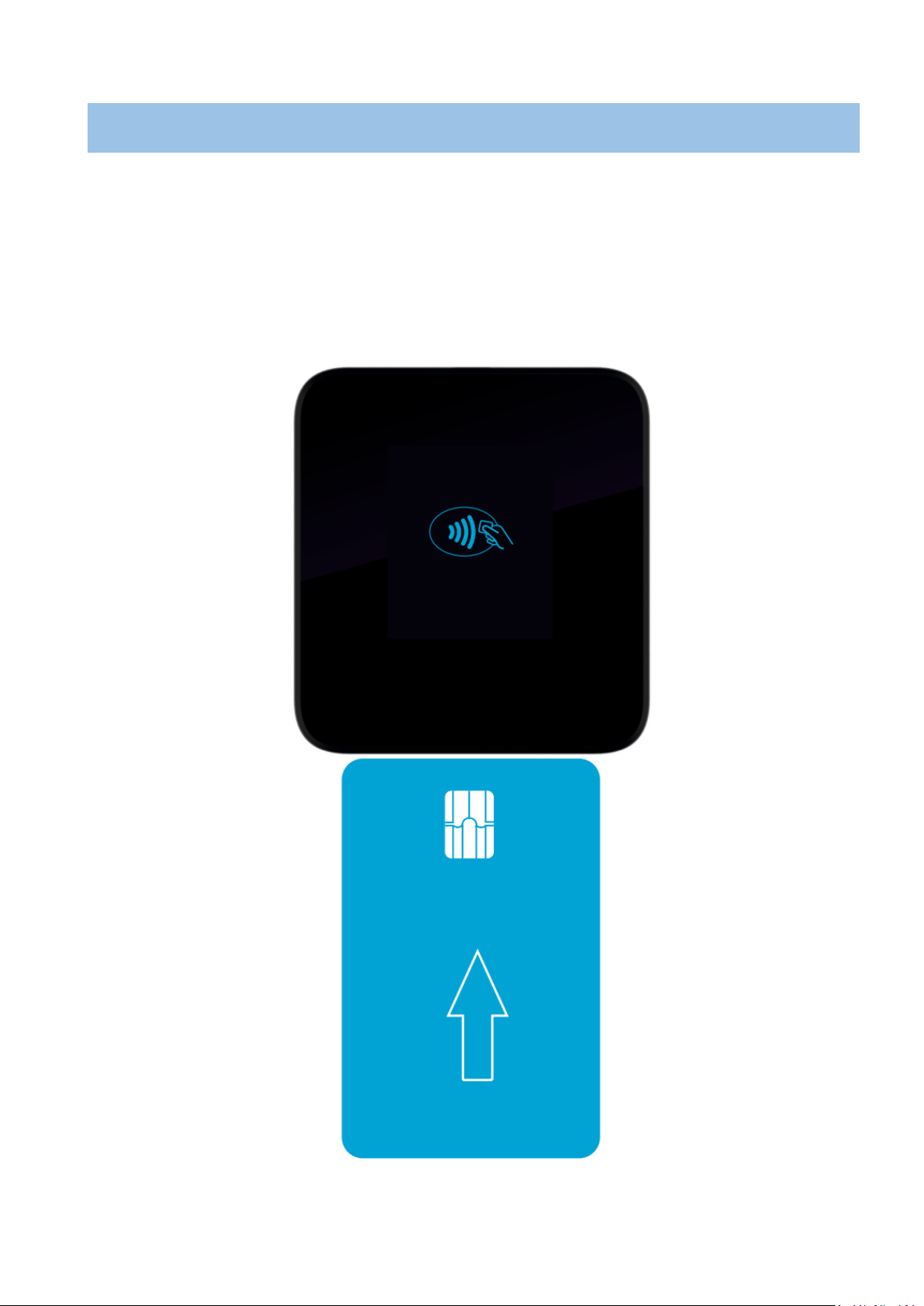

Smart cards reading
The smart card transaction procedure can vary depending on the application loaded on the BlueLite
v2. Verify the proper procedure with your application provider before performing a smart card
transaction.
To Conduct a Smart Card Transaction
1 Position a smart card with the gold contacts facing upward.
2 Insert it into the ICC card reader slot in a smooth, continuous motion until it seats firmly.
3 Remove the card when indicates the transaction is completed.
Figure 12

1 DATECS BLUELITE V2 USER MANUAL
18
CARE, MAINTENANCE AND WARRANTY
•Keep the BlueLite v2 side of the reach of small children.
•Keep the BlueLite v2 dry. Precipitation, humidity and liquid contain
minerals that will corrode electronic circuits.
•Do not use or store in dusty or dirty areas.
•Do not drop or knock BlueLite v2
•Do not open the BlueLite v2. Only qualified personnel can open the
device and make repair. If the BlueLite v2 is not working, please contact
with your dealer.
•Forbidden is allowing unqualified personnel to service your BlueLite v2!
SERVICE AND SUPPORT
Service and Support:
For BlueLite v2 problems, product service, and repair information, contact your local Datecs
representative or service provider.
• International – Contact your local Datecs distributor
Service Returns:
All customers, please contact your local Datecs Ltd representative or distributor for
assistance with your service, return, or replacement.
