Datexx EXACTIME DRC-608 User manual

(DRC-608)
USER MANUAL
Radio Controlled
Digital Projection Clock
with Thermometer
FEATURES
* Current time image is projected onto the wall or ceiling in
 bright red digits.
* Precise time and date are set via RF signal from the US
 Atomic Clock in Colorado.
* US map with designated Time Zones
* Calendar displays date with month
* Weekday in English, Spanish and French
* Indoor temperature
* Moon phase display
* Dual crescendo alarm with snooze
* LED backlight
INTRODUCTION
Thank you for selecting the Datexx EXACTIME Projection
Clock with Temperature. This device includes precise time
keeping, alarm, moonphase, temperature monitoring and
projection features that you can use from the comfort of your
home. In this package you will find:
• Atomic Projection Clock with Temperature
• AC/DC adaptor
Please keep this manual handy as you use your new item. It
contains practical step-by-step instructions, as well as technical
specifications and precautions you should know.
1 2
2 3
DATEXX PCR181W MANUAL (English)
SIZE: W75 X H80 (mm)
BY EMILY TSOI 03/01/06

1
DISPLAYING PROJECTED INFORMATION CONTINUOUSLY
Connect AC/DC adapter as shown below.
RADIO CONTROLLED TIME AND WWVB SIGNAL
The NIST (National Institute of Standards and Technology) radio
station is located in Ft. Collins Colorado. It transmits an exact time
signal continuously throughout the continental United States at
60 KHz frequency. The Radio Projection Clock with Temperature
can receive this WWVB signal through its internal antenna from up
to 2,000 miles away. Due to the nature of the Earth’s ionosphere,
reception can be limited during the daylight hours. The radio
controlled clock will search for an alternate station that derives its
signal from the NIST Atomic clock in Boulder, Colorado.
The WWVB tower icon on the main unit’s display will flash
indicating radio signal reception from the WWVB station. If the
tower icon is not fully lit, or if the time is not set automatically,
please consider the following:
* During night-time hours, atmospheric disturbances are typically less
 severe and reception may be improved. A single daily reception is
sufficient enough to keep the clock accuracy reading within 1 second.
* Make sure the main unit is positioned at 8 feet minimum distance
 from any interference source such as a TV, computer monitor,
 microwave, etc.
* The successful reception of the atomic time signal depends on the
 positioning and location of the clock. Always place the main unit
 by the window for better reception.
* Within concrete wall rooms such as basements or office buildings,
 the received signal may be weakened.
Always place the unit near the window for better reception.
AUTO SET PROJECTOR CLOCK
MODE
1
SET
2
SET
DRC-608
PM
DATE
MONTH
MODE
1
SET
2
SET
DRC-608
PM
DATE
MONTH

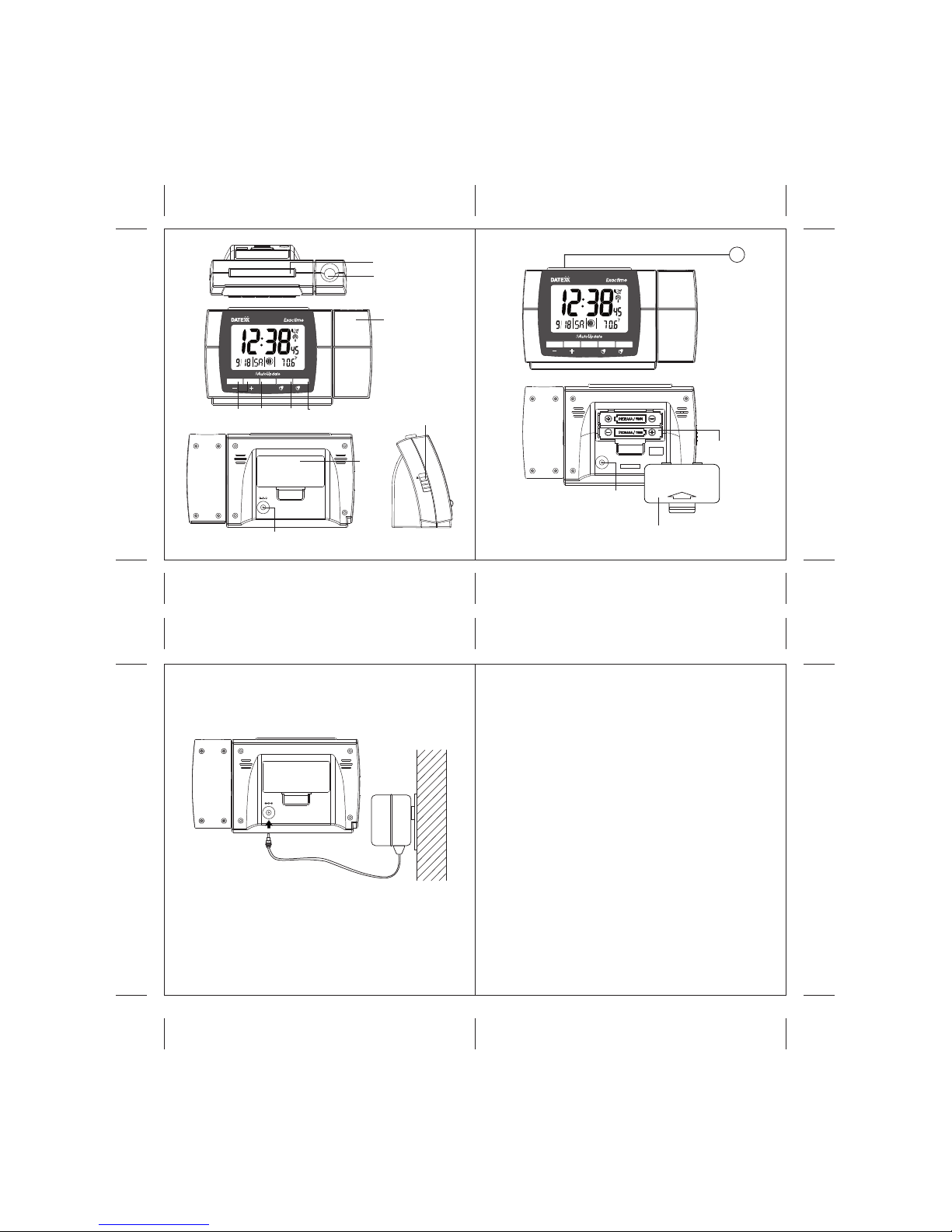

Battery
compartment
Adapter
socket
Battery cover
SNOOZE/ Backlight/
Projection Light key
Projector Lens
Adjustable
projector
Adapter
socket
Continue
Projection
key
LIGHT •SNOOZE
DC 3V
CONTINUE
PROJECTION
Battery
cover
Up / Down
key MODE key SET 2 key SET 1 key
Use 2 X AA, 1.5V batteries and AC-DC adapter
(AC120V, 60Hz-DC3V, 100mA) included
Important:
Please make sure your household voltage matches the voltage
supported by the adapter, or it will damage your clock and adapter.
DC 3V
4 5
6 7

SETTING 12 OR 24 HOUR TIME FORMAT
*Pressing [ ] will display time in 12 or 24 hour format.
N.B.:1. If no key pressed within 30 seconds, the clock returns to the
 Time / Temperature Display setting.
2. During any programming press and hold UP [+] or DOWN [–]
 key for 2 seconds for faster scrolling through the digits.
Calendar
To change the weekday display from one language to another, press
and hold DOWN [–] key for 3 seconds - the display will show the
current language
Continue holding DOWN [ ] button until the desired day of the week
language abbreviation is selected. Release the DOWN [ ] button to
confirm the setting.
DATE
MONTH
DATE
MONTH
DATE
MONTH YEAR
DATE
MONTH YEAR
DATE
MONTH YEAR
DATE
MONTH YEAR
*Press MODE again:the month digits will flash and
   month can be set by pressing
   UP [ ] or DOWN [ ] key.
*Press MODE again:the date digits will flash and
   date can be set by pressing
   UP [ ] or DOWN [ ] key.
*Press MODE again:the hour digits will flash and
   hour can be set by pressing
   UP [ ] or DOWN [ ] key.
*Press MODE again:the minute digits will flash and
   minute can be set by pressing
   UP [ ] or DOWN [ ] key.
*Press MODE again:the temperature display between
   Celsius or Fahrenheit will flash
   and measurement unit can be set
   by pressing UP [ ] or DOWN
   [ ] key.
*Press MODE one last time : the normal time
    display appears.
10 11

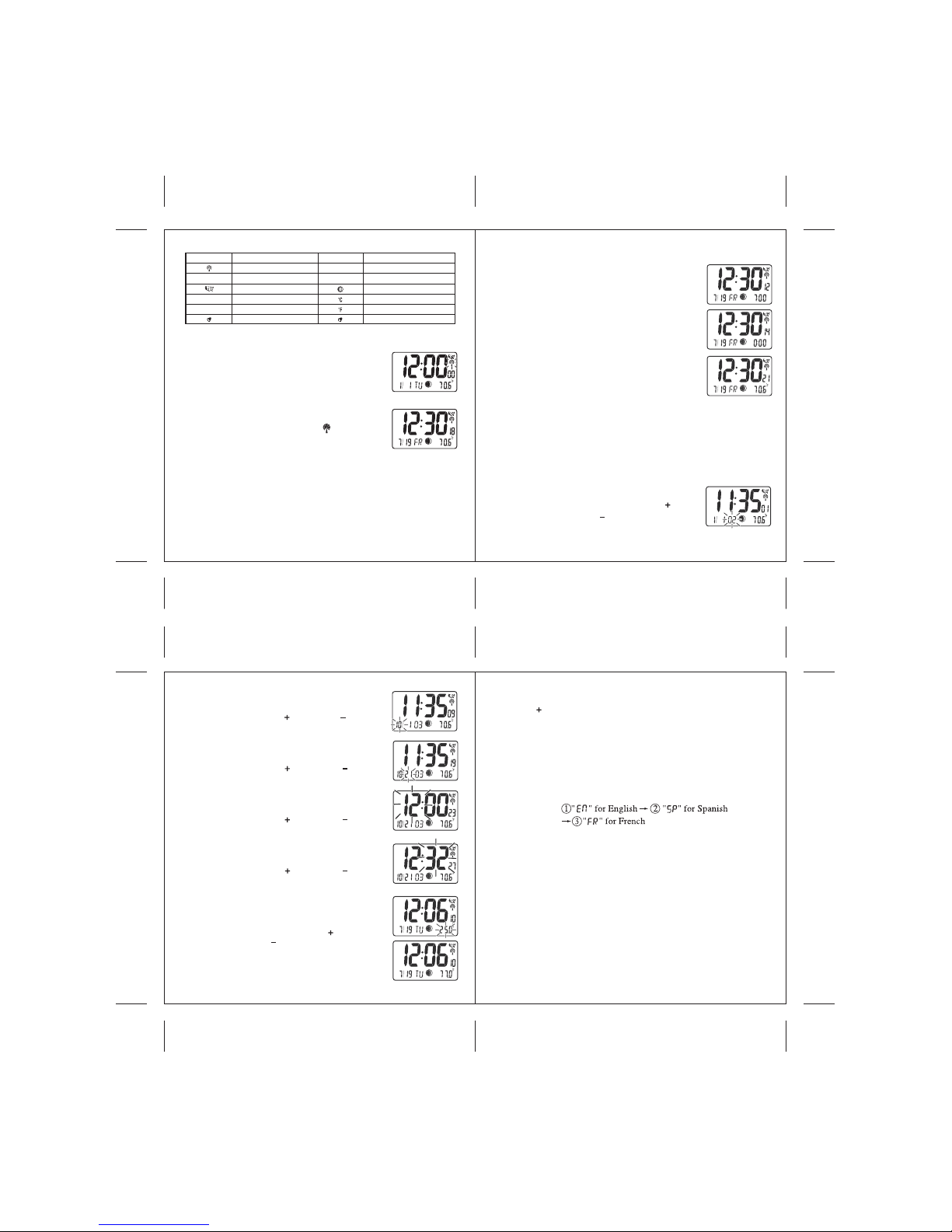

Setting the Time
* Press MODE :the year digits will flash and year
   can be set by pressing UP [ ] or
   DOWN [ ] key.
PM
DATE MONTH
ZZ
INDICATOR STANDING FOR STANDING FOR
INDICATOR
RADIO SIGNAL
DATE
ALARM 1 ALARM 2
TIME ZONES
PM (12 HR DISPLAY ONLY)
AM
AM (12 HR DISPLAY ONLY)
MONTH
MOONPHASE
DEGREE CELSIUS
DEGREE FAHRENHEIT
REPEAT ALARM INDICATION
1
2
PM
ALARM 1
PM
ALARM 2
PM
DATE
MONTH YEAR
DATE
MONTH
DATE
MONTH
DATE
MONTH
DISPLAYING TEMPERATURE AND ALARMS
*Press MODE to display the ALARM 1 time:
*Press MODE again to display the Alarm 2 time:
*Press MODE the third time to display the
 Temperature:
SETTING TIME AND DATE MANUALLY
The time piece date and time can be set by pressing and holding the
MODE buttons for 3 seconds in Time/Temperature display with the
atomic time receiver disabled. To disable atomic time receiver, press and
hold MODE key until the atomic reception icon will appear from the display.
GETTING STARTED
*After installing batteries, set the time manually.
ONE TIME SET is needed ONLY when first
used. The clock will update the time automatically
afterwards. Always place clock by the window for
better reception.
*If the radio signal is received, the date and time will
 be set automatically and the icon [ ] will appear.
* The atomic clock receiver is programmed that it will continue to
 search for the atomic time signal daily for every hour between
 1:00 am and 4:30 am. Once the time signal has been successfully
 received, the time and date will be updated automatically.
PM
PM
AM
AM
Z
Z
DATE
MONTH YEAR
1
2
ALARM 2
ALARM 1
PM
PM
AM
AM
Z
Z
DATE
MONTH YEAR
1
2
ALARM 2
ALARM 1
8 9

SETTING ALARMS
ALARM 1 setting
-In the ALARM 1 Display:
*Press and hold SET 1 for about 3 seconds: the alarm hour digits will
 flash and then hour can be set by pressing UP [ ] or DOWN [ ] key.
*Press SET 1 again: the alarm minute digits will flash and then minute
 can be set by pressing UP [ ] or DOWN [ ] key.
*Press SET 1 the third time, and the alarm minute digits “04” will flash
 to set snooze time interval. Press UP [ ] or DOWN [ ] key. key to
 set the required time period.
*Press SET 1 again, the Alarm1 time is set and [ ] icon will be displayed.
*Repeat the same procedure to set an Alarm 2, using SET 2 button.
DISABLING ALARM
Press SET 1 or SET 2 buttons on the unit to disable any of the alarms.
When Alarm 1 and Alarm 2 are disabled, an applicable icon [ ] or
[ ] will disappear from the unit’s display.
1
2
1
Time Zone setting
*Press and hold UP [ ] key for 3 seconds, to select the
 corresponding time zone.
*Keep holding the UP [ ] button to switch to the time zone in
 the following sequence:
 Pacific time Mountain time Central time Eastern time.
 Release the UP [ ] button to confirm the selected Time Zone
EL Backlight ON / OFF (PCR11ELW)
*Press top button 1 [LIGHT / SNOOZE] key-light and EL
 backlight will come on and turns off after 5 seconds.
Projection Light and Adjustment
*Press button 1 [LIGHT / SNOOZE]- projection light will come
 on and turn off after 5 seconds.
*After adapter is connected and "CONTINUE - PROJECTION"
 switch is slid, the projection light will be enabled for continuous
 projection.
Activating the Alarm
When the ALARM 1 or ALARM 2 is ringing, the relative alarm icon
[ ] or [ ] will be flashing.
* Press SET1 / SET2 key to turn the alarm off.
* Press top button 1 [LIGHT / SNOOZE] - alarm stops and the
 backlight will turn on for 5 seconds with the repeat alarm indicator
 ( ) flashing.
* If the alarm is not turned off, it will stop in 4 minutes.
1
2
Z
Z
CARE OF YOUR ATOMIC PROJECTION CLOCK
WITH TEMPERATURE
This product is engineered to give you years of satisfactory service
if you handle it carefully. Here are a few precautions:
1. Do not immerse the unit in water.
2. Do not use any corrosive cleanser or chemical solution on the unit.
 They may scratch the plastic parts and corrode the electronic circuit.
3. Do not subject the unit to excessive force, shock, dust,
 temperature or humidity, which may result in malfunction,
 shorter electronic life span, damaged batteries and distorted parts.
4. Do not tamper with the unit’s internal components. Doing
 so will invalidate the warranty on the unit and may cause
 unnecessary damage. The unit contains no user-serviceable parts.
MOON PHASE INDICATOR
Displayed in accordance with the calendar
New
Moon
Waning
Crescent
Waning
Crescent
First
Quarter
Waxing
Gibbous
Full
Moon
Waning
Gibbous
Last
Quarter
5. Only use fresh batteries as specified in the user’s manual.
 Do not mix new and old batteries as the old ones may leak.
 Always replace both batteries at the same time.
6. Always read the user’s manual thoroughly before operating the unit.
7. Replace the batteries promptly when necessary (display becomes
 dim) or store the batteries when not in use.
8. A soft cloth or paper towel may be used to clean your unit.
9. Keep the unit clean and dry to avoid any problems.
SPECIFICATIONS
Temperature Measurement
Indoor Temperature  :+23˚F to +122˚F with
operating range  0.2˚F resolution
  -5˚C to 50˚C with
  0.1˚C resolution
Temperature display unit :˚C or ˚F
Temperature update interval
Indoor Temperature  : every 15 seconds
Calendar and Clock
12/24 hour display in hh : mm format
Date Format: Month – Day format
Day of week: User- selectable in 3 languages
(English, French, Spanish)
Dual 4-minute crescendo alarm with snooze
12 13
14 15

www.datexx.com
Moon Phase Indicator
Moon Phase in 8 graphic icons
Moon Phase scanner from 200 to 2099
Moon Phase history for the last 39 days
Power source
(Alkaline batteries recommended)
Main unit :2 x UM-3 /AA (1.5V)
  batteries-alkaline alkaline
  (not included)
AC/DC Adapter :AC120V, 60Hz-DC3A, 100mA
Dimensions:  :5.31”(L) x 3.07”(H) x 1.97”(W)
DATEXX WARRANTY INFORMATION
TELEDEX Limited U.S.A. Warranty
TELEDEX INC. warrants these products to the original
purchaser to be free from defective material and
workmanship.
The product will be repaired or replaced at our option,
for up to one year when returned with proof of purchase to
the address below. Include a check or money order for
$5.00 to cover postage.
Warranty valid only in the U.S.A.
TELEDEX INC. 1 Atlas st. Kenilworth, NJ 07033
16 17
