Davey Lighting Spotlight DP0755 User manual

1. If you are in any doubt consult a qualified electrician as to the installation of the fitting. Install in accordance with current
IEE wiring regulations. It is recommended that this fitting is installed by a qualified electrician.
2. Ensure that the electrical supply is OFF. Disconnect the electrical supply at the fuse-board.
3. If removing an existing fitting first, note all wiring connections: record which of the house wires is connected to the live,
neutral and earth terminals.
4. Carefully identify where the supply cable is (and check there are no other cables in the area) to avoid damage to concealed
wiring during installation.
5. Position the light where desired ensuring that there is suitable support adjacent to where you will connect to the house
supply and mark position of fixing holes, before drilling appropriate holes as below.
6. a. Brick or masonry: Drill holes into which the wall plugs tightly fit, then insert wall plugs.
b. Wood: No hole necessary (unless small pilot hole required), screws can be screwed directly into the timber.
c. Plaster/Cavity: Special cavity wall fittings are required, rather than provided fixings. These are widely available from
good hardware or DIY store and should come with their own instructions that must be followed. It may be easier to
relocate the fitting so that you screw directly into a timber joist or beam.
7. Support the fitting so that no strain is applied to the wiring when making the electrical connections. If necessary get a
colleague to help.
8. Electrical connection: this light fitting must be earthed. Make connections following the diagram below, 0755 and 0761
MUST be connected to 12V transformer before installing fitting on a mains voltage circuit. A small flat-head screwdriver is
required.
9. Double check all the connections are secure and that no loose strands of wire are left out of the connector. Ensure the lid of
the connector supplied with the 0758/0762 is closed securely. No terminal block is supplied with 0755/0761; installation
MUST be performed by a suitably qualified person.
10. Check that no wires are trapped behind or within the fitting and complete the installation, referring to the Installation
diagram inside.
11. Fit the correct type and wattage of lamp (or less). Be careful not to overtighten the lamp.
12. Switch on at the fuse-board. Your light fitting is now ready for use.
Other Important Information
Switch off at mains before changing lamp(s). Never fit a lamp of greater wattage than recommended. Ensure children do not
play with the light fitting. Dispose of old lamps carefully. Never leave a fitting without a lamp in position (or someone can
accidently touch the contacts). Adjust fitting only when power to the fitting is off and has been left to cool. If the electrical flex
or electrical components become damaged at any point, power to the fitting should be disconnected immediately and not
operated until the damaged parts are fixed/replaced. For use in dry, indoor environment only. Ensure the fitting does not come
into contact with any liquids.
Spotlights
Instruction Manual
0755 / 0761 / 0758 / 0762
Safety & Installation Instructions
These instructions are provided for your safety in order to prevent the risk of Fire, Electric shock or Injury. It is vitally
important that they are read in their entirety before installing your fitting. Please retain for future reference.
MADE IN BRITAIN
ORIGINALBTC.COM
[phone]
UNIT 21 / 22 AVENUE ONE, STATION LANE, WITNEY, OX28 4XZ, ENGLAND
L
N
Live
KEY
Neutral
Earth
L =
N =
=
*Mains
Supply
Transformer
Light fitting
*After 2004, wiring installation colours
changed:
LIVE Brown replaces Red
EARTH Green/Yellow sleeving
NEUTRAL Blue replaces Black
BROWN
GRN/YEL
BLUE
BROWN
GRN/YEL
BLUE
Established in 1990, Original BTC manufactures relaxed, familiar lighting for traditional and contemporary homes.
All products are hand-assembled in Oxford from high quality components, produced in the UK.
Cleaning and Maintenance
Metal finishes should only be cleaned with a soft, dry cloth. Do not use polishes or abrasives. Switch off power to the fitting
before cleaning.
v1.3-06.19
Spotlight
DP0755
Spotlight
DP0761
Spotlight
DP0762
Spotlight
DP0758

Spotlights
PLEASE READ THE INSTRUCTIONS ON THE REVERSE BEFORE YOU BEGIN INSTALLING YOUR LIGHT

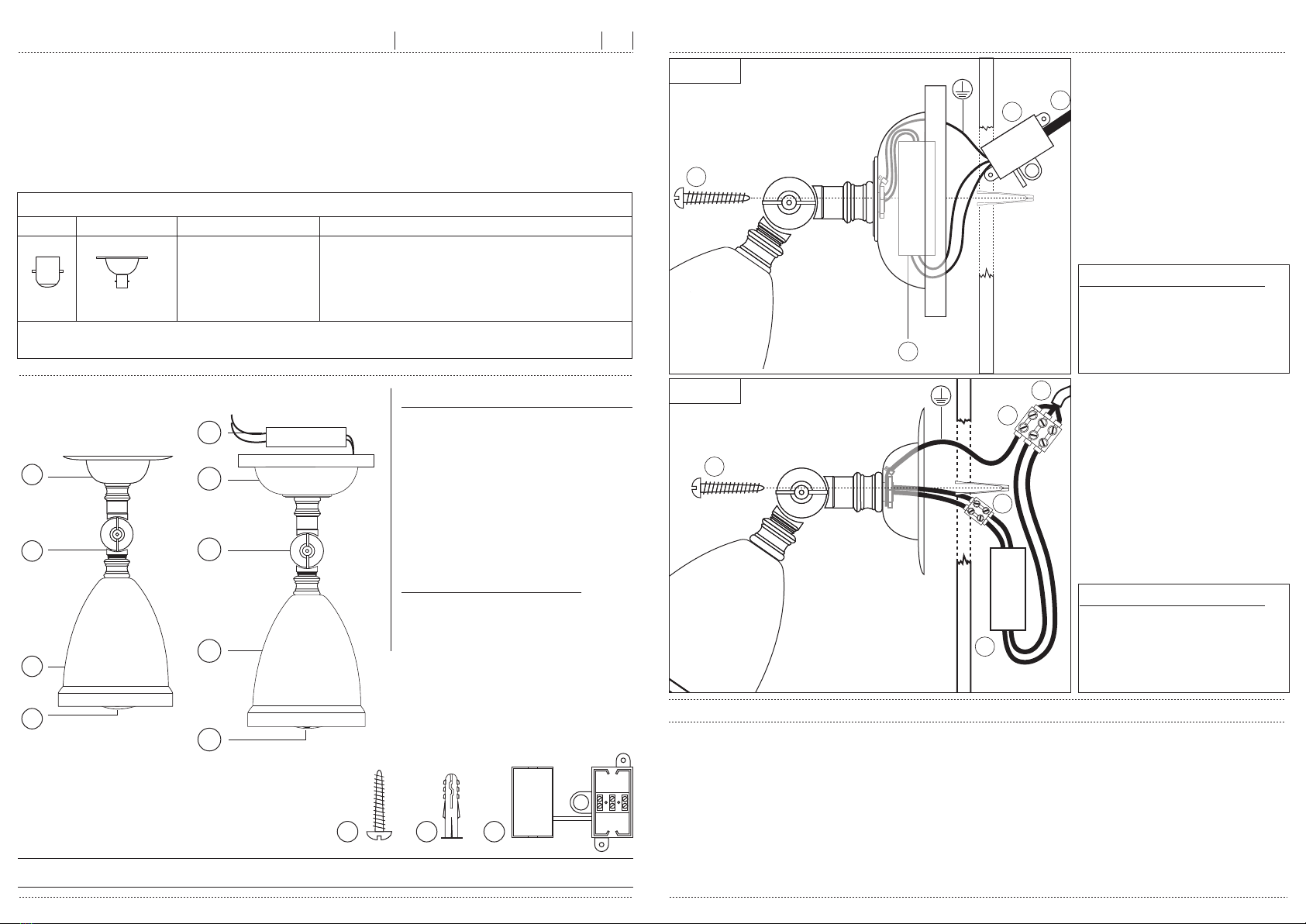

12V (0755/0761) or 230V (0758/0762) Installation DiagramIP20
A simple design, with a swivel base and adjustable knuckle joint. Available in nickel or weathered
brass. The anti glare bar over the lamp makes this a discreet source of spot lighting.
A remote transformer is required for 0755 and 0761 models.
DP0755 Spotlight
DP0761 Spotlight
Contents
1 - 12V Halogen Transformer (0758/0762 only)
2 - Backplate
3 - Knuckle Joint
4 - Shade (0761/0762 only)
5 - Bulb
6 - 2 x Fixing Screws
7 - 2 x Rawl Plugs
8 - Connector (0758/0762 only)
Required for Installation
-Screwdriver, flat-head
- Small screwdriver, flat-head
- Drill (if holes are required)
Refer to Instructions overleaf to install this fitting.
0758 and 0762 are 230V fittings, supplied with dimmable integral transformer. For best dimming performance, use Trailing Edge
dimming modules only. Make the connections inside a suitble enclosure.
0755 and 0761 are Low Voltage 12V fittings. They MUST be connected to a 12V AC low voltage halogen transformer, min 20va
if installing on a 230V circuit. DO NOT CONNECT DIRECTLY TO MAIN SUPPLY. Terminal block not supplied with 0755/0761;
installation must be performed by a suitably qualified person. Make the connections inside a suitable enclosure.
Installation and Assembly Instructions
DP0758 Spotlight
DP0762 Spotlight
A
B
C
D
Fixing Screws
Connector Block (Not Supplied)
Main Supply
12V Transformer (Not Supplied)
Key
C
B
A
D
0758 / 0762
0755 / 0761
A
B
C
D
Fixing Screws
Connector Block
Main Supply
12V Transformer (Intergrated)
Key
A
B
B
D
C
DP0755/DP0761 DP0758/DP0762
2
3
4
5
6 7 8
SBC AR70 HALOSPOT
LAMP GUIDANCE
TYPE WATTAGE* BASE SHAPE




INCANDESCENT
CFL
HALOGEN
LED
n/a
n/a
50W
n/a
* Wattage value provided as a guide to suitable lamps. Lower wattage than stated may be used.
1
3
4
5
2
