Davey ProMaster Premium VSD400 User manual

Premium VSD400
Installation and
Operating Instructions
Model: PM400PV
WARNING: Failure to follow these instructions and comply with all
applicable codes may cause serious bodily injury and/or property damage.
Please pass these instructions on to the operator of this equipment.
ProMaster
®
This pump requires professional expertise for installation and
maintenance. The installation of this product therefore should be carried
out by a person knowledgable in swimming pool plumbing requirements
and who follows the installation instructions provided in this manual.

2
Congratulations on the purchase of a quality product from the Davey Water
Products range of Pool and Spa Equipment. You are assured of many years
of reliable and super-efficient performance from your Davey ProMaster
VSD400 pump.
Read these instructions in their entirety before switching on this pump. If
you are uncertain as to any of these installation and operating instructions
please contact your Davey dealer or the appropriate Davey office as listed
on the back of this document.
The Davey ProMaster has been designed to circulate swimming pool and
spa water in conditions set out in the Australian Standard for swimming pool
water quality AS 3633 or equivalent. They should not be used for any other
purpose without first consulting your Davey Dealer or the Davey Customer
Service Centre.
Every Davey ProMaster is thoroughly water tested against a number of
flow, pressure, voltage, current and mechanical performance parameters.
Davey’s advanced pump manufacturing technology provides reliable and
efficient pumping performance that lasts and lasts.
Saving Energy with your Davey ProMaster VSD Pump:
The Davey ProMaster Pool & Spa pump is a super-efficient pump utilising
a very clever, state of the art infinitely variable AC motor that provides lower
levels of noise, lower operating costs and lower greenhouse emissions than
traditional pool pumps.
Due to its ability to run at lower speeds than conventional pumps, your
ProMaster pump will also experience less mechanical wear and tear due to
less stress on the internal mechanical components.
To achieve energy efficient pumping is easy. Simply run the filtration
pump at a lower speed, but run it for longer (see table on page 8) than
a conventional fixed speed pump to “turn over” your pool water for
adequate filtration and sanitisation. The result is lower energy use and
up to 70% lower operational costs.

3
The ProMaster Premium VSD400 has infinite speed settings from 1,050
to 3,100rpm, so you can circulate your pool or spa water at any speed in
between if required. Speeds can be adjusted to power a Suction pool
cleaner, In-Floor cleaning system & Pool Heaters. A Backwash setting on
the pump can be selected to backwash a media filter.
What to expect with VSD Eco speed pumping (energy efficient operation)
on your pool:
If your ProMaster pump is replacing a traditional AC motor pump, you will
need to run it longer than your old fixed speed pump. This is NORMAL and
you will save energy when using lower speed settings.
You may also notice that the pressure gauge on your filter is indicating
a much lower pressure than you are used to. This is also NORMAL. The
lower system pressure is simply a result of the lower speed and flow rate
produced by the pump.
While running at the lower speed settings you will also notice a significant
reduction in pump noise. This is a major benefit for you as it allows you to
run your pump during off peak electricity tariffs, which will also assist in the
reduction of your operating costs. Plus you will also have much happier
neighbours.
Important considerations when running the pump on Low Flow settings:
Many pool products rely on particular minimum flow rates for best operation
and/or efficiency. If you are using low flow settings on the ProMaster pump
(e.g. speed 1 to 4) Davey recommends that you check the compatibility of
the speed or minimum flow rate required to run specific pool equipment
such as:
•Suction pool cleaners
•Ozone generators
•Pool Heaters
•Solar Heating systems
•Salt Water Chlorinator cells
•In-floor pool cleaning systems

4
Technical Specifications:
Model PM400PV
Head (m) 26
RPM Speed 1 to 10 From – 1,050 to 3,100
Backwash Speed – Variable
Enclosure Class (IP) 45
Insulation Class F
Voltage (V) 220/240 AC
Supply Frequency (Hz) 50/60
Motor Input Power (W / hp)
Speed Setting 1 - 120W / 0.16 hp
Speed Setting 5 - 660W / 0.89 hp
Speed Setting 10 – 1630W / 2.2hp
Backwash Setting – Variable
Operating Limits:
Max Water temperature 40°C
Max Ambient temperature 50°C
Dimensions:
A
C
E
F
G
H
I
D
B
DIMENSIONS (mm)
Model A B C D E F G H I
Mounting
Holes
Diameter
Inlet/
Outlet
PVC
Net Weight
(kg)
PM400PV 305 670 320 350 65 230 380 200 250 10 40/50 14

5
Installation of the ProMaster Premium VSD400 Pump:
Location
The pump should be located as close to the water as practicable and mounted
on a firm base in a well drained position, high enough to prevent any flooding. It is
the installer’s/owner’s responsibility to locate the pump such that the nameplate
can be easily read and the pump can be readily accessed for service.
Weather Protection
It is recommended that the pump is protected from the weather. Enclosures
should be ventilated to prevent condensation build-up.
Power Connection
Davey ProMaster is suitable for connection to a nominal 240 volt 50Hz power
supply and is equipped with a flex and 3 pin plug. If a power outlet is not
available within 3 metres of the pump, a 3 pin power point in a safe, dry place
may need to be provided by an electrician. Extension cords are unsafe around
pools - and should be avoided. If the supply cord of this product is damaged it
must be replaced by the dealer or manufacturer, with genuine Davey spares.
This ProMaster pool pump incorporates motor overload detection designed to
protect the motor from overheating. If the motor gets too hot during operation,
its operating speed will reduce to bring it within a acceptable operating
temperature and then will speed up to the originally set speed.
To reset the motor, switch the power off for 30 seconds, and then return the
power from the mains switch.
'DYH\:DWHU3URGXFWVUHFRPPHQGVWKDWDOOLQVWDOODWLRQVDUH¿WWHG
with earth leakage or residual current protection devices.
CAUTION: In the interest of safety, we advise that all brands and
types of pool pumps must be installed in accordance with AS3000
wiring rules or equivalent.
,IWKHSXPSDQG¿OWHUDUHORFDWHGEHORZSRROZDWHUOHYHOLWLV
QHFHVVDU\WR¿WLVRODWLQJYDOYHVLQWKHSLSHEHWZHHQWKHSXPSDQG
VNLPPHUER[DQGLQUHWXUQSLSHIURPWKH¿OWHUWRWKHSRRO
7KH¿WWLQJVRQWKLVSURGXFWDUHFRQVWUXFWHGRI$%66RPH39&
MRLQWLQJFRPSRXQGVDUHLQFRPSDWLEOHZLWK$%6&KHFNFRPSRXQG
suitability before use.
WARNING! Ensure that an electrical isolation switch is located with
easy access so that the pump can be switched off in an emergency.

6
Pipe Connection
Barrel unions are provided for connecting to the piping from the pool.
The pumps are designed to accept 40mm/50mm PVC fittings.
When plumbing the discharge pipe, ensure that the pipework does not
interfere with the pumps speed dial.
The use of any pipe smaller than those specified above is not recommended.
Suction piping should be free from all air leaks and any humps and hollows
which cause suction difficulties.
The discharge piping from the pump outlet should be connected to the inlet
connection on the swimming pool filter (usually at the filter control valve).
%DUUHOXQLRQVQHHGWREHKDQGWLJKWHQHG1RVHDODQWJOXHVRU
silicones are required.
Prior to using this pump you must ensure that: Checklist
•Speed Setting chosen is a compatible setting with other pool equipment F
•The pump is installed in a safe and dry environment F
•The pump enclosure has adequate drainage in the event of leakage F
•Any transport plugs are removed F
•The pipe-work is correctly sealed and supported F
•The pump is primed correctly F
•The power supply is correctly connected F
•All steps have been taken for safe operation F
•The filter has been plumbed with 40/50mm pipe F

7
Low Energy Operation:
Your ProMaster Premium VSD pump has speed settings from
1,050 to 3,100rpm:
- 1,050 – Lowest Speed, 1
- 3,100 – Highest Speed, 10
- Variable – Backwash Speed
• Speed 1 provides the lowest speed and therefore the greatest energy
efficiency and savings. See page 9 for all other dial position speeds.

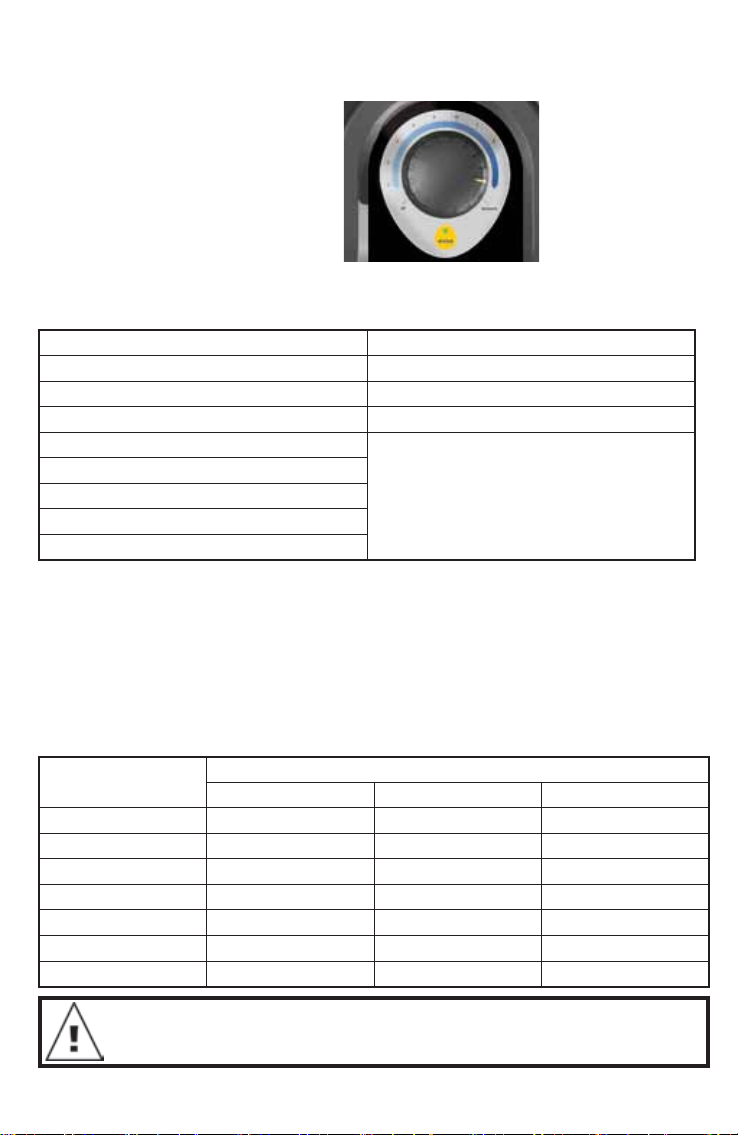

Operation Recommended Speed Setting
Pool Filtration Speed 1 to 4
Suction pool cleaner operation Speed 5 to 8
Backwashing your media filter Backwash Speed
Manually cleaning your pool
Speed 9 to 10
Water Feature operation
Spa Jet operation
In-floor cleaning systems
Solar pool heating
Guidelines for Recommended Pump Operating Hours:
Australian Standards AS3633: “Private swimming pools - water quality” states
that “The minimum turnover rate shall be a single turnover of the full volume of
the pool water, within the period that the pump would normally be operating….”
The table below provides a guide only to the running times of your pump
while in filtration mode in order to achieve the minimum turn over rate:
Pool Size
(Litres)
Speed Setting (hours)
Speed 1 Speed 5 Speed 10
20,000 2.4 1.3 0.9
30,000 3.7 2.0 1.4
40,000 4.9 2.7 1.9
50,000 6.1 3.3 2.3
60,000 7.4 4.0 2.8
80,000 9.8 5.3 3.8
100,000 12.3 6.7 4.7
%DUUHOXQLRQVQHHGWREHKDQGWLJKWHQHG1RVHDODQWJOXHVRU
silicones are required.

Features & Functionality
Your ProMaster Premium VSD 400 pool pump has several operational
features. The following explain each of these.
•3URJUDPPDEOH%RRVW&\FOLQJIRUHYHU\KRXURIRSHUDWLRQ
- For running the pump at full speed (Boost) for a pre-determined time for
every hour of operation
- Selectable times are 5, 10 & 15 minutes cycles via dip switch settings
under the motor cover or via RJ45 digital input. (See pages 10 to 13 for
diagrams and settings)
- Ideal for In-floor pop-up cleaning systems and agitating debris to the
pool surface for collection in the pool skimmer box

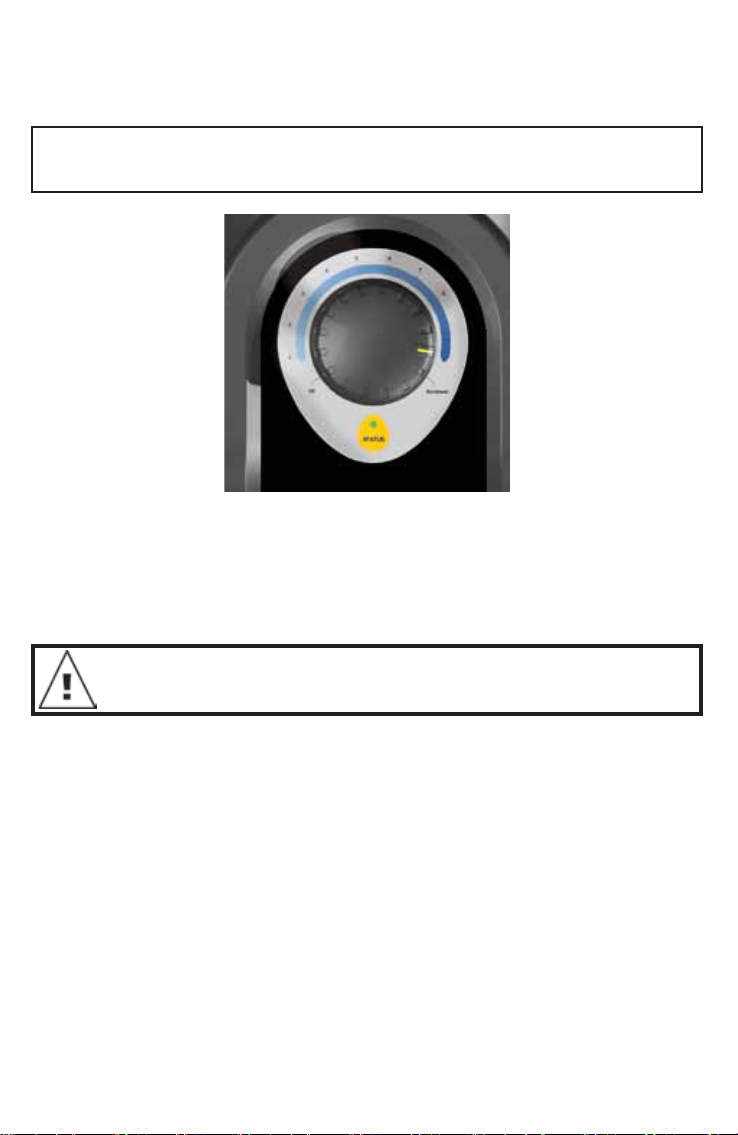

•Multi-Coloured LED indicator light
- Used for identifying required settings for programming time for full
speed (Boost) cycling and warnings:
> Solid Green = Normal Dial Operation
> Slow Flashing Green = Backwash
> Fast Flashing Green = Boost Cycling & AUX External Control
> Solid Amber = Speed Compensation Active
> Slow Flashing Amber = Time to Backwash
> Fast Flashing Red = Fault detected - reset pump
•Constant Flow/Speed Compensation
- Helps to overcomes friction loses experienced as debris builds up in
your media filter or cartridge filter
- Saves on energy running costs, due to the pump running at minimum
turnover flow rate, between backwashes
•Patented water cooled design for smooth and super quiet operation
- The pump has a water cooled membrane and jacket around the motor
which helps to keep the pump cool during operation
- Waste heat off the motor is transferred into the pool water, helping to
reduce pool heating energy costs
8

9

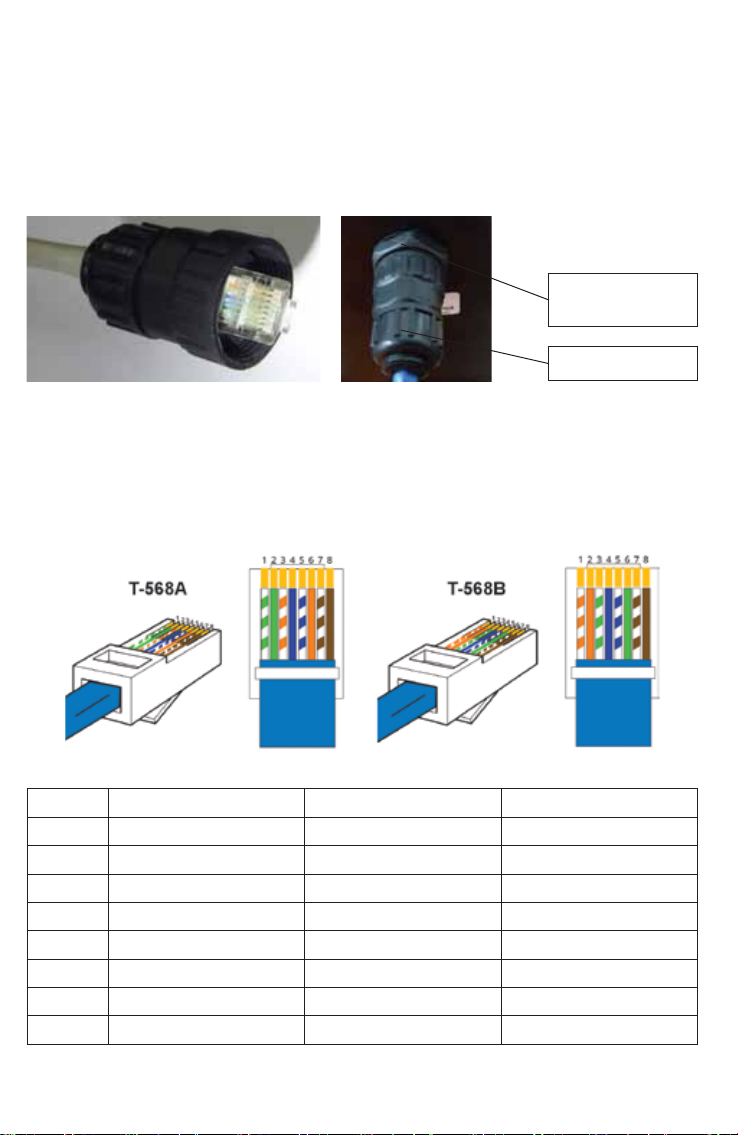

•Weatherproof RJ45 Communication Port (See page 10 for connection details)
- For communication and connecting to external Pool Control systems
- For receiving a signal from a Heat Pump or Gas Heater to ramp the
VSD pump speed to full during the heating process
- Service diagnostics and software updates (For Davey use only)
•%DFNZDVK6SHHG&\FOLQJ7HFKQRORJ\
- When in backwash mode the pump will cycle between a low and high
speed to help air-rate and agitate the filter media for a more effective clean
- Reduces wasted water during the backwash cycling process
•Full variable frequency drive with user friendly selectable speed dial
- Provides for easy selection of desired filtration speed
- No complicated digital push button controls
•Large 4.5 litre lint pot
- Provides for longer intervals between cleaning
®Rainbow Pool Products
PO Box 2388, Mansfield Qld 4122
Telephone STD 61-7-3849 5385
Facsimile STD 61-7-3849 5384
Email: [email protected]
Web: www.rainbowpoolproducts.com.au

10
Advanced Setup
External AUX Connections Overview
Your ProMaster Premium has an RJ45 style waterproof socket to allow for
external control of motor speed and other functionality. A standard RJ45
network cable (without boot) can be used. Simply remove the connector
from one end and feed the cable back through the waterproof housing.
Figure 1: RJ45 Plug Installed in housing (from rear)
It is recommended to keep the cable length between the pump and external
pool controller or heater as short as possible.
There are two major pin configurations as shown below:
Figure 2: RJ45 Pin connections
Pin Function T-568A T-568B
1 RS485 +ve Green/White Orange/White
2 RS485 -ve Green Orange
3 Digital Input 3 Orange/White Green/White
4 Analogue Input Blue Blue
5 0V Ground Blue/White Blue/White
6 Digital Input 2 Orange Green
7 Digital Input 1 Brown/White Brown/White
8 24V Brown Brown
Tighten this nut
Tighten this cap
to RJ45 socket
RJ45 PINOUT

11
Check that the cable you use has the above colour coding pins 1 through
to 8. If an alternative colour coding has been used make sure to record the
colour which corresponds to each pin to avoid misconnection at the pool
controller or heater. If an alternative cable is used make sure the analogue
input and ground are a twisted pair.
The 24V connection is only to be used as a reference for the digital inputs –
DO NOT power external equipment from this supply rail.
Digital Control Inputs
The 3 digital inputs allow for overriding the dial speed setting. To set one of
these inputs either:
1. Connect an isolated 24V supply between ground and the digital input pin
2. Connect the switched contacts of a relay between the 24V pin and the
digital input
The fixed speeds (as a proportion of full speed) are:
Input 1 (Pin 7) Input 2 (Pin 6) Input 3 (Pin 3) Output Speed
000Dial
0 0 24V 33%
024V 050%
024V 24V Backwash
24V 0 0 100%
24V 024V 67%
24V 24V 083%
24V 24V 24V Change Boost Time

12
Interfacing equipment to the Promaster Premium VSD400
WARNING$TXDOL¿HGHOHFWULFLDQLVUHTXLUHGWRFDUU\RXWWKHZRUN
shown below.
Promaster Premium VSD400 can be controlled by other equipment to turn it
on to high speed (or any other preset speeds, contact Davey for details).
This is to achieve maximum efficiency, for example, when using a gas heater,
or a heat pump.

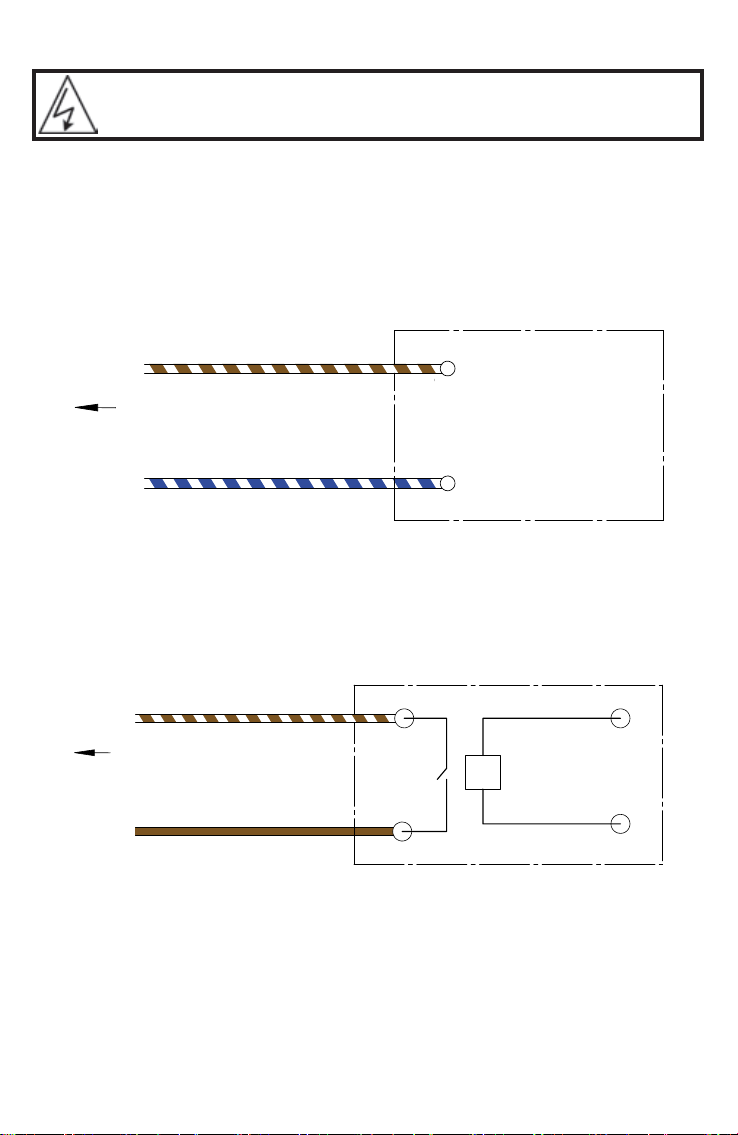

If the equipment has an isolated 18- 24V DC signal output, simply connect pin 7
to 24V DC positive and pin 5 to DC ground as shown in the following diagram:
Pin7 (Brown/White)
Pin5 (Blue/White)
+ 18 ~ 24V DC
DC Ground
Controlling Equipment
To RJ45 Socket of VSD Pump
If the controlling equipment does not have 18-24VDC voltage output as above,
and it has 24VAC, 230VAC, 12AC or 12 DC etc. signal output, a suitable relay
(the coil voltage must be the same as the signal output voltage of the controlling
equipment) can be used to do this job as mentioned above, and shown in the
following diagram:
To RJ45 Socket of VSD Pump
Controlling Equipment
Pin8 (Brown)
Pin7 (Brown/White)
Relay (Dry)
Contact
Relay Coil, must be
the same voltage
as the equipment
signal output
If the controlling equipment already has the relay output(dry contact) for
controlling purpose, an extra relay is not necessary, simply connect Pin 7
(Brown/White) and Pin 8 (Brown) to the dry contacts as shown in the left part
of the diagram above.

13
3URJUDPPLQJ%RRVW&\FOH7LPHYLD'LJLWDO,QSXWV
Boost cycle time can be changed via digital input on the RJ45 Aux connector.
To change cycle time connect digital inputs 1, 2 and 3 to 24V. The periodic
agitation time will cycle to the next setting. The dial LED will flash amber the
number of times corresponding to the updated setting.
Setting Time to Run at 100% per hour of operation
1 (default) 0
25 minutes
310 minutes
415 minutes
Analogue Control Input

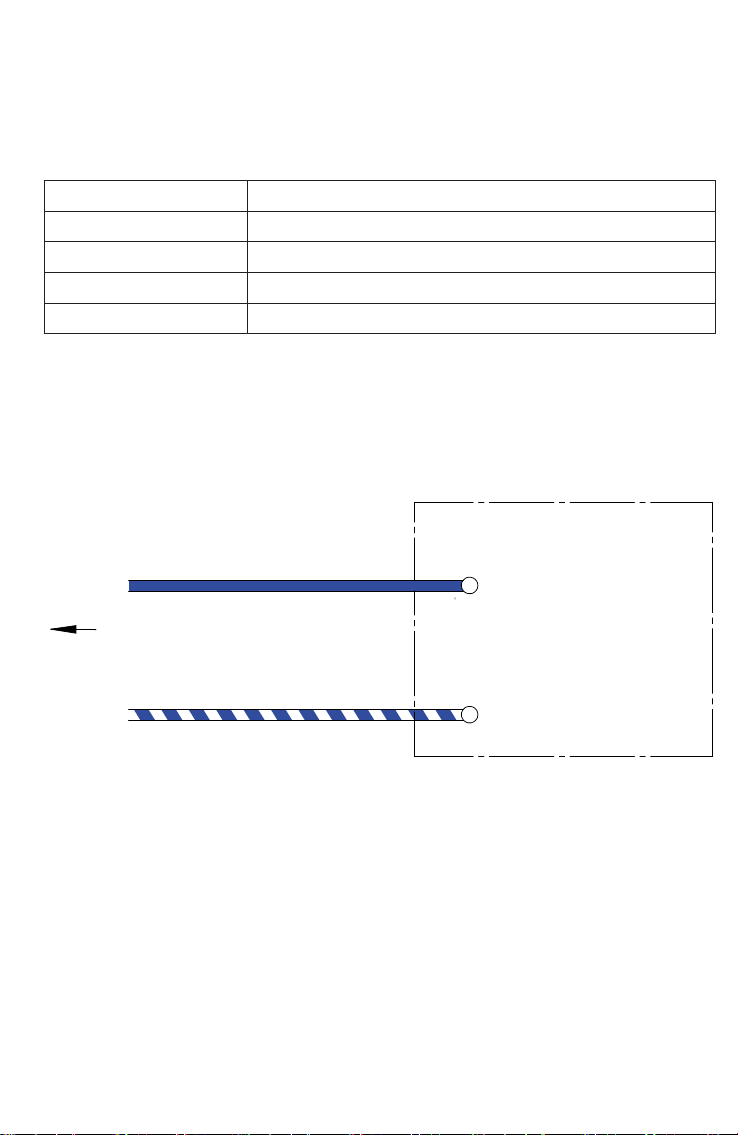

Speed control can also be achieved by connecting a 0-10V signal at the input
on pin 4 (ground at pin 5). As soon as a signal above 0V is registered, this
input will take priority over dial settings.
Pin4 (Blue)
Pin5 (Blue/White)
+ 0~ 10 V DC Signal Output
of controlling equipment
DC Ground
Controlling Equipment
To RJ45 Socket of VSD Pump
RS485
RS485 inputs are reserved for Davey service connection and software updates.
3URJUDPPLQJ%RRVW&\FOLQJ7LPHYLD',36ZLWFKHV
As an alternative to using digital inputs, boost cycle time can be changed
via internal PCB board with DIP switches. (Please contact your nearest
Davey Dealer or Davey for advice).

14
Using your ProMaster Premium VSD pump
with a Davey Salt Water Chlorinator
Davey ChloroMatic, EcoSalt & EcoMineral salt water chlorinators require a
minimum flow rate of 80 litres per minute (lpm) through the chlorinator cell
for best efficiency and cell life. Please refer to the performance graph below
as a reference for the flow in your pool and refer to the pressure indicated
by the gauge on the media or cartridge filter.
Ensure flow rate is sufficient to cover your chlorinator cell plates completely
at all times of operation.
0
5
10
15
20
25
0 50 100 150 200 250 300 350 400 450
Total Head ( m )
ProMaster - PM400PV
Performance
Dial position No. 10
Dial position No. 9
Dial position No. 8
Dial position No. 7
Dial position No. 6
Dial position No. 5
Dial position No. 4
Dial position No. 3
Dial position No. 2
Dial position No. 1
Flow ( lpm )
Speed
Setting
Input Output Duty
Point
Flow
Rate
hp W hp W
Dial 1 0.17 125 0.12 87.5 1.2 146
Dial 2 0.28 207 0.19 144.9 1.8 178
Dial 3 0.46 343 0.32 240.1 2.6 218
Dial 4 0.69 514 0.48 359.8 3.6 255
Dial 5 0.97 724 0.68 506.8 4.7 290
Dial 6 1.21 905 0.85 633.5 5.4 314
Dial 7 1.61 1201 1.13 840.7 6.7 348
Dial 8 1.97 1469 1.38 1028.3 7.8 373
Dial 9 2.17 1620 1.58 1180 7.9 378
Dial 10 2.21 1650 1.64 1220 8 380

15
Operating your Suction Pool Cleaner
Before installing or purchasing a pool cleaner for use with your ProMaster
pool pump, it is important to know the minimum flow rates required for it to
operate effectively.
To operate a suction pool cleaner with your
ProMaster Premium VSD400 pump:
1. Activate the High Flow setting (10) and allow the pump to fully prime by
running for around 2 minutes. You will know the pump is primed when you
can see a strong flow of water through the clear leaf basket lid.
2. When all air is expelled from the leaf basket, connect the pool cleaner
hose firmly into the skimmer plate or dedicated wall suction.
3. Select the speed setting that enables best performance from your suction
pool cleaner. Speed 3 to 7 should be ample for most cleaners, however if
the cleaner requires better performance, select speeds 7 to 10. A Davey
PoolSweepa suction pool cleaner is recommended to run between speeds
2 to 3.
4. The cleaner should only be connected for as long as is required to clean
the surface of your pool. When cleaning is complete, disconnect the
cleaner and remove the skimmer plate from the skimmer box.
127(7RJHWRSWLPXPHQHUJ\HI¿FLHQF\IURP\RXU3UR0DVWHU DO NOT keep
the suction pool cleaner connected when cleaning is not required.
5. Reactivate the most efficient speed setting for daily filtration. Speeds 1 to 4
is recommended.
0DLQWHQDQFH(PSW\LQJWKH6WUDLQHU%DVNHW
The strainer basket should be inspected frequently through the transparent
lid and emptied when a build up of rubbish is evident. The directions below
should be followed.
1. Switch off pump.
2. Unscrew the strainer basket lid anti-clockwise and remove.
3. Remove the strainer basket by lifting upwards from its housing.
4. Empty the trapped refuse from the basket. Hose out with water if necessary.
NOTE: NEVER knock the plastic basket on a hard surface as it will cause damage.

16
5. Check the strainer basket for cracks, replace the strainer basket in the pump
if OK.
6. Replace the lid and ensure that it seals on the large rubber o-ring. Firm hand
tightness only is required. The o-ring & thread can be lubricated with Hydra
slip or equivalent products.
Failure to undertake regular maintenance may cause damage not
covered by warranty.
Power supply to this pump needs to be through an RCD,
having a rated leakage current not exceeding 30mA.
®Rainbow Pool Products
PO Box 2388, Mansfield Qld 4122
Telephone STD 61-7-3849 5385
Facsimile STD 61-7-3849 5384
Email: [email protected]
Web: www.rainbowpoolproducts.com.au

17
Trouble Shooting
If the pump runs but there is no water flow or water flow is reduced,
the following condition may apply:
1. The filter requires backwashing or it is blocked. Refer to the relevant section
in the Filter Manual.
2. The pump is not primed. Re-prime as per instruction in ‘Starting the pump’
3. There are air leaks in the suction piping. Check all piping and eliminate
leaks, also check for a loose strainer basket lid. Air bubbles in the water
flowing back to the pool would indicate a leak in the suction to the pump
allowing air to enter the pipework.
4. A leaking pump shaft seal may also prevent operation. Evidence of this
would be water on the ground under the pump.
5. The pump is not able to get water from the pool. Check that the valves to the
pump are fully open and that the pool water level is up to the skimmer box.
6. Blockage in the piping or pump. Remove the strainer basket and check for any
blockage to the pump impeller entry. Check the skimmer box for blockage.
If the pump does not operate, the following conditions may apply:
1. The power is not connected. For 240 volt only, check the power point by
plugging in a portable appliance to ensure power is available. Also check
fuses and the main power supply switch
2. Automatic overload is tripped. The pump has an in-built thermal overload
which will reset automatically after the motor has cooled following an
overheating period. Determine the cause of the overload tripping and rectify.
Reset the pump by switching the power OFF for 30 seconds.
3. Blockage is preventing the pump from rotating.

18
Removal of the Pump from Pipework
Should it be necessary to remove the pump, follow these instructions:
1. Switch off the power and remove the plug from the power source.
NOTE: If the pump is wired into a time clock or another automatic
FRQWUROWKHZLULQJVKRXOGEHUHPRYHGE\DTXDOL¿HGWHFKQLFLDQ
2. Close the water valves on the pool return and the pump inlet pipework.
3. Remove the discharge & suction barrel unions taking care not to lose the
o-rings.
4. Move the pipework with the barrel unions attached until the pump can be
pulled clear.
NOTE: When making any enquiries about your ProMaster be certain
to quote the model number from the nameplate located on the motor.
Water Quality
Maintaining balanced water chemistry is important to the life of your pool
pump. This pump is designed to be used with Pool & Spa water, balanced
in accordance with Langlier Saturation Index, with a pH level of between 7.2
and 7.6 and is regularly treated with a chlorine sanitising agent with the level
not exceeding 3.0 ppm.
Please consult your local pool shop regularly to have your water tested.

32:(5&211(&7,216$1':,5,1*0867%(&$55,('287%<
AN AUTHORISED ELECTRICIAN.
DANGER - Hazardous suction. Do not block water entry into
¿OWUDWLRQV\VWHPZLWKDQ\SDUWRI\RXUERG\DVWKHSUHVVXUHFDQ
trap hair or body parts, causing severe injury or death. Do not block
suction. Turn off pump immediately if someone becomes trapped.
Caution! Do not add chemicals directly to the pool skimmer. Adding
XQGLOXWHGFKHPLFDOVPD\GDPDJHSXPSDQG¿OWHUDQGYRLGZDUUDQW\
Routine Maintenance tasks - to maximise the life of your pool equipment
SHUVRQDOVDIHW\XVHWKLVFKHFNOLVWRQFHDZHHN7XUQSXPSRII¿UVW
a. Make sure that any pressure gauges are in working condition and the
RSHUDWLQJSUHVVXUHLVZLWKLQOLPLWVDVVSHFL¿HGRQWKHSURGXFW
b. Make sure that each suction inlet, and main drain has a cover that is
securely attached and in safe working condition.
c. Make sure that all skimmer covers are securely attached and in safe
working condition. These should be replaced every 3 to 4 years.
d. Remove any obstructions or debris from the main drain cover.
e. Ensure the skimmer baskets and the pump hair and lint pots are free
of leaves and debris at least once a week.
f. Remove obstructions and combustibles from around the pump motor.
g. Make sure all wiring connections are clean and that all wiring and
electrical equipment is in good condition. Damaged wiring must be
UHSDLUHGRUUHSODFHGE\DTXDOL¿HGHOHFWULFLDQDVVRRQDVGDPDJHLV
discovered.
h. Check water balance and sanitiser levels at your local pool shop.
WARNING! Pump suction is hazardous and can trap and drown or
disembowel bathers. Do not block suction. Do not use or operate
swimming pools, spas or spa baths if a suction cover is broken,
missing or loose. Two suction covers and inlets must be provided
into every pump to avoid suction entrapment.
In accordance with AS/NZS60335.2.41 we are obliged to inform
you that this appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in
a safe way and understand the hazards involved.
- children shall not play with the appliance
- cleaning and user maintenance shall not be made by children
without supervision
- the maximum total head, in meters (for pumps having a rated
power input exceeding 50W)

AUSTRALIA
Head Office
6 Lakeview Drive,
Scoresby, Australia 3179
Ph: 1300 232 839
Fax: [phone]
Email: [email protected]
Website: davey.com.au
Davey Water Products Pty Ltd
Member of the GUD Group
ABN 18 066 327 517
NEW ZEALAND
7 Rockridge Avenue,
Penrose, Auckland 1061
Ph: 0800 654 333
Fax: [phone]
Email: [email protected]
Website: daveynz.co.nz
EUROPE
ZAC des Gaulnes
355 Avenue Henri Schneider
69330 Meyzieu, France
Ph: [phone]
Fax: [phone]
Email: [email protected]
Website: daveyeurope.eu
INTERNATIONAL
Australian Head Office
Ph: [phone]
Fax: [phone]
Email: [email protected]
Website: davey.com.au
® Davey is a trademark of Davey Water Products Pty Ltd. © Davey Water Products Pty Ltd 2016.
NORTH AMERICA
Ph: [phone]
Email: [email protected]
Website: daveyusa.com
MIDDLE EAST
Ph: [phone]
Fax: [phone]
Email: [email protected]
Website: daveyuae.com
P/N 402917-1
Davey Repair or Replacement Guarantee
In the unlikely event in Australia or New Zealand that this Davey product develops any
malfunction within warranty periods beginning from the date of original purchase due to faulty
materials or manufacture, Davey will at our option repair or replace it for you free of charge,
subject to the conditions below.
:OV\SK`V\L_WLYPLUJLHU`KPɉJ\S[PLZ^P[O`V\Y+H]L`WYVK\J[^LZ\NNLZ[PU[OLÄYZ[PUZ[HUJL
that you contact the Davey Dealer from which you purchased the Davey product. Alternatively
you can phone our Customer Service line on 1300 367 866 in Australia, or 0800 654 333 in New
Zealand, or send a written letter to Davey at the address listed below. On receipt of your claim,
+H]L`^PSSZLLR[VYLZVS]L`V\YKPɉJ\S[PLZVYPM[OLWYVK\J[PZMH\S[`VYKLMLJ[P]LHK]PZL`V\VU
how to have your Davey product repaired, obtain a replacement or a refund.
Your Davey Three Year Guarantee naturally does not cover normal wear or tear, replacement of
product consumables (i.e. mechanical seals, bearings or capacitors), loss or damage resulting
from misuse or negligent handling, improper use for which the product was not designed or
advertised, failure to properly follow the provided installation and operating instructions, failure
to carry out maintenance, corrosive or abrasive water or other liquid, lightning or high voltage
spikes, or unauthorised persons attempting repairs. Where applicable, your Davey product must
only be connected to the voltage shown on the nameplate.
Your Davey Guarantee does not cover freight or any other costs incurred in making a claim.
Please retain your receipt as proof of purchase; you MUST provide evidence of the date of
original purchase when claiming under the Davey Guarantee.
+H]L`ZOHSSUV[ILSPHISLMVYHU`SVZZVMWYVÄ[ZVYHU`JVUZLX\LU[PHSPUKPYLJ[VYZWLJPHSSVZZ
damage or injury of any kind whatsoever arising directly or indirectly from Davey products.
This limitation does not apply to any liability of Davey for failure to comply with a consumer
guarantee applicable to your Davey product under the Australian or New Zealand legislation
HUKKVLZUV[HɈLJ[HU`YPNO[ZVYYLTLKPLZ[OH[TH`ILH]HPSHISL[V`V\\UKLY[OL(\Z[YHSPHU
or New Zealand Consumer Legislation.
In Australia, you are entitled to a replacement or refund for a major failure and for
compensation for any other reasonably foreseeable loss or damage. You are also entitled
to have the goods repaired or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
Should your Davey product require repair or service after the guarantee period; contact your
nearest Davey Dealer or phone the Davey Support Centre on the number listed below.
For a complete list of Davey Dealers visit our website (davey.com.au) or call:
®Rainbow Pool Products
PO Box 2388, Mansfield Qld 4122
Telephone STD 61-7-3849 5385
Facsimile STD 61-7-3849 5384
Email: [email protected]
Web: www.rainbowpoolproducts.com.au
