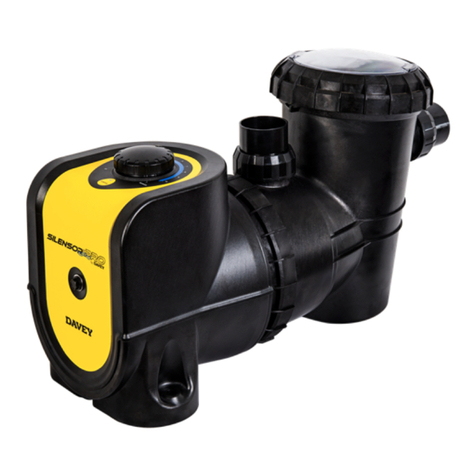

SilensorPRO SP200BT & SP400BT
Swimming Pool Pump
Installation and Operating
Instructions
50/60Hz
UK - Installation and Operating Instructions 1-20
DE - Installations- und Betriebs-anleitung 21-40
IT - Istruzioni di montaggio e di utilizzo 41-60
NL - Installatie- en gebruiksinstructies 61-80
PT - Instruções de Instalação e Funcionamento 81-100
ES- Instalación e instrucciones de funcionamiento 101-120
FR - Instructions d’installation et d’utilisation 121-140
Please refer to the Davey website in your region as per back page of this
document for any product information updates.
Please pass these instructions on to the operator of this equipment.

2
Congratulations on your purchase of a high quality, SilensorPRO SP200BT, or SP400BT pump. All
components have been designed and manufactured to give trouble free, reliable operation.
Table of Contents:
1. INSTALLATION OF THE DAVEY VARIABLE SPEED PUMP.....................................................................3
Power connection .......................................................................................................................................3
Pipe connection ..........................................................................................................................................4
2. TYPICAL INSTALLATION DIAGRAM .........................................................................................................5
3. PERFORMANCE SPECIFICATIONS .........................................................................................................5
3.1 SP200BT Hydraulic Performance.........................................................................................................5
3.2 SP200BT Electrical Specifications........................................................................................................6
3.3 SP400BT Hydraulic Performance.........................................................................................................6
3.4 SP400BT Electrical Specifications........................................................................................................6
4. OWNERS MANUAL....................................................................................................................................7
Saving energy with your SilensorPRO........................................................................................................7
Pre-start up checklist ..................................................................................................................................7
Low energy operation .................................................................................................................................8
Guidelines for recommended pump operating hours..................................................................................8
Emptying the strainer basket ......................................................................................................................9
Routine maintenance..................................................................................................................................9
5. FEATURES & FUNCTIONALITY..............................................................................................................10
Multi-Coloured LED indicator light ............................................................................................................10
Backwash Speed Cycling Technology ......................................................................................................10
Full variable frequency drive with user friendly selectable speed dial ......................................................10
Large 4.5 litre lint pot ................................................................................................................................10
Patented water-cooled design for smooth and super quiet operation ......................................................10
SP400BT constant flow/speed compensation ..........................................................................................10
SP400BT weatherproof RJ45 Communication Port (see section 7 for connection details)......................10
6. BLUETOOTH FUNCTIONALITY ..............................................................................................................11
Bluetooth App Set Up ...............................................................................................................................11
Pairing a device to the pump ....................................................................................................................11
External Timer / Chlorinator ......................................................................................................................11
Schedule mode.........................................................................................................................................11
Setting a schedule ....................................................................................................................................12
Settings.....................................................................................................................................................12
Priming speed / Max speed ......................................................................................................................12
Backwash..................................................................................................................................................13
External time present................................................................................................................................13
Disconnect function ..................................................................................................................................13
Factory reset.............................................................................................................................................13
Pump fault finding .....................................................................................................................................13
7. ADVANCED SETUP OF SP400BT...........................................................................................................14
External AUX connections overview .........................................................................................................14
Digital control inputs .................................................................................................................................15
Interfacing equipment to the SilensorPRO SP400BT ...............................................................................15
Analogue control inputs ............................................................................................................................16
8. TECHNICAL SPECIFICATIONS...............................................................................................................16
9. USING YOUR SILENSORPRO WITH A SALT WATER CHLORINATOR.................................................17
10. OPERATING YOUR SUCTION POOL CLEANER....................................................................................17
11. TROUBLE SHOOTING.............................................................................................................................18
12. REMOVAL OF THE SILENSORPRO FROM PIPEWORK........................................................................18
13. WATER QUALITY.....................................................................................................................................18
14. DAVEY WARRANTY.................................................................................................................................20
English

3
1. INSTALLATION OF THE DAVEY VARIABLE SPEED PUMP
The SilensorPRO should be located as close to the water as practicable and mounted on a firm base in a
well drained position, high enough to prevent any flooding. It is the installer/owner’s responsibility to locate
the pump such that the nameplate can be easily read and the SilensorPRO can be readily accessed for
service. It is recommended that the SilensorPRO is protected from the weather. Enclosures should be
ventilated to prevent condensation build-up.
Failure to follow these instructions and comply with all applicable codes may cause
serious bodily injury and/or property damage.
This pump requires professional expertise for installation and maintenance. The
installation of this product should be carried out by a person knowledgeable in
swimming pool plumbing requirements and who follows the installation instructions
provided in this manual.
Power connection
IMPORTANT INFORMATION Your SilensorPRO is double insulated to water circuit.
If equipotential bonding structure is required, then an Equipotential Bonding Point
is provided. (Please refer to your local statutes and/or regulations for AS/NZ 3000
equivalent wiring standards).
CAUTION! In the interest of safety, we advise that all brands and types of pool pumps
must be installed in accordance with AS/NZS 3000, known as the national wiring
rules, or equivalent local standards. All electrical installations must be carried out by
a qualied electrician. Davey recommends that all installations are tted with earth
leakage, or residual current protection devices. Rated residual operating current not
exceeding 30mA.
WARNING! Ensure that an electrical isolation switch is located with easy access so that
the pump can be switched off in an emergency.
F NFC C 15-100 GB BS7671:1992
D DIN VDE 0100-702 EW EVHS-HD 384-7-702
A OVE 8001-4-702 H MSZ 2364-702:1994/MSZ 10-533 1/1990
E UNE 20460-7-702 1993, REBT ITC-BT-31 2002 M MSA HD 384-7-702.S2
IRL IS HD 384-7-702 PL PN-IEC 60364-7-702: 1999
I CEI 64-8/7 CZ CSN 33 2000 7-702
LUX 384-7.702 S2 SK STN 33 2000-7-702
NL NEN 1010-7.702 SLO SIST HD 384-7-702.S2
The SilensorPRO is suitable for connection to a nominal 220 – 240 volt 50/60Hz power supply and is
equipped with a flex cord. If a power outlet is not available within 3 metres of the pump, a 3-pin power point
in a safe, dry place may need to be provided by an electrician. Extension cords are unsafe around pools and
should be avoided. If the supply cord of the SilensorPRO is damaged it must be replaced by Davey, or an
approved agent with genuine Davey spares.
The SilensorPRO incorporates motor overload detection designed to protect the motor from overheating.
If the motor gets too hot during operation, its operating speed will reduce to bring it within an acceptable
operating temperature and then will speed up to the originally set speed.
To reset the motor, switch the power off for 30 seconds, and then return the power from the mains switch.
English

4
Pipe connection
Barrel unions are provided for connecting to the piping from the pool. The pumps are designed to accept
50/63mm PVC fittings.
IMPORTANT INFORMATION If the SilensorPRO and lter are located below pool water
level, it is necessary to t isolating valves in the pipe between the pump and skimmer
box and in return pipe from the lter to the pool. When plumbing the discharge pipe,
ensure that the pipework does not interfere with the pumps speed dial. Barrel unions
need to be hand tightened. No sealant, glues or silicones are required.
The ttings on the SilensorPRO are constructed of ABS. Some PVC jointing compounds
are incompatible with ABS. Check compound suitability before use.
The use of any pipe smaller than those specified above is not recommended. Suction piping should be free
from all air leaks and any humps and hollows which cause suction difficulties. To achieve best efficiency, the
SilensorPRO should be installed such that turbulent water is limited as much as possible. As shown in figure
1.1, do not install a 90° elbow closer that 250mm from the inlet barrel union. Isolation valves used where
equipment is located below pool water level, should also be installed no closer than 250mm from inlet barrel
union. This will assist laminar flow.
250mm
ELBOW
Figure 1.1
Figure 1.2 152mm
MINIMUM
76mm
MINIMUM
Suction line
50/63mm
Return to
Pool
50/63mm
Suction line
50/63mm
Return to
Pool
50/63mm
The discharge piping from the SilensorPRO outlet should be connected to the inlet connection on the
swimming pool filter (usually at the filter control valve). As shown in figure 1.2, ensure adequate clearance
above the pump to not interfere with the SilensorPRO speed dial. Use a check valve in the discharge line
when using this pump for any application where there is significant height to the plumbing after the pump.
250mm
ELBOW
Figure 1.1
Figure 1.2 152mm
MINIMUM
76mm
MINIMUM
Suction line
50/63mm
Return to
Pool
50/63mm
Suction line
50/63mm
Return to
Pool
50/63mm
Be sure to install check valves when plumbing with another pump. This helps prevent reverse rotation of the
impeller and motor.
WARNING! Pump suction is hazardous and can trap and drown, or disembowel bathers.
Do not block suction. Do not operate swimming pools, spas, or spa baths if a suction
cover is broken, missing or loose. Two suction covers, or inlets must be provided into
every pump to avoid suction entrapment.
English

5
2. TYPICAL INSTALLATION DIAGRAM
Pool pump Media Filter
3. PERFORMANCE SPECIFICATIONS
3.1 SP200BT hydraulic performance
0
5
10
15
20
25
0 50 100 150 200 250 300 350 400
Total Head ( m )
ProMaster - PM200SV
Performance
Dial position No. 10
Dial position No. 9
Dial position No. 8
Dial position No. 7
Dial position No. 6
Dial position No. 5
Dial position No. 4
Dial position No. 3
Dial position No. 2
Dial position No. 1
Flow ( lpm )
Flow ( m3/h )
0
036 9 12 15 18 21 24
English

6
3.2 SP200BT electrical specifications
Speed
Setting
Input Output
hp Whp W
Dial 1 0.17 128 0.12 90
Dial 2 0.28 207 0.19 145
Dial 3 0.39 293 0.27 205
Dial 4 0.53 398 0.37 279
Dial 5 0.70 524 0.49 367
Dial 6 0.87 655 0.61 459
Dial 7 1.08 807 0.75 565
Dial 8 1.25 936 0.87 655
Dial 9 1.44 1,078 1.01 755
Dial 10 1.48 1,111 1.04 778
3.3 SP400BT hydraulic performance
0
5
10
15
20
25
0 50 100 150 200 250 300 350 400
450
Total Head ( m )
Dial position No. 10
Dial position No. 9
Dial position No. 8
Dial position No. 7
Dial position No. 6
Dial position No. 5
Dial position No. 4
Dial position No. 3
Dial position No. 2
Dial position No. 1
Flow ( lpm )
Flow ( m3/h )
0
036 9 12 15 18 21 24 27
3.4 SP400BT electrical specifications
Speed
Setting
Input Output
hp Whp W
Dial 1 0.17 126 0.12 89
Dial 2 0.28 210 0.20 147
Dial 3 0.46 347 0.32 243
Dial 4 0.70 522 0.49 366
Dial 5 0.97 728 0.68 510
Dial 6 1.22 913 0.85 639
Dial 7 1.61 1,211 1.13 848
Dial 8 1.97 1,478 1.38 1,034
Dial 9 2.18 1,635 1.59 1,191
Dial 10 2.19 1,639 1.62 1,212
English

7
4. OWNERS MANUAL
This SilensorPRO is Bluetooth enabled, so you will be able to set and control the pump functions from your
smart device. Bluetooth is a wireless communication protocol that enables communication between devices.
This function is supported by any device that can download an app from IOS or Android App Store.
Read these instructions in their entirety before switching on this pump. If you are uncertain as to any of these
installation and operating instructions, please contact Davey as listed on the back of this document.
Every SilensorPRO is thoroughly water tested against a number of flow, pressure, voltage, current and
mechanical performance parameters. Davey’s advanced pump manufacturing technology provides reliable
and efficient pumping performance that lasts and lasts.
Saving energy with your SilensorPRO
The Davey variable speed pump is a super-efficient pump utilising a very clever, state of the art infinitely
variable AC motor that provides lower levels of noise, lower operating costs and lower greenhouse emissions
than traditional pool pumps.
Due to its ability to run at lower speeds than conventional pumps, your pump will also experience less
mechanical wear and tear due to less stress on the internal mechanical components. To achieve energy
efficient pumping is easy. Simply run the filtration pump at a lower speed but run it for longer than a
conventional fixed speed pump to “turn over” your pool water for adequate filtration and sanitisation. The
result is lower energy use and up to 70% lower operational costs.
The SilensorPRO has adjustable speed settings, so you can vary the speed you circulate your pool or spa
water at. Speeds can be adjusted to power a suction pool cleaner, in-floor cleaning system & pool heaters. A
backwash setting on the pump can be selected to backwash a media filter.
What to expect with the SilensorPRO (energy efficient operation) on your pool:
• If your SilensorPRO pump is replacing a traditional AC motor pump, you may will need to run it longer than
your old fixed speed pump. This is NORMAL and you will save energy when using lower speed settings.
• You may also notice that the pressure gauge on your filter is indicating a much lower pressure than you are
used to. This is also NORMAL. The lower system pressure is simply a result of the lower speed and flow
rate produced by the pump.
• While running at the lower speed settings you will also notice a significant reduction in pump noise. This is
a major benefit for you as it allows you to run your SilensorPRO during off peak electricity tariffs, which will
also assist in the reduction of your operating costs. Plus, you will also have much happier neighbours.
Many pool products rely on minimum flow rates for best operation and/or efficiency. If you are using low flow
settings on the SilensorPRO (e.g. speed 1 to 4) Davey recommends that you check the compatibility of the
speed or minimum flow rate required to run specific pool equipment such as:
• Suction pool cleaners;
• Ozone generators;
• Heating systems;
• Salt water chlorinator cells;
• In-floor pool cleaning systems.
Pre-start up checklist
• Speed setting chosen is a compatible setting with other pool equipment;
• The pump is installed in a safe and dry environment;
• The pump enclosure has adequate drainage in the event of leakage;
• Any transport plugs are removed;
• The pipe-work is correctly sealed and supported;
• The pump is primed correctly;
• The power supply is correctly connected;
• All steps have been taken for safe operation;
• The filter has been plumbed with 50/63mm pipe;
• The (app) schedule settings correspond with any other times in the system.
English

Low energy operation
Your SilensorPRO SP200BT has speed settings from 1,500 - 3,600rpm. The SilensorPRO SP400BT has
speed settings from 1,050 - 3,100rpm. Speed 1 being the slowest and speed 10 being the fastest.
• Speed 1 provides the lowest speed and therefore the greatest energy efficiency and savings.
Operation Recommended Speed Setting
Backwashing your media filter Backwash Speed
Pool Filtration Speed 1 to 4
Suction pool cleaner operation Speed 5 to 8
Manually cleaning your pool
Speed 9 to 10
Water Feature operation
Spa Jet operation
In-floor cleaning systems
Solar pool heating
Guidelines for recommended pump operating hours
Typical residential pool turnover rate shall be a single turnover of the full volume of the pool water, within the
daily period that the pump would normally be operating. The table below provides a guide only to the running
times of your pump while in filtration mode in order to achieve the minimum turnover rate:
SilensorPRO SP200BT
Pool size
(Litres)
Speed Setting (hours)
Speed 1 Speed 5 Speed 10
20,000 3.3 1.7 1.1
30,000 5.0 2.5 1.7
40,000 6.7 3.3 2.2
50,000 8.3 4.2 2.8
60,000 10.0 5.0 3.3
80,000 13.3 6.7 4.4
100,000 16.7 8.3 5.6
SilensorPRO SP400BT
Pool size
(Litres)
Speed Setting (hours)
Speed 1 Speed 5 Speed 10
20,000 2.4 1.3 0.9
30,000 3.7 2.0 1.4
40,000 4.9 2.7 1.9
50,000 6.1 3.3 2.3
60,000 7.4 4.0 2.8
80,000 9.8 5.3 3.8
100,000 12.3 6.7 4.7
8
English

9
In accordance with EN60335.1 we are obliged to inform you that this appliance can
be used by children aged from 8 years and above and persons with reduced physical
sensory, or mental capabilities, or lack of experience and knowledge, if they have been
given supervision, or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children should be supervised to ensure they do not
play with the appliance.
Emptying the strainer basket
The strainer basket should be inspected frequently through the transparent lid and emptied when a build-up
of rubbish is evident. The directions below should be followed.
• Switch off pump;
• Unscrew the strainer basket lid anti-clockwise and remove;
• Remove the strainer basket by lifting upwards from its housing;
• Empty the trapped refuse from the basket. Hose out with water if necessary.
NOTE: NEVER knock the plastic basket on a hard surface as it will cause damage.
• Check the strainer basket for cracks, replace the strainer basket in the pump if damaged;
• Replace the lid and ensure that it seals on the large rubber o-ring. Firm hand tightness only is required.
The o-ring & thread can be lubricated with Hydra Slip or equivalent products.
Failure to undertake regular maintenance may cause damage not covered by warranty.
Routine maintenance
To maximise the life of the SilensorPRO, and for personal safety use this checklist once a week. Ensure
pump is off before starting:
• Make sure that any pressure gauges are in working condition and the operating pressure is within limits as
specified on the product;
• Make sure that each suction inlet and main drain has a cover that is securely attached and in safe working
condition;
• Make sure that all skimmer covers are securely attached and in safe working condition. These should be
replaced every 3 to 4 years;
• Remove any obstructions or debris from the main drain cover;
• Ensure the skimmer and pump baskets are free of leaves and debris at least once a week;
• Remove obstructions and combustibles from around the pump motor;
• Make sure all wiring connections are clean and that all wiring and electrical equipment is in good condition.
Damaged wiring must be repaired or replaced by a qualified electrician as soon as damage is discovered;
• Check water balance and sanitizer levels at your local pool shop.
English

10
5. FEATURES & FUNCTIONALITY
The SilensorPRO has several operational features. The following explain each of these.
Multi-coloured LED indicator light
Used for identifying required settings for programming time for full speed (Boost) cycling and warnings:
• Solid green = Normal dial operation
• Slow flashing green = In backwash mode
• Fast Flashing green = AUX external control
• Solid White = Time to Backwash
• Fast Flashing White = Fault detected - reset pump
• Slow Flashing blue = Operated by Bluetooth
• Solid blue = Bluetooth mode
Backwash speed cycling technology
When in backwash mode the SilensorPRO will cycle between a low and high speed to help agitate the filter
media for a more effective clean. This reduces wasted water and chemicals during the backwash cycling
process.
Full variable frequency drive with user friendly selectable speed dial
• Provides for easy selection of desired filtration speed
• No complicated digital push button controls
Large 4.5 litre lint pot
• Provides for longer intervals between cleaning
Patented water-cooled design for smooth and super quiet operation
The SilensorPRO has a water-cooled membrane and jacket around the motor which helps to keep the pump
cool during operation. Waste heat off the motor is transferred into the pool water, helping to reduce pool
heating energy costs.
SP400BT constant flow/speed compensation
As the pool filter becomes dirty, pressure builds up. With a typical pool pump, this would naturally slow the
flow coming through the system. The SilensorPRO has the intelligence to automatically detect the resistance
applied by a filter and slowly compensate the reduction flow, by increasing the speed of the motor. The result
is the flow remains constant between filter cleans.
When the SilensorPRO detects that the speed increase indicates time to backwash your filter, the LED
indicator will show a solid white display (see item above).
SP400BT weatherproof RJ45 communication port
(see section 7 for connection details)
• For communication and connecting to external pool control systems
• For receiving a signal from a heat pump, or gas heater to ramp the SilensorPRO speed to full during the
heating process
• Service diagnostics and software updates (For Davey use only)
English

11
6. BLUETOOTH FUNCTIONALITY
Bluetooth app set up
• Open the “App Store” app that is available on your device.
• Search “Davey Pool Pump”
• Install the app on your device
The app can be installed on to as many devices as desired, however, only one device can control the pump
at any given time. The language and time of the app is the same as your device setting. The measuring units
are automatically defaulted to your device’s region units, however, you can choose between Litres, Gallons
or m3/hr.
Pairing a device to the pump
• Open app on your smart device.
• Turn dial on the pump from “off” to “Bluetooth”, you will see the LED flash white for a second.
• On your device, press the connect button.
• When setting up for the first time ONLY, select “YES” to allowing location.
• Please note that the first time the devices are paired, there is a 2-minute time limit to do so before the
procedure will have to be repeated.
External timer / chlorinator
A pop-up will appear asking if you are using an external timer, or
chlorinator to control the SilensorPRO. Please select “yes”, “no”.
This is a safety function that helps ensure the chlorinator only
runs when the pump is working.
Note: App screenshots are for demonstration purposes only.
Actual screens may vary.
Manual, or scheduled mode
Two modes are available depending on whether you wish to
manually operate the SilensorPRO, or alternatively you can
create a schedule of operation.
Manual mode
• If in schedule mode, press “switch to manual mode”
• The app will now be in manual mode and you can manually
adjust the speed by pressing the (+/ -) buttons.
• In manual mode, the SilensorPRO will run at the set speed,
even if the phone is not in range.
• Anytime the dial is switched to the Bluetooth position, it will
run at the previous set speed after the priming cycle.
Schedule mode
• There are two options (set a daily cycle, or a weekly cycle) by
pressing the desired box.
• This option allows you to either create a standard “daily
schedule” which will consistently operate the set levels every day;
English
This pop-up
will show
To switch between
manual or schedule
mode you can press
this button.
SilensorPro BT

12
English
There are two options (set a daily cycle or a weekly cycle) by
pressing the desired box. This option allows you to either create
a standard “daily schedule” which will consistently operate the set
levels every day
• The “weekly cycle” option can be set for the entire week, giving
you the ability to alter daily pump cycles depending on the
weather, bather load etc.
Setting a schedule
• Select the box which relates to the time that you require the
pump to operate;
• Select the speed setting you would like the pump to run at any
time. Note: Settings of the pump (1-10) refers to slowest to
fastest operating speed of the pump;
• Once you are happy with your schedule, select “Save”.
Communications between the device and the pump can take
up to 20 seconds depending on the schedule selected;
• The row at the bottom of the screen indicates a summary
of where the schedule is by day and by hour. This summary
screen can easily be altered by swiping up or down the
columns above;
• Note: If using a chlorinator, you must ensure that the “on”
times on the pump correspond to the “on” times on the
chlorinator. The pump will remain in the last used mode,
whether that be manual mode or schedule mode.
Settings
To alter setup settings, click on the settings icon:
This will display the following screens (scroll down screen for full information).
Priming speed / max speed
Each time your pump starts it will go through 2 minutes of priming to ensure there is water in the system. You
can adjust the speed in which it does this between 5 & 10. The speed you set will limit the maximum speed
the pump will run in manual or schedule mode.
Select if you
would like the
daily cycle or the
weekly cycle.
Select to edit the
schedule settings
SilensorPro BT

13
English
Backwash
Can be set as a single speed or alternatively set two speeds and the pump speed will “pulse” between the
two settings. Minimum speed can be set between 1-10, maximum speed can only be set between 5-10.
External time present
Swipe this on or off, depending on whether you are using an external timer/chlorinator.
Disconnect function
The “disconnect from pump” function can be used to:
• Allow another device to control the pump;
• Disconnect so that you will not automatically connect to the pump;
• Please note that the Bluetooth connection will automatically disconnect after a minute of no communication.
Factory reset
This will reset the pump back to factory configurations and allows you to start the setup process again.
• Select “reset pump”;
• Turn dial to “off” position, then turn dial to “Bluetooth”;
• You can then re-pair with your phone. This procedure is in place so that the pump cannot accidentally be reset.
Pump fault finding
In the instance that there is a fault, the following screen will appear, with text description below the fault
indicating how to remedy.
SilensorPro BT
Fault title Fault description
Pump fault – overcurrent
Check that the motor can rotate freely. Unplug for 1
minute and plug back in to reset. If problem persists call
Davey, or an authorised repair agent.
Pump fault – under voltage Supply voltage issue. When power is back to normal,
unplug for 1 minute and plug back in to reset.
Pump fault – over temperature Pump is too hot. Check the ambient temperature. Set to
lowest speed possible if ambient temperature is too high.
Pump fault – motor stalled Check that the motor can rotate freely. Unplug for 1
minute and plug back in to reset.
Pump fault – underload/loss of prime
Check if there’s enough water inside the pump. Unplug for
1 minute and plug back in to reset. If problem persists call
Davey, or an authorised repair agent.

14
English
Pump fault – motor over temperature; or
Pump fault – over voltage; or
Pump fault – earth fault; or
Pump fault – system fault; or
Pump fault – output phase fault; or
Pump fault – power overload; or
Pump fault – EEPROM checksum; or
Pump fault – watchdog error; or
Pump fault – back EFM protection; or
Pump fault – thermistor fault; or
Pump fault – safe torque off; or
Pump fault – internal bus communication; or
Pump fault – application error; or
Pump fault – IGBT temperature high; or
Pump fault – 4mA analogue input fault; or
Pump fault – external fault; or
Pump fault – keypad communication error; or
Pump fault – fieldbus communication error; or
Pump fault – fieldbus interface error.
Unplug for 1 minute and plug back in to reset. If problem
persists call Davey, or an authorised repair agent.
7. ADVANCED SETUP OF SP400BT
External AUX connections overview
Your SilensorPRO SP400BT has an RJ45 style waterproof socket to allow for external control of motor speed
and other functionality. A standard RJ45 network cable (without boot) can be used.
Figure 1: RJ45 Plug installed in housing (from rear)
It is recommended to keep the cable length between the pump and external pool controller or heater as short
as possible. There are two major pin configurations as shown below:
RJ45 PINOUT
Figure 2: RJ45 pin connections

15
English
Pin Function T-568A T-568B
1 RS485 +ve Green/white Orange/white
2 RS485 -ve Green Orange
3 Digital input 3 Orange/white Green/white
4 Analogue input Blue Blue
5 0V DC ground Blue/white Blue/White
6 Digital input 2 Orange Green
7 Digital input 1 Brown/white Brown/white
8 24V Brown Brown
Check that the cable you use has the above colour coding pins 1 through to 8. If an alternative colour coding
has been used make sure to record the colour which corresponds to each pin to avoid misconnection at
the pool controller or heater. If an alternative cable is used make sure the analogue input and ground are a
twisted pair.
The 24V connection is only to be used as a reference for the digital inputs – DO NOT power external
equipment from this supply rail.
Digital control inputs
The 3 digital inputs allow for overriding the dial speed setting. To set one of these inputs either:
• Connect an isolated 24V supply between DC ground and the digital input pin
• Connect the switched contacts of a relay between the 24V pin and the digital input
The fixed speeds (as a proportion of full speed) are:
Input 1 (Pin 7) Input 2 (Pin 6) Input 3 (Pin 3) Output Speed
0 0 0 Dial
0 0 24V 33%
0 24V 0 50%
0 24V 24V Backwash
24V 0 0 100%
24V 0 24V 67%
24V 24V 0 83%
Interfacing equipment to the SilensorPRO SP400BT
WARNING! A qualied electrician is required to carry out the work shown below.
The SilensorPRO SP400BT can be controlled by other equipment to turn it on to high speed (or any other
pre-set speeds, see section 8 for details). This is to achieve maximum efficiency, for example, when using a
gas heater, or a heat pump. If the equipment has an isolated 18- 24V DC signal output, simply connect pin 7
to 24V DC positive and pin 5 to DC ground as shown in the following diagram:
Pin7 (Brown/White)
Pin5 (Blue/White)
+ 18 ~ 24V DC
DC Ground
Controlling Equipment
To RJ45 Socket of VSD Pump

16
English
If the controlling equipment does not have 18-24V DC voltage output as above, but has 24V AC, 230V AC,
12V AC, or 12V DC etc. signal output, a suitable relay (the coil voltage must be the same as the signal output
voltage of the controlling equipment) can be used to do this job as mentioned above, and shown in the
following diagram:
To RJ45 Socket of VSD Pump
Controlling Equipment
Pin8 (Brown)
Pin7 (Brown/White)
Relay (Dry)
Contact
Relay Coil, must be
the same voltage
as the equipment
signal output
If the controlling equipment already has the relay output (dry contact) for controlling purpose, an extra relay
is not necessary, simply connect Pin 7 (Brown/White) and Pin 8 (Brown) to the dry contacts as shown in the
left part of the diagram above.
Analogue control inputs
Speed control can also be achieved by connecting a 0-10V DC signal at the input on pin 4 (ground at pin 5).
As soon as a signal above 0V is registered, this input will take priority over dial settings. For example, 10V
DC will change pump speed pump to 100%, 5V DC will change pump speed to 50% etc.
Pin4 (Blue)
Pin5 (Blue/White)
+ 0~ 10 V DC Signal Output
of controlling equipment
DC Ground
Controlling Equipment
To RJ45 Socket of VSD Pump
8. TECHNICAL SPECIFICATIONS
Model SP200BT SP400BT
Max head (m) 20 26
RPM Speed 1 – 10: 1,500 – 3,600 Speed 1 – 10: 1,050 – 3,100
Backwash speed: variable
Enclosure class (IP) 45
Insulation class F
Voltage (V) 220 – 240VAC
Supply freq (Hz) 50/60 Hz
Motor input power: (W) Speed 1: 128 Speed 1: 126
Speed 5: 524 Speed 5: 728
Speed 10: 1,111 Speed 10: 1,639
Backwash speed: variable
Operating Limits
Max water temperature: 40°C 40°C
Max ambient temperature: 50°C 50°C

17
English
Dimensions
A
C
E
F
G
H
I
D
B
A B C D E F G H I Mounting Holes
Diameter
Inlet/Outlet
PVC
Net
Weight
(kg)
305mm 670mm 320mm 350mm 65mm 230mm 380mm 200mm 250mm 10mm 50/63 14
9. USING YOUR SILENSORPRO WITH A SALT WATER CHLORINATOR
Chlorinators require a minimum flow rate through the chlorinator cell for best efficiency and cell life. Please
refer to your chlorinator guide as a reference for the flow required by your pool system. Ensure flow rate is
enough to cover your chlorinator cell plates completely at all times of operation.
10. OPERATING YOUR SUCTION POOL CLEANER
Before installing or purchasing a pool cleaner for use with your SilensorPRO, it is important to know the
minimum flow rates required for it to operate effectively.
To operate a suction pool cleaner:
• Activate the High Flow setting (10) and allow the pump to fully prime by running for around 2 minutes. You
will know the pump is primed when you can see a strong flow of water through the clear leaf basket lid.
• When all air is expelled from the leaf basket, connect the pool cleaner hose firmly into the skimmer plate or
dedicated wall suction.
• Select the speed setting that enables best performance from your suction pool cleaner. Speed 3 to 7 should
be ample for most cleaners, however if the cleaner requires better performance, select speeds 7 to 10.
• The cleaner should only be connected for as long as is required to clean the surface of your pool. When
cleaning is complete, disconnect the cleaner and remove the skimmer plate from the skimmer box.
• Reactivate the most efficient speed setting for daily filtration. Speeds 1 to 4 is recommended.
NOTE: To get optimum energy efciency from your SilensorPRO, DO NOT keep the
suction pool cleaner connected when cleaning is not required.
NOTE: If the SilensorPRO is hard-wired into a time clock, or another automatic control,
the wiring should be removed by a qualied technician.
• Close the water valves on the pool return and the SilensorPRO inlet pipework;
• Remove the discharge & suction barrel unions taking care not to lose the o-rings;
• Move the pipework with the barrel unions attached until the SilensorPRO can be pulled clear.
NOTE: When making any enquiries about your SilensorPRO be certain to quote the
model number from the nameplate located on the motor.

18
English
11. TROUBLE SHOOTING
If the pump runs but there is no water flow, or water flow is reduced, the following conditions may apply:
• The filter requires backwashing or it is blocked. Refer to the relevant section in the Filter Manual;
• The pump is not primed. Re-prime as per instruction in ‘Starting the pump’;
• There are air leaks in the suction piping. Check all piping and eliminate leaks, also check for a loose
strainer basket lid. Air bubbles in the water flowing back to the pool would indicate a leak in the suction to
the pump allowing air to enter the pipework.
• A leaking pump shaft seal may also prevent operation. Evidence of this would be water on the ground
under the pump.
• The pump is not able to get water from the pool. Check that the valves to the pump are fully open and
that the pool water level is up to the skimmer box. Typically, half way up the face of the skimmer box is
sufficient;
• Blockage in the piping or pump. Remove the strainer basket and check for any blockage to the pump
impeller entry. Check the skimmer box for blockage.
If the pump does not operate, the following conditions may apply:
• The power is not connected. For 220-240 volt only, check the power point by plugging in a portable
appliance to ensure power is available. Also check fuses and the main power supply switch;
• Automatic overload is tripped. The pump has an in-built thermal overload which will reset automatically
after the motor has cooled following an overheating period. Determine the cause of the overload tripping
and rectify. Reset the pump by switching the power OFF for 30 seconds;
• Blockage is preventing the pump from rotating.
12. REMOVAL OF THE SILENSORPRO FROM PIPEWORK
Should it be necessary to remove the SilensorPRO, follow these instructions:
• Switch off the power and remove the plug from the power source;
• Unscrew the barrel union on the front and top of the pump, releasing the pump from the pipework;
• Slide the pump out of position.
13. WATER QUALITY
RECOMMENDED POOL WATER CHEMISTRY
POOL WATER
BALANCING Free Chlorine (ppm) pH Total Alkalinity TA (ppm) Calcium Hardness (ppm)
Stabiliser –
Cyanuric Acid
(ppm)
Optimum
Salt Level
(ppm)
Ideal Reading / Range 1 – 3
Concrete &
Tiled Pools:
7.4-7.6
Other Surfaces:
7.2-7.4
Concrete & Tiled
Pools – 80-120.
Other Surfaces –
125-150
Concrete & Tiled
Pools – 200-275.
Other Surfaces –
100-225
25 – 50 4500 – 6000
To Increase
Increase output of
chlorinator. Add
chlorine. Increase
ltration time.
Add buffer
or soda ash
(Sodium
Carbonate)
Add Sodium
Bicarbonate Add Calcium Chloride Add Cyanuric Acid Add Salt
To Decrease Add Muriatic
Acid Add Muriatic Acid or Dry Acid
Partially drain &
rell pool with lower
hardness water to
dillute
Partially drain
& rell pool to
dillute
Partially drain
& rell pool
to dillute
Frequency of Testing Weekly Weekly Weekly Weekly Regularly Regularly

19
English
Routine Maintenance tasks - to maximise the life of your pool equipment & personal
safety, use this checklist once a week. Turn pump off rst.
a. Make sure that any pressure gauges are in working condition and the operating
pressure is within limits as specied on the product.
b. Make sure that each suction inlet and main drain has a cover that is securely
attached and in safe working condition.
c. Make sure that all skimmer covers are securely attached and in safe working
condition. These should be replaced every 3 to 4 years.
d. Remove any obstructions or debris from the main drain cover.
e. Ensure the skimmer baskets and the pump hair and lint pots are free of leaves and
debris at least once a week.
f. Remove obstructions and combustibles from around the pump motor.
g. Make sure all wiring connections are clean and that all wiring and electrical
equipment is in good condition. Damaged wiring must be repaired or replaced by a
qualied electrician as soon as damage is discovered.
h. Check water balance and sanitiser levels at your local pool shop.
POWER CONNECTIONS AND WIRING MUST BE CARRIED OUT BY AN AUTHORISED
ELECTRICIAN.
DANGER Hazardous suction. Do not block water entry into ltration system with any
part of your body as the pressure can trap hair or body parts, causing severe injury or
death. Do not block suction.
Turn off pump immediately if someone becomes trapped.
Do not use or operate swimming pools, spas or spa baths if a suction cover is broken,
missing or loose. Two suction covers and inlets must be provided into every pump to
avoid suction entrapment.
In accordance with AS/NZS60335.2.41 we are obliged to inform you that this device is
not to be used by children or inrm persons and must not be used as a toy by children.
CAUTION! Do not add chemicals directly to the pool skimmer. Adding undiluted
chemicals may damage pump and lter and void warranty.

20
AUSTRALIA
Head Office
6 Lakeview Drive,
Scoresby, Australia 3179
Ph: 1300 232 839
Fax: [phone]
Email: [email protected]
Website: davey.com.au
Davey Water Products Pty Ltd
Member of the GUD Group
ABN 18 066 327 517
NEW ZEALAND
7 Rockridge Avenue,
Penrose, Auckland 1061
Ph: 0800 654 333
Fax: [phone]
Email: [email protected]
Website: daveynz.co.nz
EUROPE
ZAC des Gaulnes
355 Avenue Henri Schneider
69330 Meyzieu, France
Ph: [phone]
Fax: [phone]
Email: [email protected]
Website: daveyeurope.eu
INTERNATIONAL
Australian Head Office
Ph: [phone]
Fax: [phone]
Email: [email protected]
Website: davey.com.au
® Davey is a trademark of Davey Water Products Pty Ltd. © Davey Water Products Pty Ltd 2019.
NORTH AMERICA
Ph: [phone]
Email: [email protected]
Website: daveyusa.com
MIDDLE EAST
Ph: [phone]
Fax: [phone]
Email: [email protected]
Website: daveyuae.com
P/N 403308-1
Davey warranty
Davey Water Products come with guarantees that cannot be excluded under the local country Law. You are
entitled to a replacement, or refund for a major failure and compensation for any other reasonably foreseeable
loss, or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable
quality and the failure does not amount to a major failure.
Davey Water Products Pty Ltd (Davey) of 6 Lakeview Drive Scoresby VIC 3179 provides the following warranty in
relation this product. Davey warrants that, subject to the exclusions and limitations below, the product will be free
from defects in material and workmanship for a period of 24 months from the date of purchase (warranty period).
If a defect appears in the product before the end of the warranty period and Davey finds the product to be
defective in materials or workmanship, Davey will, in its sole discretion, either:
1.replace or repair the product or the defective part of the product free of charge; or
2.arrange for the product or the defective part of the product to be repaired or replaced by a qualified repairer
free of charge.
Davey reserves the right to replace defective parts of the product with parts or components of similar quality,
grade and composition where an identical part or component is not available. Goods presented for repair may
be replaced by refurbished goods of the same type rather than being repaired.
Warranty claims:
1.If a fault covered by the warranty occurs, Davey suggests, in the first instance, that you contact the Davey
Dealer from whom you purchased the product. Alternatively, you can: phone the Davey Customer Service line
on 1300 367 866 in Australia, or 0800 654 333 in New Zealand; send a written letter to Davey at the address
listed above; or email [email protected].
2.Any warranty claim must be accompanied by proof of purchase and details of the alleged defect.
3.On receipt of your claim, Davey will seek to resolve your difficulties, or if the product is faulty or defective,
advise you on how to have your product repaired, obtain a replacement or a refund.
4.This warranty is limited to defects in the materials or workmanship in the product and does not cover
expendable parts or the replacement of parts due to fair wear and tear.
Exclusions:
The warranty will not apply where:
1.
The Product has been modified, repaired or serviced by someone other than Davey, or an authorised repairer.
2.Davey cannot establish any fault in the product after testing.
3.The product has been used other than for the purpose for which it was designed.
4.The product has been subject to abnormal conditions, whether of temperature, water, humidity, pressure,
stress or similar.
5.The purchaser has used or fitted non-genuine, or non-approved parts and accessories.
6.The Product defect has arisen due to abuse, misuse, neglect or accident.
7.The Product defect has arisen due to the purchaser’s failure to properly maintain or use the product.
8.The damage has been caused by the use of chemicals and detergents not approved by Davey.
Should your Davey product require repair or service after the warranty period, please contact your nearest Davey
Dealer, or phone or email the Davey Customer Service Centre. For a complete list of Davey Dealers please visit
our website.
