DAYLIFF DPL 550 User manual

DPL550/750/1100
DPL1100VS
DPX
DPL/ DPX
Swimming Pool Pumps

SPECIFICATIONS
1.
1
2.
WARNINGS 3
3. INSTALLATION 6
5.2 Speed setting buttons 9
5.3 Pump starting and stopping
9
5.1 Buttons and display 9
4. OPERATION AND MAINTENANCE 7
5. VARIABLE SPEED PUMP OPERATION 8
5.4 High speed start function
9
5.5 Memory function when power off
9
5.6 Over/ under voltage protection
9
5.7 Overload protection
10
10
5.8 Locked rotor protection
10
5.9 IPM module
6. TROUBLE SHOOTING 10
7. TERMS OF WARRANTY 12
© Davis & Shirtliff Ltd 2020
Contents herein are not warranted

DPL550/750/1100
DPL1100VS
DPX
DPL1100
DPL750
DPL550/750/1100
DPL550
510 15 20 250
5
10
15
20
30% 50%
80%
100%
DPL1100VS
510 15 20 250
5
10
15
20
DPX 3000
DPX 1500
DPX 1100
10 20 30 40 700 50 60
5
10
15
20
PUMP
The DAYLIFF DPL range of swimming pool pumps are quiet running and reliable products
suitable for all domestic pool applications. All models feature a large strainer basket with
easy-open transparent cover and connecting unions and all hydraulic components are
made from high strength glass reinforced corrosion resistant polypropylene for long life.
Fixed and variable speed model options are available, variable speed providing three
pre-set speed options for reduced energy consumption in periods of low pool usage.
Congratulations on selecting a Dayliff DPL/DPX Swimming Pool Pump.
They are manufactured to the highest standards and if installed and
operated correctly will give many years of efcient and trouble free
service. Careful reading of this Installation Manual is therefore
important, though should there be any queries they should be referred
to the equipment supplier.

The DAYLIFF DPX range of swimming pool pumps are quiet running and reliable
products suitable for light and medium duty pool applications. All models feature a large
strainer basket with easy-open transparent cover and connecting unions and all
hydraulic components are made from high strength glass reinforced corrosion resistant
polypropylene for long life.
MOTOR
DPX - Asynchronous 2-pole TEFC motor designed for continous duty. Single phase
motors are provided with built-in thermal overload protection and can be connected
directly to the mains electrical supply through a 10A MCB or switch fuse. Three phase
motors need to be connected through a DOL starter.
DPL 1100 VS Variable Speed - Asynchronous motor fitted with an inbuilt frequency
converter to provide three pre-set operating speeds at 100%, 80% and 50% of maximum
as well a fractional speed adjustment facility down to 30%. Intelligent protection from
overvoltage, under voltage, overload and short circuit is also provided for extended
motor life. The motor is also suitable for 50&60Hz frequency supply.
Motor control is through an easy to operate control module on the pump which provides
various control options and digital speed indication.
Insulation Class: F Enclosure Class: IP55 Voltage: 1x240V
Speed: 2800rpm
OPERATING CONDITIONS
Pumped Liquid: Thin, clean non-chemically aggressive liquid without solid particles
or fibers
0
Max. Fluid Temperature: 60 C
0 0
Max Ambient Temperature: -10 C - +40 C

The pump may contain small
quantity of residual water from
testing. It is advisable to flush
briefly with clean water before
final installation.
If the controller or motor is
damaged, do not install or run
the motor; or it may result in
equipment damage or personal
injury.
Take note of the technical data shown on the data plate.

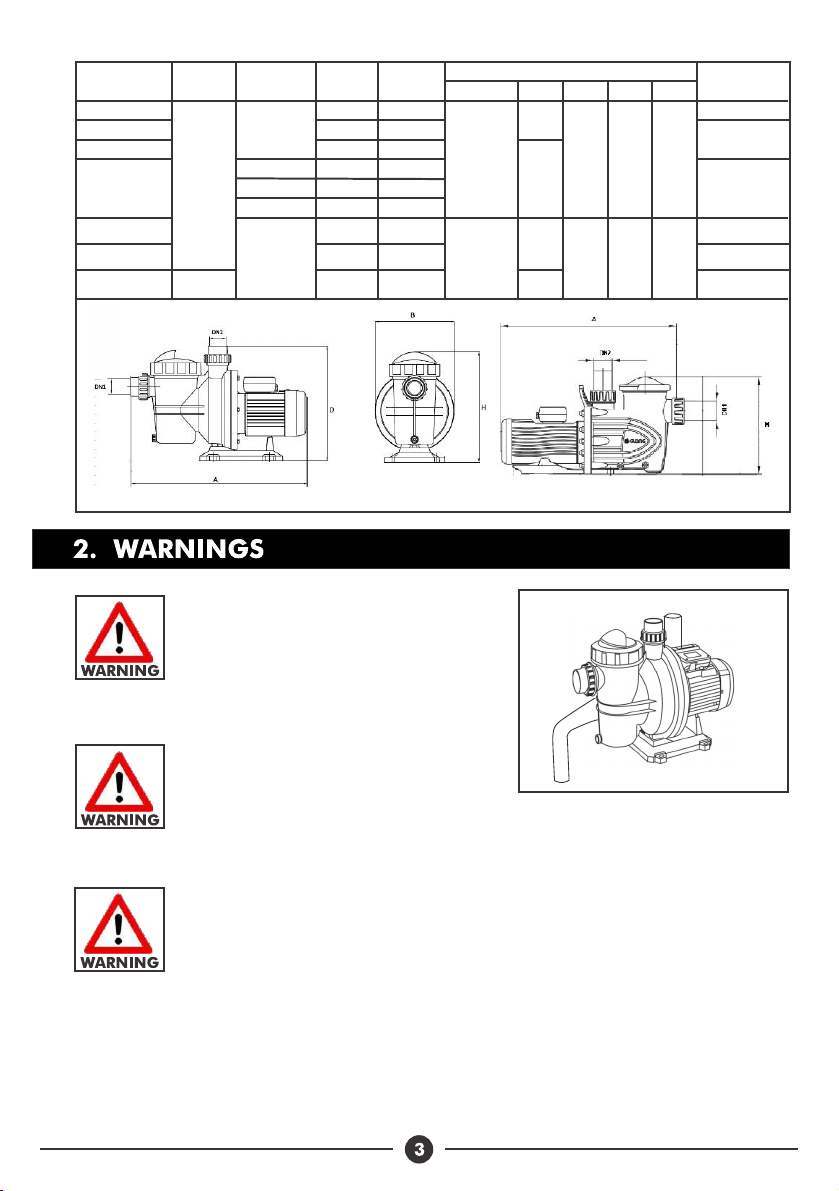

PUMP DATA
DPL 750
Model Dimensions (mm) Weight
(kg)
AHDB
Power
(kW)
Current
(A)
5.3
4.2
7.4
9
5.5
2.2
550
238
570
330
345
13
14
15
0.75
0.55
1.1
1.6
0.9
0.4
DPL 1100
DPL 1100VS
Speed
(rpm)
2850
100%/3500
80%/2850
50%/1800
DN1/DN2
50
DPL 550
DPL
656
708
358
1.1
75
1.5
3
6.5
8.5
6.4
DPX3000
DPX1500
DPX1100 22
24
31
DPX
Voltage
(V)
1x240
3x415
2850

The mains voltage must be the same as that shown on the
motor plate.
Ensure the earth connection is properly done.
The pump should be installed in a well protected and
ventilated place.
The pump should never run dry.
The motor should not be wrapped in plastic bags due to risk
of condensation.

In the event of failure of On/Off button, a separate emergency
power-off button may be installed in the control system,
otherwise it may result in personal injury.
Do not touch the terminals of the controller, even in shutdown
state as the terminals may still be electrified, otherwise it may
result in possible electric shock.
Do not touch the heat sink, as it may be hot and cause injury.
The factory reset parameters have been programmed to meet
customer requirements. Do not arbitrarily modify the controller
parameters as it may cause equipment damage.
The pump should be turned off before repairing, to avoid
accidents.
AC input power must not be connected to output terminals U, V,
W of the controller, as it will cause damage to the inverter.
Do not disassemble the cover when the pump is switched on, as
it may result in possible electric shock.
When the controller is set on automatic fault reset or after
power off, protection measures should be taken otherwise it
may result in personal injury.
Single phase motors are provided with overload protection;
they are connected directly to the power mains.
Do not make a static voltage test of the controller, as it will
cause damage to the controller.
For DPL 1100VS,

ŸFor installation above water level, use a shorter
suction pipe to reduce priming time.
ŸInstall the pump horizontally as close as possible
to the edge of the pool.
ŸProvide adequate support for the suction and
delivery pipes so that they do not weigh down on
the pump. Do not make the couplings between
the pipes too tight.
ŸDo not immerse the motor in water.
ŸTo avoid problems in suction, make a positive
slope of the suction pipe towards the pump.
ŸEnsure proper tools and equipment are used for
all connections.
ŸBefore starting the motor the first time or when
system is drained, the pump should be primed
by opening the lid of the pump leaf basket and
adding water to cover the basket.
ŸWeek l y mai n ten a nce o f the p ump i s
recommended. It is important that pump and
skimmer baskets are cleaned and any debris
removed.
ŸInstallations should be done on a firm flat base not
exposed to flooding.
ŸDo not over tighten fittings into the inlet and outlet
of the pump.
ŸFor installation below water level, fill the pump
slowly and completely open the valves in the
suction pipe and on the delivery side expel the air.
Installation, electrical connection and commissioning must be
carried out by skilled personnel in compliance with local safety
regulations. Failure to comply with these instructions causes
risk to personal safety, damages the equipment and validates
warranty.
3. INSTALLATION

Installation assembly and disassembly must be
performed by qualified personnel.
Any modification without prior authorisation relieves the
manufacturer of any kind of liability.
Ensure the power is off before connecting the wires or it
may result in electric shock or fire.
Earth terminal should be grounded or the controller and
the motor housing may be electrified.
Do not touch the main circuit terminals. The terminal
wires must not make contact with the casing of the
controller, otherwise it may result in electric shock .
4. OPERATION AND MAINTENANCE
ŸSwitch the pump/filter off before doing any
maintenance, cleaning or other work.
ŸOnly perform maintenance which is described in
the instruction manual.
ŸAll other work must be performed by a qualified
person.
ŸIn the interest of safety and reliability, only use
genuine Dayliff spares, or else warranty will
become null and void.
ŸR e f e r t o D a y l i f f w e b s i t e -
espares.dayliff.com for spares support.
ŸNever run the pump dry i.e without water, as this
will damage the impeller and shaft seal.
ŸWeekly inspection of the pump and filter is recommended.
ŸIt is important that the pump and skimmer baskets are cleaned and any leaves or
debris removed before back washing.
ŸClean plastic parts with a damp cloth. Aggressive cleaning agents can damage
plastic parts.
ŸDo not wash down the electrical components with water.

ŸThe pump is equipped with a thermal overload protection. If overload occurs during
operation, the build in overload protection automatically deactivates the pump. The
pump will switch on automatically after a cooling period of approximately 3 minutes,
ensure the cause of the overload is identified and addressed.
ŸAll work listed in this manual must be performed regularly. If this maintenance work
cannot be performed by the end user, an authorised person must be commissioned to
perform this work. If these operations are neglected, faults may arise which are the
responsibility of the user. These include;
1. Damage to the motor, due to untimely or inadequate maintenance or cleaning
of the cooling fan cover.
2. Corrosion or other damage caused by incorrect storage of chemicals in pump
house.
3. Damage due to the use of spare parts which are not original
4. Damage due to maintenance and repair work not carried out by qualified
technicians
Always wait at least 10 minutes after power off to ensure no
residual voltage before maintenance and inspection,
otherwise it may cause injury.

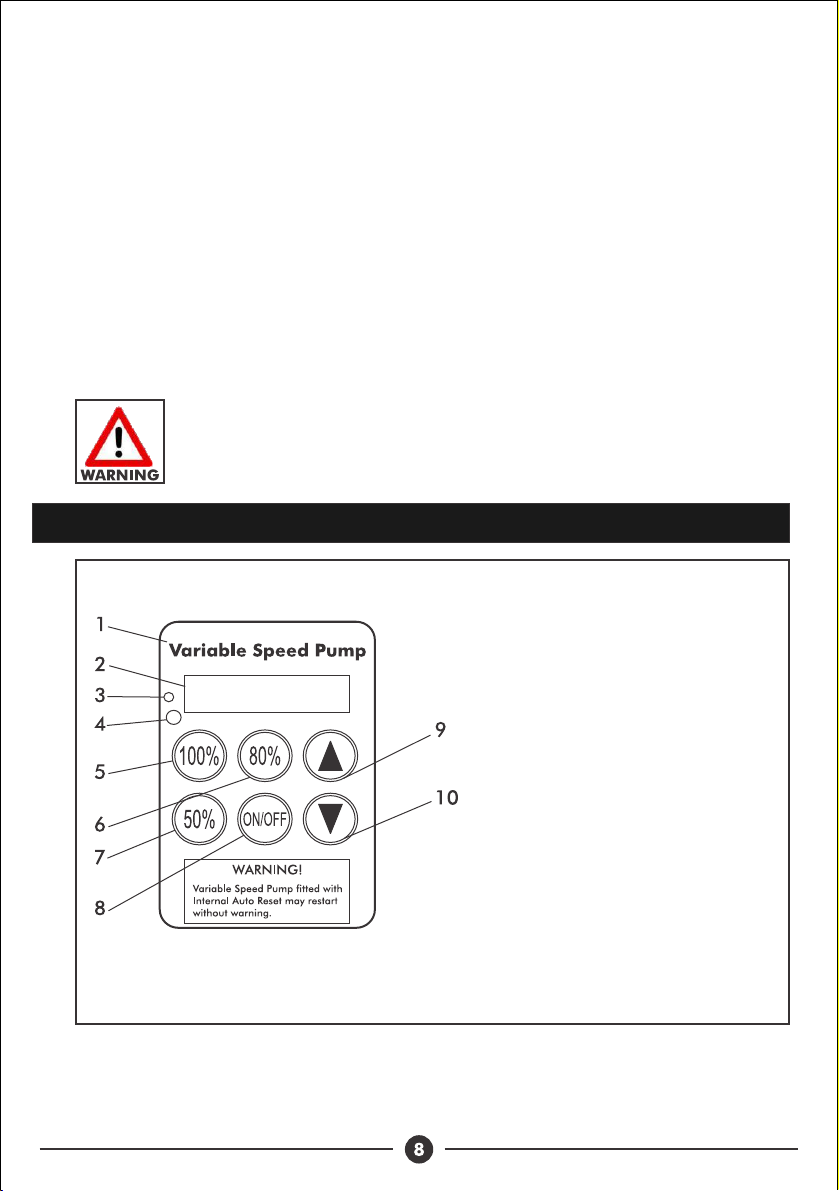

5. VARIABLE SPEED PUMP OPERATION
1. Name
2. The display window
3. The power indicator
4.The remote control signal
receiver
5.100% button: the maximum
speed setting button (or timing
enter button).
6.80% button: 80% speed
setting button
7.50% button: 50% speed
setting button
9.Speed increase button (or
timing setting key)
10. Speed reduction button (or
timer setting key)

The pump operator panel is equipped with 100% full speed button, 80% speed
button, 50% speed button, switch button, speed increase and reduction buttons. The
LED screen displays running speed or the maximum speed value corresponding to
the percentage of the setting speed. To set speed, press any corresponding speed
button either 50%, 80% or 100% then reduce or add as desired using the
buttons.
On pressing the speed buttons (100%/80%/50%), the LED screen displays the
current set percentage (100%/80%/50%), after 1 second, it will flash 3 times for
confirmation. After the system is confirmed, the LED shows the appropriate speed
value. For example; if rated speed of the motor is 2820rpm, after setting the speed to
80%, the LED screen will display 80.0; and will flash 3 times indicating set
successfully, the display of LED screen will also switch to speed value, as 2256.
5.1 Buttons and display
5.2 Speed setting buttons
NOTE
Each dial on the buttons increases/ reduces speed by 5%.
5.3 Pump starting and stopping
ŸWhen the controller is powered, the motor starts immediately, otherwise the
pump needs to start with the start button.
ŸWhen the pump is not running on pressing the 100%/ 80%/ 50% button or
ON/OFF button, the LED screen will display the setting for 3secs, then the motor
will start working.
ŸWhen the pump is running, on pressing the STOP button, the controller will cut
out the output power, and the motor will be slowly stopped. After the motor is
stopped, it can only restart after 3secs.
5.4 High-speed Start Function
After starting at any speed, the motor will run for three minutes in high speed, within
three minutes the power light shows red except for the ON/OFF button, the other
buttons do not function when pressed. After 3 minutes, the power light turns green
from red indicating that the motor can be adjusted for speed. This is a factory setting
and cannot be changed.
5.5 Memory function when power off
5.6 Over/ Under voltage protection
If the system suddenly loses power, the motor running status will be recorded by the
system; If the power is restored, after three minutes high speed running, the system
will revert to the original operation mode.
The pump may not run if the AC voltage detected is more or less than the set Value,
which is >190V but <270V.

6. TROUBLE SHOOTING
No water in the prefilter or
clogged prefilter
The pump is not drawing
water Closed valve in the pipes
Clean prefilter
Allow water into suction side
Air getting into the suction
pipe
Open valves
Prime the suction line
The motor is not running
The electric power supply
is turned off
M o t o r e l e c t r i c a l
connections are faulty
Motor shaft locked by a
faulty ball bearing
Turn on power
Check and rectify connection
Replace ball bearing
10
Air getting into the suction
pipe
Presence of foreign bodies
in the pump body
Cavitation
Noisy pump
Prime the suction pipe
Remove foreign bodies
Prime pump and get rid of air
5.9 IPM module
When IPM fails, the motor stops running immediately which is registered as
malfunction. The motor will then clear the fault automatically 30seconds later and
restart. After three consecutive attempts, the pump will shut down and will need to be
manually cleared/restarted before running.
5.7 Overload protection
If the operating current is more than the set value of 6.2A, the pump will stop running
which is registered as malfunction fault.
Upon starting the pump, the current is monitored for 5secs, if the value exceeds the
set value of 6.2A, the controller will stop the pump which is registered as Locked
rotor. After 10seconds, the pump will restart, the current is monitored again and if
the situation persists for three consecutive times, the motor will shut down completely
which is registered as malfunction of the pump. Rectify the fault and restart the
pump.
5.8 Locked rotor protection

Low flow rate; low
pressure in filter
Low flow rate; high
pressure in the filter
Basket or impeller clogged
Air getting into the suction
pipe
Delivery pipe choked
Pump filter clogged Clean pump filter
Straighten the pipe
Prime suction pipe
Clean basket or impeller
Wrong impeller fitted
Wrong capacitor fitted
Mechanical overload from
poor quality bearings or
impeller or diffuser blocked
with grass or other solids
Clean the diffuser
The pump is not priming
properly
Pump is installed too high
above water level of the
pool
Sucking air
Diffuser incorrectly fitted
inside pump
Fit a spring loaded non return valve into
suction line coming up from underground
before entering pump
Replace the impeller
Replace the capacitor
Replace bearings and impellers
Diffuser blocked by debris
Prime the suction pipe
Correct the diffuser fitting
11

7. TERMS OF WARRANTY
12
ii) Standard Warranty
General Terms
If equipment failure occurs in the normal course of service having been
competently installed and when operating within its specified duty limits
warranty will be provided as follows:-
• Up to six months - The item will be replaced or repaired at no
charge.
• Over 6 months, less than one year - The item will be replaced or
repaired at a cost to the customer of 50% of the Davis & Shirtliff
market price.
The warranty on equipment supplied or installed by others is conditional upon
the defective unit being promptly returned free to a Davis & Shirtliff
ofce and collected thereafter when repaired. No element of site repair is
included in the warranty and any site attendance costs will be payable in full at
standard chargeout rates. Also proof of purchase including the purchase
invoice must be provided for a warranty claim to be considered.
I) General Liability
• In lieu of any warranty, condition or liability implied by law, the liability of
Davis & Shirtliff (hereafter called the Company) in respect of any defect or
failure of equipment supplied is limited to making good by
replacement or repair (at the Company's discretion) defects which
under proper use appear therein and arise solely from faulty design,
materials or workmanship within a specified period. This period
commences immediately after the equipment has been delivered to
the customer and at its termination all liability ceases. Also the warranty
period will be assessed on the basis of the date that the Company is
informed of the failure.
ŸThis warranty applies solely to equipment supplied and no claim for
consequential damages, however arising, will be entertained. Also the
warranty specifically excludes defects caused by fair wear and tear, the
effects of careless handling, lack of maintenance, faulty installation,
incompetence on the part of the equipment user, Acts of God or any other
cause beyond the Company's reasonable control. Also, any repair or
attempt at repair carried out by any other party invalidates all
warranties.

INS395A-05/18
