Days Strider bootie 3 User manual

INFO MANUAL DAYS 2007

(Dealer's stamp)(Dealer's stamp)

Days has a policy of continual improvement. We reserve the right to change specification without prior notice.All contents of this manual

No reproduction in any from of this manual in whole or in part (except for brief quotations in critical articles or reviews),may be made without the written

authorisation from Days.

OPERATING MANUAL

Healthcare

Days Healthcare UK Ltd

North Road

Bridgend Industrial Estate

Bridgend

CF313TP

(t)+044 1656 66 47 00

(f)+044 1656 66 47 50

(e)[email protected]

(w)www.dayshealthcare.com

Days Healthcare UK Ltd

STRIDERSTRI D E R

bootie 3 and bootie 4

Using your bootie safely depends upon your diligence in

following the warnings, cautions and instructions in this

manual. Using your bootie safely also depends upon your

good judgement and/or common sense, as well as that of

your Provider, Carer or Health Professional.

Always think safety!

bootie safely depends upon your diligence in

following the warnings, cautions and instructions in this

manual. Using your bootie safely also depends upon your

good judgement and/or common sense, as well as that of

your Provider, Carer or Health Professional.

Always think safety!

FOREWORD

Re-assembling your ...................

Battery and battery charging...................

Care and maintenance.........................

Basic fault finding............................

Technical specification.........................

Circuit diagrams.............................

Advisory safety notice.........................

...........................

Optional accessories..........................

Disposing of the scooter.......................

Guarantee terms.............................

Service history..............................

bootie

Congratulations on the purchase of your bootie .

Please read this User Instruction Manual carefully before you

attempt to operate your Scooter. Your User Instruction

Manual will assist you to get the most from your machine.

This manual contains important information regarding the

safe operation and maintenance of your scooter.

Before beginning to use your Scooter, make sure

you completely read and understand all instructions

thoroughly. Please observe the "Rules for safe use" and the

Safety Instructions outlined on pages 4, 5, 10, 11, 12,

13&14 of this manual. If you have any queries concerning

operation or maintenance, consult your authorised Days

dealer.

Please keep in mind that the operator of the Scooter is

responsible for accidents or hazards occurring to other

people or their property.

bootie .

Please read this User Instruction Manual carefully before you

attempt to operate your Scooter. Your User Instruction

Manual will assist you to get the most from your machine.

This manual contains important information regarding the

safe operation and maintenance of your scooter.

Before beginning to use your Scooter, make sure

you completely read and understand all instructions

thoroughly. Please observe the "Rules for safe use" and the

Safety Instructions outlined on pages 4, 5, 10, 11, 12,

13&14 of this manual. If you have any queries concerning

operation or maintenance, consult your authorised Days

dealer.

Please keep in mind that the operator of the Scooter is

responsible for accidents or hazards occurring to other

people or their property.

Please read and follow all instructions in this Users

Instruction Manual before attempting to operate your

for the first time. If there is anything in this manual

that you do not understand, or if you require additional

assistance for the operation please, contact your Authorised

bootie

Days dealer

bootie

Days dealer

CONTENTS

Introduction.................................2

Product description............................3

Purpose of your ........................ 4

Guildelines for safe use......................... 5

Getting to know your ...................6

Operating your ........................ 7

Freewheeling your .......................10

Safety instructions and warnings........... .......10

Safety warnings and instruction labels ..............14

Learning to get about ..........................14

Transporting your for journeys away .........17

bootie

INTRODUCTION

Your has numberous features not found on

other power Scooters. With proper care and maintenance,

you will enjoy many years of dependable service.

bootie

ootie

proper mechanical operation. Trouble shooting

guidelines, methods of detecting improper operation and

making minor adjustments are included in this manual.

Follow all recommendations to obtain trouble free, safe and

enjoyable operation of your bootie.

Days bootie

Your b needs to receive maintenance

at regular intervals and should be inspected frequently for

Please remember that when it comes to service and repairs,

your authorised dealer knows your best.

bootie

ootie

proper mechanical operation. Trouble shooting

guidelines, methods of detecting improper operation and

making minor adjustments are included in this manual.

Follow all recommendations to obtain trouble free, safe and

enjoyable operation of your bootie.

Days bootie

Your b needs to receive maintenance

at regular intervals and should be inspected frequently for

2 3

PRODUCT DESCRIPTION

bootie FEATURE GUIDE

Your supplied has fitted as

standard the following features:

Rear-wheel drive via sealed drive axle.

12 A/H sealed non-maintenance lead-acid batteries.

Manual charging system.

Off-Board charging facility.

Seat with folding backrest, height adjustment and

adjustable width arm-rests.

A multi-positional handlebar for greater comfort.

A simple 'wig-wag' type control lever situated on the

handlebar, controls speed, braking and direction.

Steering is controlled by a handlebar attached to a fork

system containing the single front wheel for .

Steering is controlled by a handlebar attached to a linkage

system containing the single front wheels for .

Independent braking systems.

bootie

bootie 3

bootie 4

bootie

bootie 3

bootie 4

'State of the art' micro-controller electronics ensures a

smooth , comfortable and safe drive on most surfaces

and gradients.

Two piece steel chassis for ease of transporting.

Your Scooter can be dismantled into separate components

without the use of tools for ease of transporting.

However, your Scooter is not designed to transport the

user in a moving vehicle; for advice on transporting

consult your selling agent.

Simple to remove battery pack.

Cable free when taken apart.

The product should be serviced as recommended by

an approved Days distributor in order to ensure

safe, reliable operation. For details and list of options

available for users, refer to the accessories section of

this manual.

'State of the art' micro-controller electronics ensures a

smooth , comfortable and safe drive on most surfaces

and gradients.

Two piece steel chassis for ease of transporting.

Your Scooter can be dismantled into separate components

without the use of tools for ease of transporting.

However, your Scooter is not designed to transport the

user in a moving vehicle; for advice on transporting

consult your selling agent.

Simple to remove battery pack.

Cable free when taken apart.

The product should be serviced as recommended by

an approved Days distributor in order to ensure

safe, reliable operation. For details and list of options

available for users, refer to the accessories section of

this manual.

Adjustable steering handle bars

Console

Charging socket

Removable basket

Wireless battery pack

Floor mat

Plastic rear wheels with soli tyres

Solid front wheel

Adjustable seat

Rear bumper

Speed control lever

Steering lock pin

Seat swivel lever

10.

11.

12.

13.

Your is suitable for persons who

require independent mobility combined

with comfort, manouevreability, reliability

and a product that needs a minimal

amount of maintenance.

The intended user should posses some

degree of ability with the use of both arms and hands,

reasonable balance and eyesight, and a degree of spatial

awareness. The user should have received training in the

use of the product, preferably in their normal environment.

The maximum user weight for the can be found in

the rear of this manual, under 'Technical Specification'.

Your is suitable for use indoors in shopping malls or

precincts for example, or outdoors on dry, smooth level

surfaces. It climbs slopes safely up to 8 and over obstacles

up to 2.5cm (1"). Your Scooter should not be used in

torrential rain or snow, on loose slippery surface and slopes

or on wet grass etc., which could become a danger to the

rider and scooter.

bootie

Passengers must not be carried. Excess baggage outside of

the seating area can affect stability.

Your bootie is a 'Class 2' (B) * vehicle and designed for

pavement use only. The bootie must

bootie

Passengers must not be carried. Excess baggage outside of

the seating area can affect stability.

Your bootie is a 'Class 2' (B) * vehicle and designed for

pavement use only. The bootie must

PURPOSE OF YOUR bootie

Only be used on the road with caution if a pavement is not

. It is designed for a single occupant who

experiences difficulty or discomfort when walking for

prolonged periods, but has the use of both legs and the

physical, visual and cognitive ability to operate the Scooter

safely.

Do not drive your bootie if you are under th influence of

alcohol, drugs or medication that may affect your ability. If in

doubt consult your doctor.

As a pavement user you should familiarise yourself with the

current legislation contained within the Highway Code.

available

Electrically powered scooter are classified in the following

categories :

Class 2 as defined in "The use of invalid carriages on the

Highways Regulations 1988". A scooter type invalid carriage

designed for the use on the footway, with maximum speed up

to 4 M.P.H.

Class 'B', as defined in The European Standard EN12184 :

1999. A scooter sufficiently compact and manoeuvrable for

some indoor environments and capable of travelling over

longer distances and negotiating outdoor obstacles.

* DEFINITION

Only be used on the road with caution if a pavement is not

. It is designed for a single occupant who

experiences difficulty or discomfort when walking for

prolonged periods, but has the use of both legs and the

physical, visual and cognitive ability to operate the Scooter

safely.

Do not drive your bootie if you are under th influence of

alcohol, drugs or medication that may affect your ability. If in

doubt consult your doctor.

As a pavement user you should familiarise yourself with the

current legislation contained within the Highway Code.

available

*DEFINITION

GUILDELINES FOR SAFE USE

These symbols below are used in this owners manual to

identify warnings and cautions. It is very important for

you to read and understand them.

Failure to note the warnings in this

users manual may result in personal injury

Failure to observe the cautions in this

users manual may result in damage to your Scooter.

Your bootie is a powerful machine, for your safety and the

safety of bystanders, please read all of the instructions

in this manual before operating your Scooter, they have been

prepared from years of experience with this type of equipment.

Follow notes carefully to ensure safety at all times.

1. Do not ride your bootie without reading this

instruction manual. Also read all of the safety

instructions and warnings starting on page 10 of

this manual.

2. Only drive your bootie if your health condition

will allow you to be safe.

3. Do not exceed the maximum safe gradient outlined for

your vehicle (see Technical Specification, page 30).

Warning: Always have the anti-tipping wheels fitted

when outdoors or on ramps indoors (see page 16).

4. Do not carry passengers or exceed the maximum

carrying weight. (See Technical Specifications page 30).

5. Do not mount or dismount your bootie unless it

is switched off with the freewheel device fully engaged.

6. Do not switch your bootie 'on' with the forward/reverse

lever depressed.

Do not hang bags etc over your steering

handlebars, always use the front basket. Failure to

observe this warning may interfere with your controls

and put you and others at risk.

7. Do not mount or dismount your bootie unless the speed

adjustment dial is set to minimum

8. Do not reverse your bootie onto uneven inclines or

surfaces. Be cautious when traversing slopes.

9. Do not drive your bootie in a confined space unless the

speed adjustment dial is set low.

10. Do not turn suddenly at full speed, especially on uneven

or sloping ground.

11. Do not drive your bootie where you cannot safely or

legally walk. Obey the Highway Code.

Always make certain your machine is

in full working order before starting

your journey.

Warning:

Caution:

Warning:

Caution:

Warning:

bootie is a powerful machine, for your safety and the

safety of bystanders, please read all of the instructions

in this manual before operating your Scooter, they have been

prepared from years of experience with this type of equipment.

Follow notes carefully to ensure safety at all times.

1. Do not ride your bootie without reading this

instruction manual. Also read all of the safety

instructions and warnings starting on page 10 of

this manual.

2. Only drive your bootie if your health condition

will allow you to be safe.

3. Do not exceed the maximum safe gradient outlined for

your vehicle (see Technical Specification, page 30).

Warning: Always have the anti-tipping wheels fitted

when outdoors or on ramps indoors (see page 16).

4. Do not carry passengers or exceed the maximum

carrying weight. (See Technical Specifications page 30).

5. Do not mount or dismount your bootie unless it

is switched off with the freewheel device fully engaged.

6. Do not switch your bootie 'on' with the forward/reverse

lever depressed.

Do not hang bags etc over your steering

handlebars, always use the front basket. Failure to

observe this warning may interfere with your controls

and put you and others at risk.

7. Do not mount or dismount your bootie unless the speed

adjustment dial is set to minimum

8. Do not reverse your bootie onto uneven inclines or

surfaces. Be cautious when traversing slopes.

9. Do not drive your bootie in a confined space unless the

speed adjustment dial is set low.

10. Do not turn suddenly at full speed, especially on uneven

or sloping ground.

11. Do not drive your bootie where you cannot safely or

legally walk. Obey the Highway Code.

Always make certain your machine is

in full working order before starting

your journey.

12. Do not drive your unless the seat is locked into

the driving position.

13. Do not drive your with the handlebar adjustment

in the unlocked position.

14. Do not drive your over deep, soft terrain

(eg. soft earth, deep grass, loose gravel, snow).

15. Do not drive when under the influence of alcohol or

certain drugs which may impair your safety.

16. Avoid climbing or descending kerbs, you may permanently

damage your scooter.

17. Always approach small obstacles "straight on" and at slow

speed. Do not attempt to climb or descend kerbs. This

may damage your scooter.

18. Always stop fully before changing direction (forward or

reverse).

19. Always keep your feet on the vehicle when driving.

20. Always proceed carefully while riding, especially as you

approach the downgrade of a ramp.

21. Always avoid uneven surfaces.

22. Always consult your physician or a therapist if in doubt

about your ability to operate a Scooter.

23.

24. The batteries fitted to your are maintenance free

and do not require topping up with distilled water. Do

not attempt to remove the safety valves situated in the

top of the battery. Failure to observe this warning will

invalidate your battery guarantee.

25. Do not drive your through deep water or clean

with a high pressure hose.

26. Do not drive your through sand or sea water, this

is very corrosive. Always wash salt splashing from the

metal parts of your Scooter with hot soapy water as soon

as possible. This is also important during the winter

months when roads and pavements have been treated

with salt water to prevent icing.

bootie

Transport - Do not sit on your bootie while it

is in a moving vehicle. Always strap down your

bootie then transfer to the vehicle seat.

bootie

Please remember you are a motorised pedestrian and

must observe all rules and regulations of other pedestrians

wherever possible. Your bootie has not been designed for

use on normal roads, except for crossing between pavements

and where a pavement is not available.

Please have a safe journey

bootie

Transport - Do not sit on your bootie while it

is in a moving vehicle. Always strap down your

bootie then transfer to the vehicle seat.

bootie

Please remember you are a motorised pedestrian and

must observe all rules and regulations of other pedestrians

wherever possible. Your bootie has not been designed for

use on normal roads, except for crossing between pavements

and where a pavement is not available.

Please have a safe journey

Adjustable steering handle bars

Console

Charging socket

Removable basket

Wireless battery pack

Floor mat

Plastic rear wheels with soli tyres

Solid front wheel

Adjustable seat

Rear bumper

Speed control lever

Steering lock pin

Seat swivel lever

10.

11.

12.

13.

Unpackage your

Your is delivered in a strong tri-wallcarton. When

unpacking the carton, first remove all of the sharp metal staples

which are located in the top. Carefully dispose of the staples

to avoid injury. Remove all packing materials, avoid using

sharp instruments as this may damage the Scooter. Carefully

remove the Scooter from the carton; to minimise damage to

the Scooter and the operator, two people should be used for

this operation.

Safely dispose of all packaging materials, your local waste

disposal authority can advise you on this procedure.

Your is delivered fully assembled, fitting the battery

pack and the seat assembly together with some minor

adjustments are detailed on the following pages, under

'Operating your '. A full technical specification for

your can be found at the rear of this manual.

A great deal of thought and consultation has gone into the

design of your state-of-the-art, life-changing Scooter. Your

will help to increase your mobility and therefore give

you more time and energy to enjoy life.

bootie

The is a small sized, three wheeled/ four wheeled

vehicle which will allow you to negotiate obstacles found in

confined shopping areas. This is just one of the features you

will find on your .

Others are:

The contoured seat helps cushion you from

the vibrations of a journey, giving you maximum comfort. A

fully proportional speed-controller with a speed restriction

facility allows you a smooth jerk-free ride. Automatic braking

system gives you that added peace of mind.

The removable fold down seat, together

with a facility to fully lower the steering handlebar, allows

your to be easily transported in an average

saloon or hatchback car for those days when you travel

further afield.

Your has been designed to be service

friendly. Sealed batteries which are virtually maintenance-free

will give your the power it requires. Should you need

to take your battery pack on an aircraft, then you can have

peace of mind because the batteries are totally spill-free.

(Please consult your carrier for details).

The advanced speed controller has been designed

with extensive self-checking circuits to give you the maximum

'state-of-the-art' safety technology. Fully automatic braking

system gives the driver confidence in any environment.

The on/off key can be removed for added security and safety,

this disables the electronic drive circuitry, and your

cannot therefore be easily driven away by any other person.

Do not switch 'off' the on/off power key when

you are moving; this will automatically apply the motor

parking brake suddenly and could place you in a dangerous

situation. Your is fitted with anti-tipping wheels. Do

not remove these anti-tipping wheels, they are an important

part of the design provided specifically for your safety.

They help protect against backwards tipping on excessively

sharp inclines.

Your is fitted with a battery level

indicator. Charging is straight forward. Your charger is fully

automatic and will reduce to a top-up charge mode when

the re-charge cycle is complete. (See Batteries and Battery

Charging section of this manual).

COMFORT -

VERSATILITY -

SERVICE

SAFETY -

CAUTION -

CHARGING -

bootie

CHARGING - bootie

COMFORT -

VERSATILITY -

SERVICE

SAFETY -

CAUTION -

GETTING TO KNOW YOUR bootie

6 7

OPERATING YOUR bootie

FIG 1

FIG 2

FIG 3

FIG 4

Before setting out on your you need to make sure that

your seat is in the correct driving position.

Your distributor will set the seat to the correct

height for your individual needs (note: see warnings on

page 7)

The seat has four basic adjustments to assist your comfort.

1. (Fig 1). This allows the seat to swivel

through 360 and lock in a convenient position. The

locking lever is located under the left side of the seat. NB:

It can be re-located on the right side for your

convenience. Pull up fully to release the seat allowing

rotation. Release lever to lock the seat into the desired

position.

When driving, the seat should be locked in the

straight ahead position.

The seat base has a series of threaded holes for

universal mounting, on no account must your seat

be relocated from the original factory setting.

Failure to observe this warning will put you into an

unstable and dangerous situation which could cause you

harm.

2. On each side at the rear of

the seat you will find a large black knob (Fig 2). By simply

loosening this knob you are able to slide the armrests in

or out to whatever width you desire. Re-tighten the knobs

fully. You may need a friend to assist you with this initial

setting up operation. This may extend the width of your

Scooter.

Caution: The backrest of your seat will not fully fold

forwards if the armrests are positioned too closely

towards one another.

Do not drive your with the arms removed

or in the raised position.

3. (Fig 3). The armrest angle

can be adjusted individually to suit your needs. To make

adjustments to the armrest angle you will need two13mm

spanners (not provided). Lift the arm upwards, you will

note the adjusting bolt. First loosen the locking nut,

rotate the bolt in or out until the required angle is found,

lower the arm and check the angle for comfort; re-adjust

as necessary. Finally tighten the locking nut.

When lowering the arm make certain clothing or

fingers are not positioned under it.

(Fig 4).

The seat as fitted to your , has a fold down backrest.

The seat has four height positions. Your Days dealer will

position the seat to allow you the most comfortable driving

position.

4. : You may need to alter the seat

height setting at a later date, please follow these

instructions.

Days

Seat Lock Lever:

Armrest Width Adjustment:

Armrest Angle Adjustment:

Seat Height Adjustment

bootie

Warning:

SEAT:BOOTIE

Days

Seat Lock Lever:

Warning:

Armrest Width Adjustment:

Warning:

Armrest Angle Adjustment:

Warning:

SEAT:

Seat Height Adjustment

bootie

BOOTIE

1. Remove your seat from the Scooter by lifting the seat

locking lever and lifting the seat clear of the vehicle (see

Fig 1).

2. With the aid of spanner (not supplied) loosen

the 10mm seat clamp fixing bolt (see Fig 5).

3. Remove the 10mm fixing bolt and reposition the bolt

into one of the four preferred location holes of the seat

mounting tube.

bootie 3

bootie 4

FIG 5

FIG 6

4. Re-tighten the 10mm fixing bolt. Refit the seat onto

your .

Do not have the seat set too high, you must

be able to place both feet firmly on the Scooter's floor

area. Stability will be reduced the higher your seat is

set on the mounting tube. Always take great care

when cornering, lean into the corner to achieve the

best stability from your Scooter.

The handlebar of your is designed to allow you to

position it in a comfortable driving position. It can be locked

into numberous positions or unlocked to move freely for

transportation.

The handlebar lock is operated by a black lever positioned

on the right hand side of the handlebar (see Fig 6, page 8).

To release the handlebar from a locked position pull the black

lever upwards, the handlebar will now move freely, but under

mild tension.

To lock the handlebar into a comfortable driving position,

simply push the black lever downwards until the handlebar is

locked firmly into position.

With the combination of the height adjustment together with

the handlebar movement, you should find a suitably

comfortable driving position.

Always make certain the handlebar locking lever is

fully down and the handlebar is securely clamped onto the

chrome support plates before driving your Scooter. To make

service adjustment of this part, refer to the Care and

Maintenance section of this manual.

Your controls are located on the handlebar console (see Fig 7)

they are :

1. This allows you to pre-select your

desired top speed. The dial is proportional to speed and

can be set anywhere between minimum ('min') and

maximum ('max') increments. Turn the dial knob

anticlockwise to minimum for a very gentle operation, and

clockwise towards maximum to increase your speed.

When attempting to climb obstacles, you will need

to set the dial to a high setting. Remember the higher

position you set your speed dial to, the faster your Scooter

will travel.

2. (yellow). Sounds a polite warning signal.

3. Located at the lower right side of

the control console. Insert the key and turn clockwise. You

will note after a second the needle on the battery state

indicator moves towards the green sector and the green

status light illuminates. Your is now ready to drive.

To switch off your machine turn the key anticlockwise.

Remove the key when your vehicle is left unattended. Do

not attach heavy additional keys to your key ring, the weight

can damage the switch unit.

bootie

Speed Adjustment Dial:

NOTE:

Horn Buttons:

On-Off Power Switch:

bootie

Warning:

HANDLEBAR ADJUSTMENT

Warning :

CONTROL FEATURES

bootie

Speed Adjustment Dial:

NOTE:

Horn Buttons:

On-Off Power Switch:

bootie

Warning:

HANDLEBAR ADJUSTMENT

Warning :

CONTROL FEATURES

Caution : switch to 'off' when your is moving.

Failure to observe this warning will result in the motor brake

being applied suddenly and placing you in a dangerous

situation.

Do Not bootie

You should only switch 'off' when in motion in the case of

an emergency. Continual use in this mode may cause undue

stress to the drive system and damage the main electronic

speed control unit.

Be extremely cautious on slopes. Sit upright in your seat or

your machine could become less stable.

Caution :DoNot bootie

You should only switch 'off' when in motion in the case of

an emergency. Continual use in this mode may cause undue

stress to the drive system and damage the main electronic

speed control unit.

Be extremely cautious on slopes. Sit upright in your seat or

your machine could become less stable.

When you rest your with the electronics

switched 'on' you are using valuable battery power. Our

will automatically go into a sleep mode to preserve battery

energy after approximately 15 minutes, the battery indicator

and green status light goes off. To start your Scooter again

simply switch the key switch to 'off' and back to 'on' again,

your Scooter is now ready to go.

4. When you turn your on, the green

light on your console will illuminate at a constant rate.

The status light is connected to a very sophisticated

diagnostic system which can identify faults which could

occur on the main speed control system or some other

part of your Scooter's electronic drive system. For instance

if your batteries run low in power, the status light will flash

slowly at one flash a second; this indicates your batteries

need recharging.

If you notice the status light flashing at two flashes per

second, you are being notified that the battery voltage is too

low and you must stop using your Scooter at the earliest

opportunity. Your status light has nine similar flashing

diagnostic signals, reference to these diagnostic codes is

found under 'Fault Finding' at the rear of this manual.

5. Located at the top of your

console. When your Scooter is switched on, the needles on

the gauge will move across the scale from the left 'red'

sector towards the 'green' sector, indicating the state of

charge in your batteries. As the power is used up in your

batteries the needle will move towards the red sector

indicating the state of charge at that precise time. When the

needle is fully over to the right (green sector), the batteries

are fully charged. When the needle falls towards the red

sector your batteries are losing power, but you will still have

power to spare. When the needle falls into the red sector

your batteries are low in power and need to be re-charged,

although you will still have approximately half-an-hours

normal flat pavement driving in reserve. It is not

recommended to use this power regularly as it will shorten

battery life. It is wise to re-charge your batteries when the

needle enters the red zone (see Batteries and Battery

Charging section of this manual).

Sleep Time: bootie

bootie

Status Light: bootie

Battery Condition Indicator:

bootie

NOTE : When driving up

a slope or similar obstacle your motor will be

working hard, the battery gauge will move into the red

sector, it will return towards the green sector once the load

on your motor is reduced, this does not indicate low

batteries.

Sleep Time: bootie

bootie

Status Light: bootie

Battery Condition Indicator:

bootie's

Warning: If you are not an accomplished outdoors powered

vehicle driver, we strongly recommend that you first practice

in an open, safe area, free from traffic, preferably with a

who can assist you.person

Warning:

person

FIG 8

Reverse Forward

On-Off Power

Switch

5Battery Condition

Indicator 4Status

Light

Speed

Adjustment Dial

2Horn 7

Horn

FIG 7

FORWARD, REVERSE CONTROL LEVER (Wig wag)

Warning:

Located under the handlebar grips (Fig 8). Your speed for

forwards and reverse motion and braking is controlled here.

The right thumb lever moves your in a forwards

direction and also controls the rate of speed by the

proportional amount of pressure applied. The left thumb

lever moves the in a reverse direction and controls

the rate of speed by the pressure applied. The lever when

released will return itself, and you will gently stop. You will

note that you can obtain the reverse of this procedure by

pulling the levers backwards with your thumb.

Do not hang bags etc over the steering handlebars

which could interfere with the movement of your control

lever. Failure to observe this warning could put you in a

dangerous situation.

Your approved distributor can modify your

vehicle for left-hand forward operation use.

bootie

Note : Days

FORWARD, REVERSE CONTROL LEVER (Wig wag)

Warning:

bootie

Note : Days

FREEWHEELING YOUR bootie

WARNING

EMERGENCY FREEWHEELING DEVICE

NEVER SIT ON YOUR SCOOTER WITH THE

FREEWHEEL DEVICE IN THE DISENGAGED

POSITION. ALWAYS RE-ENGAGE THE

EMERGENCY FREEWHEELING DEVICE AFTER

USE. FAILURE TO COMPLY WITH THIS

WARNING MAY RESULT IN INJURY.

10 11

If for reasons of convenience, you require to push your

for a short distance, the drive system can be put into

'freewheel mode'. This will allow your to roll freely.

The freewheel device is a red handled lever located at the

top, rear right hand side of your Scooter (Fig 9). Access is

available from under your seat. To freewheel your

first switch off the power switch located on the

control console (Fig 7). Push forward the red handled

lever (Fig 9) until a distinct click is felt (disengage). You

can now push your with ease. Please note, in this

mode with the power switch in the off position, the

braking safety system is automatically activated when the

Scooter is pushed quicker than a slow walking speed.

By switching on the console power switch at this stage you

will introduce some heavy motor braking, you will note the

green status light on your console is now flashing five times.

This indicates that your is in a freewheel mode and

you cannot drive your Scooter. Note, the quicker you push

your Scooter the heavier the brake will be applied.

To re-engage the drive system, simply pull backwards on the

red handled lever until a distinct click is felt (engage).

Switch the power switch on your console off and then on,

the green status light will be fully illuminated and you will

be able to drive your once again.

If your is in the freewheel mode when you

turn on your power key switch and depress your forward -

reverse lever, you will not be able to move

bootie

Do not sit on your with the freewheel device

in the disengage position. Your has limited braking and

will not drive in this mode, the green status light on your

console will flash five times.

Under motor

power. Dismount and re-engage the drive system by pulling

backwards on the red handled lever (engage). Remount your

Scooter, switch the power switch

FREEWHEEL PROCEDURE

Warning:

bootie

bootie FREEWHEEL PROCEDURE

Warning: Do not sit on your with the freewheel device

in the disengage position. Your has limited braking and

will not drive in this mode, the green status light on your

console will flash five times.

Warning:

off and on again until the green status light fully illuminated,

your will now drive under motor power again.

Always check that the freewheel device is in the

drive position before attempting to drive your Scooter after

it has been left unattended for a period of time.

If you are able to push your the drive

system is disconnected. Do not attempt to drive your Scooter.

Please check once again the afore mentioned procedure for

re-engaging the drive.

Yellow warning notice label

situated on your rear cover

located under your seat.

bootie

Failure to

observe this warning may result in an accident.

Warning:

General note:

Warning: If your batteries are disconnected from your

Scooter there will be no brake function in the freewheel

mode. Do not leave your Scooter unattended in this

situation as it could roll away causing damage to other

parties or property. Always re-engage the drive system when

left unattended.

Warning:

bootie

Warning:

Failure to

observe this warning may result in an accident.

General note:

Warning: If your batteries are disconnected from your

Scooter there will be no brake function in the freewheel

mode. Do not leave your Scooter unattended in this

situation as it could roll away causing damage to other

parties or property. Always re-engage the drive system when

left unattended.

Warning:

Please take extreme carePlease take extreme care

SAFETY INSTRUCTIONS & WARNING

the expectation that the mobility device expert has properly

fitted the Scooter to the user and has assisted the prescribing

healthcare professional and/or the authorised Distributor

in the instruction process for the safe use of the scooter.

There are certain situations, including some medical

conditions, where the Scooter user will need to practice

operating the in the presence of a trained attendant.

A trained attendant can be defined as a family member or

care professional specially trained in assisting a Scooter

user in various daily living activities. When you begin to

use your , you will probably encounter situations

in which you will need some practice. Simply take your

time and you will soon become confident and in control

as you manoeuvre through doorways, on and off elevators,

up and down ramps and over moderate terrain. Below

are some tips, precautions and other safety measures that

will help you to become accustomed to the safe operation

of your . Your is fitted with a number of

Warning Instruction" label (see page 14). These labels

communicate important warnings or instructions Please

familiarise yourself with their location.

Get to know the feel of your and it's capabilities.

We recommends that you perform a safety check before

each use to make certain your Scooter operates smoothly

and safely. For details on how to perform these necessary

inspections, see the Care and Maintenance section of this

manual. Perform the following inspection prior to using

your .

Check all battery connections, make certain they are

serviceable and not corroded.

Check front basket is fitted correctly.

Check batteries have been fully charged.

Check operation of brakes.

Do not carry passengers on your .

Your Scooter is designed for a single occupant which complies

with legal requirements for pavement vehicles. Carrying

passengers on your Scooter may result in personal injury

and/or property damage.

Your is designed for a maximum user weight limit of

114kg (252lbs)(18 stone).

Exceeding the weight limit will void your warranty

and may result in personal injury and damage to your scooter.

will not be held responsible for injuries and/or property

damage resulting from failure to observe these weight

limitations. Please also remember when carrying heavy

objects that this will increase your total weight and may make

your Scooter unstable.

Days

Warning:

Days

bootie

bootie bootie

bootie

SAFETY CHECK

Warning:

WEIGHT LIMIT

Days

SAFETY CHECK

Warning:

WEIGHT LIMIT

Warning:

Days

bootie

bootie bootie

bootie

GENERAL

Warning: Do not attempt to operate your new

for the first time without completely reading

and understanding all of the facts in this Users Instruction

Manual.

bootie

bootieYour is a state-of-the-art device designed to enhance

and increase your mobility.

GENERAL

Warning: Do not attempt to operate your new

for the first time without completely reading

and understanding all of the facts in this Users Instruction

Manual.

bootie

Days provides a range of Scooters to best suit the

individual needs and circumstance of the Scooter user.

Please be aware that the final selection and purchasing

decision regarding the model of Scooter to be used is the

responsibility of the Scooter user who is capable of making

such a decision with assistance from his/her healthcare

professional (i.e. medical doctor, physical therapist etc.)

The contents of this Users Instruction Manual are based on

Days

CORNERING

Warning:

BRAKING

Warning:

Never drive down slopes at full speed, always adjust your

speed to the driving condition and allow for gradual descents

on inclines.

OUTDOOR DRIVING SURFACES

Days

Your is designed to provide optimum stability under

normal driving conditions i.e. dry, level surfaces composed

of concrete or asphalt. However recognizes that there

will be times when you will encounter other surfaces such as

packed soil, grass and gravel. These surfaces may not be

sound and fail to give

Excessively high cornering speeds can create the possibility

of tipping. Factors which affect the possibility of tipping

include, but are not limited to, cornering speed, steering

angle (how sharply you are turning), uneven surfaces,

inclined surfaces (such as heavily cambered pavements),

riding from an area of low traction to an area of high traction

(such as passing from grass areas to a paved area - especially

at high speed while turning), and abrupt directional changes.

Do not corner at high speed! If you feel that you may tip

over in a corner, reduce your speed and steering angle to

prevent your Scooter from tipping.

When cornering sharply, reduce your speed. When

using your at higher speeds, anticipate changes in the

road surface. This will greatly reduce the possibility of a tip or

fall. To avoid personal injury or property damage, always

exercise common sense when cornering.

Your is equipped with two powerful

brake systems:

1. Regenerative: Uses the electricity generated in your

drive motor to rapidly slow your Scooter when the thumb

direction lever (wig-wag lever) is returned to the centre

(zero drive) stop position; and

2. Electric/Mechanical Disc Park Brake: Located on the end

of your drive motor it activates mechanically after the

regenerative brake slows your Scooter to a near stop, or

when power is removed from the drive system for any

reason, as in the case of switching your machine off!

Brake engagement is far more abrupt at higher speeds. It is

important that you anticipate when the brakes will engage

and that you are braced for the resulting deceleration.

Your Scooter can decelerate very quickly. Do not

decelerate or turn abruptly when travelling at high speed

unless absolutely necessary. If it is necessary to decelerate

or turn abruptly when driving at high speed, brace yourself by

Gripping the steering handlebar tightly and positioning your

feet firmly on the floorboard. Users who cannot grip the

handlebar tightly and/or place their feet firmly against the

footboard should avoid deceleration from or turning abruptly

at high speed, and therefore should avoid travelling at high

speed. Failure to observe this warning could result in serious

personal injury and property damage. Always brace yourself

firmly when decelerating your .

bootie

CORNERING

Warning:

BRAKING

Warning:

Never drive down slopes at full speed, always adjust your

speed to the driving condition and allow for gradual descents

on inclines.

OUTDOOR DRIVING SURFACES

Days

bootie

DISENGAGE

BRAKE

ENGAGE

FIG 9

Reduce your Scooters speed when driving on uneven

terrain or soft surfaces.

Avoid long and unsafe grass that can become tangles in

the running gear or may hide debris and holes.

Avoid snow, this can quickly build up around your wheels.

Avoid loosely packed sand and gravel.

If you feel unsure about a driving surface, please

anticipate and avoid that surface.

Your has not been designed for operation

on public streets and roads. It is designed for operation on

pedestrian pavements and traffic free shopping areas.

Your must be driven with due care and compliance

with the Road Traffic Acts and conditions of the Highway

Code. Always obey all local pedestrian traffic rules. Wait

until your path is clear of traffic, and then proceed with

extreme caution. Note: Always wear light or illuminating

clothing when driving your Scooter. Be aware that it may

be difficult for traffic to see you when you are seated on

your Scooter. Only drive your Scooter on the road when

a public pavement is not available (i.e. in the countryside)

or when crossing the roadway from one pavement to

another.

Although it is not a legal requirement for accident insurance

cover (third party), it is a sensible precaution. Your

Authorised Agent will be able to give you details of specialist

insurance companies or you own insurance company will be

able to advise you.

We recommends that you do not operate your

in icy or slippery conditions or on salted surfaces i.e.

Roads and Pavements etc. Such use may result in accident,

personal injury or adversely affect the performance and

safety of your Scooter.

We recommends that you do not expose your

Scooter to any type of heavy moisture at any time i.e. rain,

snow or power washer. Such exposure can damage your

Scooter. Never drive through deep water or expose your

Scooter to sea water. Do not operate your Scooter if it has

been exposed to heavy moisture until it has been thoroughly

dried out.

Your Scooter is equipped with a manual freewheel device for

convenience when you need to push it. See the Freewheeling

your section on page 10 of this manual.

good traction, caution should be considered before driving

on this type of surface to prevent stability problems resulting

in injury or Damage to your Scooter.

bootie

Days

bootie

STREET AND ROADWAY DRIVING

Warning:

INSURANCE

WEATHER PRECAUTIONS

Warning:

FREEWHEEL YOUR bootie

ootie

STREET AND ROADWAY DRIVING

Warning:

INSURANCE

WEATHER PRECAUTIONS

Warning:

FREEWHEEL YOUR bootie

bootie

Days

bootie

use your Scooter in the freewheel mode

without an attendant present. Personal injury may result.

attempt to personally disengage your

Scooter in the freewheel mode while seated on it. Personal

injury may result. Ask an attendant for assistance if necessary.

place your Scooter in freewheel mode

while on an incline. The Scooter could roll uncontrollably on

its own, causing personal injury.

Currently there are no standards approved for "tie down"

systems in a moving vehicle of any type to transport a person

while seated in a Scooter.

Although your Scooter may be equipped with a positioning

belt *, this is not designed to provide proper restraint during

motor vehicle movements.

Anyone travelling in a motor vehicle should be properly

secured in the motor vehicle seat with a safety belt fastened

securely.

sit on your Scooter while it is in a moving

vehicle. Personal injury may result. Warning: Always make

certain that your is properly secured when being

transported. Failure to comply may result in personal injury

and/or damage to your Scooter.

Your authorised Agent, therapist and other healthcare

professionals are responsible for determining your requirement

for a positioning belt in order to operate your Scooter safely.

If you require a positioning belt to safely operate

your Scooter, make certain it is adjusted and fastened

securely. Serious personal injury may result if you fall from

your Scooter.

Getting on and off your Scooter requires a good sense of

balance. Please observe the following tips when getting on or

off your Scooter:

Make certain your is switched off at the power

switch, and the power key is removed.

Ensure your is not in the freewheel mode

(see page 10 - Freewheeling your )

Make certain the seat and handlebars are locked firmly

into position.

The seat armrests can be lifted up to make access easier.

Make certain you do not attempt to drive with the

armrests raised.

Position yourself as far back into the Scooter seat

as possible to prevent tipping and causing injury.

Avoid using the armrests for weight bearing

purposes, such use may cause the Scooter to tip and cause

personal injury and/or damage to the Scooter.

Do not

Days

bootie

Warning :

MOTOR VEHICLE TRANSPORTATION

Warning:

* POSITIONING SAFETY BELT (NOT SUPPLIED)

Warning:

ACCESSING YOUR SCOOTER

Warning:

ootie

Warning :

MOTOR VEHICLE TRANSPORTATION

Warning:

*POSITIONING SAFETY BELT (NOT SUPPLIED)

Warning:

ACCESSING YOUR SCOOTER

Warning:

Do not

bootie

Days

bootie

Avoid putting weight onto the steering handlebars,

such use may cause the Scooter to tip and cause personal

injury and/or damage to the Scooter.

Avoid putting all of your weight onto the footboard,

such use may cause the Scooter to tip and cause personal

injury.

has designed your to provide maximum mobility.

A range of accessories are available from Authorised

Agents, to further customise your Scooter needs. However,

under no circumstances should you modify, add, remove or

disable any feature, part or function of your machine.

Failure to observe this warning may result in

personal injury and/or damage to your Scooter.

More and more modern buildings are designed with disability

access in mind. Ramps have specified percentage of

inclination, designed for easy and safe access. Some ramps

may have turning switchbacks (180 degree turns) that require

Proceed with extreme caution as you approach the

downgrade of a ramp or other incline, sit right back in

your seat, brace your arms on the handlebars and your

feet on the floorboard

Take a wide arc with your front wheel around tight

corners, your rear wheels will follow preventing you from

cutting the corner short and bumping or getting hung up

on raised kerbs.

When descending an incline keep your speed adjustment

set to the slowest speed setting to ensure a safely

controlled descent and driving in a forward direction

only. If your Scooter descent is quicker than you

anticipated allow the Scooter to completely stop, then

progress at a slower speed setting.

When climbing an incline, try to keep your Scooter

moving, if you must stop, start up again slowly and then

accelerate smoothly with caution. Avoid sudden stop

starts, lean forward towards your handlebars to increase

stability and prevent rearward tipping.

When climbing an incline, do not zig-zag or drive at

an angle up the face of the incline. Drive your Scooter

smoothly up the incline without stopping, this greatly reduces

the possibility of a tip or fall.

You should not travel over a potentially hazardous

incline i.e. areas covered with ice or snow, cut grass or wet

leaves or any unstable surface.

Do not overload your Scooter at the rear when

climbing an incline. Always lean forward to provide the best

stability and prevent rearward tipping.

Days bootie

Days

bootie's

Warning:

MODIFICATIONS

INCLINES

Warning: Never drive down an incline at full speed.

Warning :

Warning:

you to have good cornering skills on your Scooter.

Warning:

MODIFICATIONS

INCLINES

Warning: Never drive down an incline at full speed.

Warning :

Warning:

Days bootie

Days

bootie's

Any attempt to climb or descend an incline steeper

than shown in the Scooter Specification at the rear of this

manual may put your Scooter in an unstable position and

cause it to tip, resulting in personal injury.

Never remove the anti-tip wheels of your Scooter, they are

an important part of your Scooters design. See also Control

on an Incline page 16.

Scooters are not designed to travel up or down

stairs or escalators. Always use an elevator. Failure to

observe this warning may result in injury to yourself and

others and damage your Scooter.

If you anticipate being seated in a stationary

position for an extended period of time turn off the power

key switch, this will prevent unexpected motion due to

inadvertent movement of the direction control (wig-wag)

lever. Failure to observe this warning may result in personal

injury.

In time when your Scooter becomes unusable it must be

disposed of in accordance with the laws implemented at that

time. For further information regarding the recycling

arrangements for this type of vehicle and its batteries,

contact your local authority or government department,

details of this can be found in your telephone directory or

your approve dealer.

Warning:

STAIRS AND ESCALATORS

Warning:

PREVENTING UNINTENDED MOVEMENT

Warning:

DISPOSAL OF ELECTRO-MOBILE SCOOTER

Warning:

STAIRS AND ESCALATORS

Warning:

PREVENTING UNINTENDED MOVEMENT

Warning:

DISPOSAL OF ELECTRO-MOBILE SCOOTER

8 degress maximum incline 6 degress maximum incline

12 13

Control console label

Located on the top of the Scooter's rear cover

(under seat)

Data serial plate located on front chassis

Located on chassis

Located at the right

hand rear cover of

Scooter

Located at leffside rear

of battery pack near

charging socket

Located on the top rightside of the battery pack

(under seat).

FIG 10

14 15

SAFETY WARNING & INSTRUCTION LABLES

The following labels are positioned on your they communicate

important warnings or instructions regarding the safe operation of you scooter -

Please familiarise yourself with their location.

bootiebootie

LEARNING TO GET ABOUT

Next, turn the 'Speed Adjustment Dial' to minimum (min),

and turn the 'on/off' key to 'on'(Fig 8, page 9). (The

battery state indicator will move and the green status light

will illuminate). Gently press the right thumb control lever

(Fig 9, page 10) to start you in a forward direction. To stop

simply release the lever, the brakes will be automatically

applied.

Warning:

MOUNTING

If you are not an accomplished outdoors mobility

product driver, we strongly recommend that you first

practice in an open area, free from traffic and preferably

with an attendant who can assist you.

For your first drive make certain that you and your new

are on a level surface. Put the power on/off key into

its slot, but leave it turned off. Stand behind the seat,

and reach down to the 'Seat Lock Lever'. It will be on the left

side directly under the armrest. Grasp the 'black' knob on the

lever and pull up, releasing the Seat (Fig 10). It will now turn

easily to meet you. If need be, you can lock the seat into

position to make it steady before you sit down. You can also

lift up the armrest to assist this procedure. Seat yourself and

swing the seat to face the handlebars. Make sure you are

straight, then release the spring assisted lever, making certain

that it locks your seat firmly in position.

bootie

bootie's

Warning:

MOUNTING

bootie

bootie's

Please take care not to have your thumb on the

forward/reverse control lever when you switch 'on' your

; this will result in your machine going into a fault mode.

Switch 'off' then 'on' again to clear the fault.

If your has been adapted for left hand,

forward operation then this procedure will be reversed: i.e.

pressing with the left thumb for forward direction and the

right thumb for reverse direction.

If your has been converted with a "Delta"

type control system, please refer to the separate instructions

provided with this accessory (see also page 37 of this manual)

When you start using your you will meet some

obstacles that will require some practice to drive through

smoothly.

Here are some common problems, with tips that will help

you master them quickly. You will soon be in control through

doors and up and down ramps with surprising ease by

following these tips.

Approach an unfamiliar door slowly, sizing it up. Does it

have a knob or push bar? Does it open toward you or away?

Think in terms of using the power of the to do the

work for you! You need not strain.

bootie

Warning :

REMEMBER :

Warning:

Bootie

CONTROL THROUGH TIGHT SPOTS

CONTROL THROUGH DOORS

If you must steer in a tight spot, such as entering a doorway

or when turning around, stop, turn the handlebars to where

you want to go, then apply the power gently. This will make

the turn sharply. It will still go gently, and with

complete stability. Practice in an open area, until you are

proficient. Reversing requires attention. Be sure your 'Speed

Adjustment Dial' is turned to minimum before you reverse

(Fig 8, page9).Push the left thumb reverse control lever (Fig

9, page 10).Remember, when you reverse you have to steer in

the opposite direction to the way you want to go. Practice is

required here, again use that open space. Please note as a

safety requirement reverse speed is half of forward speed.

If your is set up for left forward

driving the afore mentioned description is reversed.

If it is a tight turn, turn your steering column

before applying power. Steer wide of all corners and

obstacles, please move slowly and with care.

Note:

Do not turn your 'on-off' power key switch to

the 'off' position when your is in motion, failure to

observe this warning may irreparably damage the main

electronic speed control unit or drive transmission. Always

first slow your down to a stationery position before

you switch your Scooter off.

Warning :

Note:

REMEMBER :

Warning:

Bootie

bootie

Do not turn your 'on-off' power key switch to

the 'off' position when your is in motion, failure to

observe this warning may irreparably damage the main

electronic speed control unit or drive transmission. Always

first slow your down to a stationery position before

you switch your Scooter off.

CONTROL THROUGH TIGHT SPOTS

CONTROL THROUGH DOORS

Hold the doorknob or bar in one hand and apply power with

the other hand. (Remember that you can drive forwards by

using your left thumb to move the wig-wag lever towards

you.) If the door is self closing, you can go through, allowing

the door to close behind you, if you go quickly enough. If

not, just stop when you're clear of the door and push it

closed.

If the door opens toward you, hold the knob or bar with one

hand and gently let the reverse power do the work. When the

door is open wide enough, go ahead quickly, leaving the

hand on the door to keep it free of the Scooter and letting go

as you pass the door jamb. It is an easy technique. Practice

makes perfect. Remember - your can do the work

without wearing you out!

Going through doors, with the back wheels: If you're not

moving, your rear wheel is probably caught. Reverse and try

again. Take your time - relax - enjoy yourself.

More and more buildings have ramps for wheelchair access.

Some have a change of direction in the middle, and good

cornering is required.

Make a wide manoeuvre with your front wheel around tight

corners, so that your back wheels follow a wide arc to stay

clear of the corner.

If you stop while facing uphill, the automatic parking brake

will hold you safe. To start again, slowly push the forward

direction lever, the parking brake will release and you will

start to move.

When you approach an incline, it is best to lean forward,

(Fig 11.12). This moves the centre of gravity of your

towards the front of the Scooter for improved stability.

When going down an incline, keep your speed slow. This will

keep you in a safely controlled descent. It is best to lean

backwards, this moves the centre of gravity of your

towards the rear of the scooter for improved stability. If you

wish to stop completely, release the control lever, and you

will come to a gentle stop, avoid sudden stop starts.

Do not exceed the incline guidelines or any other

specifications presented in this manual.

Stationery obstacles (steps, kerbs etc) must be avoided where

possible. Your has small wheels and a ground clearance

of 4.0cm. Proceed with extreme caution when driving near

raised surfaces, unprotected ledges and/or drop-offs such as

kerbs, porches, stairs etc.

bootie

CONTROL ON AN INCLINE

Warning:

CONTROL OVER STATIONARY OBSTACLES

bootie

CONTROL ON AN INCLINE

Warning:

CONTROL OVER STATIONARY OBSTACLES

TRANSPORTING YOUR bootie

16 17

FIG 11

FIG 12

FIGURE 11 : Normal driving position

FIGURE 12 : Increased stability driving position

Most new pavements have wheelchair access ramps at

intersections, use these at all times. Plan your route where

possible to avoid poor and uneven surfaces. Do not attempt

to ride up or down kerbs as you may ground your Scooter

and damage it's construction.

Care must be taken when attempting to drive over soft

surfaces such as those found in parks etc. The surface may

look level, but this can be deceiving and hidden dangers may

make your become unstable or grounded.

Avoid unkept grass, loose deep gravel or sand, do not exceed

the capabilities of your Scooter.

Always have an attendant to assist you in circumstances

bootie

where you are not certain of the terrain. Always anticipate

and think safety.

Because of the power of your , you will be

able to climb inclines. But the maximum safe gradient

limit is 8 degrees. The reason for this is to ensure good

stability.

Always have the anti-tipping wheels fitted to your machine

(Fig 13) when climbing angles or obstacles. Always avoid

turning on slopes or climbing kerbs.

Always make certain that your is in full working

order before attempting to drive.

CONTROL OVER GRASS & GRAVEL ETC.

Caution:

CONTROL OVER GRASS & GRAVEL ETC.

bootie

Caution:

Never attempt to drive beyond the design capability of your

. Observe weather conditions. Tyres can slip on wet or

icy surfaces.

i.e. During or after a thunderstorm.

DO NOT DRIVE THROUGH DEEP WATER OR LEAVE

YOUR bootie EXPOSED TO HEAVY RAIN.

ootie

bootie

DO NOT DRIVE THROUGH DEEP WATER OR LEAVE

YOUR bootie EXPOSED TO HEAVY RAIN.

FIG 13

Anti-tipping wheelsAnti-tipping wheels

Do not attempt to turn when negotiating an incline, only turn

when all wheels are fully on or off the incline; failure to

observe this warning could result in the machine becoming

unstable and toppling over.

Always lean forward when ascending an incline and

backwards when decending an incline. This will enable you to

maintain good stability and will eliminate any chance of an

upset.

PLEASE NOTE: The rear stability of your Scooter is

dependent on a number of factors which you should

consider before attempting to climb an incline or other

obstacle: (a) your height; (b) the height of your seat;

attempting to climb. All of these factors can affect the rear

stability of your b . If you are unsure of your capability

to climb an obstacle, then try another route - always think

'safety first'.

ootie

Please take care and be safe

PLEASE NOTE: The rear stability of your Scooter is

dependent on a number of factors which you should

consider before attempting to climb an incline or other

obstacle: (a) your height; (b) the height of your seat;

attempting to climb. All of these factors can affect the rear

stability of your b.If you are unsure of your capability

to climb an obstacle, then try another route - always think

'safety first'.

ootie

Please take care and be safe

Whether it is for a holiday, a day out to visit family or friends,

or a trip to the shops, your can be taken along too.

Depending on the size or model of your car you will be able

to load your in one of the following methods.

1. With the aid of a car hoist. Your dealer will be able to

advise on suitable equipment.

2. With the aid of ramps. Ramps will aid you to wheel your

straight into a people carrier or estate car. If the

rear opening is low you may have to remove your

seat and lower the handlebars.

3. With the seat and batteries removed to reduce weight, lift

the scooter in one piece into a small hatchback or estate

car (see Fig 14).

4. If your car is small or has a conventional boot, your

can be dismantled into five basic parts (Fig 21 page 18)

bootie

FIG 14

DISMANTLING YOUR bootie FOR JOURNEYS AWAY.

DISMANTLING PROCEDURE

To enable your to be carried in a suitable estate or

hatchback car (see fig 14), follow these simple instructions

for dismantling your scooter. This procedure can be carried

out quickly and without tools.

Fitting is as follows:

Drive your close to the vehicle into which you are

about to load it. You may need some assistance to lift the

components once your machine is dismantled.

1. Switch off your scooter. First remove the seat by releasing

the 'black' locking lever and lift the seat upwards slightly

twisting. This will release it from its mounting tube.

2. Lift the black battery pack positioned to the rear of

your foot mat (Fig 15).

3. Carefully lift up battery pack. Use two hands for this

operation, one on the strap and one to steady the battery.

bootie

4. Lift the front wire basket from the mounting bracket on

the handlebar cover, you will note this mounts on three

clips (Fig 17).

DISMANTLING YOUR bootie FOR JOURNEYS AWAY.

DISMANTLING PROCEDURE

bootie

Place the batteries on a firm and safe surface. Your batteries

are sealed and cannot spill if tipped over. Always carry the

batteries upright.

Do not place metal objects over open battery

terminals. BEWARE of short circuits.

5. Lower the handlebars by releasing the locking lever

(Fig 16). The handlebar will rest close to the floor mat.

Note place a soft piece of material under the painted

console for protection.

6. Locking Mechanism : The front and rear chassis

components are locked into position with a spring loaded

pin (Fig 15). The spring loaded pin locates into

a hole in the rear of the front chassis unit preventing the

two chassis components from lifting apart during driving.

To unlock the two chassis parts pull the locking pin

mechanism knob in an upward direction.

Warning:

FIG 15

FIG 16

FIG 17

7. Lower the handlebars by releasing the handle bar lock

(see fig 6 page 8). with the handlebars positioned in

the straight ahead position, place the steering

locking pin (fig 18) through the front location hole.

The handle bars are now prevented from swinging

during transportation.

You must never attempt to drive your

with the steering pin fitted. Failure to observe this

warning will put you in a dangerous situation.

8.You are now ready to separate the two halves of our .

bootie

Warning:

Warning: bootie

bootie

FIG 19

FIG 18

Protect clothing when lifting Scooter parts, some

components may have lubricating fluids on their surfaces.

Work out the best position to stow each part of your

machine, this will vary with different car designs. An old

blanket can be used to stop the various parts rubbing against

each other. It is good practice to stand batteries upright and

locate them so they do not move and touch the battery posts

on any metal framework. Your will increase the load in

your car, please remember this and adjust your driving to suit

this condition.

In some small cars the seat my meed to be stowed on

the rear seat of the vehicle. Use the cars safety belt to secure

the seat in position.

The body mouldings on your have not been

designed for lifting your machine. Use the firm metal lifting

handles only.

Take care when lifting heavy parts. If in doubt

always seek assistance when lifting parts into or out of your

vehicle.

When using access ramps to load your into a car,

always keep your body clear of your scooter to prevent

entrapment. Never ride your scooter when loading it into a

bootie

Note:

vehicle, failure to observe this warning could put you into a

dangerous situation.

Always make certain your scooter and any ancillary parts are

correctly tied down in the carrying vehicle to prevent

movement during acceleration and braking. Most modern cars

have anchor points in the floor for this procedure.

Remember you have increased the load in your car, please take

account of this and modify your driving accordingly.

Warning: Always make certain that your scooter is stored in

the carrying vehicle with the 'Freewheel' system in the engaged

position (see page 10).

Caution:

Warning:

Caution:

Note:

Caution:

Warning:

bootie

The Seat.

The Battery pack

The Basket.

Rear Chassis Powered Unit.

Steering Platform Chassis.

RE-ASSEMBLING YOUR bootie

Your is very easy to re-assemble once you reach your

destination. To re-assemble, follow the preceding procedure

in reverse order, noting the following.

1. When re-assembling the front and rear sections of your

,make certain you are on firm, level ground. Place

the front and rear chassis units close together with the

round tube of the front steering section facing the 'U'

shaped channel of the rear motive unit (see fig 22)

2. Pivot the rear chassis unit backwards onto the anti-tipping

wheels .

Do not pivot the rear chassis backwards onto the

plastic body cover, failure to observe this warning will

damage the paint finish.

3. Lift the front platform and locate it onto the 'Unshaped

channel of the rear powered unit .

bootie

4. Lock the two chassis sections together .Pull the locking

mechanism knob up during this operation with an audible

"click".

Keep hands clear of any 'pinch' points during this

operation. Failure to observe this warning could put you

into a dangerous situation.

5. The front and rear chassis parts are now fully locked.

Pull backwards and forwards on the seat mounting post to

determine that the two chassis parts are correctly located

together, no movement in the two chassis parts should

be found.

Fully engage the safety pin mechanism

correctly as failure to do so could result in an accident,

please take particular care.

6. Replace the battery pack onto the chassis making certain

they are correctly located onto the velcro fastener.

HOW TO RE-ASSEMBLE YOUR bootie.

Warning:

HOW TO RE-ASSEMBLE YOUR bootie.

Warning:

bootie

7. Replace your seat by following the instructions on page 7

and 8 of this manual.

When you have re-assembled your , switch the

power key to the 'on' position. The battery level gauge will

move and the 'green' status light will illuminate. This will

indicate that you have re-connected the battery connectors

correctly.

Test the drive function of your machine. Does your

move forwards and backwards correctly? If

your Scooter does not drive, the freewheel lever may be in

the 'disengaged' position, see section 'Freewheeling your

page 10 in this manual.

Your has been designed for

pavement use only,

bootie

bootie'

Important notice: bootie

IT IS NOT A DIRECT REPLACEMENT

FOR A SEAT IN A MOVING VEHICLE.

Now enjoy your bootie

bootie

bootie'

Important notice: bootie

IT IS NOT A DIRECT REPLACEMENT

FOR A SEAT IN A MOVING VEHICLE.

Now enjoy your bootie

FIG 20

FIG 22

Carefully separate the two halves of your by

pulling upwards on the release mechanism knob(fig 19)

and tilting backwards the rear chassis. Lift the front

chassis upwards,until the front chassis is completely

separated from the rear chassis(fig 20).

Your is now dismantled into five basic parts (fig 21).

You can now load your Into your car (see fig 14,

page 17)

bootie

FIG 21

BATTERIES & BATTERY CHARING

20 21

BATTERY INSTALLATION

Warning: It is imperative that the two batteries are

connected correctly to prevent a short circuit between the

two batteries.

BATTERY CONNECTIONS

Warning:

Your is equipped a battery pack with two maintenance

free 12 volt 12Amp/hr batteries. The batteries are linked

together by wiring cables to supply the electronic system with

24 volts of Power

1. Position battery pack onto the Scooter frame as the

diagram below.

2. Switch on your Scooter, the battery meter will now move

to show the state of charge in the batteries and your Scooter

is ready to drive 8. Switch off your Scooter, fit the seat.

Batteries are heavy (22 Kgs), always handle with

two hands. Do not allow metal tools to touch both battery

terminal together, this will cause an electrical short and may

damage the battery and injure you.

Failure to observe this warning may cause an

explosion, short circuit, fire or injury to your person.

bootie

BATTERY INSTALLATION

Warning: It is imperative that the two batteries are

connected correctly to prevent a short circuit between the

two batteries.

BATTERY CONNECTIONS

Warning:

bootie

BATTERY CHARGING

BATTERIES

Warning:

Your has a lot of power for a small Scooter.

Keeping it working to its maximum potential means that

its two batteries must be maintained with full power.

Nightly recharging, after use, will help you to give

them a longer life and will ensure your is always

ready to go when you are.

Your is fitted with two sealed maintenance-free

batteries, especially designed for motive traction use.

This means that you do not have to worry about topping

up the cells. Do not attempt to remove the

safety valves situated in the top of the battery. Failure to

observe this warning will invalidate your battery

guarantee. Your batteries

bootie

bootie are virtually

BATTERY CHARGING

BATTERIES

Warning:

bootie

FIG 23

maintenance- Free because the electrolyte is

immobilized in a special form and therefore will not leak

out, even if the battery is accidentally Overturned.

Because your batteries are sealed they are more

likely to be accepted for carriage on aircraft. Please

consult your carrier prior to departure, as they will need

advance warning that you wish them to carry batteries.

Please note: Each carrier reserves the right not to carry

what may be termed 'HAZARDOUS CARGO'.

cannot be held responsible for their final decision.

The battery charger supplied (fig 24), is special to your

and it may not be suitable for any other powered

mobility product. Only use the charger supplied with

your ; other makes of charger may permanently

damage your batteries and would invalidate the

Guarantee.

Your batteries will need to be recharged when

the battery condition indicator gauge located on

the handlebar console (Fig 7 page 8), is reading in the

far left of the green scale or into the red sector. 'Green'

indicates a full charge (to the far right), down to half

charge (to the far left of the scale). 'Red' indicates that

less than half charge is remaining in the batteries.

The batteries will have a longer life if you do not

use up all of the battery's power and recharge as soon

as the battery condition gauge enters the red sector of

the scale, rather than letting it go right over to the far

left of the red scale. To charge your batteries follow

these simple steps:

1. Switch off your and remove the key.

2. Your Charger has two leads exiting from it. One lead

has a 3-pin mains plug fitted to it. The second lead

has a 3-pin round charging connector on its end.

Connect the round 3-pin charging connector to the

3-pin charge socket, which is located in the centre rear

body cover and marked "CHARGE" (Fig 25).

Days

NOTE:

bootie

BATTERY CHARGER

CHARGING THE BATTERIES

Days

BATTERY CHARGER

CHARGING THE BATTERIES

NOTE:

bootie

3. Plug the 3-pin mains plug from the Charger into a

convenient wall socket and switch the wall socket on.

Note: If you need to use an extension lead for your

mains supply, make certain that it is safe and suitable for

the charge current

NOTE: Your will not drive if the charger is connected.

Orange Mains Charging.

Green Mains Charge Complete

bootie

GENERAL

Depending on the depth of discharge, the minimum time

taken to re-charge serviceable batteries fully will vary

from 4 hours up to 6 hours. Please note that recharge time will

vary between the minimum and maximum times indicated

due to the varying states of battery use.

Please be patient

(1) If GREEN Indicator is off

Check AC input .If it works normally, the battery

charger may be defective.

(2) If GREEN is working normally but Charging

Indicator (ORANGE) is off

The polarity connection may be reversed.

The output connection may be short or open.

If the Charging Indicator (ORANGE) is still off, the

battery charger may be defective.

(3) If the Charging Indicator (ORANGE) does not turn

Green (Fully Charged)

The battery is not charged normally, please stop

charging and have the battery repaired.

(4) If the Charging Indicator (ORANGE) turn Green

(Fully Charged) immediately

The battery may be in well-charged condition.

If the battery is not fully charged, it may be defective.

Please have it repaired.

1. Disconnect from the mains supply before removing

the 3-pin charge plug from the charge socket..

CHARGING STATUS INDICATION

SYMBOL LIGHT COLOUR STATE OF CHARGER

Trouble Shooting

ADVISORY NOTES

bootie

CHARGING STATUS INDICATION

SYMBOL LIGHT COLOUR STATE OF CHARGER

Trouble Shooting

ADVISORY NOTES

FIG 25

3. Do not smoke or use naked flame near your batteries

while they are being charged.

4. Do not use an extension lead unless absolutely

necessary. Use of an improper extension lead could

result in a risk of fire and electric shock.

5. Do not use the Charger if it has received a sharp blow,

been dropped or otherwise mis-used in anyway. Return

Charger to your Authorised Agent.

6. Do not dismantle the Charger, poke or drop objects

through the slots in the Charger case.

7. Do not switch off, unplug or interrupt the re-charge

cycle until the charging cycle has completed. Failure to

observe this instruction can result in overcharging of

the batteries

8. There is a drive inhibit function on your Scooter. The

Scooter cannot be driven when the Charger is plugged

into your .

9. Slight heat on the exterior while charging. Avoid

exposure to heat.

1. For longest life, your batteries should be re-charged

after use. Preferably over night.

2. If your is not used for a period of

time, a refreshing charge should be given every month.

Never leave your batteries in a discharged condition.

This is particularly important with sealed batteries as

fitted to your . If your batteries

discharge below a total terminal voltage of 12 volts (6

volts per battery), the charger supplied with your

Scooter will not operate. Please consult your

dealer.

3. If your has been stored away for

some time, re-charge your batteries before re-using it.

4. Every six months, check the connections on the

battery pack, making sure they are clean.

5. Batteries carry a limited guarantee from the original

manufacturer which is subject to a stringent wear and

tear clause. Any battery faults due to a defect in the

original manufacture will normally become obvious

within the first two months. Any gradual deterioration

in performance after this period is normally associated

with fair wear and tear, mis-use or accidental damage

and, as such, is not covered by the manufacturer's

warranty. (This does not affect your statutory rights).

Note: If one battery becomes faulty during the

guarantee period only that battery from the pair will

be replaced.

In circumstances when your Scooter is stowed in your car

etc., your batteries can be recharged away from your

Scooter with charging cable.The cable links together

your battery pack and Charger. Simply connect the

3-pin plug on your battery pack ,Connect your Charger

to a convenient wall socket, switch on,your batteries are

2. The Charger is for indoor use only:bootie

Days

bootie

Days

bootie

DO NOT EXPOSE TO RAIN OR MOISTURE.

YOUR GUIDE TO SAFE AND LASTING BATTERIES

CHARGING YOUR BATTERIES AWAY FROM YOUR

SCOOTER

bootie

Days

bootie

Days

bootie

YOUR GUIDE TO SAFE AND LASTING BATTERIES

CHARGING YOUR BATTERIES AWAY FROM YOUR

SCOOTER

FIG 24

1. Depth of discharge - The amount of energy you have

removed from your batteries when driving your Scooter.

2. Battery age - This is due to the changes in their

internal electrical resistance. Note very old batteries

may take longer to fully recharge.

In most safe domestic environments, i.e. your house,

garage or shed. Do not expose to rain or spray - for

indoor use only. Later on in this information, there is

reference to the way temperature variations can affect

the performance of your vehicle. When charging your

batteries where reasonably practicable, ensure that the

battery Charger is close to the vehicle being charged so

that the temperature of the battery charger and

batteries are almost compatible. For example, a vehicle

may be outside whilst the battery charger is inside. It is

possible in this situation that the battery Charger will

sense the inside temperature, whereas the batteries on

the vehicle will be at the outside temperature, resulting

in an undercharged situation. This situation must be

avoided.

Many factors come into play when deciding how often to

charge your batteries. You may use your vehicle all day

on a daily basis or you may not use it for weeks at a time.

Other factors such as driver and baggage weight, smooth

or rough terrain, flat areas or inclines and speed must all

be considered.

With these variables you should concern yourself with

two questions: HOW OFTEN should I charge and for

HOW LONG? The Charger is designed so that it is

impossible to overcharge your batteries. If you follow

the guidelines below, your batteries will provide safe and

reliable operation.

1. If you use your vehicle during the day. put it on charge

as soon as you have finished using it. The Charger is

fully automatic so it will not overcharge your batteries.

Your vehicle will be ready each morning to give you

several hours use. It is recommended that you charge

your batteries after daily use until the green 'Charge

Complete' light illuminates.

2. If you use your vehicle infrequently (once a week or

less) you should charge it at least once per week

until the green light illuminates. Remember: Keep

your batteries fully charged and avoid deeply

discharging them.

3. Storing batteries : Batteries should always be stored

fully charged. Check once a month and recharge fully

if needed. Sealed batteries can hold their charge for

approx. 6 months. If they are left connected on the

Scooter, remember key switches, meters and electronic

circuits can drain the batteries rapidly. It is advisable

to disconnect the batteries for prolonged storage.

Store in a warm, dry room.

Where can I re-charge my batteries?

How often must I re-charge my batteries?

How can I ensure maximum battery life?

Where can I re-charge my batteries?

How often must I re-charge my batteries?

How can I ensure maximum battery life?

Charger connected

when the Charge Complete' (green) light is illuminated

in the 'Top-Up' maintance mode.

2. Plan your trip in advance to avoid inclines, kerbs and

soft surfaces.

3. Limit your baggage weight to essential items.

4. Try to maintain an even speed to avoid stop and start

driving.

5. Ensure recommended routine servicing of the

vehicle's components, i.e. motors, brakes, electrical

connections etc., is carried out as instructed in this

Users Instruction Manual.

When working or disposing of your batteries

1. Do not allow metal objects to short out the terminals,

your battery could explode causing you injury.

2. Do not allow your batteries to freeze. If frozen allow

them to naturally thaw out before charging, failure to

observe this warning may damage the batteries.

3. If you need to replace your batteries, contact your

Agent. Only batteries supplied as original

equipment on your machine will give you the best

performance. When charging batteries make certain

the positive and negative terminals are correctly

assembled. Failure to observe this warning may cause

an explosion, short circuit or fire.

4. Always handle batteries carefully, they are heavy.

Wear protective gloves and glasses when handling.

5. Dispose of worn out batteries carefully, contact your

local waste disposal authorit

Rarely do we have an ideal driving situation such as a

smooth, flat, hard terrain with no wind or curves and

warm temperatures. More often, we are presented with

hills, uneven and loosely packed surfaces, curves, wind,

cold and heavy loads. All of these factors will affect the

distance or running time per battery charge.

Here are a few suggestions for obtaining the maximum

range per charge:

1. Always charge your batteries fully prior to your trip.

It is a good idea to keep your

Days

How can I get the maximum operating time per charge?

Warning:

How can I get the maximum operating time per charge?

Warning:

Days

now being recharged away from your Scooter.

Batteries are the fuel tank for your Scooter. They provide the

vital energy to power your vehicle. When you ride your

Scooter, the drive motor consumes the energy stored in the

batteries. The battery's energy is gradually reduced over the

period of driving time and will need to be replaced before

you can use your Scooter again. Similar to the situation with

a motor car, in that you need to replenish the petrol as it is

used up as energy, likewise with your Scooter, you need to

replace the used battery energy by re-charging the discharged

battery cells.

Your battery Charger is an intelligent automatic charging

instrument. Your Charger's robust framework contains a

number of quality components; namely a transformer,

rectifier and complex control circuitry.

The Charger receives the 230 volts domestic electricity

supply via a standard 3-pin wall plug and reduces this voltage

down to 24volts via a transformer. At the same time it

rectifies the A.C., alternating domestic current into D.C.,

direct current. This matches exactly, the voltage characteristics

stored by your Scooter's batteries. Your Charger automatically

controls the re-charge cycle from the moment that you switch

it on to the moment the green Charge Complete' light on the

face of your Charger illuminates.

When your battery's voltage is very low, the Charger will work

extremely hard to replenish the spent energy.

This is called the 'Bulk Charging' stage. As the battery voltage

approaches 90% of the full charge capacity, the Charger

reduces its output for the final stage of the re-charge cycle.

The time taken from switch-on to the end of the bulk charging

will vary, depending on the amount that the batteries have

been used, or in time their age. At this point a timer is

automatically started, to regulate the final stage of the

charging cycle, this set time ensures maximum capacity and

battery life.The length of time to re-charge your batteries will

vary from 4 up to 6 hours. This variation in time is due to

the following

factors:

FREQUENTLY ASKED QUESTIONS

Why do my batteries require recharging?

How does my Charger work?

FREQUENTLY ASKED QUESTIONS

Why do my batteries require recharging?

How does my Charger work?

Simply put, a fully charged battery is a happy battery! A

fully charged battery will provide reliable performance

and extended battery life, so keep your batteries fully

charged whenever possible.

Handling your batteries Extra care must be taken when

handling batteries, if you decide to dismantle your

vehicle for transportation etc. Dropped batteries, even

from a very small height, can lead to damage of

the internal components, causing premature cell failure.

Your batteries are sealed and do not require

maintenance. Do not force open the valves in the battery

top.

Used batteries must not be disposed of by means

of a domestic refuse disposal unit (dustbin) etc. Please

Contact your Dealer to dispose of used batteries. Please

note, he may charge for this service.

The batteries fitted to your vehicle are guaranteed

against a manufacturing or material defect for 12 months.

Any battery faults due to a defect in manufacture or materials

will be obvious within a few weeks of use. Your batteries are

not guaranteed to perform to full capacity for 6 months. This

will, of course be dependent on the actual use of the vehicle

and how often the batteries are cycled i.e. discharged and

charged. Gradual deterioration in performance and reduction

in range is normal and associated with fair wear-and-tear,

misuse or accidental damage. Under these circumstances,

the warranty will not apply. It is a fact that some users due to

their hectic lifestyle, weight or operating conditions, may

wear their batteries out during the original battery

manufacturer's guarantee period due to extensive use of their

Scooter. This is termed 'Cycle Life'. Batteries have a defined

number of discharge cycles they can make i.e. the more

times you use your Scooter the more cycles your battery will

make- the shorter their life span.If you take time to run-

in your batteries properly, it will be worth it. Remember:

how long your batteries will provide service is quite often a

reflection of the care they receive. This is how to run-in your

new batteries:

1. Fully recharge any new batteries prior to your initial

use.This will bring your battery up to about 88%

performance.

2. Ride your vehicle around the house or garden. Do

notventure too far away until you become accustomed

to the controls and feel of the vehicle. This will gently

run-in your batteries.

3. Give your batteries another full charge and run the

vehicle again. The batteries will now perform to over

90% of their full potential.

4. After ten to fifteen charging cycles, the batteries will

top off at 100% charge and last for an extended period

due to your patience and care in the first few days of

operation.

Disposal

caution:

BATTERY WARRANTIES

Disposal

caution:

BATTERY WARRANTIES

FIG 26

Your like any other electro-mechanical machine will

benefit from regular servicing by your dealer. You too,

can help keep your in tip-top condition by following

a simple guide to home maintenance.

Note: Only competent people should carry out service work.

A damp cloth and a little soapy water will keep your seat,

backrest and arms looking smart. Do not use abrasive

cleaners as this will damage the coating. Upholstery can be

damaged by chemical cleaners. The coating material can also

by natural

oils in the hair and skin. Ultra-violet light can also reduce the

life of the upholstery coating material. This is a normal ageing

process and cannot be guaranteed (see exclusions in the

Guarantee Terms).

The painted bodywork on your can be lightly washed

with clean soapy water. Do not use abrasive cleaners or

strong detergents. This could fade the colour, an auto type

shampoo works well.

bootie

Days

bootie

Do not hose down your with a powerful

cleaner. Water could be forced into the electronics and

cause permanent damage.

On the painted finish, be cautious not to wash with a dirty

cloth as this could scratch the paint finish. Auto polish can

be used to keep the paintwork and bright chrome parts in

pristine condition.

The metal framework of your should be cleaned

once a year and any paintwork damaged should be treated

to prevent further attack from the elements.

store your in damp conditions. This may

affect the electronics if left for very long periods of time.

Moisture, if left unattended can cause deterioration on metal

work, protect with proprietory cleaners.

Servicing of the drive electronics and charger should only be

carried out by your local service dealer. These

units are sealed and should not be opened. BROKEN

SEALS WILL INVALIDATE YOUR GUARANTEE.

Do not

Days

SEAT UPHOLSTERY

degrade over a period of time due to contamination

BODYWORK

Remove salt contact as this is very

corrosive to bright metal parts.

Caution:

ELECTRONICS

Do not operate your in exceptional

weather conditions ie. very heavy rain. Cover your

machine up, if it is to be left unattended and outside for a

long period of time.

Do not drive through deep water with your .

This could damage the electronic speed controller. Sea

and road salts are very corrosive and should be

neutralised quickly.

bootie

Days

bootie

SEAT UPHOLSTERY

degrade over a period of time due to contamination

BODYWORK

Remove salt contact as this is very

corrosive to bright metal parts.

Caution:

Do not

ELECTRONICS

Days

Do not operate your in exceptional

weather conditions ie. very heavy rain. Cover your

machine up, if it is to be left unattended and outside for a

long period of time.

Do not drive through deep water with your .

This could damage the electronic speed controller. Sea

and road salts are very corrosive and should be

neutralised quickly.

DRIVE TRANSMISSION LUBRICATION

Caution:

MOTOR BRAKES

Motor Brake:

Driving Brake: Warning:

HANDLE BAR BEARINGS

This unit is factory filled and will not normally need additional

lubrication.

Note: Your transmission is filled with a special

lubricant. Do not attempt to force grease into the

transmission as this will contaminate the original lubrication

and will invalidate your guarantee.

Take care when lifting the transmission, keep well

away from clothing. It is normal to find a light film of

lubrication around this part.

speed control

lever in the 'zero speed', central position.

Note: Check the Freewheeling Instructions on page 9 of this

manual.

When you drive your

and you let go of the speed control lever your should

reduce speed very quickly. If you Notice a change in the

normal slowing/braking condition, and your does

not slow down quickly, please do not use your machine,

contact your dealer.

The bearings which control the movement of the steering

handle bar may need to be adjusted if up and down

movement is noticed in your steering handle bars.

The bearings are accessed at the base of your handle bars.

The bearings are adjusted by first releasing the locking nut

anti-clockwise one full turn with a suitable spanner (Fig 27).

Turn the upper bearing adjustment nut clockwise, one flat at

a time until all of the up and down movement in the handle

bars is removed. Retghten the lock nut clockwise into

position with a second spanner. Do not overtighten the bearing

adjustment nut, as this will damage the bearing tracks

bootie

Days

If the motor brake is functioning correctly and

the drive is engaged you will not be able to push your machine

when it is switched off. Or switched on with the

Safety Note: For your own safety, we recommend that you check

the function of your brakes prior to a journey.

DRIVE TRANSMISSION LUBRICATION

Caution:

bootie

Days

MOTOR BRAKES

Motor Brake:

Driving Brake: Warning:

HANDLE BAR BEARINGS

TYRE SERVICING REAR WHEEL

To remove a rear wheel from your for the service

of a tyre or tube carry out the following Instructions (only

competent people should carry out this procedure).

1. Switch off your and remove the key.

2. Using a suitable body stand, lift the side of the vehicle

you wish to service off the ground. Place the stand

under the metal chassis. Care must be taken when lifting

heavy loads, you may need a friend to help you. Care

should also be taken when working on a stand.

3. With the aid of a 19mm spanner(not supplied) remove

the centre hub nut and washer (see fig 29).

4. Slide the wheel from the mounting axle.

Rear wheels are fitted to the drive axle via a hub which

locates onto a key. These wheels fit tight onto the axle

and may need some pressure from a bearing puller onto

the wheel hub to release them from the axles. Look for

spacing washers and take care not to mislay the drive

key which fits between the wheel hub and the axle shaft.

To re-assemble the wheel simply follow the above procedure

in reverse order noting the following points:

bootie

Please be safe.

Do not lift by the plastic bodywork.

TYRE SERVICING REAR WHEEL

bootie

Please be safe.

Do not lift by the plastic bodywork.

FIG 28

1. Make certain that you replace any spacing washers and

keys in the order that they were removed.

2. Locking Nut : The special nylon 'locking' centre hub nut

may lose it's effectiveness when it has been removed

over a number of times. If the plastic locking ring at the

end of the nut becomes worn or damaged, then the nut

should be replaced with a new part obtained from your

dealer.

Keep your batteries well charged (see Battery Charging

section of this manual). Keep batteries clean and in a dry

frost-proof place. Your Agent will be able to test

your batteries for their state of service.

Note: a charge may be made for this service.

It is not possible to predict the life

expectancy of your batteries. This is mainly due to the

different workloads a battery can be subjected to.

Some users will use their vehicle every day and for

long periods of time. Their batteries will receive a near

total discharge, and the life of the batteries will be short

(less than 12 months in some cases).

Other users will use their machines less frequently,

putting their batteries through a less demanding discharge

lifestyle. These batteries will probably have a longer life in

excess of 12months. This can only be a general guide

and one cannot be more specific, due to other factors

such as; motor loads, general service factors, working

conditions, periods of non-use and abuse etc.

When you need to purchase batteries, always insist on the

model fitted as standard equipment to your

Do not use less expensive car starter batteries. If in doubt,

consult your local Days authorised agent.

Correct disposal of exhausted batteries is advised.

Please note: The charger supplied with your Days is

specifically designed for sealed type batteries and may

not work correctly with other battery designs. (See also

Batteries and Battery Charging section of this manual).

The has been designed with low maintenance in

mind. Wheel bearings and steering bearings* are sealed

for life. The following points will need

Days

bootie

bootie.

bootie

All your wheel is fitted with a solid tyre which requires

minimum maintenace. The tyre should be exchanged when

the tread has worn out. Remove the wheel from the fork or

turning axle shaft with the aid of 19mm and 21mm spanners.

The front wheel has two bearings which may have various

spacing washers between the fork, please note the order of

these washers. Remove the tyre from the wheel by following

point 6 above for Rear Wheels, using a 10mm spanner and

4mm hex key. Re-assembly is the reverse procedure making

certain that all washers supplied are replaced correctly.

TYRE SERVICING FRONT WHEEL

BATTERIES

IMPORTANT:

Warning:

LUBRICATION

Days

bootie

bootie.

bootie

TYRE SERVICING FRONT WHEEL

BATTERIES

IMPORTANT:

Warning:

LUBRICATION

FIG 29

CARE & MAINTENANCE

FIG 27

The handle bar bearings are NOT 'Sealed for life' and

may require lubrication with a general purpose bearing

grease on an annual basis.

Check the condition of your tyres regularly. Look for signs

of wear, cuts and foreign objects lodged in the tread (Fig 28).

Your is designed with 'split' wheel rims.bootie

TYRES

Warning:

TYRES

Warning: bootie

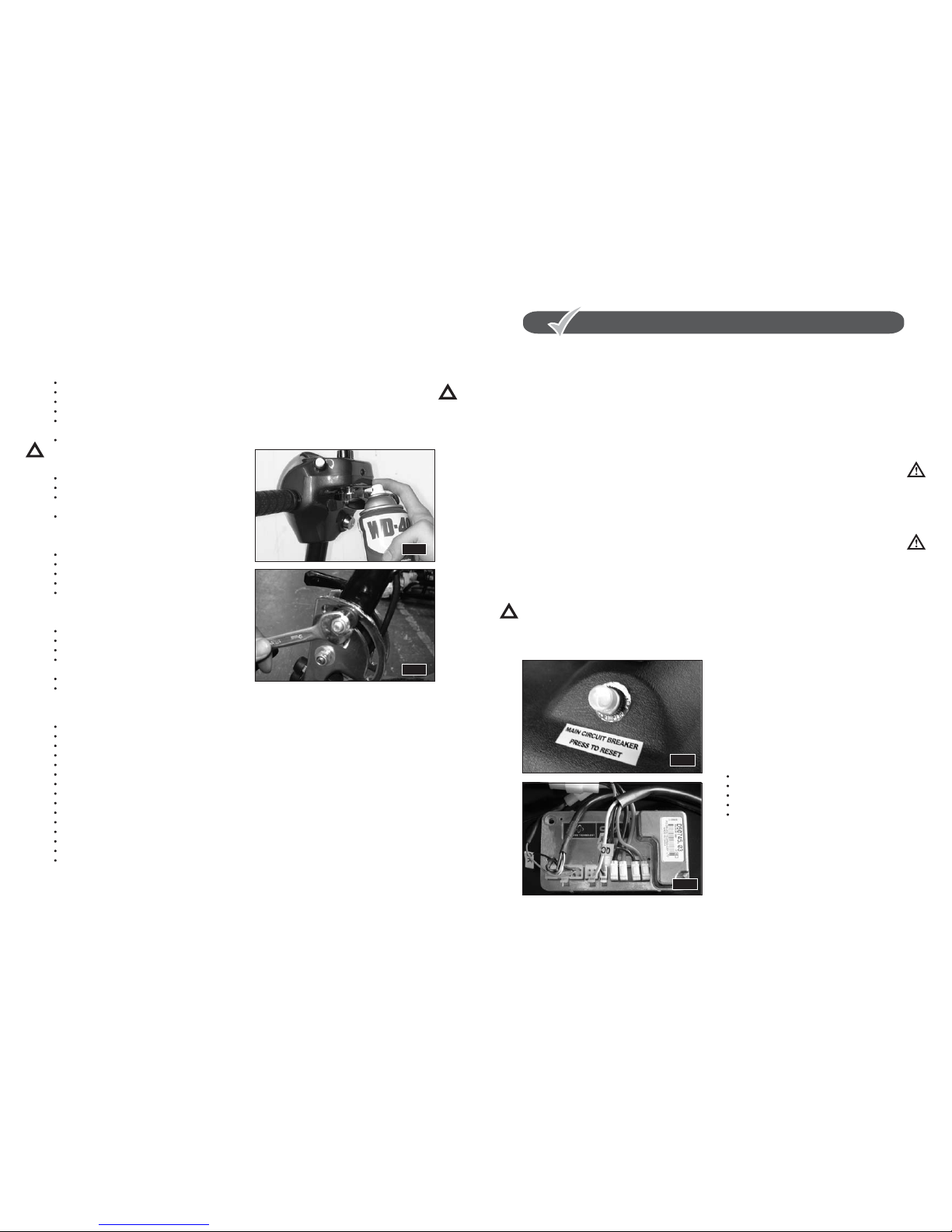

checking/lubricating at the following service intervals:

Check the following:

Operation of motor brakes (see page 11 & 24)

Operation of driving brake (see page 11 & 24)

Operation of seat lock (see page 7)

Tyre condition (see page 24 & 25)

Front basket and any carrying accessory is firmly attached

(see page 17, Fig 17)

Batteries are fully charged (see pages 20-25)

Only drive you if it is in full working order.

Check the following and adjust as necessary:

Check chassis locking mechanism (see 8 page 18)

Arm rest tightening knobs (see page 6)

Note the items listed under weekly and six months should

be incorporated into this annual inspection.

r bootie

Allow battery charger to go through a full recharge cycle

until the green light is illuminated (see pages 21-26)

Clean paintwork with auto shampoo. Do not use a high

pressure hose. Wax painted and bright metal parts.

Check and adjust as necessary:

Tyre wear, replace as necessary

All fasteners and fittings for sound function

Tension of handle bar lock and hinge bolt

Battery connections

Inspect all electrical plugs and sockets for damage and

good contact and fit.

Wig-wag accelerator lever pivot point (see Fig 30)

Spray metal parts with moisture repellent (Wd40)

Seat lock lever pivot bolt

Seat rotation, grease face of seat post and pivot pin at base

of seat.

Seat arm hinges

Inspect, lubricate and adjust upper handle bar steering

bearings

Front wheel bearings for wear

Handle bar bearings

Chassis for sound welds

Rear Drive wheel hub keys

All wheel bolts

Drive axle securing bolts

Motor mounting bolts

Magnetic motor brake disc and function

Main wiring loom for damage

All steering components

Clean chassis and repaint any exposed parts

Lubricate on/off power key barrel

Replace any damaged axle seals

Cycle test charger for full operation function

Cycle test batteries for operating capacity (This test can be

performed by your dealer)

Check the following and adjust as necessary:

Days

*(Read also 'Handlebar Bearings' page 24 and 'Lubrication'

page 26)

RECOMMENDED SERVICE INTERVALS

DAILY

Caution:

WEEKLY

SIX MONTHS

Lubricate the following:

ANNUALLY

*(Read also 'Handlebar Bearings' page 24 and 'Lubrication'

page 26)

RECOMMENDED SERVICE INTERVALS

DAILY

Caution:

WEEKLY

bootie

SIX MONTHS

Lubricate the following:

ANNUALLY Check the following and adjust as necessary:

Days

The steering column locking system works on a 'cam' principle

to lock the column in the desired driving position (see Fig 7

page 8).

If you notice the column is not firmly held when the black cam

operating lever is fully down, follow this procedure to readjust

the 'cam' tension:

1. Push steering column forward as far as it will go with the

locking lever released, ie. pushed upwards. Support

steering column.

2. With a 10mm spanner (not supplied) loosen the locking

nut positioned on the opposite side to the black locking

lever. (Fig 31)

3. Next to the locking nut is a chrome threaded 'clamping

nut' this has a slightly tapered shape. Turn this clamping

nut clockwise approximately a quarter of a turn.

4. Push the 'black' clamping lever down and test that the

tiller is tightly held in place; adjust 'clamp nut' until

correct tension is achieved on clamp plates.

5. Tighten locknut with 10mm spanner.

RECOMMENDED AREAS FOR ADJUSTMENT

STEERING COLUMN ADJUSTMENT

RECOMMENDED AREAS FOR ADJUSTMENT

STEERING COLUMN ADJUSTMENT

26 27

Use a general purpose light lubricating oil on moving parts.

All wheel bearings are factory sealed and should not normally

need lubricating. Handle bar bearings should be lubricated

with a general purpose bearing grease.

Your drive axle is factory filled with a special lubricant and will

not normally need replacing.

Do not mix other lubricants with this factory fitted

drive axle lubricant. Failure to observe this caution will

invalidate your guarantee.

Please note: These service intervals are a guide, more

frequent use of your Scooter may require adjustment to

these suggested intervals

LUBRICATION

Caution:

LUBRICATION

Caution:

FIG 33

BASIC FAULT FINDING

If your will not start:

1. Check the power key switch is turned 'on'. If it is, the

battery condition indicator meter will be operating. If

the green status light on your console is flashing once

per second, charge your batteries

If the battery condition meter and the green status light

fail to operate when the key switch is in the 'on' position,

check the following:

1. Make sure the battery charger is not plugged into the

battery pack charge socket, this will prevent drive.

2. Check the 'circuit breaker'(Fig 32): If your

stops for no apparent reason, it is probably due to the

circuit breaker disconnecting from the speed control

electronic box.

On rare occasions, a temporary overload on the electric

circuit can occur - for instance when climbing a steep

incline. If this happens, the circuit breaker which is

located on the right side of battery pack will trip. To

reset the circuit breaker wait for two minutes to allow

the temperature activated switch to cool down.

Place a finger onto the circuit breaker and press down on

the plunger until it remains down. You are now ready to

drive again. If the circuit breaker trips up again wait for 5

minutes and try again.

If you find the circuit breaker is continually

tripping out, contact your authorised dealer.

bootie

Days

The battery condition indicator meter operates and the

green status light flashes, your does not drive:

Caution:

bootie

Caution:

Days

1.Check the status fault codes (page 29) indicated by

the green L.E.D. on your console flashing.

2. Check the freewheel lever is fully engaged (see page 9).

If it is engaged you should not be able to push your

machine, if disengaged your status light (green L.E.D)

will flash five times.

If your does not slow down or behaves

erratically:

1. Turn off the power 'on' key switch.

2. Inform your authorised dealer.

If you find for any reason your does

not reduce speed when you let go of the forward-reverse

speed lever (Fig 8, page 9). Switch your 'off'

with the on/off key. The parking brake will activate

immediately and stop your Scooter. Beware the scooter will

stop very suddenly, brace yourself with the handlebars,

sit back in your seat.

This operation should only be carried out in an

emergency; continual use of this facility will damage the

drive transmission and motor brake.

The speed controller system incorporates a sophisticated

micro-processor design (Fig 33). It is located under the front

cover of your . The in-built micro-controller continually

monitors the systems to ensure safe and reliable

operation.

Speed control system integrity

Internal voltages and circuits

Motor voltages and circuits

Freewheel speed limiting downhill.

Battery voltage

When the battery voltage is low, the 'status' indicator light

situated on the control console (a green light positioned

next to the battery state indicator meter (Fig7-5,page 8)

will flash slowly as a warning to recharge your batteries. If

the 'speed controller' detects a fault the green light will

flash rapidly, with the number of flashes indicating the

nature of the fault.

Days

bootie

bootie's

Warning:

Inform your authorised Days dealer before using your

machine again.

Warning: If you feel for any reason that your Scooter is not

driving correctly or making an unusual noise, stop using the

machine. Be safe, contact your Days dealer, he will be

able to advise you.

IMPORTANT SPEED CONTROLLER

INFORMATION

GENERAL DESCRIPTION

SAFETY CONDITIONS MONITORED INCLUDE

Days

Warning:

Inform your authorised Days dealer before using your

machine again.

Warning: If you feel for any reason that your Scooter is not

driving correctly or making an unusual noise, stop using the

machine. Be safe, contact your Days dealer, he will be

able to advise you.

IMPORTANT SPEED CONTROLLER

INFORMATION

GENERAL DESCRIPTION

SAFETY CONDITIONS MONITORED INCLUDE

bootie

bootie's

FIG32

FIG 30

FIG 31

GOOD

For example, the controller will not operate if the speed

thumb lever (wig-wag) is not in the zero speed position

(Fig 9, page 9) with the Scooter switched 'on'. Return the

speed lever (Wig-Wag) to the zero speed position, when the

scooter will be allowed to operate normally once again.

If your Scooter is turned 'on' but not operated for a set

period of time (15 minutes approx) the speed controller

system will automatically turn itself 'off' to conserve

valuable battery energy. It can be turned on again by

turning the on/off switch to 'off', and then to 'on' again.

Faults with the main speed controller are rare. Most faults

on powered vehicles are associated with wiring or

mis-connections due to poor maintenance or incorrect

installation of connectors when assembling the Scooter after

transportation in a car.

If your should fail to operate you will be assisted in

diagnosis and locating the area of the fault by observing the

number of flashes emitted from the 'green' status light on

your control console (fig 7-4, page 8).

If your fails to operate and the green status light is

not illuminated, first check the points aforementioned under

'FAULT FINDING'.

If your green status indicator light is flashing, first switch

your Scooter to 'off' and back to 'on' again to see if the

problem will clear. If the 'status' light continues to flash

and your Scooter will not drive, refer to the 'STATUS

FAULTS CODE' on page 29 and take the appropriate

remedial action as advised in the 'comments' column. If in

doubt consult the dealer from whom you purchased your

Two fuses protect your charging circuit from receiving

an overload of electrical current. The fuse used in the

is the same type which is found on automobiles. In the

unlikely event that a fuse should 'blow' and needs replacing

(Fig 34) use a fuse of a 40amp rating. Please note this size

of fuse has been selected to give your Scooter the best

protection without premature blowing.

bootie

FAULT DIAGNOSIS

CHARGING CIRCUIT FUSE

FAULT DIAGNOSIS

CHARGING CIRCUIT FUSE

bootie

Warning : Do not use fuses with a higher rating than 40amps

as this may cause permanent failure to the wiring and wiring

connectors or personal injury.

The 40amp fuses are located inside the Battery pack.

The fuse is positioned in a black plastic housing which is sealed

by a hinged lid. For access to a fuse remove the twelve screws

located in the Battery pack cover, lift cover. Locate and lift the

fuse block on it's wire, lift up the fuse lid and withdraw the

'blown' fuse. Replace the blown fuse with recommended 40amp

(orange) fuse, close fuse lid and replace fuse block.

Reposition battery pack cover, refit twelve screws.

bootie's

If the fuse

continually fails, contact your Days dealer.

Warning :

bootie's

If the fuse

continually fails, contact your Days dealer.

FIG34

FAIL

The forward-reverse speed Controller is a state-of-the-art

microprocessor designed to give smooth and safe operation.

For maximum performance, protection and convenience the

Controller is housed in a solid die cast

aluminium case situated under the front body cover.

The speed Controller, ' P&G ' model s-drive 45 is

programmed by to obtain the maximum performance

and safety for your

Days

bootie.

SPEED CONTROLLER SETTINGS

Days

bootie.

FLASH CODE

(No.of flashes)

STATUS FAULT CODESSTATUS FAULT CODES

1 Flashes

2 Flashes

3 Flashes

4 Flashes

5 Flashes

6 Flashes

7 Flashes

8 Flashes

9 Flashes

FAULT DISPLAYED BY PROGRAMMER

28 29

Inhibit 1 Mode? Mode : 1

Inhibit 1 Speed? Speed : 0

Inhibit 1 Latch? Latched : yes

Inhibit 2 Mode? Mode :1

Inhibit 2 Speed? Speed 50

Inhibit 2 Latch? Latched : no

Inhibit 3 mode? Mode :1

Inhibit 3 Speed? Speed 0

Inhibit 3 Latch? Latched : yes

Clear systemLog? Erase log: no

Clear timer? Clear timer : no

Reverse Alarm ? Alarm : on

Pulse Rev Alarm? Pulsed: yes

Trucharge Cable? Cable res : 40m om

Trucharge Cal.? Calibration:100

Low batt Flash ? flash level: 2

Law batt Alarm? Low bat. Alm: off

Back To Root?

Warning: Performance adjustments should not be made

which could put the operator in a serious situation of

control or braking. Performance adjustments should only be

made by a person fully trained and conversant with the

programming process and it's capabilities.

Warning: Incorrect settings could cause injury to the

Scooter operator and/or to bystanders, or damage to the

vehicle and/or surrounding property. If in doubt consult

your ManufacturerDays

Warning: Performance adjustments should not be made

which could put the operator in a serious situation of

control or braking. Performance adjustments should only be

made by a person fully trained and conversant with the

programming process and it's capabilities.

Warning: Incorrect settings could cause injury to the

Scooter operator and/or to bystanders, or damage to the

vehicle and/or surrounding property.

Days

Forward Accel'n?Fast:

Forward Deceleration

Reverse Accel'n?

Reverse Decel'n?

Max Fwd speed?

Min Fwd Speed ?

Max Rev Speed ?

Min Rev Speed?

Invert throttle? Inv throttle: no

Sleep timer? Time: 15m

Read System Log? :Code

Read Timer? Elaspsed:

Engineer Menu?

Curent Limit? Min 15AMax:45A

Output Voltage? Output 24V

Drive Boost? Current:45A time:0

Drive Foldb'k 1? Threshold:35A time 20s

Drive Foldb'k 2? Level:60 Temp: 80

Motor Cooling? Time:120s

Compenstation? Motor cmp:200m om

arameter 1? Param. 1: 12

Parameter 2? Param. 2: 100

Parameter 3? Param. 3: 0

Parameter 4? Param. 4: 30

Soft Stop? Soft-Stop: on

Freewheel? Threshold: 100timeout:20cs

Throttle Gain? Gain: 100

Throttle D'band ? deadband:12

ISO Test ? ISO tests: off

Throttle Type? Thrtl' type: 1

Displaced Mode ? Dspl mode: 2

Check Refs ? heck refs: yes

Speed Limit Pot? Pot enabled: no

Brake Time ? brake time: 1000

Brake Check? Brake check: yes

Brake Alarm? Brake alarm: no

Brake Light? Brake light: no

Status Output? Type: 1

Diagnostic Flash flash: 2

Diagnostic Alarm diag. Alarm : no

S-DRIVE program for bootieS-DRIVE program for bootie

fast 8 slow: 12

fast 12 slow 12

fast 30 slow 40

fast 15 slow 15

fast 100 slow 50

fast 30 slow 30

fast 50 slow 30

fast 30 slow 30

The battery needs charging or there is a bad connection to the battery. Check the connection to

the battery. If the connections are good, try charging the battery.

There is a bad connection to the motor. Check all connections between the motor and the controller.

The motor has a short circuit to a battery connection. Contact your service agent.

The freewheel switch is activated or the manual brake disengagement mechanism is operated.

Check the position of the switch or lever.

Not used.

The controller is being inhibited from driving, this may be because the battery charger is connected

or the seat is not in the driving position.

A throttle fault is indicated .Make sure that the throttle is in the rest position before switching

on the scooter.

A controller fault is indicated. Make sure that all connections are secure.

The parking brakes have a bad connection. Check the parking brake and motor connections.

Make sure the controller connections are secure.

An excessive voltage has been applied to the controller. This is usually caused by a poor battery

connection. Check the battery connections.

10 Flashes

TECHNICAL SPECIFICATION

CLASSIFICATION

Maximum safe climbing angle:

Warning:

Exceeding the safe climbing angle may put you at risk of

injury. On no account must you attempt to climb an incline of

more than 8 (13%) as this will exceed the rear stability of

your scooter.

Maximum speed:

Range:

Type 'B' indoor/with some outdoor

capability (EN12184 : 1999) Class 2 (The use of invalid

carriages on the highway regulations 1988)

8 (13%) with 252lbs

(114kg) rider

The safe climbing angle is measured with the seat in

the highest position, and a rider weight of 252lbs (114kg).

The motor on your scooter is powerful and may be able to

climb a steeper incline than the maximum safe climbing angle.

up to 4mph (6km/h) [+/- 10%] dependent

on weight and manufacturing tolerances.

Up to 10 miles (16km) between charges under ideal

conditions. Note: Range varies with weight, terrain,

temperature, battery condition etc. and is subject to

manufacturing tolerances.. Note : Your batteries will require a

period of "running in" before they will reach their optimum

capacity. Up to 20 charge, discharge cycles can be expected

CLASSIFICATION

Maximum safe climbing angle:

Warning:

Exceeding the safe climbing angle may put you at risk of

injury. On no account must you attempt to climb an incline of

more than 8 (13%) as this will exceed the rear stability of

your scooter.

Maximum speed:

Range:

before full range is experienced. See also the battery charging

section of this manual.

Front 200x 50, Rear 200x50

2 x 12 volt. Maintenance free. 12/AH sealed lead

acid. GS Portalac PE12V18/LorMK.ES17-12.

AC input. 100-240 volt. 50/60Hz.

UK Plug 13 Amp fuse internal TIA.

DC output 24 Volt. 2 Amp.

Conforms to: EN60335-2-29 and EN12184.

24 volt DC.

Rear wheel, direct drive via sealed drive axle.

24 volt DC. Permanent magnet, totally enclosed for

outdoor use. Internal brushes. 3.0 Amp. (no load)

270W. 4700R.P.M.

Automatic dynamic regenerating braking system with

spring activated magnetic solenoid parking brake. Free wheel

facility.

Easily dismantled into five basic pieces for

convenient transporting.

for driving comfort.

State of the art design for

safety and smooth operation; incorporating 'Fault'

diagnosis.

Adjustable for height, arm width and

armrest angle. Swivels for easy access.

Charging point is on the battery pack cover.

Complies with E.M.C. Directive 89/336/EEC

complies with Medical Devices Directives 93/42/EEC

Tyre Size:

Batteries:

Charger:

Electrical System:

ADDITIONAL FEATURES

Drive system:

Motor:

Brake:

Modular Design:

Adjustable Locking Tiller:

Proportional Speed Control:

Contoured Seat:

Automatic Charger:

Tyre Size:

Batteries:

Charger:

Electrical System:

ADDITIONAL FEATURES

Drive system:

Motor:

Brake:

Modular Design:

Adjustable Locking Tiller:

Proportional Speed Control:

Contoured Seat:

Automatic Charger:

SIZE SPECIFICATION-bootie 3

Model Code: bootieModel Code: bootie

bootie 3 SPECIFICATIONSbootie 3 SPECIFICATIONS

bootie 4 SPECIFICATIONSbootie 4 SPECIFICATIONS

94cm/37 inches

51cm/20 inches

8.5cm/3.4 inches

114kgs/250 lbs/18ston

16km/10ml

32.5kgs/78 lbs

12kgs/26 lbs

81cm/32 inches

6km/4 mph

12Amp

99cm/39 inches

51cm/20 inches

8.5cm/3.4 inches

114kgs/250 lbs

16km/10ml

39kgs/85 lbs

14kgs/31 lbs

116cm/45.5 inches

6km/4 mph

12Amp

Overall length

Overall width

Ground clearance

Maximum load

Range up to

Total weight (excl.batteries)

Heaviest part

Wall to wall turning radius

Maximum Speed

Battery

Overall length

Overall width

Ground clearance

Maximum load

Range up to

Total weight (excl.batteries)

Heaviest part

Wall to wall turning radius

Maximum Speed

Battery

30 31

CIRCUIT DIAGRAMS

CIRCUIT DLAGRAMCIRCUIT DLAGRAM

BATTERY WIRING DIAGRAMBATTERY WIRING DIAGRAM

SIZE SPECIFICATION-bootie 4

32 33

OPTIONAL ACCESSORIES

ADVISORY SAFETY NOTICE

Warning: Radio wave sources may affect Scooter control.

Your powered Scooter is designed to operate in appropriate

environments, however radio wave sources such as radio or

TV broadcasting stations, amateur (Ham) radio transmitters,

two-way radios and cellular portable telephones can affect

powered motorised Scooters.

The following warnings listed below should reduce the

chance of unintended brake release or uncontrolled powered

Scooter movement.

1. Do not turn on hand held personal communication

devices such as citizen ban (CB) radios and cellular

phones, while your is turned on.

2. Be aware of nearby transmitters such as radio or TV

stations, and try to avoid coming into close contact with

them.

3. If unintended movement or brake release should occur,

turn your OFF as quickly as it is safe to do so.

4. Be aware that adding accessories or components or

modifying your may make it more susceptible to

interference from radio wave sources.

Note: There is no easy way to evaluate their effect on

the overall immunity of your powered Scooter.

bootie

Warning:

bootie

5. Report all incidents of unintended movement or brake

release to your supplier, noting if there is a radio

wave source nearby. He will then be able to diagnose your

Scooter to eliminate any possible Scooter component

failure. Please note a charge may be made for this service.

Your Scooter has been tested to the following standards with

reference to EN12184. Emissions EN50022(B), Immunity

IEC1000-4-3, E.S.D. IEC801-2

All figures, speeds, measurements and capacities

shown in this manual are approximate and do not constitute

specifications. Our policy is one of continual improvement.

We reserve the right to alter, without notice, any weights,

measurements or other technical data shown in this manual.

If you require specific accurate data, please contact your

authorised dealer.

bootie

Days

Note:

Enjoy your bootie

bootie

Note:

Days

Enjoy your bootie

Your is an electro-mechanical machine.

Some of its consumable components will need replacing due

to normal wear and tear.

The following list of components can be purchased from

your local from whom you purchased your

Scooter. Quoting model code

bootie

Days

bootie.

dealer

bootie

Days

bootie.

dealer

bootie SPARE PARTS

DESCRIPTION PART Number

34 35

DISPOSING

To comply with national law, the following instructions are

guidelines for the disposal of your product at the end of its

life or when it ceases to function economically.

Recent legislation on electrical equipment indicates that the

equipment must be disposed of in a proper manner.

The product and/or its components are not to enter the

system of landfill sites.

The product and/or its components are not to be disposed

of in domestic household waste.

The electrical and material parts are to be disposed of as

scrap or recycling materials.

Local waste collection depots are available to advice and

dispose of electrical products.

Batteries which contain liquid acid must be stored and

disposed of separately at these depots.

Please enquire about disposal depots with your local

authority.

Should you require further advice, please contact your

supplier or nearest dealer.

Many optional accessories are available on for information regarding these optional accessories

please contact your Authorised Days Agent.

bootie

Top Control Console Assembly

Handlebar Rubber

Charger Socket Assembly

Front Basket

Battery Pack Assembly

Anti-Tipping Wheel

Bearing for Steering Handlebar

Drive Transaxle

Motor

Motor Brake

Front Wheel Assembly

Front Wheel Assembly (LEFT)

Front Wheel Assembly (RIGHT)

Front Axle

Front Wheel Bearing (6202ZZ)

Rear Wheel Assembly (LEFT)

Rear Wheel Assembly (RIGHT)

Self Lock Nut Front/Rear Wheel M12

Floor Mat (168-3A3)

Floor Mat (168-4A)

Arm Rest Pad

Arm Tighten Knob

Charger Circuit Fuse (40A)

Power Key (ignition)

Power Key Switch

Horn Button PKE1-0103

Horn PKE1-0605

Battery Meter PKE1-0700

Battery 12 A/H Sealed Lead/Acid

Top Control Board (P.C.B.)

Controller (S-Drive 45)

Potentiometer 5k Assembly

Potentiometer Spring

Variable Resistor 20k (min-max speed)

Black Knob (min-max speed)

Plastic Cap

PM00-0303

AC13-1100-L

AC13-1100-R

PU00-1202

PP04-0518-P

PP04-0519-P

PP14-0102

PP00-0200

PKE1-1005

PM90-0903

PM01-0100

PKE1-0103

PKE1-0605

PKE1-0700

PK90-0201-GS

PAE1-0301-B1

PKE2-0106

PAE1-0201

PM02-0200

PAE1-0100

PP01-0501

PP91-0001

AA01-0401-B3

PP02-0201

PAE1-0406

PM90-0400

PA04-A600-D1

PP07-0102

PM08-0900

PM11-0216-S

PM11-0305-SY47

PM11-0106-A

AC12-0302

AC12-0303-L

AC12-0303-R

PV00-1202

GUARANTEE TERMS

Please keep a note of your serial No

Due to the individual prescription nature of this product. This

guarantee is not transferable.

Note: Extended guarantee insurance can be arranged by your

Days dealer, he will be able to advise the extra cost of this cover.

WARRANTY REGISTRATION

Exclusions:

This guarantee does not apply if your Days shows signs of

excessive wear and abuse, or has been modified without the

authority of Days.

METAL WORK:

................................

(This is located on a plate on the front frame tube, under the front

body cover).

Your is guaranteed for 12 months from the date of

purchase against faults arising due to defects in manufacture or

materials. This guarantee does not detract from, but is in addition

to your legal rights. Parts replaced or repaired under the terms of

this guarantee will be covered for the balance of the 12 months period.

This guarantee applies only to parts supplied or approved by

To enable Days to handle any enquiries regarding the guarantee

of your Scooter; please complete and return the warranty registration

card supplied with your Scooter at your earliest convenience.

This guarantee does not extend to consumable items

which may need replacing due to normal wear and tear, namely

tyres, tubes, punctures, lubrication, carpets, oil seals, gaskets,

screws, brake shoes, mirrors, bulbs, upholstery, motor brushes,

fuses, batteries, handgrips etc. or to damage to the product caused

by mis-use, neglect or accident for which or its dealer

cannot be held responsible.

This guarantee does not cover the following items:

1. Any noise or vibration, which does not effect the quality and

function of the machine.

2. Damage due to lack of maintenance or improper use or

operation or storage.

3. Fees for the regular service inspection and maintenance.

4. Any fees incurred as a result of warranty repair, losses or

compensation because of the inability to use the Scooter

(telephone use, shipping, car rental, travel fees etc.)

Metal components, such as the framework and

Days Healthcare

Days

ootie

bright metal parts require special attention and may deteriorate in

certain conditions. Moisture and salt may corrode parts left

unattended, proprietary auto cleaner polishes should be used to

Prevent long term damage. Failure to clean and protect these

components may void your warranty.

GUARANTEE TERMS

Please keep a note of your serial No

Days Healthcare

Due to the individual prescription nature of this product. This

guarantee is not transferable.

Note: Extended guarantee insurance can be arranged by your

Days dealer, he will be able to advise the extra cost of this cover.

WARRANTY REGISTRATION

Exclusions:

Days

This guarantee does not apply if your Days shows signs of

excessive wear and abuse, or has been modified without the

authority of Days.

METAL WORK:

ootie

Batteries carry a limited 12 month guarantee from the

original manufacturer which is subject to a stringent wear and tear

clause. Any battery faults due to a defect in the original manufacture will

normally become obvious within the first two months of use.(See

batteries and battery charging section of this manual). Any gradual

deterioration in the performance after this period is normal and

associated with fair wear and tear, mis-use or accidental damage and as

such is not covered by the manufacturers warranty.

Do not attempt to open the battery vent plugs.

In line with all mobility vehicles, your will benefit from

regular service inspections to keep it in pristine condition. The

frequency of these service inspections will depend on the amount of

use your vehicle is put to. We strongly recommend you contact your

local dealer to arrange for a service visit. (See Care &

Maintenance Section of this manual).

Your product must be fully serviced at least every 12

months or more frequently if conditions and use require it.

Please contact your authorised dealer who will be able

to advise you of his current costs affecting service visits. Please note:

Non-warranty service costs are chargeable.

The warranty on your may not apply if routine maintenance is

not carried out as defined in the 'Care and Maintenance' section in this

manual.

If your should need

attention due to failure as defined under the guarantee terms, please

contact the distributor from whom you purchased your machine.

The shown and described in this manual may not be

exactly identical in every detail as your own . However, all

instructions are still entirely relevant, irrespective of detail differences. If

you are not sure of any details, please consult your

before driving your Scooter.

disclaims all responsibility for any personal injury or

property damage which may occur as a result of improper or

unsafe use of its products. Mechanical or electrical defects will be

dealt with on a contingency liability basis. The part or parts will be

replaced or repaired but no responsibility for damage or injury can

be implied to .

This guarantee does not cover deterioration of

paintwork resulting from the lapse of time i.e. natural fading. It is

the users responsibility to clean and protect the painted surfaces.

Servicing of the speed controller or

battery charger must only be carried out by your local authorised

dealer. Any attempt to open or dismantle these items

render the guarantee void on that item.

Days

Days Healthcare

Days

ootie

WARRANTY SERVICE VISIT:

Authorised

Distributor

bootie

Guidelines in this manual are intended to assist you in the safe

operation of your powered Scooter. If you should have

any questions about the correct operation of your Scooter, please

contact your authorised dealer.

It is the responsibility of the user to carry out daily inspections

and regularly maintain and keep records of inspection and

maintenance covered in this manual. The user is also responsible

for the proper use of the Scooter as detailed in this manual.

Consult your doctor and

therapist if you are in doubt about your ability to operate your .

PAINT WORK:

SPEED CONTROLLER:

BATTERIES:

(Batteries are

guaranteed as single parts, only the failed part is replaceable).

SERVICE CHECKS

DISCLAIMER

Warning:

PAINT WORK:

SPEED CONTROLLER:

BATTERIES:

(Batteries are

guaranteed as single parts, only the failed part is replaceable).

SERVICE CHECKS

bootie

DISCLAIMER

bootie

Days

Days Healthcare

Days

Warning:

ootie

WARRANTY SERVICE VISIT:

Authorised

Distributor

Guidelines in this manual are intended to assist you in the safe

operation of your powered Scooter. If you should have

any questions about the correct operation of your Scooter, please

contact your authorised dealer.

It is the responsibility of the user to carry out daily inspections

and regularly maintain and keep records of inspection and

maintenance covered in this manual. The user is also responsible

for the proper use of the Scooter as detailed in this manual.

Consult your doctor and

therapist if you are in doubt about your ability to operate your .

FIG35

36 37

SERVICE HISTORY

DETAILS OF WORK CARRIED OUT DEALER STAMP

DATE INITIALS

DETAILS OF WORK CARRIED OUT DEALER STAMP

DATE INITIALS

DETAILS OF WORK CARRIED OUT DEALER STAMP

DATE INITIALS

DETAILS OF WORK CARRIED OUT DEALER STAMP

DATE INITIALS

This section is designed to assist you in keeping a record of

any service and repairs to your .

Should you decide to sell or exchange your Scooter

in the future this will prove most helpful to you. our

bootie

Service agents will also benefit from a documented record and

this book should accompany the Scooter when service or

repair work is carried out. The service agent will complete

this section and return the book to you.

Healthcare

38 39

SERVICE HISTORY

DETAILS OF WORK CARRIED OUT DEALER STAMP

DATE INITIALS

DETAILS OF WORK CARRIED OUT DEALER STAMP

DATE INITIALS

DETAILS OF WORK CARRIED OUT DEALER STAMP

DATE INITIALS

DETAILS OF WORK CARRIED OUT DEALER STAMP

DATE INITIALS

This section is designed to assist you in keeping a record of

any service and repairs to your .

Should you decide to sell or exchange your Scooter

in the future this will prove most helpful to you. our

bootie

Service agents will also benefit from a documented record and

this book should accompany the Scooter when service or

repair work is carried out. The service agent will complete

this section and return the book to you.

Healthcare

SERVICE HISTORY

DETAILS OF WORK CARRIED OUT DEALER STAMP

DATE INITIALS

DETAILS OF WORK CARRIED OUT DEALER STAMP

DATE INITIALS

DETAILS OF WORK CARRIED OUT DEALER STAMP

DATE INITIALS

DETAILS OF WORK CARRIED OUT DEALER STAMP

DATE INITIALS

This section is designed to assist you in keeping a record of

any service and repairs to your .

Should you decide to sell or exchange your Scooter

in the future this will prove most helpful to you. Our

bootie

Service agents will also benefit from a documented record and

this book should accompany the Scooter when service or

repair work is carried out. The service agent will complete

this section and return the book to you.

Healthcare

This manual suits for next models

Table of contents

Other Days Scooter manuals

Days

Days ST-6 User manual

Days

Days Strider MD 4 User manual

Days

Days MD 4 Plus User manual

Days

Days Strider ST4 User manual

Days

Days ST-2 User manual

Popular Scooter manuals by other brands

Pride

Pride BAJA BANDIT owner's manual

Razor

Razor E100 series owner's manual

EVOLV

EVOLV CORSA user manual

Olsson and Brothers

Olsson and Brothers STROOT B8 User guide and guarantee

niu

niu KQi2 user manual

Voyager

Voyager ROVER E-SCOOTER user manual

Xtreme

Xtreme X-140 owner's manual

PIAGGIO

PIAGGIO Fly Workshop manual

BPM

BPM F-15 Assembly instructions & owner's manual

Pushpak

Pushpak ETR1000 owner's manual

ARGENTO

ARGENTO E-MOBILITY Active Bike user manual

Audi

Audi EGRET PRO user manual

MODSTER

MODSTER M760 user manual

Euphree

Euphree Model X manual

YUNEEC

YUNEEC E- GO Cruiser guide

Bolzzen

Bolzzen Commando 2022 owner's manual

Single Speed

Single Speed E-GLIDE operating instructions

Fiat

Fiat F500-F10 user manual
