HOMCOM 371-029 User manual

ASSEMBLY INSTRUCTION
INffb021_UK_FR_DE_ES_IT
371-029
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
Brake

100
EN

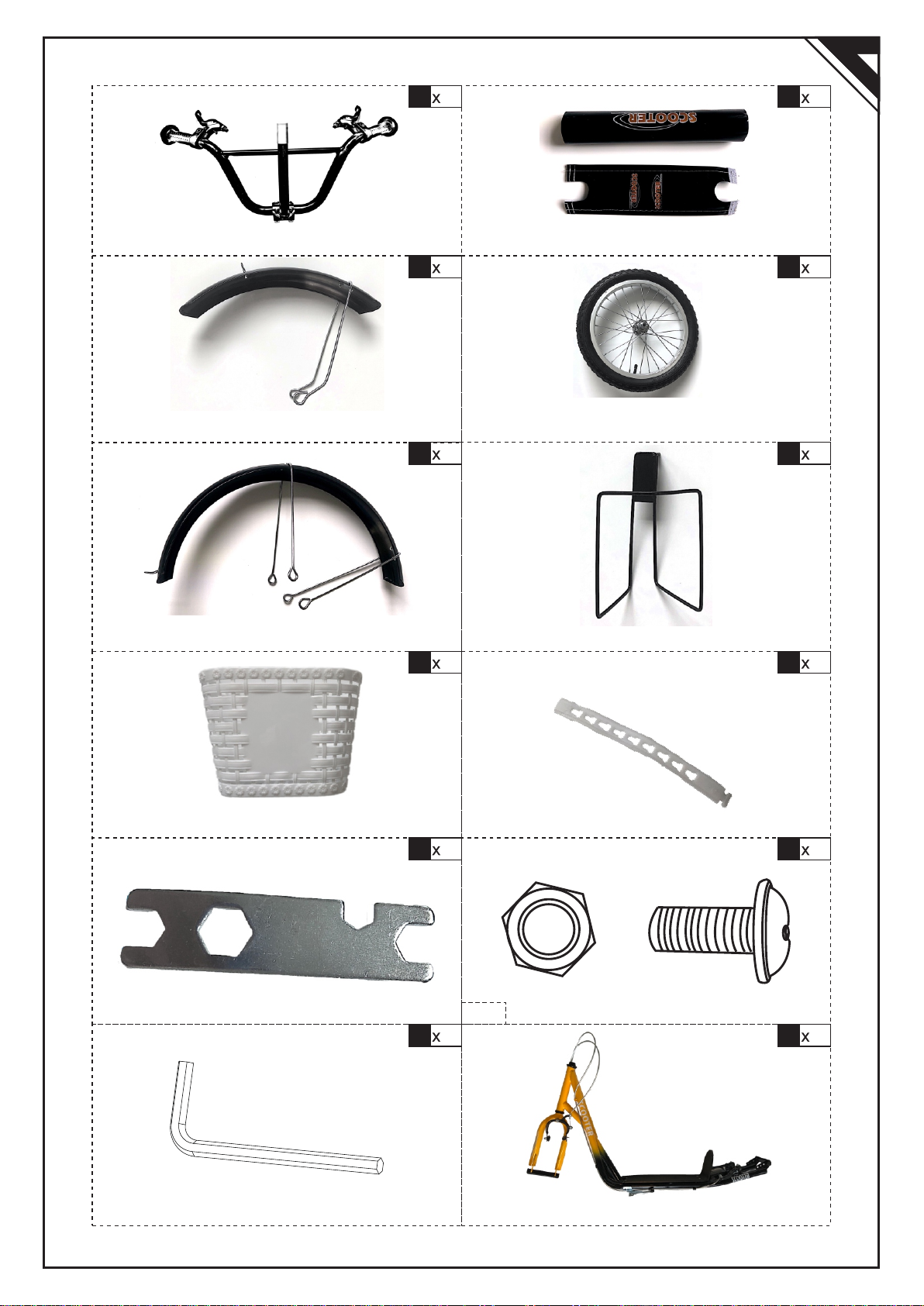

PART
LIST
K1
J1
I1
E1
D2
C1
B1 A1
H2 G1
F1
Front/Rear wheel
Front fender
Rear fender Bottle cage
BasketRibbon
Handle
Multifunction Wrench
sheath
M5*8
Screw and Nut
Allen wrench
L1
Body

1. The front fender fixing piece is inserted into the front brake screw.
2. Insert the gasket with the concave side of the gasket backward (close to the arc of the front
fork riser when locked)
Please do not unscrew the two sides of nuts (c).The clearance between the bearings was
adjusted at the factory.
Install wheels with axles pushed fully into axle slots. Make sure to install tab washers (a) so that
the tab is inserted into the round hole in the frame. This washer should be on the outside of the
frame, between the frame and axle nut.
Make sure wheels are centered, tighten the axle nuts (b) firmly with a wrench .
Front fender installation
Front wheel installation
Warning: If the wheel can not work properly, do not disassemble bearings by yourself
in order to avoid improper installation to result in the wheel unworkable properly.
Please contact the seller directly if you can not sort out the problem.

5: The front wheel axle is stuck in the front fork groove, then insert the safety hook.
6: Tighten the inner nut to fix the wheel.
7: Set the fender support into the front axle and tighten the outer nut to fix the fender support.
Rear wheel installation
3: Insert the front brake screw into the hole of the front fork riser.
4: Sleeve the gasket with the concave side of the gasket forward (close to the arc of the front
fork riser when locked),Tighten the nut.
Please do not unscrew the two sides of nuts (c).The clearance between the bearings was
adjusted at the factory.
Install wheels with axles pushed fully into axle slots. Make sure to install tab washers (a)
so that the tab is inserted into the round hole in the frame. This washer should be on the
outside of the frame, between the frame and axle nut.
Make sure wheels are centered, tighten the axle nuts (b) firmly with a wrench .

2.The rear wheel axle is stuck into the rear fork groove, then insert the safety hook.
3.Tighten the inner nut to fix the wheels.
1. The fixing piece of the rear fender is installed in the hole of the frame, tighten the screw.
4.Set the fender support into the rear axle and tighten the outer nut to fix the fender support.
Rear fender installation

The basket installation
The ribbon through the basket hole and surrounds the handlebar.
Loosen the nut, insert the bottle cage, and tighten it firmly.
Parts

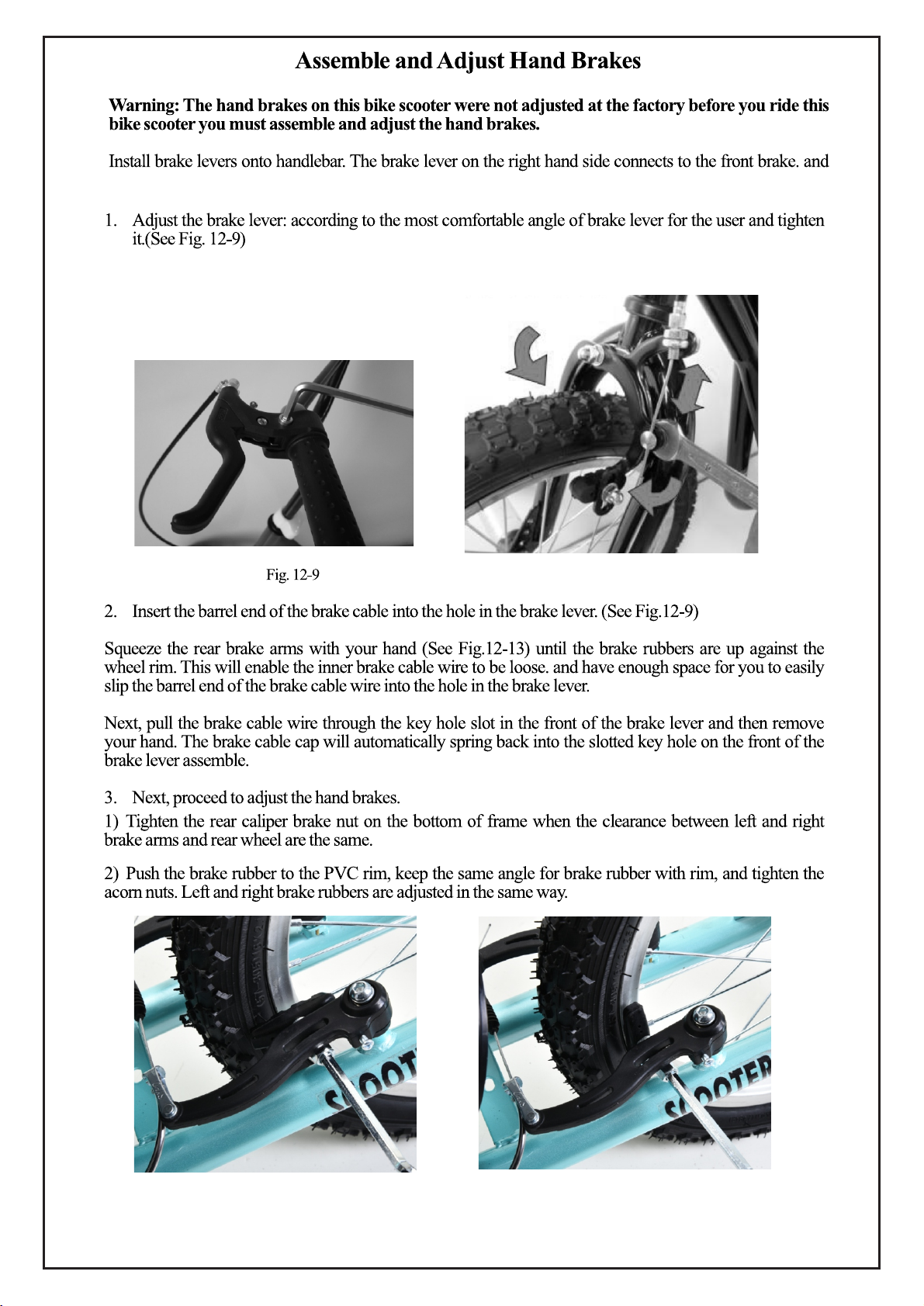

Fig. 12-10 Fig. 12-11
