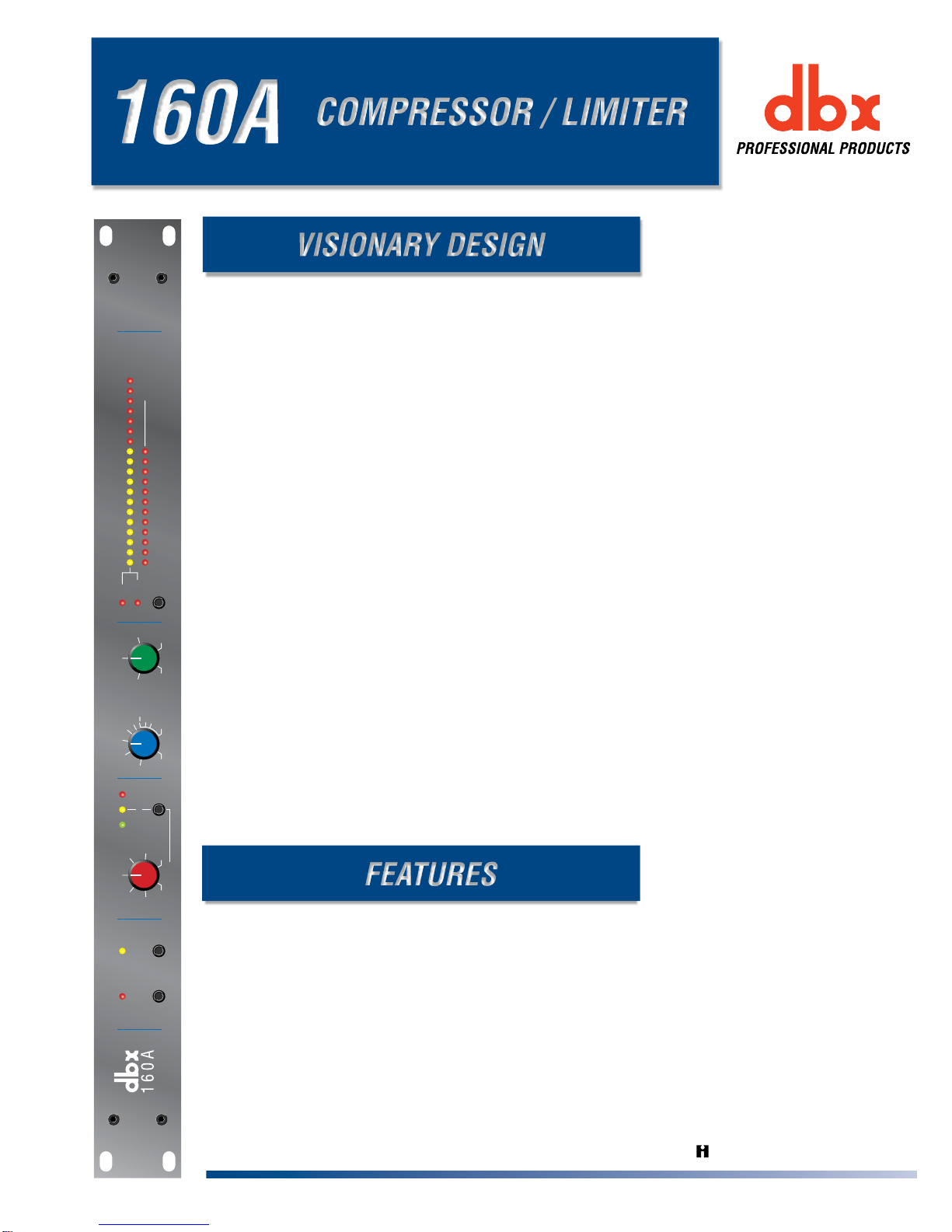

dbx 160A User manual

8760 S. Sandy Pkwy.
Sandy, Utah 84070
Phone [phone]
Fax [phone]
Int’l Fax [phone]
[e-mail]
http://www.dbxpro.com
A Harman International Company
COMPRESSOR / LIMITER
LEVEL
INPUT OUTPUT
BYPASS SLAVE OVEREASY
THRESHOLD COMPRESSION
RATIO OUTPUT
GAIN DISPLAY
+20dBu
+10
0
-40dBu -1:1
-2:1
-5:1
10:1
6:1
4:1
1:1 +20dB
+10
0
-20dB
-10
2:1
3:1
-30
-20
-10
BELOW ABOVE
-40302015108654321012461020+
GAIN REDUCTION
:1
®
• OverEasy® or classic hard knee compression with
dbx’s ultra-musical program dependent attack and
release times
• Compression Ratio variable from 1:1 through infinity
:1 to negative compression
• Precision dual RMS LED display monitors input or
output and gain reduction over a wide range and cal-
ibrates for different operating levels
• Over 60dB of gain reduction available
• Exclusive Infinity+ compression allows negative com-
pression
• lndependent balanced and unbalanced outputs can
drive 600Ωloads to +24dBm simultaneously. New
floating balanced output stage drives any load
• Optional output transformer capable
• Strappable with another 160A for true RMS stereo
summing operation
• Made in the USA
18-1659-C 01/99
Since its introduction in the mid 1970’s, the dbx 160 series has been the world’s most popular line of audio com-
pressors. After the classic 160 (which is still used daily in many world class studios), came the 165, the 160X and
the 160XT. The 160X/XT were the models that truly became the industry standard. Solid construction, fool proof
operation, great sound, at-a-glance metering and a bulletproof output stage all contributed to its popularity with musi-
cians, recording studios, consultants and installers, and broadcast media production people alike.
In updating the design, dbx has chosen to maintain all the key characteristics that have made the 160X/XT the icon
that it is. At the same time, we have improved the design.
The dbx 160A is the latest generation of the legendary dbx 160 family of compressor/limiters. The same classic
sound, easy set-up and no compromise metering is now married to an improved signal path and stronger chassis
design. The result is the new industry standard compressor/limiter which is digital-ready and road tough.
Featuring switch-selectable OverEasy® and Hard Knee compression curves along with extremely wide-ranging
threshold, ratio and output controls, the dbx 160A is up to any task. True RMS level detection provides the most nat-
ural-sounding dynamics processing available, from subtle compression to “brick wall” peak limiting. Choose low
ratios and OverEasy® compression to transparently smooth out fluctuating vocal and instrumental levels. Or use the
160A’s Hard Knee compression and high ratios (up to and beyond ∞:1 and over 60dB gain reduction) for bombproof
protection against overload distortion in digital recording, P.A. systems and broadcast signals. The 160A is fully com-
patible with +4/-10dB and balanced/ unbalanced systems, and its electronically balanced output stage is an out-
standing line driver for long cable runs (an output transformer is optional). The 19-segment, switchable input/ out-
put LED metering can be easily calibrated to any operating level. 12-segment gain reduction LEDs provide precise
analysis at a glance.
The dbx 160A’s unique “INFINITY +” inverse-compression mode actually decreases the audio output level below
unity gain when the input exceeds threshold, a real lifesaver for correcting overbearing vocal choruses and control-
ling runaway house mix levels. A detector input can be used with an equalizer for de-essing sibilant vocals and selec-
tively smoothing out boomy notes on acoustic guitar and bass. And two 160As can be stereo-coupled to process an
entire mix or instruments mic’d in stereo, without shifting the left/right image. Its musical sound, easy operation and
unequaled versatility made the original dbx 160 a world standard. The 160A follows that tradition, while meeting the
challenges of a digital world.

®
FOR MORE INFORMATION CONTACT:
dbx Professional Products
8760 S. Sandy Pkwy.
Sandy, Utah 84070
Phone [phone]
Fax [phone]
Int’l Fax [phone]
[e-mail]
http://www.dbxpro.com
A Harman International Company
The compressor shall be a single channel unit, with
an audio frequency response of 20—20kHz +0, -
0.5dB, an electronically floating balanced input
impedance of not less than 38kΩwith a maximum
input level of not less than +24dBu and 1⁄4” TRS
and XLR input connectors. The output impedance
of the electronically floating balanced output shall
be no more than 32Ω(balanced or unbalanced) with
a maximum output level of not less than +24dBu,
into a balanced load with a minimum impedance of
not less than 600Ω, and +21dBu into and unbal-
anced load with a minimum impedance of not less
than 600Ω. It shall use an XLR connector. The out-
put impedance of the separate, 1⁄4" TRS unbalanced
output shall be no more than 21Ωwith a maximum
output level of not less than +24dBm. Total har-
monic distortion shall be no more than 0.2% in typ-
ical operation with any amount of compression up
to 40dB. The unit shall have an output noise level
of not more than -90dBu and a dynamic range of
not less than 113dB. Output level shall be gain adjustable from -20dB to +20dB from nom-
inal gain via front panel gain controls and all outputs shall be capable of driving a short cir-
cuit indefinitely with maximum input applied. The compressor attack and release times shall
be program dependent. The compression threshold shall range from -40dB to +20dB, and
the compression ratio shall be variable from 1:1 through Infinity:1 through negative com-
pression to -1:1. The unit shall have a detector input, with a 1⁄4" TRS jack capable of bal-
anced or unbalanced operation. The front panel shall have the following controls and switch-
es:, Bypass switch, Master/Slave switch, Compressor Threshold, OverEasy or Hard Knee
selector switch, Compression Ratio, Output Gain, and Display Selector switch. The follow-
ing LEDs for metering and status indication shall exist: Bypass, Slave, Threshold (3 LEDs),
Input/ Output Display Selected (2 LEDs), Input/Output Level (19 LEDs) and Gain Reduction
(12 LEDs). The unit shall have a 1⁄4" TRS jack at the rear panel, allowing stereo strapping
with a second unit of the same design for stereo operation with true RMS summing of input
levels There shall also be a calibration control for the level meter, at the rear panel. The unit
shall incorporate a detachable IEC mains cable and the power requirement shall be 90—
130VAC 50/60Hz or 200—250VAC 50/60Hz. Dimensions shall be 1.75" x 19" x 6.5"
(4.45cm x 48.2cm x 16.51cm). The net weight shall be 4.41lbs (1.99 kg) and the shipping
weight shall be 6.62 lbs (2.99kg). The unit shall be a dbx 160A Compressor/Limiter.
dbx engineers are constantly working to improve the quality of our products. Specifications
are, therefore subject to change without notice.
COMPRESSOR / LIMITER
160A
Input: Connector: 1⁄4”TRS and XLR, Floating Balanced; XLR:Pin 2 hot,
Phone:Tip Hot.
Impedance: 40k Ω .
Maximum Level: +24dBu, Balanced or Unbalanced (Absolute).
CMRR: >45dB (Any Frequency).
Detector Input: Connector: 1⁄4” TRS phone, Floating Balanced.
Impedance: >200k Ω .
Maximum Level: +28dBu, Balanced or Unbalanced.
Output: Connector: XLR, Floating Balanced; Pin 2 Hot.
Impedance: 30 Ω .
Maximum Level: (Balanced): +24dBm; <0.3% THD.
Maximum Level: (Unbalanced): +20dBm; <0.3% THD
Noise: <-90dBu, Unweighted (20Hz — 20kHz).
Frequency Response: 20Hz —20kHz, +0,
-0.5dB; +0, -3dB 0.5Hz and 90kHz.
THD: <0.2%,Typical, any amount of
compression up to 40dB @ 1kHz.
Output: Connector: 1⁄4" TRS phone, Unbalanced.
Impedance: 20 Ω .
Maximum Level: +24dBm.
Compression: Threshold Range: -40dBu to +20dBu.
Threshold Characteristic: OverEasy® or Hard Knee.
Compression Ratio: Variable 1:1 to :1 thru to -1:1; >60dB maximum compres-
sion.
Attack Time: Program dependent; typically 15ms for 10dB, 5ms for 20dB,
3ms for 30dB.
Release Time: Program Dependent;Typically 8ms for 1dB, 80ms for 10dB,
400ms for 50dB; 125dB/sec rate.
System Performance:
Dynamic Range: >113dB.
Gain Adjustment Range:Variable from -20dB to +20dB.
Stereo Coupling: True RMS Power Summing™
Summing: 1⁄4" TRS phone jack.
Hardware: Power Cord: IEC-Type connector.
Operating Voltage: DO: 90-130VAC, 50/60Hz; EU: 200-250VAC, 50/60Hz.
Operating Temperature: 0°C to 45°C (32°F to 113°F).
Dimensions (H x W x D): 1.75" x 19" x 6.5"(4.45cm x 48.2cm x 16.51cm).
Weight: Net Weight: 4.45 lbs (1.99 kg) Shipping Weight: 6.62 lbs (2.99 kg)
