DCD Valor G Jet User manual

855.SHOP.DCD l DCDdrain.com
DRAIN JETTING MANUAL

855.SHOP.DCD l DCDdrain.com
3
Introduction
3 ......................................................................... Using the Operators Manual
Product Indentication
3 ........................................................................ Sewer Jetter
Safety
5 ....................................................................... Understanding the Machine
6 ....................................................................... Safety Labels Safety Rules
6 ....................................................................... Hazard Symbols and Meanings
7-10 ................................................................... Warning and Precautions
Operation
14...................................................................... Starting the Machine
15...................................................................... Checking and Changing the Oil
15...................................................................... General Precautions for Use
16...................................................................... Shutting Down the Machine

855.SHOP.DCD l DCDdrain.com
4
Attention: Read through the complete manual prior to the initial use of your sewer
jetter.
Using the Operator’s Manual
The operating manual is an important part of your sewer jetter. It should be read
thoroughly before initial use and referred to often to make sure adequate safety and
service concerns are being addressed.
Reading the owner’s manual thoroughly will help avoid any personal injury or damage
to your machine. The information in this manual will offer you the most effective tools
for cleaning as well as the safest. By knowing how best to operate this machine you
will be better positioned to show others who may also operate the unit.
Notice
Actual pressure released at the point of discharge may vary by machine due to
varying factors including: Volume of water being fed to the machine by the water
source, the inclusion of a chemical injector in the line, or variations in engine
performance
Record Identication Numbers
If you need to contact an authorized dealer or customer service line for information
on servicing, always provide the product model and identication numbers.
You will need to locate the model and serial number for the machine and record the
information in the places provided below.
Product Identication Number
Model Number
Serial Number
Date of Purchase
Dealer Name
Dealer Phone

855.SHOP.DCD l DCDdrain.com
5

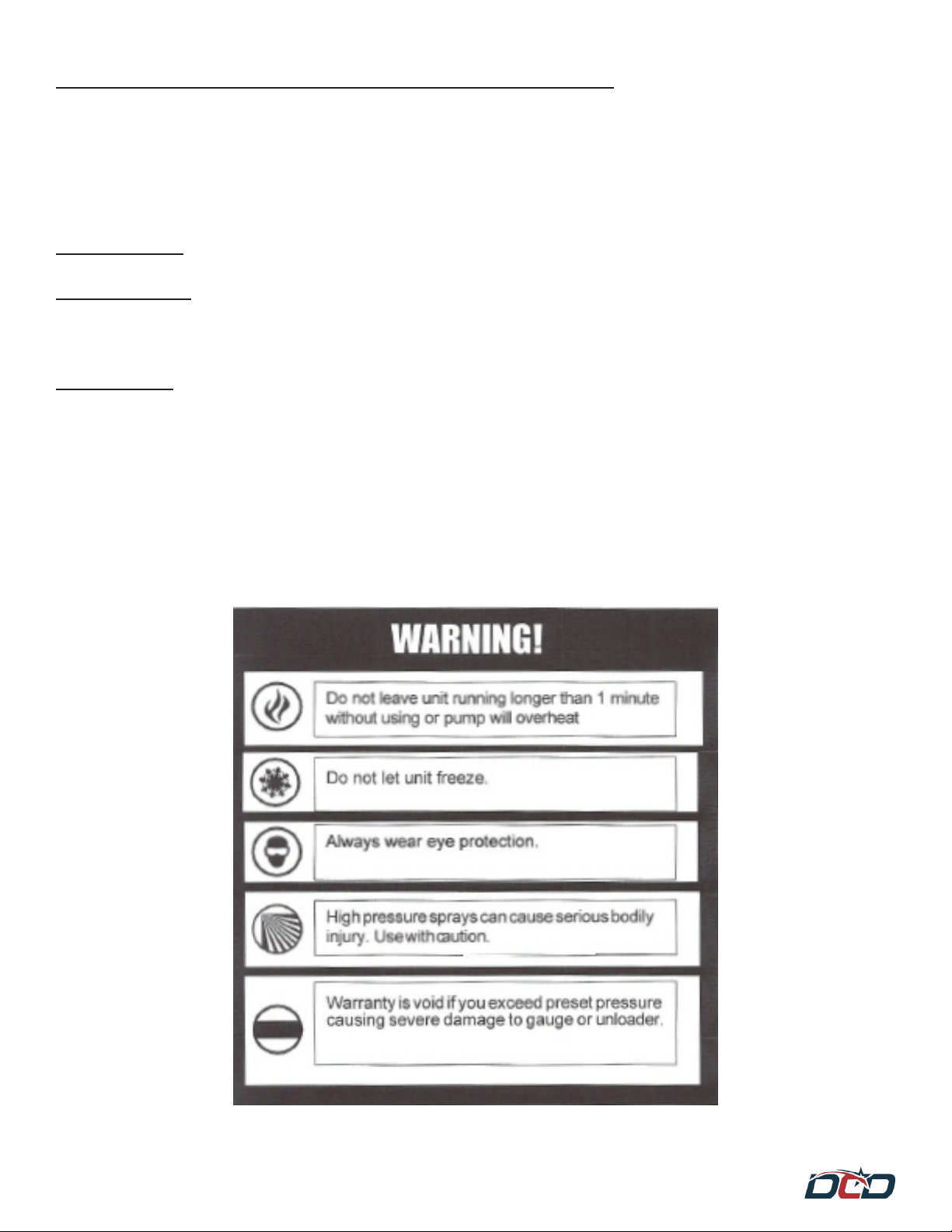

Understanding the Machine Safety Labels
The machine safety label shown below is placed on your machine to draw attention
to potential safety hazards.
Caution - Gun kicks back - Hold with both hands.
Warning - Risk of explosion - Do not spray ammable liquid.
Caution -To reduce risk of injury, read operating instructions carefully before using.
Warning - Risk of injection or injury to persons or animals - Do not direct discharge
stream at persons or animals.
Store Indoors
Cold Water Use ONLY

855.SHOP.DCD l DCDdrain.com
6
This is the safety alert symbol. It is used to alert you to potential personal injury
hazards. Obey all safety messages that follow this symbol to avoid possible injury or
death. The safety alert symbol (.A) is used with a signal word (DANGER, CAUTION,
WARNING), a pictorial and/or a safety message to alert you to hazards.
DANGER indicates a hazard which, if not avoided, will result in death
or serious injury
WARNING indicates a hazard which, if not avoided, could result in death or
serious injury.
CAUTION indicates a hazard which, if not avoided, might result in minor or
moderate injury.
NOTICE indicates a situation that could result in equipment or
property damage

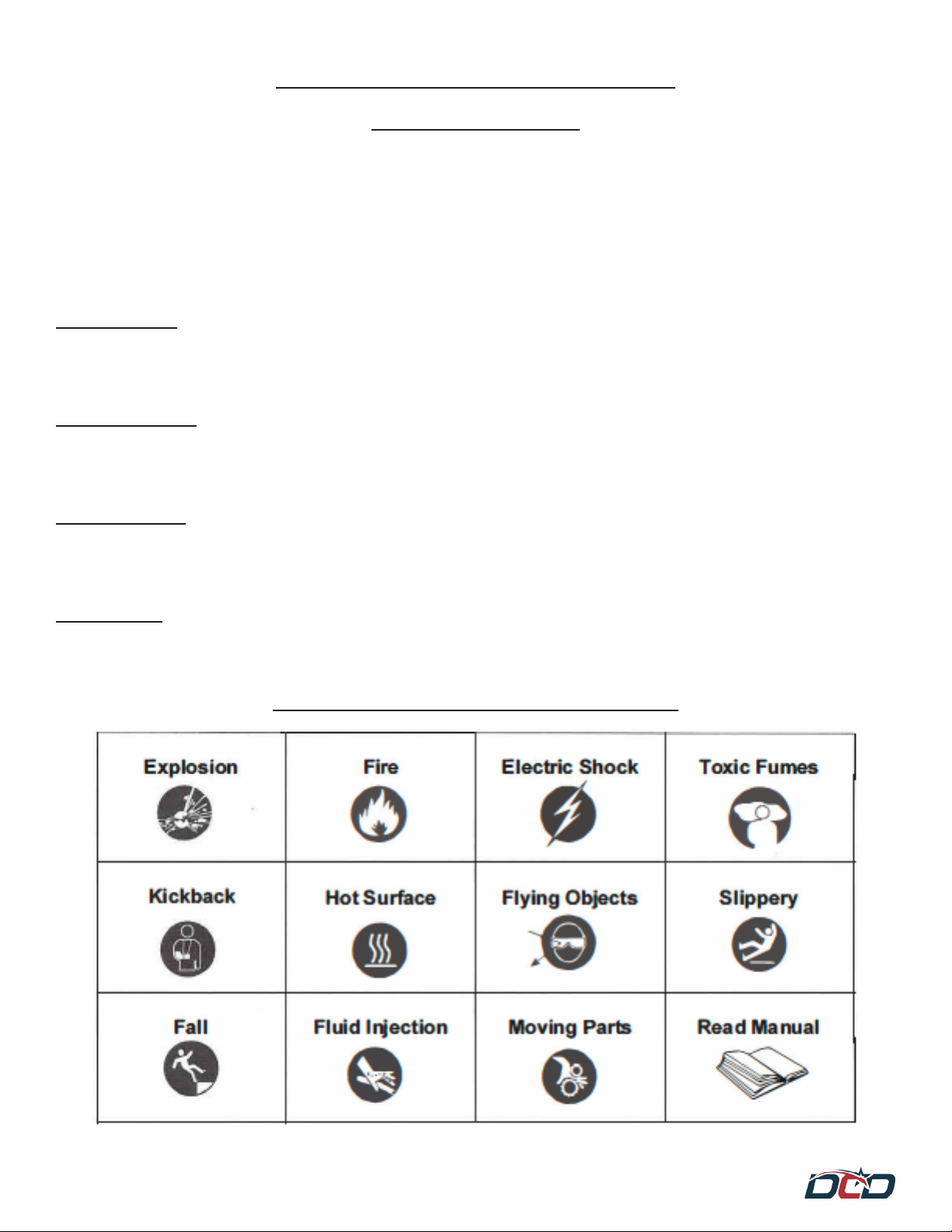

Hazard Symbols and Meanings
SAVE THESE INSTRUCTIONS
SAFETY RULES

855.SHOP.DCD l DCDdrain.com
7
! WARNING
A running engine gives off carbon monoxide, an odorless, colorless, poison gas.
Breathing carbon monoxide can cause headache, fatigue, dizziness, vomiting,
confusion, seizures, nausea, fainting or death.
Some chemicals or detergents may be harmful if inhaled or in ested, causing
severe nausea, fainting , or poisoning
• Operate sewer jetter ONLYoutdoors.
• Keep exhaust gas from entering a conned area through windows, doors, ventilation intakes, or
other openings.
• DO NOT start or run engine indoors or in an enclosed area, even if windows and doors are open.
• Use a respirator or mask whenever there is a chance that vapors may be inhaled.
• Read all instructions with mask so you are certain the mask will provide the necessary protection
against harmful vapors
! WARNING
Use of sewer jetter can create puddles and slippery surfaces.
Kickback from spray gun can cause you to fall.
• Operate sewer jetter from a stable surface.
• The cleaning area should have adequate slopes and drainage to reduce the possibility of a fall
due to slippery surfaces.
• Be extremely careful if you must use the sewer jetter from a ladder, scaffolding, or any other
similar location.
• Firmly grasp spray gun with both hands when using high pressure spray to avoid iniury when
spray qun kicks back.
Warnings and Precautions

855.SHOP.DCD l DCDdrain.com
8
! WARNING
Risk of electrocution.
Contact with power source can cause electric shock or burn.
• Never spray near a power source.
! WARNING
Fuel and its vapors are extremely ammable and explosive.
Fire or explosion can cause severe burns or death.
When Adding or Draining Fuel
• Turn sewer jetter OFF and let it cool at least 2 minutes before removing fuel cap. Loosen cap
slowly to relieve pressure in tank.
• Fill or drain fuel tank outdoors.
• DO NOT overll tank. Always allow space for fuel expansion.
• If fuel spills, wait until it evaporates before starting engine.
• Keep fuel away from sparks, open ames, pilot lights, heat, and other ignition sources.
• DO NOT light a cigarette or smoke.
When Starting Equipment
• Ensure spark plug, mufer, fuel cap, and air cleaner are in place.
• DO NOT crank engine with spark plug removed.
When Operating Equipment
• DO NOT tip engine or equipment at angle which causes fuel to spill.
• DO NOT spray ammable liquids.
When Transporting or Repairing Equipment
• Transport/repair with fuel tank EMPTY or with fuel shutoff valve OFF.
• Disconnect spark plug wire.
When Storing Fuel or Equipment with Fuel in Tank
• Store away from furnaces, stoves, water heaters, clothes dryers, or other appliances
that have pilot light or other ignition source because they can ignite fuel vapors.

855.SHOP.DCD l DCDdrain.com
9
! WARNING
Starter cord kickback (rapid retraction) can result in bodily injury.
Kickback will pull hand and arm toward engine faster than you can let go.
Broken bones, fractures, bruises, or sprains could result.
• NEVER pull starter cord without rst relieving spray gun pressure.
• When starting engine, pull cord slowly until resistance is felt and then pull rapidly to
avoid kickback.
• After each starting attempt, where engine fails to run, always point spray gun in safe direction
and squeeze spray gun trigger to release pressure.
• Firmly grasp spray gun with both hands when using high pressure spray to avoid injury when
spray gun kicks back.
! WARNING
Contact with mufer area can result in serious burns.
Exhaust heat/gases can ignite combustibles, structures or damage fuel tank
causing a re.
• DO NOT touch hot parts and AVOID hot exhaust gases.
• Allow equipment to cool before touching.
• Keep at least 5 feet (1.5 m) of clearance on all sides of sewer jetter including overhead.

855.SHOP.DCD l DCDdrain.com
10
! WARNING
Unintentional sparking can result in re or electric shock.
When Adjusting or Making Repairs to Your Sewer Jetter
• Disconnect the spark plug wire from the spark plug and place the wire where it cannot
contact spark plug.
When Testing for Engine Spark
• Use approved spark plug tester.
•DO NOT check for spark with spark plug removed
! WARNING
The high-pressure stream of water that this equipment produces can cut through
skin and its underlying tissues, leading to serious injury and possible amputation.
Spray gun traps high water pressure, even when engine is stonned and water is
disconnected, which can cause iniurv.
• DO NOT allow children to operate the sewer jetter.
• NEVER repair the high-pressure hose. Replace it.
• NEVER repair leaking connections with sealant of any kind. Replace o-ring or seal.
• NEVER connect high pressure hose to nozzle extension.
• Keep high pressure hose connected to pump and spray gun while system is pressurized.
• ALWAYS point spray gun in safe direction and squeeze spray gun trigger to release high pressure
every time you stop engine.
• NEVER aim spray gun at people, animals, or plants.
• DO NOT leave spray gun unattended while machine is running.
• NEVER use a spray gun which does not have a trigger lock or trigger guard in place and in
working order.
• Always be certain spray gun, nozzles and accessories are correctly attached before
spraying water.

855.SHOP.DCD l DCDdrain.com
11
! WARNING
Starter and other rotating parts can entangle hands, hair, clothing, or accessories.
• NEVER operate sewer jetter without protective housing or covers.
• DO NOT wear loose clothing, jewelry or anything that may be caught in the starter or other
rotating parts.
• Tie up Iona hair and remove jewelry.
! WARNING
Risk of eye injury.
Spray can splash back or propel objects.
• Always wear safety goggles when using this equipment or in vicinity of where
equipment is in use.
• Before starting the pressure washer, be sure you are wearing adequate safety goggles.
• NEVER substitute safety glasses for safety goggles.
NOTICE
High pressure spray may damage fragile items including glass.
• DO NOT point spray gun at glass when using red o• spray tip.
• NEVER aim spray gun at plants.
NOTICE
Improper treatment of sewer jetter can damage it and shorten its life
• If you have questions about intended use, contact your nearest authorized dealer, call our
support line, or visit our website.
• NEVER operate units with broken or missing parts, or without protective housing or covers.
• DO NOT by-pass any safety device on this machine.
• DO NOT tamper with govemedspeed.
• DO NOT operate sewer jetter above rated pressure.
• DO NOT modify sewer jetter in any way.
• Before starting seNer jetter in cold weather, check all parts of the equipment to be sure ice has
not formed.
• NEVER move machine by pulling on hoses. Use the handle provided on units’ frame.
Check fuel system for leaks or signs of deterioration, such as chafed or spongy hose, loose or
missing clamps, and damaged tank or cap. Correct all defects before o eratin sewer jetter.
NOTICE
High pressure spray may damage fragile items including glass.
• DO NOT point spray gun at glass when using red o• spray tip.
• NEVER aim spray gun at plants.

855.SHOP.DCD l DCDdrain.com
12
! WARNING
Risk of electrocution.
This unit must be connected to a properly grounded outlet.
• NEVER spray near a power source.
• DO NOT use an adapter or remove the third grounding prong.
• To reduce the risk of electrocution, keep all connections dry and off the ground.
• DO NOT touch plug with wet hands.
1. Make certain the motor switch is in the “OFF” position.
2. Ensure electrical supply is identical to the specications listed on the sewer jetter
data plate.
3. GROUNDING INSTRUCTIONS: This product must be grounded. If it should
malfunction or breakdown, grounding provides a path of least resistance for
electric current to reduce the risk of electric shock. This product is equipped with
a cord having an equipment grounding conductor. The plug must be plugged into
an appropriate outlet that is properly installed and grounded in accordance with all
local codes and ordinances.
4. DANGER: Improper connection of the equipment-grounding conductor can result
in a risk of electrocution. Check with a qualied electrical or service personnel if
you are in doubt as to whether the outlet is properly grounded. Do not modify
the plug - if it will not t the outlet, have it proper outlet installed by a qualied
electrician. Do not use any type of adapter with this product.
5. GROUND FAULT CIRCUIT INTERUTER PROTECTION: This jetter may be provided
with a Ground Fault Circuit Interrupter (GFIC) built into the plug or the power
supply cord. Test the GFIC each time it is plugged into an outlet according to
instructions on the GFCL DO NOT use the jetter if the test fails! The GFCI provides
additional protection from the risk of electric shock. Should replacement of the
plug or cord become necessary, use only identical replacement parts that include
GFCI protection.

855.SHOP.DCD l DCDdrain.com
13
6. WE DO NOT RECOMMEND THE USE OF EXTENSION CORDS. If use of an
extension cord is unavoidable, it must be plugged into a GFCI found in circuit
boxes or protected receptacles. Use only 3-wire extension cords that have 3-prong
grounding-type plugs and 3-pole cord connectors that accept the plug from
the product. Use only extensioncords that are intended for outdoor use. These
extension cords are identied by a marking “acceptable for use with outdoor
appliances; store indoors while not in use.” Use only extension cords having an
electrical rating not less than the rating of the product. Do not use damaged
extension cords. Examine extension cord before using and replace if damaged.
Do not abuse extension cord and do not pull on any cord to disconnect Keep
cord away from heat and sharp edges. Always connect or disconnect the extension
cord from the receptacle before connection or disconnection the product from
the extension cord.
7. Ensure the area between the jetter and outlet is kept dry.
8. Insert the male plug into a grounded AC outlet. DO NOT use an adapter OR
remove the grounding plug!

855.SHOP.DCD l DCDdrain.com
14
How to Start Your Sewer Jetter
To start your sewer jetter for the rst time, follow these instructions step-by-step.
This starting information also applies if you have let the sewer jetter sit idle for at
least a day.
1. Place sewer jetter near an outside water source capable of supplying water at a
ow rate greater than 3.8 gallons per minute and no less than 20 PSI at pressure
washer end of garden hose. DO NOT siphon supply water.
2. Make sure unit is in a level position.
3. Connect garden hose to water inlet on sewer jetter pump.
NOTICE
DO NOT run the pump without the water supply connected and turned on.
• Damage to equipment resulting from failure to follow this instruction will void warranty.
! WARNING
The high-pressure stream of water that this equipment produces can cut through
skin and its underlying tissues, leading to serious injury and possible amputation.
• NEVER connect high pressure hose directly to nozzle extension.
• Keep high pressure hose connected to pump and spray gun while system is pressurized.
• Always be certain spray gun, nozzles, and accessories are correctly attached.

855.SHOP.DCD l DCDdrain.com
15
4. Attach the other end of the high-pressure hose to high pressure outlet (A) on
pump. Pull down on collar of quick connect, slide onto pump, and let go of collar.
Note that some pumps require the hose to be threaded on. Tug on the hose to
ensure connection is secure.
*Pump Uses SAE30 Non-Detergent Oil
5. Turn Water Supply on if you have not already done so. Point the gun in a safe
direction and squeeze the trigger to purge the pump of air and debris. Do this for
at least 30 seconds.
6. Take a nal look at all connections to make sure there are no leaks or loose
connections. If there are any leaks in hoses, they must be replaced.
IMPORTANT: DO NOT siphon standing water for the water supply.
Use COLD WATER only (less than 100°F/38°C). Hot water will damage seals and
compromise the integrity of your pump.
7. Attach the garden hose to the water inlet. Tighten by hand.
8. To start the machine, locate the ON/OFF switch on the side of the motor, and
switch it to the ON position.
IMPORTANT: Before starting the sewer jetter, ensure you are wearing
adequate safety goggles.
! WARNING
Risk of eye injury.
Spray can splash back or propel objects such as rocks, dirt and other debris.
• Always wear safety goggles when using this equipment or in vicinity of where
equipment is in use.
• Before starting the pressure washer, be sure you are wearing adequate safety goggles.
• NEVER substitute safety goggles with normal glasses.

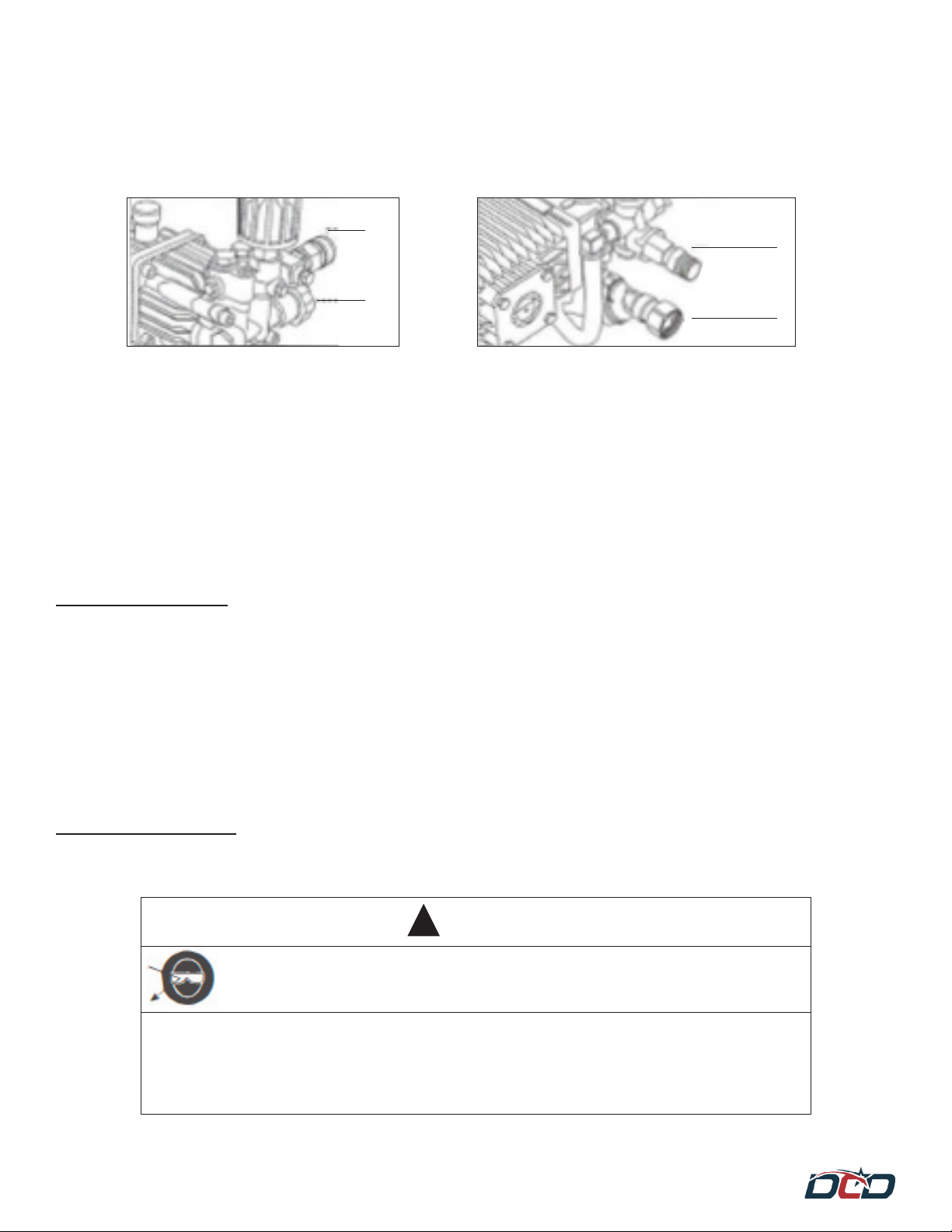

A
B
axial pump triplex pump
A
B

855.SHOP.DCD l DCDdrain.com
16
! WARNING
The high-pressure stream of water that this equipment produces can cut through
skin and its underlying tissues, leading to serious injury and possible amputation.
Spray gun traps high water pressure, even when engine is stoooed and water is
disconnected, which can cause injury.
• DO NOT allow CHILDREN to operate sewer jetter.
• NEVER repair high pressure hose. Replace it.
• NEVER repair leaking connections with sealant of any kind. Replace the o-ring or seal.
• NEVER connect high pressure hose directly to the spray nozzle.
• Keep high pressure hose connected to pump and spray gun while system is pressurized.
• ALWAYS point spray gun in safe direction and squeeze spray gun trigger, to release high
pressure, every time you stop engine.
• NEVER aim spray gun at people, animals, or plants.
• DO NOT secure spray gun in open position.
• DO NOT leave spray gun unattended while machine is running.
• NEVER use a spray gun which does not have a trigger lock or trigger guard in place and in
working order.
• ALWAYS be certain spray gun, nozzles and accessories are correctly attached. Failure to do so
can result in damaqe to the unit or bodily harm.
Shutting Down Your Electric Jetter
How to Shut Your Sewer Jetter Down
1. Release spray gun trigger and let engine idle down.
2. Turn the engine switch to the OFF position.
3. ALWAYS point spray gun in a safe direction, squeeze spray gun trigger to release
retained high water pressure.
IMPORTANT: Spray gun traps high water pressure, even when engine is stopped,
and water is disconnected. Couplers will not release if under pressure.
! WARNING
The high-pressure stream of water that this equipment produces can cut through
skin and its underlying tissues, leading to serious injury and possible amputation.
Spray gun traps high water pressure, even when engine is stoooed and water is
disconnected, which can cause injury
• Keep high pressure hose connected to pump and spray gun while system is pressurized.
• ALWAYS point spray hose in safe direction and squeeze spray gun triaaer, to release hiqh
pressure, everv time vou stop enqine.
