DCS DCS RD 484 GG Troubleshooting guide

PROFESSIONAL
48”, 36” & 30”
DUAL FUEL MODELS
Retain this manual for future reference.
C
E
R
T
I
F
I
E
D
D
E
S
I
G
N
A
M
E
R
I
C
A
N
A
S
S
O
C
I
A
T
I
O
N
GS
A
®
PART LIST / SERVICE
MANUAL
RD

This service manual covers Models
DCS - (RD) - (36) (48) - (4) (6) - (GD) (GL) (GG)
DCS - (RD)-304
The DCS Professional Series of Dual Fuel
Ranges was designed to provide features tailored to a
customer with high expectations. This Service Guide
was created with the goal of minimizing customer
inconvenience and having any necessary repairs done
quickly and correctly. If, in the course of using this
manual, you should have any difficulty, or you feel
that some important item has been omitted, please let
us know with a phone call or Fax.
This manual was created for use by a qualified
technician, authorized by the DCS Service
Department.
To identify the Model and Serial #, locate and
read the appliance rating plate. The rating plate is
located on the rear left side of the interior top burner
box (remove the top burner grates and bowls), or on
the right side of the burner box on some six burner
models. In general, our Model numbering logic is as
follows;
1 2 3 4
ie. DCS-RD-484GG
1) (RD) denotes a Range with electric oven(s)
(27”& 24” self-cleaning) and an integral gas
cooktop.
2) (48)[47 7/8] , (36)[35 7/8] and (30)[29 7/8]
indicates unit nominal Width (in inches)
3) (4), or (6) indicates # of open top burners
4) (GG) indicates a Griddle and Char-Rock
Grill, (GD) indicates a thermostatically con
trolled Griddle section, or (GL) indicates a
Char-Rock Grill section.
Before servicing the range, it is first important to
accurately define the exact details of the com
plaint and then assess the cause of the defect.
Complete Installation Instructions are included
with each appliance and should be consulted to check
for proper installation practices. Charges related to
Installation are not covered under warranty. Common
for a product this large and heavy is damage due to reck-
less handling by trucking firms, or Installation personnel
moving the product into position.
What follows is an overview of DCS warranty
provision. Review the warranty policy to determine what
is covered under the warranty repair provisions and what
will not be covered. Before beginning any work, the pro-
posed service should either be authorized by DCS, or, in
the event the work is not covered under warranty, the
customer be informed of their responsibility for the
repair charges.
Introduction / Warranty Introduction.....................1
Warranty Information.............................................2
Tr oubleshooting-General.........................................3
Orifice Hood / Pin Size Chart- L.P / Nat. Gas........3
Model Identification................................................4
Outer Body Parts..................................................5-6
RD-304 Outer Body Parts....................................7-8
Backguards.........................................................9-10
Open Top Burners Partlist..............................11-12
RD-304 Open Top Burners Partlist.................13-14
Tr oubleshooting - Leaks .......................................15
Tr oubleshooting - Open Top Burners ...................15
Griddle Partlist.................................................16-17
Tr oubleshooting - Griddle................................18-19
Grill Partlist......................................................20-21
Tr oubleshooting - Grill ...................................22-23
Location of Self-Clean & Bake Calibration Screws ...23
27”(48” & 36” Oven Partlist...........................24-25
24” (30”only) Oven Partlist............................26-27
12” (48”only) Small Oven Partlist...................28-29
Manifold Assembly-Size Item...................#32, Pg.12
Hardware Parts List..........................................Pg.30
RD48 Wiring Diagram.....................................Pg.31
RD48 Wiring Schematic...................................Pg.32
RD36 Wiring Diagram.....................................Pg.33
RD36 Wiring Schematic...................................Pg.34
RD304 Wiring Diagram...................................Pg.35
RD304 Wiring Schematic.................................Pg.36
TABLE OF CONTENTS:
INTRODUCTION
DCS SERVICE MANUAL
1

2
For warranty service, contact your local DCS authorized service agency. Provide him with the Model #, Serial #, gas type
and date of installation, and a brief description of the problem. If you need assistance in locating the authorized service
agency in your area, contact your local dealer. He will have a listing of authorized DCS service agents in you area.
We want you to remain a satisfied customer. If a problem does come up that cannot be resolved to your satisfaction, please
let us know. Write: Dynamic Cooking Systems Inc., Customer Service Department, 5800 Skylab Road Huntington
Beach, CA 92647. Or call Direct Parts / Customer Service [phone] or fax us at [phone].
This warranty applies to appliances used in residential applica-
tions; it does not cover their use in commercial situations.This
warranty is for products purchased and retained in the 50 states of
the U.S.A., the District of Columbia and Canada. This warranty
applies even if you should move during the warranty period.
Should the appliance be sold by the original purchaser during the
warranty period, the new owner continues to be protected until
the expiration date of the original purchaser's warranty period.
This warranty gives you specific legal rights. You may also have
other rights which vary from state to state.
All repair labor and replacement parts, for parts found to be defec-
tive, within the warranty period due to materials or workmanship.
Service must be provided by Authorized Factory Agent during
normal working hours.
Installation or start-up
Normal adjustment to burners, gas regulators, etc.
Cleaning of igniters and/or general maintenance
Shipping damage
Service by an unauthorized agency. Damage or repairs due to ser-
vice by an unauthorized agency or the use of unauthorized parts.
Overtime, weekends, holiday labor rates
Discoloration of the griddle plate
Improper installation, such as: no regulator, improper hook-up,
etc.
Chipping of porcelain enamel grates
Service visits to:
-Teach you how to use the appliance.
- Correct the installation. (You are responsible for pro-
viding electrical wiring, gas installation and other
connecting facilities.)
- Reset circuit breakers or replace home fuses.
- Damage caused from accident, abuse, alteration, mis
use, incorrect installation or installation not in accor-
dance with local codes.
- Repairs due to other than normal household use.
- Units installed in non-residential applications such as:
day care centers, bed and breakfast centers, churches,
nursing homes, restaurants, hotels, schools, etc.
One (1) Year Full - Covers the entire product
Five (5) Years Limited - Surface burners, Griddle burners, Grill burner, Oven burner
Ten (10) Years Limited - Porcelain oven, Porcelain inner door panels
This warranty covers the following cooktops and ranges:
DCS RD 484 GG, DCS RD 486 GL, DCS RD 486 GD, DCS RD 364 GD, DCS RD 366,
DCS RD 364 GL, & DCS RD 304.
HOW TO OBTAIN SERVICE
DCS WILL PAY FOR::
LENGTH OF WARRANTY
DCS WILL NOT PAY FOR::
WARRANTY

STEP ONE: ISOLATING THE PROBLEM
NOTE: Before addressing any specific prob-
lem the unit may have, it is advisable to help isolate
the nature of the problem by running a general check
of the 1) Gas Supply and 2) Electrical Supply. The
following procedure will narrow the possibilities and
help direct you to the source of the problem. A
detailed Troubleshooting section with specific symp-
toms and likely corrective courses of action follows
each sub-assembly Partlist section. Wiring diagrams
and schematics are also included to assist in trou-
bleshooting.
CHECK GAS SUPPLY
First, check to see if the gas has been turned on.
Next, gain access to the regulator by removing
the grates over the cooktop burners on the far left
hand side of the cooktop. Beneath the grates, towards
the rear of the burner box, the regulator is located
between the manifold and rear incoming gas line.
Check the top of the regulator to see that it is set up
for the type of gas supplied to the unit. The cap on
top of the regulator indicates whether the unit is set
up for NATURAL or L.P. gas.
When the gas supply is on, check the gas
pressure with a manometer. The front main open top
burner orifice is the most convenient place to check
gas pressure. To access the main burner orifice,
remove the four (4) screws that hold the burner hang-
er down and A) move aside the burner assembly or B)
disconnect the igniter wires and remove the entire
burner / hanger assembly. Hook up a flexible line to
the main burner orifice, turn that burner on... the
pressure should read 5.0" W.C. for Natural Gas, and
10.0" W.C. for L.P. Gas. Turn on other burners and
check for an excessive drop in pressure. A large drop
in pressure indicates a gas supply problem related to
installation, not covered by service warranty.
CHECK ELECTRICAL SUPPLY
First, check to see if the electricity has been
turned on.
Next, check power to the cord in the back of
the range and at the wall receptacle. If power is OK
there, the next area to check will be at the service dis-
connect located behind the valve panel. The Valve
Panel can be removed by removing the five (5) screws
that hold it in place. Two (2) screws are located at
each end of the panel, while one (1) screw (painted
Red) behind a Burner Control knob must also be
removed before the valve panel can be removed.
Once the Valve Panel has been removed, unplug and
check for power to the female side of the plug. 220-
240V 120 between red /white 120 between black /
white 240 between red & black
Check for power at the Terminal Blocks,
(Black & Red = Live, White = Neutral)
ORIFICE or PIN SIZE References:
Gas Type Incoming Pressure Pressure Regulator
to Regulator Supplies
NATURAL 7.0" to 9.0" W.C. 5.0" W.C.
L.P. 11" to 14.0" W.C. 10.0" W.C.
Orifice Size Pin Size Orifice Size
Nat. (DMS) LP (DMS) LP (DMS)
Open Top 51 58 50
Center Simmer 75 79 80
Grill 48 55 55
Griddle 48 55 55
Small Oven n/a n/a n/a
Large Oven n/a n/a n/a
GENERAL INSTRUCTIONS:
3
TROUBLESHOOTING

4
48" DUAL FUEL RANGE MODELS: 36" DUAL FUEL RANGE MODELS:
MODEL DCS-RD-484 GG
MODEL DCS-RD-486 GL
MODEL DCS-RD-486 GD MODEL DCS-RD-366
OVENON
HEATING
DOORLOCKED
HEATING
MODEL DCS-RD-304
MODEL DCS-RD-364 GL
MODEL DCS-RD-364 GD
RD MODEL IDENTIFICATION

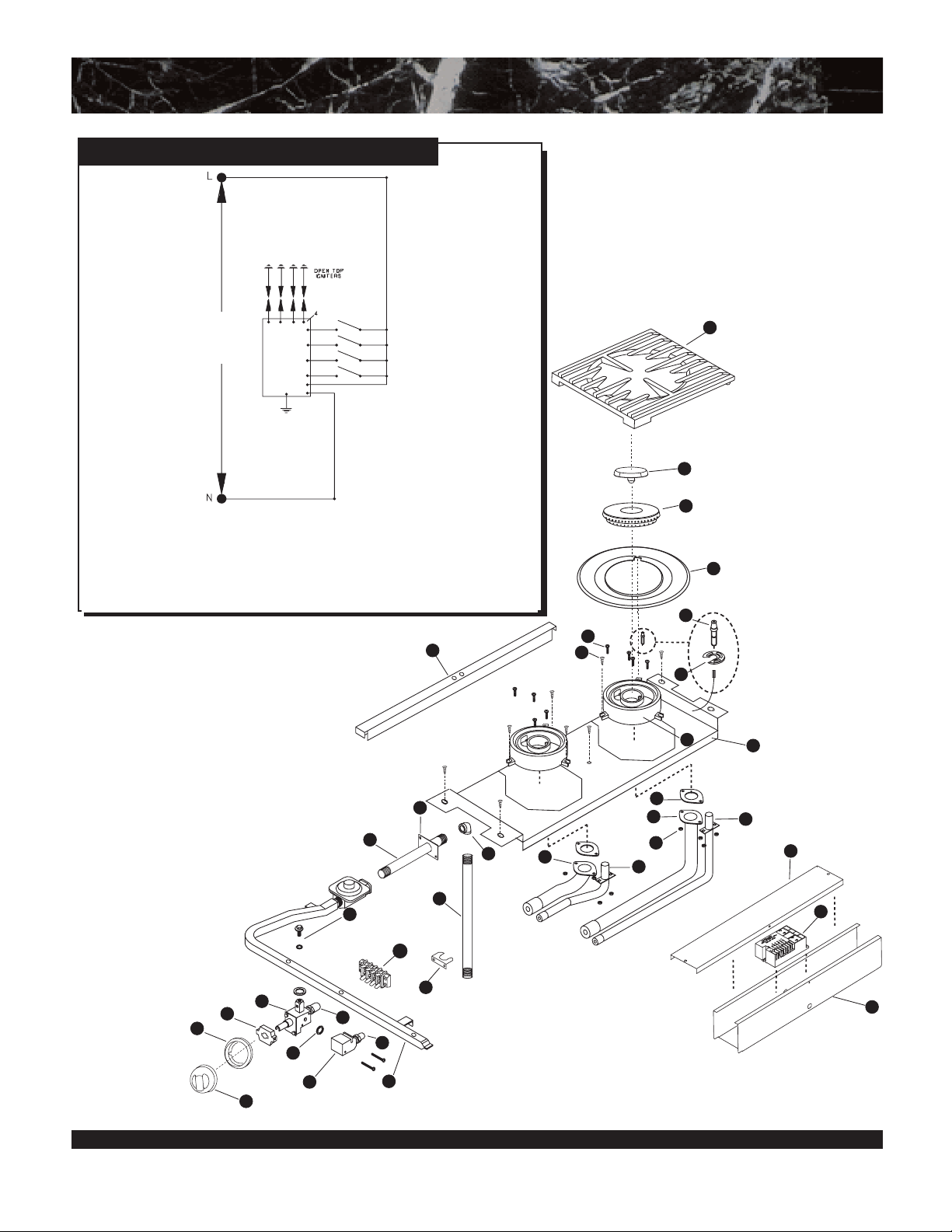

OUTER BODY PARTS ASSEMBLY
15
16
1
2
3
4
65
7
9
8
10
17
19
22
23
24
18
11
12
13
14
20
21
25
3A
4A
10A
22A
26
27
649FIG02.EPS
28
D
y
n
a
m
i
c
C
o
o
k
i
n
g
S
y
s
t
e
m
s
5

PARTS LIST:
ITEM # PART # DESCRIPTION
190104-01 RD 48 LANDING LEDGE
90104-02 RD 36 LANDING LEDGE
290300-01-PA RD 484GG VALVE PANEL
90300-03-PA RD 486GD VALVE PANEL
90300-02-PA RD 486GL VALVE PANEL
90531-01-PA RD 366 VALVE PANEL
90531-03-PA RD 364GD VALVE PANEL
90531-02-PA RD 364GL VALVE PANEL
3** 90303-01 RD 48 RIGHT BODY PANEL
90469-01 RD 36 RIGHT BODY PANEL
3A *90310-01 RD 48 RIGHT SIDE INSUL. RET.
4** 90303-02 RD 48 LEFT BODY PANEL
90469-02 RD 36 LEFT BODY PANEL
4A *90310-02 RD 48 LEFT SIDE INSUL. RET.
518052-2 LEVELING LEG
6** 90323 RD 48 KICK PANEL ASSEMBLY
90551 RD 36 KICK PANEL ASSEMBLY
7150034-3 HINGE RECEPTACLE
890186-01-PC 27" DOOR INSIDE LINER
9150034-1 27" OVEN DOOR HINGE
10 14131 WINDOW PACK-27
10A 14045 WINDOW GASKET-27
11** 90662-01 27" Oven Door Panel Assy. (w/ Glass/Tape)
11A* ** 90184-05 27” OVEN DOOR ASSEMBLY-Complete
12 17130-01 DCS LOGO -LG-BLACK. (RANGES)
13 90187-02 27" OVEN DOOR HANDLE
14 18164-PL DOOR HANDLE ENDCAP
15A** 90662-06 12" Oven Door Panel Assy. (w/ Glass/Tape)
15** 90184-06 12” OVEN DOOR ASSEMBLY-Complete
16 90187-01 12" DOOR HANDLE
17 91254 27" DOOR INSULATION RETAINER (RD 48/36)
18 90412 12" DOOR INSULATION RETAINER
19 90403-PC 12" DOOR INSIDE PANEL
20 15001-39 BOLT - DOOR HANDLE
21 15002-41 SCREW - DOOR TOP
22 90658-02(L/H)/90658-01(R/H) DRIP PAN - 48"
90658-03 DRIP PAN - 36"
22A 90624(L/H)/90623(R/H) DRIP PAN HANDLE - 48"
90625 DRIP PAN HANDLE - 36”
23 30313-3 DRIP PAN LINER (UNDER GRILL/ GRIDDLE ONLY)
24 150034-2 12" OVEN DOOR HINGE
25 90470-02(R/H), 90470-01(L/H) RD 36 SIDE COVER
26 14138 WINDOW PACK-12” DOOR
27 16127 LIGHT SWITCH - OVEN
28 15002-41 (4) FRONT PANEL SCREWS
*14052 27” OVEN DOOR GASKET (FRAME)
*14053 12” OVEN DOOR GASKET (FRAME)
* ITEMS NOT PICTURED
** COLOR OTHER THAN (SS) MUST BE SPECIFIED
6
OUTER BODY PARTS LIST

RD-304 OUTER BODY PARTS ASSEMBLY
6
7
9
8
10
14
11
12
13
20
15
16
10A
5
3A
4
4A
17
1
18
2
19
3
649FIG20.EPS
7

PARTS LIST:
ITEM # PART # DESCRIPTION
190104-03 LANDING LEDGE
290440-PA VALVE PANEL
3** 90432-01 RIGHT BODY PANEL
3A 90431-01 RIGHT SIDE INSUL. RET.
490432-02 LEFT BODY PANEL
4A** 90431-02 LEFT SIDE INSUL. RET.
518052-2 LEVELING LEG
6** 90758 KICK PANEL ASSEMBLY
7150034-3 HINGE RECEPTACLE
890766-01-PC DOOR INSIDE LINER
9150034-1 OVEN DOOR HINGE
10 14131 WINDOW PACK
10A 14045 WINDOW GASKET
11** 90765-12 Oven Door Panel Assy. (w/ Glass/Tape)
11A* ** 90765-02 OVEN DOOR ASSEMBLY-Complete
12 17130-01 DCS LOGO -LG-BLACK. (RANGES)
13 90187-03 OVEN DOOR HANDLE
14 90561 DOOR INSULATION RETAINER
15 15001-39 BOLT - DOOR HANDLE
16 15002-41 SCREW - DOOR TOP
17 90772 DRIP PAN ASSEMBLY
18 16127 LIGHT SWITCH-OVEN
19 15002-41 FRONT PANEL SCREWS
20 18164-PL DOOR HANDLE ENDCAP
*14052 OVEN DOOR GASKET
* ITEMS NOT PICTURED
** COLOR OTHER THAN (SS) MUST BE SPECIFIED
8
RD-304 OUTER BODY PARTS LIST

1
2
4
3
6
72
8
5
9
649FIG07.EPS
BACK GUARDS ASSEMBLY
9
22” DUAL FUEL RANGE HIGH SHELF BACKGUARD
12” DUAL FUEL RANGE LOW BACK BACKGUARD
DUAL FUEL RANGE ISLAND TRIM BACKGUARD
DCS-HSRD-48R
DCS-HSRD-36R
DCS-HSRD-30R
DCS-LBRD-48R
DCS-LBRD-36R
DCS-LBRD-30R
DCS-ITRD-48R
DCS-ITRD-36R
DCS-ITRD-30R

PARTS LIST:
ITEM # PART # DESCRIPTION
190089-03 RD 48 HIGH SHELF BACK SHEET
90089-04 RD 36 HIGH SHELF BACK SHEET
90089-05 RD 30 HIGH SHELF BACK SHEET
290041-03 RD 48 TOP COVER
90041-04 RD 36 TOP COVER
90041-05 RD 30 TOP COVER
390087-03 RD 48 HIGH SHELF FRONT SHEET
90087-04 RD 36 HIGH SHELF FRONT SHEET
90087-02 RD 30 HIGH SHELF FRONT SHEET
490240-01 RD 48 HIGH SHELF WELD ASSY.
90240-02 RD 36 HIGH SHELF WELD ASSY.
90240-03 RD 30 HIGH SHELF WELD ASSY.
590241-01 RD 48 HIGH SHELF BOTTOM ENCLOSURE
90241-02 RD 36 HIGH SHELF BOTTOM ENCLOSURE
90241-03 RD 30 HIGH SHELF BOTTOM ENCLOSURE
690040-03 RD 48 LOW BACK BACK SHEET
90040-04 RD 36 LOW BACK BACK SHEET
90776 RD 30 LOW BACK BACK SHEET
790038-03 RD 48 LOW BACK FRONT SHEET
90038-04 RD 36 LOW BACK FRONT SHEET
90038-02 RD 30 LOW BACK FRONT SHEET
890245-04 RD 48 ISLAND TRIM CAP
90245-05 RD 36 ISLAND TRIM CAP
90245-03 RD 30 ISLAND TRIM CAP
990248-04 RD 48 ISLAND TRIM BACK SHEET
90248-05 RD 36 ISLAND TRIM BACK SHEET
90248-03 RD 30 ISLAND TRIM BACK SHEET
10
BACK GUARDS ASSEMBLY

10
11 12
13
14
15
16
17
18
19
20
21
23
24
22
25
26
28
29
1
2
3
5
6
7
427
9
8
30
31
32
649FIG04R5.EPS
25A
OPEN TOP BURNER ASSEMBLY
I2 4
3
2
I
SPARK
MODULE
NO
NO
NO
NO
120 VAC
60 Hz.
I PH. SPARK
MODULE
UNITS WITH
(6) OPEN TOP
BURNERS ONLY
OPEN TOP
IGNITERS
3
*IT IS CRITICAL FOR PROPER PERFORMANCE THAT THE SWITCHES
SUPPLYING POWER TO THE SPARK MODULE ARE PLUGGED INTO
THE SAME NUMBER TERMINAL AS THE ELECTRODE SERVING THE
BURNER IS PLUGGED INTO (e.g.- OPEN TOP SPARK IGNITER OUTPUT
#1 MUST BE ON THE SAME BURNER SERVED BY THE OPEN TOP
SWITCH PLUGGED INTO POWER INPUT # 1
11
ELECTRICAL SCHEMATIC:

PARTS LIST:
ITEM # PART # DESCRIPTION
112112-01 TOP HALF GRATE
212131-PC SIMMER TUBE CAP
312139 SIMMER BURNER CAP
412138 SIMMER BURNER BASE
512105-PC AERATION BOWL
612093 ELECTRODE ASSEMBLY
712094 ELECTRODE SPRING CLIP
815001-22 BURNER BASE SCREWS
915002-26 VENTURI BOLT
10 14000 VENTURI GASKET
11 12113 MAIN VENTURI, REAR
12 90653-02-PL SIMMER VENTURI, REAR
13 15021-04 VENTURI NUT
14 13236 SPARK MODULE
15 90653-01-PL SIMMER VENTURI, FRONT
16 12114 MAIN VENTURI, FRONT
17 16006 TERMINAL BLOCK
18 15109 VALVE SCREW / PLUG / WASHER
19 16212 POWER CORD - RANGES
20 13071 SPARK SWITCH / SIMMER, STD. BURNER
21 14006-PL BEZEL
22 14125 SIMMER BURNER KNOB
23 14124 SIMMER BLOCK O-RING
24 13070 SIMMER BLOCK
25A 13005-79 SIMMER ORIFICE HOOD, LP GAS
13005-75 SIMMER ORIFICE HOOD, NATURAL GAS
25 13005-58 MAIN ORIFICE HOOD, LP GAS
13005-51 MAIN ORIFICE HOOD, NATURAL GAS
26 13228 MAIN BURNER VALVE
27 90129 BURNER HANGER
28 90085-01 GRATE SUPPORT (3/4” WIDE) (L/R)
29 90084-01 GRATE SUPPORT (1 1/2” WIDE) (CENTER)
30 MANIFOLD ASSEMBLY (Complete w/Valve/Regulator)
90324 DCS-RD-484GG
90324-01 DCS-RD-486GL
90324-02 DCS-RD-486GD
90324-03 DCS-RD-366
90324-05 DCS-RD-364GL
90324-06 DCS-RD-364GD
31 12111 AIR SHUTTER SIMMER
32 13003 REGULATOR
NOTE: Burner Base Assembly Front – 90146-01 (includes item # 2,3,4,6,7,10,11,12)
Burner Base Assembly Rear – 90145-02 (includes item # 2,3,4,6,7,10,11,12,15,16)
12
OPEN TOP BURNER ASSEMBLY

10
11 12
13
15
1
2
3
5
6
7
4
36
27
9
8
16
25
19
20
22
23
21
26
18
28
31
35
33
32
34
17
30
29
14
24
649FIG21R5.EPS
RD-304 OPEN TOP BURNER ASSEMBLY
13
NO
NO
NO
NO
2
I
L
N
SPARK
MODULE
3
4
123
120 VAC
60 Hz.
1 PH.
ELECTRICAL SCHEMATIC:
*IT IS CRITICAL FOR PROPER PERFORMANCE THAT THE SWITCHES
SUPPLYING POWER TO THE SPARK MODULE ARE PLUGGED INTO
THE SAME NUMBER TERMINAL AS THE ELECTRODE SERVING THE
BURNER IS PLUGGED INTO (e.g.- OPEN TOP SPARK IGNITER OUTPUT
#1 MUST BE ON THE SAME BURNER SERVED BY THE OPEN TOP
SWITCH PLUGGED INTO POWER INPUT # 1

PARTS LIST:
ITEM # PART # DESCRIPTION
112112-01 TOP HALF GRATE
212131-PC SIMMER TUBE CAP
312139 BURNER CAP
412138 BURNER BASE
512105-PC AERATION BOWL
612093 ELECTRODE ASSEMBLY
712094 ELECTRODE SPRING CLIP
815001-22 BURNER BASE SCREWS
915002-26 VENTURI BOLT
10 14000 VENTURI GASKET
11 12113 MAIN VENTURI, REAR
12 90653-02-PL SIMMER VENTURI, REAR W/A
13 15021-04 VENTURI NUT
14 13236 SPARK MODULE
15 90653-01-PL SIMMER VENTURI, FRONT W/A
16 12114 MAIN VENTURI, FRONT
17A 16006 TERMINAL BLOCK
17B 16006 TERMINAL BLOCK W/CENTER JUMPER REMOVED
18 15109 VALVE SCREW / PLUG / WASHER
19 13071 SPARK SWITCH / SIMMER, STD. BURNER
20 14006-PL BEZEL
21 14125 SIMMER BURNER KNOB
22 14124 SIMMER BLOCK O-RING
23 13070 SIMMER BLOCK
24 13005-79 SIMMER ORIFICE HOOD, LP GAS
13005-75 SIMMER ORIFICE HOOD, NATURAL GAS
25 13005-58 MAIN ORIFICE HOOD, LP GAS
13005-51 MAIN ORIFICE HOOD, NATURAL GAS
26 13228 MAIN VALVE
27 90129 BURNER HANGER
28 90765-03 MANIFOLD ASSEMBLY
(Complete w/Valves/Regulator & Intake pipe).
29 90704 AIR DUCT BOTTOM
30 90705 AIR DUCT TOP
31 18018-13 INTAKE PIPE
32 18018-11 PIPE 1/2 NPT
33 18041 1/2 ELBOW FEMALE
34 90566 BRACKET GAS PIPE SPACER
35 90565 BRACKET GAS PIPE RETAINER
36 90085-01 GRATE SUPPORT
14
RD-304 OPEN TOP BURNER ASSEMBLY

LEAK / OPEN TOP TROUBLESHOOTING
WHAT TO DO: USEFUL NOTES:
Customer smells gas at
all times
Customer smells gas
only when Open Top
Burners, Large Oven,
or Grill are in opera-
tion
Open Top Burner
Doesn't Light
CHECK for LEAKS at:
A) The two brass elbows coming from the
1/2"NPT pipe between the regulator and manifold
B) Along the manifold at every nut/washer
point and plug
C) At all connection points between tubing
and thermal valves at grill and griddle locations.
CHECK for LEAKS at:
A) The Thermal Valve and connections sup-
plying the Grill, with Grill turned on.
B) O-Ring between the Simmer Block and
Simmer Valve for all Open Top Burners, with burn-
ers on.
Is the igniter sparking? The spark should be
jumping to the simmer burner cap.
A) Make sure that the lead to the electrode is
secure, as well as the lead to the Spark Module and
that there is power also.
B) Spark Switches at control knobs should be
checked for power to and coming out from (with
knob in "lite" position. If there is power going to, yet
not coming out the other side, replace spark switch.
C) See Open Top Burner Lighting and
"Adjustable Low Setting" sections in the Installation
Manual.
NOTE: If using a
soap and water solution
when checking for
leaks, be careful not to
get any water on Spark
Switches, as doing so
will cause a short in the
switch.
NOTE: It is important
that correct # wire be
traced from the Spark
Switch,to the Spark
Module, to the Burner
Electrode.
?
PROBLEM AREA:
15

1
2
5
6
8
9
10
13
14
15
7
17
16
18
19
20
3
4
11
12
21
20
22
23
24 25
649FIG08R5.EPS
GRIDDLE ASSEMBLY
16
ELECTRICAL SCHEMATIC:
LN

17
PARTS LIST:
ITEM # PART # DESCRIPTION
190253-02 GRIDDLE COVER
290582 GRIDDLE FLUE COVER
390192-01 GRIDDLE / GRILL FRONT TRIM
490192-02 GRIDDLE FRONT TRIM
590133 GRIDDLE PLATE ASSEMBLY
612005-1 GRIDDLE BURNER
716009-1 IGNITER
890141 GRIDDLE BAFFLE
930313-3 DRIP PAN LINER
10 90045-01 GRIDDLE TUBING (484GG)
90746-04 GRIDDLE TUBING (364GD/484GD)
11 13073 THERMAL VALVE (NAT)
13073-01 THERMAL VALVE (LP)
12 18017 ELBOW ASSEMBLY
13 18166 MANIFOLD ADAPTER
14 18165 PIPE PLUG
15 15109 VALVE SCREW / PLUG / WASHER
16 16046-02 INDICATOR LIGHT
17 13310 GRIDDLE THERMOSTAT
18 14006-PL BEZEL
19 14129 GRIDDLE THERMOSTAT KNOB
20 16077 FIBER GLASS SLEEVE
21 16006 TERMINAL BLOCK
22 13005-48 ORIFICE HOOD-NATURAL GAS (#48 DMS)
13005-55 [ORIFICE PIN-LP GAS (#55 DMS)
(INTEGRAL TO THERMAL VALVE)]
23 18204-01 GRIDDLE COVER HANDLE
15139 GRIDDLE COVER HANDLE SCREW (2)
24 18077-2 FERRULE 3/8
25 18077-1 COMPRESSION NUT 3/8
GRIDDLE ASSEMBLY

GRIDDLE TROUBLESHOOTING
WHAT TO DO: USEFUL NOTES:
CHECK 1) the Electrical / Gas Supply as out-
lined in the General Instruction section.
2) Remove Griddle plate assembly (fas-
tened by 2 screws in the front and 1 screw in
the back, under the flue cover- Visually check
for igniter breakage. If igniter is broken,
remove / replace
3) Remove Valve Panel (see General
instructions and note removal of "Red" screw
behind control knob - not on all units)
4) 120 V supplied to Thermostat from
the terminal block ?(live= black) If not, trou-
bleshoot power supply lines, If YES,
5) Disconnect power, Remove wires off
Thermostat & check for continuity between
Thermostat terminals when Thermostat dial is
rotated to the ON. If there is no continuity
remove / replace Thermostat.
6) If Thermostat is OK, Remove the
wires from the Thermal Valve and check for
continuity between the two (2) terminals on
the face of the valve. If none, remove / replace.
7) If the Thermal Valve is OK, Remove
the wires from the Griddle Igniter and check
the igniter leads for continuity. If none, remove
/ replace igniter.
8) If the Igniter is OK, Check the
Neutral Return Wire for continuity to the neu-
tral (white) wire of the power supply cord.
1) Verify Gas supply to the unit. Turn
the Gas supply OFF. Loosen tubing supplying
gas from the manifold to the Thermal Valve at
the Thermal Valve. Quickly turn manual valve
On, then Off while an assistant listens closely
for the sound of flowing gas at the loosened
end of the connection. If gas is not flowing,
check the tubing for blockage.
?
PROBLEM AREA:
Griddle will not
operate
Griddle still will not
operate, (Electrically
operational - Steps 1-8
OK)
NOTE: Be careful not
to damage the
Capillary when remov-
ing the Griddle plate
assembly
NOTE: -Ensure at the
supply source that the
live and neutral wires
are not reversed ( If
they are, this would not
be covered under war-
ranty)
18

GRIDDLE TROUBLESHOOTING
WHAT TO DO: USEFUL NOTES:
If dirt or other foreign matter is blocking gas
flow, then the supply line should be discon-
nected and the line purged. This procedure is
not covered under warranty.
2) If gas is present at the Manual Valve,
and Electrical continuity of the valve exists per
Step 6)- (previous section), remove and visually
check the valve orifice for blockage. If none
exists, remove / replace Thermal Valve
CHECK 1) Gas pressure and supply as outlined in
the "General" section.
2) Ensure the orifice hood is not tightened
down onto the L.P. jet nested within the Thermal
Valve.
3) Adjust the air shutter closed until the
flame is yellow, then open slightly until the yellow
disappears.
1) To calibrate the Griddle Thermostat, place
a reliable griddle thermometer on the center of the
griddle plate. Rotate the thermostat to 350ºF. After 3
burner cycles, the griddle plate should have reached
equilibrium.
2) (You'll need a knob with a hole drilled
through the center to allow a flat-tipped screwdriver to
be inserted through it.) With the knob in place, insert
a thin blade, flat-tipped screwdriver through the
knob and nest it into the small slotted screw in the
thermostat (it may be necessary to clear the screw of
a small amount of sealant)
3) Note the temperature shown on the grid-
dle thermometer, then, while holding the screw still
with the screwdriver, rotate the knob to the ther-
mometer temperature. DO NOT TURN THE
CALIBRATION SCREW. Reset the temperature
and check for accuracy. Repeat if necessary.
(Cont'd)-Griddle still
will not operate,
(Electrically operational
Steps 1-8 OK)
Low Flame / Heat
from Griddle Burner
GRIDDLE
CALIBRATION
NOTE: Before cali-
brating the Thermostat,
ensure that the griddle
sensing bulb is placed
within the small "V"
tube welded directly to
the bottom of the grid-
dle plate, pushed about
halfway back. The larg-
er piece of angle iron is
for flame diffusion, not
for placement of the
sensing bulb.
PROBLEM AREA:
19
