De La Rosa Research 31202A User manual

Model
31202A
LINEAR MOVEMENT
APPARATUS
USER´S
MANUAL
User´s manual version 2

Congratulations!
You have just acquired an innovative, high
quality product. We have put our highest
effort into each development stage. We are
sure that you will find this equipment most
reliable and accurate - exceeding your
expectations.
Before using this device, we strongly
recommend that you carefully read the
user manual. There you will find all related
information for correct handling and usage
of this product.
We hope that you enjoy using this
equipment as much as we did creating it.
De la Rosa Research Team.

6
Details
8
Specifica�on
10
Applica�ons
12
Features
Pag.
18
Procedure
Pag.
Pag.
Pag.
Pag.
INDEX

Linear Movement Apparatus // User´s manual Linear Movement Apparatus // User´s manual
65

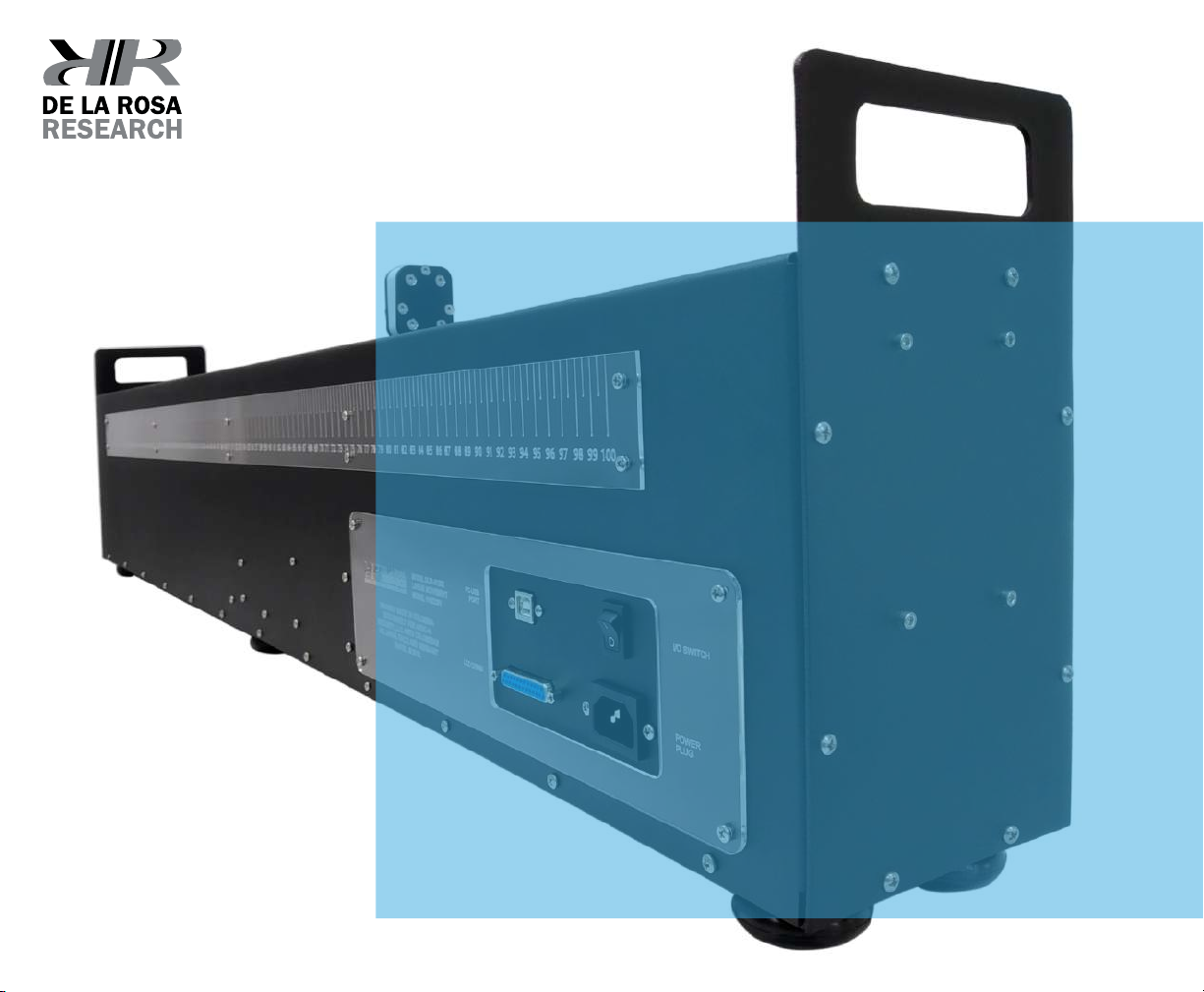

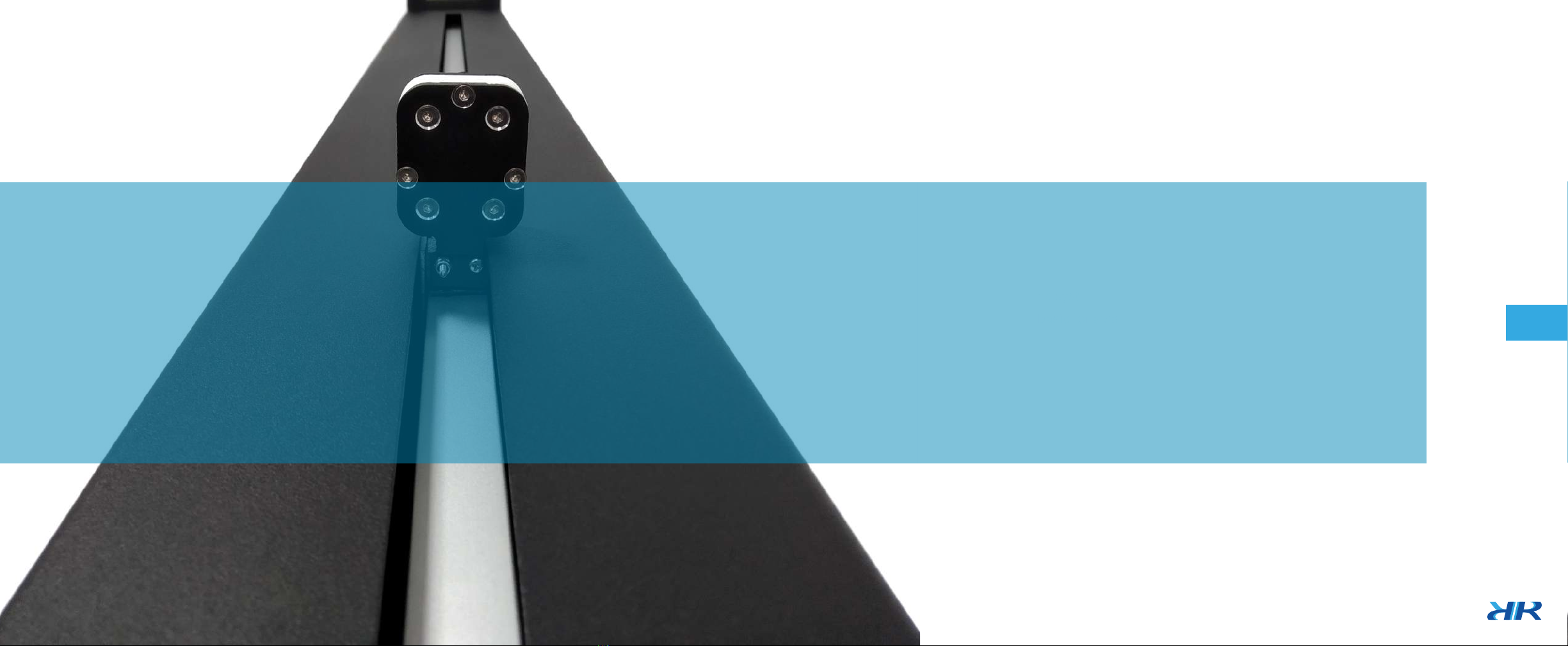

The Linear Movement Apparatus c
and assessing temporal or spa�al memory
in motor learning and neuroscience s
The Linear Movement Apparatus consis
accurately measures the swit
the superior switch located in a cube a
without external clues. To evaluat
dimensions, an LCD readout display
the switch in the cube is mov
an be used for motor learning tasks
. This device has been used
tudies, and motor skill evalua�on.
ts of an op�cal encoder that
ch displacement. The subject moves
t a specified distance or speed
e the subject’s ability to judge these
s the distance and �me in which
ed. This unit employs highly accurate
electronic posi�on encoders.
DETAILS

Linear Movement Apparatus // User´s manual Linear Movement Apparatus // User´s manual
87
Light discrimination aparatus // User manual
SPECIFICATIONS
Line Voltage: 110/220 V AC - 50/60 Hz.
Current: 10 Amps.
Supplied with User Guide.
Accuracy: 1mm-0.5mm
Heigh: 10.4” // Wide: 5.3” // Depth: 46.8”
Weight: 11 kg Aprox.

Linear Movement Apparatus // User´s manual Linear Movement Apparatus // User´s manual
109
Linear Movement Apparatus // User´s man-
10
The syst
basic for avia
APPLICATIONS
em measures �me es�ma�on, speed and distance;
�on personnel, professional drivers and high
performance athletes.

Linear Movement Apparatus // User´s manual Linear Movement Apparatus // User´s manual
1211
Light discrimination aparatus // User manual

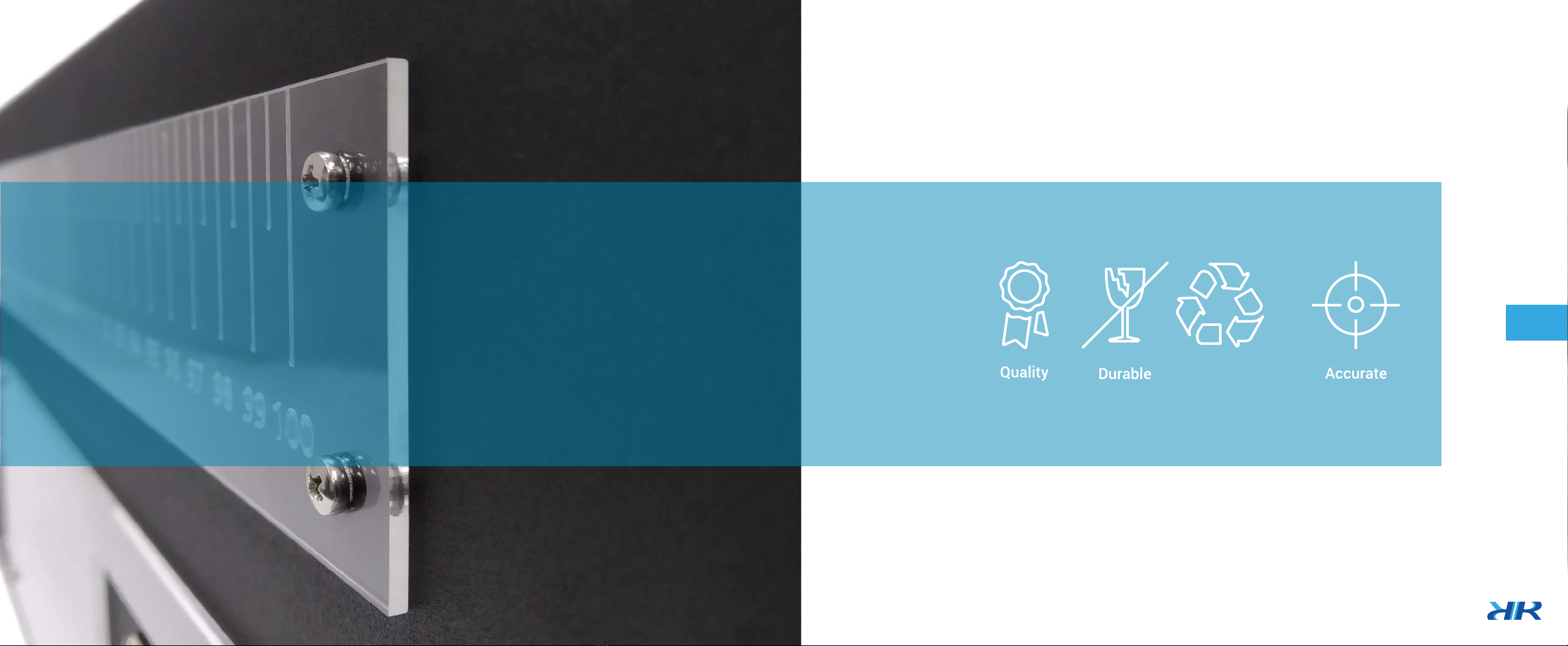

FEATURES
Recyclable
materials

Linear Movement Apparatus // User´s manual Linear Movement Apparatus // User´s manual
1413
FEATURES
HANDLE
Ergonomic handle for easy carrying.
BODY
Aluminum - stainless steel, HDPE and acrylic
body for sturdy usage.High resistance
(and 100% recyclable) polymer base, easy
to clean.

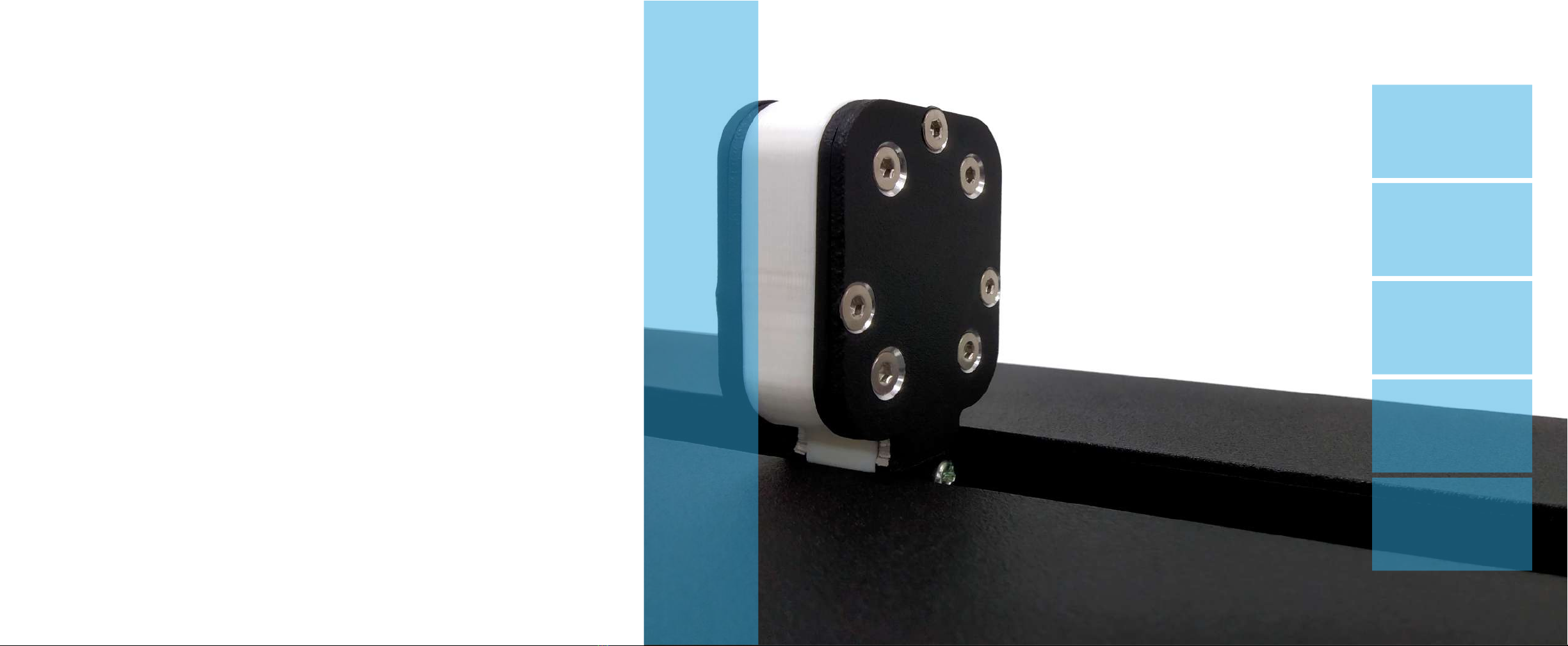

PRECISION SWITCH ON SLIDE
High rated contact switch for long lasting usage
MATERIALS
Built from high-quality components
manufactured in USA, Japan, Italy,
and Colombia among others

Linear Movement Apparatus // User´s manual Linear Movement Apparatus // User´s manual
1615
FEATURES
POWER SUPPLY
vailable for 110 V and
220V countries.
USB PORT
USB port for serial communication
(the software will be available and
supplied at
no charge).
RULE
Distance guide rule
LCD CONTROL
LCD and key pad controlEasy
to read LCD displayAllows
distance and time measurements.

Linear Movement Apparatus // User´s manual Linear Movement Apparatus // User´s manual
1817
PROCEDURE
General recommendations
Initial settings
Operating

Linear Movement Apparatus // User´s manual Linear Movement Apparatus // User´s manual
2019
WARNING
In case the product is not working
properly, is damaged or needs
maintenance, please contact us. We
will gladly help you to solve any issue.
Avoid using sharp objects
with the product.
Protect the product from
rain and water.
Always ensure the proper
power input.
Do not try to fix or
disassemble this product
by yourself.
PROCEDURE
// GENERAL RECOMMENDATIONS
Before you plug in the equipment be sure
that the electric supply of your country or
region is the right one to operate the
equipment. Be aware that the unit can
operated at 110V or 220V (50 or 60Hz).

Linear Movement Apparatus // User´s manual Linear Movement Apparatus // User´s manual
2221
2
SUBJECT
PROCEDURE
// GENERAL RECOMMENDATIONS
The subject must be standing and in a manner
that does not see the rule, this may only
Be seen by the experimenter.
Place the equipment in a flat surface.
Leveling the surface is desired for
op�mal performance.
Be sure the support points are in
contact with the suppor�ng surface.
1
4
3
Place the LCD control away
from the subject to prevent
him/her to see the informa�on
displayed.
EXPERIMENTER

Linear Movement Apparatus // User´s manual Linear Movement Apparatus // User´s manual
2423
a. Linear Movement Apparatus body x1 // b. LCD Control x1//
c. Serial cable DB25 x 1 // d. USB cable A-B x1 // e. Power cable (Cable AC) x 1.
PROCEDURE
// INITIAL SETTINGS
WHAT SHOULD
BE INCLUDED IN
THE PACKAGE?
c.
x1
d.
x1
b.
x1
Depending on the geographical area,
you will be given one of these AC
cables (one per package).
a.
x1
e.
x1

Linear Movement Apparatus // User´s manual Linear Movement Apparatus // User´s manual
2625
HOW TO ASSEMBLE IT? PROCEDURE
// INITIAL SETTINGS
SERIAL DB25
25 cable (e) to this port.
The female end of the cable should be
connected to the LCD control
A/C
(c).
POWER CABLE.
Connect the A/C cable
The opposite end should be connected to
a 110/220VAC- 50/60Hz power outlet.
USB CABLE
USE ONLY IF CONTROL SOFTWARE IS AVAILABLE
The smallest end Bof the USB cable(f) should
be connected to this port.
The opposite end of cable Ashould be
This USB cable has two different ends:
BA

Linear Movement Apparatus // User´s manual Linear Movement Apparatus // User´s manual
2827
3”DOWNLOAD THE
SOFTWARE 4”CABLE CONNECTION
SET UP
SOFTSUITE2
Check the computer installation requirements before installation:
MAIN LCD CONTROL
Connect the main LCD control to the main unit using the
corresponding (e) DB25 to USB 3.0 cable connector.
If you are going to use the Virtual LCD Control skip this step and continue with page (29).
The Virtual LCD Control function is available on the SoftSuit2 software.
Note that you can choose whether or not to use the software. If you don't need to use any
function of the software skip these steps and continue to the next page (28).
• Disk Space: 222mb
• Administrator permission
• Os: Windows 7/8/10. 64 bits
• Minimum ram: 2gb
Technical requirements SoftSuite2
If you have not downloaded the software and you want to do so, enter:
https://delarosaresearch.com/downloads.php?p=144
If you have not downloaded the SoftSuit2 software manual and want to do so, enter:
https://delarosaresearch.com/uploads/manual/manual-SoftSuite/Manual-SoftSuite-2021-Ingles.pdf
Turn on your computer and download the software. Then, follow the instructions in the SoftSuit2 software manual:

Linear Movement Apparatus // User´s manual Linear Movement Apparatus // User´s manual
3029
TURNING ON
Before turning the equipment On. Please verify that all the cables are connected correctly. Please, double check that the
AC power Cable is safely and securely plugged to both the main unit and the AC wall outlet. Also, check that all the cables
are set accordingly to the previous steps.
TURN ON
AC POWER CABLE
Connect the AC power cable (g)
Please verify that the neither (f) USB B connector is connected to the equipment
or the USB A connector is connected to the PC when you start the equipment.
ATTENTION!

Linear Movement Apparatus // User´s manual Linear Movement Apparatus // User´s manual
3231
END THE CONNECTION
USB Cable
Connect the USB B connector of the provided USB Cable to the main unit, then connect the USB A connector
to a computer's USB port.
At this point you must have the SoftSuit2 software installed on your computer, considering that you are going to use
any of its functions.
If you do not need to use any software functions, skip this step and continue with page (33).

Linear Movement Apparatus // User´s manual Linear Movement Apparatus // User´s manual
3433
TS:
T:
D: S:
E
PROCEDURE
WHAT DOES IT MEAN? // INITIAL SETTINGS
5
D means distance. Distance can be either
posi�ve or nega�ve from the beginning
D
TS
S
1000
milliseconds
10
tenths
=
=
1
second
1
millimeter
T
point, indica�ng direc�on. Distance is given
in tenths of millimeters (1/10).
Left Down
Right
Start /
Stop
Reset
Up
T represents the TIME. Here is the �me
elapsed since the subject takes the
(precision switch on slide), moves it
and releases it.
TS means TEST and refers to the number
of tests to be performed.
The Test is counted from 0 to 9.
S means SPEED and refers the calculated
speed of the distance over �me.

Linear Movement Apparatus // User´s manual Linear Movement Apparatus // User´s manual
3635
WHAT IS THE FIRST THING I SEE IN CONTROL
WHEN THE EQUIPMENT IS TURNED ON?
6
Introduction
b.
Follow the instructions to continue.
a.
You will see the basic information of the computer
PULSE START TO
CONTINUE...
uSE KEYPAD TO
SELECT OPTION
Dlrr - 31202
linear movement
De la rosa
research (c)2019
Starting a test.
a.
b.
The time starts when the subject holds the (precision switch on slide) without releasing it, this means
that it is ready to move it and perform the test. The point where it starts will be taken by the system as
the zero point (0) and the movement made from this point will be the one taken by the test.
SELECTING TEST
A total of 10 tests (trials) can be selected using
the “UP” and “DOWN” keys.
Selected test will be presented now
Up
Down
You will see a blue light while the
(precision switch on slide) is being
sustained.
Time will start counting. Movement can be observed in real
time, The values of movement can be positive or negative
depending on where the zero point has been positioned (0)
with regard to the location of the (precision switch on
slide) on the equipment.
D : 0 S : 0
T : 0 TS : 0
D : 0 S : 0
T : 0 TS : 0

Linear Movement Apparatus // User´s manual Linear Movement Apparatus // User´s manual
3837
// OPERATING
PROCEDURE
SELECTING TEST WHAT DO YOU DO WHEN A
TEST ENDS?
TIME (T) will stop and the data will be saved
to the selected memory.
You can try the test again in the selected space
or choose another test space to make the test.
Finish a test.
When the subject releases the
(precision switch on slide) the system
stops the test and you can see the results
on the control.
You can see the final distance and the final
time. You can also see the calculated speed.
After these steps you will be able to start a new test,
repeat the current test or finish the experiment.
Use a spreadsheet on your computer or a sheet
of paper and write down the results obtained in
the test.
You can also make use of the software that will allow you to
perform this process automatically and export the results to
a spreadsheet.
You can select another test within ten (10)
possible and perform new tests. These will
be stored in each one of the test in the
memory until the computer turns off.
You can reuse a test with saved result and
do a new test on it; This will delete the
results of the selected test.
For that reason it is recommended to write
the results to a sheet of paper or a spreads-
heet.
D : 55.53 S : 0.015
T : 3696 TS : 2
D : 55.53 S : 0.015
T : 3696 TS : 2
D : 55.53 S : 0.015
T : 3696 TS : 2
