DeDietrich ALEZIO AWHP MIV-II User manual

ALEZIO EN
Reversible air / water heat pump "Split Inverter"
AWHP MIV-II
User Guide
300023321-001-01

Contents
1 Introduction ................................................................................................4
1.1 Symbols used .......................................................4
1.1.1 Symbols used in the manual ...................................4
1.1.2 Symbols used on the equipment .............................4
1.2 Abbreviations and lexicon ...................................5
1.3 General ..................................................................5
1.3.1 Manufacturer's liability .............................................5
1.3.2 Installer's liability .....................................................5
1.3.3 User's liability ..........................................................6
2Safety instructions and recommendations ..............................................7
2.1 Safety instructions ...............................................7
2.2 Recommendations ................................................7
3Description ..................................................................................................9
3.1 General description ..............................................9
3.2 Control panel .......................................................10
3.2.1 Description ............................................................10
3.2.2 Description of the display ......................................10
4 Operating the appliance ..........................................................................12
4.1 Starting and stopping the heat pump ...............12
4.1.1 Starting the heat pump ..........................................12
4.1.2 Switching off the central heating ...........................14
4.2 Information menu display ..................................14

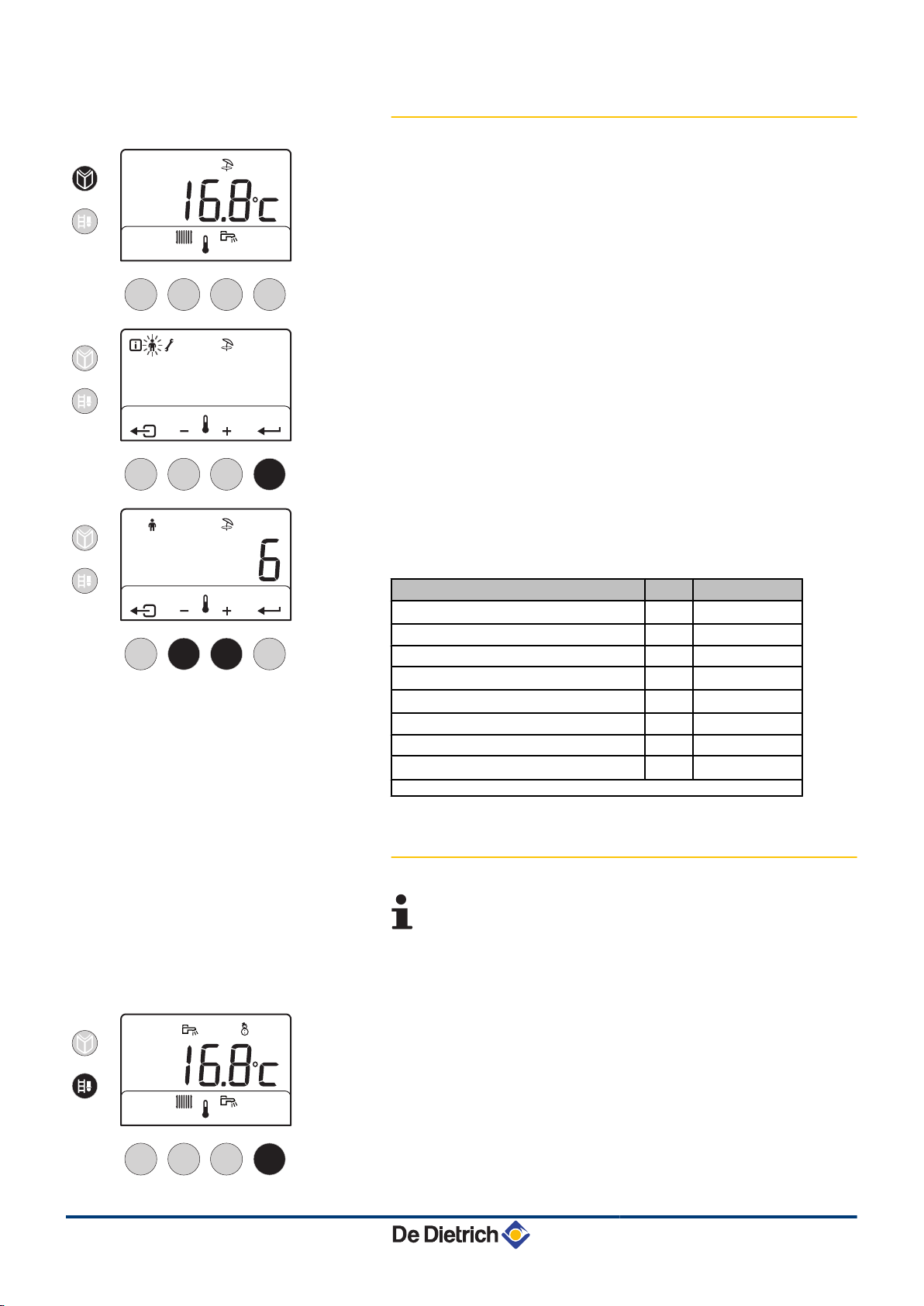

4.3 Changing the user parameters ..........................15
4.3.1 Modifying the set room temperature d H .............16
4.3.2 Modifying the domestic hot water temperature H r
..............................................................................16

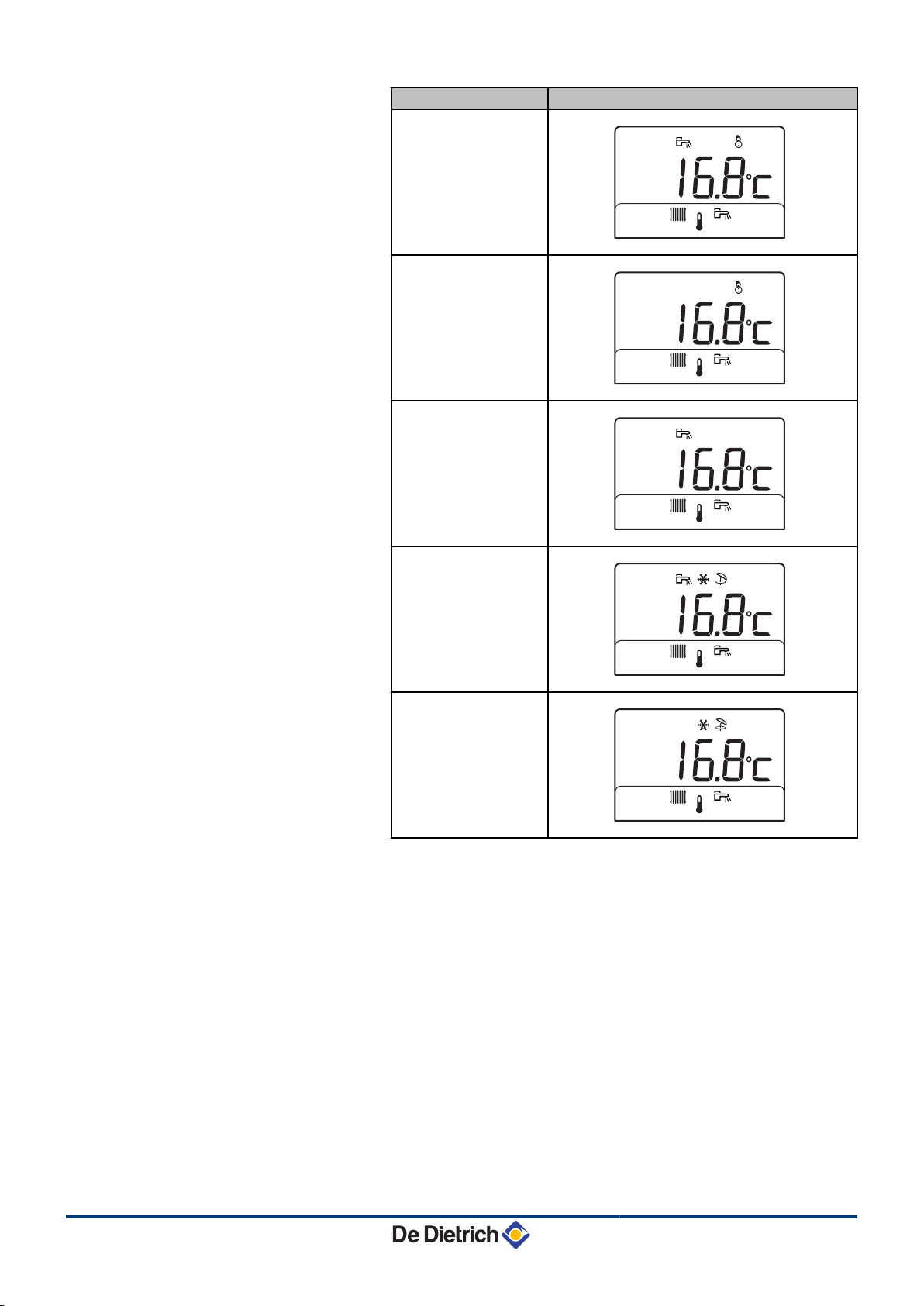

4.3.3 Changing the operating mode ...............................17

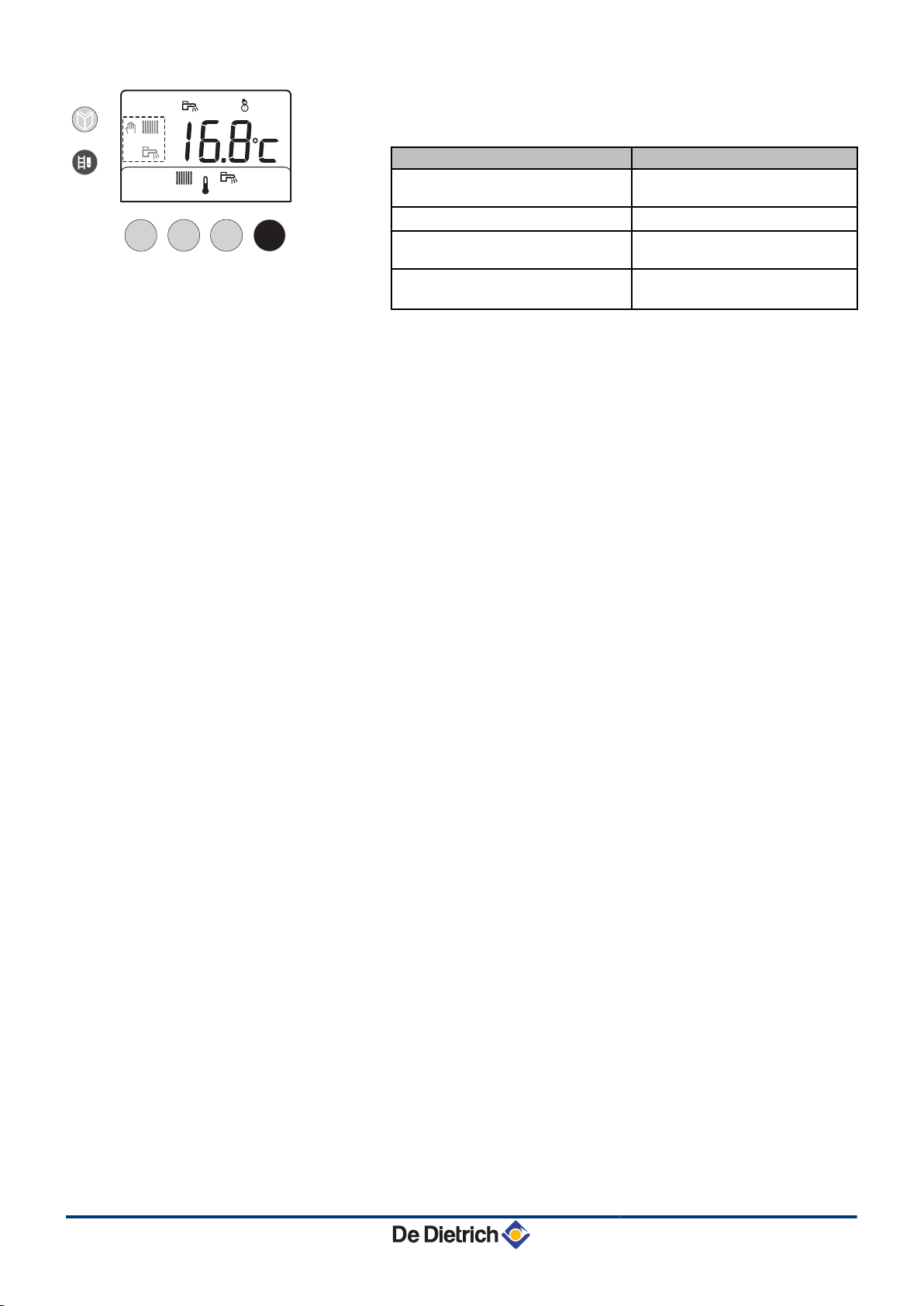

4.3.4 Forcing the additional heating ...............................17
103/07/2012 - 300023321-001-01

5 Checking and maintenance .....................................................................19
5.1 General instructions ...........................................19
5.2 Periodic checks ..................................................19

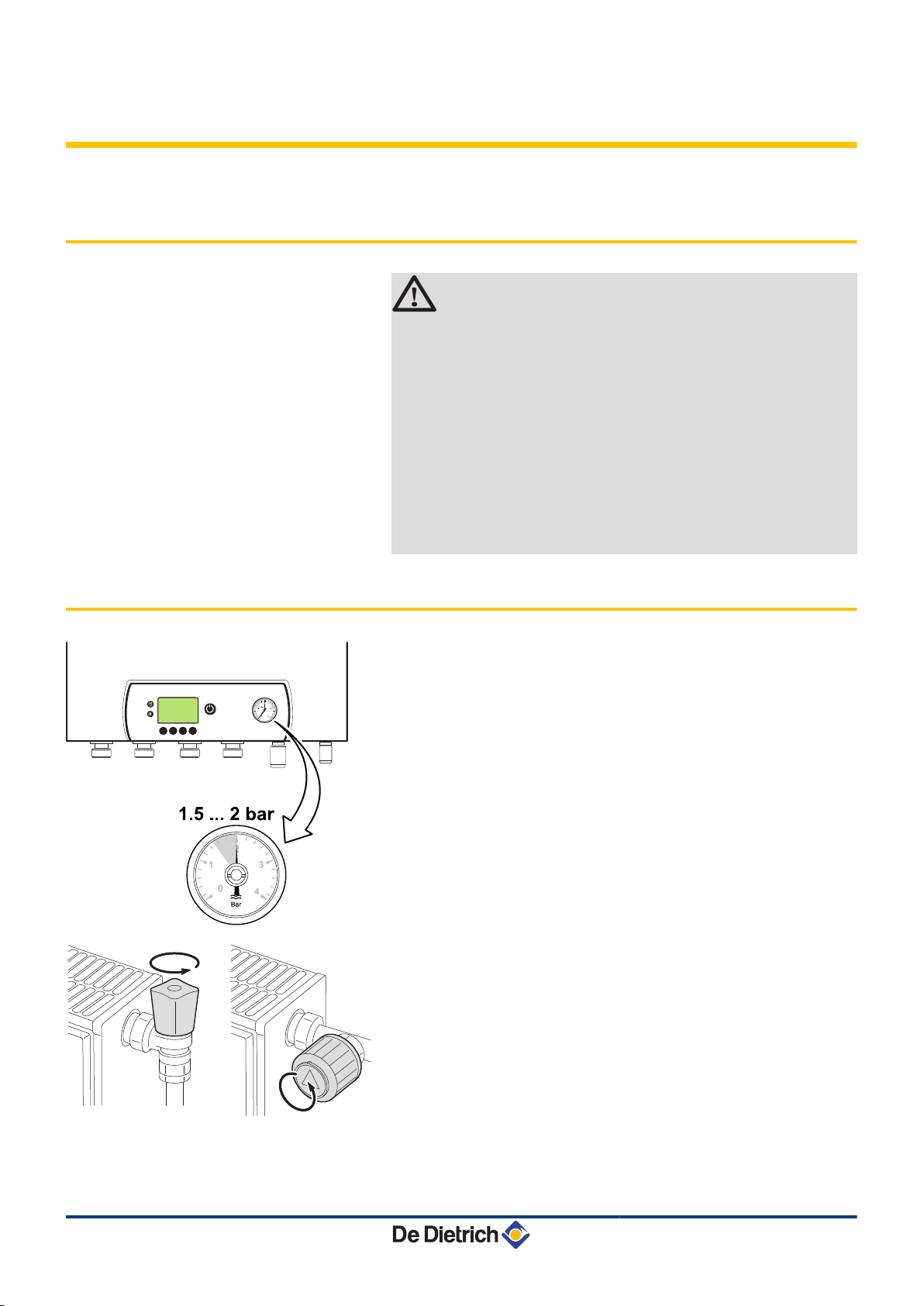

5.3 Top up the installation with water .....................20
5.4 Bleeding the heating system .............................20
5.4.1 Manual venting ......................................................21
5.4.2 Automatic venting ..................................................21
6 Troubleshooting .......................................................................................22
6.1 Error messages ...................................................22
6.2 Incidents and solutions ......................................23
7 Technical specifications ..........................................................................25
7.1 Technical specifications ....................................25
7.1.1 Heat pump .............................................................25
8 Energy savings .........................................................................................27
8.1 Energy savings ...................................................27
8.1.1 Energy-saving advice ............................................27
8.1.2 Room thermostat and settings ..............................27
9 Warranty ....................................................................................................28
9.1 General ................................................................28
9.2 Warranty terms ...................................................28
Contents
203/07/2012 - 300023321-001-01

303/07/2012 - 300023321-001-01

1 Introduction
1.1 Symbols used
1.1.1. Symbols used in the manual
In these instructions, various danger levels are employed to draw the
user's attention to particular information. In so doing, we wish to
safeguard the user's safety, obviate hazards and guarantee correct
operation of the appliance.
DANGER
Risk of a dangerous situation causing serious physical
injury.
WARNING
Risk of a dangerous situation causing slight physical
injury.
CAUTION
Risk of material damage.
Signals important information.
¼ Signals a referral to other instructions or other pages in the
instructions.
1.1.2. Symbols used on the equipment
4Protective earthing
~Alternating current
Before installing and commissioning the device, read
carefully the instruction manuals provided.
Dispose of the used products in an appropriate recovery
and recycling structure.
This appliance must be connected to the protective earth.
D000241-C
AWHP MIV-II 1. Introduction
03/07/2012 - 300023321-001-01 4

Caution: danger, live parts.
Disconnect the mains power prior to any operations.
1.2 Abbreviations and lexicon
4MIV: Indoor module
4HP or PAC: Heat pump
4DHW: Domestic hot water
4Supply temperature: Temperature of the water circulating in the
radiators or in the underfloor heating
4Ambient temperature: Temperature inside the house or in a room
4Room temperature instruction: Temperature programmed in the
control system that must be reached by the heat pump
4Forced back-up operation: Function enabling the ignition of a
heating system to complement the heat pump in periods of
extreme cold
1.3 General
1.3.1. Manufacturer's liability
Our products are manufactured in compliance with the requirements
of the various applicable European Directives. They are therefore
delivered with [ marking and all relevant documentation.
In the interest of customers, we are continuously endeavouring to
make improvements in product quality. All the specifications stated in
this document are therefore subject to change without notice.
It is our responsibility to inform customers, in accordance with Article
L. 113-3 of the Consumer Code, of their obligation to have this
equipment installed by a certified operator whenever the refrigerant
load is more than two kilograms or when a refrigerant connection is
necessary (the case with split systems, even when fitted with a quick
coupling device).
Our liability as the manufacturer may not be invoked in the following
cases:
4Failure to abide by the instructions on using the appliance.
4Faulty or insufficient maintenance of the appliance.
4Failure to abide by the instructions on installing the appliance.
1.3.2. Installer's liability
The installer is responsible for the installation and inital start up of the
appliance. The installer must respect the following instructions:
4Read and follow the instructions given in the manuals provided
with the appliance.
1 2
M002628-A
1. Introduction AWHP MIV-II
503/07/2012 - 300023321-001-01

4Carry out installation in compliance with the prevailing legislation
and standards.
4Perform the initial start up and carry out any checks necessary.
4Explain the installation to the user.
4If a maintenance is necessary, warn the user of the obligation to
check the appliance and maintain it in good working order.
4Give all the instruction manuals to the user.
1.3.3. User's liability
To guarantee optimum operation of the appliance, the user must
respect the following instructions:
4Read and follow the instructions given in the manuals provided
with the appliance.
4Call on qualified professionals to carry out installation and initial
start up.
4Get your installer to explain your installation to you.
4Have the required checks and services done.
4Keep the instruction manuals in good condition close to the
appliance.
This appliance is not intended to be used by persons (including
children) whose physcial, sensory or mental capacity is impaired or
persons with no experience or knowledge, unless they have the
benefit, through the intermediary of a person responsible for their
safety, of supervision or prior instructions regarding use of the
appliance. Care should be taken to ensure that children do not play
with the appliance.
AWHP MIV-II 1. Introduction
03/07/2012 - 300023321-001-01 6

2 Safety instructions and
recommendations
2.1 Safety instructions
DANGER
If smoke is released or in case of refrigerant leak:
1. Switch the appliance off.
2. Open the windows.
3. Evacuate the premises.
4. Contact a qualified professional.
WARNING
Depending on the settings of the appliance:
4The temperature of the radiators may reach 80°C.
4Do not touch the refrigeration connection pipes with
your bare hands while the appliance is running.
Danger of burns or frost injury.
CAUTION
Do not neglect to service the appliance. Contact a qualified
professional or take out a maintenance contract for the
annual servicing of the appliance.
2.2 Recommendations
WARNING
Only qualified professionals are authorised to work on the
appliance and the installation.
4Regularly check that the water pressure in the installation is
between 1,5 and 2 bar.
4Ensure that the appliance is accessible at all times for
maintenance purposes.
4Avoid draining the installation.
4Use only original spare parts.
4Never remove or cover labels and rating plates affixed to the
appliance. Labels and rating plates must be legible throughout the
entire lifetime of the appliance.
4To guarantee the following functions, select the Off/Antifreeze
mode but do not switch off the appliance:
-Anti blocking of pumps
2. Safety instructions and recommendations AWHP MIV-II
703/07/2012 - 300023321-001-01

-Frost protection
AWHP MIV-II 2. Safety instructions and recommendations
03/07/2012 - 300023321-001-01 8

3 Description
3.1 General description
The ALEZIO heat pump comprises:
4An outside module for energy production in hot mode only when
it is combined with an uninsulated inside module.
4A reversible outside module for energy production in hot or cold
mode when it is combined with an insulated inside module
4An inside module with a control panel to handle the thermal
exchange between the R410A fluid and the hydraulic circuit
The two units are connected by means of refrigeration and electrical
connections.
The system offers the following advantages:
4The heating circuit is housed in the insulated volume within the
home. There is no danger of the pipes freezing.
4Thanks to the DC inverter system, the heat pump modulates its
output to adapt to the needs of the home.
4The control panel uses the outside temperature sensor to adjust
the temperature of the heating circuit according to the outside
temperature.
3. Description AWHP MIV-II
903/07/2012 - 300023321-001-01

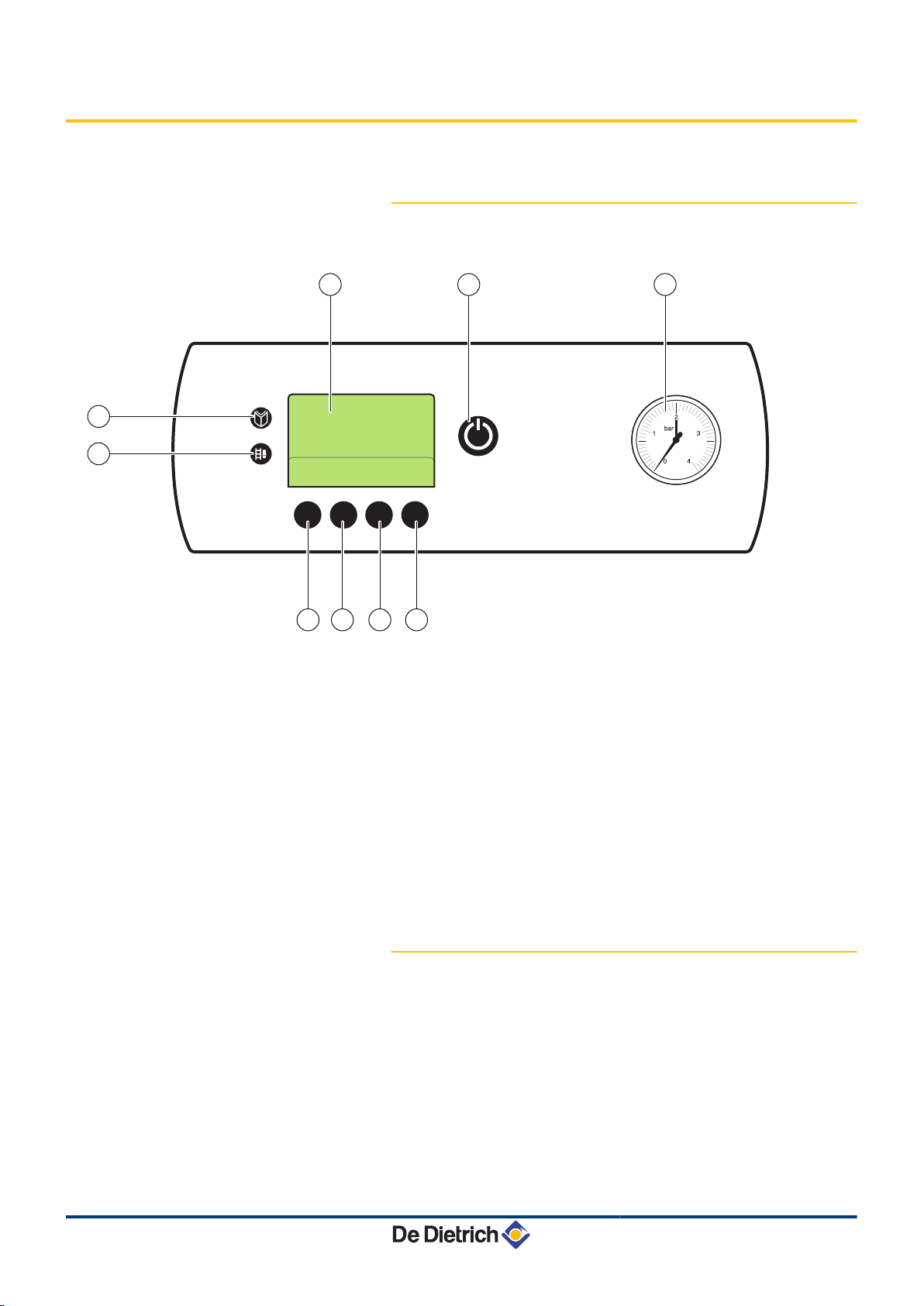

3.2 Control panel
3.2.1. Description
ADisplay
ZOn/Off switch
EPressure gauge
RConfirm key S or K
TDHW temperature button r or +
YHeating temperature button d or -
UKey ( [Escape]
IBack-up forcing button
OMenu key
3.2.2. Description of the display
The display shows the operating status of the heat pump, the heating
flow temperature and any error codes.
M002226-B
1
76 5 4
2 3
9
8
AWHP MIV-II 3. Description
03/07/2012 - 300023321-001-01 10

AMenus
4Q : Information menu display
4W : User menu
4$ : Installer's settings
ZOperating modes
4r : Domestic hot water mode
4w : Cooling mode (Only in reversible versions)
4p : Stop/Antifreeze mode
4b : Heating mode
4v : Compressor on
4G : Additional heating on, stage 1-2
EForced back-up operation
4m + d : Heating
4m + r : DHW
4m + d + r : Heating + DHW
Other information
4a : Default active
4d H r : Adjusting the set point temperatures
4K : A manual vent cycle is running / Permanent
display of the Information menu
M002227-B
1
3
2
3. Description AWHP MIV-II
11 03/07/2012 - 300023321-001-01

4 Operating the appliance
4.1 Starting and stopping the heat pump
4.1.1. Starting the heat pump
WARNING
Only a qualified professional may carry out initial start up
or a start up when the heat pump has completely stopped.
Start the heat pump to produce heating, domestic hot water or
cooling (Cooling mode: Only in reversible versions).
To restart the heat pump that is in off/antifreeze mode, perform the
following operations:
4Press button ¿2 times to modify the operating mode.
¼ See chapter: "Changing the operating mode", page 17.
4Press the ® key to confirm and exit the menu.
If no buttons are pressed, the settings menus are exited
automatically after 10 seconds, without saving the
parameters.
Press the key ( to exit the menu.
4The following information is displayed and tells you which
operating mode the heat pump is set to:
M002239-B
M002249-B
2x
AWHP MIV-II 4. Operating the appliance
03/07/2012 - 300023321-001-01 12

Operating mode Screen display
Heating and domestic
hot water
M002290-A
Heating
M002289-A
Domestic hot water
M002293-A
Cooling and domestic
hot water
M002292-A
Cooling
M002291-A
4. Operating the appliance AWHP MIV-II
13 03/07/2012 - 300023321-001-01

Operating mode Screen display
Stop/Antifreeze mode
M002288-A
Pool
M002289-A
Swimming pool and
domestic hot water
M002290-A
4.1.2. Switching off the central heating
It is possible to shut down the central heating and select an operating
mode suited to the situation and the desired comfort level:
4In summer, by using comfort, it is possible to operate cooling w
(Only in reversible versions).
4In the event of a prolonged absence (weekend, holiday), it is
possible to switch to shutdown/frost protection mode .
4It is possible to prepare domestic hot water r all year round.
¼ To modify the operating mode, see chapter: "Changing the
operating mode", page 17
4.2 Information menu display
The following data can be accessed in the information menu:
Parameter Description Unit
pB : 4In heating mode: Heating temperature setting
4In DHW mode: DHW setpoint temperature
4In cooling mode: Cooling set point temperature
(Only in reversible versions)
4In swimming pool mode: Pool set temperature
°C
pC : Measured start temperature °C
pD : Domestic hot water temperature measured °C
AWHP MIV-II 4. Operating the appliance
03/07/2012 - 300023321-001-01 14

Parameter Description Unit
pE : Outside temperature measured °C
lp : Water flow l/min
F.jp Software version
To display the data in the Information menu, proceed as follows:
1. Press the ¿ key.
2. The symbol ! flashes.
Press the ® key.
3. The information SERVICE flashes for 5 seconds.
If no buttons are pressed for 10 seconds, the screen goes back to
the main display.
To stay in the Information menu, press the ® button, the
information SERVICE no longer flashes.
4. Use the - and + keys to scroll through the information.
5. Press the key ( to exit the menu.
4.3 Changing the user parameters
If no buttons are pressed, the settings menus are exited
automatically after 10 seconds, without saving the
parameters.
M002246-B
M002247-C
M002278-C
M002248-C
4. Operating the appliance AWHP MIV-II
15 03/07/2012 - 300023321-001-01

4.3.1. Modifying the set room temperature d H
1. Press the d key.
2. Press the + or - keys to change the value.
Temperature Adjustment range Increment Factory
setting
Room temperature
instruction
from 15 to 30°C 1 °C 20 °C
3. Press the ® key to confirm and exit the menu.
When a room thermostat is connected, set the room
thermostat to a value 2 K higher than the room temperature
setpoint dH.
4.3.2. Modifying the domestic hot water
temperature H r
1. Press the r key.
2. Press the + or - keys to change the value.
Temperature Adjustment range Increment Factory setting
DHW set temperature from 40 to 65°C 1 °C 50 °C
3. Press the ® key to confirm and exit the menu.
M002240-B
M002241-B
M002243-B
M002244-B
AWHP MIV-II 4. Operating the appliance
03/07/2012 - 300023321-001-01 16

4.3.3. Changing the operating mode
1. Press the ¿ key 2 times.
2. When the symbol " flashes on the display, press the ® button.
3. Press the + or - keys to change the value (See table below).
4. Press the ® key to confirm and exit the menu.
Operating mode Value Screen display
Heating and domestic hot water 1 b + r
Heating 2 b
Domestic hot water 3 r
Cooling and domestic hot water(1) 4w + p + r
Cooling(1) 5w + p
Stop/Antifreeze mode 6 p
Pool 7 b
Swimming pool and domestic hot water 8 b + r
(1) Only in reversible versions
4.3.4. Forcing the additional heating
It is impossible to force the additional heating when the off/
antifreeze mode is selected.
It is possible to force use of the additional heating to complement the
heat pump. To force use of the additional heating, perform the
following operations:
1. Press keys ' and ® simultaneously.
M002249-B
2x
M002250-B
M002251-B
M002261-C
4. Operating the appliance AWHP MIV-II
17 03/07/2012 - 300023321-001-01

2. Hold the ' key down and press the ® key successively to
choose the forcing desired.
Display Back-up
m + dForcing additional heating for
heating
m + rForcing additional heating for DHW
m + d + rForcing additional heating for
heating and DHW
The m symbol disappears from the
display
Additional heating forcing
deactivated
M002264-D
AWHP MIV-II 4. Operating the appliance
03/07/2012 - 300023321-001-01 18

5 Checking and maintenance
5.1 General instructions
CAUTION
4An annual inspection is compulsory.
4We recommend taking out a maintenance contract.
4Maintenance operations must be done by a qualified
engineer.
4Only original spare parts must be used.
4Make certain that the flues and chimneys are
connected, in good condition and not blocked.
4Do not modify nor block the condensate outlet(s).
4If a neutralisation system is installed, follow the
instructions delivered with the neutralisation system
for cleaning and servicing of this system.
5.2 Periodic checks
4Check the water pressure in the installation. If the water pressure
is too low, add more water to the installation.
¼ See chapter: "Top up the installation with water", page
20.
4Carry out a visual check for the presence of any water leaks.
4Open and close the radiator valves several times a year (this
prevents the valves from seizing up).
M002276-B
1
2
3
4
T000181-B
5. Checking and maintenance AWHP MIV-II
19 03/07/2012 - 300023321-001-01
