Dear Customer,
You have just acquired a DE DIETRICH fridge and we would like to thank you.
Our research teams have created this new generation of appliances for you. Their qua-
lity, design, features and technological advances make them exceptional products, and
reveal our unique know-how.
Your new DE DIETRICH fridge will blend harmoniously into your kitchen and will perfectly
combine food preservation performance and ease of use. We wanted to offer you a pro-
duct of excellence.
In the DE DIETRICH product range, you will also find a wide choice of hobs, ovens,
microwaves, hoods, dishwashers, cookers, freezers, that you can coordinate with your
new DE DIETRICH fridge.
Visit our website www.dedietrich-electromenager.com, where you will find our latest
innovations as well as useful and complementary information.
DE DIETRICH
Setting New Values
As part of our commitment to constantly improving our products, we reserve the right to make changes to
them based on technical advances to their technical and functional features and appearance.
Warning:
Before installing and using your appliance, please carefully read this Guide to Installation and Use,
which will allow you to quickly familiarise yourself with its operation.
633
FR
02
23
43
63
83
103
123
143
DE
EN
ES
IT
NL
PT
DA

en
65
en
Be sure to keep for safety !
Read these safety instructions thoroughly and carefully before using. Please keep this user guide to
hand for future reference.
WARNING CAUTION
Indicates the possibility of danger of
death or serious injury Indicates the possibility of risk of personal injury or material damage
DO NOT remove or disassemble!
Be sure to unplug from receptacle(outlet/mains)!
NO., DO NOT...
Be sure to keep and follow!
Other Signs
WARNING
Do not plug several appliances into the
same wall outlet (receptacle).
It can be a cause of overheating and/or fire.
Use an exclusive grounding receptacle for
the refrigerator.
Never let the power cord be crushed
by the refrigerator itself or other (heavy)
objects.
Never bend power cord excessively.
If the cord is damaged or peeled, it can be a
cause of fire and electric shock.
Never use a damaged power cord or plug,
or loose main socket .
There is a risk of fire, electric shock or
serious injury.
Never unplug by pulling only the power cord
wire. Always grip the plug firmly.
Never hold the power cord or plug with wet
hands.
There is a risk of electric shock.
Be sure to ground. Check if your wall outlet
is grounded (earthed) .
There is a risk of electric shock hazards.
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a
similarly qualified person in order to avoid a hazard.
The appliance must be positioned so that the plug is accessible
Caution
en
Be sure to keep for safety 65
Installation Guide 68
Control Panel 69
Temperature Control 70
How to change Interior Light Bulb 71
How to use interior Parts 72
How to use the Dispenser 74
How to use Automatic Icemaker 75
Care & Cleaning 76
Before You Call for Service... 78
Something strange?
Don’t worry. Here is the answer 79
How to install Water Line 80
After Sales Service 82
Contents
SAFETY WARNING (R-600a Models Only)
This appliance contains a certain amount of isobutane refrigerant (R600a) a natural gas with high
environmental compatibility that is, however, also combustible.
when transporting and installing the appliance, care should be taken to ensure that no parts of the
refrigerating circuit are damaged.
Refrigerant squirting out of the pipes could ignite or cause an eye injury. If a leak is detected, avoid
any naked flames or potential sources of ignition and air the room in which appliance is standing for
several minutes.
In order to avoid the creation of a flammable gas-air mixture if a leak in the refrigerating circuit occurs, the
size of the room in which appliance may be sited depends on the amount of refrigerant used.
The room must be 1m3in size for every 8g of R600a refrigrant inside the appliance. The amount of
refrigerant is shown on the identification plate inside the appliance.
Never start up an appliance showing any signs of damage. lf in doubt, consult your dealer.
RoHS (Directive 2002/95/EC) Compliant
This product is environmentally sound and sustainable free from Pb, Cd, Cr+6, Hg,
PBBs and PBDEs restricted in accordance with the Directive.
Disposal of Used Electrical & Electronic Equipment
The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be
treated as household waste. Please, dispose of this equipment at your applicable collection point for the
recycling of electrical & electronic equipments waste.
In the European Union and Other European countries which there are separate collection systems for used
electrical and electronic product. By ensuring the correct disposal of this product, you will help prevent potentially
hazardous to the environment and to human health, which could otherwise be caused by unsuitable waste
handling of this product. The recycling of materials will help conserve natural resources.
Please do not therefore dispose of your old electrical and electronic equipment with your household waste.
For more detailed information about recycling of this product, please contact your local city office, your
household waste disposal service or the shop where you purchased the product.

en en
67
Do not store medicine, academic research
samples which require strict temperature
control in the refrigerator.
Never insert fingers or hands into the bottom
of refrigerator, especially into the bottom
back.
You can be hurt by sharp metal edges or can
receive an electric shock.
Do not change fuse or light bulb on your
own. Call the service agent to change them. When you find the power cord damaged or cut, call the service agent immediately.
When you get rid of your old refrigerator, be
sure to remove the door packings first.
Children can be entrapped and suffocated in
an abandoned refrigerator.
Leave it just a few days! is very dangerous.
Be sure to unplug when the refrigerator is
not used for a long time. Never touch foods and containers especially of metal with wet hands in the
freezer compartment.
You can be hurt by chilblains or cold bum.
Never eat any decayed or deteriorated food at all.
Foods stored too long in the refrigerator can be
decayed or deteriorated .
Never place bottles and containers of glass
in the freezer compartment.
Glass containers and bottles can be broken
so can hurt you.
WARNING
CAUTION
When moving the refrigerator (horizontally
or tilted), more than 2 persons are required
to hold it.
( One to hold top back handles, the other,
bottom holder. )
If other parts gripped, it is very dangerous
and likely to slip.
Be sure to turn up the wheel first before
moving the refrigerator.
The wheels can damage or scratch the floor.
If you move it a long distance, never forget
to fasten the interior parts tightly with tapes.
The parts can collide and break each other.
66
Do not install the refrigerator on a wet
floor or in a place with much humidity
moisture.
Electric insulation gets weakened,
resulting in a risk of electric shock
hazards.
Let the cord from the plug outlet be
directed Downwards.
If it is directed up, the cord near the plug is
bent and can be damaged, which can
cause an electric shock or fire.
Check if plug is loose from the wall outlet.
Electric insulation gets weakened,
resulting in a risk of electric shock
hazards.
Never let the power cord touch or pass over
heating appliances.
Power cord can be damaged, resulting in a
risk of electric shock hazards.
Do not place containers with water or
liquid on top of refrigerator.
Water can be poured into the refrigerator
and can cause electric shock hazards or
damage.
Never pour or spray water into the
refrigerator (both interior and exterior).
Electric insulation gets weakened, resulting
in a risk of electric shock hazards.
Do not move or remove compartment
shelves/pockets while foods and
containers are on them.
Hard container (of glass, metal etc.) can
fall to hurt you and can break shelf glass
and interior parts.
Do not let children hang on the refrigerator
doors.
Refrigerator can fall and do harm to them.
Never repair or disassemble or amend the
refrigerator on your own
There is a risk of personal injury or damage
to the refrigerator. It is recommanded that
any service be carried out by a qualified
person.
Never store any flammable gas or liquid
in the refrigerator.
Never use flammable gas, benzene, thinner,
gasoline, spray etc. near the refrigerator.
There is a risk of fire, explosion and
personal injury or damage.
If a gas leak is found near the refrigerator
or inthe kitchen, ventilate it immediately
without touching power plug or
refrigerator.
WARNING

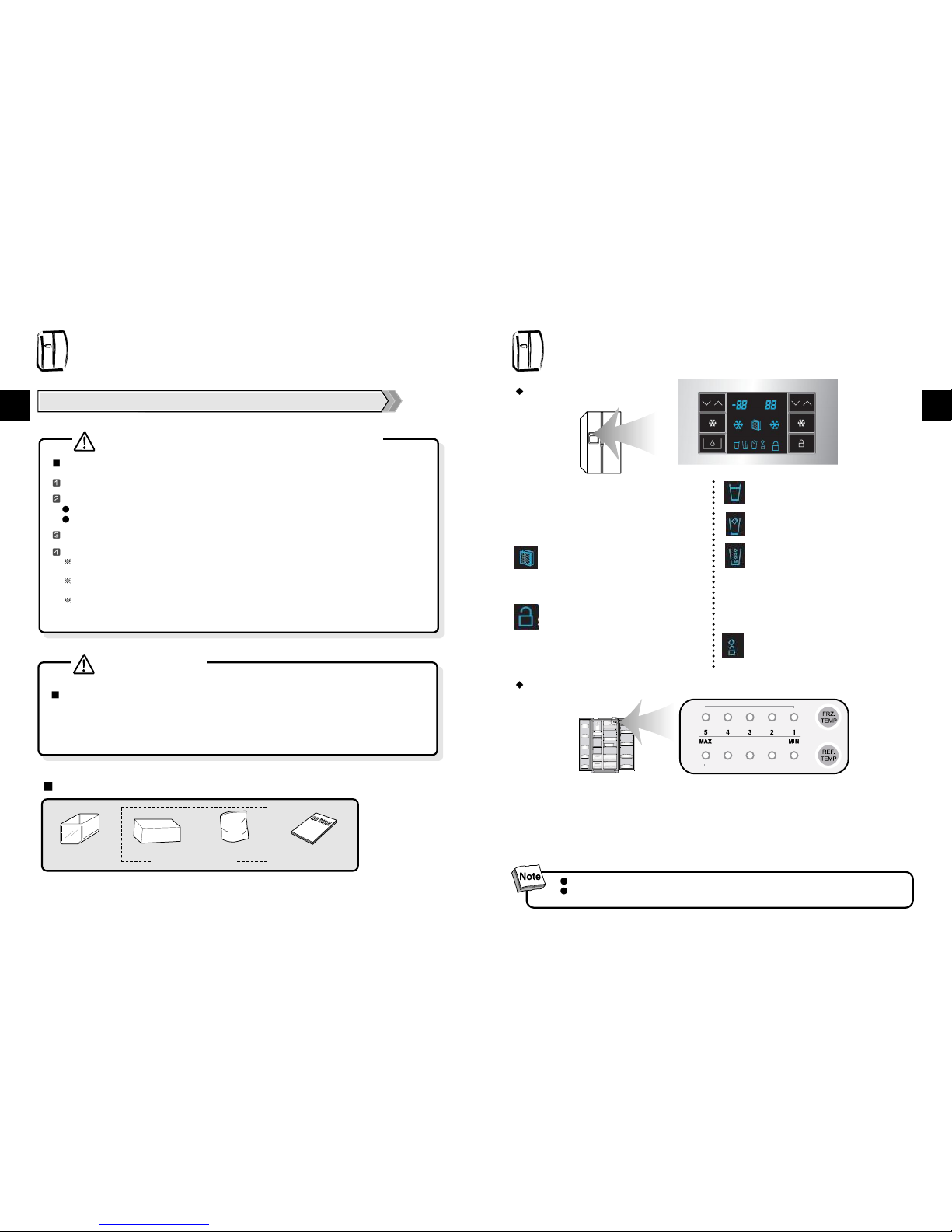

Control Panel
Interior lights of refrigerator turn off when the doors are open for more than 10 minutes.
In case either freezer or refrigerator door is open for more than a minute, door alarm rings for 5 minutes with
1 minute interval.
.
After 6 month of first power input, “FILTER CHANGE”
icon is ON.
When the time comes to change the filter or reset
push “RESET WATER FILTER”button for 5 seconds
after change, then “FILTER CHANGE”icon is OFF.
Children may push any button on the panel for fun,
resulting in disorder of temperature and function of
refrigerator.
- Press this button to lock out this possibility and to
keep temperature and function setting.
- Push Lock button again for more than a second to
stop it.
For your convenience you can select WATER /
CUBED ICE or CRUSHED ICE.
A rectangle line around the icon lights up to indicate
your selection is ON.
To obtain the water or ice, push the pad smoothly with
your cup and your selection will come out 1~2
seconds later.
- Try to avoid placing the rim of your glass near the
bottom of the pad, otherwise Water or Icecubes
may spill or splash.
- You will hear a snap sound 2 seconds after the
icecubes come out. This is from the shut off ice-out
valve.
- Wait 2~3 seconds after pushing the pad to get all the
available water or ice cubes.
When cleaning the icecubes case assembly or when
you do not use for a long period of time, remove the
icecubes in the ice storage case and press the button
to stop making icecubes.
Dispenser Model
Basic Model
68 69
en en
Never install the refrigerator on a wet, watery floor or where water can easily gather.
Check the following before power connection.
Connect power plug only to a grounded wall receptacle (an earthed mains).
Do not plug refrigerator power together with other appliances to a same receptacle(socket).
Do not use an adapter plug or an extension cord.
Do not let power cord be crushed down by other (heavy) objects .
If you hear a strange noise or strong chemical odour or find smog etc. from the refrigerator after
power plugin, pull out the plug immediately and call the service agent or DAEWOO customer service Dept..
Wait about 5 minutes before you plugin again in order to prevent any
damage to the compressor and electrical devices of refrigerator.
Wait 2~3 hours until the inside gets cold enough after the first power plugin, then store foods inside.
(There can be some peculiar smell of plastic parts at initial operation of refrigerator after plugin.
The smell fades away as the refrigerator works and doors are opened and closed.)
Precautions in installation and power connection
To prevent fire, electric shock or leakage
Precautions in use
To prevent personal injury, fire, electric shock etc. read this user guide carefully before use and keep it at
hand for any reference.
❈Read these safety instructions carefully before use and follow precautions for your safety.
Accessories
Installation Guide

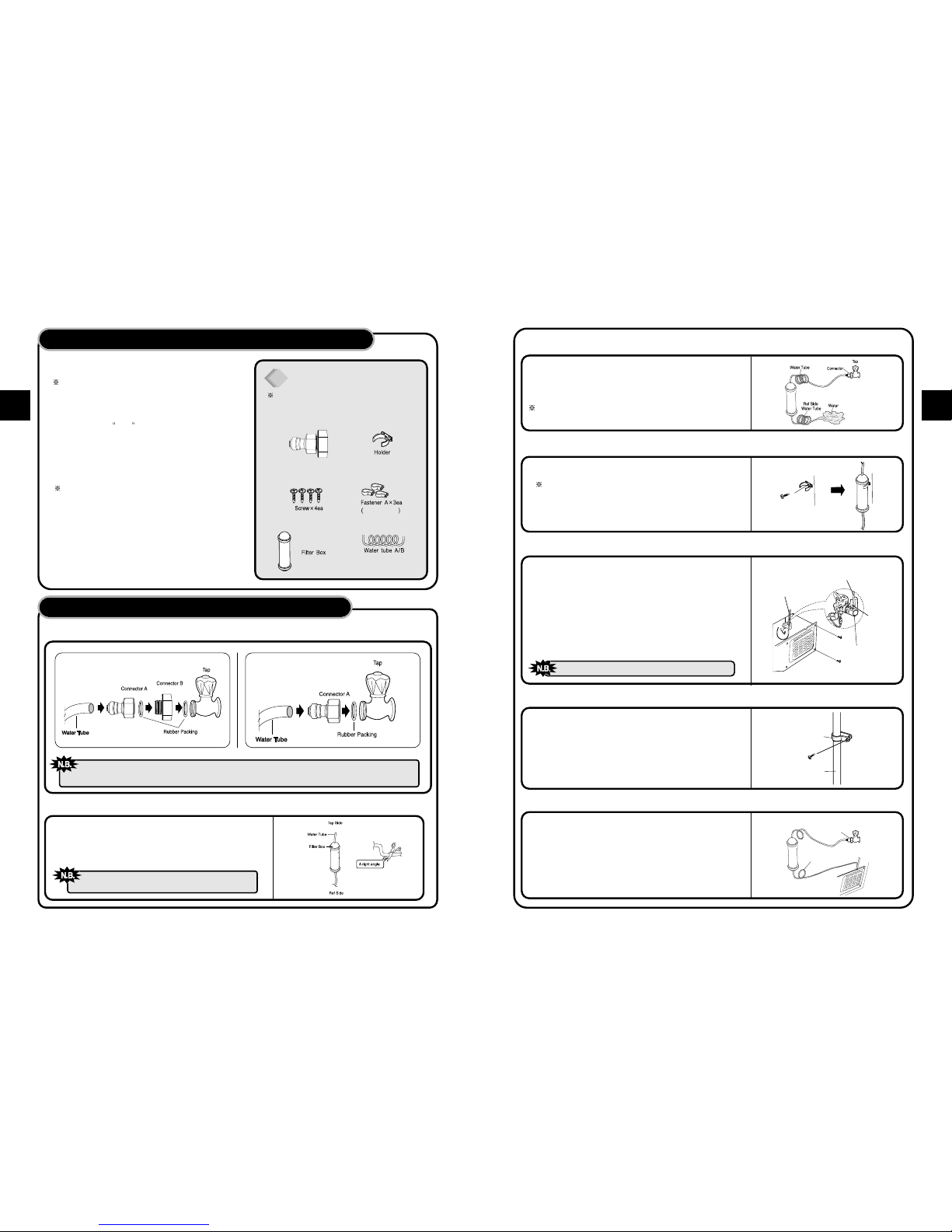

Egg case Filter Box Water supply Kit User guide
Dispenser Models Only

How To change the lnterior Light Bulb
Change of Freezer Lights
Remove the 2 screws
retaining the light cover.
Hold the botton of the light cover
and pull forward to remove.
Change the light bulb.
Follow the reverse order of
disassembing after changing
the light
Remove the screws
retaining the light cover. Hold the bottom of cover and pull forward to remove.
Change the light bulbs.
Follow the reverse order of
disassembing when assembling back.
Change of Refrigerator Lights
Refrigerator Top Lights
The lamp shall be replaced only by a service agent or similarly qualified person.
70
en en
Temperature Control
When this refrigerator is first plugged in, the temperature mode is set to [Middle].
Push the FREEZER SET. button and the setting
temperature changes as the figure shows. Push the REFRIGERATOR SET. button and the
setting temperature changes as the figure shows.
>>> Sequential Temperature Change <<< >>> Sequential Temperature Change <<<
Foods in the refrigerator can be frozen if the ambient temperature of the refrigerator is below 5°c.
Faster Freezing... Faster Cooling or
Refrigeration
Freezer Compartment Refrigerator Compartment
Caution
Dispenser Model
Basic Model
When you want faster freezing, push the SUPER
FREEZER. button. Just push the button once
again when you want to stop the mode.
When you want faster refrigerating, push the
SUPER REFRIGERATOR. Just push the button
once again when you want to stop the mode.
Push the FRZ. TEMP button and the setting
temperature changes as the figure shows. Push the REF. TEMP button and the setting temperature changes as the figure shows.
>>> Sequential Temperature Change <<< >>> Sequential Temperature Change <<<
Freezer Compartment Refrigerator Compartment
To change temperature indicator from Celsius to Fahrenheit, select lock button and press Super Freezing
button for 15 seconds. Same process to go back to Celsius.

en
73
Wash foods before storing.
Divide and separate foods into
smaller pieces.
Place watery foods or foods
with much moisture in front of
shelves (close to door side).
If they are placed close to the
cold air spout, they can be
frozen.
Warm or hot foods should be
cooled down enough before
storing to reduce power
consumption and to enhance
refrigeration performance.
Never forget to cover or wrap
foods to prevent odour of
foods.
Be careful in storing such
tropical fruit as bananas,
pineapples, tomatos, for they
can easily be deteriorate in
lower temperature.
Keep enough space between
the foods as possible. If too
tight or too close, cold air
circulation is hindered, resulting
in poor refrigeration.
Food Storage Tips
Egg case can be placed on a refrigerator shelf as you like.
Do not touch or hold with wet hands foods (foods container) in the
freezer compartment.
There is a risk of chilblains (cold burn)
Do not store medicine, academic research samples etc. in the
refrigerator.
Do not store vegetables in the chilled room, for they can be frozen.
Freezer Pocket
For storing frozen foods
(Do not store ice cream or long stored foods on the
top freezer pocket.)
Freezer Shelf (tempered glass)
For storing frozen foods such as meat, fish, ice-cream...
Drying Case of Freezer
For storing dried foods for so long
(dried squid, dried anchovy etc.)
Meat case of Freezer
For storing meat, fish, chicken with foil cover or vinyl wrap
Refrigerator Shelf (tempered glass)
For storng common foods
Movable Egg Case
Place the case for your convenience.
(Do not use the case for storing ice cubes
nor place in the freezer compartment.)
Vegetable Case
Fruit Case
For storing fruits
Dairy Pocket
For storing dairy products such
as butter and cheese
Refrigerator Pocket
For storing refrigerating foods, milk, juice, beer bottle etc.
Wine Keeper (Option)
Refreshment Pocket
(Refreshment Pocket Models Only)
For frequently used cans, drink water, beverages
Chilled Case
For storing foods temporarily that are ready to cook (meat, fish...)
Cool Box (Option)
Caution
72
en
How to use the interior parts
Basic Model Interior Parts
Dispenser Model Interior Parts
❈Full - option models illustrated.
Features are model - dependent.

en
75
en

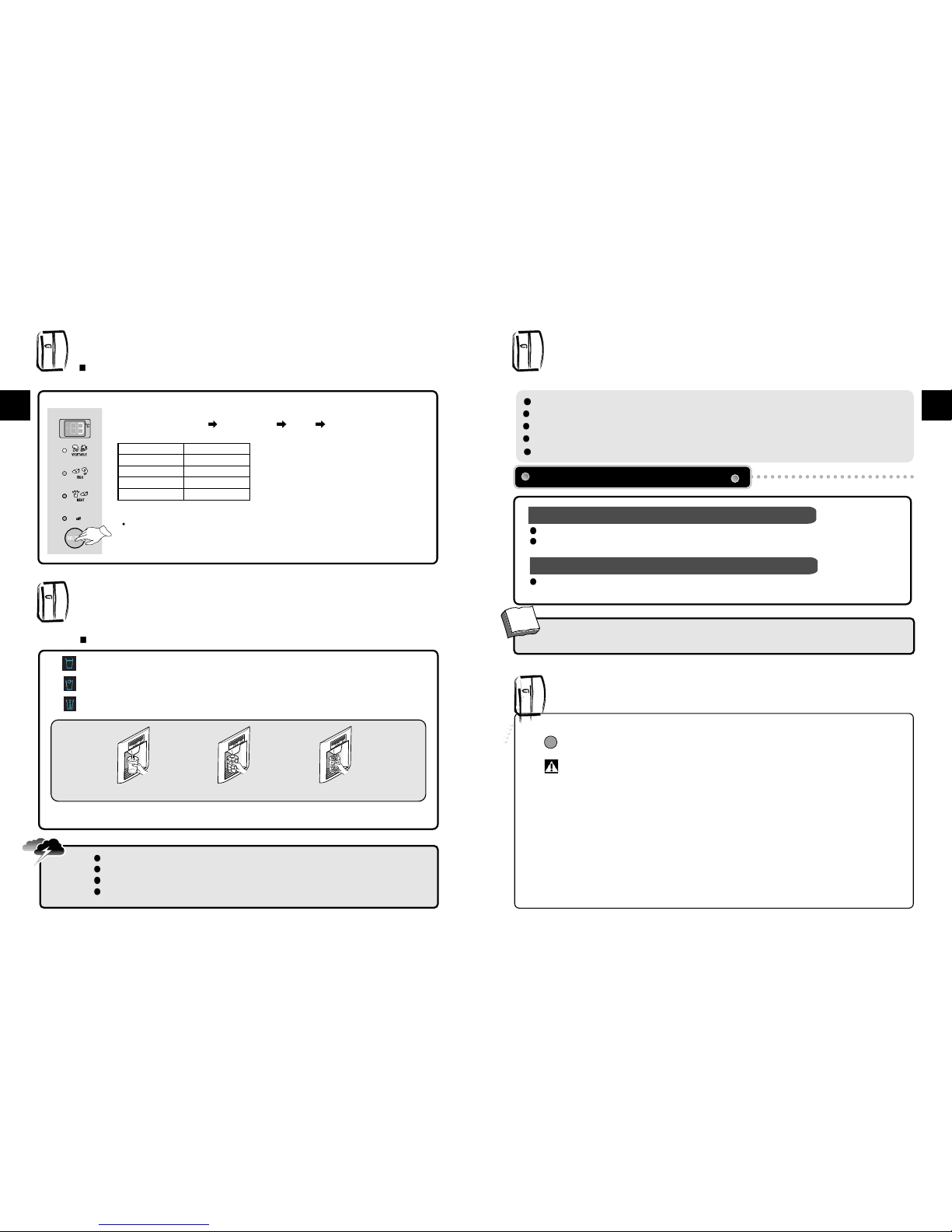

How to use the Automatic Icemaker
(For Dispenser models)
About 10 icecubes (7~8 times a day) are made at one time. If the ice storage case is full, icemaking stops.
It is normal for the icemaker to make banging sounds when the icecubes are falling into the ice storage case.
To prevent a bad odour or smells, regularly clean the Icecubes Storage Case.
If the amount of ice in the storage case is not sufficient, the ice may not be dispensed. Wait a day or so to make more ice.
If the ice does not dispense easily, ensure the dispenser outlet is not blocked.
In case the icemaker doesn’t work
Pull out the ice storage case and separate the icecubes any icecubes that may have stuck together.
If the amount of water which is supplied to the icemaker needs adjusting. Call for the service agent.
The icecubes in the case may melt to flow down to the freezer room.
If long hours' of power failure is predicted, pull out the case, remove the icecubes in it and replace it back.
If the icecubes get stuck and not dispensed
In case of power failure
Use only the ices out of this refrigerator.
Note
74
How to use the Dispenser
(For Dispenser models)
Select WATER / CUBED ICE / CRUSHED ICE and press the cup on the PUSH pad for your convenience.
Cool Box (Option)
Magic cool zone Contol graphic and Control function
Press the WATER/ICE button to select WATER and ICON lights up to show it is on.
Press the WATER/ICE button to select CUBED ICE and ICON turns on.
Press the WATER/ICE button to select CRUSHED ICE and ICON turns on.
WATER CUBED ICE CRUSHED ICE
❈When you get [CUBED ICE] or [CRUSHED ICE], remove the cup from the pad when if it is half full.
( If you don’t, the remaining ICES will make the cup overflow or the dispenser outlet become blocked.)
Avoid using thin fragile cups or crystal glasses when taking (crushed) icecubes.
For your safety, never insert your fingers or other tools into the dispenser outlet.
If you find the (crushed/cubed) ices discolored, stop using the dispenser and call the service agent.
1 hour after you get [CUBED ICE] or [CRUSHED ICE], the selection mode returns to [WATER]
automatically.
Caution
When you plug in first, “OFF” LED is ON.
You can choose “OFF” “VEGETABLE” “FISH” “MEAT” by pushing the
“SELECT” button.
The LEDs and temperatures indicate what you have selected.
Displayed temperature means a target setting value, so it may differ from the actual
room temperature.
Step
OFF
VEGETABLE
FISH
MEAT
Display
-
3 ºC
-1 ºC
-3 ºC
Temperarture Indicator (Dependingonmodels)
Temperature to set
Correct temperature
Attention:
Prolonged opening of the door will cause the internal tem-perature to rise. You
must therefore read the indicatorwithin 30 seconds of the door being opened for the
readingto be correct.
Setting the temperature:
When putting your appliance into service, set the thermostat to amedium position.
Check the temperature indicator 4 hours afterputting your appliance into service, or
after any change in thethermostat setting, observe the temperature light :
- If the indicator is still black, lower the temperature gradually byselecting a higher
number around the thermostat and checkingthe temperature indicator again after 4
hours. Repeat this opera-tion as many times as necessary.
- If the indicator goes green and "OK" is indicated, the tempera-ture in your
refrigerator is correctly set.

OK

en
77
How to Clean
Dairy Pocket
Diary Pocket Cover ; Open the cover a little,
hold both ends and push left to remove.
Diary Pocket ; Hold both ends and pull
upward to remove.
Freezer & Refrigerator Shelves
Open the doors fully,
then pull the shelves forward to remove.
Vegetable Case & Fruit Case
Pull forward and lift up a little to remove.
Interior Parts
Use cloth with water and mild(neutral)
detergent to clean.
Door Packing
Use cloth with mild(neutral) detergent.
Back (Machine Room)
Remove dust on grill with a vacuum cleaner
at least once a year.
Freezer & Refrigerator Pockets
Hold both ends and pull up.
Never use asoline(petrol),
benzene(benzol), thinners etc.,
for they can damage the surfaces.
Caution
76
en
Care & Cleaning
Never use any other electrical appliances
together in the inside of the refrigerator for
fear of electric shock or fire.
For your safety, press the (ICE MAKER LOCK) once, when cleaning (removing & replacing) the icecubes
storage assembly.
Be careful not to hurt your hands and fingers when cleaning the assembly.
Be sure to
unplug first !
Icecubes storage Case
Removing ; Pull up the case assembly
forward to remove.
Replacing ; Fit to the side grooves and
insert to the end.
If it is difficult to fully insert the case,
remove it, rotate the swirl coil in the
case or drive mechanism a quarter
turn and insert again.
Do not store the icecubes too long.
Dispenser Water Shelf
Remove the spill grill and clean the water shelf
regularly.
( The spill shelf is not self-draining.)
Caution
❈ Full - option models
illustrated.
To keep your appliance in good working order, we recommend
that you use Clearit household products.
Clearit offers you professional products and adapted solutions
for the daily upkeep of your household and kitchen appliances.
You may find them in conventional retail outlets, along with a
complete line of by-products and consumables.
Professional expertise for the
general public

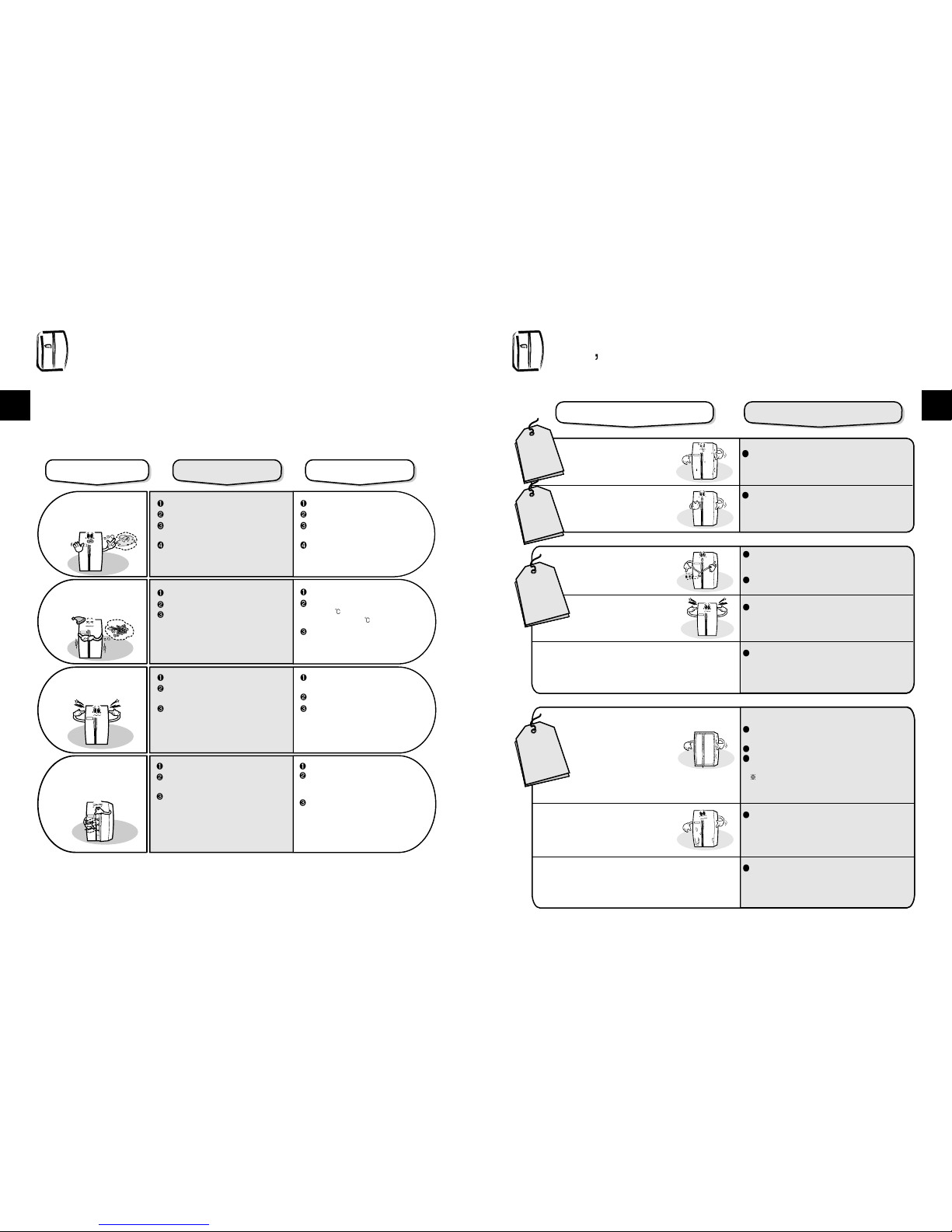

Something strange ?
Don t worry. Here is the answer.
Case
Heat
Door
is
sticky
Strange
Sound
Frost
& Dew
Explanation
Front and side of refrigerator feels
warm or hot.
Doors do not open easily.
It sounds like water is flowing from
the refrigerator.
Something cracking or click
sound.
Humming or buzz sound.
Dew or frost on the wall and/or
food container surface in the
freezer and refrigerator
compartment.
Dew on the interior lights cover
Dew on the cabinet surface
Pipes (refrigerant vessel) are placed beneath the
surface to prevent moisture forming on it.
When you close the door and then open again
immediately,the door is not easy to open. Warm air
rushes into the inside to make the pressure difference.
In this case wait for a minute, then it will open easily.
When the compressor starts to run or stops,
refrigerant which makes the inside cold flowing in
the pipes can make such a sound.
Defrosted water can also make such a sound. (This
refrigerator adopts an automatic defrosting system.)
Inside parts shrink and/or expand due to
temperature change ---When the inside gets cold or
when the door is open ---such sound can be made.
Compressor or fans for cold air circulation can make
such working sound. (If the refrigerator is not level,
the sound can be louder.)
Frost and/or dew can be made in the following cases ;
High temperature and/or high humidity around the
refrigerator
When doors are open too long
Foods with much moisture are stored uncovered or
unwrapped
You can see the same appearance when cold
water is poured in a glass cup and dew is forming
on the surface of it.
The light bulb radiates heat while it is on, so when
doors are open too long, dew can form on the light
cover due to temperature difference.
In case it is highly humid around the refrigerator,
moisture in the air sticks to the surface to form the
dew.
78 79
en en
Before You Call for Service...
Please checkup the following troubleshooting tips before you call for service !
Problem Checkup Point Action
Is the refrigerator unpluged ?
Is the temperature set to [Low Mode] ?
Is the refrigerator under direct sunlight or is any
heat appliance placed near it ?
Is the space between refrigerator back and the
wall too close ?
Plug in the refrigerator.
Set the temperature mode to Middle or High.
Move to a place where there is no direct
sunlight, no heat appliences around.
Keep sufficient space (more than
10cm)between refrigerator back and the wall.
It never gets cold inside.
Freezing & refrigerating is
not so good.
Is temperature set to [Strong] ?
Is surround temperature too low ?
Is the food with much moisture stored close to
the cold air spout ?
Set the temperature to [Middle] or [Low].
Foods can be frozen if ambient temperature
is below 5 . Move to a place where the
temperature is over 5 .
Place foods with moisture on the shelves
close to the doors.
Foods in the
refrigerator get frozen.
Is floor beneath the refrigerator uneven ?
Is the space between refrigerator back and the
wall too close ?
Do any objects other stuff touch the refrigerator?
Move the refrigerator to a level and even
floor.
Keep sufficient space.
Remove any object a way which touches the
refrigerator.
Strange sound from
the refrigerator
Is the food stored uncovered or unwrapped ?
Are the shelves and pockets stained with food
stuff ?
Is the food stored too long ?
Be sure to cover and wrap the foods.
Clean them regularly. Once smell gets
soaked to those parts, it is not easy to
remove.
Do not store foods for so long.
A refrigerator is neither a perfect nor a
permanent foods keeper.
Odour or disgusting
smell from the inside

en en
81
6. Fasten the Water Tube.
5. Connect the Water Tube to the refrigerator.
1) Remove the rear cover at the bottom back of the refrigerator.
2) Insert the fastening ring into the Water tube.
(Be careful to follow the direction of the nut.)
3) Insert the Water Tube into the top of the Water Valve, turn the nut
clockwise to fasten it. (The Water valve is to the right of the motors.)
4) Check for any bent tubes or water leaks; if so, re-ckeck instalation
procedure.
5) Replace the rear cover. (The Water Tube should be placed
between the groove of the refrigerator back and motor cover.)
Water
Tube
Water Tube
Nut
1) Fasten the Water Tube with the [Fastener A] .
2) Check if the tube is bent or sqeezed. If so, set it right to
prevent any water leak.
FastenerA
WaterTube
3. Remove any substances in the filter.
1) Open the main tap water valve and check if water comes out of
the Water Tube.
2) Check if the Water Valve is open in case water does not come out.
3) Leave the valve open until clean water is coming out.
Initial water may contain some substances out of filter
(manufacturing process).
Set the tube upright as the figure shows.
7. After installation of Water Supply System
1) Plug in the refrigerator, press the [WATER] button on the control
panel for 2~3 minutes to remove any air (bubble) in the pipes and
drain out the initial water.
2) Check for the water leaks again through the water supply system
(tubes, connectors and pipes) Rearrange the tubes again and do
not move the refrigerator.
WaterTube
Connector
Tap
4. Attach the Filter Box
1) Screw and fasten the filter holder to the left/right side of the back
of refrigerator.
In case the holder is not fastened well, remove the back paper
of the tape on the filter holder and attach it."
2) Insert the filter box into the holder.
Water Valve
2080
Leave a sufficient distance when cutting the tubes.
2. Get ready to install the Water Filter
1) Measure an approximate distance between the filter and the Water
Tube and cut the tube off filter vertically.
2) Connect the tubes to the filter as the figure shows.
How to install Water Line (Dispenser Models Only)
WATER SUPPLY KIT
1. The water pressure should be 2.0~12.5 kgf/cm2or more to run
the automatic icemaker.
Checkup your tap water pressure ; if a cup of 180cc is full
within 10 seconds, the pressure is OK.
2. When installing the water tubes, ensure they are not close to any
hot surfaces.
3. The water filter only filters water ; it does not eliminate any
bacteria or microbes.
4. If the water pressure is not so high to run the icemaker, call the
local plumber to get an additional water pressure pump.
5. The filter life depends on the amount of use. We recommend
you replace the filter at least once every 6months.
When attaching the filter, place it for easy access (removing &
replacing)
6. After installation of refrigerator and water line system, select
[WATER] on your control panel and press it for 2~3 minutes to
supply water into the water tank and dispense water.
7. Use sealing tape to every connection of pipes/tubes to ensure
there is no water leak.
8. The water tube should be connected to the cold water line.
Check the parts below for installing water supply.
Some other necessary parts are available at your
local service agents.
Installation Procedure (Dispenser Models Only)
1. Join Connector to the tap water line
3011202000
(3019974100) (A:3019503200
B:3019503300)
(3012020700)
(7112401211)
Connector
(3014454520)
Place the rubber washer inside the tap connector and screw onto the water tap.
<Figure A> <Figure B>

en
82
After Sales Service
TTHHIISSAAPPPPLLIIAANNCCEECCOOMMPPLLIIEESSWWIITTHHEEEECCDDIIRREECCTTIIVVEESS
7733//2233,,9933//6688,,8899//333366,,9966//5577,,9922//3311,,9944//6622
TECHNICAL ASSISTANCE DEPARTMENT
If you have already performed the indicated checks and your problem still persists,
DO NOTATTEMPT TO MAKE ANY REPAIRS YOURSELF.
Contact your nearest Technical Assistance Department.
Any work on your appliance must be performed by a De Dietrich-accredited
qualified professional. When you call, please mention the complete reference for
your machine (model, type, serial number): this information is provided on your
guarantee certificate and the information plate on your appliance.
ORIGINAL SPARE PARTS: when any maintenance work is being performed, ask
that only certified original spare partsbe used.

FAGORBRANDT SAS- Locataire Gérant- société par actions simplifiée au capital de 20.000.000 Euros - RCS Nanterre 440 303 196
DKA866/869
