Dear Customer,
You have just acquired a DE DIETRICHfridge and we would like to thank you.
Our research teams have created this new generation of appliances for you. Their quality,
design,features and technological advances make them exceptional products, and reveal our
unique know-how.
Your new DE DIETRICHfridge will blend harmoniously into your kitchen and will perfectly
combinefood preservation performance and ease of use. We wanted to offer you a product of
excellence.
In the DE DIETRICHproduct range, you will also find a wide choice of hobs, ovens,
microwaves,hoods, dishwashers, cookers, freezers, that you can coordinate with your new DE
DIETRICHfridge.
Visit our website www.dedietrich-electromenager.com, where you will find our latest
innovationsas well as useful and complementary information.
DE DIETRICH
Setting New Values
As part of our commitment to constantly improving our products, we reserve the right to make
changes to thembased on technical advances to their technical and functional features and
appearance.
Warning:
Before installing and using your appliance, please carefully read this Guide to Installation
and Use, which willallow you to quickly familiarise yourself with its operation.
2

198101
Fridge-Freezer (hereinafter: the appliance) consists of two parts: top part is refrigerator and bottom
part is upright freezer.
Refrigerator is used in households for storage of fresh food at temperatures above 0°C.
Freezer is used in households for freezing fresh food and storage of frozen food for up to one year
(depending on the type of food).
Fridge-Freezer
3
Fridge-Freezer.............................................................. 3
Before first operation.................................................. 4
Description of the appliance ...................................... 6
Installation and connections...................................... 7
Changing the Direction of Opening the Door ........... 9
Control panel - appliance with electronical
regulation ................................................................... 10
Control panel - appliance with mechanical
regulation .................................................................. 14
Refrigerator accessories .......................................... 15
Storage of food in the refrigerator........................... 17
Storage of food in the FRESH ZONE ....................... 18
Freezing and storage of frozen food ....................... 19
Defrosting the appliance........................................... 21
Cleaning the appliance ............................................. 22
Troubleshooting guide.............................................. 24
Noise level.................................................................. 26

198101
• The appliance is manufactured in compliance with all relevant safety standards; however, it is
recommended that persons with impaired physical, motional, or mental abilities, or persons with
inadequate experience and knowledge, do not use the appliance without due supervision. The
same recommendation applies to minors using the appliance.
• Before connecting the appliance read these instructions carefully. They describe the appliance
and provide instructions for its safe and correct use. The instructions are prepared for
different types and models of the appliance so they may contain descriptions of functions and
components your appliance may not have.
• These instructions also contain the NO FROST version of the freezer, fitted with the fan and
featuring automatic defrosting.
• Remove the wrapping protecting the appliance during transport.
• Wrappings contain environmentally friendly materials which can be recycled, recovered or
disposed off without threat to the environment.
• Door corners are fitted with protective spacers. Remove the spacers and replace them with the
attached pegs.
• Before connecting the appliance to the mains supply, leave it in upright position for about 2
hours. This will reduce possibility of malfunctions in the cooling system resulting from prior
transport and handling.
• The appliance must be connected to the mains supply in accordance with the standing
regulations and local requirements.
• The appliance must not be used in open air or exposed to weather precipitation.
• Always disconnect the appliance from power supply (pull the power cord from wall socket) before
cleaning and before replacing the light bulb.
• If the power supply cord is damaged, in order to avoid hazard it must be replaced by the service
or by qualified personnel.
• In case of longer disuse first turn the appliance off with the ON/OFF button and disconnect it
from mains supply. Empty the appliance, clean the interior and leave the door ajar.
• For the protection of environment deliver the obsolete appliance to the authorized scrap
appliance dealers.
• Never let the children play with the appliance.
• Self closing shear door hinge pulls the door to the cabinet just before closing, thereby preventing
the door to remain ajar. Equally it limits the door opening angle and prevents damage to adjacent
elements.
• Rating plate with basic information is located in the interior of the appliance. If the sticker plate is
not suitable for your language, replace it with the attached one.
• Warning: Ventilation slots on the appliance or built-in element should always be kept clean and
unobstructed.
• Warning: Do not use any mechanical accessories when thawing the refrigerator, except for
those explicitly recommended by the manufacturer.
• Warning: To prevent any pollution be careful not to damage the insulation or refrigeration tubes
at the rear wall during the installation, cleaning and disposal of the appliance.
• Warning: Do not use any electrical devices inside the appliance, except for those explicitly
recommended by the manufacturer.
Before first operation
4

198101
The symbol on the product or on its packaging indicates that this product may not
be treated as household waste. Instead it shall be handed over to the applicable
collection point for the recycling of electrical and electronic equipment. By ensuring
this product is disposed of correctly, you will help prevent potential negative consequences
for the environment and human health, which could otherwise be caused by inappropriate
waste handling of thisproduct. For more detailed information about recycling of this product,
please contact your local city office, your household waste disposal service or the shop
where you purchased the product.
5

198101
A Refrigerator
1 Fan
2 Interior light
3 Control panel
4 Horizontal bottle rack
5 Adjustable glass shelves
6 Pull-out glass shelf (adjustable height)
7 Removable snack tray
8 Foldable egg rack
(closed - 6 eggs, open - 12 eggs)
9 FRESH ZONE pan
10 Vegetable crisp pan
11 Refrigerator door pans
(options: deep, shallow; covered or no cover)
12 Door bottle rack with safety holder
B Freezer
13 Storage compartment
14 Freezing compartment
15 Legs
Interior equipment of the appliance will typically vary according to the specific model.
6
Description of the appliance

198101
• Place the appliance in dry and well aired room. The
appliance operates best at temperature ranges indicated in
the chart below. Relevant class of the appliance is indicated
on the rating plate.
Class Ambient temperature
SN (subnormal) from + 10°C to + 32°C
N (normal) from + 16°C to + 32°C
ST (subtropical) from + 16°C to + 38°C
T (tropical) from + 16°C to + 43°C
Positioning the appliance requires two persons in order to avoid
injuries or damage to the appliance.
• Place the appliance flatly and firmly on a solid base. The
appliance is fitted with adjustable feet on the front side, used
to level the appliance (certain models only).
• Avoid exposing the appliance to direct sunlight or heat
sources. If this is not feasible, install insulation plate between
the appliance and adjacent heat source.
• The appliance may stand independently or you may
incorporate it into the kitchen cabinet. Be sure to leave
enough space for cooling of condenser (distance from the
wall or the opening should be 200 cm2). Distance to the
cabinet above the appliance should be at least 5 cm.
After the installation, the appliance mains plug should be
accessible!
Selecting the locationSelecting the location
Positioning the
appliance
Positioning the
appliance
7
Installation and connections

198101
• The appliance is fitted with spacers to be mounted on the top
edge of the condenser. They prevent the rear of the appliance
to be pushed too close to the wall. Spacers are fabricated
universally regarding the different distance of the condenser
from the cabinet, so make sure to position them properly.
• Use the power cord to connect the appliance to the mains
power. Wall outlet must be fitted with ground terminal (safety
socket). Required nominal voltage and frequency are indicated
on the relevant label or rating plate of the appliance.
• Mains power connection and grounding must be made in line
with standing regulations and local requirements.
The appliance is able to accommodate minor temporary voltage
tolerances, but they may not exceed -10% to +6%.
Connecting to power
supply
Connecting to power
supply
8

198101
Tilt the appliance so that the bottom hinge can be unscrewed and proceed with disassembling as
shown in the Figure 3. Then fix the assembly parts again in the opposite turn. Use the attached
opposite hinge insert piece.
Use the bungs, which have been pulled out, on the opposite side. Check the door seal. In case that
it does not rest well, take it off and turn it by 180°.
Necessary tools: ring spanner No.8, screwdriver, torque 25
9
Changing the Direction of Opening the Door
Freestanding appliance

198101

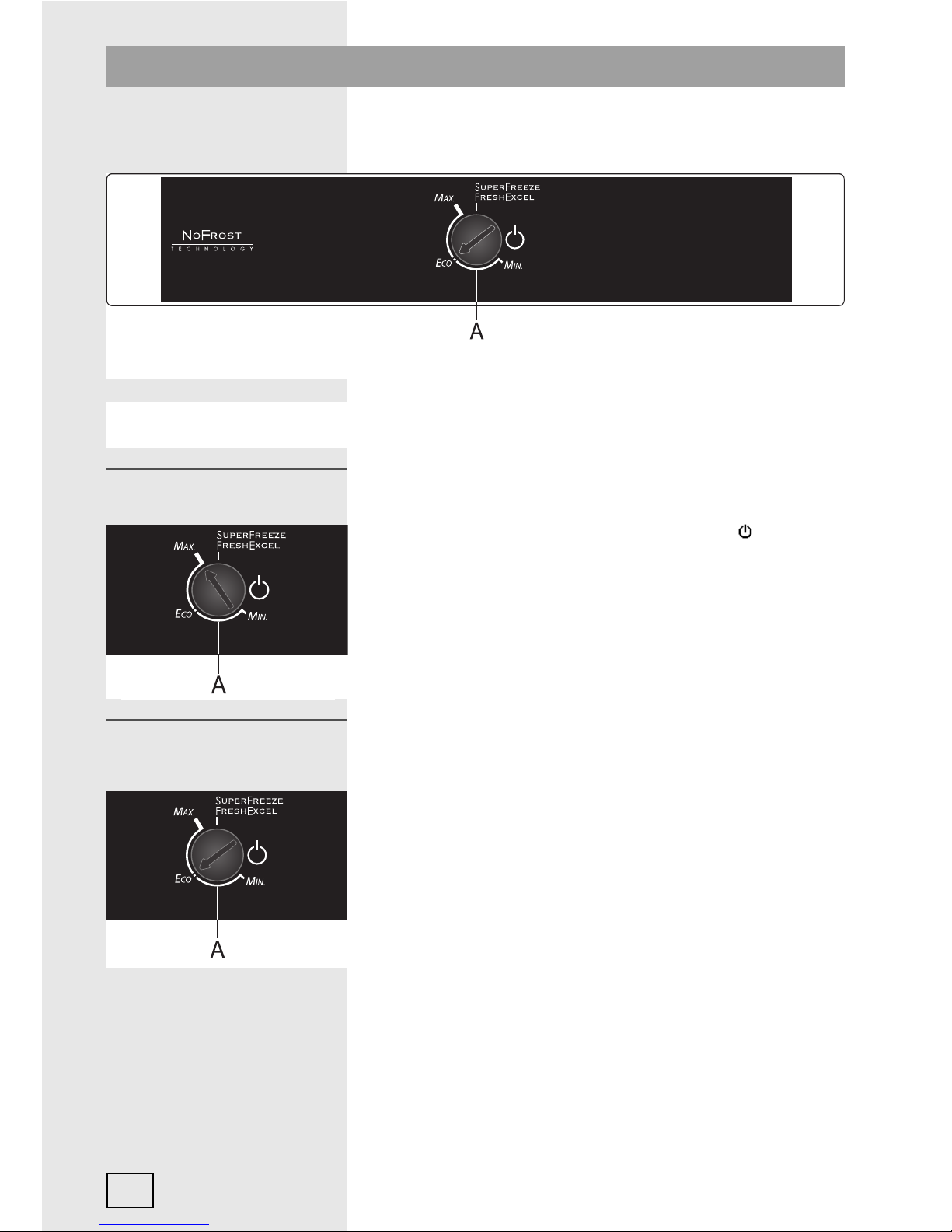

CONTROL UNIT I
No frost system appliance
A ON/OFF and temperature setting button
The appliance is switched on by turning the button (A) towards
MAX, and accordingly switched off when the arrow (small
triangle) on the button points to the ON/OFF mark (the
appliance, however, is still under mains power).
• Temperature of the appliance is set by turning the button (A) to
the position between the MIN and MAX span.
• Recommended setting of the thermostat knob is to ECO
position.
• If the room temperature, in which the appliance is installed, is
lower than 16°C, the recommended setting of the thermostat
knob is to the MAX.
• SUPERFREEZE/FRESCHEXCEL position
- SUPERFREEZE indicates fast freezing (certain models
only).
- FRESHEXCEL indicates fast cooling (certain models only).
ON/OFF buttonON/OFF button
Refrigerator temperature
setting
10
Control panel - appliance with electronical regulation

198101
Fast freezing function is activated by turning the button (A) arrow
(triangle) to the position SUPERFREEZE/FRESHEXCEL.
If the function is not switched off manually it stops automatically
(after approximately two days of operation).
• After the automatic stop of the fast freeze function the
appliance switches to regular operation mode at MAX. setting,
so you need to turn the button (A) back to your preferred
setting.
• The fast freeze function is used after the first start of the
appliance, before major cleaning, or when large quantity of
fresh food is stored in the freezer.
• To repeat the fast freeze function you need to first turn
the knob (A) from the SUPERFREEZE/FRESHEXCEL
position to the position ECO, and then back to the position
SUPERFREEZE/FRESHEXCEL!

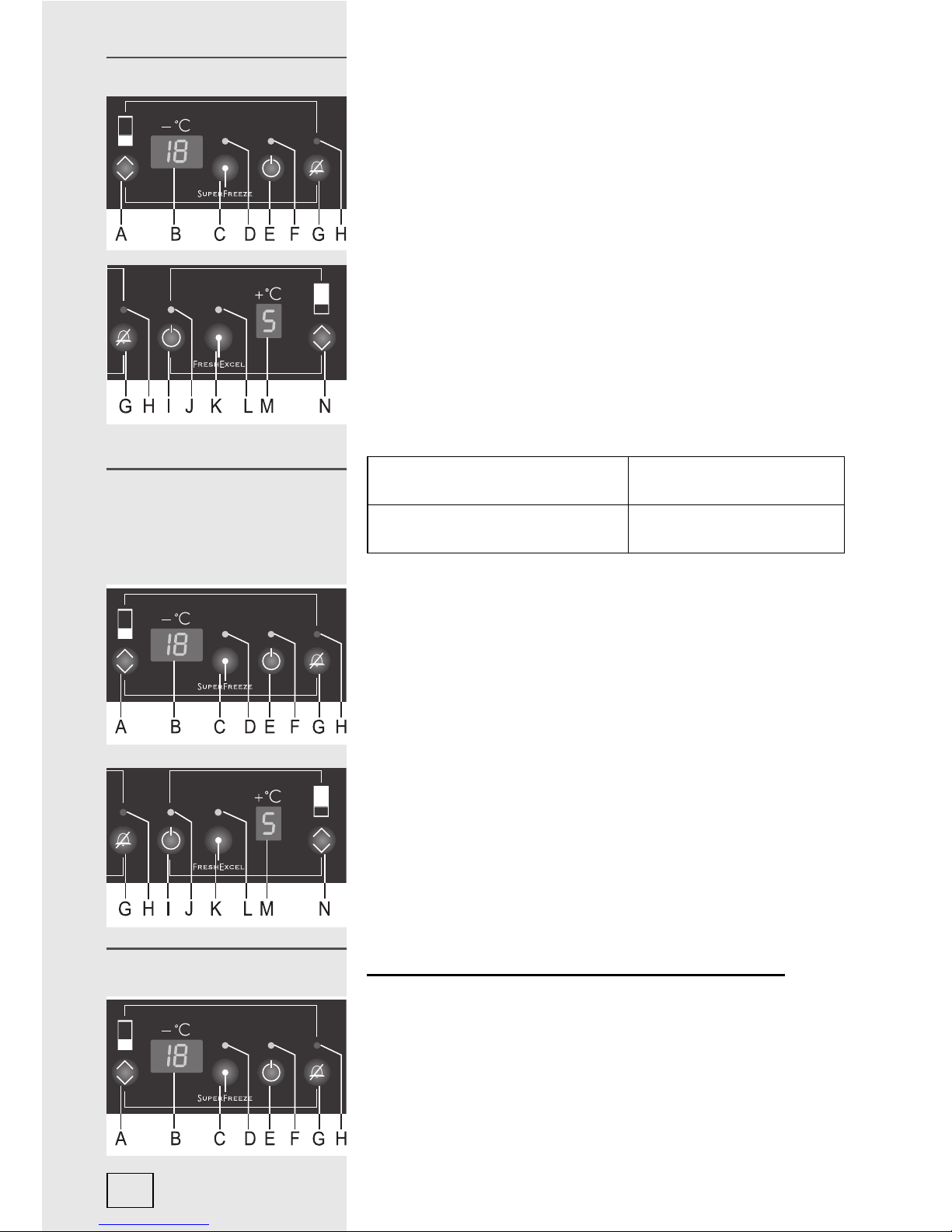

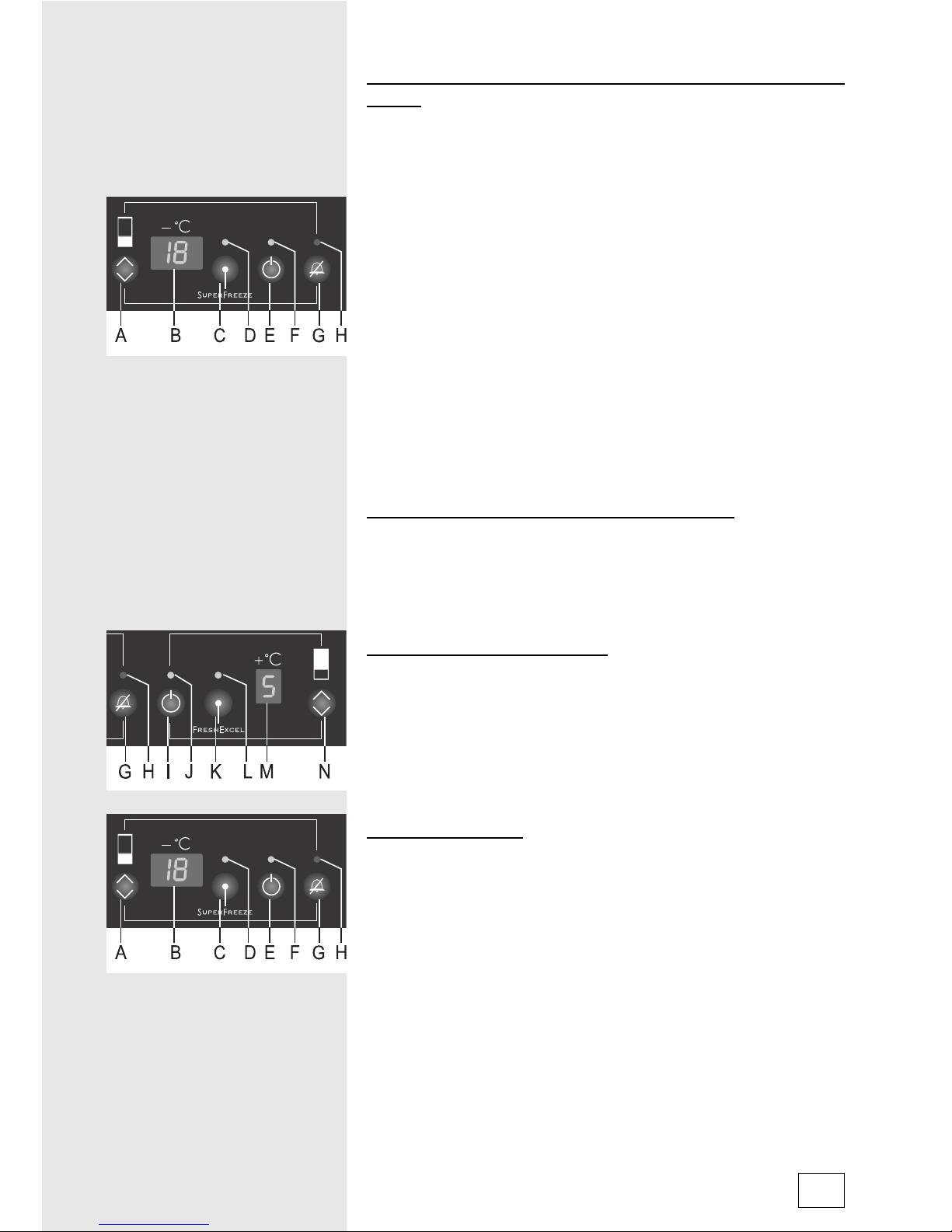

CONTROL UNIT II
Valve and no frost system appliance
A Freezer temperature setting button
B Freezer temperature digital display:
indicates temperature span between -16°C
and -24°C.
C Fast freeze button ON/OFF
D Orange LED: indicates fast freeze setting in
operation
E Mains ON/OFF button (both refrigerator and
freezer)
F Green LED: indicates freezer operation
G Alarm off button and child lock ON/OFF
button
H Red LED: indicates alarm state
I Refrigerator ON/OFF button
J Green LED: indicates refrigerator operation
K Fast refrigerator cooling ON/OFF button
L Orange LED: indicates fast refrigerator cooling
setting in operation
M Digital refrigerator temperature display:
indicates temperature span between +1°C
and +9°C.
N Refrigerator temperature setting button
11
Fast freezing function

198101
First plug the power cord into the wall outlet. The LCD display is
on and indicates dashes. This means that both the refrigerator
and the freezer are off.
• Switch the appliance on/off by pressing button (E) for 3
seconds. Both the refrigerator and the freezer are on, green
LED’s (F) and (J) are on. In this mode you can switch only the
refrigerator off by pressing the button (I) for 3 seconds (green
LED (J) is off).
• Display indicates refrigerator temperature +9°C and freezer
temperature 0°C. These values remain on the display until
the actual temperature within the cabinet units falls below the
above values.
• The appliance is factory preset to the recommendable
refrigerator temperature of +5°C and freezer temperature of
-18°C.
Refrigerator temperature setting
span +1°C do +9°
Freezer temperature setting span -16°C to -24°C + fast freeze
• Freezer temperature is set by the button (A), and refrigerator
temperature by the button (N).
• When you press one of temperature setting buttons, the
digital display starts flashing and indicates the last selected
temperature.
• Temperature setting is changed by short sequence pressing
of the button in steps of 1°C. During the setting procedure all
other buttons are void.
• Around 5 seconds after the release of the button, the
display automatically indicates the actual temperature in the
refrigerator and in the freezer.
Continuous sound - opened refrigerator door - alarm
If the refrigerator door is open for more than one minute, the
sound signal (continuous tone) starts and red LED (H) appears.
Alarm goes off by closing the door, or by pressing the alarm off
button (G).
Mains ON/OFF buttonMains ON/OFF button
Temperature settingTemperature setting
Other settingsOther settings
12

198101
Intermittent sound - refrigerator/freezer temperature too high
- alarm
Elevated temperature within the appliance is signaled by the
sound alarm (intermittent tone), and the temperature flashing on
the display.
• Alarm is switched off by pressing the alarm off button (G).
The red LED and flashing temperature are switched off
automatically when the interior of the refrigerator/freezer is
cool enough, and there is no danger for perishable goods
• If the temperature in the freezer compartment fails to reach
the required level even 24 hours after the alarm had been
shut down, the sound alarm is switched on again and shuts off
automatically when the freezer compartment cools down to the
required level and there is no danger for perishable food. After
first start the appliance has a 24-hour alarm delay to avoid
unnecessary panic.
Intermittent sound signal – power failure alarm
If the refrigerator or freezer temperature increases excessively due
to power failure, this is signaled by the sound alarm (intermittent
beep), red light is on, and the display indicates flashing maximum
temperature digit (max. 9°C for the refrigerator).
Fast cooling of the refrigerator
The function of fast cooling of the refrigerator interior is activated
by pressing the button (K) – orange LED is on (L). It is switched
off automatically after 6 hours, and the setting returns to the
preceding value. The function is used for fast cooling of large
quantities of fresh food inserted at once.
Fast freeze function
The fast freeze function is activated by pressing the button (C)
– orange LED is on (D), and intensive freezing starts.
If you fail to switch this function off manually it turns off
automatically after approximately two days. The function is
intended for fast freezing of large quantities of inserted food. In
case of power failure the fast freeze procedure is repeated.
The function is used with the first start of the appliance, before
cleaning, and when larger quantities of fresh food are inserted in
the appliance.
13

198101
Child lock
Built-in child lock prevents the appliance from unwanted
temperature alterations and/or even switching off. Turn it on/off
by pressing the alarm button (G) for 3 seconds (letters ‘LL’ and
‘L’ flash on the displays). When the protection is activated, the
only active button is the alarm button. If you press any button the
wording ‘LL’ and ‘L’ appear on the display.
The appliance is switched on/off by turning the temperature
selector (see Fig.) to any position from 0 to 7.
The appliance operation is controlled by turning the thermostat
(temperature selecting button) located within the refrigerator
cabinet from the position STOP (0) to the position 7 and back.
Temperature setting
• The higher the position of the temperature selector (towards
position 7) the lower is the temperature (cooler) within the
cabinet of the appliance. Interior temperature in the refrigerator
may even fall below 0°C. Higher position settings are to be
used on in case of recommended low cooling temperature, or
if the ambient temperature is below 16°C. In case of standard
ambient temperature we recommend the medium setting.
• Change in the ambient temperature affects the temperature of
the appliance, so the position of the temperature selector should
be adjusted accordingly.
• In the STOP (0) position the appliance is switched off (cooling
system is off). However, the appliance is still powered (light bulb
is turned on if you open the refrigerator door).
ON/OFF buttonON/OFF button
14
Control panel - appliance with mechanical regulation

198101
(Equipment depends on the model)
• Shelves can be optionally placed on the guides inside the
appliance. To remove the shelf, first slide it out as far as the
guide allows it, then slightly lift it up and pull it out. Quickly
perishable food should be stored on the back i.e. the coldest
part of the shelves.
If you need space to store higher objects (bottles, jars, jugs)
in the refrigerator you can remove the front part of the shelf,
relocate it to a lower level, and obtain the required space.
It is protected against accidental slide out.
The rack can only be pulled out when it is empty. Lift the back
part of the rack and pull it towards yourself.
The rack should be placed in the appliance in such way to allow
unobstructed door closing.
Maximum capacity is 9 bottles of 0,75 l, or 13 kg of total mass
– see label on the right side of cabinet interior.
• Crisp tray below the glass shelf at the bottom of the
refrigerator is used for storage of fruit and vegetables. It
retains the right level of moisture and prevents drying out.
• The refrigerator door lining consists of various shelves or
holders used for storing cheese, butter, eggs, yogurt, and a
stock of other smaller packages, tubes, cans etc. The bottom
shelf is used for storing bottles.
• Fan fixed under the ceiling or hidden behind the rear
refrigerator panel or within the freezer compartment improves
even distribution of temperature and decreases dew upon
storage racks.
ShelfShelf
Adjustable glass shelfAdjustable glass shelf
Horizontal bottle rackHorizontal bottle rack
Vegetable crisp panVegetable crisp pan
Refrigerator door liningRefrigerator door lining
FanFan
15
Refrigerator accessories

198101
The tray is especially handy for cold cuts, cheese, etc ...
The drawer is pulled out by lifting the front part slightly and then
pulling out. The handle may be moved sideways along with the
drawer.
Refrigerator compartments:
- top section: canned food, bread, wine, cake, …
- middle section: dairy products, readymade food, desserts,
juices, beer, TV-dinners, …
- bottom section: meat, meat products, delicatessen, …
- crisp pan: fresh fruit, vegetables, salads, root vegetables,
potatoes, onions, garlic, tomato, tropical fruit, sauerkraut,
turnips ...
Refrigerator door lining compartments:
- top/middle section: eggs, butter, cheese, …
- bottom section: beverages, cans, bottles, …
Freezer compartments:
- freezing, storage of frozen food (see section Freezing and
storage of frozen food).
Removable snack trayRemovable snack tray
Recommended
distribution of food
Recommended
distribution of food
16

198101
• Proper use of the appliance, adequately packed food, correct
temperature and hygienic precautions produce substantial
impact on the quality of stored food.
• Always respect the best before date, printed on the packaging.
• Food to be stored in the refrigerator should be properly packed
as to prevent emission and/or reception of moisture and odors.
• Never store inflammable, volatile or explosive substances.
• Beverages with high alcohol percentage shall be stored in
tightly sealed bottles in vertical position.
• Some organic solutions like volatile oils in lemon or orange
peel, acids in butter etc. can cause damage in prolonged
contact with plastic surfaces or gaskets for longer period of
time they can cause accelerated aging of the plastic material.
• Unpleasant odor inside the refrigerator is a sign that something
is wrong with food or that your refrigerator needs cleaning (see
chapter Cleaning).
• If you plan a longer absence, make sure you removed quickly
perishable articles of food from the appliance before you
leave.
Recommended periods of storing fresh food in the
refrigerator
Food Storage period
eggs, marinades, smoked meat, up to 10 days
cheese up to 10 days
carrots, etc… up to 8 days
butter up to 7 days
cake, fruit, TV-dinner dishes, raw chunks
of meat up to 2 days
fish, raw minced meat, seafood up to 1 day
Important precautions
and hints
Important precautions
and hints
Storage periodsStorage periods
17
Storage of food in the refrigerator

198101
The FRESH ZONE drawer provides storage of wide selection
of fresh food longer than in the traditional refrigerator. Food
remains fresh for long time and it preserves its taste and nutritive
ingredients. It reduces decay and loss of mass, so fruit and
vegetables are more fresh and natural. The drawer must be
tightly closed to provide optimum operation.
• Moisture level in the drawer depends upon the moisture of
stored food, and on the frequency of opening the drawer.
• When you buy food check its freshness: quality and durability
of food depends on it.
• Store non-wrapped animal or vegetable food separately, or
wrap it in suitable packages. Be careful to prevent touching
of different types of meat. They should be packed and stored
separately to avoid bacterial decomposition in case meat turns
foul.
• Approximately 30-60 minutes prior use remove food from
the drawer to let its aroma and taste develop at ambient
temperature.
• Food sensitive to low temperatures is not suitable for storage
in the FRESH ZONE drawer: pineapple, avocado, bananas,
olives, potato, eggplant, cucumber, beans, bell pepper,
melons, water melons, pumpkins,...
18
Storage of food in the FRESH ZONE

198101
• Activate the fast freeze function by pressing the button (C) for
continuous operation 24 hours prior intended freezing.
- control unit I: with knob A, position SUPERFREEZE/
FRESHEXCEL;
- control unit II: with key C;
- mechanical regulation: knob position approximately
between 4 and 6.
Upon expiry of this period insert fresh food in the freezing
compartment. Do not let the already frozen packages touch the
fresh ones.
Be sure to provide the NO FROST freezer models with enough
room below the ceiling for cool air circulation, so avoid storing
food over the marked maximum storage level (see Fig.).
• After 24 hours you may relocate the food to the storage
compartment, and repeat the freezing procedure if required.
You may also remove the drawers and store frozen food
directly on cooling shelves.
• For freezing smaller quantities of fresh food (1-2 kg), the
engagement of the fast freeze function is not required.
• Freeze only such food which is suitable for freezing and sustain
low temperatures. Food should be of adequate quality and
fresh.
• Select adequate packaging for each kind of food and pack it
correctly.
• The packaging should be air tight and well sealed without
leaking since this could cause substantial vitamin loss and
dehydration.
• Mark packages with following data: kind and amount of foods
and the date of loading.
• It is imperative that food is frozen as quickly as possible. We
therefore recommend the size of the package not to be too
large and to be cooled before loading into the freezer.
• The amount of the fresh foods that can be loaded in the freezer
as a single load is declared on the rating plate. If the loaded
amount is too large, the quality of freezing is reduced which in
turn affects the quality of frozen foods.
Storage procedureStorage procedure
Important precautions
and hints for freezing
fresh food
Important precautions
and hints for freezing
fresh food
19
Freezing and storage of frozen food

198101
The storage time and recommended temperature for storing
commercially frozen foods is indicated on the packaging. Always
follow manufacturer’s instructions for storage and use of frozen
food. When shopping be careful to choose only food which is
adequately packed and provided with complete data and stored in
freezers where the temperature never rises above -18°C.
Do not buy packages of food wrapped with frost. This indicates
that the package was thawed before at least once.
Take care that packages don’t start to thaw during transport to
your home. Temperature rise shortens the storage time and affects
the quality of commercially frozen foods.
Recommended periods of storing frozen food in the freezer
Food Period
Fruit, beef from 10 to12 months
Vegetables, veal, poultry from 8 to 10 months
Venison from 6 to 8 months
Pork from 4 to 6 months
Chopped (minced ) meat 4 months
Bread, pastry, TV-dinners, fat free fish 3 months
Intestines 2 months
Smoked sausages, fat fish 1 month
Partially thawed or defrosted foods should be used as soon as
possible. Cold air preserves the food but it does not destroy
microorganisms which rapidly activate themselves after
defrosting and make foods perishable.
Partial defrosting reduces the nutritional value of food, especially
fruits, vegetables and readymade meals.
Storage of industrially
frozen food
Storage of industrially
frozen food
Storage periods of
frozen food
Storage periods of
frozen food
Defrosting frozen foodDefrosting frozen food
20
