DEFEAT-19 PSF-B201 User manual

DEFEAT-19
Cleaning
DEFEAT-19.Cleaning
WE MEAN CLEAN
Electric ULV Cold
Backpack Fogger
User Manual

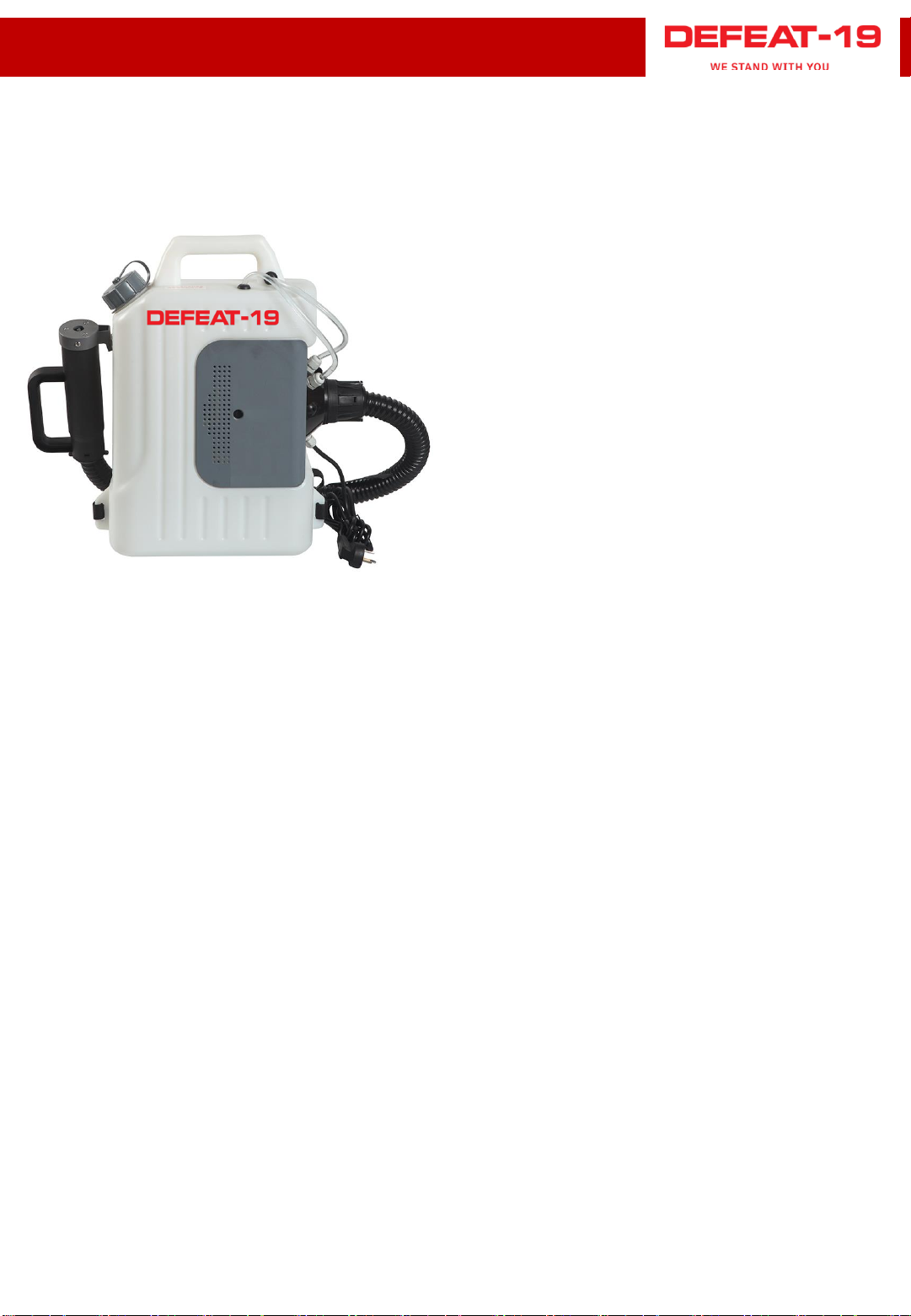

DEFEAT-19.Cleaning
This manual includes general operating and use instructions.
Please read and familiarize yourself with this entire manual before
attempting to use the PSF-B201 Fogger
The PSF-B201 was specifically
designed to provide the fastest,
most efficient DEFEAT-19
antimicrobial product
applications. Its light weight,
ergonomic design and ULV
atomization technology make it
the perfect choice for applying
these formulations.
Unlike thermo fogging systems, which convert liquid solutions into
fog by vaporizing them with high heat, a process that can destroy
aliquid’s chemical properties, the PSF-B201 is a ULV (Ultra Low
Volume) “cold” fogger.
Instead of heat, it produces and utilizes large volumes of low-
pressure air to transform liquids into a fog comprised of very fine,
uniformly-sized droplets that not only travel long distances, but
also cover more area with less product than other dispersal
systems.

DEFEAT-19.Cleaning

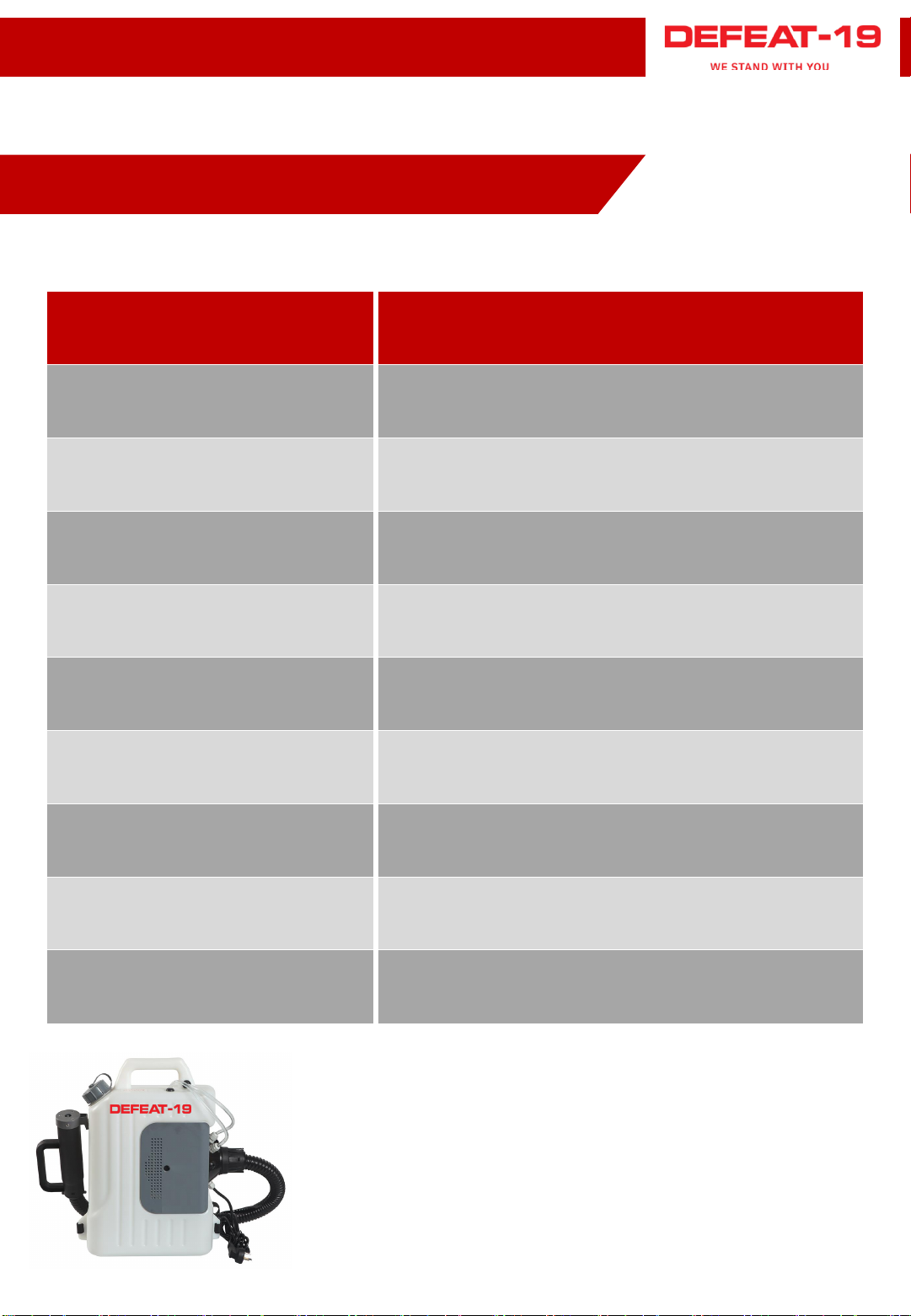

GENERAL SPECIFICATIONS
Parameter
Spec
Power
110v AC, 1200w
Particle Size
5
- 50 Microns (Adjustable)
Max Flow Rate
12 Gallons per Hour
Horizontal Coverage
20 ft
Vertical Coverage
7 ft
Spray Nozzle Diameter
2 in
Package Size
18.5 in x 7.5 in x 19 in
Net Weight
9 lbs.
Gross Shipping Weight
11 lbs.

DEFEAT-19.Cleaning

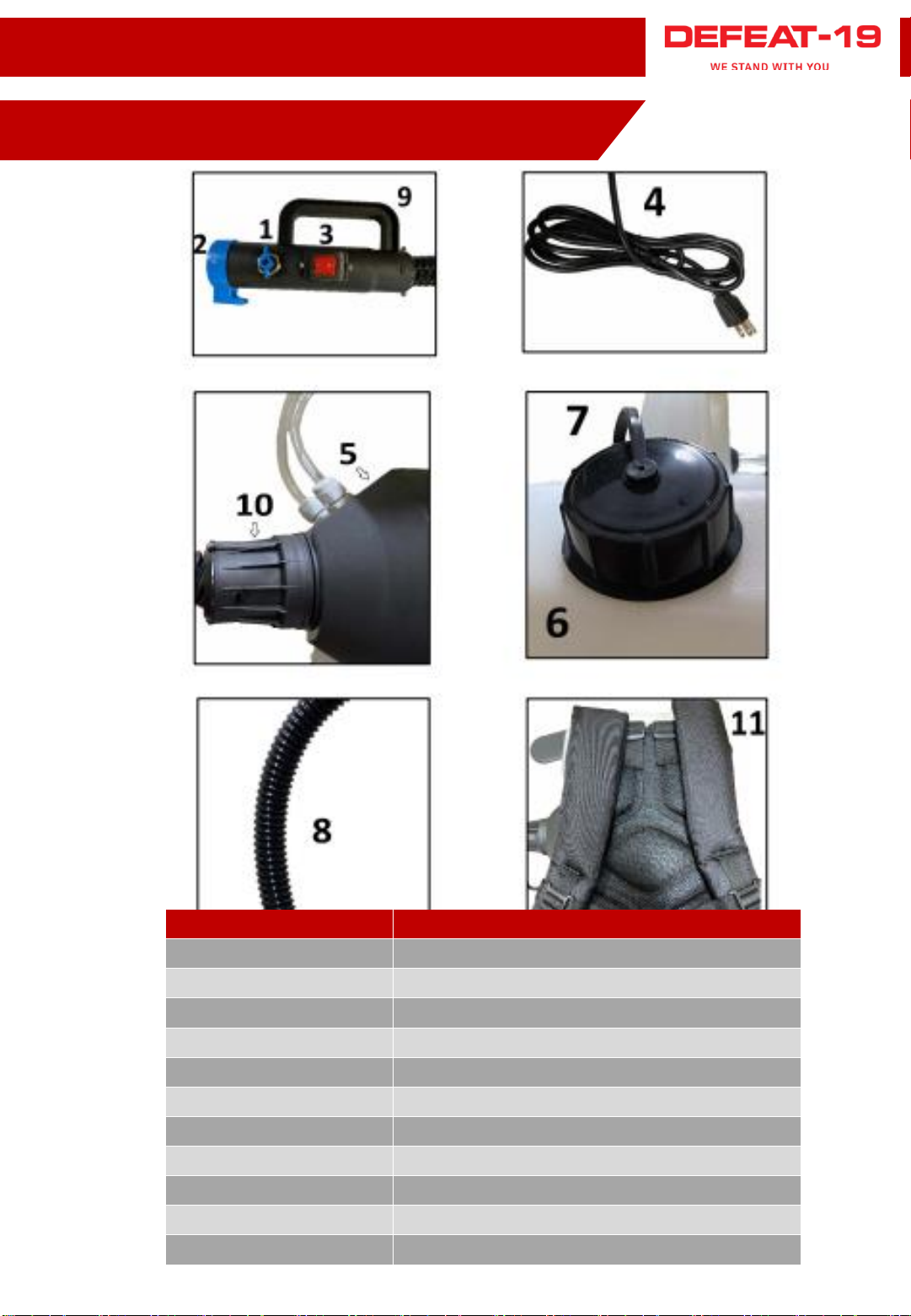

COMPONENT LIST
NUMBER NAME
1 Flow Adjuster Knob
2 Discharge Nozzle
3 Power Switch
4 Power Cord
5 Motor Housing
6 Fluid Tank
7 Fluid Tank Cap
8 Application Hose
9 Application Hose Handle
10 Application Hose Collar
11 Backpack Straps

DEFEAT-19.Cleaning
UNIT ASSEMBLY

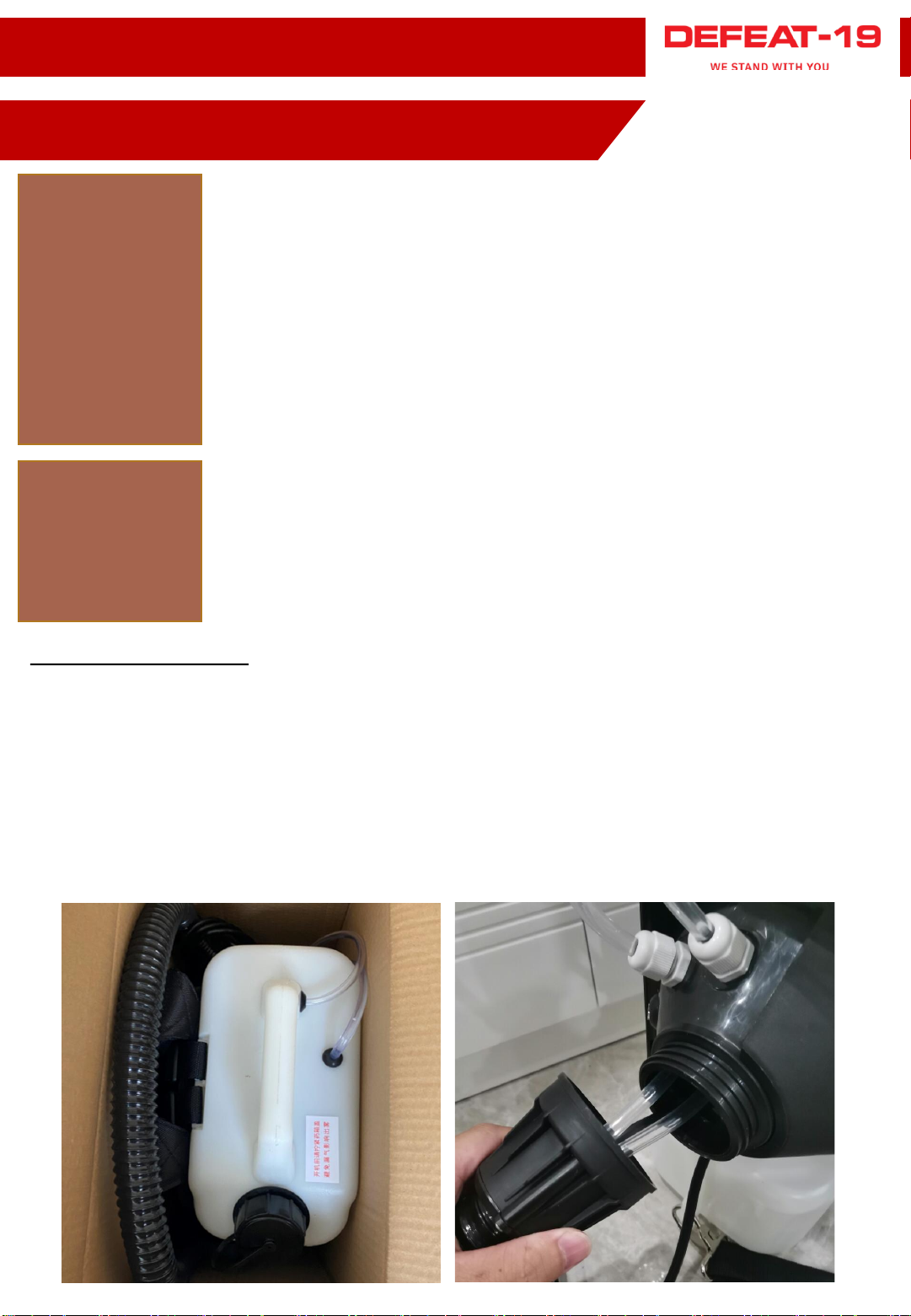

Unpack and remove the PSF-B201 from the
shipping boxes, noting that the Application Hose
Collar is loose and being careful to avoid pulling on
the clear plastic tubes or and black wiring conduit
that run inside of the Application Hose, from the
Power Switch and Discharge Nozzle and into the
Motor Housing.
Carefully reattach the Application Hose by screwing
its Collar to the Motor Housing, while ensuring that
the two clear plastic tubes and the black wiring
conduit remain inside the Application Hose
STEP -1
STEP -2
IMPORTANT NOTE: The black wiring conduit runs from the Motor Housing,
through the Application Hose and to the Power Switch on the Application
Hose Handle. One of the two clear plastic tubes runs from the Motor
Housing, through the Application Hose and to the Discharge Nozzle. Note
that the second of the two clear plastic tubes is merely a vent tube. It runs
from the Motor Housing and is cut to extend about 6” -8” from it. This cut
end is loose, meaning it connects to nothing, however it must also run into
the Application Hose. See below photo for proper placement.

DEFEAT-19.Cleaning
UNIT SET-UP
The PSF-B201 operates on 110v AC electrical power
and requires a source rated to 1200 W. Check to
ensure the Power Switch is in the "OFF" position
and then plug the Power Cord into an appropriate
power outlet.
While the Fluid Tank is still empty, adjust the PSF-
B201’s Backpack Straps until a comfortable fit is
achieved
STEP -1
STEP -2
With the Backpack Straps adjusted for maximum
comfort, remove the Fluid Tank Cap and carefully
fill the Fluid Tank with the desired amount of
DFEAT-19 antimicrobial product, or other
appropriate solution of your choice, consistent with
the product’s label instructions. Reinstall the Fluid
Tank Cap and securely tighten
STEP -3
IMPORTANT NOTE:
1. The PSF-B201 is designed and calibrated to atomize “thin” liquids, specifically liquids
with a viscosity or consistency similar to that of water. Heavier, more viscous
formulations generally will not atomize and can clog or damage the PSF-B201
2. Protect Power Cords from being pinched or sharply bent, particularly where they
connect to a power outlet. Inspect Power Cords regularly. If a power cord or cable
becomes warm, frayed, cracked or damaged in any way, stop using it immediately.
WARNING:
1. To minimize the risk of electric shock or fire, use only an outdoor rated extension
cord no longer than 100 feet in length. Consult an electrical professional if longer
cords are required
2. Improper fogging of chemicals can lead to serious injury. Read and follow all label
instructions before attempting to apply any chemical with any fogging device

DEFEAT-19.Cleaning
USING THE UNIT
Never turn the PSF-B201 “on” unless the
blue flow adjuster knob is turned fully
clockwise to the closed position and the
fluid tank cap is tight.
With its Power Cord plugged into an appropriate power source,
and the blue Flow Adjuster Knob turned fully clockwise and closed,
the PSF-B201 is ready for use.
To begin fogging, simply turn the PSF-B201 ON by pushing the
Power Switch to the ON position and then turning the blue Flow
Adjuster Knob very slightly counterclockwise until the desired fine
spray volume is achieved
To turn the PSF-B201 OFF, please be sure to follow these steps*:
a) Raise the Application Hose Handle to a height above the fluid
level in the Fluid Tank.
b) While keeping the Application Hose Handle above the fluid
level in the Fluid Tank, turn the PSF-B201 OFF by pushing the
Power Switch to the OFF position.
c) Continue to hold the Application Hose Handle at a height above
the fluid level in the Fluid Tank for 3-5 seconds.
d) Turn the Blue Flow Adjuster Knob fully clockwise to the closed
position
* Failure to follow the above protocol can lead to fluid leaking out of the Discharge
Nozzle and onto the floor, as well as into the Application Hose and, ultimately, into the
Motor Housing and Motor, potentially causing premature Motor failure.

DEFEAT-19.Cleaning
MAINTAINING THE UNIT
•After each use, empty the Fluid Tank and drain all liquid from
the Application Hose.
•Return all unused chemical to its original container for future
use, or dispose of it properly, consistent with the product’s label
instructions.
•Rinse out and partially fill the PSF-B201’s Fluid Tank with clean
water.
•Then, after first making sure the blue Flow Adjuster Knob is
turned fully clockwise and is in the closed position, turn it ON
and allow it to run for 3 - 5 minutes to flush all residual product
from the fluid delivery system.
•Turn the PSF-B201 OFF.
•Clean and dry the exterior of the unit with a clean rag or
microfiber towel and store it indoors and out of freezing
temperatures and direct sunlight

DEFEAT-19.Cleaning
OPERATING INSTRUCTIONS
•Carefully read and familiarize yourself with this entire manual
before attempting to use the PermaSafe PSF-B201 Electric ULV
Cold Fogger.
•Never operate the PSF-B201 if it is damaged, and always
carefully inspect it for damage, including fluid and air leaks,
before each use.
•Only use liquid chemicals in the PSF-B201.
•Do not fog liquids in temperatures above 109°F or under 20°F.
•Do not use the fogger without the included inlet strainer in
place, as it protects the pump from damaging debris.
•Be sure the Fluid Tank Cap is securely tightened during use and
when transporting.
•Do not turn the Power Switch ON and OFF frequently as this
may damage the switch or the motor.
•Never leave the PSF-B201 running when not in use.
•Keep the PSF-B201 and all chemicals away from children and
pets.

DEFEAT-19.Cleaning

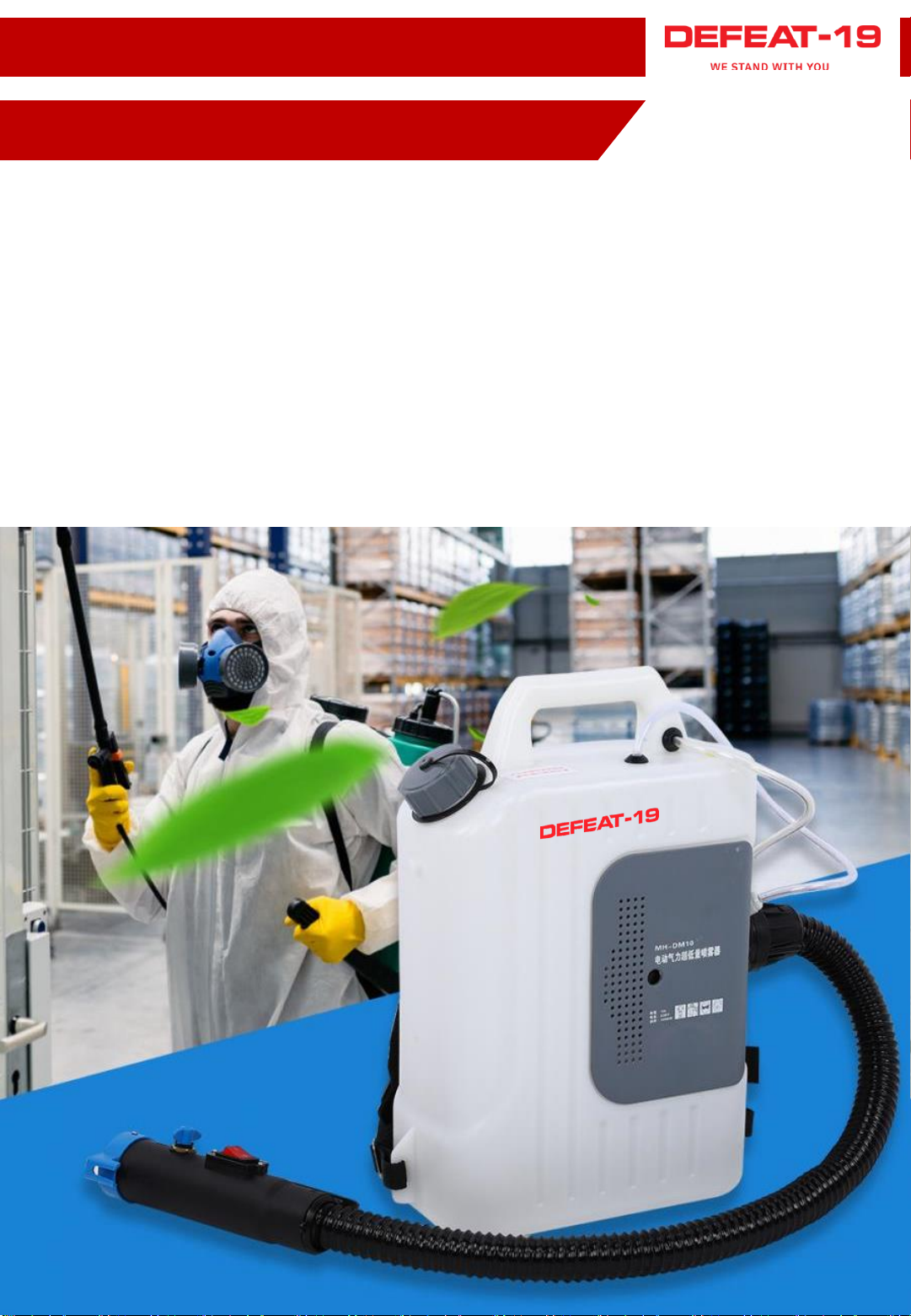

PRICING
$499.95

DEFEAT-19.Cleaning

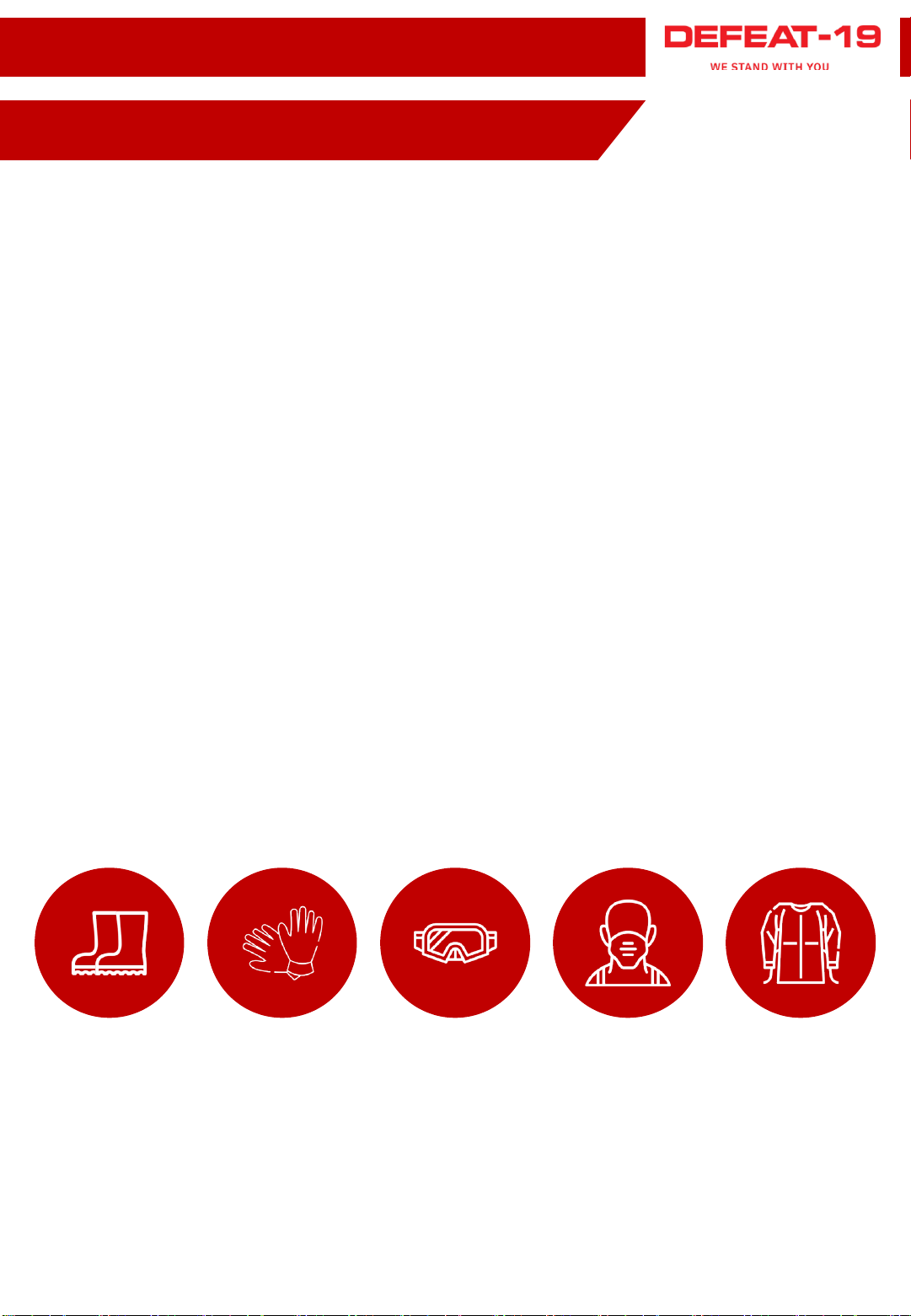

SAFETY WARNINGS
•Always wear proper safety equipment when using the unit and
avoid breathing in fogged chemicals or allowing them to touch
your skin.
•The unit operates with liquid under pressure. Failure to observe
cautions and follow instructions for use and maintenance can
cause fluid leaks that can cause components to corrode, weaken
or burst, resulting in severe bodily injury or property damage.
•Never use the unit to apply highly toxic pesticides, undiluted
pesticides, banned pesticides or any chemicals or formulations
whatsoever that are not
•approved for fogging or in any way not consistent with the
product’s label.
•Avoid using the unit on windy days.
•Always point the Discharge Nozzle towards the ground when
turning the unit ON.

DEFEAT-19.Cleaning
WARRANTY & TROUBLESHOOTING
DEFEAT-19 warrants to the original purchaser of the PSF-B201 Electric ULV
Cold Fogger that it is free from defects in workmanship and materials, under
normal use and conditions, for a period of 180 days from the original date
of purchase. This warranty does not apply to damage incurred due incorrect
or inadequate maintenance or care, misuse, abuse, negligence, accidents,
modification, or failure to follow instructions provided herein.
DEFEAT-19 EXCLUDES ANY AND ALL LIABILITY FOR INCIDENTAL, INDIRECT,
AND CONSEQUENTIAL LOSS OR DAMAGES.
Having issues with your DEFEAT-19 PSF-B201 Electric ULV Cold Fogger? Call
or email us at 1-800-698-1389 / [e-mail]

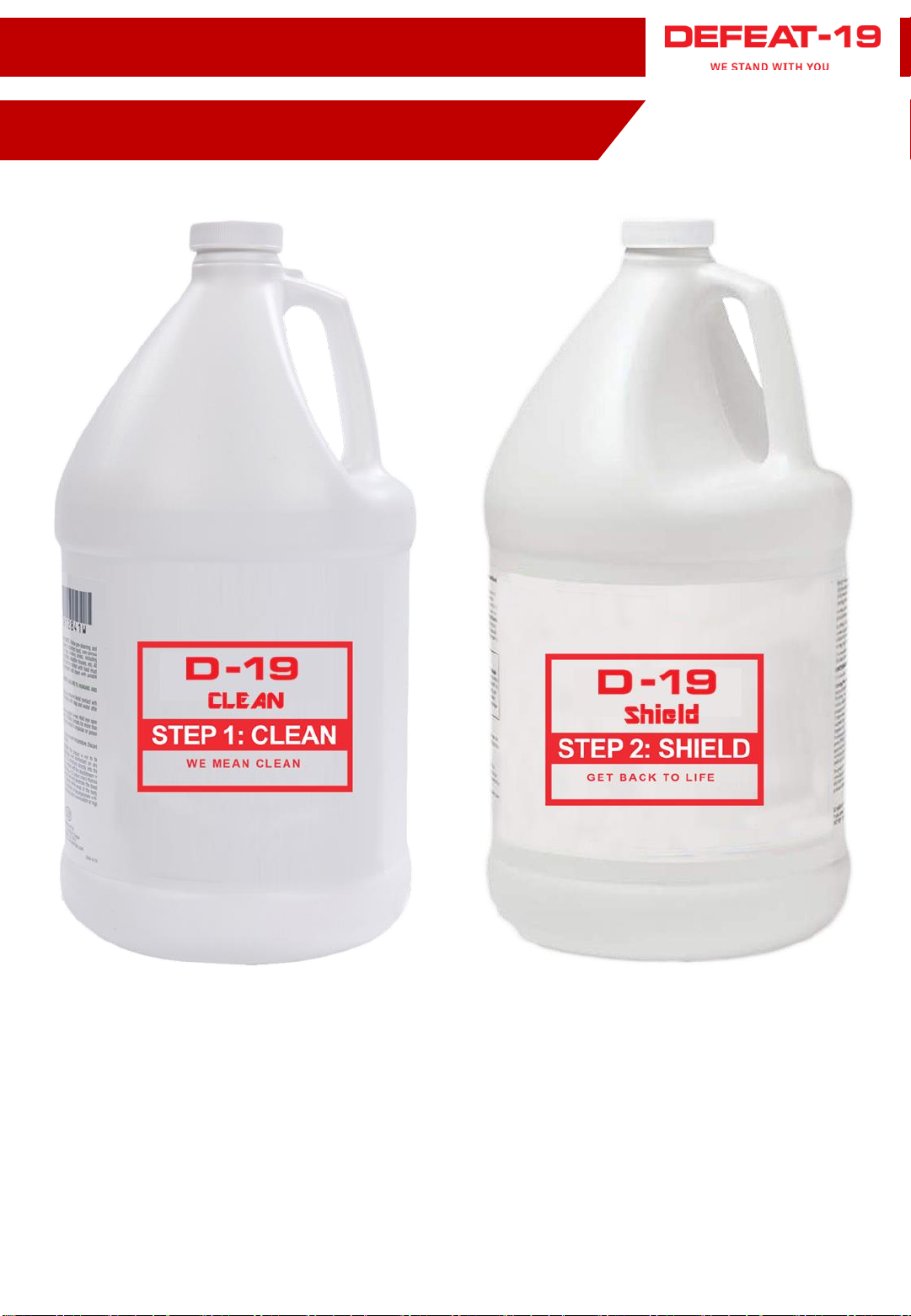

To be used with …
