Kärcher 460 M User manual

5.960-308
07/02 (2002605)
460 M

2
Safety Notes
Use of the unit as authorized
Usethisunitexclusivelyfornon-industrial
purposes
–forcleaningmachines,vehicles,buildings,
tools, facades, terraces, garden imple-
ments, etc., with high-pressure water jet
(ifnecessarywiththeadditionofcleaning
agents).
–for cleaning vehicle engines only in loca-
tionsequippedwithanappropriateoilse-
parator.
–withaccessories, replacementparts and
cleaning agents authorized by Kärcher.
Pleasecomplywithinstructions supplied
with the cleaning agents.
General safety notes
Never permit children and adolescents
to handle the unit.
Neverleavetheunit unattendedwhilstthe
master switch is switched on.
Never operate the unit in potentially ex-
plosive spaces.
Donotsprayanyobjectswhichcontainhe-
alth-endangering substances (e.g. asbe-
stos).
Warning signs on the unit
Never direct the high-pressure jet
at human beings, animals, the unit
itself or at electrical parts.
Safety devices
Safetydevicesservetoprotectagainstin-
juriesandmustnotbechangedorcircum-
vented.
Relief valve with pressure switch
Whentheleveronthehandgunisreleased
thepressure switchswitches offthepump
and the high-pressure jet ceases. When
theleverispulledthepressureswitchswit-
ches on the pump again.
Moreover,thereliefvalvepreventstheper-
missibleoperatingpressurefrombeingex-
ceeded.
Safety ratchet
Thesafetyratchetonthehandgunprevents
inadvertent switching on of the unit.
Environmental protection
Dispose of packaging
The packaging materials are recyclable.
Pleasehandinthepackagingforrecycling.
Dispose of old equipment
Inthedevelopment ofthis appliance care-
ful attention has been given to its ability to
beeasilyrecycled.Nevertheless,itcontains
parts or substances which should not go
into the household rubbish. You can ob-
tain information from any Kärcher sales
house about disposal facilities which pro-
tect the environment.
Save water
In comparison to other cleaning methods,
by the use of this unit you save up to 85 %
ofthewaterotherwiseneeded.Theunitcan
alsobeoperatedwithrain-water(useawater
filter).
Ease the burden on waste water
Please use the cleaning agents sparingly.
Observe the dosage recommendations
whicharesuppliedwiththecleaningagents.

3
Kärcher 460 M
Beforefirstuseoftheunitreadtheseoperatinginstructionsandactinaccordance
with them. Keep these operating instructions in a safe place for later use or for a
subsequent owner.

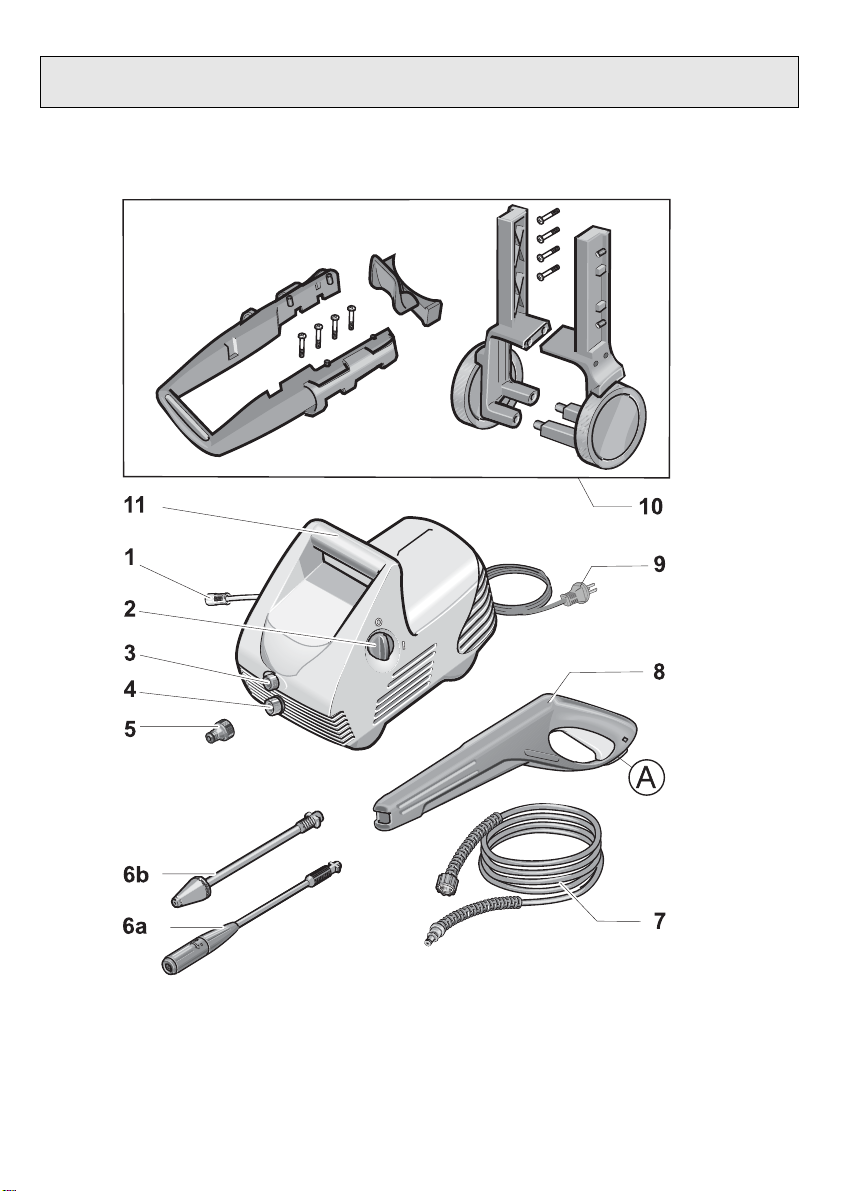

1Detergent suction hose
2Unit switch (ON/OFF)
3High-pressure outlet
4Water connection with filter
5Coupling
6a Spray lance with pressure control
6b Spray lance with rotary nozzle
7High-pressure hose
8Spray gun with safety ratchet (A)
9Power plug
10 Drawing bar
11 Transportation handle

4
For additional
information
see page 8
and following
Preparation
 Drawing bar assembly
 Spray gun assembly
Attach required spray lance
Screw on high-pressure hose
Connect to water inlet
Open water tap fully
Plug in power plug

5
Set to high/low pressure
Unit switch on ”1”
Release safety ratchet on handgun
Press lever
Caution: recoil
Safety instructions
For additional
information
see page 8
and following
Operation with high pressure

6
Operation with Detergent
Adjust to low-pressure jet
No detergent in high-pressure mode
Suspend detergent suction hose...
.... in detergent reservoir
Unit switch to ”1”
Release safety ratchet on handgun
Press lever
For additional
information
see page 8
and following

7
Unit switch to ”0”
Unplug power plug
Turn off water tap
Press lever (to de-pressurise)
Engage safety ratchet on handgun
Care, storageFinishing the operation
Clean detergent filter
Clean water filter
Frost protection
For additional
information
see page 8
and following

8
Before first use
Assembly (page 4)
Whenunpackingcheckthecontents.Inform
your dealer of any damage in transportati-
on.
Connection requirements
Electrical connection
Thevoltageshownontheratingplatemust
matchthesupplyvoltage.Thecurrentsource
must be properly earthed.
Onlyusesplash-protectedextensioncable
withasufficientconductorcross-section(10
m: 3 x 1.5 mm², 30 m: 3 x 2.5 mm²) and
unwind completely from the cable drum.
Connection to water line
Comply with the stipulations of the water
supply company.
Only use supply hoses (not supplied) with
the following dimensions:
– length at least 7.5 m
–diameter at least ½”.
Seerating plateorTechnical Dataforcon-
nected values.
Operation
!
Serious danger!
Vehicletyresandtyrevalvescanbedama-
ged by the high-pressure jet and become
perforated. The first sign of this is a disco-
loration of the tyre. When cleaning them
maintain a distance of at least 30 cm.
Nevergraspthepowerplugwithwethands.
Beforeeachusecheckthepowercordand
power plug for damage. Have a damaged
power cord replaced immediately by an
authorizedKärcherservicepointoranelec-
trical specialist.
Before each use check the high-pressure
hosefordamage.Replaceadamagedhigh-
pressure hose immediately.
!
Danger of injury!
Owing to the water jet emerging from the
high-pressure nozzle a recoil force opera-
tes on the handgun. Ensure you have a
secure footing and hold the handgun and
spray lance firmly.
If necessary wear protective clothing for
protection against return spray.
Water supply
Caution! Impurities in the intake water
damage the pump. To prevent this we ex-
pressly urge you to use the Kärcher water
filter (not included, order no. 4.730-097).
The operation of the high-pressure clea-
ner with a closed water supply line causes
damage to the pump. Please never ope-
ratethehigh-pressurecleanerwithaclo-
sed water supply tap.
Theunitcaneitherbesuppliedfromthewater
main or from water in an open container.
Water supply from the water main
•Connect a supply hose (not included) to
the waterinletof theunitandtothe water
supply (e.g. water tap).
•Open the water supply.
Water supply from an open container
•Unscrew the coupling part for the water
inlet.
• Screwthesuctionhosewithfilter(notinclu-
ded,order-no.4.440-238) onto thewater
connection of the unit.
•Hang the filter in the container.
•Vent the unit before operation.
– Unscrew the high-pressure line at the
high-pressure outlet of the unit.
– Switchontheunitandletitrununtilwater
free of bubbles emerges at the high-
pressure outlet.
– Switchofftheunitandscrewonthehigh-
pressure hose again.
Preparation
• Insert power plug.
• Turn master switch to “I”.
Switching on
• Presssafetyratchetonthehandgunand
pull the lever.

9
Switching off
• Release the lever.
Duringbreaksinworkandwhenleavingthe
unitsecureitagainstinadvertentswitching
on by pressing the safety ratchet.
Regulate operating pressure
Raise operating pressure:
• twist spray lance in direction “+“
Reduce operating pressure:
• twist spray lance in direction “–“
Adding the cleaning agent
• Drawthecleaningagentsuctionhoseout
of the housing to the required length.
• Hang the cleaning agent metering valve
in the cleaning agent container.
• Twistthespraylanceinthe“–“direction.
If cleaning agent has been added:
•Hang the cleaning agent metering valve
ina containerofclearwater,switchonthe
unitforaboutoneminute andflushthrou-
gh.
Recommended cleaning method
1. Spray the cleaning agent on the dry
surfacesparinglyandletitreact(butnot
dry out).
2. Washoffthelooseneddirtwiththehigh-
pressure jet.
Connect accessories
Rotary nozzle (included)
forstubborn accumulationsof grime– e.g.
moss-coveredpromenadetilesorfacades.
Work without cleaning agent and with the
highest operating pressure.
Depending on the model the following ac-
cessories are either included in the scope
of delivery or are obtainable from specia-
list dealers (see “Special accessories“,
page 10 ).
• Exchangetherespectiveaccessorywith
the spray lance.
Finishing operations
•Unit switch to “0”.
•Draw out power plug.
Water supplied from the water main
•Close the water supply tap.
•Separate theunit from thewater connec-
tion.
Water supplied from an open container
•Unscrewthesuctionhosewithfilteratthe
water inlet of the unit.
•Pulltheleveronthehandgununtiltheunit
is without pressure.
•Press in the safety ratchet to protect the
unit against inadvertent switching on.
Safekeeping
Caution!Frostcandestroyanincomplete-
ly emptied unit. In the winter keep the unit
in a frost-free room.
•Separate the spray lance from the hand-
gun.
•Windupthepowercordand,forexample,
hang it around the handgun.
Transportation
•Switch off the unit before transporting it.
• To transport it over stairs or obstacles lift
the unit at the transportation handle.
•To transport the unit over even surfaces
draw it by the drawing bar.

Cleaning agents
For trouble-free operation and for matching
totherelevantcleaningtaskwerecommend
ourKärchercleaningagentsandcarerange.
Pleaseletusadviseyouor askfor informati-
on about them. Here is a small selection:
Universal cleaner ProfiRM555 ULTRA
Automobile cleaner ProfiRM565 ULTRA
House and garden cleaner
ProfiRM570 ULTRA
Boat cleaner ProfiRM575 ULTRA
Special accessories
A wide range of popular accessories are
available from your local store selling Kar-
cher Pressure Washers
2.638-817 Underbody Lance
Extended lance with angled end and upward firing jet for cleaning under
cars, gutters etc.
6.903-276 Car Wash Brush
Simple bayonet fitting attaches the brush to the hand gun, used in
conjunction with RM555.
4.762-065 Rotary Wash Brush
Ideal for car bodywork and windows as the water forces the brush to
rotate enhancing cleaning power.
4.760-262 Extension Lance
To add length to the standard lance.
2.637-729 Drain Kit (7.5 m Hose)
2.637-767 Drain Kit (15 m Hose)
A flexible hose with backwards firing high pressure jet to create turbu-
lence and dislodge blockages.
2.638-792 Sandblaster
Used to remove paint, rust and cement from metallic and stone sur-
faces by using a combination of high pressure water and sand.
4.760-272 Flexi Lance
A lance which can be angled to any degree to clean hard to reach areas
such as wheel arches etc.
2.638-791 Floor Cleaning Lance
An extended lance fitted with three shrouded high pressure nozzles
to provide a wide area of cleaning power without any splash back.
4.440-238 Suction Hose and Filter
Used to provide a water supply to the unit where a mains water supply
is not available by placing the kit into a water butt.
4.730-097 Water Filter
Protects pressure washer when you use dirt water
2.637-214 Water Pump Kit
9.300-051 25 Kg Grit
Care and Maintenance
Cleaning
Beforelong periodsofstorage, e.g.inwin-
ter:
•Pull out thestrainer inthe water inletwith
flat-nosepliersandcleanitunderrunning
water.
Maintenance
The unit is maintenance-free.
Help with faults
Faultsoftenhavesimplecauseswhichyou
canrectifyyourselfwith theaidofthe follo-
wingsummary.Incaseofdoubtoroffaults
or remedies not mentioned here apply to
the authorized customer service.
!
Danger of electric shock!
Repairworkontheunitcanonlybecarried
out by the authorized customer service.
Appliance does not Work
- Check whether the voltage shown on the
ratingplatecorrespondstothatofthepo-
wer source.
- Check the connector cable for damage.
AppliancedoesnotreachOperationalPres-
sure
-Vent the appliance:Allow the pump to
operate without the high-pressure hose
until water appears at the high-pressure
outlet without any more bubbles.Then
reattach the high-pressure hose.
- Clean the strainer in the water connec-
tion.
- Check the inlet water flow rate
- Checkallinletpipestothepumpforleaks
or block-age.
Strong Pressure Fluctuations
- Cleanthehigh-pressurenozzle.Remove
dirtfromthenozzleholewithaneedleand
then rinse out with water from the front.
Pump Leaks
- 10 drops per minute are permissible. In
the case of more serious leakage, you
10

should contact the authorized customer
service.
No Detergent Suction
- Clean the detergent suction hose with fil-
ter, and check for leaks.
Replacement parts
Use exclusively Kärcher original replace-
mentparts.Youwillfindareplacementparts
summary at the end of these operating in-
structions.
Technical Data
Power supply
Voltage (at 1~50 Hz) 230-240 V
Connected load 1.9 kW
Supply fuses (time-lag) 10 A
Safety class 1
Water connection
Supply temperature (max.) 40 °C
Supply volume (min.) 600 l/h
Supply pressure (max.) 2-12 bar
Performance data
Operating pressure 120 bar
max. permissible pump pressure 130 bar
Flow volume 400 l/h
Cleaning agent metering 20 l/h
Suction height from
open container (20 °C) 1 m
Recoil force of the handgun 15 N
Unit vibrations 0,8 m/s²
Sound level
LPA(EN 60704-1) 74,5 dB(A)
Dimensions
Length 445 mm
Width 315 mm
Height 790 mm
Weight 12 kg
Circuit Diagram
C1 Capacitor
M1 Motor
Q1 Switch
T Temperaturelimiter
S1 Pressure switch
11
Service
Guarantee
In each country the guarantee conditions
issued by our responsible sales company
are applicable. We clear any faults occur-
ringintheunitfreeofchargeduringtheperiod
of guarantee providing the cause is a fault
in a material or in the manufacture.
In the case of a claim under the guarantee
please contact your dealer or the nearest
authorizedcustomerservicepoint,accom-
panying your claim with accessories and
purchase voucher.
Customer Service
InthecaseofquestionsorfaultsourKärcher
brancheswillbepleased toassistyoufurt-
her.
AUS
Karcher Pty Ltd
40 Koornang Road
Scoresby 3179
Victoria, Australia
Tel. [phone]
NZ
Karcher Limited
12 Ron Driver Place
East Tamaki, Auckland
Tel. 09 / 274 46 03

5.960-308.
0
460 M-PLUS
03/02
2.883- 111.0
9.011- 421.0
A
9.011-424.0
2.883- 111.0
A
6.388-216.0
5.731-040.0
9.084-065.0
5.731-040.0
6.389-870.0
5.332- 464.0
6.363-031.0
4.775- 400.0
KARCHER
5.037-140.0
A
B
B
2.880-296.0
6.390-499.0
