Defibtech DBP-2009 User manual

DAC-U2519EN-BB
Defibtech DBP-2009
Automated External Defibrillator
(AED) Rechargeable Battery Pack
and Charging Stand
User Manual
ELECTRONIC
DISTRIBUTION

DAC-U2519EN-BB (Issued: 2015-05-27)
Notices
Defibtech shall not be liable for errors contained herein or for incidental or
consequential damages in connection with the furnishing, performance, or use
of this material.
Information in this document is subject to change without notice. Names and
data used in the examples are fictitious unless otherwise noted.
Limited Warranty
The Defibtech “Limited Warranty” is the sole and exclusive warranty for
Defibtech defibrillators and associated accessories. Refer to the Original End
User’s Limited Warranty available at www.defibtech.com for details.
Copyright
Copyright 2015 Defibtech, L.L.C.
All rights reserved. No part of this documentation may be reproduced or
transmitted in any form by any means without the express written consent of
Defibtech, L.L.C.

DAC-U2519EN-BB
Contents
1 Introduction .........................................................................1
1.1 O ve r vi ew .................................................................................1
2 Safety Information...............................................................1
2.1 Warnings .................................................................................2
2.2 Cautions ..................................................................................3
3 The Battery Pack and Charging Stand.................................4
4 Setup Instructions ...............................................................5
4.1 Assembly.................................................................................5
4.2 Charging the Battery Pack .....................................................5
4.3 Removing the Battery Pack After Charging...........................5
4.4 Post-Charging and Storage.....................................................6
4.5 After Each Use ........................................................................6
5 Troubleshooting ...................................................................6
5.1 LED Indications .......................................................................6
5.2 Troubleshooting Table ............................................................7
6 Disposal ...............................................................................8
6.1 Notice to European Union Customers....................................8
7 Cleaning and Disinfecting....................................................9
8 Maintenance.........................................................................9
8.1 Repair Parts Availability Policy ..............................................9
9 Specifications.....................................................................10
9.1 Battery Pack Specifications .................................................10
9.2 Charging Stand Specifications (including Wall Charger)..... 11

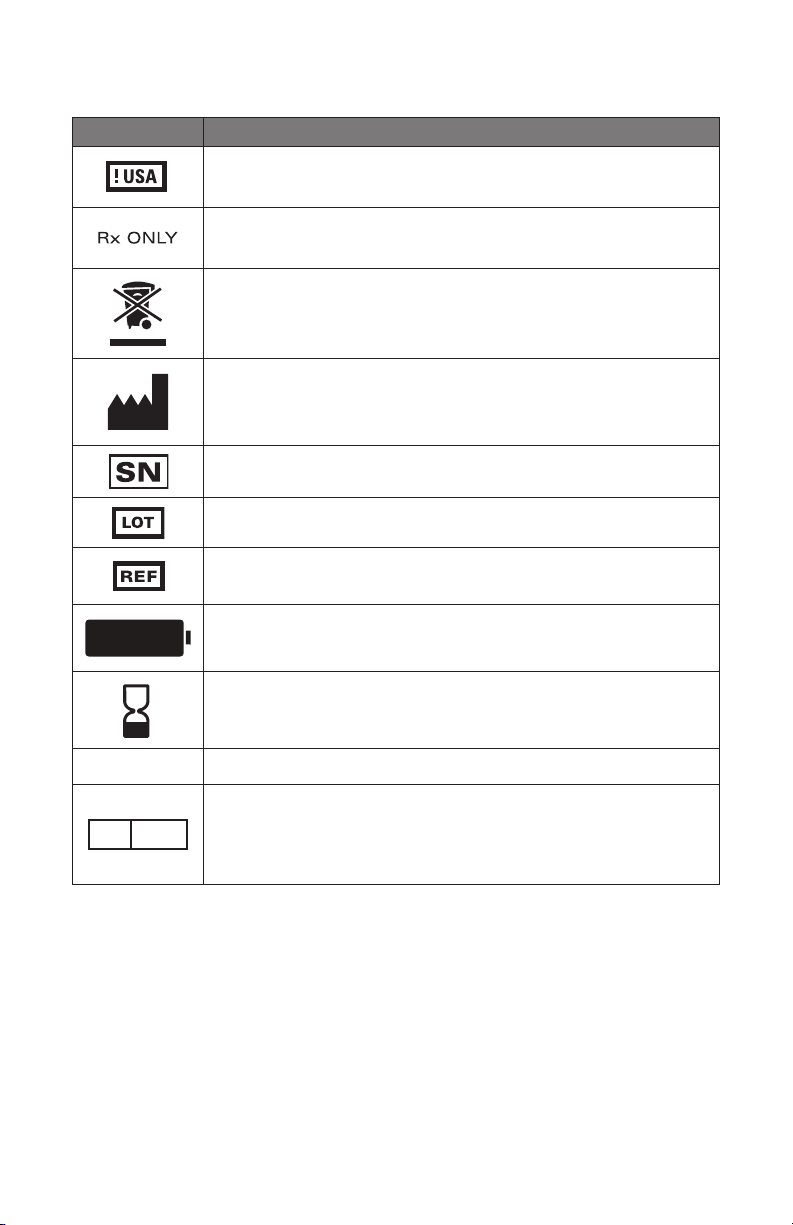

10 Glossary of Symbols ........................................................12
11 Contacts ...........................................................................14

DAC-U2519EN-BB

1DAC-U2519EN-BB
1 Introduction
This User Manual provides information to guide administrators and users in the
operation and maintenance of the Defibtech DBP-2009 Rechargeable Automated
External Defibrillator (AED) Battery Pack and its associated Charging Stand.
1.1 Overview
The Defibtech DBP-2009 Rechargeable AED Battery Pack is an optional
accessory that can be used to power Defibtech Lifeline DDU-2000 series
AEDs.* The Rechargeable Battery Pack is compatible with all current Defibtech
DDU-2000 series AEDs, there are no changes needed to the AEDs to use
rechargeable Battery Pack and and the AED’s performance specifications are not
compromised in any way by using the Rechargeable Battery Pack. The Battery
Pack must be removed from the AED to be charged and is charged by the
Defibtech AED Rechargeable Battery Pack Charging Stand.
The Rechargeable Battery Pack is intended and designed for defibrillation programs
that have the personnel and commitment to routine AED maintenance and/
or situations where the AED is used frequently. Like all rechargeable batteries,
the Rechargeable Battery Pack naturally discharges its capacity over time, and,
therefore, must be actively attended to in order to be ready for use. Those
programs with dedicated maintenance practices or high volume use environments
are better suited and equipped to deal with the constraints of periodically removing
the rechargeable battery pack from the AED and charging it, as compared to
others that prefer the longer life battery of a non-rechargeable battery pack. When
installed in the AED, the battery capacity is automatically assessed by the AED
self-testing and because the Battery Pack must be removed from the AED for
charging, it is recommended that other batteries be readily available in the event of
a rescue situation when the Battery Pack is being charged.
The Charging Stand is used in conjunction with a Wall Charger that has an integrated
AC outlet connection for use with interchangeable plug adapters. The Wall Charger’s
cable inserts in the Charger Port on the Charging Stand. The Charging Stand is a
stand-alone item, intended for indoor use only. Refer to the appropriate Defibtech
DDU-2000 series AED User Manual for AED specifications.
2 Safety Information
This chapter includes a list of danger, warning, and caution messages that relate
to the Defibtech Rechargeable Battery Pack and Charging Stand.
Many of these messages are repeated elsewhere in this User Manual and in the
Defibtech AED User Manuals.
DANGER: Immediate hazards that will result in serious personal injury
or death.
WARNING: Conditions, hazards, or unsafe practices that may result in
serious personal injury or death.
CAUTION: Conditions, hazards, or unsafe practices that may result in
minor personal injury, damage to the Rechargeable Battery
Pack and Charging Stand, or loss of data.
* Essential performance.

2
DAC-U2519EN-BB
2.1 Warnings

WARNING
All users must read these instructions for use before using
the Rechargeable Battery Pack and Charging Stand.

WARNING
Do not use the Charging Stand in the presence of
flammable gases or anesthetics. When using the
Rechargeable Battery Pack installed in an AED or with
Charger, use care when operating close to oxygen sources
(such as bag-valve-mask devices or ventilator tubing). Turn
off gas source or move away from patient, if necessary.

WARNING
Do not use the Charging Stand in a hyperbaric oxygen
chamber. Failure to follow this warning may cause explosion
or fire.

WARNING
Use only the Wall Charger supplied with the Rechargeable
Battery Pack. Using other chargers or cables may cause
unsafe conditions.

WARNING
Do not charge a Battery Pack which is damaged, discolored
or has leakage. It may cause overheating, explosion or fire.

WARNING
Select a location where the Wall Charger can easily be
removed from the power source and where the Wall
Charger and Charging Stand are not blocked by other items.

WARNING
Do not cover up the Battery Pack or Charging Stand when it
is in use.

WARNING
If the Battery Pack and/or any part of the Charging Stand
becomes too hot to touch or otherwise appears faulty,
immediately disconnect the Wall Charger from the AC
outlet, attach a “Do not use” or “To be repaired” label on
the Battery Pack or Charging Stand and contact your local
distributor or Defibtech representative.

WARNING
Care should be taken to maintain the condition of the Wall
Charger cable. Do not forcibly bend or place heavy objects
on the cable. If the cable is damaged, do not use it.

3DAC-U2519EN-BB
2.2 Cautions

CAUTION
Only charge a Defibtech-specified Rechargeable Battery
Pack in the Charging Stand. If an unspecified battery pack
or a non-rechargeable battery is charged, it may cause
overheating, explosion, fire or leakage.

CAUTION
Do not disassemble or modify the Battery Pack or Charging
Stand. It may cause overheating, fire, electrical shock, or
injury.

CAUTION
The Charging Stand is made for indoor use and is not water/
dust proof or resistant. Do not place the Charging Stand in
locations that are extremely hot or cold, dusty or dirty, very
humid, or vibrating. If the Charging Stand is exposed to any
of these conditions, it may cause fire or injury.

CAUTION
Do not drop the Battery Pack or Charging Stand or apply a
mechanical shock to it.

CAUTION
Do not store or use the Battery Pack or Charging Stand
outside of the specified conditions.

CAUTION
Before cleaning or disinfecting the Battery Pack or Charging
Stand, disconnect the Wall Charger connector from the
AC outlet. Failure to follow this instruction may result in
electrical shock and Charging Stand malfunction.

CAUTION
Dispose of the Rechargeable Battery Pack and Charging
Stand according to your local laws and your facility’s
guidelines for waste disposal. Otherwise, it may affect the
environment.

CAUTION
If there is a possibility that the Rechargeable Battery Pack
and Charging Stand may have been contaminated with
bodily fluids, dispose of it as medical waste according to
your local laws and your facility’s guidelines for medical
waste. Otherwise, it may cause infection.

4
DAC-U2519EN-BB
3 The Battery Pack and Charging Stand
RECHARGEABLE
BATTERY PACK
LED
Indicator
CHARGING
STAND
Battery Pack
Slot
Charger
Port
Battery Release
Latch
WALL
CHARGER
LED
Indicator
Connector
Release Connector
Figure 1
Component Description
DBC-2001 Charging Stand
DBP-2009 Rechargeable Battery Pack
DPM-2001 Wall Charger

5DAC-U2519EN-BB
4 Setup Instructions
4.1 Assembly

WARNING
Use only the Wall Charger supplied with the Charging
Stand. Using other chargers or cables may cause unsafe
conditions.
1. Place the Charging Stand near an accessible AC power outlet on a level
surface.
2. Ensure that the Wall Charger plug adapter (if supplied) is correct for your
AC power outlet.
3. Connect the Wall Charger cable to the Charging Stand by inserting the
Conncetor Jack into the Charger Port until it clicks into place and locks
(see Figure 1 at left).
4. Plug the Wall Charger into an AC outlet. The LED on the Wall Charger
and the Charging Stand will momentarily light green.
4.2 Charging the Battery Pack
It takes about 3 hours to charge a new fully-depleted Battery Pack. The charging
time differs depending on operating environment.
1. Before inserting any Battery Pack into the Charging Stand, ensure that
the date is within the Battery Pack’s useful life specifications.
2. Insert the Battery Pack into the Battery Pack Slot, pushing firmly until
the Battery Pack clicks into place.
3. Upon initial insertion, the charging process begins immediately as
indicated by a blinking green LED on the Charging Stand and the Wall
Charger. Throughout the charging process, these LEDs will continue to
blink green. Note: If the LED indicator does not light, check all cables
and connections.
4. When charging is complete, the LED on the Charging Stand and the
Wall Charger will be steady green.
Note: Refer to the Troubleshooting section of this document should other indicators
be present or if all connections are good but the LED indicators do not illuminate.
4.3 Removing the Battery Pack After Charging
For ease of maintenance, it is recommended that the Battery Pack should be fully
charged before putting it back into use unless it is required for emergency use.
1. Press the release latch on the Charging Stand to release the Battery
Pack from the Charging Stand.
2. Confirm that the Battery Pack is sufficiently charged by inserting it into
the AED. See the appropriate AED User Manual for additional details.
3. If the Battery Pack does not have sufficient capacity, ensure that
another battery is available or see Section 5,“Troubleshooting.”
Note: Leaving a Battery Pack in the Charging Stand after it has reached a fully-
charged state will not damage the Battery Pack or the Charging Stand.

6
DAC-U2519EN-BB
4.4 Post-Charging and Storage
When the Battery Pack is fully charged, the Charging Stand LED will be steady
green.
1. To cut off the power to the Charging Stand, disconnect the Wall Charger
from the wall AC outlet.
2. To disconnect the Wall Charger from the Charging Stand, grasp the
Connector Release and pull so that its housing slides back, allowing the
Connector to unlock from the Charger Stand’s Charger Port.
3. While not using the Charging Stand, store it in a clean and dry
environment.
4. When not using the Wall Charger and Wall Charger connector, refer
to the storage instructions and specifications contained in this User
Manual.
Note: When the Charging Stand is not in use for prolonged periods of time, it is
recommended that the Wall Charger be removed from the AC outlet in order to
extend the useful life of the Charging Stand and the Wall Charger.
4.5 After Each Use
Follow the Defibtech AED User Manual instructions on the recommended
steps after each use or as otherwise indicated, including performing a battery
insertion test (which assesses battery capacity). Your maintenance program
should consider how frequently the AED is used, the elapsed time for charging
the Battery Pack, the personnel responsible for performing the maintenance and
availability of other equipment (i.e. spare AEDs or batteries).
Note: Since all rechargeable battery packs discharge their capacity regardless of
use, Defibtech does not recommend storing the DBP-2009 Rechargeable Battery
Pack with any DDU-2000 Series AED as an inactive spare or in situations where
storage duration is less than the battery pack stand-by life.
5 Troubleshooting
5.1 LED Indications
The following table lists the indications displayed by both the Charging Stand
LED and the Wall Charger LED when powered and connected:
LED Indication Description
Single Green Flash Power up
Green Flashing Fast charging
Green Solid Fully-charged
Off See troubleshooting table (Section 5.2)

7DAC-U2519EN-BB
5.2 Troubleshooting Table
Note: If the actions in the following table do not solve the problem, attach a “Do
not use” or “To be repaired” label or similar on the affected item and contact
your local distributor or Defibtech representative.
Symptom/Observation Possible Cause/Criteria Action
The LED indicators
on the Charging Stand
and the Wall Charger
are not lit
No power or Wall Charger
and/or cable malfunction
Confirm that power is being
supplied to the Charging Stand
from the AC source.
Check that the Wall Charger
and Charging Stand are firmly
connected.
Make sure a Battery Pack is
installed in the Charging Stand.
Battery Pack and Charging
Stand connection not
established
Clean the Battery Pack contacts.
Clean the Charging Stand
contacts.
Replace the Battery Pack with a
new one.
Replace the Wall Charger with a
new one.
The Battery Pack
temperature is out of range
Put the Charging Stand (including
Wall Charger) and Battery Pack
in a place within environmental
specifications. Charging
automatically starts when the
Battery Pack is within the specified
temperature range.
The Battery Pack has
reached the end of its useful
life
Replace the Battery Pack with a
new one.
There is a malfunction with
the Battery Pack, Charging
Stand, and/or Wall Charger
Contact your local distributor or
Defibtech representative.
Wall Charger LED is lit
but Charging Stand LED
is not or vice-versa
No power or Wall Charger
and/or cable malfunction
Confirm that power is being
supplied to the Charging Stand
from the AC source.
Check that the Wall Charger
and Charging Stand are firmly
connected.
Make sure a Battery Pack is
installed in the Charging Stand.

8
DAC-U2519EN-BB
6 Disposal

CAUTION
Dispose of the Rechargeable Battery Pack and Charging
Stand according to your local laws and your facility’s
guidelines for waste disposal. Otherwise, it may affect the
environment.

CAUTION
If there is a possibility that the Rechargeable Battery Pack
and Charging Stand may have been contaminated with
bodily fluids, dispose of it as medical waste according to
your local laws and your facility’s guidelines for medical
waste. Otherwise, it may cause infection.
Refer to the appropriate Defibtech AED User Manual for disposal of other items.
6.1 Notice to European Union Customers
The crossed-out wheeled bin symbol on this product indicates that this
equipment has been put on the market after 13 August 2005, and is included
in the scope of the directive 2002/96/EEC on Waste Electrical and Electronic
Equipment (WEEE) and of the national decree(s) which transpose provisions of
such directive.
At the end of its lifetime, this product can only be disposed of in compliance with
the provisions of the above-mentioned European directive (and following possible
revisions) as well as with the corresponding national regulation. Severe penalties
are possible for unauthorized disposal.
Electrical and Electronic Equipment (EEE) may contain polluting components and
hazardous substances the accumulation of which could pose serious risk for the
environment and human health. It is for this reason that local Administrations
provide regulations, which encourage reuse and recycling, and prohibit the
disposal of WEEE as unsorted municipal waste and require the collection of such
WEEE separately (at specifically authorized treatment facilities). Manufacturer
and authorized distributors are required to supply information about a safe
treatment and disposition of the specific product.
You may also return this equipment to your distributor when purchasing a new
one. As for reuse and recycling, notwithstanding the limits imposed by the
nature and the use of this product, the manufacturer will do his best to develop
recovery processes. Please contact the local distributor for information.

9DAC-U2519EN-BB
7 Cleaning and Disinfecting

CAUTION
Before cleaning or disinfecting the Battery Pack or Charging
Stand, disconnect the Wall Charger connector from the
AC outlet. Failure to follow this instruction may result in
electrical shock and Charging Stand malfunction.
The following are important guidelines must be adhered to when cleaning the
Battery Pack and Charging Stand:
Use a soft cloth dampened with one of the following recommended cleaning
agents:
– Soapy water
– Ammonia-based cleaners
– Hydrogen peroxide
– Isopropyl alcohol (70 percent solution)
– 3 percent chlorine bleach/water mixture
Do not immerse the Battery Pack, Charging Stand, or Wall Charger in fluids or
allow fluids to enter the items.
Do not spray cleaning solutions directly on the Battery Pack, Charging Stand, or
Wall Charger or in any connectors.
8 Maintenance
The Charging Stand and Wall Charger are designed for minimal maintenance.
When the Charging Stand and Wall Charger have not been recently used,
dropped or otherwise as required by local protocol, it is recommended that
periodically:
• The Charging Stand and Wall Charger be visually inspected to ensure that
(1) they are clean and dry, (2) no parts are damaged or rattling, and (3) the
Wall Charger cable jacket is not dirty, damaged, or torn.
• The power-on and charging functionality of the Charging Stand and Wall
Charger be checked by removing the Battery Pack from the Charging Stand,
connecting the Wall Charger cable and verifying that the LED indicator on
the Charging Stand and Wall Charger briefly flashes green.
See Section 4.5 of this User Manual for recommended maintenance of the Bat-
tery Pack when installed in a Defibtech AED.
8.1 Repair Parts Availability Policy
The Battery Pack, Charging Stand, Wall Charger, Wall Charger connector and
cable contain no user serviceable parts.

10
DAC-U2519EN-BB
9 Specifications
9.1 Battery Pack Specifications
Type
Lithium Ion (Li-ON), Rechargeable, Recyclable
11.1 VDC, 2.0 Ah, 22.2 Wh
Battery Pack Charging Time*
Less than 3 hours
Stand-by Life (installed in Defibtech AED)*
3 months
Battery Pack Useful Life
Recommended to replace Battery Pack every 3 years
(~300 charge/discharge cycles).
Capacity*
12 hours of operation in ECG monitoring mode or minimum 250 shocks
Low Battery Indicators (when installed in AED)
Visual
Audible
Environment (Operating Conditions)
Temperature: 0 to 50°C (32 to 122°F)**
Humidity: 5 to 95% (non-condensing)
Environment (Storage and Transport Conditions)
Temperature: 0 to 50°C (32 to 122°F)
Humidity: 5 to 95% (non-condensing)
Electromagnetic Compatibility
IEC 60601-1-2: 2010
The Charging Stand and the Rechargeable Battery Pack (when installed in
the AED) has the same EMC performance specifications as the Defibtech
AED powered by a non-rechargeable battery. Refer to the appropriate
Defibtech AED User Manual for details.
Physical
Weight: 3.2 ounces (90.7 g)
*Typical, fully-charged, new Battery Pack at 20°C.
**Maximum while charging: 40°C (104°F).

11 DAC-U2519EN-BB
9.2 Charging Stand Specifications (including Wall Charger)
Power Requirements for Wall Charger
Line voltage: 100 to 240 V (nominal)
Line frequency: 50/60 Hz
Power input: 0.6A
Environment (Operating Conditions)
Temperature: 0 to 40°C (32 to 104°F)
Humidity: 15 to 95% (non-condensing)
Environment (Storage and Transport Conditions)
Temperature: –20 to 80°C (–4 to 176°F)
Humidity: 15 to 95% (non-condensing)
Safety Standard
IEC 60601-1:2012
Type of protection against electrical shock: CLASS II EQUIPMENT
Degree of protection against harmful ingress of water: IPX0 (non-protected)
Physical
Dimensions (stand): 7.3 x 3.0 x 2.3 inches (18.5 x 7.6 x 5.8 cm)
Weight (stand and charger): 9.6 ounces (272.2 g)

12
DAC-U2519EN-BB
10 Glossary of Symbols
Symbol Meaning
!Caution, consult accompanying documents.
XXXX
YYYY
Consult operating instructions.
Handle with care.
Transportation and storage requirements.
See environmental requirements.
Keep dry.
XXXX
YYYY
Do not damage or crush.
XXXX
YYYY
Do not expose to high heat or open flame. Do not incinerate.
XXXX
YYYY
Operational temperature limitation.
This way up.
Meets the requirements of the European Medical Device Directive.
Meets the requirements for battery accumulators.
Conformity to product safety testing requirements.

13 DAC-U2519EN-BB
Symbol Meaning
XXXX
YYYY
For USA users only.
Federal Law (USA) restricts this device to sale by or on the order of a physician.
XXXX
YYYY
Follow proper disposal procedures.
Manufacturer.
Serial number.
Lot number (yy-ww).
XXXX
YYYY
Catalogue number.
11.1VDC, 2.0 Ah
22.2 Wh, Li-Ion
3ICR16/65
Lithium-ion battery.
XXXX
YYYY
Use by (yyyy-mm).
IPX0 No special protection. Refer to IEC 60529 for further information.
EC REP
Authorized European Representative:
Emergo Europe
Molenstraat 15
2513 BH The Hague
The Netherlands

14
DAC-U2519EN-BB
11 Contacts
Defibtech, L.L.C.
741 Boston Post Road, Suite 201
Guilford, CT 06437 USA
Tel.: [phone] (Toll-free within North America)
1-[phone]
Fax: [phone]
Email:
sales@defibtech.com (Sales)
reporting@defibtech.com (Medical Device Reporting)
service@defibtech.com (Service and Repair)
