DEGEN DE1103 User manual

DE1103 - page 1/6
DEGEN DE1103
FM / MW / SW RECEIVER
FM / AM / SSB / CW MODES
OPERATING MANUAL
(1) Power/Sleep
(2) Reset
(3) Lock Key
(4) Time/Delete
(5) St./Mono/SSB LED
(6) Stereo/Mono/SSB
(7) FM Band/Station Search Backward
(8) Line Out
(9) FM Band/Station Search Forward
(10) Light Switch
(11) 0 …. 9 Keys
(12) SSB Fine Tune Knob
(13) Liquid Crystal Display
(14) News/Music, Narrow/Wide Switch
(15) Tuning (Functions) Knob
(16) Pull Out Whip Antenna
(17) Support (Back)
(18) Volume Control / Recharge Knob
(19) Alarm 2, Store Knob
(20) Alarm 1, Memory Selection Knob
(21) Hand Held Belt
(22) AM Antenna Socket
(23) Local / DX Switch
(24) Earphone Socket
(25) DC 6 V Input Socket
(26) Battery Compartment (Back)

DE1103 - page 2/6
TWO TYPES OF POWER SUPPLY
BY BATTERY
You may either use AA batteries or the rechargeable batteries
supplied with this radio.
When you use the rechargeable batteries for this radio, the
power adaptor (220 V) that is supplied with this radio can also
be used to recharge the rechargeable batteries inside the radio
(see "BATTERY RECHARGE" for details).
Installing Batteries
1. Open the back cover of the battery compartment ;
2. Put in the 4 batteries according to the polarity inside the
battery compartment,
3. Close the back cover of the battery compartment.
- When using non-rechargeable batteries, please do not
connect the plug of the AC adaptor to the DC 6 V Input
Socket (26).
- Do not attempt to recharge non-rechargeable batteries.
- Do not use new and old batteries together.
- Please remove all batteries when the radio is not to be used
for a long period of time.
- Please do not store rechargeable batteries with other items
such as coin or metal to avoid shorting the rechargeable
batteries.
- If leakage is found on the batteries, clean the battery
compartment with tissue to prevent further corrosions of other
radio parts.
Replacing Batteries
1. When the batteries are nearly exhausted, the BATTERY
SIGN on the LCD will flash and then disappear. The radio will
be turned off automatically. If you are using non-rechargeable
batteries, please replace with new ones. If you are using
rechargeable batteries, please recharge the batteries.
2. When the radio is completely cut off from supply of electricity,
the memory presets stored in the radio are permanent which
will not be affected by the cut off of electricity. However, you
will need to re-adjust the clock.
3. If you do not want to lose the memory of the clock, please
connect the radio to the AC adaptor or replace the batteries in
not more than 3 minutes.
BY USING THE AC ADAPTOR
1. As the AC Adaptor (DC06) supplied with the radio run in
220 V only, you will need to have a 110 V input 220 V output
step-up power transformer to be used with the AC Adaptor
(DC06). Plug the step-up transformer into the AC mains
socket, then plug the AC Adaptor (DC06) into the output
socket of the step-up transformer.
2. Connect the other end of the AC Adaptor (DC06) into the DC
6 V Input Socket (25).
- When using the AC Adaptor (DC06), it is normal that it will
become slightly warm after a period of use.
- When using the AC Adaptor (DC06), battery connection
inside the radio will be cut off automatically.
- When not using the AC Adaptor (DC06), please remove it and
the step-up transformer from the AC mains.
- When using the AC Adaptor (DC06) to supply electricity to the
radio, the backlight of the radio will be lit continuously.
- It is better to remove the non-rechargeable battery outside the
battery compartment if the AC Adaptor (DC06) is to be used
for a certain long period of time.
- The AC Adaptor (DC06) is specially designed for the DE1103
radio with a steady voltage and 300 ma current, please do not
use it with other appliances.
- Please do not use any other AC adaptor with the DE1103 as
this may damage the rechargeable function of the radio.

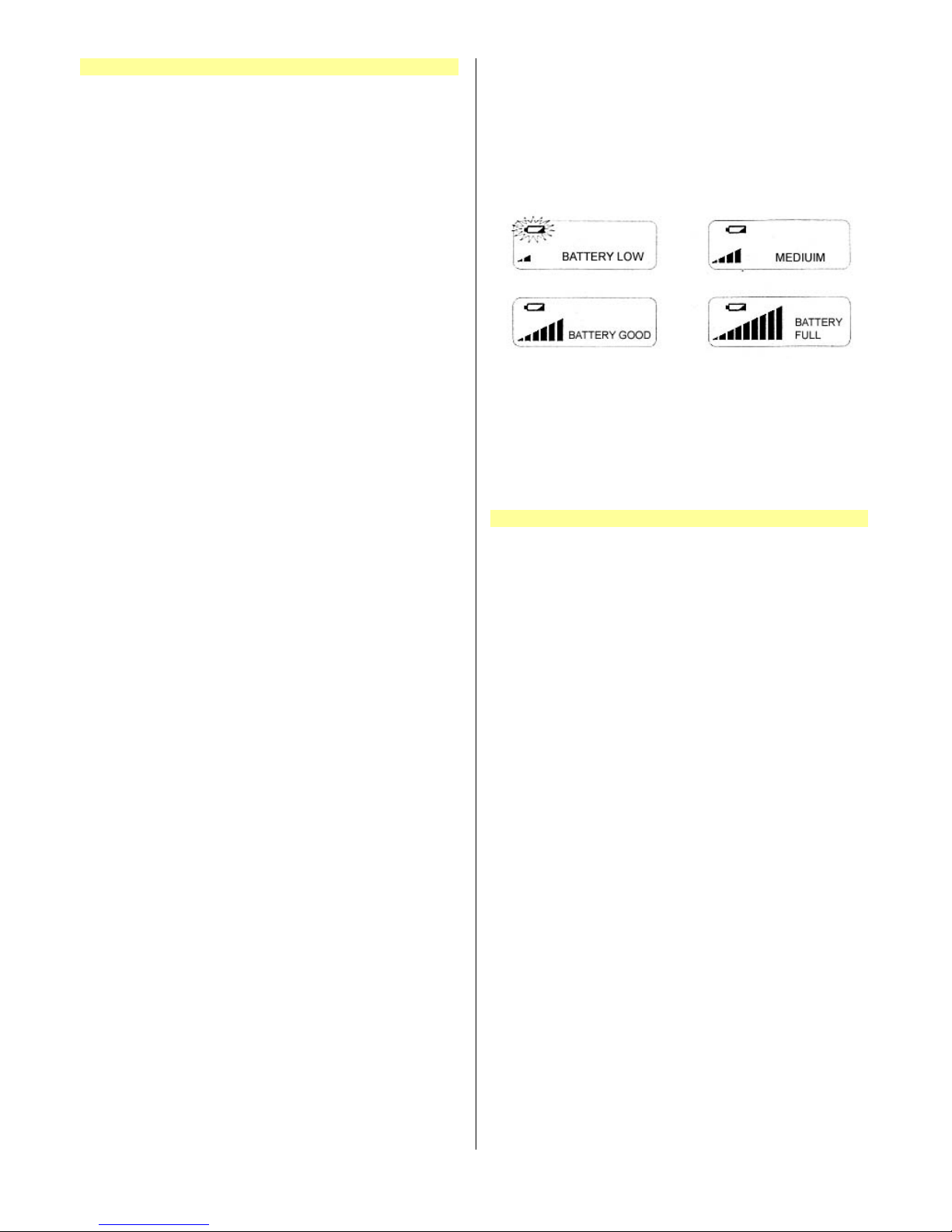

You can check the battery level when the radio is first turned on,
one of the following ladder signs will display.
The ladder sign will disappear when the radio is in normal use.
However, you may wish to press the “VOL” (18) knob slightly to
view the battery level signs again when the radio is in normal
use :
- If the radio is automatically turned off after turning it on when
using non-rechargeable batteries, the batteries are
exhausted. You should replace all batteries to prevent
leakage of battery fluids.
- If you are using rechargeable batteries, you should recharge
the batteries when the “Battery Low” sign is displayed.
BATTERY RECHARGE
When the rechargeable batteries, AC Adaptor (DC06) and the
step-up transformer are properly installed, you may start to
recharge the rechargeable batteries inside the battery
compartment.
RECHARGE PROCEDURES
1. Put the rechargeable batteries inside the battery
compartment of the radio.
2-1. Plug the step-up transformer 110/220 VAC into the AC
mains socket, then plug the 220 VAC Adaptor (DC06) into
the output socket of the step-up transformer (for 110 V
contry ONLY).
2-2. Plug the 220 VAC Adaptor (DC06) into the AC mains
socket (for 220 V contry ONLY).
3. Connect the other end of the AC Adaptor (DC06) into the
DC 6 V Input Socket (25).
4. Turn the radio off, press the “VOL” button (18) with one
hand and rotate the “TUNE” knob (15) with another hand to
set the recharge time. The recharge time can be set from 1
to 23 hours. When the “VOL” button is released, recharge
of batteries will start.
5. When recharge of batteries is taking place, you will be able
to observe the movements of the battery level ladder signs
from short to tall.
6. The recharge process will terminate at the time that you
set.
PRECAUTIONS
1. It is not possible to recharge batteries when the radio is
turned on. However, it is possible to turn on the radio during
the recharge process, reception will not be affected.
2. If you turn on the radio during the recharge process, it will not
have any adverse effect on the recharging batteries.
3. The drain of current for this radio is about 100 mA, the
recharge time can be calculated as follows : recharge time
(hours) = capacity of battery (mAH) divided by 100 (mA). It
the batteries to be recharged are not fully exhausted, the
recharging time should be reduced accordingly.

DE1103 - page 3/6
4. When the radio is in turn off mode, pressing the “VOL” button
(18) for a longer period of time will be able to see the
remaining time in hours for the recharge process.
5. The recharge process will be terminated automatically when
the set recharge time is reached.
6. Do not re-recharge batteries that are fully recharged already.
7. The AC Adaptor (DC06) will have no effect on the batteries
before the recharging process is started.
8. The capacity of the rechargeable batteries will decrease with
the increase of time and usage. Replace with new ones when
this occurs.
9. Please give priority to using Ni-MH rechargeable batteries.
HINTS
- When the radio is turned on during the recharging process,
the BATTERY SIGN will be displayed on the LCD panel.
- Please use good quality rechargeable batteries for the
recharging process, recharge may terminate before the set
time for using bad or poor contacts batteries.
- When recharging new or stored batteries, please exhaust the
batteries before recharging.
- Do not mix new and old batteries for recharging.
- Avoid recharging batteries that will not used for a certain
period of time, it would deteriorate the life of the batteries.
- NEVER recharge non-rechargeable batteries, which may
cause leakage of fluid or explosions.
SETTING THE CLOCK
TIME DISPLAY
1. When the radio is in turn off mode, the LCD displays the time.
2. Turn off the radio, press the “TIME” button (4) once. The
display will display time instead of frequency for about 5
seconds.
ADJUSTING THE CLOCK
The default time for the radio clock is 00 :00, to adjust the time,
the radio must be turned off.
1. Pressing the “TIME” button (4) for about 2 seconds will enter
into the hour mode, the hour digits will flash for about 30
seconds.
2. While the digits are flashing, rotating the “TUNE” knob (15) to
set to the appropriate hour.
3. After the hour is set, press the “TIME” knob (4) will enter into
the minute mode, the minute digits will flash for above 30
seconds.
4. Rotate the “TUNE” knob (15) to adjust the time in minutes.
5. When adjustment is done, press the “TIME” knob (4) to
confirm.
Please note that you should complete each of the above steps
in 30 minutes, otherwise, it would not be possible to adjust the
time.
TURNING THE RADIO ON/OFF
This radio contains memory and is able to tune to the last tuned
station when turning it on again.
POWER ON/OFF
Press the “SLEEP” button (1) once to turn on the radio, press it
again to turn off the radio.
ALARMS
You can set two alarms within 24 hours : Alarm 1 and Alarm 2.
You can set to any desired turn on time, station preset, volume
and turn off time as you like.
When the set alarm time is reached, the radio will be turned on
and turned off automatically according to the set alarm time.
VOLUME CONTROL
The radio has 64 steps (0 – 63) of volume control.
The default volume is set to 40.
The LCD panel will show the volume control steps during
adjustment of volume.
Method 1 :
When the radio is in turn on mode, press the “VOL” button (15),
the VOL sign on the LCD panel will flash for about 3 seconds.
Rotate the “TUNE” knob (15) to adjust the volume of the radio.
Method 2 :
Press the numeric keys then press the “VOL” button (15)
quickly, the volume level will be adjusted to your input level,
e.g. setting the volume level to 30 :
press (3) > (0) > “VOL”
(each step should be executed within 3 seconds)
USING THE DX/LOCAL SWITCH
When tuning to SW or MW bands, you can use the DX/LOCAL
(23) switch to enhance reception.
In normal situations, this switch should be set to the DX
position.
If you are listening to local station or station with a strong signal,
this switch should be set to the LO position.
BAND SELECTION
After turning on the radio, press the “BAND+” (9) or the “BAND-“
(7) button will be able to change to the desired band for
listening.
Please note the frame changes of the selected band on the
LCD panel.
SETTING SLEEP TIME
The sleeping turn off time can be set no matter when the radio
is turn on or turned off.
Your can set the sleeping turn off time from 1 to 99 minutes.
Method 1 :
1. Press the numerical buttons to set the sleeping turn off time.
For example, to set the sleeping turn off time to 60 minutes,
press (6) > (0), and the LCD panel will display 60 for 5
seconds.
2. Then press the “SLEEP” button (1).
3. The LCD panel will display the word “SLEEP”, the radio is
now turned on and will be turned off after 60 minutes.
Method 2 :
1. Hold the “SLEEP” button (1) with one hand, rotate the “TUNE”
knob (15) to select the sleeping turn off time.
2. The radio will be turned on with the word “SLEEP” displayed
on the LCD panel.

DE1103 - page 4/6
SETTING THE ALARMS
You can set two alarms within 24 hours : Alarm 1 and Alarm 2.
You can set to any desired turn on time, station preset, volume
and turn off time as you like.
When the set alarm time is reached, the radio will be turned on
and turned off automatically according to the set alarm time.
SETTING ALARM 1
1. Turn off the radio, press the “M/F” button (20) for 3 seconds
to enable Alarm 1. The hour digits on the LCD panel will flash.
2. Rotate the “TUNE” knob (15) to adjust the hour, then press
the “M/F” button (20) again, the minute digits on the LCD
panel will flash.
3. Rotate the “TUNE” knob (15) to adjust the minute, then press
the “M/F” button (20) again, the station presets will flash.
4. Rotate the “TUNE” knob (15) to select the station preset, then
press the “M/F” button (20) again, the volume level will flash.
5. Rotate the “TUNE” knob (15) to select the then press the
“M/F” button (20) again.
6. Select the duration of Alarm 1 (from 5 to 99 minutes).
7. Finally, press the “M/F” button (20) to confirm. The “Alarm 1”
sign will be displayed on the LCD panel, indicating that Alarm
1 is activated, the radio will turn on/off according to the
particulars of the Alarm 1 settings.
NOTE : When setting the Alarm, if there is no change in the
default settings, you can just press the “M/F” button (20) or the
“STORE” (19) button to skip for faster operation.
SETTING ALARM 2
1. Turn off the radio, press the “STORE” button (19) for 3
seconds to enable Alarm 1. The hour digits on the LCD panel
will flash.
2. Following the similar procedures for setting the Alarm 1
except that the “M/F” button should be changed to the
“STORE” button (19). When these steps are finished, the
“Alarm 1” sign will be displayed on the LCD panel, indicating
that Alarm 2 is activated, the radio will turn on/off according to
the particulars of the Alarm 2 settings.
- If there are conflicts in the two alarm settings, the alarm
settings with the later time will replace the alarm settings of
an earlier time.
- The settings of alarm(s) is/are always valid unless the
alarm(s) is/are deactivated.
DEACTIVATING THE ALARMS
DEACTIVATING ALARM 1
Turn off the radio, press “M/F” button (20) once, the “Alarm 1”
sign will disappear from the LCD panel, Alarm 1 settings are
deactivated.
DEACTIVATING ALARM 2
Turn off the radio, press “STORE” button (19) once, the “Alarm
2” sign will disappear from the LCD panel, Alarm 2 settings are
deactivated.
TUNING TO STATIONS
There are 4 methods of tuning to stations with this radio.
When receiving stations in the AM and SW bands, please note
the changes of the ladder style signal level indicator.
The more ladders indicate the stronger the signal or vice versa.
TUNING BY ROTATING THE FLYING KNOB
Using the “TUNE” knob (15).
1. Turn on the radio, select the desired band.
2. Use one finger to touch on the rough surface of “TUNE” knob
(15) for fast tuning.
3. When nearer to the frequency, use two fingers to grip on the
adjacent sides of the “TUNE” knob (15) for slower and fine-
tuning. Stop tuning when the desired frequency is reached.
- When tuning with the “TUNE” knob (15), FM step is 25 kHz,
AM (LW, MW and SW) step is 1 kHz.
- The fastest speed for flying know tuning is 80 steps per cycle.
TUNING BY DIRECT INPUT OF FREQUENCY
When the frequency of a station is know, you can input the
frequency for fastest tuning.
You can even input any frequencies across the bands.
1. Turn the radio on, press the numerical buttons according to
the frequency
2. Press the appropriate confirm button :
FM – “BAND-“ button (7)
MW & SW – “BAND+” button (9).
Example 1 : FM 89.80 MHz
(8) > (9) > (8) > ”BAND-“.
(no need to enter 0 after the decimal place for FM)
Example 2 : MW 810 kHz
(8) > (1) > (0) > ”BAND+”.
Example 3 : LW 120 kHz
(1) > (2) > (0) > "BAND+”.
Example 4 : SW 15340 kHz
(1) > (5) > (3) > (4) > (0) W "BAND+”.
- Please input all the numerical buttons by not longer than 3
seconds.
- When inputting a frequency that is out of range of the radio,
the error message of “Err” will be displayed on the LCD panel.
- The smallest steps for inputting frequencies :
AM : 1 kHz
FM : 100 kHz.
TUNING BY AUTOMATIC SCANNING
You can use the “BAND-“ (7) and “BAND+” (9) buttons to
automatic searching and scanning of stations.
1. Turn on the radio, select the appropriate meter band.
2. Press the “BAND-“ (7) or “BAND+” (9) buttons to
automatically search for stations. When a station is found,
scanning will ceased for about 3 seconds for trial listening,
scanning will continue after 3 seconds if there is no action.
3. You may wish to use the “TUNE” knob to fine tune a station
that is successfully searched.
4. Pressing any button on the radio panel would terminate
automatic scanning.
- Tuning steps for automatic scanning : FM 100 kHz ; MW 1
kHz ; SW 5 kHz.
- Automatic scanning will search for stations in the selected
meter bands continuously.
TUNING BY RECALLING MEMOERY PRESETS
1. Turn on the radio, press the “M/F” button (20), the “MEM” sign
will be displayed on the LCD panel.

DE1103 - page 5/6
2. Rotate the “TUNE” knob (15) will in turn list the stored station
memory presets.
3. If you remember the memory preset number of a particular
station, you can input the preset number by pressing the
numerical keys, followed by pressing the “M/F” button (20) to
retrieve the relevant station quickly.
- The unregistered preset number will be skipped when rotating
the “TUNE” knob (15).
- When inputting an unregistered preset number, the error
message of “Err” will be displayed on the display panel.
STORING MEMORY PRESETS
This radio has 268 memory presets, of which 12 presets are
used internally for the bands.
The references of the remaining 256 memory presets of station
frequencies are as follows :
PAGE 0 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
PAGE 1 10 11 12 13 14 15 16 17 18 19 1A 1B 1C 1D 1E 1F
PAGE 2 20 21 22 23 24 25 26 27 28 29 2A 2B 2C 2D 2E 2F
PAGE 3 30 31 32 33 34 35 36 37 38 39 3A 3B 3C 3D 3E 3F
PAGE 4 40 41 42 43 44 45 46 47 48 49 4A 4B 4C 4D 4E 4F
PAGE 5 50 51 52 53 54 55 56 57 58 59 5A 5B 5C 5D 5E 5F
PAGE 6 60 61 62 63 64 65 66 67 68 69 6A 6B 6C 6D 6E 6F
PAGE 7 70 71 72 73 74 75 76 77 78 79 7A 7B 7C 7D 7E 7F
PAGE 8 80 81 82 83 84 85 86 87 88 89 8A 8B 8C 8D 8E 8F
PAGE 9 90 91 92 93 94 95 96 97 98 99 9A 9B 9C 9D 9E 9F
PAGE A A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 AA AB AC AD AE AF
PAGE b b0 b1 b2 b3 b4 b5 b6 b7 b8 b9 bA bB bC bD bE bF
PAGE C C0 C1 C2 C3 C4 C5 C6 C7 C8 C9 CA CB CC CD CE CF
PAGE d d0 d1 d2 d3 d4 d5 d6 d7 d8 d9 dA dB dC dD dE dF
PAGE E E0 E1 E2 E3 E4 E5 E6 E7 E8 E9 EA EB EC ED EE EF
PAGE F F0 F1 F2 F3 F4 F5 F6 F7 F8 F9 FA FB FC FD FE FF
Method 1 :
1. Turn on the radio, tune to the station to be stored to the
memory presets. Hold the “STORE” button (19) to enter into
the memory-preset mode, the “MEM” sign will flash on the
LCD panel.
2. Rotate the “TUNE” knob (15) to assign a memory preset
reference.
3. Press the “STORE” button (19) once to save the present
station frequency to the memory preset.
Method 2 :
Using this method can store up to 100 station frequencies only,
i.e. memory preset references from 1 to 99.
1. Turn on the radio, tune to the station to be stored to the
memory presets.
2. Press the numeric keys for the desired memory preset
reference (1 to 99), then press the “STORE” button (19) to
check, press the “STORE” button (19) again to save.
DELETING MEMORY PRESETS
To Delete One Memory Only
1. Turn the radio on, while holding down the “STORE” button
(19), rotate the “TUNE” knob (15) and observe the frequency
changes on the LCD panel, the “MEM” sign will flash.
2. Locate the station frequency to be deleted.
3. While holding the “STORE” button (19), press the “TIME”
button (4). The memory preset reference will become blank,
the “MEM” sign on the LCD display will disappear. Instead,
the “VOL” sign will appear on the LCD display.
4. You have successfully deleted a memory preset.
To Delete All Memories
While pressing these fours keys all at the same time, all the
memory presets stored in the radio will be completely erased :
“SLEEP”, “HOLD”, “TIME” and “RESET”.
USING THE LOCK FUNCTION
To prevent accidental operations of the radio, the lock function
will help to keep the radio to stay at its current condition.
1. Press the “HOLD” button (3), the lock sign will appear on the
LCD panel. At this time, no other keys can function except the
“HOLD” button (3) to release the lock. However, if the radio is
turned on before using this lock function, pressing the
“SLEEP” button (1) can turn off the radio.
2. To cancel the lock function, press the “HOLD” button (3) for
more than 1 second, the lock sign will disappear from the
LCD panel, all the other buttons will become functioning
again.
BACKLIGHTING
There are three backlighting modes for this radio : normal
backlight, continuous backlight, and no backlight.
1. Normal backlight : When pressing the buttons during
operation, the orange lights on the LCD and the buttons will
light up. It will be turned off automatically after 15 seconds if
no other buttons are pressed.
2. Continuous backlight : When using the AC Adaptor with the
radio, the backlights will be on continuously.
3. No backlight : Push the backlight switch to the “OFF” position.
TONE SELECTION FM STEREO / MONO (ST/MO)
Stereo mode is good for listening FM music programs with
strong transmission signals.
Press the “SSB” (6) button will switch from Mono to Stereo or
vice versa.
Mono mode should be used for listening to weak signal stations.
NEWS / MUSIC
When listening to musical programs, set the News/Music Switch
(14) to “MUSIC”, or set the switch to “NEWS” when listening to
news.
NARROW / WIDE BANDWIDTH
When listening to MW, SW and LW stations, using the
appropriate bandwidth could enhance reception results.

DE1103 - page 6/6
This radio is a dual conversion radio, the first IF is 55.845 MHz.,
and the second IF is 450 kHz.
Use the Narrow/Wide Switch (14) to select the most suitable
bandwidth for listening :
Wide : bandwidth is 6 kHz, better sound quality but selectivity is
ordinary
Narrow : bandwidth is 4 kHz, sound is dull but selectivity is
good.
RESET FUNCTION
The IC inside the radio may be affected by outside interference,
resulting in the radio not operating properly.
When this occurs, use a sharp and thin object to press the
Reset Hole (2).
The radio will be back to normal, all memory presets are still
there, but you will have to re-set the clock.
LINE OUT
This radio can provide good audio signals to outside amplifiers.
The sound quality when connected in this way is much better
than the sound from the speaker of the radio.
The line output signal of this radio is unaffected by the tone and
volume controls on the radio.
EARPHONE
A good quality stereo earphone is supplied with the radio.
When using the earphone, the speaker on the radio will be
disconnected.
You can listen to quality FM stereo programs by using the
earphone with this radio.
SSB/CW RECEPTION
1. The SSB function is applicable from 100 – 29999 kHz on this
radio.
2. Press the SSB button (6), tune the SSB fine tune knob to set
the BFO signal to zero beat.
3. Rotate the “TUNE” knob (15) to search for the SSB signal.
4. When the SSB signal is received, tune the SSB fine tune
knob (12) to the position where the SSB signal is the clearest.
Most SSB and CW signals are often found in these
frequencies :
7000 – 7100 kHz (LSB)
13107 – 13179 kHz (USB)
14000 – 14305 kHz (USB)
21000 – 21405 kHz (USB)
SPECIFICATIONS OF DEGEN DE1103 RADIO :
1. Frequency range :
FM : 76.00 – 108.00 MHz
MW : 100 – 29999 kHz
SW : 1710 – 29999 kHz (11 m to 90 m).
2. Selectivity :
FM : better than 10 µV
MW : better than 1 mV/m
SW : better than 20 µV.
3. Shortwave selectivity :
Wide – better than 40 dB
Narrow – better than 50 dB.
4. Second IF for AM :
Wide – less than 6 kHz
Narrow – less than 4 kHz.
5. Line out is not affect by volume and tone controls of the
radio.
6. Power :
Battery : 4 x AA size 1.25 V 1300 mA (NiMH only) (incl.)
Recharge time : 1 – 23 hours (ajustable)
External DC power supply 220 VAC / 6 VDC, 300 mA (incl.)
Note : To USA use : need 110 / 220 VAC transformer (opt.)
To Europa use : need a wall plug adapter (not incl.).
7. 80 mm / 3 inch internal speaker.
8. FM stereo possible through the earphone.
9. Dimensions : 165 x 105 x 29 mm / 6.5 x 4 x 1 inch,
approximately.
10. Weight :
300 gram / 11 oz. (without battery).
