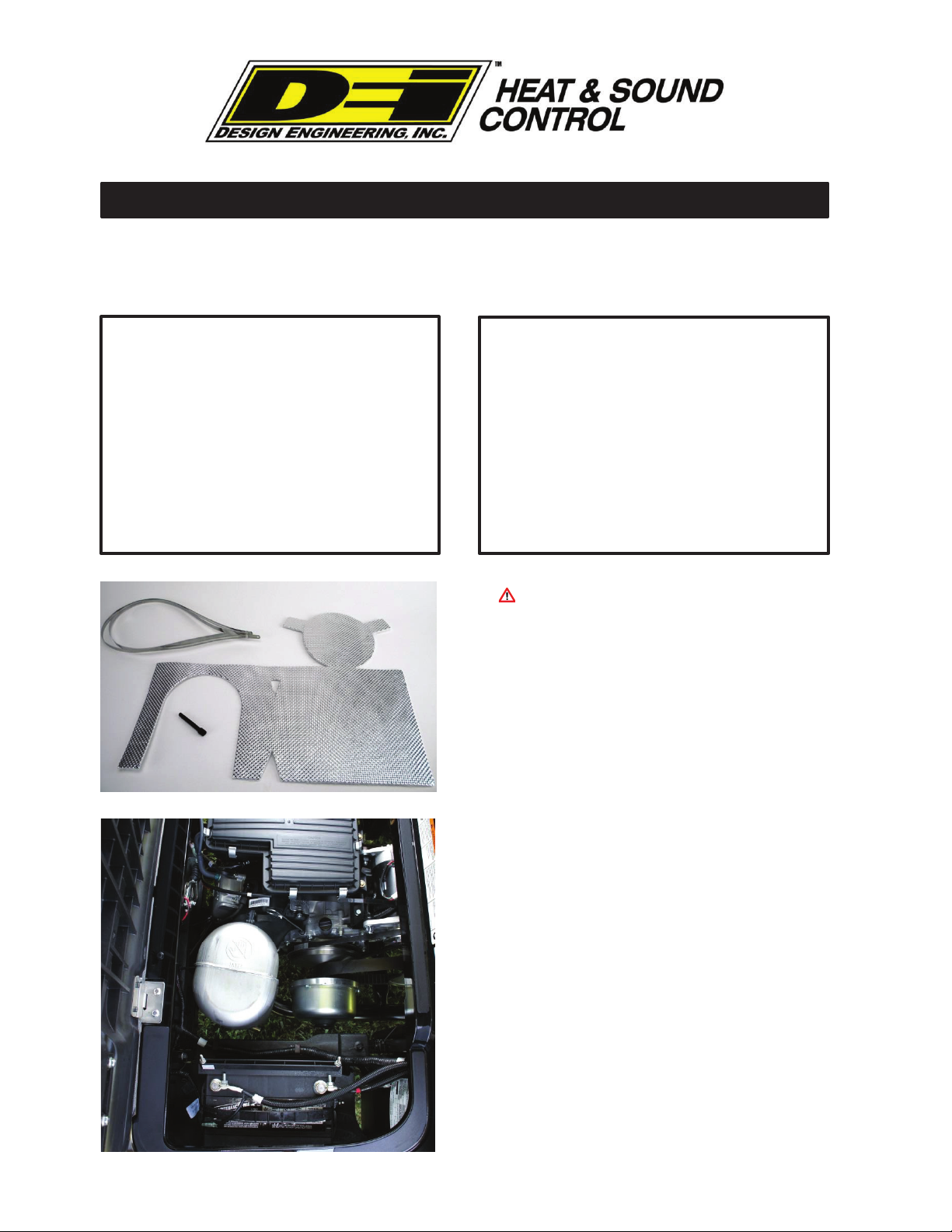

DEI 010386 User manual

Thank you for purchasing genuine Design Engineering, Inc. products. Be sure to always wear the proper
safety equipment when installing any DEI product. Design Engineering Inc. WILL NOT BE HELD LIABLE
FOR IMPROPER INSTALLATION OR USE OF THIS PRODUCT. Please follow all instructions provided.
If you are unsure of any installation procedure, please contact a certified Powersports technician.
1. CAUTION: Make sure the engine and
muffler are cool before attempting
installation.
2. Open the seat to gain access to the engine
compartment. (Fig. 1)
3. Wrap the shield around the muffler with the
seam facing the belt drive. (Fig 2)
4. Fold down the top, tucking in the flaps
inside the shield. (Fig. 3)
5. Wrap 2 supplied stainless ties horizontally.
(Fig. 4)
6. Tighten ratchet ties with supplied DEI
Locking Tie Tool (Fig. 5)
7. Clip off excess tie using side cutters and
fold sharp edge over.
PRODUCT INSTRUCTIONS
DESCRIPTION:
Muffler Heat Shield kit
OVERVIEW: The DEI Golf Cart Muffler Cover
reduces radiant heat produced by the muffler
resulting in a cooler more comfortable ride.
PART NUMBER: 902480
APPLICATION(s): Yamaha Gasoline Golf Carts
2015+. For use on all models using JW8-
E4710-01-00 muffler.
KIT CONTENTS:
700411 Extreme Heat Barrier QTY 1
010217B Stainless Tie 12mm QTY 2
010220 DEI Tie Tool QTY 1
TOOLS NEEDED: ¼” drive wrench, side cutters
Fig. 1
010386

Figure 2
Fig. 3
Fig. 4
Design Engineering, Inc.
604 Moore Rd Avon Lake Ohio 44012
800-264-9472 deipowersports.com
Fig. 2
INS1019 REV 6/16
Fig. 5
INS-1020 REV 7/16
