Deif AGI 100 Series User manual
Installation instructions
AGI 100 series

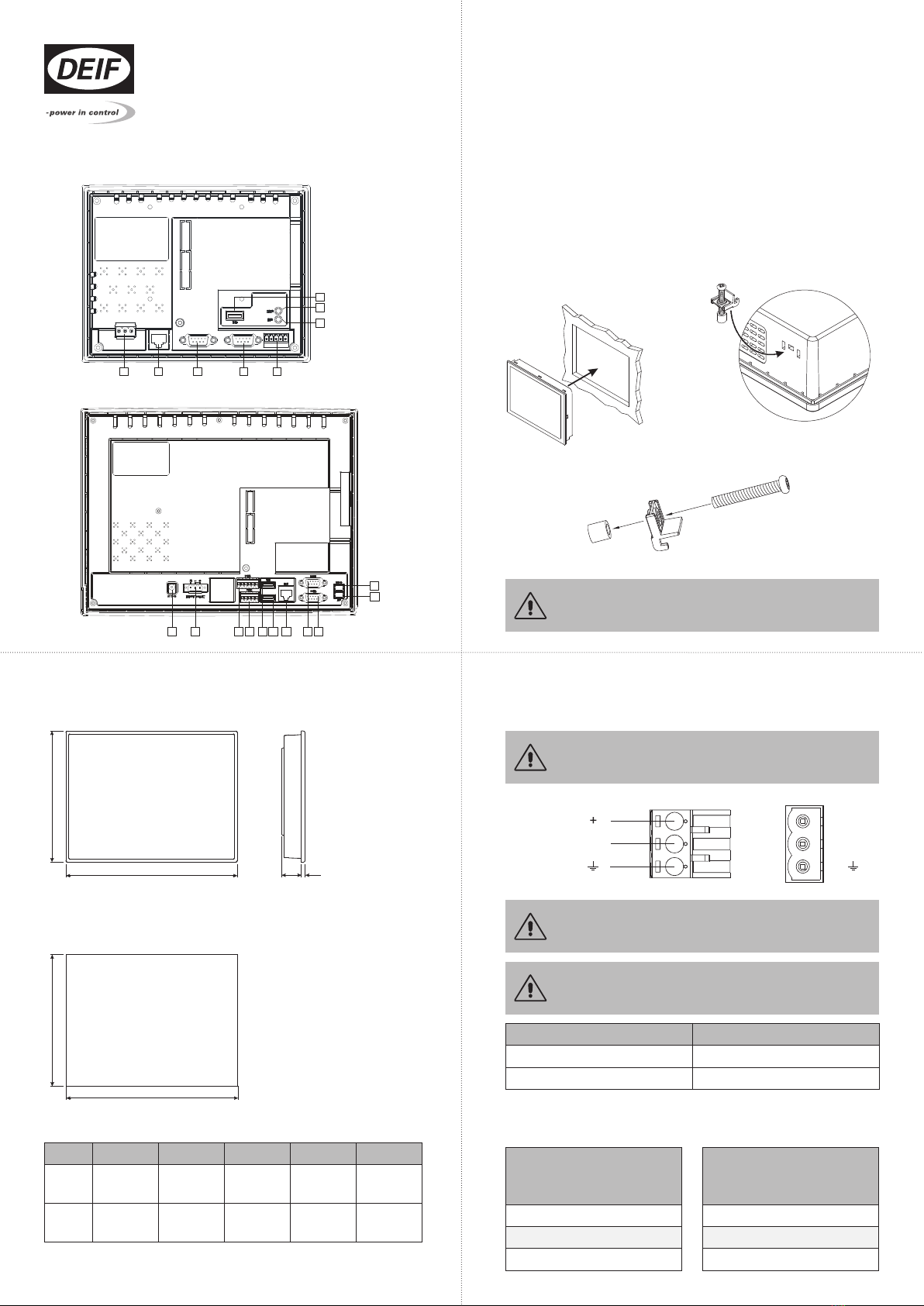

Parts introduction
1 Power connector (jack)
2 Power connector (terminal)
3 Com3 6pin (terminal)
4 Com2 5pin (terminal)
5 USB connector
6 USB connector
7 Ethernet port
(for NT/AT models)
8 Com1 9 pin female
9 Com2 9 pin male
12 Audio
13 Mic
Outlet
H
L
Cutout
B
A
C 6mm/0.23”
Model A B C H L
AGI 107175 mm
6.89”
133 mm
5.23”
36 mm
1.41”
143 mm
5.62”
185.5 mm
7.30”
AGI 112 302 mm
11.89”
228 mm
8.98”
55 mm
2.16”
241 mm
9.49”
315 mm
12.40”
Panel fixing
Fixing screw
Screw each fixing screw until the bezel corner is in
contact with the panel.
Panel fixing
Powered by a low voltage/limited energy power
source.
M
1
2
3
24V
0V
+24VDC
Common
FG
Do not open the rear cover of the panel when power
is applied.
Ensure that the power supply has enough power
capacity for the operation of the equipment.
Items models Power consumption
AGI 107 24V DC ±17%: 15W
AGI 112 24V DC ±17%: 25W
Download cable
Com 1
connector
9 pin male
PC
connector
9 pin female
RXD 2------3 TXD
TXD 3------2 RXD
SG 5------5 SG
Com 2
connector
9 pin male
PC
connector
9pin female
RXD 2------3 TXD
TXD 3------2 RXD
SG 5------5 SG
Document no.: 4189340623B Document no.: 4189340623B
Document no.: 4189340623B Document no.: 4189340623B
1
2
3
4
13
24
HWMANV001 V.1.1
HWMANV001 V.1.1 HWMANV001 V.1.1
PV057/058/070 & GD070
2814
11
27 8 94
12
13
5
Outlet
Model A B C H L
PV035
PV037-LSK
PV058
PV070
PV080/084
PV104
PV121
GD070
GD080/084
GD104
GD121
119mm/4.68"
175mm/6.89"
222mm/8.74"
286mm/11.26"
302mm/11.89"
222mm/08.74"
286mm/11.26"
302mm/11.89"
93mm/3.66"
133mm/5.23"
164mm/6.45"
211mm/8.30"
228mm/8.98"
164mm/6.45"
211mm/8.30"
228mm/8.98"
32mm/1.25"
36mm/1.41"
49mm/01.92"
52mm/2.04"
55mm/2.16"
49mm/1.92"
52mm/2.04"
55mm/2.16"
106mm/4.17"
145mm/5.72"
176mm/6.93"
224mm/8.81"
241mm/9.49"
176mm/6.93"
224mm/8.81"
241mm/9.49"
130mm/5.11"
187mm/7.36"
233mm/9.17"
297mm/11.7"
315mm/12.4"
233mm/09.17"
297mm/11.7"
315mm/12.4"
159mm/6.25" 88mm/3.46" 37.9mm/1.49" 102mm/4.01" 172mm/6.77"
175mm/6.89" 133mm/5.23" 36mm/1.41" 143mm/5.62" 185.5mm/7.30"
175mm/06.89" 133mm/5.23" 36mm/1.41" 143mm/5.62" 185.5mm/07.30"
Cutout
123 4 5 6 7 8 9
12
13
3 Com3 6pin (terminal)
4 Com2 5pin (terminal)
5 USB connector
6 USB connector
7 Ethernet port (for NT/AT models)
8 Com1 9 pin female
9 Com2 9 pin male
10 USB front connector
11 Dip switch
12 Audio
13 Mic
14 Com2 4pin(terminal)
AGI 107 rear viewAGI 112 rear view
13
24
HWMANV001 V.1.1
HWMANV001 V.1.1 HWMANV001 V.1.1
PV057/058/070 & GD070
2814
11
27 8 94
12
13
5
Outlet
Model A B C H L
PV035
PV037-LSK
PV058
PV070
PV080/084
PV104
PV121
GD070
GD080/084
GD104
GD121
119mm/4.68"
175mm/6.89"
222mm/8.74"
286mm/11.26"
302mm/11.89"
222mm/08.74"
286mm/11.26"
302mm/11.89"
93mm/3.66"
133mm/5.23"
164mm/6.45"
211mm/8.30"
228mm/8.98"
164mm/6.45"
211mm/8.30"
228mm/8.98"
32mm/1.25"
36mm/1.41"
49mm/01.92"
52mm/2.04"
55mm/2.16"
49mm/1.92"
52mm/2.04"
55mm/2.16"
106mm/4.17"
145mm/5.72"
176mm/6.93"
224mm/8.81"
241mm/9.49"
176mm/6.93"
224mm/8.81"
241mm/9.49"
130mm/5.11"
187mm/7.36"
233mm/9.17"
297mm/11.7"
315mm/12.4"
233mm/09.17"
297mm/11.7"
315mm/12.4"
159mm/6.25" 88mm/3.46" 37.9mm/1.49" 102mm/4.01" 172mm/6.77"
175mm/6.89" 133mm/5.23" 36mm/1.41" 143mm/5.62" 185.5mm/7.30"
175mm/06.89" 133mm/5.23" 36mm/1.41" 143mm/5.62" 185.5mm/07.30"
Cutout
123 4 5 6 7 8 9
12
13
4 Com2 5pin (terminal)
5 USB connector
6 USB connector
7 Ethernet port (for NT/AT models)
8 Com1 9 pin female
9 Com2 9 pin male
10 USB front connector
11 Dip switch
12 Audio
13 Mic
14 Com2 4pin(terminal)
Dispose of batteries
Battery: MATSUSHITA/
PANASONIC 3V 50mAh
Vanadium Lithium
Rechargeable Battery
type VL2330/1HF

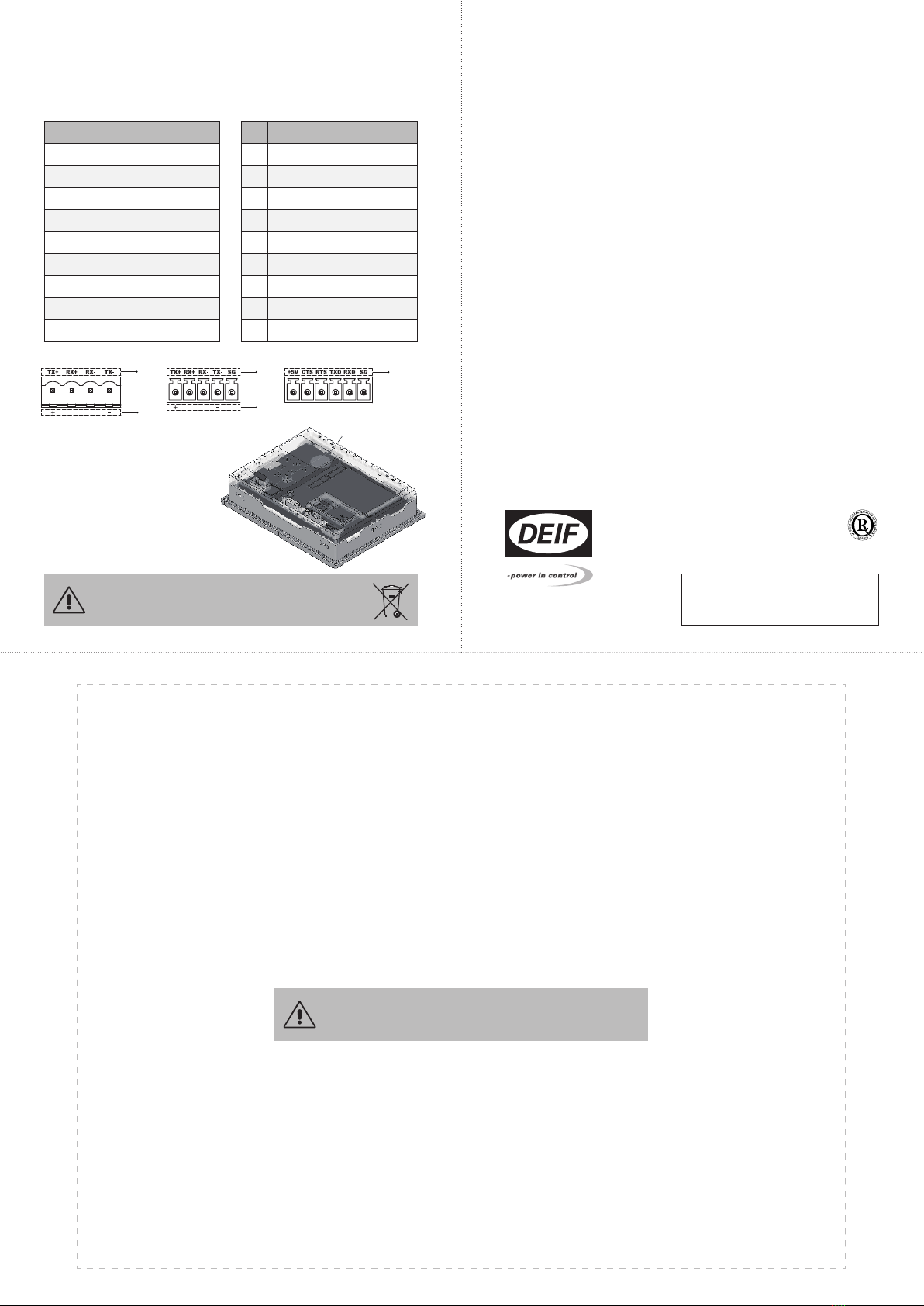

Com 1 (DB-9 female)
Pin Description
1 RD-422 TXD+/RS-485+
2 RS-232 RXD
3 RS-232 TXD
4 RS-422 RXD+
5 GND
6 RS-422 TXD/RS-485-
7 RS-232 RTS
8 RS-232 CTS
9 RS-422 RXD-
Com 2 (DB-9 male)
Pin Description
1
2 RS-232 RXD
3 RS-232 TXD
4
5 GND
6
7 RS-232 RTS
8 RS-232 CTS
9 Optional 5V output
Battery
Connections
Dispose of batteries according to local regulations.
The products have been designed for use in an industrial
environment in compliance with the 2004/108/CE directive.
The products have been designed in compliance with:
EN 61000-6-4 EN 55011 Class A
EN 61000-6-2 EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
EN 61000-4-11
The installation of these devices into the residential, commercial
and light-industrial environments is allowed only in the case that
special measures are taken in order to get the conformity to IEC-
61000-6-3.
Reproduction of the contents of this copyrighted document,
in whole or part, without written permission of DEIF A/S is
prohibited.
DEIF reserves the right to change any of the above.
DEIF A/S · Frisenborgvej 33 · DK-7800 Skive
Tel.: +45 9614 9614 · Fax: +45 9614 9615
Due to our continuous development we reserve the right to
supply equipment which may vary from the described.
Do not cut out area, backside contains text.
Mark with a pen or a sharp item in each corner
×
×
×
×
Drill template AGI 107
Document no.: 4189340623B Document no.: 4189340623B
5 6
5
HWMANV001 V.1.1
Connections
Com 1 (DB-9 Female)
Pin Description
1RD-422 TXD+ / RS-485+
2RS-232 RXD
3RS-232 TXD
4RS-422 RXD+
5GND
6RS-422 TXD- / RS-485-
7RS-232 RTS
8RS-232 CTS
9RS-422 RXD-
7
HWMANV001 V.1.1
6
HWMANV001 V.1.1 8
Download Cable
Dispose of batteries
Battery
Battery
MATSUSHITA/PANASONIC 3V 50mAh Vanadium Lithium Rechargeable Battery type
VL2330/1HF
Dispose of batteries according to local regulations.
The products have been designed for use in an industrial environment in compliance with the
2004/108/CE directive.
The products have been designed in compliance with:
EN 61000-6-4 EN 55022 Class A
EN 61000-6-2 EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
EN 61000-4-11
The installation of these devices into the residential, commercial and light-industrial environments is
allowed only in the case that special measures are taken in order to get the conformity to IEC-61000-
6-3.
Reproduction of the contents of this copyrighted document, in whole or part, without written
permission of Cermate Technologies Inc., is prohibited.
HWMANV001 V.1.1 01.10.2009
Copyright © 2009 Cermate Technologies Inc.
7F-1, No.168, Lien Cheng Rd., Chung-Ho City, Taipei County, Taiwan
www.cermate.com
Com 2 (DB-9 Male)
Pin Description
1
2RS-232 RXD
3RS-232 TXD
4
5GND
6
7RS-232 RTS
8RS-232 CTS
9Optional 5V output
Com1 Connector
9Pin Male
PC Connector
9Pin Female
RXD 2
TXD 3
SG 5
3 TXD
2 RXD
5 SG
Com2 Connector
9Pin Female
PC Connector
9Pin Female
RXD 2
TXD 3
SG 5
3 TXD
2 RXD
5 SG
Com3 Connector
Terminal Block
PC Connector
9Pin Female
RXD
TXD
GND
3 TXD
2 RXD
5 SG
Com2(5 pins)
Com2(4 pins) Com3(6 pins)
Panel fixing
Screw each fixing screw until the bezel corner gets in contact with the panel.
Power supply
Powered by a Low Voltage / Limited Energy power source.
Do not open the rear cover of the panel when power is applied.
Ensure that the power supply has enough power capacity for the
operation of the equipment.
Items
Models
Power
consumption
PV037
PV035
24VDC±10%；6W
PV057
PV058
24VDC±10%；10W
PV070
24VDC±10%；15W
PV080；PV084
PV104；PV121
24VDC±10%；20W
422
485
422
485
RS-232
Fixing Screw
This manual suits for next models
2
