Akai HV 1 User manual

SERVICE MANUAL 1
HARMONY PROCESSING UNIT

SERVICE MANUAL
2
SAFETY INSTRUCTIONS INFORMATIONS
1. Parts identified by the symbol are critical for safety.
Replace them only with the parts number specified.
2. In addition to safety, other parts and assemblies are
specified for conformance with such regulations as those
applying to spurious radiation.
These must also be replaced only with the specified
replacements.
Examples : Noise blocking capacitors, noise blocking filters,
etc.
3. Use specified internal wiring. Note especially :
1) Wires covered with PVC tubing
2) Double insulated wires
3) High voltage leads
4. Use specified insulating materials for hazardous live parts.
Note especially :
1) Insulation Tape
2) PVC tubing
3) Spacers (insulating barriers)
4) Insulation sheets for transistors
5) Plastic screws for fixing micro switches
5. When replacing AC primary side components (trans-
formers, power cords, noise blocking capacitors, etc.),
wrap the ends of the wires securely around the terminals
before soldering.
6. Make sure that wires do not contact heat producing parts
(heat sinks, oxide metal film resistors, fusible resistors,
etc.).
7. Check that replaced wires do not contact sharp edged or
pointed parts.
8. Also check areas surrounding repaired locations.
9. Make sure that foreign objects (screws, solder droplets,
etc.) do not remain inside the set.
SAFETY CHECK AFTER SERVICING
After servicing, make measurements of leakage-current or
resistance in order to determine that exposed parts are
acceptably insulated from the supply circuit. The leakage-
current measurement should be done between accessible
metal parts (such as chassis, ground terminal, microphone
jacks, signal input/output connectors, etc.) and the earth ground
through a resistor of 1500 ohms paralleled with a 0.15 F
capacitor, under the unit’s normal working conditions.
The leakage-current should be less than 0.5 mA rms AC. The
resistance measurement should be done between accessible
exposed metal parts and power cord plug prongs with the
power switch (if included) “ON”. The resistance should be
more than 2.2 M ohms.
SYMBOLS FOR PRIMARY DESTINATION
Unit destinations are indicated with letters as shown below.
Symbols Principal Destinations
A U.S.A
B England
E Europe
J Japan
VGermany
X1 Japan
X4 Universal Area
MAKE YOUR CONTRIBUTION TO PROTECT THE
ENVIRONMENT
Used batteries with the ISO symbol for recycling as
well as small accumulators (rechargeable batteries),
mini-batteries (cells) and starter batteries should not
be thrown into the garbage can.
Please leave them at an appropriate depot.
PRECAUTIONS FOR LITHIUM BATTERY
The lithium battery may explode when incorrectly replaced.
[OBSERVE THE FOLLOEING WHEN REPLACING]
 Replace with the same make and type or equivalent recom
mended by manufacturer.
 Place battery in correct polarity.
 Do not short the terminals.
 Do not charge battery.
 Do not dispose of battery in fire.

SERVICE MANUAL 3
SPECIFICATIONS
Specifications
Functions:
Effect On/Off, PROGRAM A/B Select, BANK/KEY Up/Down
Terminals:
MIC INPUT (Input impedance: Effect On/4k ohms or more, Off/True Bypass)
LINE INPUT (Input impedance: 33k ohms or more)
MIC OUTPUT (Output impedance: Effect On/1k ohms or less, Off/True Bypass)
MIX OUTPUT (Output impedance: 1k ohms or less)
HARMONY OUTPUT (Output impedance: 470 ohms or less)
DC IN (9 Volts)
Controls:
INPUT LEVEL
HARMONY LEVEL
EDIT
PARAMETER
FOOT SWITCH CONTROL
DATA
Foot switch x 3 (Effect On/Off, PROGRAM A, PROGRAM B)
Indicators:
7-segment LED (BANK/KEY indicator)
LED x 3 (Level indicator)
LED x 4 (ON, PROGRAM A, PROGRAM B, EDIT)
Power supply:
9V DC/120mA, AC Adaptor MP-9 II
Dimensions:
224 (W) x 162 (D) x 59 (H) mm
Weight:
900g
Accessories:
Operator’s Manual, AC Adaptor MP-9 II
• The specifications are subject to change without prior notice.
I.

SERVICE MANUAL
4
II. SUPPLEMENTARY INFORMATION
12
3
4

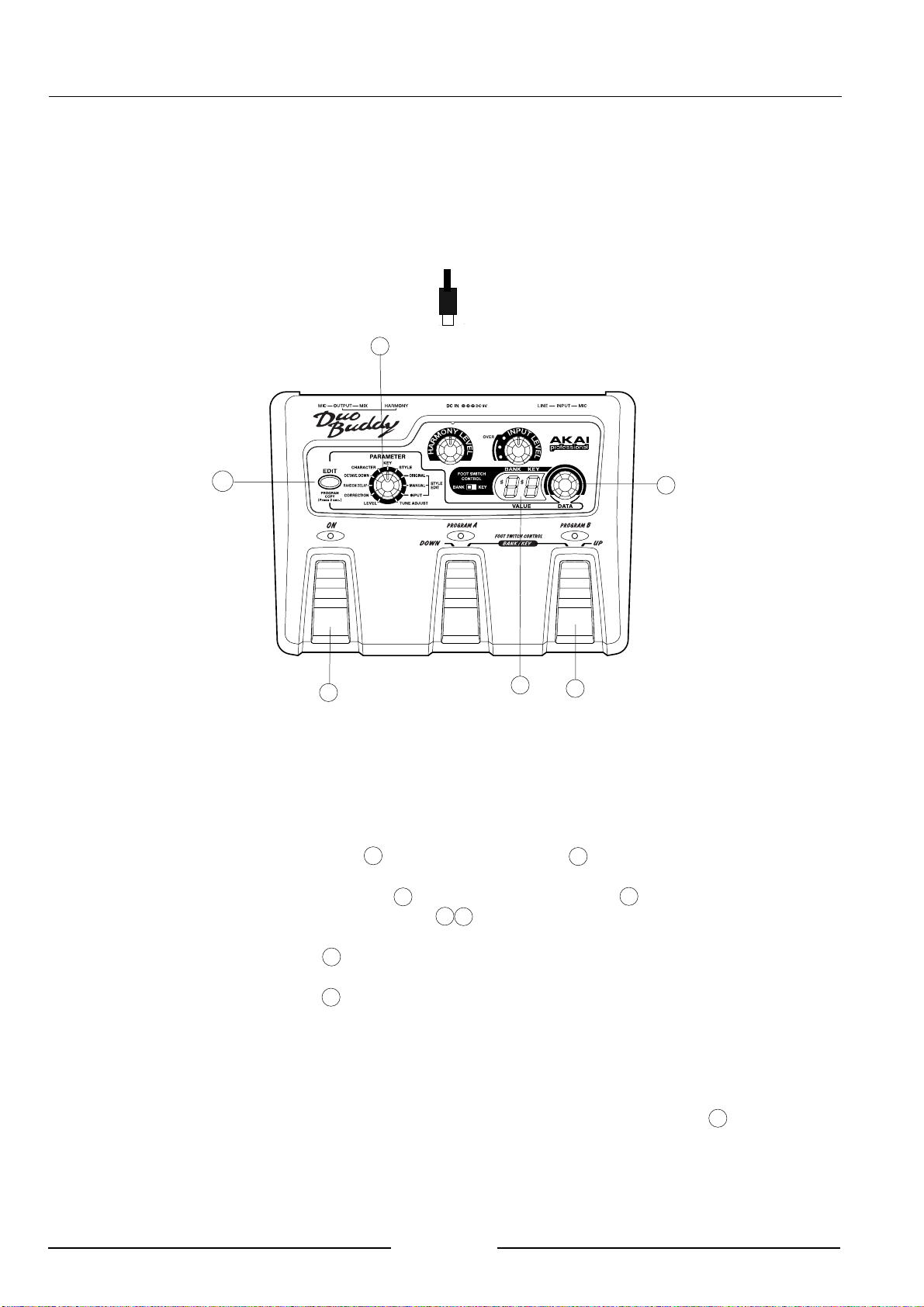

INITIAL SETTINGS PROCEDURE FOR HV1
Initial settings procedure for HV1.
1. While holding "ON/OFF" pedal 1 and "Program B" pedals 2 down, turn the unit on.
2. Holding pedals, turn the data knob 4 clockwise until 7-seg LEDs 3 change from  
flashing "--" to "00", then release Pedals 1 2 .
3. Turn the Parameter knob 5 fully-counterclockwise to "Level".
4. Turn the Parameter knob 5 clockwise in inclement of one click. The number   
displayed is incremented by one. Please don't stop between clicks.
5. When the knob is turned fully-clockwise position (maximum) and display shows ".",  
then turn the unit off.
6. To check/confirm the initial settings, turn the unit on again, press Edit button 6 and check
each parameter with parameter knob.
5
AC
6

SERVICE MANUAL 5
III. DISASSEMBLY
In case of trouble, etc., necessitating dismantling, please dismantle in the order shown in the illustrations. Reassemble in the
reverse order.

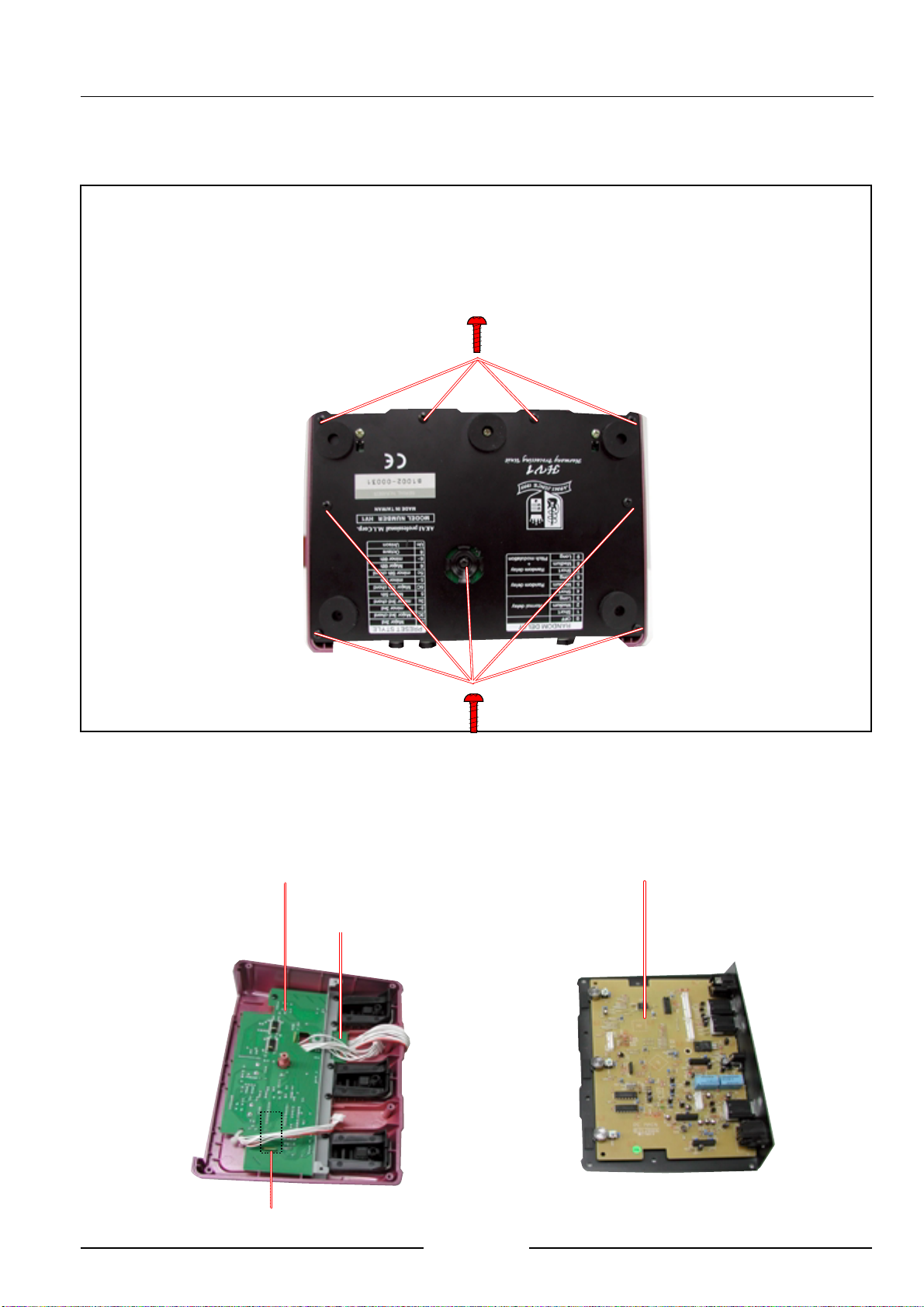

1. Removal of the BOTTOM BLOCK
IV. PRINCIPAL PARTS LOCATION
PC OPE BLK PC MAIN BLK
PC MODE BLK
PC ENCODER BLK
ZS-393515J

SERVICE MANUAL
6
PC BOARD BLK
The PC Board Block may contain several PC Boards. They appear
under its block name with their individual part number.
1. P.C. BOARD BLOCK
Ref.No. Part No. Description
1 L8018A020A PC(#)MAIN BLK HV1
PC (#) MAIN BLK HV1 CONSISTS OF FOLLOWING P.C. BOARDS.
* PC MAIN BLK HV1
* PC OPE BLK
* PC MODE VR BLK
* PC ENCODER BLK
2. P.C. MAIN BLK
Ref.No. Part No. Description
D1 ED-811455J D SILICON H 1SS133T-77 T26
D2 ED-386225J D SILICON 1N4002 T26 100/1.0A
D3 ED-811455J D SILICON H 1SS133T-77 T26 [ NEW PCB ]
D4 ED-811455J D SILICON H 1SS133T-77 T26 [ NEW PCB ]
D101 ED-811455J D SILICON H 1SS133T-77 T26
D102 ED-811455J D SILICON H 1SS133T-77 T26
IC1 EI-821275X IC ADSP-2186MKST-300
IC2 EI-821289X IC HD64F3644H
IC3 EI-821276X IC PCM3003E FP16T
IC4 EI-387934J IC HD74HC04P
IC5 EI-386304J IC HD74HC393P
IC6 EI-810589J IC M51957BL
IC8 EI-387937J IC HD74HC74P
IC9 EI-821277X IC 93LC56A/P
IC10 EI-812843J IC NJM317F
IC11 EI-403306J IC NJM4558L
IC12 EI-403306J IC NJM4558L
IC13 EI-403306J IC NJM4558L
J1 EJ-821446X PHONE J NC3FAH1-0 [ MIC IN ]
J2 EJ-821447X PHONE J NC3MAH [ MIC OUT ]
J3 EJ-821408X PHONE J YKB22-5331 S.NUT 6.3 [ LINE IN ]
J4 EJ-821409X PHONE J YKB22-5330 S.NUT 6.3
[ MIX OUT ]
J5 EJ-812072J SOCKET DC HTJ-020-05A 1P [ DC INPUT ]
J6 EJ-821408X PHONE J YKB22-5331 S.NUT 6.3
[ MARMONY OUT ]
L1 EO-416656J COIL FIX 1 LAP02TA T26 100J
L2 EO-418442J COIL FIX 1 LAP02TA T26 1R2J
RL1 EQ-820421X RELAY SIG RY-9WK 1TR 9V
RL2 EQ-820421X RELAY SIG RY-9WK 1TR 9V
SW2 ES-821278X SW PUSH SPPH21-LB
SW3 ES-821278X SW PUSH SPPH21-LB
SW4 ES-821278X SW PUSH SPPH21-LB
TR1 ET-362209 TR 2SC3330 S,T,U T05
TR2 ET-362209 TR 2SC3330 S,T,U T05
TR3 ET-362209 TR 2SC3330 S,T,U T05
TR4 ET-362209 TR 2SC3330 S,T,U T05
TR5 ET-362209 TR 2SC3330 S,T,U T05
TR6 ET-364492 TR DTC114TS T05
TR7 ET-364291 TR DTA144ES T05
X1 EI-821280X OSC X'TAL AT-49 11.2896MHZ
X2 EI-821279X OSC X'TAL AT-49 37.5MHZ
P.C. OPE BLOCK
D111 ED-812087J D LED L-934SRD-G RED [ OVER ]
D112 ED-813021J D LED L-934SYD YELLOW [ INPUT LEVEL ]
D113 ED-812086J D LED L-934SGD GREEN [ INPUT LEVEL ]
D114 ED-812087J D LED L-934SRD-G RED [ ON ]
Ref.No. Part No. Description
D115 ED-812086J D LED L-934SGD GREEN [ PROGRAM A ]
D116 ED-813021J D LED L-934SYD YELLOW [ PROGRAM B ]
D117 ED-812086J D LED L-934SGD GREEN [ EDIT ]
D121 ED-821281X D LED TOD-5221BS-N [ VALUE LED ]
IC101 EI-821282X IC NJU7032D
IC102 EI-811085J IC HD74HC574FP
IC103 EI-811085J IC HD74HC574FP
SW101 ES-349474 SW TACT SKHHAM004A [ EDIT SW ]
SW102 ES-821283X SW SLIDE SSSU011700
[ FOOT SW CONTROL ]
VR101 EV-821284X VR ROTARY RK09L1140 A104 L=15
[ INPUT LEVEL ]
VR102 EV-821284X VR ROTARY RK09L1140 A104 L=15
[ HARMONY LEVEL ]
P.C. MODE VR BLOCK
VR203 EV-813047J VR RT.RK0971130 L15 11D B103SP
[ PARAMETER ]
P.C. ENCODER BLOCK
SW110 ES-813048J SW ROTARY ENCODER EC11B202 L15
[ DATA ]
3. FINAL ASSEMBLY BLOCK
Ref.No. Part No. Description
1 ZS-355511 BID30X06STL BNI
2 ZS-393515J BT BID30X10STL BZN
3 SA-821325X FOOT 25X5T CR50 [ FOOT ]
4 100-821326X SPACER SPRING
5 ZW-821327X SP PUSH PEDAL
6 SZ-821328X CUSHION SW
7 SZ-821329X CUSHION PEDAL (A)
8 SP-821333X PEDAL [ FOOT PEDAL ]
8 SW ES-821278X SW PUSH SPPH21-LB [ FOOT PEDAL SW ]
9 SW ES-821283X SW SLIDE SSSU011700
[ FOOT SW CONTROL SW ]
10 SP-821332X1 PANEL TOP HV1
11 SE-821334X1 WINDOW
11 LED ED-821281X D LED TOD-5221BS-N [ VALUE LED ]
12 SW ES-349474 SW TACT SKHHAM004A [ EDIT SW ]
13 KNOB SK-821336X KNOB (B) [ DATA KNOB ]
13 SW ES-813048J SW ROTARY ENCODER EC11B202 L15
[ DATA VR ]
14 JACK EJ-821446X PHONE J NC3FAH1-0 [ MIC IN ]
15 JACK EJ-821447X PHONE J NC3MAH [ MIC OUT ]
16 JACK EJ-821408X PHONE J YKB22-5331 S.NUT 6.3
[ LINE IN / HARMONY OUT ]
17 JACK EJ-821409X PHONE J YKB22-5330 S.NUT 6.3
[ MIX OUT ]
18 EJ-812072J SOCKET DC HTJ-020-05A 1P [ DC INPUT ]
19-A AX-821684X AC ADAPTER L8018 J (PLUG IN)
[ AC ADAPTER (J) ]
19-B AX-821685X AC ADAPTER L8018 C,A (PLUG IN)
[ AC ADAPTER (C,A) ]
19-C AX-821686X AC ADAPTER L8018 E,V (CORD IN)
[AC ADAPTER (E,V,B) ]
20 EJ-428247N PLUG ADAPTOR ECPL01BKR5 BS5733
[ (B) ]
21 KNOB SK-821335X KNOB (A) [ PARAMETER KNOB ]
21 VR EV-813047J VR RT RK0971130 L15 11D B103SP
[ PARAMETER VR ]
22 KNOB SK-821335X KNOB (A) [ HARMONY KNOB ]
22 VR EV-821284X VR RT ROTARY RK09L1140 A104 L=15
[ HARMONY VR ]
23 KNOB SK-821335X KNOB (A) [ INPUT LEVEL KNOB ]
23 VR EV-821284X VR ROTARY RK09L1140 A104 L=15
[ INPUT LEVEL VR ]
IV. PARTS LIST

SERVICE MANUAL 7
1
2
3
FINAL ASSEMBLY BLK
8
6
5
7
4

SERVICE MANUAL
8
19 20
14 16 18 16 17 15
10 22 13
21
9
11
21 23
FINAL ASSEMBLYBLK

SERVICE MANUAL 35
4-7-3, KITA-YAMATA, TSYZUKI-KU, YOKOHAMA, JAPAN
SERVICE SECT. PHONE : [phone] FAX : [phone]
