Del ozone Z0-151 User manual

INSTALLATION & OPERATIONS
MANUAL FOR DELZONE® Z0-151
PORTABLE PURIFIER
MANUFACTURED BY
3428 Bullock Lane
San Luis Obispo, CA 93401
800-676-1335
4-0252 Rev B - 050904

IMPORTANT SAFETY INSTRUCTIONS
When using the DELZONE® ZO-151 PORTABLE PURIFIER, basic
safety precautions must always be followed, including the following:
1.READ AND FOLLOW ALL INSTRUCTIONS
2.Install in a sheltered area protected from the weather and exposure
to water.
3.Unplug the Portable Purier before attempting any service. Never
attempt any servicing while wet.
4.Do not bury cord.
5.WARNING: To reduce the risk of electrical shock, replace damaged
cord immediately.
6.Leave rooms and areas unoccupied during period of treatment. It is
preferable to leave the ozone generator itself outside of the room
and pass the diffusion stone through a door or window opening.
7.Do not reenter treated area for thirty minutes.
8.Avoid inhaling high concentrations of ozone.
9.Do not expose your pets to ozone
10. When used for water purication, make sure that:
a) If the electrical connection of the ZO-151 Portable Purier is
made directly to a spas electrical system, be sure the spa or wa-
ter vessel is protected by a ground fault circuit interrupter
(G.F.C.I.). If the Portable Purier is connected to an independent
electrical supply, a G.F.C.I. should be installed between the Z0-
151 Portable Purier and the electrical supply.
b) When mounting to a spa, fountain, holding tank, livestock/water
tank or wading pool for permanent application: connect only to a
grounded grounding-type receptacle.
c) Mount the Portable Purier at least twelve (12) inches above the
maximum water level and at least ve (5) feet away from the spa
or water vessel.
d) As with any electrical appliance, to reduce the risk of injury, the
Portable Purier should be placed where it is inaccessible to
children or anyone in the water.
11. SAVE THESE INSTRUCTIONS.
1

TABLE OF CONTENTS
SAFETY INSTRUCTIONS...................................................................... 1
TABLE OF CONTENTS.......................................................................... 2
HISTORY OF OZONE............................................................................ 3
OZONE IS AN EFFECTIVE PURIFIER .................................................. 4
OPERATION........................................................................................... 4
PORTABLE APPLICATIONS
Elimination of Odors in Rooms ........................................................ 5
Ozone Treatment of Boats and RVs ................................................ 7
Automobile Odors ............................................................................ 7
Treatment of Fruits and Vegetables ................................................. 8
Treatment of Food and Cooking Utensils......................................... 8
Portable Water Treatment ................................................................ 8
PERMANENT APPLICATIONS

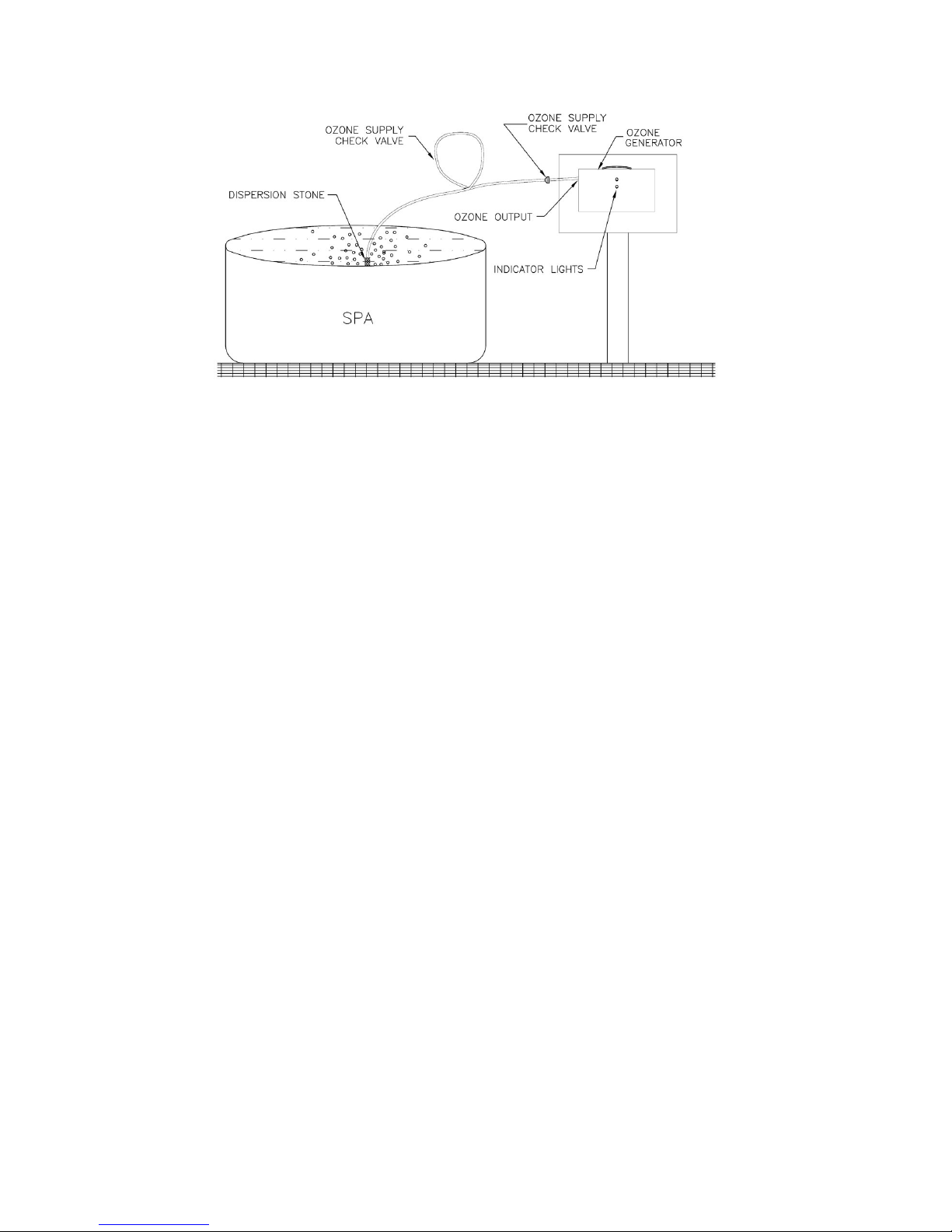

Spas and Pools................................................................................ 9

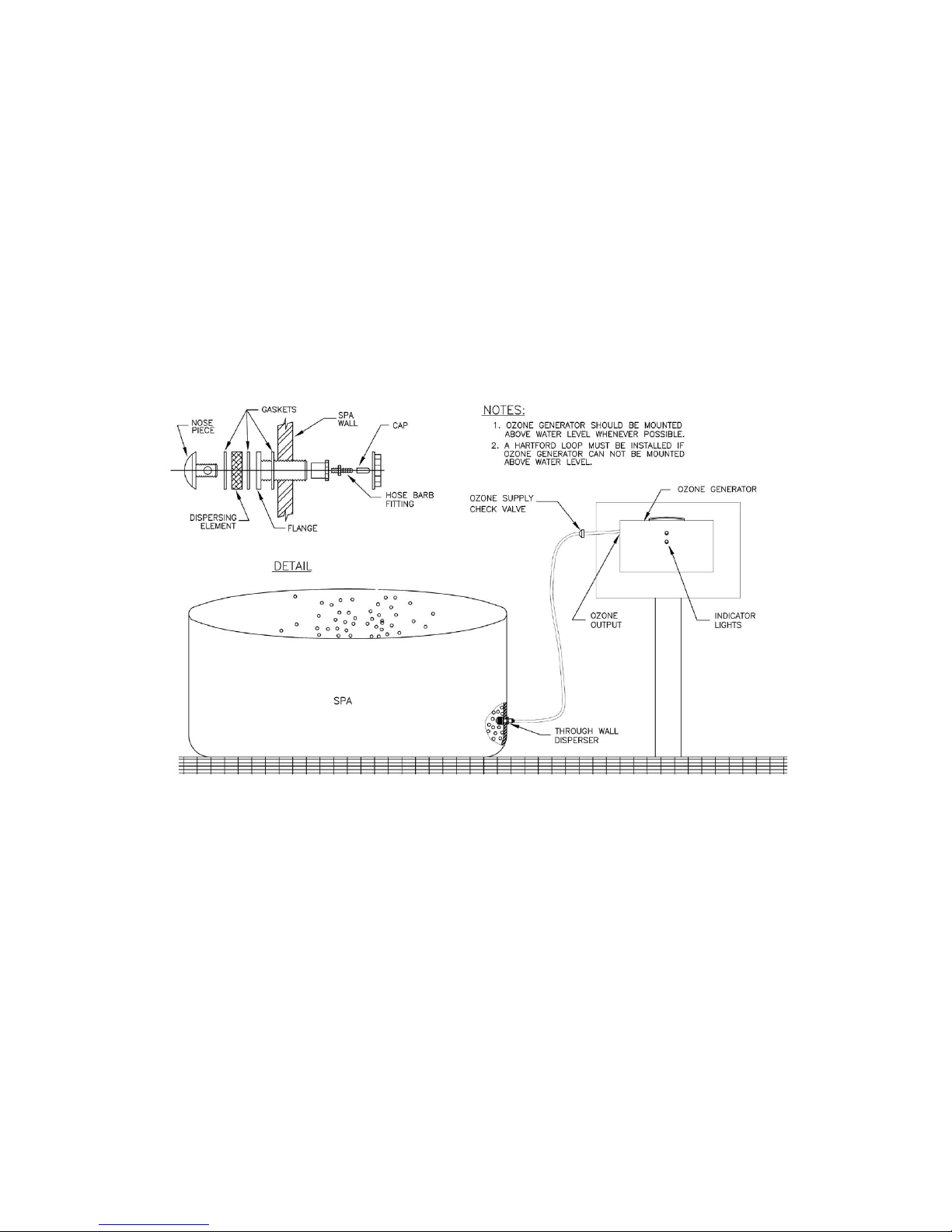

Thru-Wall Dispersion Installation ..................................................... 10
TROUBLE SHOOTING .......................................................................... 11
MAINTENANCE

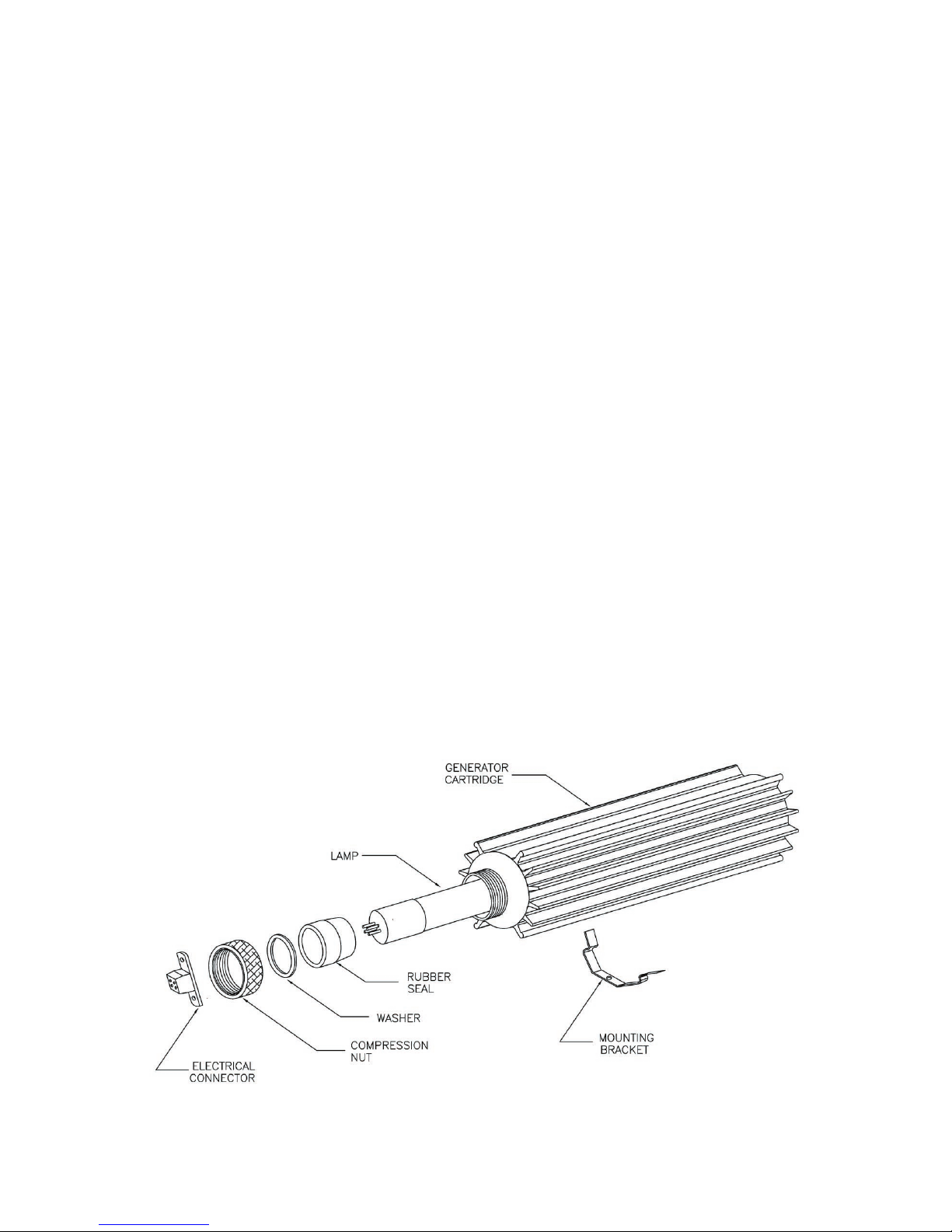

Changing the Ozone Lamp .............................................................. 12
Cleaning the Dispersion Stone ........................................................ 13
Changing the Pump Filter ................................................................ 13
UNIT SPECIFICATIONS ........................................................................ 13
PARTS LIST ........................................................................................... 13
WARRANTY ........................................................................................... 14
2

3
THE HISTORY OF OZONE
Ozone, sometimes called active oxygen, is comprised of three atoms of
oxygen. Ozone is a natural purier and one of nature’s basic elements.
Ozone is produced in nature when the ultraviolet rays of the sun strike
oxygen molecules. When this occurs high in the atmosphere it creates what
we know as the “ozone layer”. Because the oxygen molecules absorb the
sun’s energy, living things on earth are protected from the damaging and
potentially cancer-causing rays of the sun. Nature also produces ozone
near the earth’s surface, especially during a thunderstorm, when lightning
ashes. The sweet, fresh smell after a thunderstorm is ozone.
Ozone will destroy viruses, bacteria, and virtually all other forms of microbes,
as well as break down chemical contaminants. It does this in both air and
water and does it without the use of chemicals or additives of any kind!
Ozone’s use as a water purier was discovered in the late 1800’s in the
Netherlands. Its rst large-scale use was in Nice, France where it was
used to purify drinking water. Today, more than thirty countries use ozone
systems to purify drinking water. In fact, Los Angeles has one of the larg-
est ozone water treatment plants in the world, processing more than 580
million gallons of city drinking water per day. This system was chosen over
a chlorine system due to ozone’s extraordinary ability to effectively purify
water without negative side effects. In addition, most of the world's bottled
water plants use ozone as part of their water purication process.
Ozone is also gaining tremendous popularity as an air purier throughout
the world. Our homes and ofces can be a source of environmental pollu-
tion. The EPA estimates that indoor pollution causes tens of thousands of
illnesses each year, and many more from contaminated water. Ozone is
the most effective way to purify your air and water.
Ozone is clearly superior to virtually all other forms of purication. When
you use the PORTABLE PURIFIER, you won’t have to purchase or store
any chemical or purication materials or change any lters. Everything you
need is generated within the small, lightweight, and portable unit. All this
for just pennies a day.

3 4
The DELZONE PORTABLE PURIFIER is easy to use. It has an easy-carry
handle and is light weight so you can take it anywhere and feel good about
the quality of the air you breathe and the water you drink. The Portable
Purier can be used indoors or out, uses only 60 watts of power and is
virtually maintenance free. Simply plug it in and you have natural purica-
tion at your nger tips!
OZONE IS AN EFFECTIVE PURIFIER
Ozone kills: bacteria, viruses, molds, mildew, spores, and cysts.
Ozone destroys: chemical contaminants such as aldehydes which can be
emitted from paneling, carpets, insulation, paints, stains, and plastics.
Ozone eliminates odors: cigarettes, cigars, pets, diapers, mildews, musty/
stale smells, airborne molds, food, locker rooms, shoes and boots, and
more!
OPERATION
Unpack the Portable Purier and familiarize yourself with the unit and its
components. The unit should include:
ZO-151 PORTABLE PURIFIER UNIT
OZONE SUPPLY TUBING (15 FEET)
OZONE DISPERSION STONE
SUCTION CUP
4" BALL CHAIN
4 ADHESIVE RUBBER FEET
Connect ozone supply tubing to the ozone supply check valve. Hint: Soften
the tubing if necessary by dipping it in warm water. To use the suction cup,
feed the ball chain through the hole in the suction cup, then through the loop
in the steel clamp (attached to the dispersion stone). Snap the ball chain
closed. Attach the rubber feet to the enclosure as desired.
Plug in the Portable Purier as described in the SAFETY INSTRUCTIONS.
Turn on the Portable Purier with the toggle switch located on the left side of
the unit. The green indicator light will come on and remain on while power
is being supplied to the unit to show that the unit is operating. The red
indicator light on the front of the unit should light, icker, and then go out.
This indicates that the purier is operating properly. If the red light remains
on, see the TROUBLE SHOOTING section.

5
Figure 1: Example Dispersion Stone Location
PORTABLE APPLICATIONS
ELIMINATION OF ODORS IN ROOMS
The Portable Purier will effectively eliminate odors in your homes and of-
ces. Due to its portability you can move it from room to room to treat the
whole home or ofce.
If possible, place the Portable Purier in a separate room from the dispersion
stone. Locate the dispersion stone as high and as far from other objects
as possible (Figure 1, for example). Turn on the Portable Purier and/or
set the timer and leave the room. Allow the Portable Purier to run for the
approximate times as indicated in the table below.
The amount of ozone treatment required will vary depending on the air ow
in the room and the air quality. When the treatment is completed, turn off
the Portable Purier and air out the room. This can be done to as many
rooms, and as often as desired.

56
The treatment times listed below are intended as guidelines. Your application
may require a longer or shorter treatment time.
ROOM/AREA ODOR TYPE SIZE SUGGESTED TIME
KITCHEN Food smells: broccoli, sh, 10' X 10' 60 minutes
cabbage, eggs, greasy foods
cigarette odors, pet odors,
Persistent odors, 15' X 15' 60 min. intervals
Strong pet odors or larger or until gone
REFRIGERATOR Soured foods (locate 15 minutes
dispersion stone on top
inside door)
GARBAGE Soured foods (locate dispersion 15 minutes
DISPOSAL stone inside disposal)
GARBAGE CAN Soured foods (locate dispersion 15 minutes
stone at bottom of can)
LIVING ROOM Cigarette odors 15' X 20' 40 minutes
Cigar odors 60 minutes
BATHROOM Unpleasant odors 10' X 10' 60 minutes
BEDROOM Unpleasant odors 17' X 18' 60 minutes
Cigarette odors
CLOSET AREA Shoes, clothes with odors 4' X 4' 45 minutes
CLOTHES Mildew/Musty (locate dispersion 15 minutes
stone near garment)
Cigarette/cigar odors (locate 15 minutes
dispersion stone near garment)
SHOES Foot odor (locate dispersion 15 minutes
stone inside each shoe)
NURSERY Diaper odors, spit up odors 10' X 10' 30 minutes
DIAPER PAIL Diaper odors (locate dispersion 30 minutes
stone at bottom of can)
OFFICE Cigarette odors, art 15' x 15' 60 minutes
materials, paints, glues
GARAGE Paint, wood-working 20' X 20' 120 minutes
exhaust fumes
PET BED/ Pet odors (locate dispersion 30 minutes
BLANKET stone in middle of bed)
FLOOR MAT Mildew on bottom (locate 60 minutes
dispersion stone underneath)
HOTEL ROOM Occupant odors 20' X 20' 40 minutes
Cigarette odors
CONFERENCE Heavy cigarette odors, 20 X 30 120 minutes
ROOM Food or alcohol

7
OZONE TREATMENT OF BOATS AND RV’s
Boats and Recreational Vehicles often have a stale/musty smell or owners
have difculty eliminating cigarette/food odors. To get rid of these odors,
simply place the dispersion stone in the RV and shut the door tightly, or in
the case of a boat, under the boat cover. The required periods of ozone
treatment may vary depending upon the size and condition of the affected
area. For both an RV and an average-sized boat, please refer to the sug-
gested guidelines below:
AREA ODOR TYPE SIZE SUGGESTED TIME
RV INTERIOR
Dust/stale air 18- 24 45 minutes
Dust/stale air 30-32 50 minutes
Dust/stale air 35-40 60 minutes
Cigarette/food odors 18-24 60 minutes
Cigarette/food odors 30-32 70 minutes
Cigarette/food odors 35-40 75 minutes
Soured foods (locate 15 minutes
dispersion stone at
bottom of garbage can)
BOAT INTERIOR
Dust/stale air/mildew 18-24 120 minutes
Dust/stale air/mildew 30-32 240 minutes
Dust/stale air/mildew 35-40 360 minutes
TREATMENT OF AUTOMOBILE ODORS
Automobiles can acquire a variety of odors from drinks, food crumbs, ciga-
rettes and pets. Guidelines below are for a standard four-door automobile.
For effective treatment, place dispersion stone in the car through a 1/4" crack
above the window. Locate the dispersion stone near the rear-view mirror.
Close all other openings. Leave the vehicle unoccupied during treatment.
ODOR TYPE SUGGESTED TIME
CIGARETTE ODOR 120 minutes
PET ODORS 180 minutes
FOOD AND DRINK 90 minutes
OTHER ODORS 90 minute intervals
until odors are gone

78
TREATMENT of FRUITS & VEGETABLES
The shelf life of fruits and vegetables can be extended by ozone treat-
ment. Not only will they keep a more attractive appearance, but they will
also taste fresher! To help keep your produce fresh, ll your sink with water
and place the Portable Purier’s dispersion stone in the bottom of the sink.
Place the vegetables and/or fruit to be treated in the water and operate the
Portable Purier for 15 minutes. (Average sized sink half-full of pre-washed
produce). Increase treatment time for larger sinks and greater quantities
of produce.
TREATMENT of FOOD & COOKING UTENSILS
Since ozone kills bacteria and viruses, it can aid in the destruction of bac-
teria found on raw foods and cooking utensils. Soaking uncooked chicken
parts, for example, in ozone treated water will help retard the growth of
salmonella. For best results, follow the same procedure described above
for produce. For utensils, rinse off food debris and treat in clean water with
ozone for fteen minutes.
PORTABLE WATER TREATMENT
The ZO-151 Portable Purier is specically designed to purify water in
emergency storage, spas, bathtubs, fountains, and wading pools. It can
also be used to purify drinking water from well sources or city water sup-
plies, removing undesirable tastes, odors and colors caused by iron, copper,
manganese, chlorine and organics. Do not use water from a source that is
questionable such as stagnant pool water or the like.
To treat water, place the dispersion stone into the water container and
leave the unit on the approximate amount of time shown in the table below.
If bacteria is suspected, allow a minimum of one hour per gallon. When
completed, turn off the Purier and allow a few moments for excess ozone
to dissipate from the water. Higher output ozone generators are available
for wells and holding tanks
When used in conjunction with a particulate lter, ozone will also remove
excess minerals including iron, manganese, and lead, as well as radon
and sulfur gases.
NUMBER OF GALLONS SUGGESTED TREATMENT TIME
1 15 minutes
5 30 minutes
10 45 minutes
50 1.5 hours
100 3 hours

9
PERMANENT INSTALLATIONS
Figure 2: Standard Installation Diagram
SPAS AND POOLS
The Portable Purier can be used on spas, hot tubs, and wading pools to
1,000 gallons, allowing you to reduce your chemical usage up to 90%. You
will never need to put up with dry skin, red eyes, faded suits, or green hair
again! Ozone is pH neutral, so it will not adversely affect the acid/alkaline
balance of your water. It is more cost effective than traditional chemicals
and leaves no undesirable smell or taste. Continuous operation is proven
to be the most economical treatment method for spa water, fountains and
larger bodies of water to 1,000 gallons.
1.The ZO-151 must be securely mounted to a clean surface and sheltered
from direct exposure to the elements (rain and water). Mount at least
ve feet from the spa or water enclosure and at twelve inches above
the maximum water level. Ensure that the location is out of the reach
of children or anyone in the water.
2.To mount the ZO-151 Portable Purier remove the two screws on the
unit cover and gently lift off the cover.
3.Using the four mounting holes in the corners, secure the ZO-151 Por-
table Purier to the wall with screws. Spacer blocks may be necessary
for your particular installation. After mounting your Portable Purier
reinstall the cover.
4.Connect the ozone supply tubing to the check valve on the left side of
the purier. If the ozone supply tubing is too long, trim it with household
scissors or a razor knife. If the tubing is too short, additional ozone
supply tubing is available.
5.Place the dispersion stone into the body of water near the bottom
center for maximum ozone saturation in the water.
6.Plug the ZO-151 Portable Purier into a Ground fault circuit interrupter
(G.F.C.l.) protected outlet.

THRU-WALL DISPERSER INSTALLATION
For permanent spa installations, DEL Ozone can supply a dispersion t-
ting that is permanently installed in the spa wall. The thru-wall disperser
is designed to provide excellent ozone saturation in the water while being
rugged enough for heavy spa use. Both sides of the spa wall must be ac-
cessible for installation. The ZO-151 Thru-wall disperser should be located
as low in the spa as is conveniently possible.
1.Drain the spa, determine the location for the Thru-wall Disperser and
drill a 1-1/8 diameter hole in the spa wall. Remove any rough edges in
the hole and remove any drilling debris from the bottom of the spa.
Figure 3: Thru-Wall Disperser Installation Diagram
2.Place the supplied gasket on the threaded side of the thru-wall disperser
tting. From the inside of the spa, place the tting through the 1-1/8
diameter hole in the spa wall. From the outside of the spa, install the
plastic nut and tighten to make a water-tight assembly.
3. Attach the ozone supply tubing to the hose barb on the thru-wall dis-
perser tting using the supplied hose clamp to secure in place.
4. Place the dispersion disc on the nose piece with the smooth side toward
the nose piece and the textured side toward the thru-wall disperser
tting. Screw the nose piece into the front of the thru-wall disperser
and hand-tighten.
10

11
TROUBLE SHOOTING
There are four areas to check to determine the location of any problem:
1. The green indicator light should remain ON during operation
2. The red indicator light should remain OFF during operating
3. Presence of ozone bubbles in the water
4. The condition of the water
SYMPTOM: Green indicator light OFF - air pump not working
PROBABLE CAUSE CORRECTIVE ACTION
1. No power to unit 1A. Check power source and cord
2. Tripped circuit breaker 2A. Reset circuit breaker
3. G.F.C.I. tripped 3A. Reset G.F.C.I.
4. Defective electrical system 4A. Return for service/repair
SYMPTOM: Red and green indicator lights ON - air pump working
PROBABLE CAUSE CORRECTIVE ACTION
5. Lamp cartridge connection loose 5A. Reconnect
6. Lamp burnt out 6A. Replace lamp
SYMPTOM: Red indicator light OFF, air pump working but no ozone
bubbles in spa
PROBABLE CAUSE CORRECTIVE ACTION
7. Leak in system 7A. Check all tubing connections
8. Tubing is kinked or crimped 8A. Check all tubing and unkink
9. Dispersal element plugged 9A. Clean or replace dispersal
element
10. Defective electrical system 10A. Return to dealer for service
SYMPTOM: Everything works correctly, but water is dirty
PROBABLE CAUSE CORRECTIVE ACTION
11. Excessive bather load 11A. If the extra high bather load
is not unusual, continue 24 hr.
operation and begin program
of adding a small amount of
chlorine, bromine
shock treatment.
12. pH not balanced 12A. Adjust pH to 7.2 to 7.8
13. Total alkalinity incorrect 13A. Adjust total alkalinity to
80 -150 PPM
14. Dirty, loose, or cracked lter 14A. Service lter.

11 12
MAINTENANCE
CHANGING THE OZONE LAMP
The Portable Purier Ozone producing lamp has a life expectancy of ap-
proximately two years, however, uctuations in local line voltage may reduce
the lamp’s life. When the red indicator light stays on, it is time to change
the lamp. To maintain optimal performance, DEL recommends replacing
the lamp once a year.
1. Disconnect power before servicing unit.
2. Remove the Portable Purier from its support if access is limited.
3. Remove the cover from the Portable Purier enclosure (it is held by
two Philips head screws on the bottom). Be careful not to put strain
on wires connecting cover components.
4.Separate the nned aluminum lamp cartridge from its mounting bracket.
It may require the use of a screwdriver to pry the unit loose as these
clamps are specically designed to hold the cartridge securely in
place.
5.Separate the electrical connector from the end of the lamp cartridge
by rocking the connector back and forth while pulling it in an outward
direction.
6.Remove the compression nut, washer and rubber seal from the
lamp cartridge by turning the compression nut in a counter-clock
wise direction (should be hand-tight).
7.Remove the old lamp by sliding it out of the aluminum cartridge.
8.Reverse this procedure to intall the new lamp. Be sure the lamp is
fully seated and straight inside the cartridge.
Figure 4: Lamp Change Diagram

13
CLEANING the DISPERSION STONE
Periodically, the dispersion stone may clog up with mineral deposits reduc-
ing the amount of ozone ow through the stone. The stone will appear a
darker color. Disconnect Power and remove the dispersion stone.Soak it
in lemon juice or vinegar for a few hours to overnight until the discoloration
is gone and the dispersion stone is a uniform color. Rinse the dispersion
stone thoroughly with fresh water. Reinstall the dispersion stone.
NOTE: Sometimes the stain will be permanent; if ozone bubbles still ow
from the dispersion stone the stain will not affect operation.
CHANGING the PUMP FILTER
The Portable Purier Pump lter may require cleaning or replacing up to
every six months depending on the purier’s exposure. Disconnect Power
before servicing the unit. The lter can be removed and replaced by ac-
cessing it through the hole in the back of the purier with a pair of tweezers
or pliers. If there is no lter access hole on the back of your purier, remove
the pump by removing the two mounting screws on the back of the unit. Be
careful not to over-tighten the screws when re-mounting the pump.
UNIT SPECIFICATIONS
Electrical Specs: 120 vac, .5 amps, 60 watts
Cabinet: Aluminum, powder coated nish
Unit Dimensions: 9H X 13.5W X 3.2D
Unit Weight: 6 lbs
Shipping Weight: 7 lbs
Operating Temperature: 350 F to 1000 F
Compressor Provides: 5 scfh @ 2 psi
PARTS LIST
Replacement Lamp 9-0488
Ballast 5-0240
Ozone Supply Tubing 7-0723
Dispersion Stone 7-0785
Suction Cup 7-0839
Pump 5-0782
Pump Filter 7-0877
Ball Chain 8-0304
Ozone Supply Check Valve 7-1004
Thru-Wall Disperser Assembly 9-0152
Thru-Wall Disperser Element 7-0422

14
DEL Ozone • ONE YEAR LIMITED WARRANTY
The warranty set forth below applies to the DEL Ozone sold by DEL Ozone and its authorized
dealers. This limited warranty is given only to the rst retail purchaser of such products and is not
transferable to any subsequent owners or purchasers of such products. DEL Ozone warrants
that It or its authorized dealers will repair or replace, at its option, any part of such products
proven to be defective in materials or workmanship within ONE (1) year of the date of retail
purchase of such products FOR A FULL ONE YEAR WARRANTY PERIOD. (All parts) ANY
REPAIR OR REPLACEMENT WILL BE WARRANTED ONLY FOR THE BALANCE OF THE
ORIGINAL WARRANTY PERIOD. NOTE: USE ONLY DEL Ozone AUTHORIZED REPLACE-
MENT PARTS. USE OF ANY Other PART(S) WILL AUTOMATICALLY VOID THIS WARRANTY.
WARRANTY DOES NOT INCLUDE ANY OF THE FOLLOWING: (a) any labor charges for
troubleshooting, removal, or installation of such parts; (b)any repair or replacement of such
parts necessitated by faulty installation, improper maintenance, improper operation. misuse,
abuse, negligence, accident, re, repair materials, and/or unauthorized accessories; (c) any
such products Installed without regard to required local codes and accepted trade practices; (d)
ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS
FOR PARTICULAR PURPOSE, AND SUCH WARRANTIES ARE HEREBY DISCLAIMED:
AND (e) DEL Ozone SHALL NOT BE LIABLE UNDER ANY CIRCUMSTANCES FOR LOSS
OF USE OF SUCH PRODUCTS, LOST PROFITS, DIRECT DAMAGES, INDIRECT DAM-
AGES, CONSEQUENTIAL DAMAGES AND/OR incidental DAMAGES. This warranty gives
you specic legal rights. You may also have other rights which vary from state to state.
TO OBTAIN WARRANTY SERVICE
Contact: DEL Ozone Inc., 3428 Bullock Ln., San Luis Obispo, CA 93401
Customer Service Number : [phone]. When ling a claim, you must provide:
1) your name, mailing address and telephone number;
2) the selling dealer’s name;
3) proof of date of purchase;
4) the date of failure;
5) a description of the failure.
After this information is provided, DEL Ozone. will release a RETURN GOODS AUTHORIZA-
TION (RGA) NUMBER. After receiving this number the part in question must be returned to
DEL Ozone, freight prepaid, with the RGA number clearly marked on the outside of the
package. All preauthorized defective parts must be returned to DEL Ozone within thirty (30)
days. Under no circumstances may any product be returned to DEL Ozone without
prior authorization. You must call or write rst or your returned goods shipment will be
refused. Upon receipt of preauthorized returned goods DEL Ozone will repair or replace, at
DEL Ozone’s option, the defective product(s) and return them freight collect. To validate your
warranty, ll in the enclosed warranty registration card and return it to DEL Ozone within ten
(10) days of your purchase. Buyer’s acceptance of the product and use thereof constitutes
acceptance of these terms.

15
Copyright 2004 DEL Ozone
