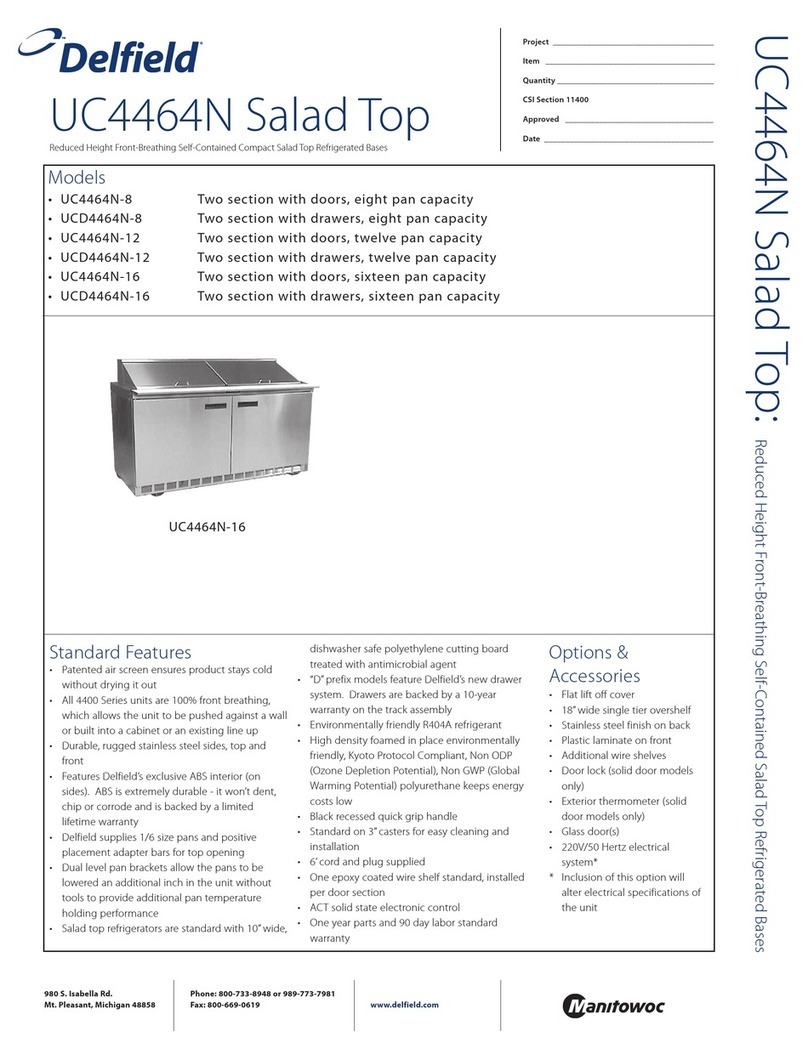

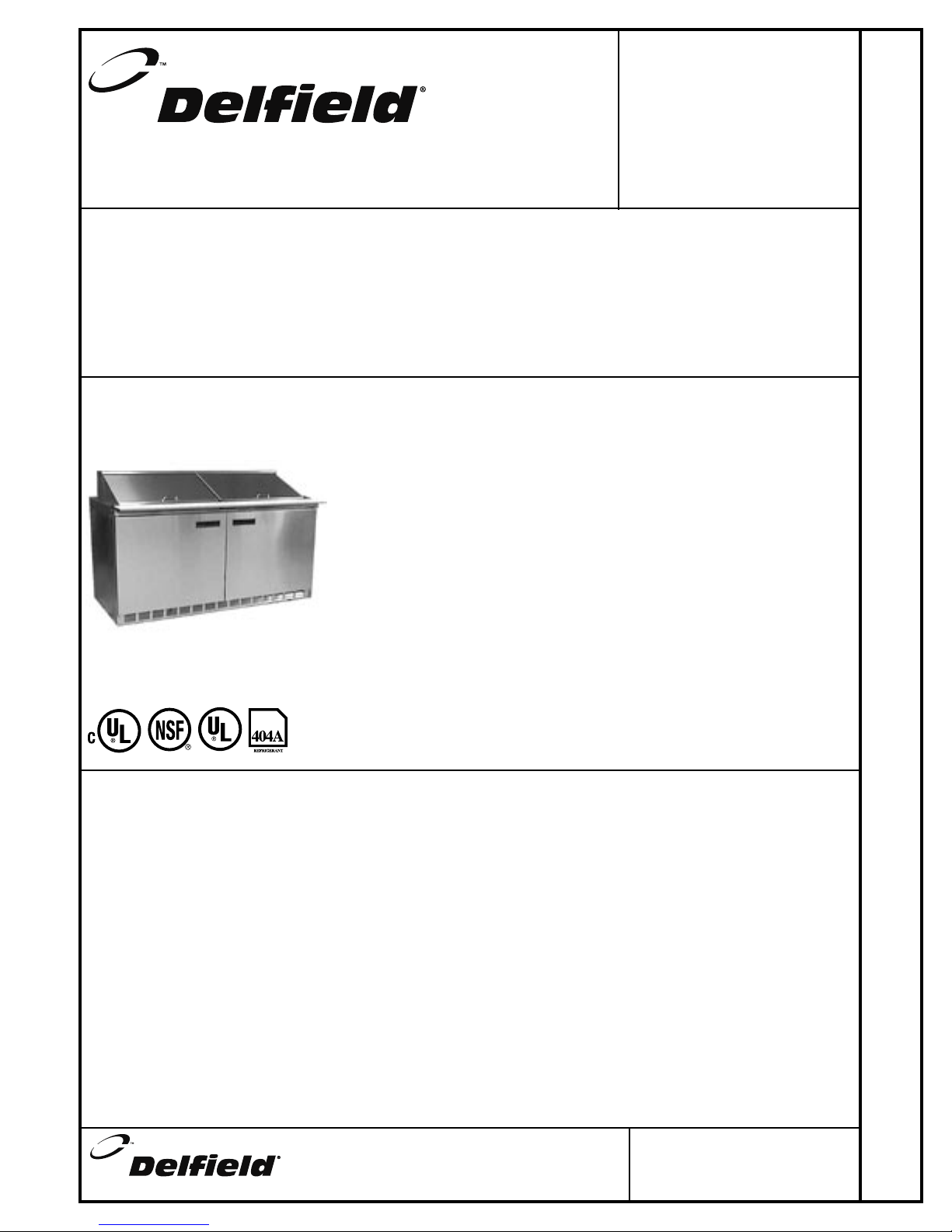

UC4464N REDUCED HEIGHT FRONT-BREATHING SELF-CONTAINED COMPACT SALAD TOP REFRIGERATED BASES
Project __________________________
Item ____________________________
Quantity _________________________
CSI Section 11400
UC4464N SALAD TOP
Reduced Height Front-Breathing Self-Contained Compact Salad Top
Refrigerated Bases
980 S. Isabella Road
Mt. Pleasant, MI 48858
www.delfield.com
Phone: 800-733-8948
Fax: 800-669-0619
Email: info@delfield.com
Approval _________________
Date ____________________
SPECIFICATIONS
Exterior top is one-piece 22-gauge stainless steel with
integral 2.12” (5.1cm) square nosing at the front. Top
has openings to accept 8, 12 or 16 1/6-size 4”- 6”
(10.2cm - 15.2cm) deep plastic pans. Adapter bars and
1/6 pans are supplied by Delfield. Temperature in top
opening to maintain 33°F (1°C) to 41°F (5°C), with
pans recessed 2.5” (6.4cm) at 86°F ambient room tem-
perature, meeting NSF 7 requirements. One 64” x 10”
x .5” (163cm x 25.4cm x 1.3cm) polyethylene cutting
board treated with antimicrobial agent is mounted on the
top at the front edge.
Exterior back and bottom are two-piece 24-gauge
galvanized steel. Exterior ends are stainless steel.
Interior sides are thermoformed ABS plastic with integral
shelf supports. Base is fully insulated with high-density
foamed in place polyurethane.
Refrigeration system uses HFC-404A refrigerant.
Compressor is 1/2 H.P., with condenser coil and condensate
evaporator mounted on rear of the cabinet. Evaporator coils
and temperature control are located on the interior rear wall
of the cabinet. Refrigerant flow is controlled by a capillary
tube. Cabinet maintains an interior cabinet temperature of
36°F to 40°F (2°C to 4°C).
ACT control. ACT electronic, solid state control, mounted
on the exterior rear of the cabinet, allows unit to maintain
precise temperatures in heavy duty conditions.
Electrical connections are 115 volt, 60 Hertz, single phase.
Unit has a 7’ (2.1m) long electrical cord and NEMA 5-15P
plug.
Casters: Equipment is mounted on 2” (5.08cm) diameter
casters, with front three locking. Equipment clearance
above the floor is 2.5” (6.35cm).
The following applies to two door models only
Doors have a 22-gauge stainless steel exterior, with
thermoformed ABS plastic interior liner. Cabinet has one
adjustable epoxy-coated wire shelf per door opening.
The following applies to four drawer models only
Drawer fronts have a 22-gauge stainless steel exterior,
with thermoformed ABS plastic interior liner. Drawer
frames and slides are 12-gauge stainless steel. Drawer
slides are 11-gauge stainless steel with Delrin bearings.
Each section has two drawers. Each top drawer holds
two full size 12” x 20” (30.5cm x 50.8cm) pans 4” -
6” (10.6cm -15.2cm) deep. Each bottom drawer holds
two 12” x 20” (30.5cm x 50.8cm) pans 4” (10.6cm)
deep. Pans supplied by others.
MODELS:
❑ UC4464N-8 Two section with doors ❑ UCD4464N-8 Two section with drawers
Eight pan capacity Eight pan capacity
❑ UC4464N-12 Two section with doors ❑ UCD4464N-12 Two section with drawers
Twelve pan capacity Twelve pan capacity
❑ UC4464N-16 Two section with doors ❑ UCD4464N-16 Two section with drawers
Sixteen pan capacity Sixteen pan capacity
STANDARD FEATURES
• Patented air screen ensures product stays cold without drying it out
• All 4400 Series units are 100% front breathing, which allows the
unit to be pushed against a wall or built into a cabinet or an existing
line up
• Durable, rugged stainless steel sides, top and front
• Features Delfield’s exclusive ABS interior (on sides). ABS is
extremely durable - it won’t dent, chip or corrode and is backed by
a limited lifetime warranty
• Delfield supplies 1/6 size pans and adapter bars for top opening
• Salad top refrigerators are standard with 10” wide, dishwasher safe
polyethylene cutting board treated with anitmicrobial agent
• “D” prefix models feature Delfield’s new drawer system. Drawers
are backed by a 10-year warranty on the track assembly
• Environmentally friendly R404A refrigerant
• High density foamed in place polyurethane keeps energy costs low
• Black recessed quick grip handle
• Standard on 2” casters for easy cleaning and installation
• 7’ cord and plug supplied
• Cord spring relief - prevents cord rollover
• One epoxy coated wire shelf standard, installed per door section
• ACT solid state electronic control
• One year parts and 90 day labor standard warranty.
OPTIONS AND ACCESSORIES
❑ Flat lift off cover
❑ 18” wide single tier overshelf
❑ Stainless steel finish on back
❑ Plastic laminate on front
❑ Additional wire shelves
❑ Door lock
❑ Exterior thermometer
❑ Interior lights
❑ Glass door(s)
❑ *220V/50 Hertz electrical system
* Inclusion of this option will alter electrical
specifications of the unit.
UC4464N Reduced Height Front-Breathing Self-Contained Compact Salad Top Refrigerated Bases
Model #__________
CSI Section
Printed in the USA.
09/06
DSUC4464N-S
980 S. Isabella Road
Mt. Pleasant, MI 48858
www.delfield.com
Phone: 800-733-8948
Fax: 800-669-0619
Email: info@delfield.com
Pan Cutout Configurations INSTALLATION NOTE:
Refrigeration system is designed so that air will flow under the unit, through the compressor area and out the front of
the unit. Any restriction to this air flow path will void the warranties.
PLEASE NOTE:
Air flow through the louver on the back of the unit is not necessary for operation, however, any air which passes
through the louver is beneficial.
UC4464N-8 ELEVATION VIEW UC4464N-8 RIGHT SIDE VIEW
UCD4464N-8 ISO VIEW
UCD4464N-8 ELEVATION VIEW UCD4464N-8 RIGHT SIDE VIEW
UC4464N-8/UCD4464N-8
UC4464N-8 ISO VIEW
UC4464N Reduced Height Front-Breathing Self-Contained Compact Salad Top Refrigerated Bases
Model #__________
CSI Section
Printed in the USA.
09/06
DSUC4464N-S
980 S. Isabella Road
Mt. Pleasant, MI 48858
www.delfield.com
Phone: 800-733-8948
Fax: 800-669-0619
Email: info@delfield.com
Pan Cutout Configurations
UC4464N-12/UCD4464N-12
UC4464N-12 ELEVATION VIEW UC4464N-12 RIGHT SIDE VIEW
UCD4464N-12 ISO VIEW
UCD4464N-12 ELEVATION VIEW UCD4464N-12 RIGHT SIDE VIEW
UC4464N-12 ISO VIEW
INSTALLATION NOTE:
Refrigeration system is designed so that air will flow under the unit, through the compressor area and out the front of
the unit. Any restriction to this air flow path will void the warranties.
PLEASE NOTE:
Air flow through the louver on the back of the unit is not necessary for operation, however, any air which passes
through the louver is beneficial.
UC4464N Reduced Height Front-Breathing Self-Contained Compact Salad Top Refrigerated Bases
Model #__________
CSI Section
Printed in the USA.
09/06
DSUC4464N-S
980 S. Isabella Road
Mt. Pleasant, MI 48858
www.delfield.com
Phone: 800-733-8948
Fax: 800-669-0619
Email: info@delfield.com
Pan Cutout Configurations
UC4464N-16 ISO VIEW
UC4464N-16 ELEVATION VIEW UC4464N-16 RIGHT SIDE VIEW
UCD4464N-16 ISO VIEW
UCD4464N-16 ELEVATION VIEW UCD4464N-16 RIGHT SIDE VIEW
UC4464N-16/UCD4464N-16
Mechanical Data - Standard Unit
MODEL
NUMBER
1/6 SIZE PAN
CAPACITY
# OF
SHELVES
SHELF AREA
SQ.FT.
STORAGE CAP.
CU.FT. H.P. VOLTS/HERTZ/
PHASE AMPS NEMA PLUG SHIP WEIGHT
UC4464N-8 8 2 5.9 14.7 1/2 115/60/1 12 5-15P 446LBS./202KG.
UCD4464N-8 8 NA NA 3 1/2 115/60/1 12 5-15P 456LBS./206KG.
UC4464N-12 12 2 5.9 14.7 1/2 115/60/1 12 5-15P 446LBS./202KG.
UCD4464N-12 12 NA NA 3 1/2 115/60/1 12 5-15P 456LBS./206KG.
UC4464N-16 16 2 5.9 14.7 1/2 115/60/1 12 5-15P 446LBS./202KG.
UCD4464N-16 16 NA NA 4 1/2 115/60/1 12 5-15P 456LBS./206KG.
INSTALLATION NOTE:
Refrigeration system is designed so that air will flow under the unit, through the compressor area and out the front of
the unit. Any restriction to this air flow path will void the warranties.
PLEASE NOTE:
Air flow through the louver on the back of the unit is not necessary for operation, however, any air which passes
through the louver is beneficial.
