Delfield SAW1-S User manual
Project __________________________________
Item ____________________________________
Quantity ________________________________
CSI Section 11400
Approved _______________________________
Date ____________________________________
980 S. Isabella Rd.
Mt. Pleasant, Michigan 48858 Phone: 800-733-8948 or 989-773-7981
Fax: 800-669-0619 www.delfield.com
Specifications
Models
Exterior: Cabinet exterior sides, front and shroud shall be 22-gauge,
corrosion resistant stainless steel. Upper shroud shall be hinged, with
stay-open feature to provide easy access to refrigeration system.
Interior: Cabinet interior shall be 22-gauge, corrosion resistant stain-
less steel (SS models) or heavy gauge aluminum (SA models). Bottom
and top surfaces are die stamped to provide radius corners and
recessed floor. Four chrome plated wine shelves are provided per
section. Shelves rest on clips which are adjustable in 1” increments
on stainless steel pilasters affixed to the cabinet interior. Each section
can hold up to 8 wine shelves. Each wine shelf holds 10 to 12 bottles.
Pilasters are removable without tools for cleaning. Interior light,
mounted to the interior ceiling is controlled automatically through a
switch mounted in the hinge assembly to protect against breakage.
Door openings are protected with heavy gauge stainless steel breaker
strips. An air duct is mounted to the ceiling assuring low velocity,
even air movement throughout the cabinet interior.
Doors: Exterior shall be 22-gauge, corrosion resistant stainless steel.
Interior liner shall be resilient high impact ABS material, formed to
protrude beyond the door gasket to protect the gasket from tearing.
Each door has two edge mount, self closing, cam lift style hinges.
Doors can be removed from cabinet without the use of tools. Metal
door handle is recessed into the door for easy grip without impact-
ing aisle space. Keyed door lock is mounted in the door next to the
handle. Lock engages into a heavy duty strike mounted to the cabi-
net face. Door gaskets are magnetic and mount to the door snapping
in place and are removable without tools.
Refrigeration system: All components are mounted to the exterior
cabinet ceiling, outside the food zone and are assembled as one piece
and can be removed as one piece. Environmentally friendly R404A
refrigerant is used. System has the capability of maintaining between
50˚F and 60˚F in heavy use food service operations. Refrigerant
is metered using a highly responsive thermostatic expansion
valve. System is controlled using Delfield’s ACT-Advanced Control
Technology electronic temperature control, which provides improved
pull down times, reducing compressor cycling and longer compressor
life with lower energy consumption.
Control system uses adaptive defrost to assure evaporator coil is free
of ice and operating at optimum efficiency. Evaporator condensate is
eliminated using an energy efficient hot gas system.
Electrical: Standard electrical connections shall be 115V, 60Hz, single
phase. A 10’ cord and plug is supplied attached to a junction box
mounted on the exterior top of the cabinet.
Standard Features Options &
Accessories
• Stainless steel interior and exterior (SS)
• Stainless steel exterior, aluminum
interior (SA)
• Built in door locks with heavy duty
strikes
• Recessed metal door handle
• Tough ABS interior door liners
• Exterior digital thermometer
• Easy to use electronic control
• Easy access “flip up” shroud
• Three chrome plated wine shelves per
section
• 10’ attached cord and plug standard
• 6” adjustable stainless steel legs
• Stainless steel breaker strips
• Energy savings door heater switch
• 50˚F to 60˚F temperature range
• Two year parts & labor warranty
SSW1-S 1 section stainless interior
full door
SSW1-SH 1 section stainless interior
half door
SAW1-S 1 section aluminum interior
full door
SAW1-SH 1 section aluminum interior
half door
SSW2-S 2 section stainless interior
full door
SSW2-SH 2 section stainless interior
half door
SAW2-S 2 section aluminum interior
full door
SAW2-SH 2 section aluminum interior
half door
SSW3-S 3 section stainless interior
full door
SSW3-SH 3 section stainless interior
half door
SAW3-S 3 section aluminum interior
full door
SAW3-SH 3 section aluminum interior
half door
Specication Line
Self-Contained solid door wine cabinet reach-in
Solid Door Wine Cabinet Reach-In
Stainless steel interior door liner
Door field rehingability
6” polyurethane casters
Additional shelves
Stainless steel back
Laminate on shroud, sides and
back
Bottom mount electrical
Stainless steel banking strip
Heat shield end
Stainless steel kick plate
Laminate kick plate
4” stainless steel utility base
Alarm control display
SSW2-SH
980 S. Isabella Rd.
Mt. Pleasant, Michigan 48858
Phone: 800-733-8948 or 989-773-7981
Fax: 800-669-0619
www.delfield.com
Printed in the U.S.A.
DSSSW
05/07
Specication Line Self-Contained Solid Door Wine Cabinet Reach-in

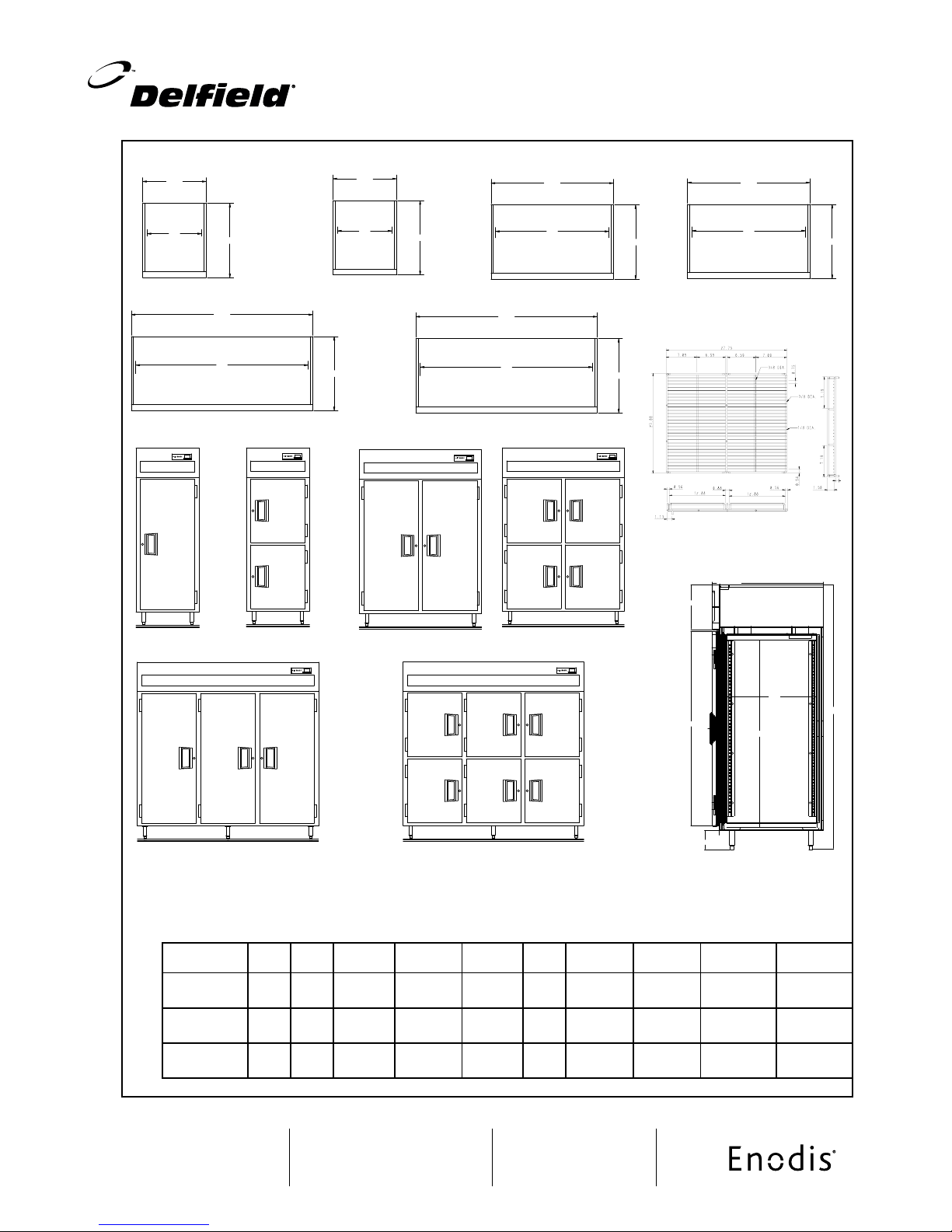

Mechanical Data
MODEL
NUMBER VOLTAGE AMPS STORAGE SHELVES SQ.FT. NO. OF
SHELVES
UNIT
H.P.
BTU/HR CAB
LOAD
BTU/HR
SYSTEM CAP
SHIP WEIGHT
LBS. NEMA PLUG
SSW1-S, SSW1-SH,
SAW1-S, SAW1-SH 115 8.5 24.96 12.81 3 1/4 758 2015 418 5-15P
SSW2-S, SSW2-SH,
SAW2-S, SAW2-SH 115 12.8 51.92 27.54 6 1/3 1374 2522 650 5-20P
SSW3-S, SSW3-SH,
SAW3-S, SAW3-SH 115 8.9 78.89 42.47 9 1/2 1971 3637 830 5-15P
END SECTION VIEW
ALL MODELS
ELEVATION VIEW
SSW1-S, SAW1-S
ELEVATION VIEW
SSW1-SH, SAW1-SH
ELEVATION VIEW
SSW2-S, SAW2-S
ELEVATION VIEW
SSW2-SH, SAW2-SH
PLAN VIEW
SSW1-S, SAW1-S
PLAN VIEW
SSW1-SH, SAW1-SH
PLAN VIEW
SSW2-S, SAW2-S
PLAN VIEW
SSW2-SH, SAW2-SH
PLAN VIEW
SSW3-S, SAW3-S
PLAN VIEW
SSW3-SH, SAW3-SH
ELEVATION VIEW
SSW3-S, SAW3-S
ELEVATION VIEW
SSW3-SH, SAW3-SH
30%#)&)#!4)/.,).% 30%#)&)#!4)/.,).% 30%#)&)#!4)/.,).%
30%#)&)#!4)/.,).% 30%#)&)#!4)/.,).% 30%#)&)#!4)/.,).%
30%#)&)#!4)/.,).% 30%#)&)#!4)/.,).% 30%#)&)#!4)/.,).%
30%#)&)#!4)/.,).% 30%#)&)#!4)/.,).% 30%#)&)#!4)/.,).%
30%#)&)#!4)/.,).% 30%#)&)#!4)/.,).% 30%#)&)#!4)/.,).%
30%#)&)#!4)/.,).% 30%#)&)#!4)/.,).% 30%#)&)#!4)/.,).%
30%#)&)#!4)/.,).% 30%#)&)#!4)/.,).% 30%#)&)#!4)/.,).%
30%#)&)#!4)/.,).% 30%#)&)#!4)/.,).% 30%#)&)#!4)/.,).%
30%#)&)#!4)/.,).% 30%#)&)#!4)/.,).% 30%#)&)#!4)/.,).%
30%#)&)#!4)/.,).% 30%#)&)#!4)/.,).% 30%#)&)#!4)/.,).%
30%#)&)#!4)/.,).% 30%#)&)#!4)/.,).% 30%#)&)#!4)/.,).%
30%#)&)#!4)/.,).% 30%#)&)#!4)/.,).% 30%#)&)#!4)/.,).%
30"
34.00”
14”
6
60”
58"
81”
WINE SHELF
ALL MODELS
