Delight Power Products Limited WB14 User manual

Quick Start Guide

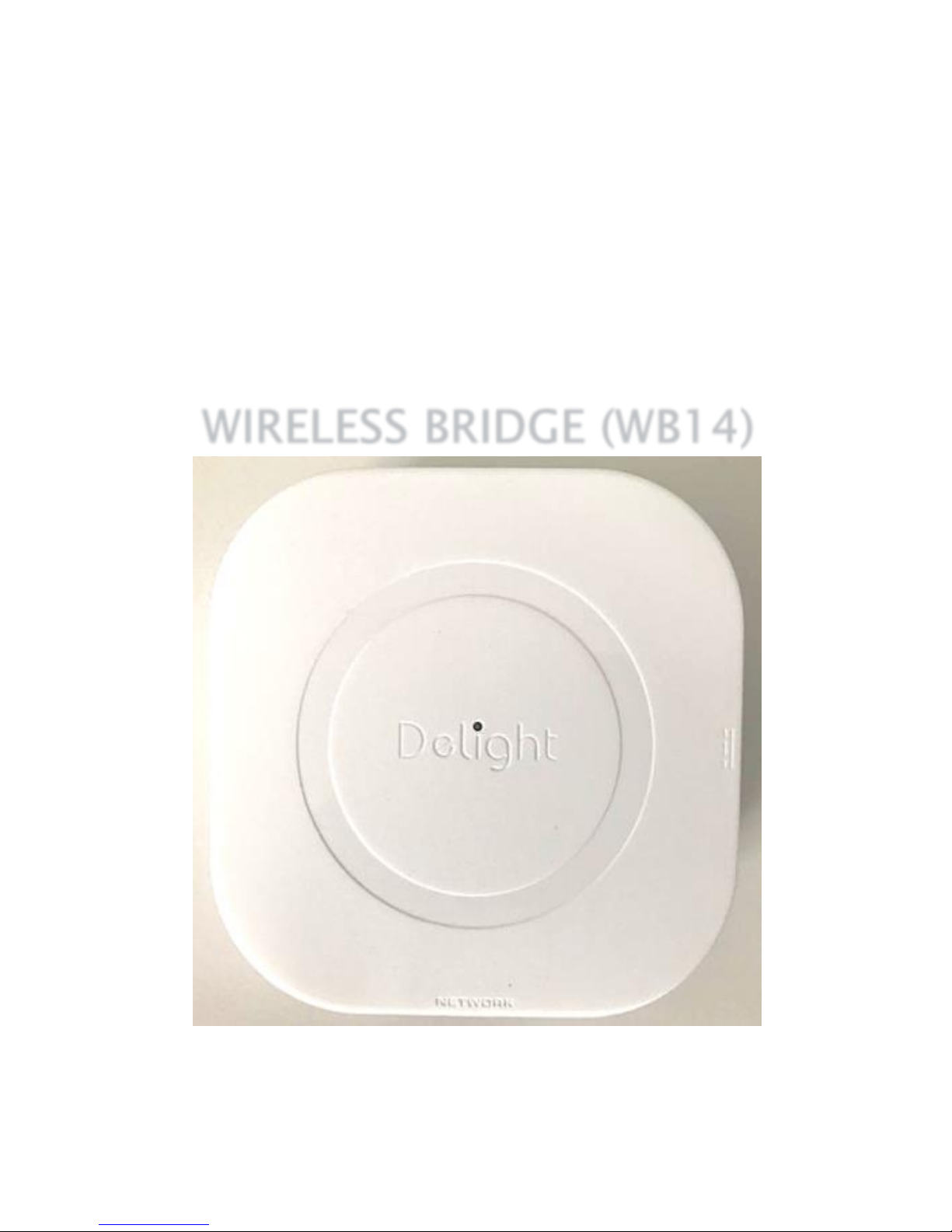

WIRELESS BRIDGE (WB14)

Delight Power Products Limited (DDPL)

1. Package Content

Wireless Bridge x 1

2. Specification
Product name
Wireless Bridge
Model name
WB14
Operating
frequency
433.3MHz

3. Getting to Know Your WIRELESS
BRIDGE
Your WIRELESS BRIDGE serves as a gateway and
communication bridge for Tablet to access and control
the Lighting Control System, which is used in both
operation and system to set up, it also provides a mean
to communicate with Internet World.
3.1. WIRELESS BRIDGE Function
LED Indicator

• Flashing Blue Light:
connecting to the Power
• Constant Blue Light: power is
connected

Cable Connector Port
• Use the Lane Cable to
connect with the
WIRELESS BRIDGE and
Wireless Router LAN 1 at
your home
USB Connector Port 1
• Insert the USB to the
WIRELESS BRIDGE
• Connect the USB to
Wireless Router for power
supply

USB Connector Port 2
• External spare port for
power supply

4. Quick Set Up Guide
4.1. Connecting WIRELESS BRIDGE
The following picture give you the instruction of how to
insert the USB to the WIRELESS BRIDGE. Firstly, you insert the
USB to your WIRELESS BRIDGE and then connect it to the
Wireless Router for power supply. Secondly, you use the Lane
Cable to connect with the WIRELESS BRIDGE and Wireless
Router LAN 1 at your home. Therefore, WIRELESS BRIDGE
should be fully functional. You can also see the LED constant
blue light is on, when the power is connected.

5. Safety and Use
We recommend that you read this chapter carefully before
using your WIRELESS BRIDGE. The manufacturer disclaims
any liability for damage, which may result as a consequence
of improper use or use contrary to the instructions contained
herein.
5.1. Condition of Use
Switch the device off before boarding an aircraft.
Switch the device off when you are in health care
facilities, except in designated areas. As with many
other types of equipment now in regular use, devices
can interfere with other electrical or electronic devices,
or equipment using radio frequency.

Switch the device off when you are near gas or
flammable liquids. Strictly obey all signs and
instructions posted in a fuel depot, petrol station, or
chemical plant, or in any potentially explosive
atmosphere.

 When the device is switched on, it should be kept at
least 15 cm from any medical device such as a
pacemaker, a hearing aid, or an insulin pump, etc.
When this device is switched on, it should be kept at
least 20 cm from thebody.
Do not let children use the device and/or play with
the device and accessorieswithoutsupervision.
If your device has a removable cover, note that your
device may contain substances that could create an
allergic reaction.
If your device is a unibody device, the back cover and
battery are not removable. If you disassemble your
device the warranty will not apply. Disassembling the
device may damage the battery, and may cause

leakage of substances that could create an allergic
reaction.
 Always handle your device with care and keep it in a
clean and dust- free place.
Do not allow your device to be exposed to adverse
weather or environmental conditions (moisture,
humidity, rain, infiltration of liquids, dust, sea air,
etc.). The manufacturer’s recommended operating
temperature range is -20°C (-4°F) to +65°C (149°F).
Do not open, dismantle, or attempt to repair your
device yourself. Do not drop, throw, or bend your
device.
Do not paint it.
Use the accessories which is recommended by Delight

Power Product Limited, and its affiliates and are
compatible with your WIRELESS BRIDGE.
WIRELESS BRIDGE must be disposed of in accordance
with locally applicable environmental regulations.
6. FCC
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2)
this device must accept any interference received,

including interference that may cause undesired
operation.
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses and can radi-ate radio frequency
energy and, if not in-stalled and used in accordance
with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee
that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which can
be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference
by one or more of the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
Consult the dealer or an experienced radio/ TV
technician for help.
Changes or modifications not expressly approved by
the party responsible for compliance could void the
user’s authority to operate the equipment.

7. Copyright © 2017 Delight Power
Products Limited. All Rights
Reserved.
7.1. Warranty
Product warranty or service will not be extended if: (1)
the product is repaired, modified or altered, unless
such repair, modification of alteration is authorized in
writing by Delight Power Products Limited (“DPPL”); or
(2) the serial number of the product is defaced or
missing.
DDPL provides this manual ‘’ As Is’’ without warranty of
