Bosch VideoJet X10 SN User manual

VideoJet X10 SN
Network Video Server
en Installation and Operating Manual

VideoJet X10 SN

VideoJet X10 SN Table of Contents | en 3
Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06
Table of Contents
1Preface 7
1.1 About this Manual 7
1.2 Conventions in this Manual 7
1.3 Intended Use 7
1.4 EU Directives 8
1.5 Rating Plate 8
2 Safety Information 9
2.1 Electric Shock Hazard 9
2.2 Installation and Operation 9
2.3 Maintenance and Repair 9
3 Product Description 11
3.1 Scope of Delivery 11
3.2 System Requirements 12
3.3 Overview of Functions 13
3.4 Connections on the Front Panel 16

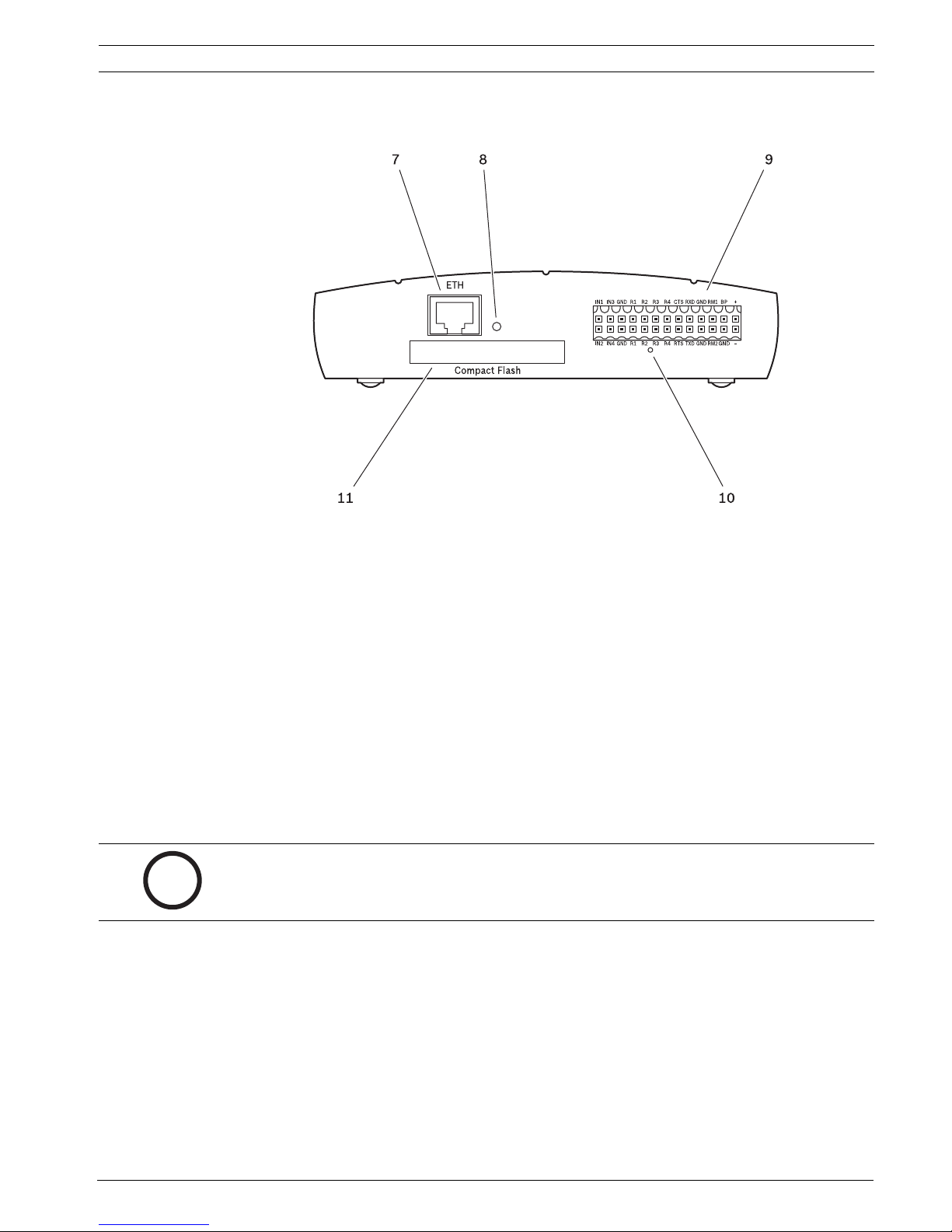

3.5 Connections on the Rear Panel 17
4 Installation 19
4.1 Preparations 19
4.2 Mounting 19
4.3 Connections 20
4.4 Power On/Power Off 24
4.5 Setup Using the Configuration Manager 24
5 Configuration Using a Web Browser 27
5.1 Connecting 27
5.2 Configuration Menu 29
5.3 Basic Mode: Unit Access 31
5.4 Basic Mode: Date/Time 32
5.5 Basic Mode: Network 33
5.6 Basic Mode: Encoder Profile 34
5.7 Basic Mode: Audio 35
5.8 Basic Mode: Recording 35
5.9 Basic Mode: System Overview 36
5.10 Advanced Mode: Identification 36
5.11 Advanced Mode: Password 38
5.12 Advanced Mode: Date/Time 39
5.13 Advanced Mode: Display Stamping 40
5.14 Advanced Mode: Appearance 41
5.15 Advanced Mode: LIVEPAGE Functions 42
5.16 Advanced Mode: Logging 44
5.17 Advanced Mode: Video Input 44
5.18 Advanced Mode: Picture Settings 45

4en | Table of Contents VideoJet X10 SN
DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems
5.19 Advanced Mode: Encoder Profile 46
5.20 Advanced Mode: Audio 49
5.21 Advanced Mode: Storage Management 50
5.22 Advanced Mode: Remote Video Device 52
5.23 Advanced Mode: Recording Profiles 53
5.24 Advanced Mode: Retention Time 55
5.25 Advanced Mode: Recording Scheduler 56
5.26 Advanced Mode: Recording Status 58
5.27 Advanced Mode: Alarm Connections 58
5.28 Advanced Mode: VCA 61
5.29 Advanced Mode: VCA Profiles 62
5.30 Advanced Mode: VCA Scheduled 66
5.31 Advanced Mode: VCA Event Triggered 68
5.32 Advanced Mode: Audio Alarm 69
5.33 Advanced Mode: Alarm E-Mail 70
5.34 Advanced Mode: Alarm Task Editor 72
5.35 Advanced Mode: Alarm Inputs 73
5.36 Advanced Mode: Relay 73
5.37 Advanced Mode: COM1 75
5.38 Advanced Mode: Network 76
5.39 Advanced Mode: Advanced 79
5.40 Advanced Mode: Multicasting 81
5.41 Advanced Mode: JPEG Posting 82
5.42 Advanced Mode: Encryption 83
5.43 Advanced Mode: Maintenance 84
5.44 Advanced Mode: Licenses 86
5.45 Advanced Mode: System Overview 86
5.46 Function Test 87
6Operation 89
6.1 Operation with Microsoft Internet Explorer 89
6.2 The LIVEPAGE 91
6.3 Saving Snapshots 94
6.4 Recording Video Sequences 94
6.5 Running Recording Program 94
6.6 The RECORDINGS Page 95
6.7 Installing the Player 97
6.8 Hardware Connections Between Video Servers 98
6.9 Operation Using Software Decoders 100
7 Maintenance and Upgrades 101
7.1 Testing the Network Connection 101
7.2 Unit Reset 101
7.3 Repairs 102
7.4 Transfer and Disposal 102
8 Appendix 103
8.1 Troubleshooting 103
8.2 General Malfunctions 104

VideoJet X10 SN Table of Contents | en 5
Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06
8.3 Malfunctions with iSCSI Connections 106
8.4 LEDs 107
8.5 Processor Load 108
8.6 Network Connection 108
8.7 Serial Interface 108
8.8 Terminal Block 109
8.9 Communication with Terminal Program 110
8.10 Copyrights 112
9 Specifications 113
9.1 Unit 113
9.2 Protocols/Standards 114
10 Glossary 115
11 Index 119

6en | Table of Contents VideoJet X10 SN
DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems

VideoJet X10 SN Preface | en 7
Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06
1Preface
1.1 About this Manual
This manual is intended for persons responsible for the installation and operation of the
VideoJet X10 SN. International, national and any regional electrical engineering regulations
must be followed at all times. Relevant knowledge of network technology is required. The
manual describes the installation and operation of the unit.
1.2 Conventions in this Manual
In this manual, the following symbols and notations are used to draw attention to special
situations:
1.3 Intended Use
The VideoJet X10 SN network video server transfers video, audio and control signals over data
networks (Ethernet LAN, Internet). There are various memory options for recording the
images captured by the connected camera. The unit is intended for use with CCTV systems.
Various functions can be triggered automatically by incorporating external alarm sensors.
Other applications are not permitted.
In the event of questions concerning the use of the unit which are not answered in this
manual, please contact your sales partner or:
Bosch Security Systems
Robert-Koch-Straße 100
85521 Ottobrunn
Germany
www.boschsecurity.com
!
CAUTION!
This symbol indicates that failure to follow the safety instructions described may endanger
persons and cause damage to the unit or other equipment.
It is associated with immediate, direct hazards.
i
NOTICE!
This symbol refers to features and indicates tips and information for easier, more convenient
use of the unit.

8en | Preface VideoJet X10 SN
DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems
1.4 EU Directives
The VideoJet X10 SN network video server complies with the requirements of EU Directives
89/336 (Electromagnetic Compatibility) and 73/23, amended by 93/68 (Low Voltage
Directive).
1.5 Rating Plate
For exact identification, the model name and serial number are inscribed on the bottom of the
housing. Please make a note of this information before installation, if necessary, so as to have
it to hand in case of questions or when ordering spare parts.

VideoJet X10 SN Safety Information | en 9
Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06
2 Safety Information
2.1 Electric Shock Hazard
– Never attempt to connect the unit to any power network other than the type for which it
is intended.
– Use only power supply units with UL approval and a power output according to LPS or
NEC Class 2.
– Never open the housing.
– Never open the housing of the power supply unit.
– If a fault occurs, disconnect the power supply unit from the power supply and from all
other units.
– Install the power supply and the unit only in a dry, weather-protected location.
– If safe operation of the unit cannot be ensured, remove it from service and secure it to
prevent unauthorized operation. In such cases, have the unit checked by Bosch Security
Systems.
Safe operation is no longer possible in the following cases:
– if there is visible damage to the unit or power cables,
– if the unit no longer operates correctly,
– if the unit has been exposed to rain or moisture,
– if foreign bodies have penetrated the unit,
– after long storage under adverse conditions, or
– after exposure to extreme stress in transit.
2.2 Installation and Operation
– The relevant electrical engineering regulations and guidelines must be complied with at
all times during installation.
– Relevant knowledge of network technology is required to install the unit.
– Before installing or operating the unit, make sure you have read and understood the
documentation for the other equipment connected to it, such as cameras. The
documentation contains important safety instructions and information about permitted
uses.
– Perform only the installation and operation steps described in this manual. Any other
actions may lead to personal injury, damage to property or damage to the equipment.
2.3 Maintenance and Repair
– Never open the housing of the VideoJet X10 SN. The unit does not contain any user-
serviceable parts.
– Never open the housing of the power supply unit. The power supply unit does not contain
any user-serviceable parts.
– Ensure that all maintenance or repair work is carried out only by qualified personnel
(electrical engineers or network technology specialists).

10 en | Safety Information VideoJet X10 SN
DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems

VideoJet X10 SN Product Description | en 11
Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06
3 Product Description
3.1 Scope of Delivery
– VideoJet X10 SN network video server
– 4 terminal blocks
– Quick Installation Guide
– Product CD with the following content:
– Quick Installation Guide
–Manual
– System Requirements document
– Further documentation on Bosch Security Systems products
– Configuration Manager
–MPEGActiveXcontrol
– Player and Archive Player
– DirectX control
– Microsoft Internet Explorer
– Sun JVM
– Adobe Acrobat Reader
i
NOTICE!
Check that the delivery is complete and in perfect condition. Arrange for the unit to be
checked by Bosch Security Systems if you find any damage.

12 en | Product Description VideoJet X10 SN
DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems
3.2 System Requirements
General Requirements
– Computer with Windows XP or Windows Vista operating system
– Network access (Intranet or Internet)
– Screen resolution 1,024 × 768 pixels
– 16- or 32-bit color depth
– Installed Sun JVM
Additional Configuration Requirements
– Microsoft Internet Explorer (version 6.0 or higher)
or
– Installed Configuration Manager program (version 2.0 or higher)
Additional Operational Requirements
– Microsoft Internet Explorer (version 6.0 or higher)
or
– Receiver software, for example VIDOS (version 3.11 or higher) or Bosch Video
Management System (version 2.02 or higher)
or
– MPEG-4 compatible hardware decoder from Bosch Security Systems (for example
VIP XD) as a receiver and connected video monitor
– For playing back recordings: connection to storage medium
i
NOTICE!
Also note the information in the System Requirements document on the product CD
supplied. If necessary, you can install the required programs and controls from the product
CD supplied (see Section 3.1 Scope of Delivery, page 11).
The Web browser must be configured to enable Cookies to be set from the IP address of the
unit.
In Windows Vista, deactivate protected mode on the Security tab under Internet Options.
You can find notes on using Microsoft Internet Explorer in the online Help in Internet Explorer.

VideoJet X10 SN Product Description | en 13
Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06
3.3 Overview of Functions
Network Video Server
The VideoJet X10 SN is a compact network video server for a connected video source. It is
primarily designed for encoding video, audio and control data for transfer over an IP network.
With its encoding in the MPEG-4 format, the VideoJet X10 SN is ideally suited for making
existing analog CCTV cameras IP-compatible and for remote access to digital VCRs and
multiplexers.
The use of existing networks means that integration with CCTV systems or local networks can
be achieved quickly and easily.
Two units, for example a VideoJet X10 SN as a sender and a VIP XD as a receiver, can create a
standalone system for data transfer without a PC. Video images from a single sender can be
received simultaneously on multiple receivers. Audio signals can also be transmitted from and
to compatible units.
Receiver
Compatible MPEG-4 enabled hardware decoders (for example the VIP XD) can be used as
receivers. Computers with decoding software such as VIDOS or computers with the Microsoft
Internet Explorer Web browser can also be used as receivers.
Video Encoding
The VideoJet X10 SN uses the MPEG-4 and H.264 video compression standards. Thanks to
efficient encoding, the data rate remains low even with high image quality and can also be
adapted to local conditions within wide limits.
Dual Streaming
Dual Streaming allows the incoming data stream to be encoded simultaneously according to
two different, individually customized profiles. This feature creates two data streams that can
serve different purposes, for example one for recording and one optimized for live
transmission over the LAN.
Multicast
In suitably configured networks, the multicast function enables simultaneous real-time video
transmission to multiple receivers. The UDP and IGMP V2 protocols must be implemented on
the network for this function.
Encryption
The VideoJet X10 SN offers a variety of options for protection against unauthorized reading.
Web browser connections can be protected using HTTPS. You can protect the control
channels via the SSL encryption protocol. With an additional license, the user data itself can
be encrypted.

14 en | Product Description VideoJet X10 SN
DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems
Remote Control
For remote control of external units such as pan or tilt heads for cameras or motorized zoom
lenses, control data is transmitted via the VideoJet X10 SN's bidirectional serial interface. This
interface can also be used to transmit transparent data.
Tamper Detection and Motion Detectors
The VideoJet X10 SN offers a wide range of configuration options for alarm signaling in the
event of tampering with the connected camera. An algorithm for detecting movement in the
video image is also part of the scope of delivery and can optionally be extended to include
special video analysis algorithms.
Snapshots
Individual video frames (snapshots) can be called up as JPEG images by the VideoJet X10 SN,
stored on the computer's hard drive or displayed in a separate browser window.
Recordings
Various local memory options enable the VideoJet X10 SN to be used as a digital VCR. The
VideoJet X10 SN supports ANR technology, which guarantees seamless recording without
gaps via VIDOS-NVR, even during network failures. A connection to an appropriately
configured iSCSI system enables long-term recordings with high image quality over the
network.
Backup
A function for storing the video images displayed on the hard drive of your computer is
available on the LIVEPAGE as well as on the RECORDINGS page. Video sequences can be
stored by means of a mouse click and can be redisplayed using the Player supplied as part of
the scope of delivery.

VideoJet X10 SN Product Description | en 15
Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06
Summary
The VideoJet X10 SN provides the following main functions:
– Video and data transmission over IP data networks
– Dual Streaming function for the encoder for simultaneous encoding with two individually
definable profiles
– Multicast function for simultaneous image transmission to multiple receivers
– One analog BNC composite video input (PAL/NTSC)
– Video encoding to international standard MPEG-4
– Integrated Ethernet port (10/100 Base-T)
– CF slot for CompactFlash cards for local storage
– USB interfaces for future WAN or WLAN connections
– Transparent, bidirectional data channel via RS-232/RS-422/RS-485 serial interface
– Configuration and remote control of all internal functions via TCP/IP, also secured via
HTTPS
– Password protection to prevent unauthorized connection or configuration changes
– Extensive, flexible storage options
– Four alarm inputs and four relay outputs
– Built-in video sensor for motion and tamper alarms
– Event-controlled automatic connection
– Convenient maintenance via uploads
– Flexible encryption of control and data channels
– Authentication according to international standard 802.1x
– Transmission and receipt of audio signals
– Bidirectional audio (mono) for line connections
– Audio encoding to international standard G.711

16 en | Product Description VideoJet X10 SN
DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems
3.4 Connections on the Front Panel
1USBinterface
for future expansion of functions
2VideoInvideo input
BNC socket for connecting the video source
3 Audio In audio line input
3.5 mm stereo socket for connecting an audio line input signal
4 Audio Out audio line output
3.5 mm stereo socket for connecting an audio line output signal
5 Connect LED
flashes green when the unit is connected to a video
6CFLED
flashes orange when activity is detected on the CF card

VideoJet X10 SN Product Description | en 17
Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06
3.5 Connections on the Rear Panel
7ETHRJ45 socket
for connecting to an Ethernet LAN (local network), 10/100 MBit Base-T
8ETHLED
lights up yellow when the unit is connected to the network via ETH
9Terminal block
for alarm inputs, relay outputs, serial interface and power supply
10 Factory reset button
to restore factory default settings
11 Compact Flash slot
for a CF card type I or type II
i
NOTICE!
For more information about the LEDs, see Section 8.4 LEDs, page 107.
For terminal block assignment, see Section 8.8 Terminal Block, page 109.

18 en | Product Description VideoJet X10 SN
DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems

VideoJet X10 SN Installation | en 19
Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06
4 Installation
4.1 Preparations
Please ensure the following installation conditions:
– Do not install the unit close to heaters or other heat sources. Avoid locations exposed to
direct sunlight.
– Allow sufficient space for running cables.
– Ensure that the unit has adequate ventilation.
– When making connections, use only the cables supplied or use appropriate cables
immune to electromagnetic interference.
– Position and run all cables so that they are protected from damage, and provide
adequate cable strain relief where needed.
– Avoid impacts, blows and severe vibrations that exceed the specification limits (see
Section 9 Specifications, page 113), as these can irreparably damage the unit.
4.2 Mounting
You can purchase a rack-mount kit from Bosch Security Systems, which is designed to
accommodate three VideoJet X10 SN.
!
CAUTION!
The unit is intended for use indoors or in housings.
Select a suitable location for installation that guarantees to meet the environmental
conditions. The ambient temperature must be between 0 and +50 °C (+32 and +122 °F). The
relative humidity must not exceed 95%.
The VideoJet X10 SN generates heat during operation, so you should ensure that there is
adequate ventilation and enough clearance between the unit and heat-sensitive objects or
equipment.

20 en | Installation VideoJet X10 SN
DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems
4.3 Connections
Camera
You can connect a video source to the VideoJet X10 SN. Any cameras and other video sources
that produce a standard PAL or NTSC signal are suitable.
1. Connect the camera or another video source to the BNC Video In socket using a video
cable (75 Ohm, BNC plug).
2. If the video signal is not looped through, termination is performed by a software setting if
necessary (see Section 5.17 Advanced Mode: Video Input, page 44).
Audio Connections
The VideoJet X10 SN has two audio ports for audio line signals.
The audio signals are transmitted two-way and in sync with the video signals. As a result, you
can connect a speaker or door intercom system at the destination point, for example. The
following specifications should be complied with in all cases.
The stereo plugs must be connected as follows:
1. Connect an audio source with line level to the Audio In socket of the VideoJet X10 SN
with a 3.5 mm stereo plug.
2. Connect a unit with line-in connection to the Audio Out socket of the VideoJet X10 SN
with a 3.5 mm stereo plug.
Network
You can connect the VideoJet X10 SN to a 10/100 Base-T network using a standard UTP
category 5 cable with RJ45 plugs.
XConnect the VideoJet X10 SN to the network via the ETH socket.
CF Slot
You can insert a type I or II CompactFlash card into the Compact Flash slot to enable
recordings to be saved locally. CF cards are the ideal solution for shorter storage times and
temporary recordings, for example alarm recordings or local buffering in the event of network
interruptions.
Playing back recordings is also possible using a different VideoJet X10, a VideoJet X20 or a
VideoJet X40.
1 × Line In: Impedance 9 kOhm typ., 5.5 Vp-p max. input voltage
1 × Line Out: Impedance 10 kOhm typ., 3.0 Vp-p max. output voltage,
impedance 16 Ohm min., 1.7 Vp-p max. output voltage
Contact Line In function Line Out function
Tip Channel 1 Channel 1
Middle ring – –
Lower ring Ground Ground
i
NOTICE!
You can obtain a list of compatible CF cards from your supplier or directly from Bosch
Security Systems. This list is constantly being updated and extended.
