Dell™ Dimension™ 9150 Service Manual
Before You Begin
About Your Computer
Removing the Computer Cover
Technical Overview
Specifications
Advanced Troubleshooting
System Setup
Removing and Installing Parts
Replacing the Computer Cover
Notes, Notices, and Cautions
NOTE: A NOTE indicates important information that helps you make better use of your computer.
NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the
problem.
CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.
If you purchased a Dell™ n Series computer, any references in this document to Microsoft® Windows® operating systems are
not applicable.
Information in this document is subject to change without notice.
© 2006 Dell Inc. All rights reserved.
Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell, the DELL logo, and Dimension are trademarks of Dell Inc.; Intel, Pentium, and SpeedStep are registered
trademarks of Intel Corporation; Microsoft and Windows are registered trademarks of Microsoft Corporation.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products.
Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.
Model DCTA
August 2006 &nbspRev. A01

Before You Begin: Dell Dimension 9150 Service Manual
file:///T|/htdocs/systems/dim9150/en/sm/before.htm[10/31/2012 7:58:43 AM]
Back to Contents Page
Before You Begin
Dell™ Dimension™ 9150 Service Manual
Getting Started
Recommended Tools
Turning Off Your Computer
Before Working Inside Your Computer
Getting Started
This chapter provides procedures for removing and installing the components in your computer. Unless otherwise noted, each
procedure assumes that the following conditions exist:
You have performed the steps in "Turning Off Your Computer" and "Before Working Inside Your Computer."
You have read the safety information in your Dell™ Product Information Guide.
A component can be replaced by performing the removal procedure in reverse order.
Recommended Tools
The procedures in this document may require the following tools:
Small flat-blade screwdriver
Phillips screwdriver
Long Phillips screwdriver
Flash BIOS update program floppy disk or CD
Turning Off Your Computer
NOTICE: To avoid losing data, save and close any open files and exit any open programs before you turn off your
computer.
1. Shut down the operating system:
a. Save and close any open files, exit any open programs, click the Start button, and then click Turn Off
Computer.
b. In the Turn off computer window, click Turn off.
The computer turns off after the operating system shutdown process finishes.
2. Ensure that the computer and any attached devices are turned off. If your computer and attached devices did not
automatically turn off when you shut down your operating system, press and hold the power button for 4 seconds.

Before You Begin: Dell Dimension 9150 Service Manual
file:///T|/htdocs/systems/dim9150/en/sm/before.htm[10/31/2012 7:58:43 AM]
Before Working Inside Your Computer
Use the following safety guidelines to help protect your computer from potential damage and to help ensure your own
personal safety.
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the
Product Information Guide.
CAUTION: Handle components and cards with care. Do not touch the components or contacts on a card.
Hold a card by its edges or by its metal mounting bracket. Hold a component such as a processor by its
edges, not by its pins.
NOTICE: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is
not authorized by Dell is not covered by your warranty.
NOTICE: When you disconnect a cable, pull on its connector or on its strain-relief loop, not on the cable itself. Some
cables have a connector with locking tabs; if you are disconnecting this type of cable, press in on the locking tabs
before you disconnect the cable. As you pull connectors apart, keep them evenly aligned to avoid bending any
connector pins. Also, before you connect a cable, ensure that both connectors are correctly oriented and aligned.
NOTICE: To avoid damaging the computer, perform the following steps before you begin working inside the computer.
1. Turn off your computer.
NOTICE: To disconnect a network cable, first unplug the cable from your computer and then unplug it from the
network port or device.
2. Disconnect any telephone or telecommunication lines from the computer.
3. Disconnect your computer and all attached devices from their electrical outlets, and then press the power button to
ground the system board.
NOTICE: Before touching anything inside your computer, ground yourself by touching an unpainted metal surface,
such as the metal at the back of the computer. While you work, periodically touch an unpainted metal surface to
dissipate any static electricity that could harm internal components.
Back to Contents Page

About Your Computer: Dell Dimension 9150 Service Manual
file:///T|/htdocs/systems/dim9150/en/sm/about.htm[10/31/2012 7:58:47 AM]
Back to Contents Page
About Your Computer
Dell™ Dimension™ 9150 Service Manual
Front View of the Computer
Back View of the Computer
Front View of the Computer
1cover latch
release Use this latch to remove the cover. See "Removing the Computer Cover."
2CD or DVD
activity
light
The drive light is on when the computer reads data from the CD or DVD drive.
3CD or DVD
eject
button
Press to eject a disc from the CD or DVD drive.
4 Floppy
drive bay Can contain an optional floppy drive.
5 FlexBay Can contain an optional floppy drive or optional Media Card Reader.
6IEEE 1394 Use the optional IEEE 1394 connector for high-speed data devices such as

About Your Computer: Dell Dimension 9150 Service Manual
file:///T|/htdocs/systems/dim9150/en/sm/about.htm[10/31/2012 7:58:47 AM]
connector
(optional)
digital video cameras and external storage devices.
7 vents For adequate cooling, do not block any of the vents.
NOTICE: Do not use the vents as handles; doing so may result in damage to
your computer. Also, ensure that there is a minimum of two inches of space
between all vents and any object near these vents.
8USB 2.0
connectors
(2)
Use the front USB connectors for devices that you connect occasionally, such
as joysticks or cameras. It is recommended that you use the back USB
connectors for devices that typically remain connected, such as printers,
keyboards, and mice, or for bootable USB devices, which may not function
properly if attached to the front connectors.
9 power
button Press to turn on the computer.
NOTICE: To avoid losing data, do not use the power button to turn off the
computer. Instead, perform an operating system shutdown.
10 hard-drive
activity
light
The hard drive activity light is on when the computer reads data from or
writes data to the hard drive. The light might also be on when a device such
as a CD player is operating.
11 diagnostic
lights (4) Use the lights to help you troubleshoot a computer problem based on the diagnostic code. For more information, see "Diagnostic Lights."
12 headphone
connector Use the headphone connector to attach headphones.
13 microphone
connector Use the microphone connector to attach a personal computer microphone for voice or musical input into a sound or telephony program.
14 Service
Tag Used to identify your computer when you access the Dell Support website or call technical support.
Back View of the Computer

About Your Computer: Dell Dimension 9150 Service Manual
file:///T|/htdocs/systems/dim9150/en/sm/about.htm[10/31/2012 7:58:47 AM]
1 power
connector Insert the power cable.
2 sound
card
connectors
(5)
Line-in connector — Use the blue line-in connector to attach a
record/playback device such as a cassette player, CD player, or VCR.
Line-out connector — Use the green line-out connector to attach
headphones and most speakers with integrated amplifiers.
Microphone connector — Use the pink microphone connector to attach a
personal computer microphone for voice or musical input into a sound or
telephony program.
Surround connector — Use the black surround connector to attach
multichannel-capable speakers.
Center/subwoofer (Center/LFE) connector — Use the yellow subwoofer
connector to attach multiple speakers.
3 network
connector To attach your computer to a network or broadband device, connect one end of a network cable to either a network port or your network or broadband device.
Connect the other end of the network cable to the network connector on your
computer. A click indicates that the network cable has been securely attached.
NOTE: Do not plug a telephone cable into the network connector.
On computers with a network connector card, use the connector on the card.
4USB 2.0
connectors
(5)
Use the back USB connectors for devices that typically remain connected, such
as printers, keyboards, and mice, or for bootable USB devices which may not
function properly if attached to the front connectors (see "System Setup" for
more information on booting to a USB device)
It is recommended that you use the front USB connectors for devices that you
connect occasionally, such as joysticks or cameras.
5card slots
(6) Access connectors for any installed PCI or PCI Express cards.
Back to Contents Page

About Your Computer: Dell Dimension 9150 Service Manual
file:///T|/htdocs/systems/dim9150/en/sm/about.htm[10/31/2012 7:58:47 AM]

Removing the Computer Cover: Dell Dimension 9150 Service Manual
file:///T|/htdocs/systems/dim9150/en/sm/cvrop.htm[10/31/2012 7:58:49 AM]
Back to Contents Page
Removing the Computer Cover
Dell™ Dimension™ 9150 Service Manual
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the
Product Information Guide.
CAUTION: To guard against electrical shock, always unplug your computer from the electrical outlet before
removing the cover.
NOTICE: Before touching anything inside your computer, ground yourself by touching an unpainted metal surface,
such as the metal at the back of the computer. While you work, periodically touch an unpainted metal surface to
dissipate any static electricity that could harm internal components.
1. Follow the procedures in "Before You Begin."
2. If you have installed a security cable, remove it from the security cable slot.
NOTICE: Ensure that sufficient space exists to support the removed cover—at least 30 cm (1 ft) of desk top space.
NOTICE: Ensure that you are working on a level, protected surface to avoid scratching either the computer or the
surface on which it is resting.
3. Lay your computer on its side with the computer cover facing up.

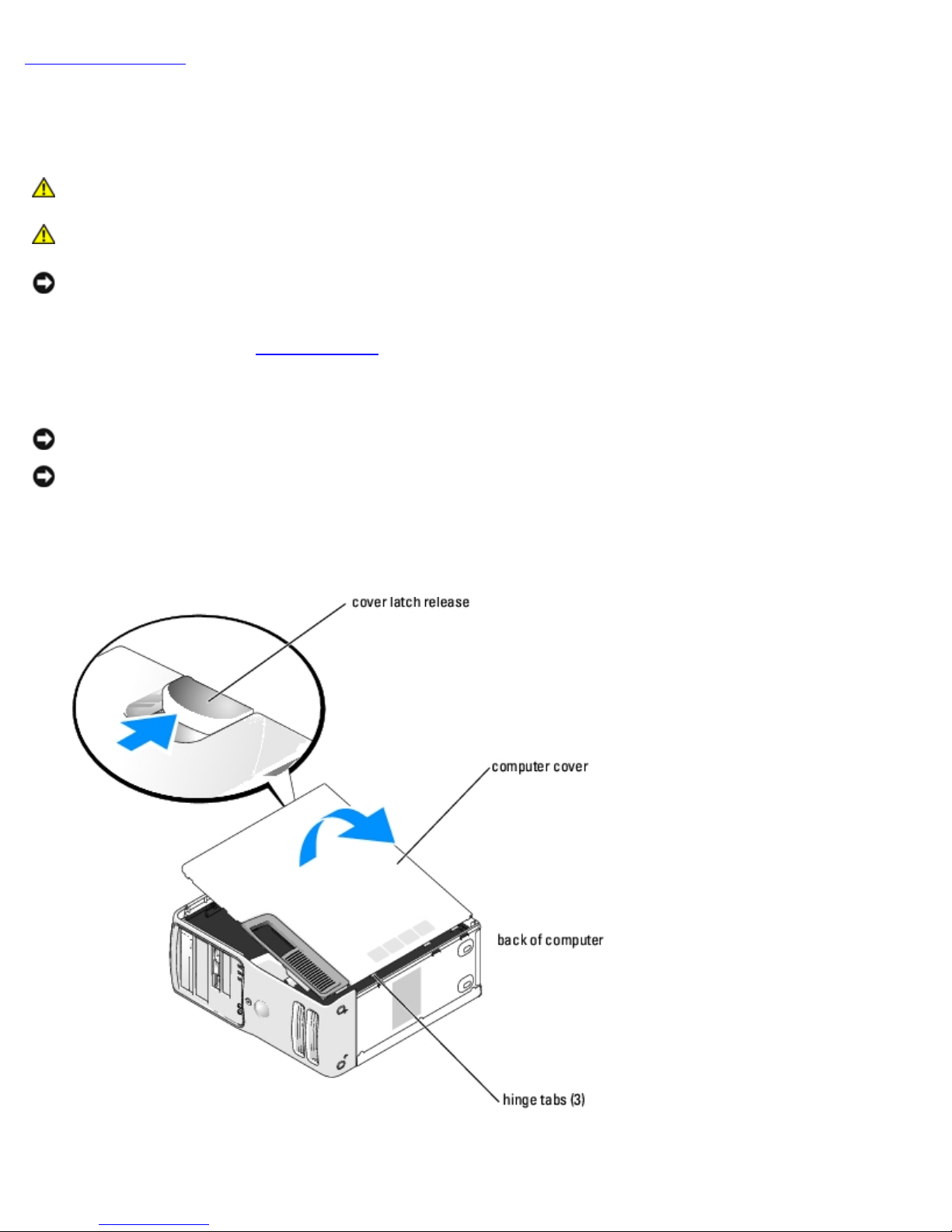

4. Pull back the cover latch release on the top panel.
5. Locate the three hinge tabs on the bottom edge of the computer.

Removing the Computer Cover: Dell Dimension 9150 Service Manual
file:///T|/htdocs/systems/dim9150/en/sm/cvrop.htm[10/31/2012 7:58:49 AM]
6. Grip the sides of the computer cover and pivot the cover up.
7. Lift the cover away and set it aside in a secure location.
Back to Contents Page

Technical Overview: Dell Dimension 9150 Service Manual
file:///T|/htdocs/systems/dim9150/en/sm/techov.htm[10/31/2012 7:58:55 AM]
Back to Contents Page
Technical Overview
Dell™ Dimension™ 9150 Service Manual
Inside View of Your Computer
System Board Components
Power Supply DC Connector Pin Assignments
Inside View of Your Computer
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the
Product Information Guide.

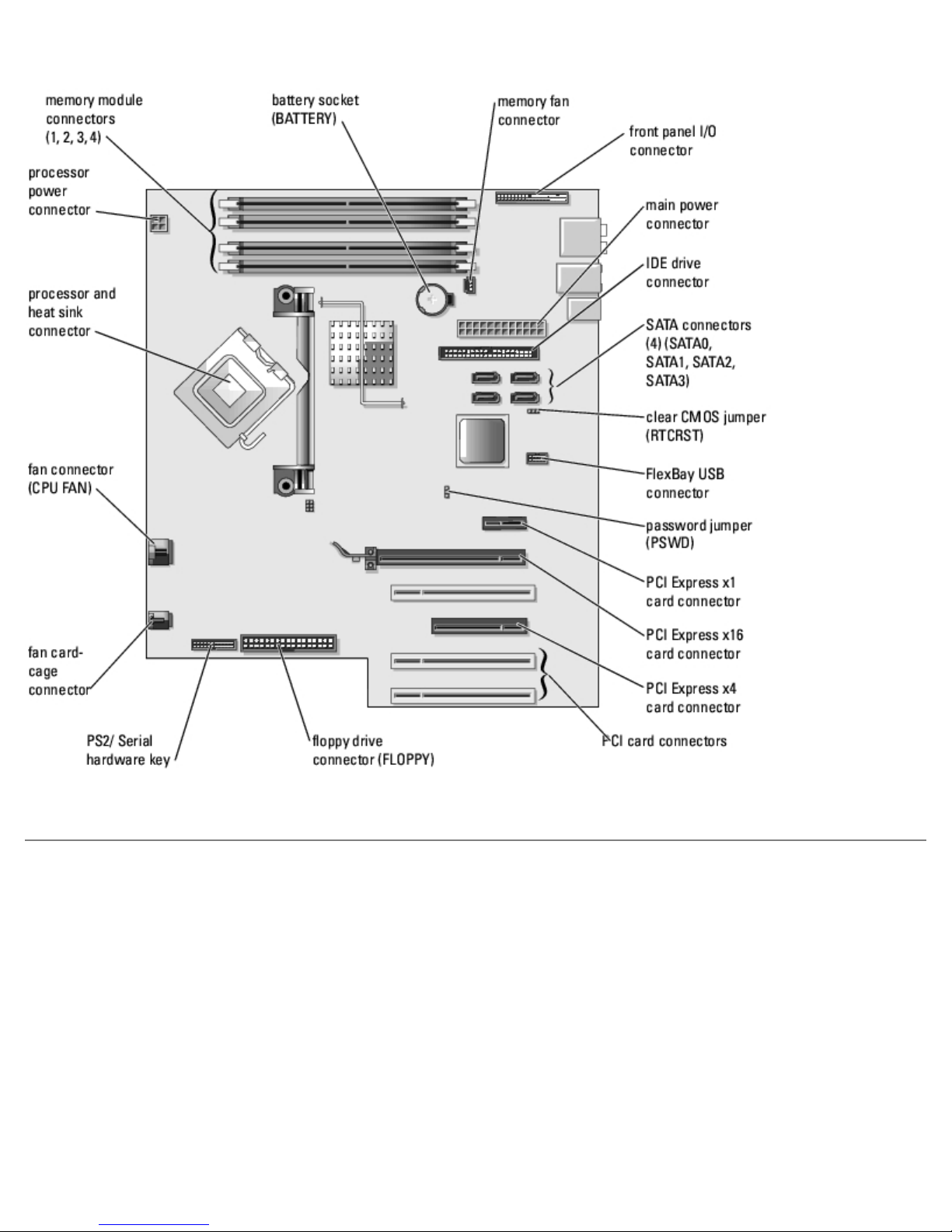

System Board Components

Technical Overview: Dell Dimension 9150 Service Manual
file:///T|/htdocs/systems/dim9150/en/sm/techov.htm[10/31/2012 7:58:55 AM]

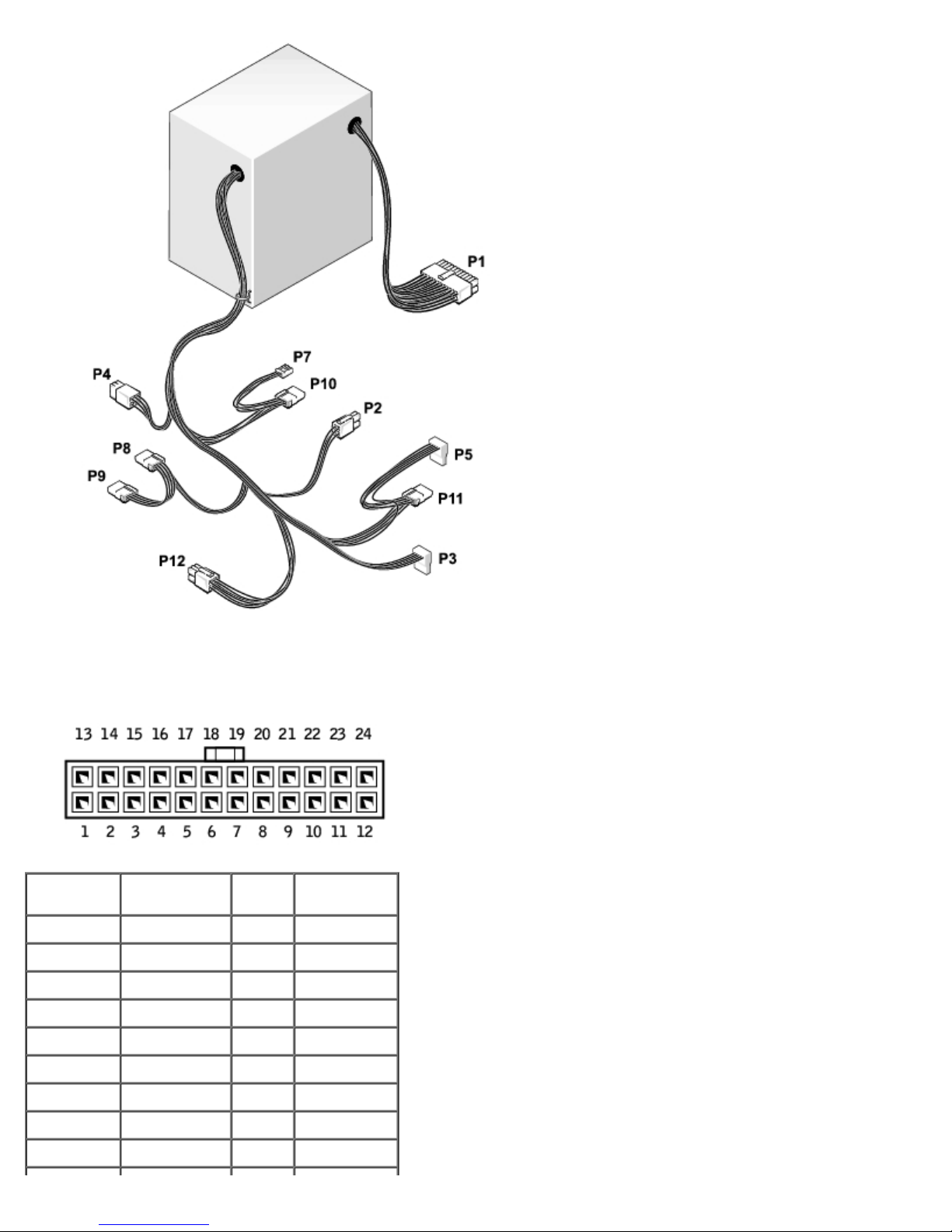

Power Supply DC Connector Pin Assignments

Technical Overview: Dell Dimension 9150 Service Manual
file:///T|/htdocs/systems/dim9150/en/sm/techov.htm[10/31/2012 7:58:55 AM]
DC Power Connector P1
Pin Number Signal Name Color Wire Gauge
1+3.3 VDC Orange 18-AWG
2+3.3 VDC Orange 18-AWG
3 COM Black 18-AWG
4+5 VDC Red 18-AWG
5 COM Black 18-AWG
6+5 VDC Red 18-AWG
7 COM Black 18-AWG
8 POK Gray 18-AWG
9+5 VFP Purple 18-AWG

Technical Overview: Dell Dimension 9150 Service Manual
file:///T|/htdocs/systems/dim9150/en/sm/techov.htm[10/31/2012 7:58:55 AM]
10 +12 VB DC White 18-AWG
11 +12VB DC White 18-AWG
12 +3.3 VDC Orange 18-AWG
13 +3.3 VDC Orange 18-AWG
14 -12 VDC Blue 18-AWG
15 COM Black 18-AWG
16 PS-ON Green 18-AWG
17 COM Black 18-AWG
18 COM Black 18-AWG
19 COM Black 18-AWG
20 N/C N/C 18-AWG
21 +5 VDC Red 18-AWG
22 +5 VDC Red 18-AWG
23 +5 VDC Red 18-AWG
24 COM Black 18-AWG

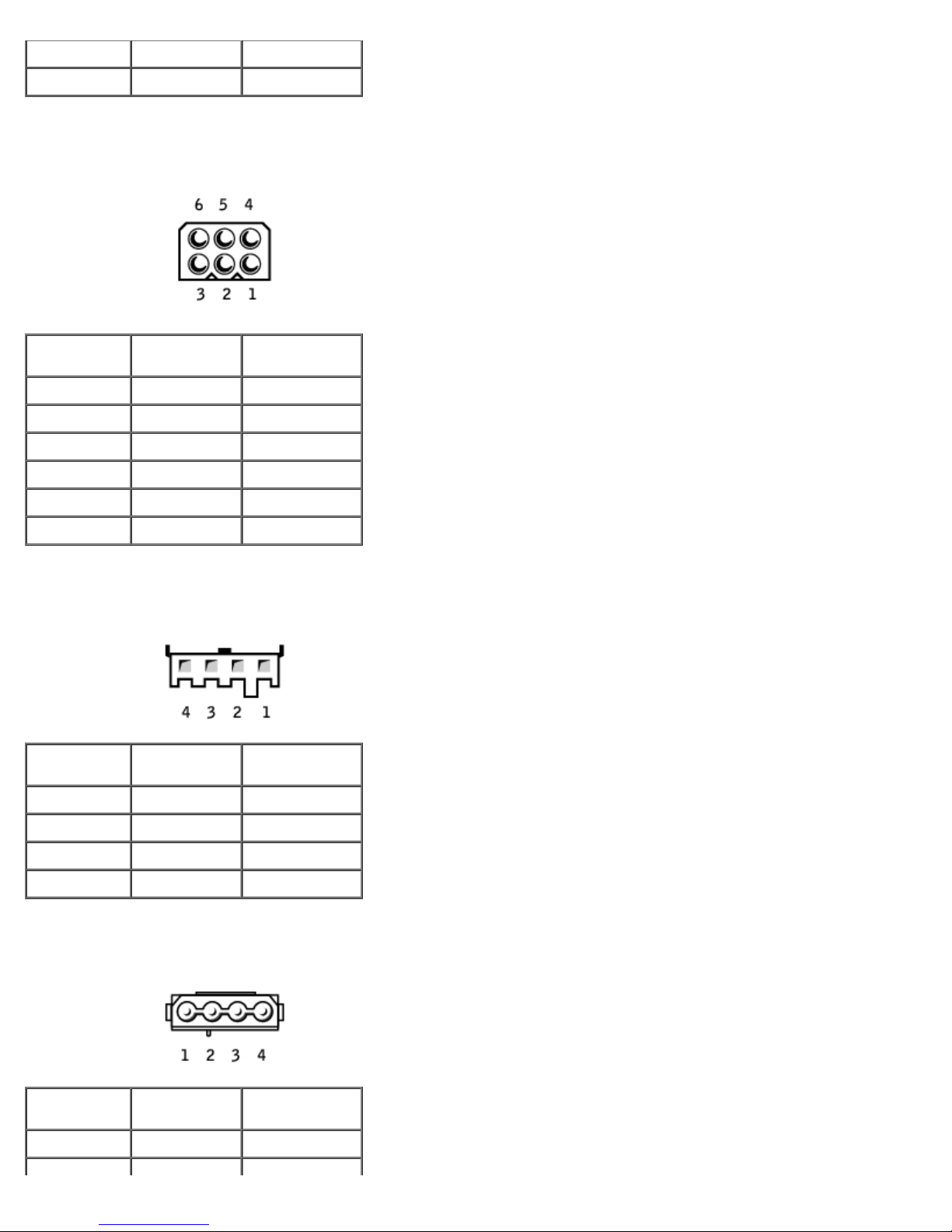

DC Power Connector P2
Pin Number Signal Name 18-AWG Wire
1 COM Black
2 COM Black
3+12 VA DC Yellow
4+12 VA DC Yellow
DC Power Connect P3 and P5
Pin Number Signal Name 18-AWG Wire
1+3.3 VDC Orange
2 COM Black
3+5 VDC Red

Technical Overview: Dell Dimension 9150 Service Manual
file:///T|/htdocs/systems/dim9150/en/sm/techov.htm[10/31/2012 7:58:55 AM]
4 COM Black
5+12 VB DC White
DC Power Connector P4
Pin Number Signal Name 18-AWG Wire
1 N/C N/C
2 COM Black
3 COM Black
4+3.3 VDC Orange
5+5 VDC Red
6+12A VDC Yellow
DC Power Connector P7
Pin Number Signal Name 18-AWG Wire
1+5 VDC Red
2 COM Black
3 COM Black
4+12 A VDC Yellow
DC Power Connectors P8, P9, and P10
Pin Number Signal Name 18-AWG Wire
1+12 VA DC Yellow

Technical Overview: Dell Dimension 9150 Service Manual
file:///T|/htdocs/systems/dim9150/en/sm/techov.htm[10/31/2012 7:58:55 AM]
2 COM Black
3 COM Black
4+5V DC Red
NOTE: The P10 connector is intended for use with PCI Express graphics cards that have power requirements exceeding
75 watts.
DC Power Connector P11
Pin Number Signal Name 18-AWG Wire
1+12 VB DC White
2 COM Black
3 COM Black
4+5V DC Red
DC Power Connector P12
Pin Number Signal Name 18-AWG Wire
1+12 B VDC White
2+12 B VDC White
3+12 B VDC White
4 COM Black
5 COM Black
6 COM Black
Back to Contents Page

Specifications: Dell Dimension 9150 Service Manual
file:///T|/htdocs/systems/dim9150/en/sm/specs.htm[10/31/2012 7:58:58 AM]
Back to Contents Page
Specifications
Dell™ Dimension™ 9150 Service Manual
Processor
Processor type Intel® Pentium® 4 Socket-T with Hyper-
Threading or Dual-Core support
Cache 2 MB
Memory
Type dual-channel 533- and 667-MHz DDR2
Memory connectors four
Memory capacities 256 MB, 512 MB, or 1 GB
Minimum memory 512 MB
Maximum memory 4 GB
BIOS address F0000h
Computer Information
Chipset Intel 945P
DMA channels eight
Interrupt levels 24
BIOS chip (NVRAM) 4 Mb
NIC integrated-network interface capable of
10/100/1000-Mbps communication
System clock 800- or 1066-MHz data rate
Video
Type PCI Express
Audio
Type internal 7.1 channel or PCI option cards
Expansion Bus
Bus type PCI 32 bit
PCI Express x1, x4, and x16
Bus speed PCI 33 MHz
PCI Express 100 MHz
Bus throughput PCI Express:
x1 slot bidirectional speed — 500
MB/s

Specifications: Dell Dimension 9150 Service Manual
file:///T|/htdocs/systems/dim9150/en/sm/specs.htm[10/31/2012 7:58:58 AM]
x4 slot bidirectional speed — 2
GB/s
x16 slot bidirectional speed — 8
GB/s
PCI
connectors three
connector size 120 pins
connector data width (maximum) 32 bits
PCI Express
connector one x1
connector size 36 pins
connector data width (maximum) 1 PCI Express lane
PCI Express
connector one x4
connector size 98 pins
connector data width (maximum) 4 PCI Express lanes
PCI Express
connector one x16
connector size 164 pins
connector data width (maximum) 16 PCI Express lanes
Drives
Externally accessible:
two 3.5-inch drive bays (FlexBay)
two 5.25-inch drive bays
Available devices serial ATA drives (2), floppy drive, USB
memory devices, CD drive, CD-RW drive,
DVD drive, DVD-RW drive, Media Card
Reader, and DVD/CD-RW combo drive
Internally accessible: two 3.5-inch hard-drive bays
Connectors
External connectors:
IEEE 1394 one front-panel 6-pin serial connector
(with optional card)
Video 15-pin VGA connector
28-pin DVI connector
Network adapter RJ-45 connector
USB two front-panel and five back-panel USB
2.0-compliant connectors
Audio five back-panel connectors for line-in,
line-out, microphone, surround, and
center/Low Frequency Effects (LFE)

Specifications: Dell Dimension 9150 Service Manual
file:///T|/htdocs/systems/dim9150/en/sm/specs.htm[10/31/2012 7:58:58 AM]
channel; two front-panel connectors for
headphones/microphone
System board connectors:
Primary IDE drive 40-pin connector
Serial ATA four 7-pin connectors
FlexBay Drive USB 10-pin header for optional floppy
drive or optional Media Card Reader (3.5-
inch bay devices)
Fan two 3-pin and one 5-pin connector
PCI three 120-pin connectors
PCI Express x1 36-pin connector
PCI Express x4 98-pin connector
PCI Express x16 164-pin connector
Controls and Lights
Power control push button
Power light green light — Blinking green in sleep
state; solid green for power-on state.
amber light — Blinking amber indicates a
problem with the power supply inside the
computer. If the system cannot boot and
there is a solid amber light, this indicates
a problem with the system board (see
"Power Lights").
Hard-drive access light green
Link integrity light (on integrated network
adapter) green light — A good connection exists between a 10-Mbps network and the
computer.
orange light — A good connection exists
between a 100-Mbps network and the
computer.
off (no light) — The computer is not
detecting a physical connection to the
network.
Activity light (on integrated network
adapter) yellow light — Blinking indicates activity on the network.
Diagnostic lights four lights on the front panel (see
"Diagnostic Lights")
Standby power light AUXPWR on the system board
Power
DC power supply:
Wattage 375 W
Heat dissipation 1280 BTU/hr
NOTE: Heat dissipation is calculated
based upon the power supply wattage
rating.
Voltage (See the safety instructions manual selection power supplies — 90 to

Specifications: Dell Dimension 9150 Service Manual
file:///T|/htdocs/systems/dim9150/en/sm/specs.htm[10/31/2012 7:58:58 AM]
in the Product Information Guide
for important voltage setting
information.)
135 V and 180 to 265 V at 50/60 Hz
Backup battery 3-V CR2032 lithium coin cell
Physical
Height 46.48 cm (18.3 inches)
Width 18.54 cm (7.3 inches)
Depth 45.42 cm (17.88 inches)
Weight 15.4 kg (34 lb)
Environmental
Temperature:
Operating 10° to 35°C (50° to 95°F)
Storage –40° to 65°C (–40° to 149°F)
Relative humidity 20% to 80% (noncondensing)
Maximum vibration:
Operating 0.25 G at 3 to 200 Hz at 0.5 octave/min
Storage 0.5 G at 3 to 200 Hz at 1 octave/min
Maximum shock:
Operating bottom half-sine pulse with a change in
velocity of 20 inches/sec (50.8 cm/sec)
Storage 27-G faired square wave with a velocity
change of 200 inches/sec (508 cm/sec)
Altitude:
Operating –15.2 to 3048 m (–50 to 10,000 ft)
Storage –15.2 to 10,668 m (–50 to 35,000 ft)
Back to Contents Page

Advanced Troubleshooting: Dell Dimension 9150 Service Manual
file:///T|/htdocs/systems/dim9150/en/sm/adtshoot.htm[10/31/2012 7:59:03 AM]
Back to Contents Page
Advanced Troubleshooting
Dell™ Dimension™ 9150 Service Manual
Power Lights
Diagnostic Lights
Beep Codes
Power Lights
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the
Product Information Guide.
The power button light located on the front of the computer illuminates and blinks or remains solid to indicate different states:
If the power light is green and the computer is not responding.
Ensure the display is connected and powered on.
If the display is connected and powered on, see "Diagnostic Lights".
If the power light is blinking green, the computer is in standby mode. Press a key on the keyboard, move the mouse,
or press the power button to resume normal operation.
If the power light is off, the computer is either turned off or is not receiving power.
Reseat the power cable into both the power connector on the back of the computer and the electrical outlet.
If the computer is plugged into a power strip, ensure that the power strip is plugged into an electrical outlet and
that the power strip is turned on. Also bypass power protection devices, power strips, and power extension
cables to verify that the computer turns on properly.
Ensure that the electrical outlet is working by testing it with another device, such as a lamp.
Ensure that the main power cable and front panel cable are securely connected to the system board.
If the power light is blinking amber, the computer is receiving electrical power, but an internal power problem might
exist.
Ensure that the voltage selection switch is set to match the AC power at your location (if applicable).
If the power light is steady amber, a device might be malfunctioning or incorrectly installed.
Remove and then reinstall the memory modules.
Remove and then reinstall any cards.
Remove and then reinstall the graphics card, if applicable.
Ensure that all power cables are securely connected to the system board.
Diagnostic Lights
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the
Product Information Guide.
