Dell Inspiron 3647 User manual

Inspiron 3647
Owner’s Manual
Computer model: Inspiron 3647
Regulatory model: D09S
Regulatory type: D09S001
book.book Page 1 Monday, November 25, 2013 3:53 PM

Notes, Cautions, and Warnings
NOTE: A NOTE indicates important information that helps you make better
use of your computer.
CAUTION: A CAUTION indicates potential damage to hardware or loss of
data if instructions are not followed.
WARNING: A WARNING indicates a potential for property damage,
personal injury, or death.
____________________
© 2013 Dell Inc.
Trademarks used in this text: Dell™, the DELL logo, and Inspiron™ are trademarks of
Dell Inc.
2013 - 12 Rev. A00
book.book Page 2 Monday, November 25, 2013 3:53 PM

Contents | 3
Contents
Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Safety Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . 8
Recommended Tools. . . . . . . . . . . . . . . . . . . . . . . . 8
After Working Inside Your Computer . . . . . . . . . . . 9
Technical Overview . . . . . . . . . . . . . . . . . . . . . . . . 10

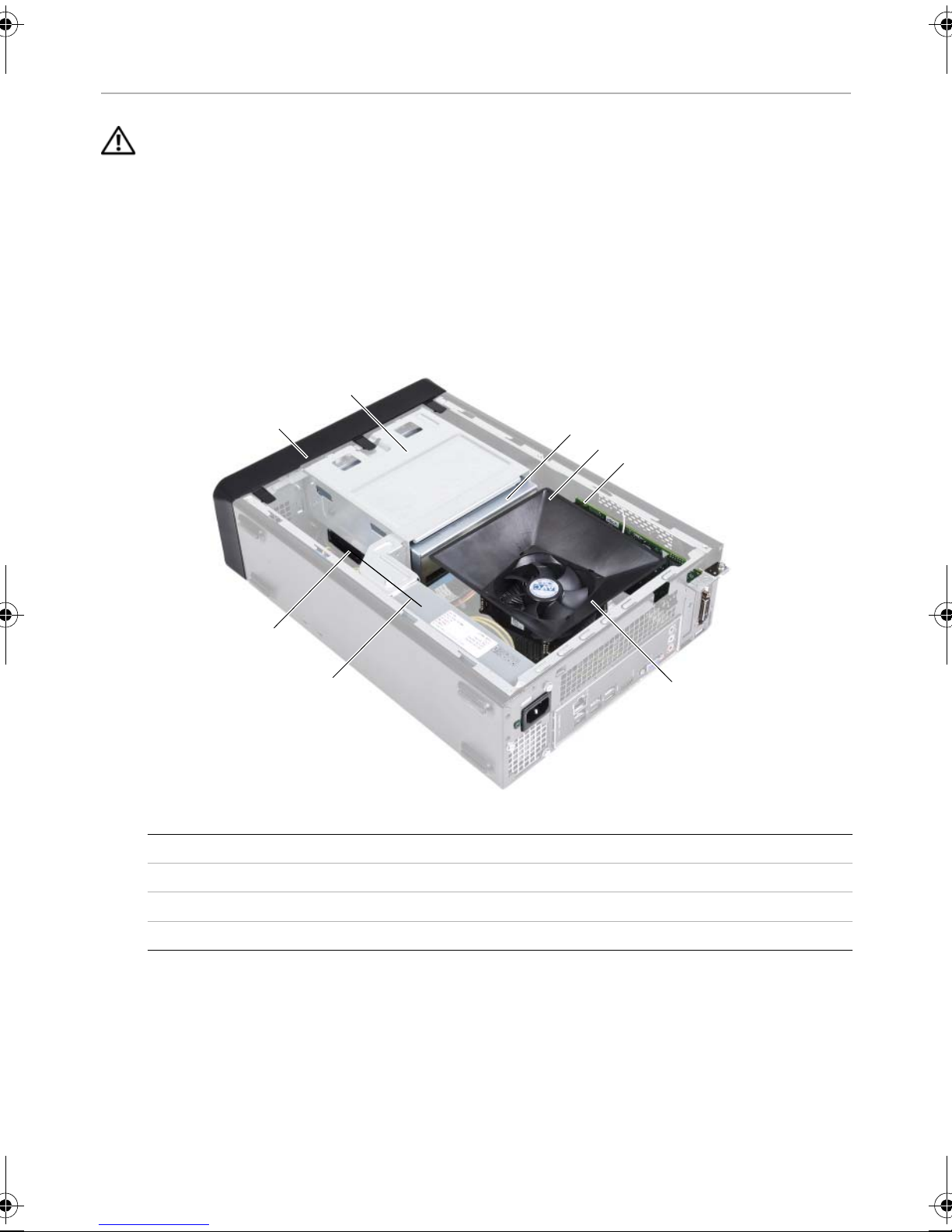

Inside View of Your Computer. . . . . . . . . . . . . . . . . 10

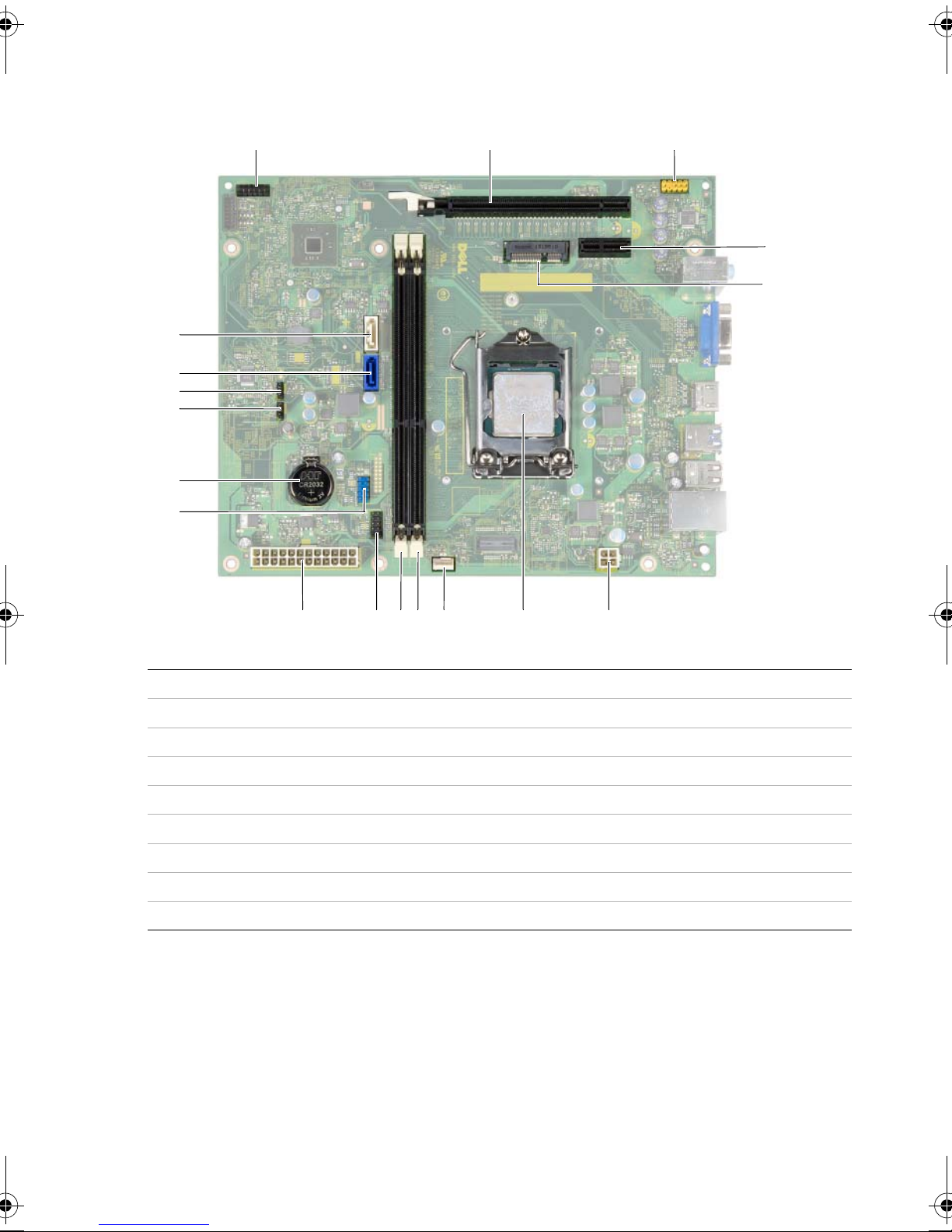

System-Board Components . . . . . . . . . . . . . . . . . . 11

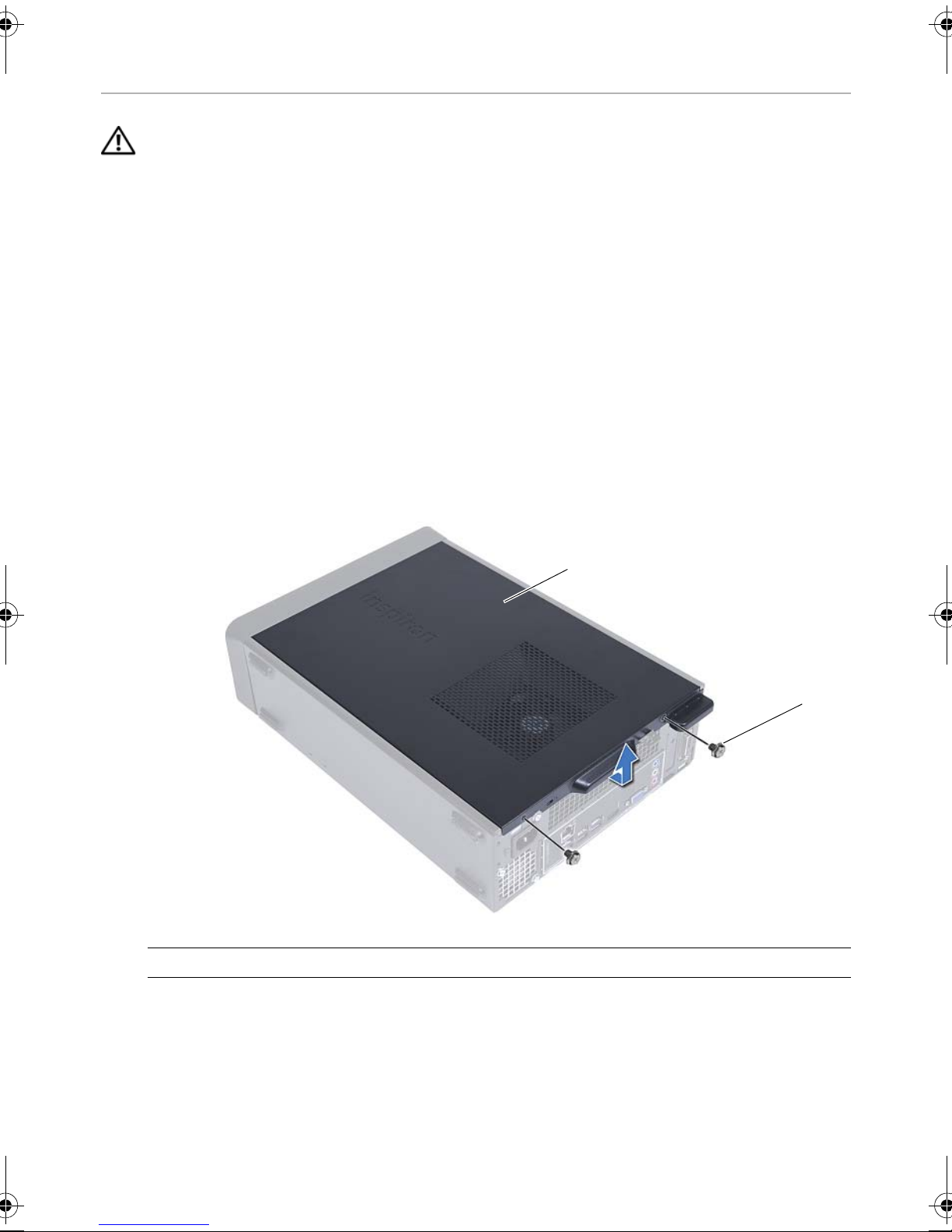

Removing the Computer Cover . . . . . . . . . . . . . . 12
Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Replacing the Computer Cover . . . . . . . . . . . . . . 13
Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Postrequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

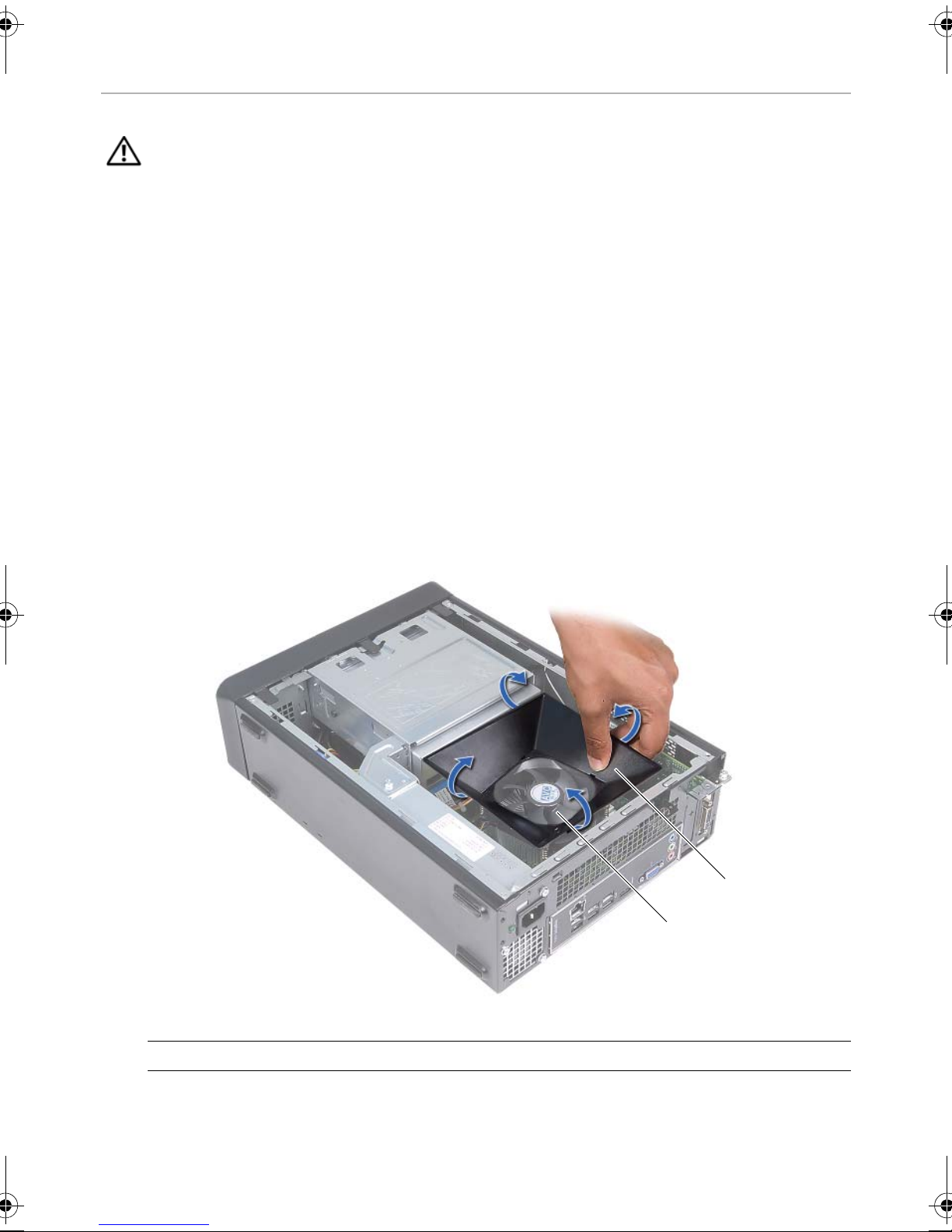

Removing the Fan Shroud . . . . . . . . . . . . . . . . . . . 14
Prerequisites. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Replacing the Fan Shroud . . . . . . . . . . . . . . . . . . . 15
Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Postrequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Removing the Memory Module(s). . . . . . . . . . . . . 16
Prerequisites. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Replacing the Memory Module(s). . . . . . . . . . . . . 17
Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Postrequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Removing the Graphics Card . . . . . . . . . . . . . . . . 19
Prerequisites. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
book.book Page 3 Monday, November 25, 2013 3:53 PM

4| Contents
Replacing the Graphics Card . . . . . . . . . . . . . . . . 20
Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Postrequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Removing the Wireless Mini-card. . . . . . . . . . . . . 21
Prerequisites. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Replacing the Wireless Mini-Card . . . . . . . . . . . . 22
Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Postrequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Removing the Front Bezel . . . . . . . . . . . . . . . . . . . 23
Prerequisites. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Replacing the Front Bezel . . . . . . . . . . . . . . . . . . . 25
Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Postrequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Removing the Drive Cage . . . . . . . . . . . . . . . . . . . 26
Prerequisites. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Replacing the Drive Cage . . . . . . . . . . . . . . . . . . . 28
Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Postrequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Removing the Optical Drive . . . . . . . . . . . . . . . . . 29
Prerequisites. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Replacing the Optical Drive . . . . . . . . . . . . . . . . . 30
Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Postrequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Removing the Primary Hard-Drive . . . . . . . . . . . . 31
Prerequisites. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
book.book Page 4 Monday, November 25, 2013 3:53 PM

Contents | 5
Replacing the Primary Hard-Drive . . . . . . . . . . . . 32
Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Postrequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Removing the Front I/O Panel . . . . . . . . . . . . . . . 33
Prerequisites. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Replacing the Front I/O Panel. . . . . . . . . . . . . . . . 35
Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Postrequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Removing the Power-Button Module . . . . . . . . . 36
Prerequisites. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Replacing the Power-Button Module. . . . . . . . . . 38
Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Postrequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Removing the Processor Fan and
Heat-Sink Assembly . . . . . . . . . . . . . . . . . . . . . . . . 39
Prerequisites. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Replacing the Processor Fan and
Heat-sink Assembly . . . . . . . . . . . . . . . . . . . . . . . 40
Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Postrequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Removing the Processor . . . . . . . . . . . . . . . . . . . . 41
Prerequisites. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Replacing the Processor . . . . . . . . . . . . . . . . . . . . 42
Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Postrequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
book.book Page 5 Monday, November 25, 2013 3:53 PM

6| Contents
Removing the Coin-Cell Battery. . . . . . . . . . . . . 44
Prerequisites. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Replacing the Coin-Cell Battery . . . . . . . . . . . . . . 45
Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Postrequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Removing the System Board . . . . . . . . . . . . . . . . . 46
Prerequisites. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Replacing the System Board . . . . . . . . . . . . . . . . . 48
Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Postrequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Entering the Service Tag in the BIOS. . . . . . . . . . . . . 48
Removing the Power-Supply Unit . . . . . . . . . . . . 49
Prerequisites. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Replacing the Power-Supply Unit. . . . . . . . . . . . . 51
Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Postrequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Flashing the BIOS . . . . . . . . . . . . . . . . . . . . . . . . . . 52
book.book Page 6 Monday, November 25, 2013 3:53 PM

Before You Begin | 7
Before You Begin
CAUTION: To avoid losing data, save and close all open files and exit all
open programs before you turn off your computer.
1Save and close all open files and exit all open programs.
2Shutdown your computer.
•Windows 8 — Move your mouse pointer to the upper-right or lower-right
corner of the screen to open the Charms sidebar, and then click Settings→
Power→Shut down.
•Windows 7 — Click Start →Shut down .
NOTE: If you are using a different operating system, see the documentation
of your operating system for shut-down instructions.
3Disconnect your computer and all attached devices from their electrical outlets.
4Disconnect all telephone cables, network cables, and attached devices
from your computer.
5After the computer is unplugged, press and hold the power button for 5 seconds to
ground the system board.
book.book Page 7 Monday, November 25, 2013 3:53 PM

8| Before You Begin
Safety Instructions
Use the following safety guidelines to protect your computer from potential damage
and ensure your personal safety.
WARNING: Before working inside your computer, read the safety information
that shipped with your computer. For more safety best practices, see the
Regulatory Compliance home page at dell.com/regulatory_compliance.
WARNING: Disconnect all power sources before opening the computer cover or
panels. After you finish working inside the computer, replace all covers, panels,
and screws before connecting to the power source.
CAUTION: To avoid damaging the computer, make sure that the work surface is
flat and clean.
CAUTION: To avoid damaging the components and cards, handle them by their
edges and avoid touching pins and contacts.
CAUTION: Only a certified service technician is authorized to remove the
computer cover and access any of the components inside the computer. See the
safety instructions for complete information about safety precautions, working
inside your computer, and protecting against electrostatic discharge.
CAUTION: Before touching anything inside your computer, ground yourself by
touching an unpainted metal surface, such as the metal at the back of the
computer. While you work, periodically touch an unpainted metal surface to
dissipate static electricity, which could harm internal components.
CAUTION: When you disconnect a cable, pull on its connector or on its pull-tab,
not on the cable itself. Some cables have connectors with locking tabs or
thumb-screws that you must disengage before disconnecting the cable.
When disconnecting cables, keep them evenly aligned to avoid bending any
connector pins. When connecting cables, make sure that the connectors and
ports are correctly oriented and aligned.
CAUTION: To disconnect a network cable, first unplug the cable from your
computer and then unplug the cable from the network device.
CAUTION: Press and eject any installed card from the media-card reader.
Recommended Tools
The procedures in this document may require the following tools:
•Phillips screwdriver
•Plastic scribe
book.book Page 8 Monday, November 25, 2013 3:53 PM

After Working Inside Your Computer | 9
After Working Inside Your Computer
CAUTION: Leaving stray or loose screws inside your computer may severely
damage your computer.
1Replace all screws and make sure that no stray screws remain inside your
computer.
2Place the computer in an upright position.
3Connect any external devices, cables, cards, and any other part(s) you removed
before working on your computer.
4Connect your computer and all attached devices to their electrical outlets.
book.book Page 9 Monday, November 25, 2013 3:53 PM

10 | Technical Overview
Technical Overview
WARNING: Before working inside your computer, read the safety information
that shipped with your computer and follow the steps in "Before You Begin" on
page 7. After working inside your computer, follow the instructions in "After
Working Inside Your Computer" on page 9. For additional safety best practices
information, see the Regulatory Compliance Homepage at
dell.com/regulatory_compliance.
Inside View of Your Computer
1optical drive 2fan shroud
3PCI-Express x16 card 4processor fan and heat-sink assembly
5power supply 6hard drive
7front bezel 8drive cage
23
1
7
8
6
54
book.book Page 10 Monday, November 25, 2013 3:53 PM

Technical Overview | 11
System-Board Components
1power button connector (LEDH1) 2PCI-Express x16 card slot (SLOT2)
3front-panel audio connector (AUDF1) 4PCI-Express x1 card slot (SLOT1)
5Mini-Card slot (MINI1) 6power connector (ATX2)
7processor socket 8processor fan connector (FNCPU1)
9memory-module connector (DIMM1) 10 memory-module connector (DIMM2)
11 front panel USB connector (USBF1) 12 main power connector (ATX1)
13 front panel USB connector (USBF2) 14 battery socket (BT1)
15 CMOS clear jumper (CMCLR1) 16 Password clear jumper (PWCLR1)
17 SATA connector (SATA 0) 18 SATA connector (SATA 1)
123
5
6
12 8
14
4
13
16
18
17
11 10 97
15
book.book Page 11 Monday, November 25, 2013 3:53 PM

12 | Removing the Computer Cover
Removing the Computer Cover
WARNING: Before working inside your computer, read the safety information
that shipped with your computer and follow the steps in "Before You Begin" on
page 7. After working inside your computer, follow the instructions in "After
Working Inside Your Computer" on page 9. For additional safety best practices
information, see the Regulatory Compliance Homepage at
dell.com/regulatory_compliance.
Procedure
1Place the computer on its side with the computer cover facing up.
2Using a screwdriver, remove the screws that secure the computer cover to
the chassis.
3Release the computer cover by sliding it away from the front of the computer.
4Lift the cover away from the computer and set it aside.
1computer cover 2screw
1
2
book.book Page 12 Monday, November 25, 2013 3:53 PM

Replacing the Computer Cover | 13
Replacing the Computer Cover
WARNING: Before working inside your computer, read the safety information
that shipped with your computer and follow the steps in "Before You Begin" on
page 7. After working inside your computer, follow the instructions in "After
Working Inside Your Computer" on page 9. For additional safety best practices
information, see the Regulatory Compliance Homepage at
dell.com/regulatory_compliance.
Procedure
1Connect all the cables and fold the cables out of the way.
2Ensure that no tools or extra parts are left inside the computer.
3Align the tabs at the bottom of the computer cover with the slots located along the
edge of the chassis.
4Press the computer cover down and slide it towards the front of the computer.
5Replace the screws that secure the computer cover to the chassis.
6Place the computer in an upright position.
Postrequisites
Follow the instructions in "After Working Inside Your Computer" on page 9.
book.book Page 13 Monday, November 25, 2013 3:53 PM

14 | Removing the Fan Shroud
Removing the Fan Shroud
WARNING: Before working inside your computer, read the safety information
that shipped with your computer and follow the steps in "Before You Begin" on
page 7. After working inside your computer, follow the instructions in "After
Working Inside Your Computer" on page 9. For additional safety best practices
information, see the Regulatory Compliance Homepage at
dell.com/regulatory_compliance.
Prerequisites
Remove the computer cover. See "Removing the Computer Cover" on page 12.
Procedure
1Press in on the fan shroud and lift it to release the tabs that secure the fan shroud to
the processor fan and heat-sink assembly.
2Lift the fan shroud and set it aside.
1processor fan and heat-sink assembly 2fan shroud
1
2
book.book Page 14 Monday, November 25, 2013 3:53 PM

Replacing the Fan Shroud | 15
Replacing the Fan Shroud
WARNING: Before working inside your computer, read the safety information
that shipped with your computer and follow the steps in "Before You Begin" on
page 7. After working inside your computer, follow the instructions in "After
Working Inside Your Computer" on page 9. For additional safety best practices
information, see the Regulatory Compliance Homepage at
dell.com/regulatory_compliance.
Procedure
1Place the fan shroud over the processor fan and heat-sink assembly.
2Gently press the fan shroud until the tabs on the fan shroud snap into place.
Postrequisites
1Replace the computer cover. See "Replacing the Computer Cover" on page 13.
2Follow the instructions in "After Working Inside Your Computer" on page 9.
book.book Page 15 Monday, November 25, 2013 3:53 PM

16 | Removing the Memory Module(s)
Removing the Memory Module(s)
WARNING: B efore working inside your computer, read the safety information
that shipped with your computer and follow the steps in "Before You Begin" on
page 7. After working inside your computer, follow the instructions in
"After Working Inside Your Computer" on page 9. For more safety best practices,
see the Regulatory Compliance home page at dell.com/regulatory_compliance.
Prerequisites
1Remove the computer cover. See "Removing the Computer Cover" on page 12.
2Remove the fan shroud. See "Removing the Fan Shroud" on page 14.
Procedure
1Locate the memory-module connector on the system board. See "System-Board
Components" on page 11.
2Press out the securing clip at each end of the memory-module connector.
3Grasp the memory module and pull it upward.
NOTE: If the memory module is difficult to remove, hold and gently pull it
upward from one end and then on the other end until the memory module is
disengaged from the connector.
1securing clips (2) 2memory module
3memory-module connector
2
3
1
book.book Page 16 Monday, November 25, 2013 3:53 PM

Replacing the Memory Module(s) | 17
Replacing the Memory Module(s)
WARNING: B efore working inside your computer, read the safety information
that shipped with your computer and follow the steps in "Before You Begin" on
page 7. After working inside your computer, follow the instructions in
"After Working Inside Your Computer" on page 9. For more safety best practices,
see the Regulatory Compliance home page at dell.com/regulatory_compliance.
Procedure
1Press out the securing clip at each end of the memory-module connector.
2Align the notch on the memory module with the tab on the memory-module
connector.
3Insert the memory module into the memory-module connector, and press the
memory module down until it snaps into position and the securing clips lock in
place.
1tab 2notch
3memory module
123
book.book Page 17 Monday, November 25, 2013 3:53 PM

18 | Replacing the Memory Module(s)
Postrequisites
1Replace the fan shroud. See "Replacing the Fan Shroud" on page 15.
2Replace the computer cover. See "Replacing the Computer Cover" on page 13.
3Follow the instructions in "After Working Inside Your Computer" on page 9
book.book Page 18 Monday, November 25, 2013 3:53 PM

Removing the Graphics Card | 19
Removing the Graphics Card
WARNING: B efore working inside your computer, read the safety information
that shipped with your computer and follow the steps in "Before You Begin" on
page 7. After working inside your computer, follow the instructions in
"After Working Inside Your Computer" on page 9. For more safety best practices,
see the Regulatory Compliance home page at dell.com/regulatory_compliance.
Prerequisites
1Remove the computer cover. See "Removing the Computer Cover" on page 12.
2Remove the fan shroud. See "Removing the Fan Shroud" on page 14.
Procedure
1Using a screwdriver, remove the screw securing the graphic card in place.
2Push the securing tab down, grasp the card by its top corners, and then ease it out
of the connector.
NOTE: Remove any PCI-Express x1 card (if present) before you remove the
graphic card.
1screw 2graphics card
3securing tab
1
3
2
book.book Page 19 Monday, November 25, 2013 3:53 PM

20 | Replacing the Graphics Card
Replacing the Graphics Card
WARNING: B efore working inside your computer, read the safety information
that shipped with your computer and follow the steps in "Before You Begin" on
page 7. After working inside your computer, follow the instructions in
"After Working Inside Your Computer" on page 9. For more safety best practices,
see the Regulatory Compliance home page at dell.com/regulatory_compliance.
Procedure
1Locate the PCI-Express x16 card slot. See "System-Board Components" on page 11.
2Align the graphics card with the PCI-Express x16 card slot on the system board.
3Place the card in the slot and press down firmly. Ensure that the card is firmly
seated in the slot.
4Replace the screw that secure the graphic card in place.
Postrequisites
1Replace the fan shroud. See "Replacing the Fan Shroud" on page 15.
2Replace the computer cover. See "Replacing the Computer Cover" on page 13.
