Low-Profile Chassis —RemovingandReplacingParts:Dell™OptiPlex™GX200
Systems Service Manual
Overview
This section provides procedures for removing and replacing the components, assemblies, and subassemblies in the Dell OptiPlex low-profile
chassis GX200 system.
Unless otherwise noted, each procedure assumes that the following conditions exist:
lYou have performed the steps in "Precautionary Measures."
lYou have removed the computer cover.
lYou can replace or reinstall a part by performing the removal procedure in reverse order unless additional information is provided.
Recommended Tools
Most of the procedures in this file require the use of one or more of the following tools:
lSmall flat-blade screwdriver
lWide flat-blade screwdriver
l#1 and #2 Phillips-head screwdrivers
l1/4-inch nut driver
Also, use a wrist grounding strap as explained in "Precautionary Measures."
Precautionary Measures
Before you perform any procedure in this section, take a few moments to read the following caution for your personal safety and to prevent
damage to the system from electrostatic discharge (ESD).
Overview
System Power Supply
Recommended Tools
Expansion-Card Cage
Precautionary Measures
Riser Boards
Internal Views
System Board Components
Computer Cover
Expansion Cards
Eject, Power, and Reset Buttons
Memory
Front-Panel Inserts
Microprocessor/Cooling Fan/Heat Sink Assembly
Control Panel
System Battery
Chassis Intrusion Switch
System Board
Drives
CAUTION: FOR YOUR PERSONAL SAFETY AND PROTECTION OF THE EQUIPMENT
Before you start to work on the system, perform the following steps in the sequence listed:
1. Turn off the computer and all peripherals.
2. Disconnect the computer and peripherals from their electrical outlets. Also, disconnect any telephone or telecommunication lines from
the computer. Doing so reduces the potential for personal injury or shock.
3. If you are disconnecting a peripheral from the computer or are removing a component from the system board, wait 10 to 20 seconds
after disconnecting the computer from the electrical outlet before disconnecting the peripheral or removing the component to avoid

Internal Views
Figure 1 shows a top view of the low-profile chassis to help you orient yourself when you work inside the computer.
Figure 1. Low-Profile Chassis Orientation View
Figure 2 shows the low-profile chassis with the cover removed.
Figure 2. Inside the Low-Profile Chassis
Computer Cover

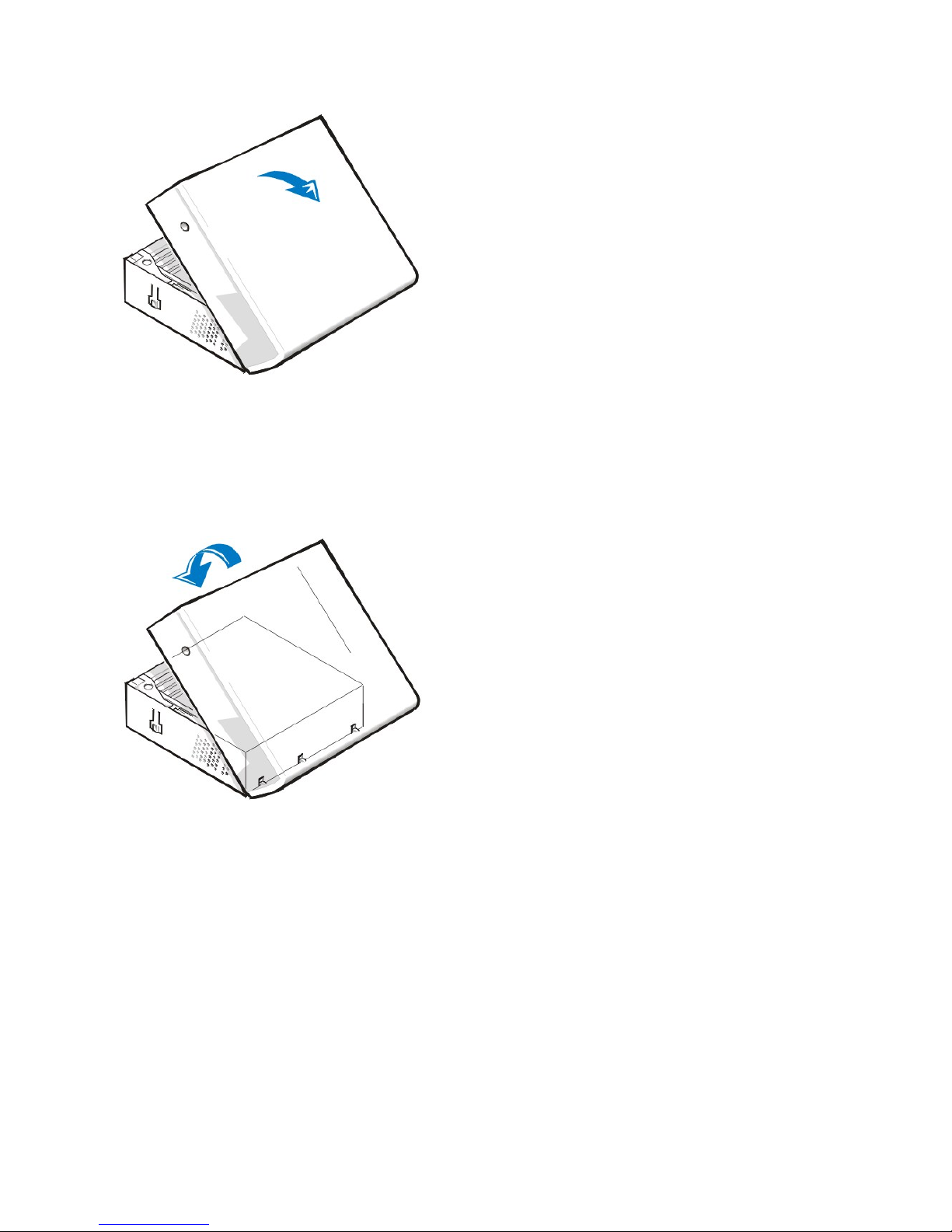

Figure 3. Computer Cover Removal
possible damage to the system board.
4. Wear a wrist grounding strap, and clip it to an unpainted metal surface, such as the padlock loop on the back of the chassis. If a wrist
grounding strap is not available, touch any unpainted metal surface on the back of the computer or on the computer chassis, such as
thepowersupply,todischargeanystaticchargefromyourbodybeforetouchinganythinginsidethecomputer.Whileyouwork,
periodically touch an unpainted metal surface on the computer chassis to dissipate any static electricity that might harm internal
components. Also avoid touching components or contacts on a card and avoid touching pins on a chip.
5. Verify that the auxiliary power indicator on the riser board is not on. If it is on, you may need to wait 10 to 30 seconds for it to go out
(see Riser Boards).
1
System board
2
Hard-disk drive
3
Power supply
4
Externally accessible drive bays
1
Diskette drive in upper bay
2
Diskette drive interface cable
3
Hard-disk drive interface cable
4
Hard-disk drive
5
Chassis intrusion switch
6
Expansion-card cage
7
Expansion-card slots
8
Security cable slot
9
I/O ports and connectors
10
AC power receptacle
11
Padlock ring
12
Power supply

To remove the low-profile chassis computer cover, perform the following steps:
1. Press in on the two securing buttons until the cover is free to swing up (see Figure 3).
2. Raisethebackofthecover,andpivotittowardthefrontofthecomputer.
3. Lift the cover off the hooks at the front of the chassis.
4. Disengage the tabs that secure the cover to the top of the chassis, and lift the cover away.
Figure 4. Computer Cover Replacement
To replace the low-profile chassis computer cover, perform the following steps:
1. Face the front of the computer and hold the cover at a slight angle (see Figure 4).
2. Align the bottom of the cover with the bottom of the chassis and insert the hooks on the cover into the recessed slots on the computer
chassis so that the tabs catch the hooks inside the slots.
3. Pivot the cover down toward the back of the chassis and into position.
Make sure that the securing buttons click into place.
To reset the chassis intrusion detector, perform the following steps:
1. Reconnect all cables to their connectors at the back of the computer.
2. Restart the system.
3. Enter System Setup. To do this, press <F2> when F2=Setup appears in the upper-right corner of the screen.
If the operating system begins to load into memory, allow the system to complete the load operation, shut down the system, and try again.
4. Restore the system configuration settings.

5. While in System Setup, perform the following steps to configure the system if it has an LS-120 SuperDisk drive:
a. Set Diskette Drive A and Diskette Drive Bto Not Installed.
b. Set Secondary Drive 0or Secondary Drive 1, as appropriate, to Auto.
c. Go to the second page and set Diskette to Off.
6. While in System Setup, reset the chassis intrusion detector under the System Security tab by changing Chassis Intrusion to Enabled,
Enabled-Silent, or Disabled.
7. If no other changes are required in System Setup, press <Esc> and follow the menu directions to restart the system and implement the
changes.
8. Run the Dell Diagnostics to verify that the system is operating correctly.
Eject, Power, and Reset Buttons
Figure 5. Eject, Power, and Reset Button Removal
To remove the eject, power, and reset buttons, perform the following steps:
1. Lay the computer cover on a flat work surface, with the inside of the top cover facing up.
2. To remove the 3.5-inch diskette-drive eject button, pull gently on the plastic part of the button until it comes free.
3. To remove the power button or the reset button, use a small screwdriver and push in the two or three plastic clips that hold the button to the
bezel.Whentheseclipsarereleased,thebuttonscomefreefromthebezel.
Front-Panel Inserts
Figure6.5.25-Inch Front-Panel Insert Removal
To remove a 5.25-inch front-panel insert, perform the following steps:
1. Hold the bezel with the front facing you.
2. From the front of the top cover, use your thumbs to press inward on the insert until it snaps free of the cover.
To replace a 5.25-inch front-panel insert, position the two ring-tabs over the posts on the inside of the bay opening, and then press the ring tabs
over the posts.
NOTE:If the system does not have an audio expansion card but does have an integrated audio controller, be sure that the
Sound setting is On. If the system has an audio expansion card, be sure that the Sound setting is Off.
1
Disk eject button
2
Reset button
3
Power button
1
Posts (2)
2
Front of top cover
3
Ring tabs (2)

Control Panel
Figure 7. Control Panel Removal
To remove the control panel in the low-profile chassis, perform the following steps:
1. Disconnect the control panel cable from the PANEL connector on the system board (see "System Board Labels" for the location of the
PANEL connector).
2. From inside the chassis, remove the mounting screw that secures the control panel to the chassis.
3. Disconnect the chassis intrusion switch cable connector from the control panel.
4. Remove the control panel from the chassis.
When you reinstall the control panel, be sure to put the right side of the control panel behind the mounting tab.
Chassis Intrusion Switch
Figure 8. Chassis Intrusion Switch Removal
To remove the chassis intrusion switch in the low-profile chassis, perform the following steps:
1. Disconnect the chassis intrusion switch cable connector from the control panel on the front of the chassis as shown in Figure 8.
Note the routing of the chassis intrusion cable as you remove it from the chassis. Hooks on the chassis keep the cable in place.
2. Slide the chassis intrusion switch out of its slot to remove it from the chassis (see Figure 8).
3. Install the replacement chassis intrusion switch and cable.
4. Reset the chassis intrusion detector.
1
Control panel
2
Chassis intrusion switch
1
Control panel
2
Chassis intrusion switch

Drives
Figure 9. Drive Locations

3.5-Inch Diskette Drive
To remove the 3.5-inch diskette drive assembly from the drive shelf, perform the following steps:
1. Disconnect the DC power cable and the interface cable from the back of the drive.
2. Press both release latches on the left side of the 3.5-inch diskette drive.
3. Pivot the 3.5-inch diskette drive upward 1 inch (2.5 cm), and then pull the drive away from the notched tabs on the right chassis wall.
4. Remove the bracket from the diskette drive you just removed.
5.25-inch Drive
To remove the 5.25-inch drive/bracket assembly (the 5.25 drive is usually a CD-ROM drive), perform the following steps:
1. Remove the diskette drive and bracket.
2. Disconnect the DC power cable and EIDE cable from the drive.
3. Lift the 5.25-inch drive/bracket straight up and out of the chassis.
Hard-Disk Drive Removal
Figure 10. Hard-Disk Drive/Bracket Assembly Removal
To remove the hard-disk drive/bracket assembly, perform the following steps:
1. Disconnect the DC power cable and EIDE cable from the drive.
NOTE: In all of the following procedures, left and right refer to your left and right as you face the front of the computer.
1
5.25-inchdrive
2
3.5-inch diskette drive
3
Hard-disk drive
4
Chassis intrusion switch
NOTE: Computer configurations differ. Your computer may have an Iomega Zip drive installed instead of a 3.5-inch diskette drive, or
your computer may have no externally accessible drives installed.
1
Captive screw
2
Hinge tabs on back of drive bracket (2)
3
Slots in floor divider (3)

2. Loosen the captive screw securing the hard-disk drive/bracket to the bottom of the chassis.
3. Grasp the drive/bracket, and pivot it upward from the chassis until the two hinge tabs (located on the side opposite the screw) clear the floor
divider (see Figure 10). Then lift the bracket upward and out of the chassis.
4. To remove the hard-disk drive from the bracket, place the drive/bracket on a flat surface with the bracket facing up.
5. Remove the four screws that secure the bracket to the drive.
Figure 11. Hard-Disk Drive to Bracket Installation
To install a replacement hard-disk drive,performthefollowingsteps.
NOTICE: To avoid damaging the drive by ESD, ground yourself by touching an unpainted metal surface on the back of the computer.
NOTICE: When you unpack the drive, do not set it on a hard surface, which may damage the drive. Instead, set the drive on a
surface, such as a foam pad, that will sufficiently cushion it.
1. Prepare the drive for installation.
Check the documentation for the drive to verify that it is configured for your computer system.
2. If not already done, remove the computer cover.
3. To install the hard-disk drive to the bracket, place the drive top-down on a flat surface with the bracket mounting holes facing up.
4. Position the bracket over the holes and install four screws to secure the bracket to the drive.
5. Insert the bracket's hinge tabs into the chassis slots so that the tabs hook over the slots.
6. Rotate the bracket toward the chassis floor and secure the bracket with a screw.
7. Connect a power cable to the power input connector on the back of the drive (see Figure 12).
8. Check all connectors to ensure that they are properly cabled and firmly seated.
9. Connect one of the device connectors on the EIDE cable to the 40-pin interface connector on the back of the hard-disk drive.
NOTICE: You must match the red colored stripe on the EIDE cable with pin 1 on the drive's interface connector to avoid possible
damage to your system.
Figure 12. Hard-Disk Drive Cable Attachment
1
Hard-disk drive
2
Bracket
3
Screws (4)
CAUTION: To avoid the possibility of electric shock, turn off the computer and any peripherals, disconnect them from
electrical outlets, and then wait at least 5 seconds before you remove the computer cover. Also, before you install a drive, see
the other precautions in "Precautionary Measures."

NOTICE: You must attach the blue connector on the EIDE interface cable to the IDE1 connector on the system board to avoid
possible damage to your system.
10. If it is not already connected, connect the blue connector on the EIDE interface cable to the IDE1 connector on the system board.
To locate the IDE1 connector on the system board, see "System Board Components."
11. Replace the computer cover.
12. Reset the chassis intrusion detector. While in System Setup, update the appropriate Primary Drive option, 0or 1(see the online System
User's Guide for complete information).
13. Partition and logically format your drive before you proceed to the next step.
See the documentation for your operating system for instructions.
14. If the drive you just installed is the primary drive, install your operating system on the hard-disk drive.
For instructions, refer to the documentation that came with your operating system.
System Power Supply
Figure 13. Power Supply Removal
To remove the system power supply, perform the following steps:
1. Disconnect the AC power cable from the back of the power supply.
2. DisconnecttheDCpowercablesfromthesystemboardandthedrives.
1
Power cable
2
EIDE interface cable
3
IDE1 connector on system board
1
AC power cord
2
AC power receptacle
3
Power supply
4
DC power cables
5
Securing screw

Note the routing of the DC power cables underneath the tabs in the chassis as you remove them from the system board and drives. It is
important to route these cables properly when you replace them to prevent them from being pinched or crimped.
3. Removethescrewbelowthefanguardonthebackofthechassis.
4. Slide the power supply toward the front of the computer approximately 1 inch.
5. Liftthepowersupplyupandoutofthechassis.
Expansion-Card Cage
Figure 14. Expansion-Card Cage Removal
To remove the expansion-card cage, perform the following steps:
1. Examine any cables connected to expansion cards through the back-panel openings and disconnect any cables that will not reach to where
the cage must be placed upon removal from the chassis.
2. Locatethesecuringlever(seeFigure14).Rotatetheleverupwarduntilitstopsinanuprightposition.
3. Slide the expansion-card cage out of the chassis.
4. Lift the expansion-card cage up and away from the chassis.
To replace the expansion-card cage into the low-profile chassis, perform the following steps:
1. With the securing lever in the upright position, align the expansion-card cage slots with the tabs in the chassis opening for the expansion-
card cage (see Figure 14). Slide the expansion-card cage into place.
2. Rotate the securing lever downward until it is flush with the top of the chassis. Make sure that the riser board is fully seated in the RISER
connector on the system board.
3. Reconnect any cables you removed in step 1 of the previous procedure.
Riser Boards
The low-profile chassis has a standard PCI riser board (see Figure 15) or an optional PCI/ISA riser board (see Figure 16). The PCI riser board
provides three PCI expansion-card slots. The PCI/ISA riser board provides one PCI expansion-card slot, one ISA expansion-card slot, and one
shared PCI/ISA expansion-card slot.
Figure 15. PCI Riser Board (Standard)
1
Securing lever
2
Expansion-card cage
3
Slots (2)
4
Tabs (2)
NOTICE: Use a wrist grounding strap as explained in "Precautionary Measures."

Figure 16. PCI/ISA Riser Board (Optional)
To remove the riser board, perform the following steps.
1. Remove the expansion-card cage.
2. Remove the expansion cards installed in the slots.
3. Remove the screws securing the riser board to the expansion-card cage.
4. Lift the riser board off the expansion-card cage.

System Board Components
Figure 17 shows the system board and the location of all its sockets and connectors.
Figure 17. System Board Components
1
Auxiliary power indicator LED (AUX_LED)
2
Wakeup On LAN (WOL) connector
3
PCI expansion slot 1 (PCI1)
4
PCI expansion slot 2 (PCI2)
5
PCI expansion slot 3 (PCI3)
1
Auxiliary power LED (AUX_LED)
2
ISA expansion-card connector 1 (ISA1)
3
ISA expansion-card connector 2 (ISA2)
4
Remote Wakeup header (WOL)
5
PCI expansion-card connector 1 (PCI1)
6
PCI expansion-card connector 2 (PCI2)
NOTE: The ISA expansion-card connector 1 and PCI expansion-card connector 2 share an expansion slot; only one of these two
connectors can be used at any given time.
CAUTION: Ground yourself by touching an unpainted metal surface on the back of the computer.
1
Line-in connector

System Board Jumpers
Figure 18 shows the location of the jumpers on the system board. Table 1 lists the system board jumpers and their settings.
Figure 18. System Board Jumpers
Jumpers are small blocks on a circuit board with two or more pins emerging from them. Plastic plugs containing a wire fit down over the pins. The
wire connects the pins and creates a circuit.
NOTICE: Make sure your system is turned off before you change a jumper setting. Otherwise, damage to your system or
unpredictable results may occur.
To change a jumper setting, pull the plug off its pin(s) and carefully fit it down onto the pin(s) indicated.
2
Line-out connector
3
Microphone connector
4
NIC connector
5
Video connector
6
Serial port 2 connector
7
USB connectors (2)
8
Keyboard (lower) and mouse (upper) connectors
9
Parallel port (upper) and serial port 1 (lower) connectors
10
Microprocessor connector
11
RIMM sockets (2)
12
DC power 1 connector
13
DC power 2 connector
14
Chassis intrusion connector
15
Control panel connector
16
External speaker connector
17
EIDE1 connector
18
EIDE2 connector
19
System board speaker
20
System board jumpers
21
Diskette/tape-drive connector
22
Riser board connector
23
Real-time clock reset (RTCRST) jumper
24
Battery
25
Modem audio connector
26
Fan connector
27
CD audio cable connector

Table 1. System-Board Jumper Settings
System Board Labels
Table 2 lists the labels for connectors and sockets on your system board, and it gives a brief description of their functions.
Table 2. System Board Connectors and Sockets
Expansion Cards
Each GX200 low-profile chassis can accommodate 32-bit PCI expansion cards and 16-bit and 8-bit ISA expansion cards, depending on the
installedriserboard.SeeFigure19forexamplesoftheexpansioncards.
Figure 19. Expansion Cards
Jumper
Setting
Description
PSWD
(default)
Password features are enabled.

(default)
Password features are disabled.
SAFE
(default)
Reserved (do not change).
BIOS
(default)
Reserved (do not change).
RTCRST
(default)
Real-time clock reset. Can be used for troubleshooting purposes.
jumpered unjumpered
Connector or Socket
Description
AMC
ATI multimedia channel connector
BATTERY
Battery socket
CD_IN
CD-ROM audio interface connector
RIMM_x
RIMM socket
DSKT
Diskette/tape drive interface connector
ENET
Integrated NIC connector
EXT_SPKR
External speaker connector
FAN
Microprocessor fan connector
HDLED
Hard-disk drive LED connector
IDEn
EIDE interface connector
INTRUDER
Chassis intrusion switch connector
KYBD
Keyboard connector
MODEM
Modem audio connector
MONITOR
Video connector
MOUSE
Mouse connector
PANEL
Control panel connector
PARALLEL
Parallel port connector; sometimes referred to as LPT1
PCIn*
PCI expansion-card connector
POWER_1
Main power input connector
POWER_2
3.3-V power input connector
RISER
Riser board connector
SERIALn
Serial port connector
SLOT1_PRI
Primary microprocessor connector
USB
USB connectors

Expansion-Card Removal
To remove an expansion card, perform the following steps:
1. Remove the computer cover.
2. If necessary, disconnect any cables connected to the card.
3. Remove the screw on the mounting bracket of the card you want to remove.
4. Grasp the card by its outside corners, and ease it out of its connector.
5. If you are removing the card permanently, install a metal filler bracket over the empty card-slot opening.
6. Replace the computer cover and reset the chassis intrusion detector.
Expansion-Card Installation
Figure 20. Expansion-Card Installation
To install an expansion card, perform the following steps:
1. Prepare the expansion card for installation, and remove the computer cover.
See the documentation that came with the expansion card for information on configuring the card, making internal connections, or otherwise
customizing it for your system.
2. Remove the screw and remove the metal filler bracket that covers the card-slot opening for the expansion-card slot you intend to use (see
Figure 21).
Save the screw to use when installing the expansion card later in this procedure.
Figure 21. Filler Bracket Removal
1
8-bit ISA expansion card
2
16-bit ISA expansion card
3
32-bit PCI expansion card
NOTE: Installing filler brackets over empty card-slot openings is necessary to maintain Federal Communications Commission (FCC)
certification of the system. The brackets also keep dust and dirt out of your computer.
1
Expansion card
2
Card-edge connector
3
Riser board
4
Expansion-card connector
5
Expansion-card cage
CAUTION: Some network cards automatically start the system when they are connected. To guard
against electric shock, be sure to unplug your computer from its electrical outlet before installing any
expansion cards.

3. Insert the expansion card into the expansion-card connector.
If the expansion card is full-length, insert the front end of the card into the corresponding card guide on the inside front of the chassis as you
insert the card into its connector. Insert the card's edge connector firmly into the expansion-card slot.
4. When the card is firmly seated in the connector, secure the card's mounting bracket to the chassis with the screw you removed in step 2.
5. Connect any cables that should be attached to the card.
See the documentation for the card for information about the card's cable connections.
6. Replace the computer cover and reset the chassis intrusion detector.
Memory
To remove a Rambus in-line memory module (RIMM), perform the following steps:
1. Remove the computer cover.
2. Remove the system power supply to allow you to access the RIMMs.
3. Press the securing clips outward simultaneously until the RIMM disengages and pops out slightly from the socket (see Figure 22).
Figure 22. Removing a RIMM
To reinstall a RIMM, perform the following steps:
1. Locate the plastic securing clips at each end of the socket (see Figure 23).
2. Press the clips outward until they snap open.
3. Press the RIMM straight into the slot running down the center of the socket until the securing tabs snap into place around the ends of the
RIMM.
4. Replace the computer cover and reset the chassis intrusion detector.
Figure 23. Installing a RIMM
1
Filler bracket
1
Securing clips (2)


Microprocessor/Cooling Fan/Heat Sink Assembly
Figure 24. Microprocessor/Cooling Fan/Heat Sink Assembly
To replace a microprocessor, perform the following steps:
1. Remove the computer cover.
2. Disconnect the cooling fan power cable from its system board connector.
3. Remove the metal retaining clip that secures the heat sink assembly to the microprocessor package by gently pushing down on the folded
part of the retaining clip with a small screwdriver.
The retaining clip hooks over the sides of the zero insertion force (ZIF)socket.
4. Remove the heat sink assembly from the microprocessor package.
NOTICE: Be careful not to bend any of the pins when you remove the microprocessor package from the ZIF socket. Bending
the pins can permanently damage the microprocessor.
5. Detach and lift the microprocessor package away from the ZIF socket.
The ZIF socket has a lever-type handle that secures and releases the microprocessor package from the ZIF socket.
a. Pull the socket release lever straight out until the microprocessor package is released.
b. Remove the microprocessor package from the socket.
Leave the release lever extended so that the socket is ready for the new microprocessor.
Figure 25. Microprocessor Package Removal
1
Securing clips (2)
2
Notches (2)
1
Cooling fan/heat sink assembly
2
ZIF socket
3
Retaining clip
CAUTION: The microprocessor/heat sink assembly can get extremely hot. Be sure that the assembly has had sufficient time to
cool before you touch it.
NOTE:Dell recommends that only a technically knowledgeable person perform this procedure.

6. Unpack the new microprocessor package.
If any of the pins on the new microprocessor appear to be bent, return the microprocessor package.
NOTICE: You must position the microprocessor package correctly in the ZIF socket to avoid permanent damage to the
microprocessor and the computer when you turn on the system.
7. Install the microprocessor package in the ZIF socket.
a. If the release lever on the ZIF socket is not all the way out, move it to that position.
b. Align pin-1 (the beveled corner) of the microprocessor package and pin-1 of the ZIF socket.
c. Set the microprocessor package lightly in the socket, making sure that all the pins are headed into the correct holes.
Because the system uses a ZIF socket, there is no need to use force (which could bend the pins if the microprocessor package is
misaligned).
d. When the microprocessor package is positioned correctly, press it with minimal pressure to fully seat it in the ZIF socket.
e. When the microprocessor package is fully seated, pivot the release lever back toward the system board until it snaps into place,
securing the microprocessor package.
Figure 26. Microprocessor Package Installation
8. Unpack the heat sink included in the replacement kit.
NOTICE: Do not reuse the old heat sink assembly when you replace the microprocessor package. Using the old heat sink
assembly can cause the microprocessor to overheat because there is not enough thermal compound between the old heat
sink assembly and the microprocessor package.
9. Replace the heat sink assembly.
a. Peel the release liner from the adhesive tape attached to the bottom of the new heat sink assembly.
b. Replace the computer cover and restart the system.
c. Reset the chassis intrusion detector. While in System Setup, confirm that the system data area correctly identifies the type of
microprocessor installed.

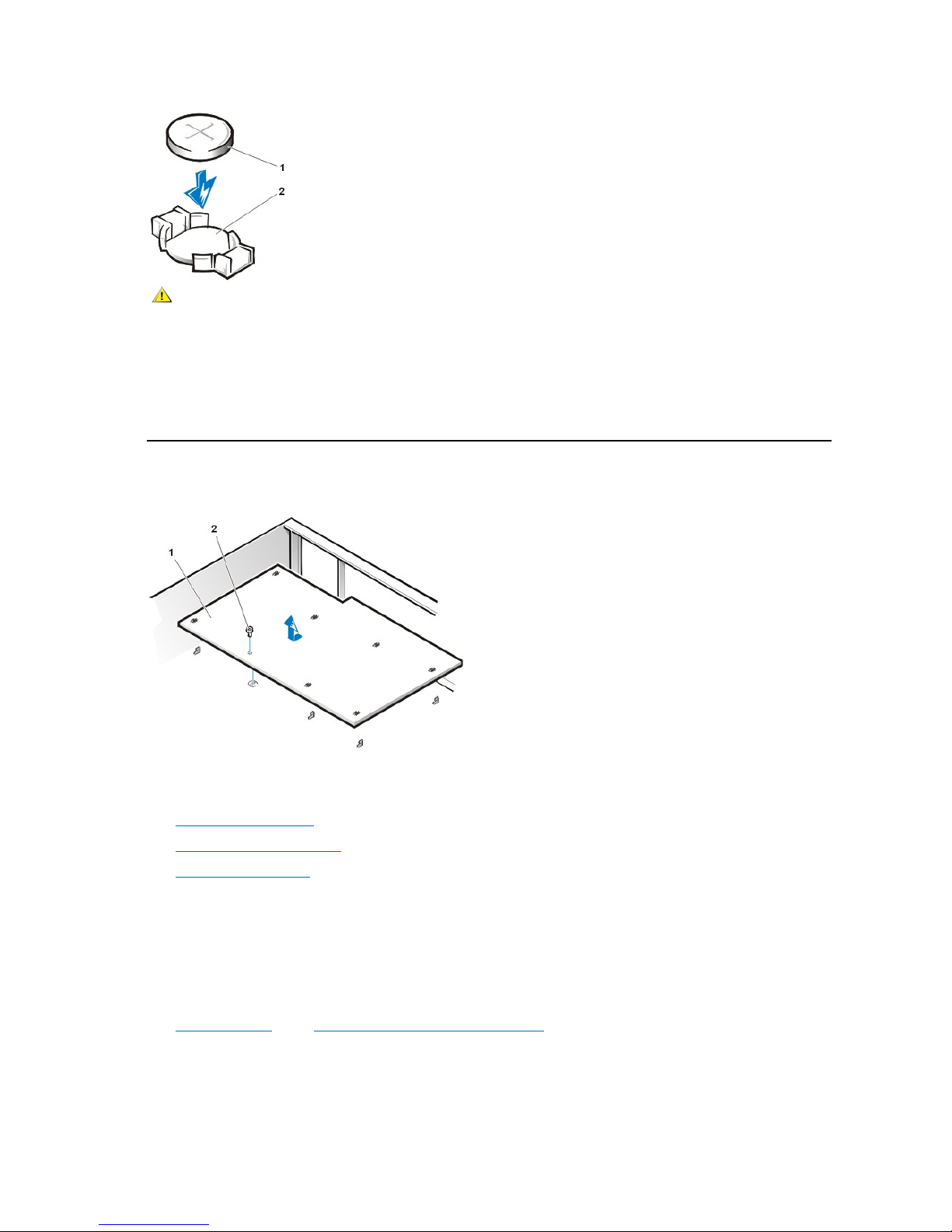

System Battery
Figure 27. System Battery Removal
1
Microprocessor package
2
Socket release lever
3
ZIF socket
1
Microprocessor
2
ZIF socket
3
Pin-1 (beveled corner)

To remove the system battery, perform the following steps:
1. If possible, enter System Setup and print the System Setup screens.
2. Remove the system battery by carefully prying it out of its socket with your fingers or with a blunt, nonconducting object such as a plastic
screwdriver.
When you replace the system battery, orient the new battery with the "+" facing up. Insert the battery into its socket and snap it into place.
System Board
Figure 28. System Board Removal
To remove the system board, perform the following steps:
1. Disconnect all cables from their connectors at the back of the computer.
2. Remove the computer cover.
3. Remove the expansion-card cage.
4. Remove the 5.25-inch drive.
5. Disconnect all cables from the system board.
6. Remove the screw that secures the system board to the bottom of the chassis (see Figure 28).
7. Slide the system board toward the front of the chassis until it stops.
8. Carefully lift the system board out of the chassis (be sure to lift evenly and not twist the system board).
To replace the system board, perform the following steps:
1. Remove the RIMMs and the microprocessor/cooling fan/heat sink assembly, and install them on the replacement board.
2. Set the jumpers on the new system board so that they are identical to those on the old board, unless you are installing a
microprocessor upgrade.
3. Push down near each slot to engage the grounding clip onto its corresponding tab.
1
Battery
2
Socket
CAUTION: There is a danger of the new battery exploding if it is incorrectly installed. Replace the battery only with the same or
equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions.
1
Systemboard
2
Screw

4. Push evenly on both sides of the system board as you slide and lock it into position (do not twist the system board).
5. Reconnect all cables to the system board.
6. Replace the 5.25-inch drive.
7. Replace the expansion-card cage.
8. Replace the computer cover.
9. Reset the chassis intrusion detector. While in System Setup, confirm that the system data area correctly identifies the type of
microprocessor installed.
Back to Contents Page

Back to Contents Page
Midsize Chassis —Removing and Replacing Parts: Dell™OptiPlex™GX200System
Service Manual
Overview
This section provides procedures for removing and replacing the components, assemblies, and subassemblies in the Dell OptiPlex 200 midsize
chassis system.
Unless otherwise noted, each procedure assumes that the following conditions exist:
lYou have performed the steps in "Precautionary Measures."
lYou have removed the computer cover.
You can replace or reinstall a part by performing the removal procedure in reverse order unless additional information is provided.
Recommended Tools
The procedures in this file require the use of a #2 Phillips-head screwdriver.
Also, use a wrist grounding strap as explained in "Precautionary Measures."
Precautionary Measures
Before you perform any procedure in this section, take a few moments to read the following caution for your personal safety and to prevent
damage to the system from electrostatic discharge (ESD).
Overview
System Power Supply
Recommended Tools
System Board Components
Precautionary Measures
Expansion Cards
Computer Cover
Riser Boards
Internal View
Memory
Front-Panel Inserts
Microprocessor/Airflow Shroud/Heat Sink Assembly
Expansion-Card Cage
System Battery
Control Panel
System Board
Drives
CAUTION: FOR YOUR PERSONAL SAFETY AND PROTECTION OF THE EQUIPMENT
Before you start to work on the system, perform the following steps in the sequence listed:
1. Turn off the computer and all peripherals.
2. Disconnect the computer and peripherals from their electrical outlets. Also, disconnect any telephone or telecommunication lines from
the computer. Doing so reduces the potential for personal injury or shock.
3. If you are disconnecting a peripheral from the computer or are removing a component from the system board, wait 10 to 20 seconds
after disconnecting the computer from the electrical outlet before disconnecting the peripheral or removing the component to avoid
possible damage to the system board.
4. Wear a wrist grounding strap, and clip it to an unpainted metal surface, such as the padlock loop on the back of the chassis. If a wrist
grounding strap is not available, touch any unpainted metal surface on the back of the computer or on the computer chassis, such as
thepowersupply,todischargeanystaticchargefromyourbodybeforetouchinganythinginsidethecomputer.Whileyouwork,
periodically touch an unpainted metal surface on the computer chassis to dissipate any static electricity that might harm internal
components. Also avoid touching components or contacts on a card and avoid touching pins on a chip.
5. Verify that the standby power indicator
on the riser board is not on. If it is on, you may need to wait 10 to 30 seconds for it to go out (see
