Getting Started With Your System 3
Installation and Configuration
WARNING: Before performing the following procedure, review the safety
instructions that came with the system.
Unpacking the System
Unpack your system and identify each item.

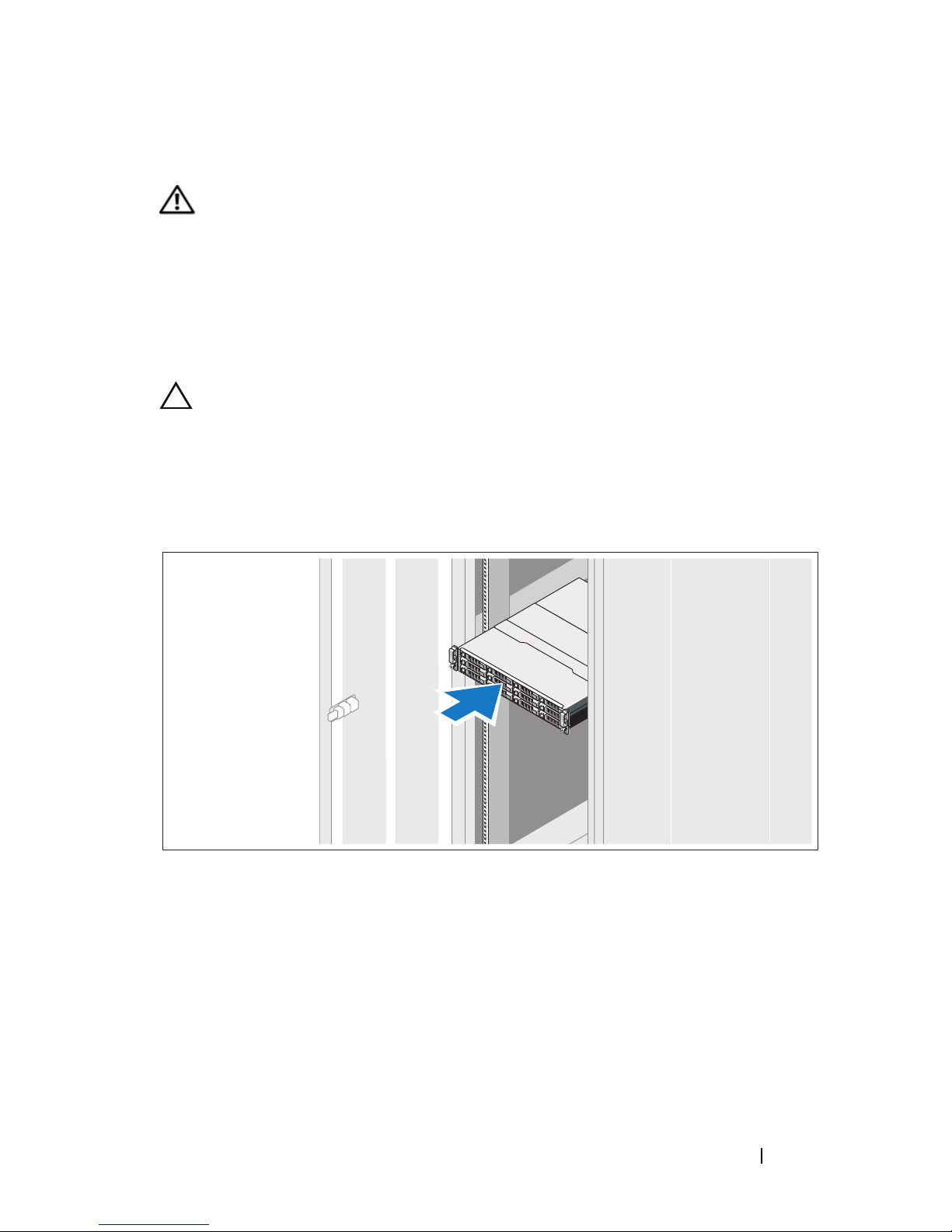

Installing the Rails and System in a Rack
CAUTION: If installed in a closed or multi-unit rack assembly, the operating
ambient temperature of the rack environment may be greater than room ambient.
Therefore, consideration should be given to installing the equipment in an
environment compatible with the maximum ambient temperature (Tma)
specified by the manufacturer. For more information, see "Technical
Specifications" on page 7.
Assemble the rails and install the system in the rack following the safety
instructions and the rack installation instructions provided with your system.

4Getting Started With Your System

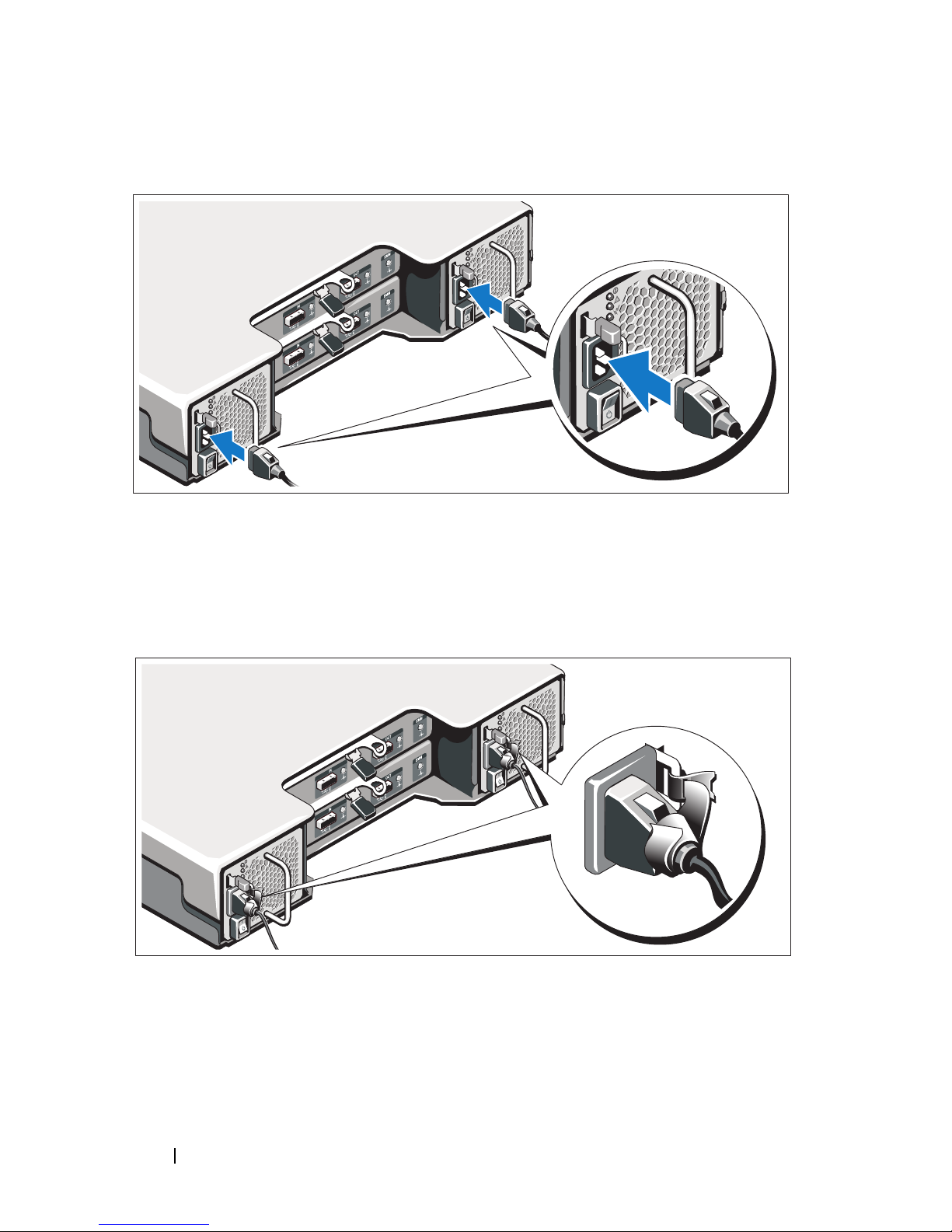

Connecting the Power Cable(s)
Ensure that the power switch is in the OFF postion before connecting the
power cables. Connect the system’s power cable(s) to the system.
Securing the Power Cable(s)
Bend the system power cable(s) as shown in the illustration and secure the
cable(s) firmly to the bracket using the provided strap.
Plug the other end of the power cables into a grounded electrical outlet or
a separate power source such as an uninterrupted power supply (UPS) or
a power distribution unit (PDU).

Getting Started With Your System 5

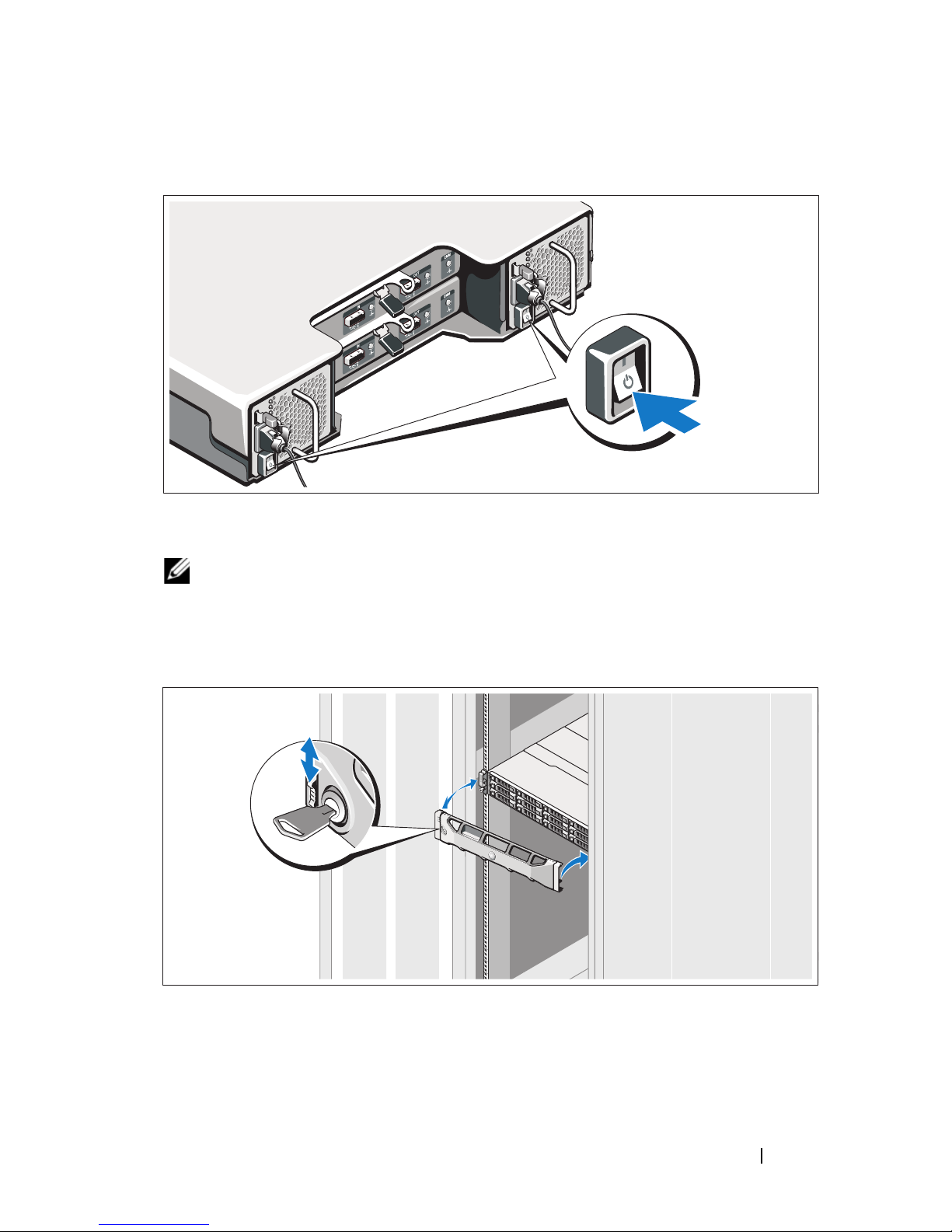

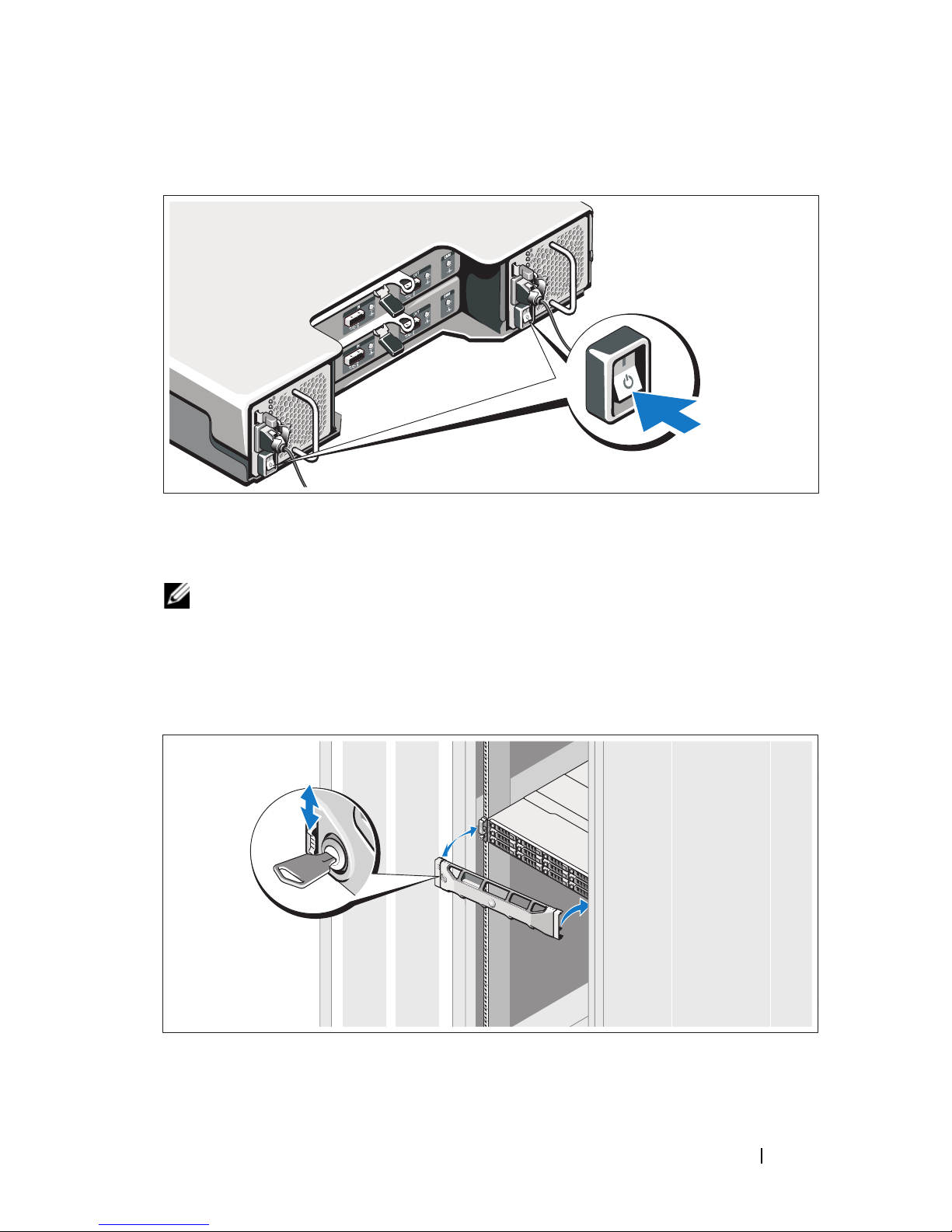

Turning On the System
Press the power switch to the ON position. The power indicators should light.
NOTE: Ensure that the storage enclosure is connected to the server and the mode
switch set to split or unified mode before turning on the system.
Installing the Optional Bezel
Install the bezel (optional).

6Getting Started With Your System
Other Information You May Need
WARNING: See the safety and regulatory information that shipped with your
system. Warranty information may be included within this document or as a
separate document.
• The rack documentation included with your rack solution describes how to
install your system into a rack.
•The
Hardware Owner’s Manual provides information about system
features and describes how to troubleshoot the system and install or
replace system components. This document is available online at
support.dell.com/manuals .
• Any media that ships with your system that provides documentation and
tools for configuring and managing your system, including those
pertaining to the operating system, system management software,
system updates, and system components that you purchased
with your system.
NOTE: Always check for updates on support.dell.com/manuals and read the
updates first because they often supersede information in other documents.
NOM Information (Mexico Only)
The following information is provided on the device described
in this document in compliance with the requirements of the
official Mexican standards (NOM):
Importer:
Model number: E03J
Supply voltage: 100–240 V CA
Frequency: 50/60 Hz
Current consumption: 8.6 A

Getting Started With Your System 7
Technical Specifications
Drives
SAS hard drives Up to 12 3.5-inch SAS hot-swappable hard
drives (3.0 Gbps and 6.0 Gbps)
Enclosure Management Modules (EMMs)
EMMs One or two hot-swappable modules with
temperature sensors and an audio alarm
Connectivity
Configurations Support for either of the following
configurations:
• Unified mode for direct connectivity
to 12 hard drives per enclosure.
– Up to four daisy-chained storage
enclosures for a total of 48 hard drives
per controller port and 96 hard drives
per controller.
– Maximum configuration of two dual-port
controllers per server for a total of
192 drives.
– Redundant path connectivity provides
redundant data paths to each hard drive.
Redundant path configuration supports
up to four daisy-chained storage
enclosures for a total of 48 hard drives per
controller and 92 hard drives per server.
• Split mode with dual EMMs provides a
direct connectivity to drives 0 through 5 and
a separate direct connectivity to drives 6 to
11. Split mode configuration does not
support redundant data paths.

8Getting Started With Your System
Redundant Array of Independent Disks (RAID)
Controller Host-based RAID support using
PowerEdge™ RAID controller H800
Management RAID management using
Dell OpenManage™ Server
Administrator 6.2 or later.
Back-Plane Board
Connectors
• 12 SAS hard-drive connectors
• Two power supply/cooling fan
module connectors
• Two sets of EMM connectors
• One control panel connector for front LEDs
and enclosure mode switch
Sensors Two temperature sensors
Back-Panel Connectors
SAS connectors (per EMM)
• One SAS IN connector for connection
to the host
• One SAS OUT connector for expansion
to an additional enclosure
NOTE: SAS connectors are SFF-8086/SFF-8088
compliant.
Serial connector (per EMM) One 6-pin UART mini-DIN connector
NOTE: For engineering use only
LED Indicators
Front panel
• One two-color LED indicator for
system status
• Two single-color LED indicators for power
and split mode
Hard-drive carrier One single-color activity LED
One two-color LED status indicator per drive

Getting Started With Your System 9
EMM Three two-color LED status indicators,
one each for the two EMM SAS ports and
one for the EMM status
Power supply/cooling fan Three LED status indicators for power supply
status, power supply/fan fault, and AC status
Switch
System identification button Located on the front control panel.
This button is used to locate a system
within a rack.
Mode switch Located on the front control panel.
Used to switch the system between unified
and split mode operation.
Power Supplies
AC power supply (per power supply)
Wattage 600 W
Voltage 100–240 VAC (8.6 A–4.3 A)
Heat dissipation 188 W
Maximum inrush current Under typical line conditions and over the
entire system ambient operating range,
the inrush current may reach 55 A per
power supply for 10 ms or less.
Available Hard Drive Power (Per Slot)
Supported hard drive power
consumption (continuous)
Up to 1.16 A at +5 V
Up to 1.6 A at +12 V
EMM Power (Per Slot)
Maximum power consumed by EMM 11 W at +12 V
Maximum available power 100 W at +12 V
Maximum available power 1 W at +5 V standby
LED Indicators (continued)

10 Getting Started With Your System
Physical
Height 8.68 cm (3.41 inches)
Width 44.63 cm (17.57 inches)
Depth 60.20 cm (23.70 inches)
Weight (maximum configuration) 28.39 kg (62.6 lb)
Weight (empty) 8.84 kg (19.5 lb)
Environmental
NOTE: For additional information about environmental measurements for specific
system configurations, see www.dell.com/environmental_datasheets.
Temperature
Operating 10° to 35°C (50° to 95°F) with a maximum
temperature gradation of 10°C per hour
NOTE: For altitudes above 2950 feet,
the maximum operating temperature
is derated 1ºF/550 ft.
Storage –40° to 65°C (–40° to 149°F) with
a maximum temperature gradation
of 20°C per hour
Relative humidity
Operating 20% to 80% (noncondensing) with
a maximum humidity gradation
of 10% per hour
Storage 5% to 95% (noncondensing)
Maximum vibration
Operating 0.25 G at 3–200 Hz for 15 min
Storage 0.5 G at 3–200 Hz for 15 min
Maximum shock
Operating One shock pulse in the positive z axis
(one pulse on each side of the system) of
31 G for 2.6 ms in the operational orientation

Getting Started With Your System 11
Storage Six consecutively executed shock pulses
in the positive and negative x, y, and z axes
(one pulse on each side of the system)
of 71 G for up to 2 ms
Altitude
Operating –16 to 3048 m (–50 to 10,000 ft)
NOTE: For altitudes above 2950 feet,
the maximum operating temperature
is derated 1ºF/550 ft.
Storage –16 to 10,600 m (–50 to 35,000 ft)
Airborne Contaminant Level
Class G2 or lower as defined by ISA-S71.04-1985
Environmental (continued)

12 Getting Started With Your System

Boîtiers de stockage Dell™
PowerVault™ MD1200
Guide de mise en route
Modèle réglementaire Série E03J

Remarques, précautions et avertissements
REMARQUE : une REMARQUE indique des informations importantes qui peuvent
vous aider à mieux utiliser votre ordinateur.
PRÉCAUTION : une PRÉCAUTION vous avertit d'un risque d'endommagement du
matériel ou de perte de données en cas de non-respect des instructions données.
AVERTISSEMENT : un AVERTISSEMENT vous avertit d’un risque
d'endommagement du matériel, de blessure corporelle ou de mort.
____________________
Les informations que contient ce document sont sujettes à modification sans préavis.
© 2009 Dell Inc. Tous droits réservés.
La reproduction de ce document, de quelque manière que ce soit, sans l'autorisation écrite de Dell Inc.
est strictement interdite.
Marques mentionnées dans ce document : Dell, le logo DELL, PowerEdge,OpenManage et
PowerVault sont des marques de Dell Inc.
D'autres marques et noms de marque peuvent être utilisés dans ce document pour faire référence aux
entités se réclamant de ces marques et de ces noms ou de leurs produits. Dell Inc. dénie tout intérêt
propriétaire vis-à-vis des marques et des noms de marque autres que les siens.
Modèle réglementaire Série E03J
Août 2009 N/P K356M Rév. A00

Guide de mise en route 15
Installation et configuration
AVERTISSEMENT : avant de commencer, lisez les consignes de sécurité
fournies avec le système.
Déballage du système
Sortez le système de son emballage et identifiez chaque élément.
Installation des rails et du système dans un rack
PRÉCAUTION : si le système est installé dans un rack clos ou multi-unités, la
température ambiante du rack lors du fonctionnement du système peut être plus
élevée que celle de la pièce. Il importe donc de veiller à installer l'équipement
dans un environnement respectant la température maximale (Tma) indiquée par le
fabricant. Pour plus d'informations, voir « Caractéristiques techniques » à la
page 19.
Assemblez les rails et installez le système dans le rack en suivant les consignes
de sécurité et les instructions d'installation du rack fournies avec le système.

16 Guide de mise en route
Branchement du ou des câbles d'alimentation
Avant de connecter les câbles d'alimentation, assurez-vous que le
commutateur d'alimentation est en position OFF (ÉTEINT). Branchez le ou
les câbles d'alimentation sur le système.
Fixation du ou des câbles d'alimentation
Repliez le(s) câble(s) comme illustré et faites-le(s) passer dans le clip, puis
fixez-le(s) à l'aide de la sangle fournie.
Branchez ensuite l'autre extrémité des câbles d'alimentation sur une prise de
courant mise à la terre ou sur une source d'alimentation autonome (onduleur
[UPS] ou unité de distribution de l'alimentation [PDU]...).

Guide de mise en route 17
Mise sous tension du système
Mettez le commutateur d'alimentation en position ON (ALLUMÉ). Les
voyants d'alimentation s'allument.
REMARQUE : assurez-vous que le boîtier de stockage est connecté au serveur et
que le commutateur de mode est configuré sur le mode divisé ou unifié avant de
mettre le système sous tension.
Installation du cadre en option
Installez le cadre (si nécessaire).

18 Guide de mise en route
Autres informations utiles
AVERTISSEMENT : reportez-vous aux informations sur la sécurité et les
réglementations fournies avec votre système. Les informations sur la garantie se
trouvent dans ce document ou dans un document distinct.
• La documentation fournie avec le rack indique comment installer le
système dans un rack.
•Le
Manuel du propriétaire présente les caractéristiques du système et
contient des informations de dépannage et des instructions d'installation
ou de remplacement des composants. Il est disponible en ligne sur le site
support.dell.com/manuals .
• Tous les supports fournis avec le système contiennent de la documentation
et des outils permettant de configurer et de gérer le système, notamment
la documentation et les outils du système d'exploitation, du logiciel de
gestion du système, des mises à jour système et des composants système
que vous avez achetés avec le système.
REMARQUE : vérifiez toujours si des mises à jour sont disponibles sur le site
support.dell.com/manuals et lisez les informations de mise à jour en premier,
car elles remplacent souvent les informations que contiennent les autres
documents.
Informations NOM (Mexique uniquement)
Les informations suivantes sur l'appareil décrit dans ce document sont fournies
conformément aux exigences de la Norme Officielle Mexicaine (NOM) :
Importateur :
Numéro de modèle : E03J
Tension
d'alimentation :
100–240 V CA
Fréquence : 50/60 Hz
Consommation
électrique :
8,6 A
