Dell 1737 - Studio - Laptop User manual

SETUP GUIDE

SETUP GUIDE
Model PP31L

Notes, Notices, and Cautions
NOTE: A NOTE indicates important information that helps you make better use of your
computer.
NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you
how to avoid the problem.
CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.
If you purchased a Dell™ n Series computer, any references in this document to Microsoft®Windows®operating systems
are not applicable.
__________________
Information in this document is subject to change without notice.
© 2008-2009 Dell Inc. All rights reserved.
Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text:
Dell , the DELL logo, MediaDirect , Wi-Fi Catcher , YOURS IS HERE , and DellConnect
are trademarks of Dell Inc.;
Intel , Pentium , and Celeron are registered trademarks and Core is a trademark of Intel
Corporation in the U.S. and other countries;
Microsoft , Windows , and Windows Vista are either trademarks or registered
trademarks of Microsoft Corporation in the United States and/or other countries.;
Blu-ray Disc is a trademark of the Blu-
ray Disc Association;
Bluetooth is a registered trademark owned by Bluetooth SIG, Inc. and is used by Dell under license.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and
names or their products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.
January 2009 P/N F174H Rev. A01

3
Setting Up Your Studio Laptop . . . . . . . . . . .5
Before Setting Up Your Studio Laptop . . . . . 5
Connecting the AC Adapter . . . . . . . . . . . . . . 6
Connecting the Network Cable
(optional). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Turning on Your Studio Laptop . . . . . . . . . . . . 8
Using the Wireless Switch . . . . . . . . . . . . . . . 9
Windows Vista®Setup . . . . . . . . . . . . . . . . . . 9
Connecting to the Internet (Optional) . . . . . 10
Using Your Studio Laptop . . . . . . . . . . . . . .12
Right Side Features . . . . . . . . . . . . . . . . . . . . 14
Left Side Features . . . . . . . . . . . . . . . . . . . . . 18
Computer Base and Keyboard
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Display Features . . . . . . . . . . . . . . . . . . . . . . 26
Media Controls. . . . . . . . . . . . . . . . . . . . . . . . 27
Removing and Replacing the Battery . . . . . 28
Using the Optical Disc Drive. . . . . . . . . . . . . 29
Software Features . . . . . . . . . . . . . . . . . . . . . 30
Solving Problems . . . . . . . . . . . . . . . . . . . . .33
Network Problems . . . . . . . . . . . . . . . . . . . . . 33
Power Problems. . . . . . . . . . . . . . . . . . . . . . . 34
Memory Problems . . . . . . . . . . . . . . . . . . . . . 35
Lockups and Software Problems . . . . . . . . . 36
Using Support Tools. . . . . . . . . . . . . . . . . . .38
Dell Support Center . . . . . . . . . . . . . . . . . . . . 38
System Messages . . . . . . . . . . . . . . . . . . . . . 38
Hardware Troubleshooter. . . . . . . . . . . . . . . 40
Dell Diagnostics . . . . . . . . . . . . . . . . . . . . . . 40
Contents

4
Contents
Restoring Your Operating System . . . . . . .43
System Restore . . . . . . . . . . . . . . . . . . . . . . . 43
Dell Factory Image Restore . . . . . . . . . . . . . 44
Operating System Reinstallation . . . . . . . . . 46
Getting Help . . . . . . . . . . . . . . . . . . . . . . . . .48
Technical Support and Customer
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
DellConnect™. . . . . . . . . . . . . . . . . . . . . . . . . 49
Online Services . . . . . . . . . . . . . . . . . . . . . . . 49
AutoTech Service. . . . . . . . . . . . . . . . . . . . . . 50
Product Information. . . . . . . . . . . . . . . . . . . . 51
Returning Items for Repair Under
Warranty or for Credit . . . . . . . . . . . . . . . . . . 51
Before You Call. . . . . . . . . . . . . . . . . . . . . . . . 52
Contacting Dell. . . . . . . . . . . . . . . . . . . . . . . . 53
Finding More Information and
Resources . . . . . . . . . . . . . . . . . . . . . . . . . . .54
Basic Specifications . . . . . . . . . . . . . . . . . .56
Appendix. . . . . . . . . . . . . . . . . . . . . . . . . . . .67
Macrovision Product Notice. . . . . . . . . . . . . 67
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68

5
Setting Up Your Studio Laptop
This section provides information about setting
up your Studio 1737 laptop and connecting
peripherals.
Before Setting Up Your Studio Laptop
When positioning your computer, ensure that
you allow easy access to a power source,
adequate ventilation, and a level surface to
place your computer.
Restricting airflow around your Studio
computer may cause it to overheat. To prevent
overheating ensure that you leave at least
10.2 cm (4 in) at the back of the computer and a
minimum of 5.1 cm (2 in) on all other sides. You
should never put your computer in an enclosed
space, such as a cabinet or drawer when it is
powered on.
CAUTION: Do not block, push objects into,
or allow dust to accumulate in the air
vents. Do not store your Dell™ computer
in a low-airflow environment, such as
a closed briefcase, while it is running.
Restricting the airflow can damage the
computer or cause a fire.The computer
turns on the fan when the computer gets
hot. Fan noise is normal and does not
indicate a problem with the fan or the
computer.
NOTICE: Placing or stacking heavy or sharp
objects on the computer may result in
permanent damage to the computer.

6
Setting Up Your Studio Laptop

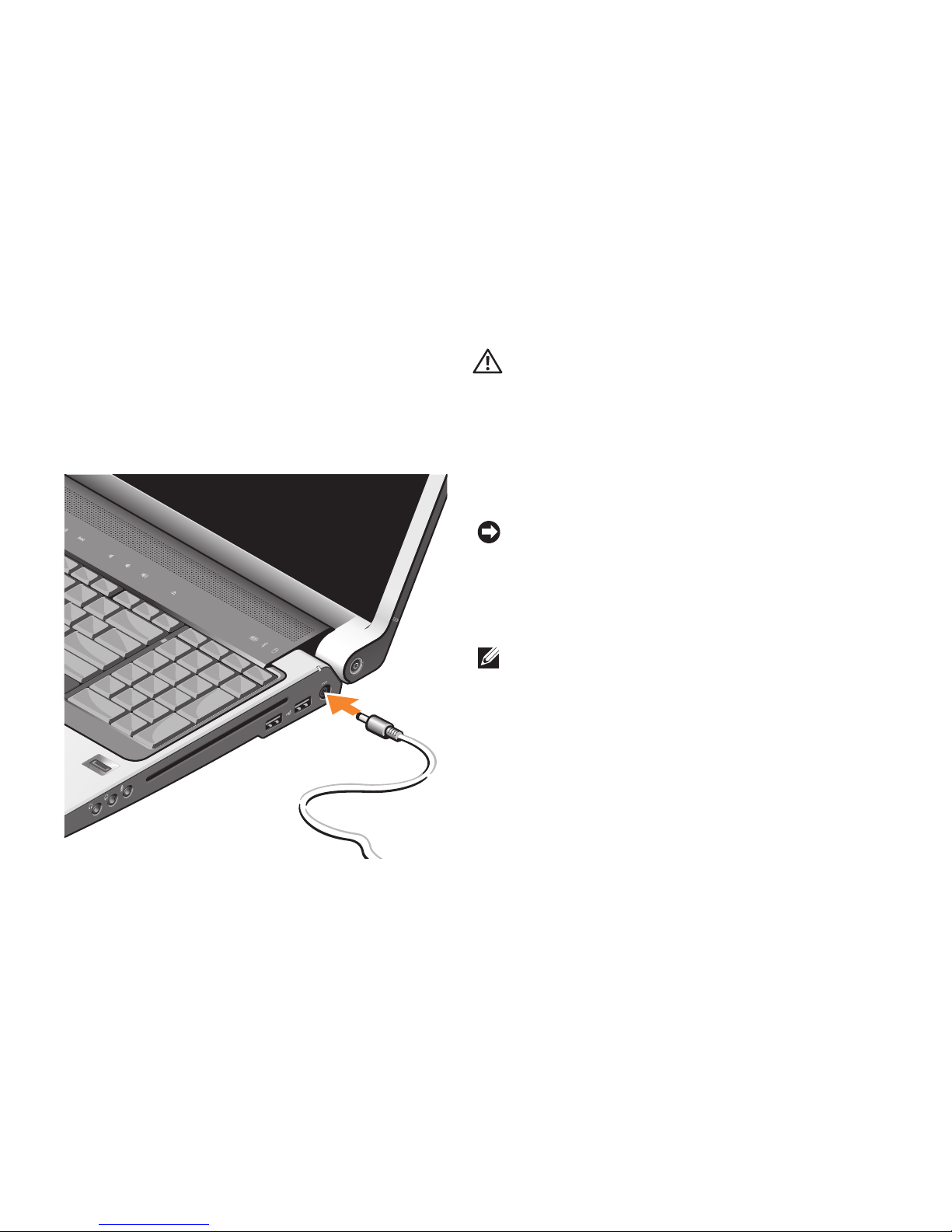

Connecting the AC Adapter
Connect the AC adapter to the computer and
then plug it into a wall outlet or surge protector.
CAUTION: The AC adapter works with
electrical outlets worldwide. However,
power connectors and power strips vary
among countries. Using an incompatible
cable or improperly connecting the cable
to a power strip or electrical outlet may
cause fire or equipment damage.
NOTICE: When you disconnect the
AC adapter cable from the computer, grasp
the connector, not the cable itself, and pull
firmly, but gently to help prevent damage to
the cable.
NOTE: Connect the power cord to the
adapter firmly and ensure that the light on
the adapter is on when you turn on power.

7
Setting Up Your Studio Laptop
Connecting the Network Cable
(optional)
To use a wired network connection, plug in the
network cable.

8
Setting Up Your Studio Laptop

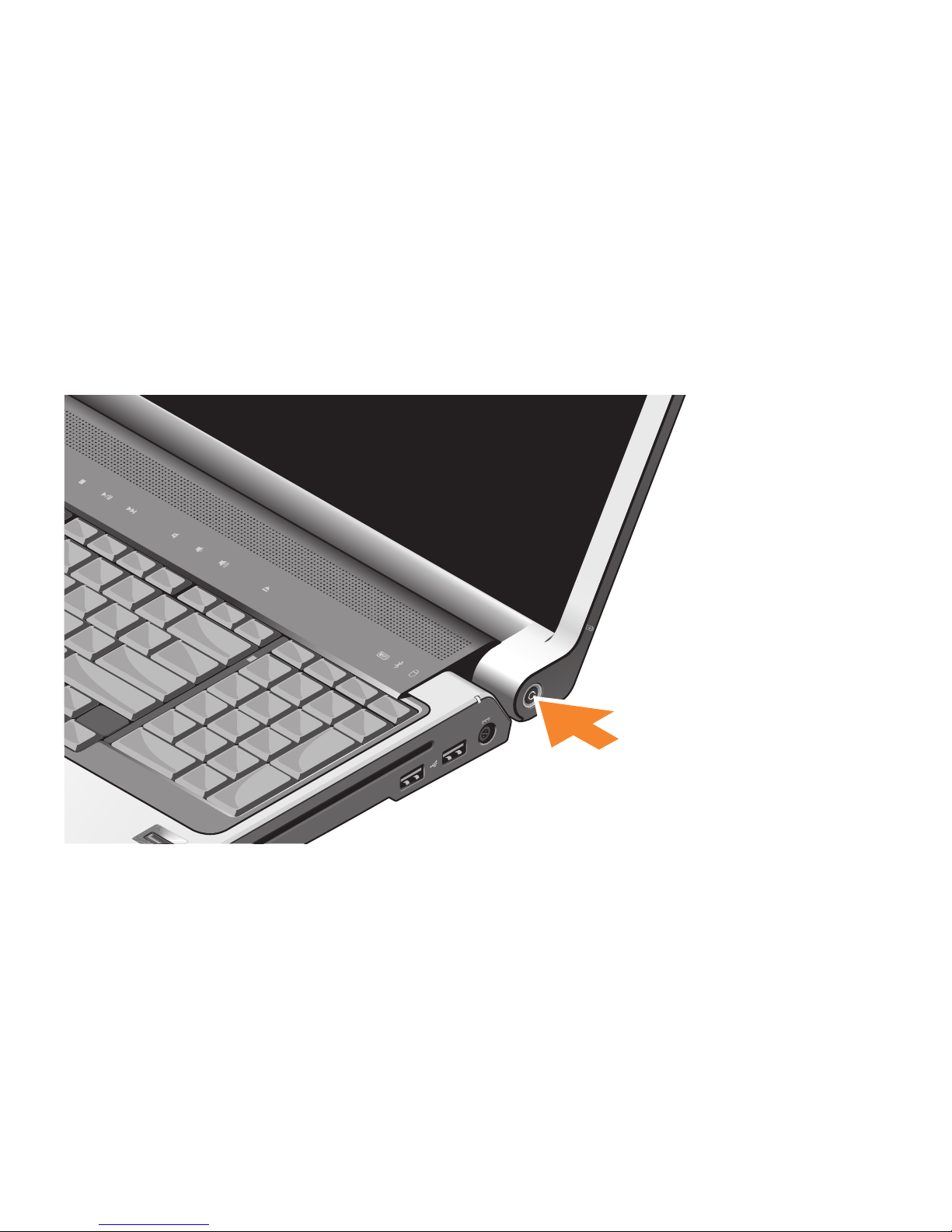

Turning on Your Studio Laptop

9
Setting Up Your Studio Laptop

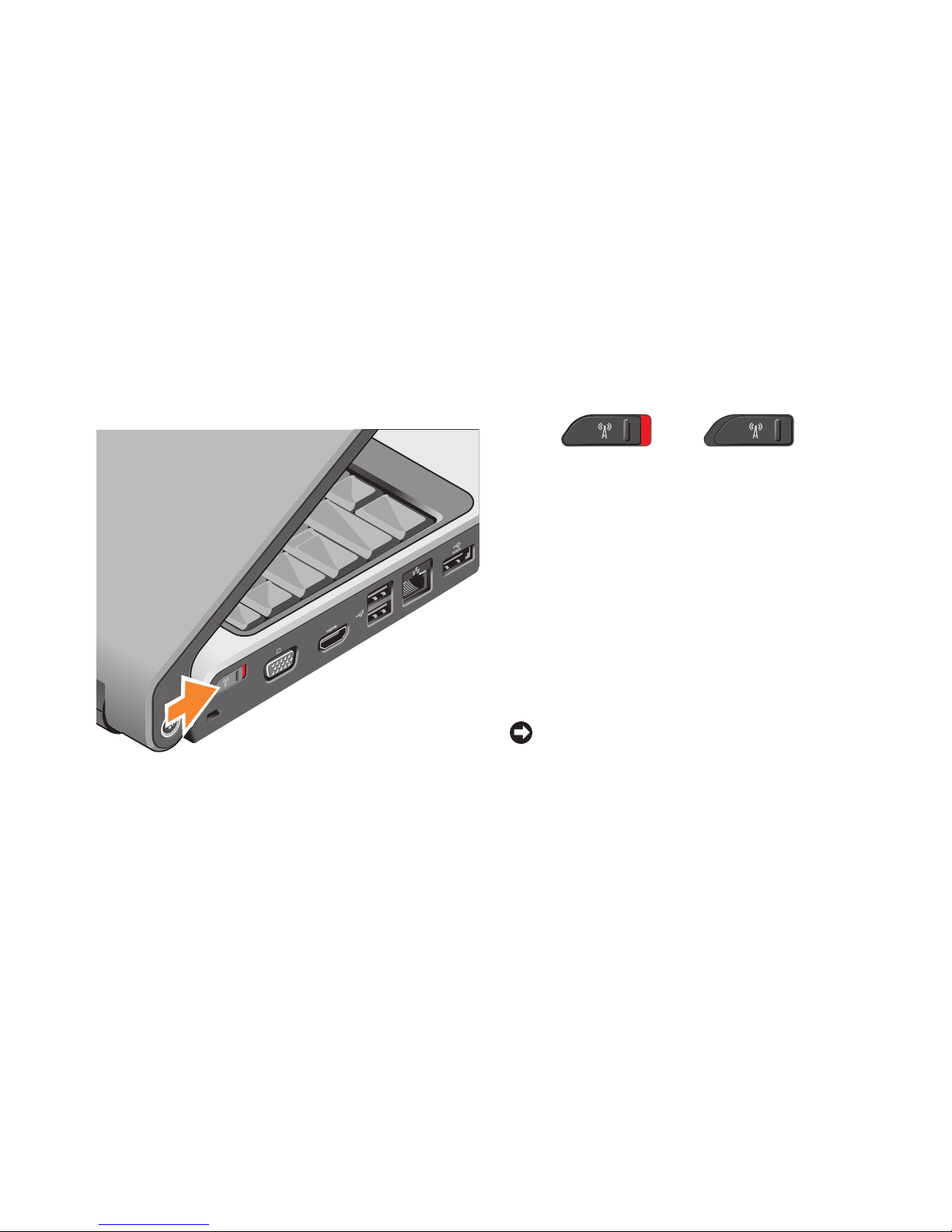

Using the Wireless Switch
To use wireless connections, make sure the
wireless switch is in the “On” position.
To turn on the wireless switch, slide it from the rear
to the front of the computer until it clicks into place.
- Off - On
Windows Vista®Setup
Your Dell computer is preconfigured with
Windows Vista. To set up Windows Vista for
the first time, follow the instructions on the
screen. These steps are mandatory and may
take up to 15 minutes to complete. The screens
will take you through several procedures
including accepting license agreements,
setting preferences and setting up an Internet
connection.
NOTICE: Do not interrupt the operating
system’s setup process, doing so may
render your computer unusable.

10
Setting Up Your Studio Laptop
Connecting to the Internet
(Optional)
NOTE: ISPs (Internet Service Providers)
and ISP offerings vary by country.
To connect to the Internet, you need an external
modem or network connection and an Internet
service provider (ISP).
NOTE: If an external USB modem or WLAN
adapter is not a part of your original
order, you can purchase one from the Dell
website at www.dell.com.
Setting Up a Wired Internet Connection
If you are using a dial-up connection, connect
the telephone line to the external USB modem
(optional) and to the telephone wall connector
before you set up your Internet connection. If
you are using a DSL or cable/satellite modem
connection, contact your ISP or cellular
telephone service for setup instructions.

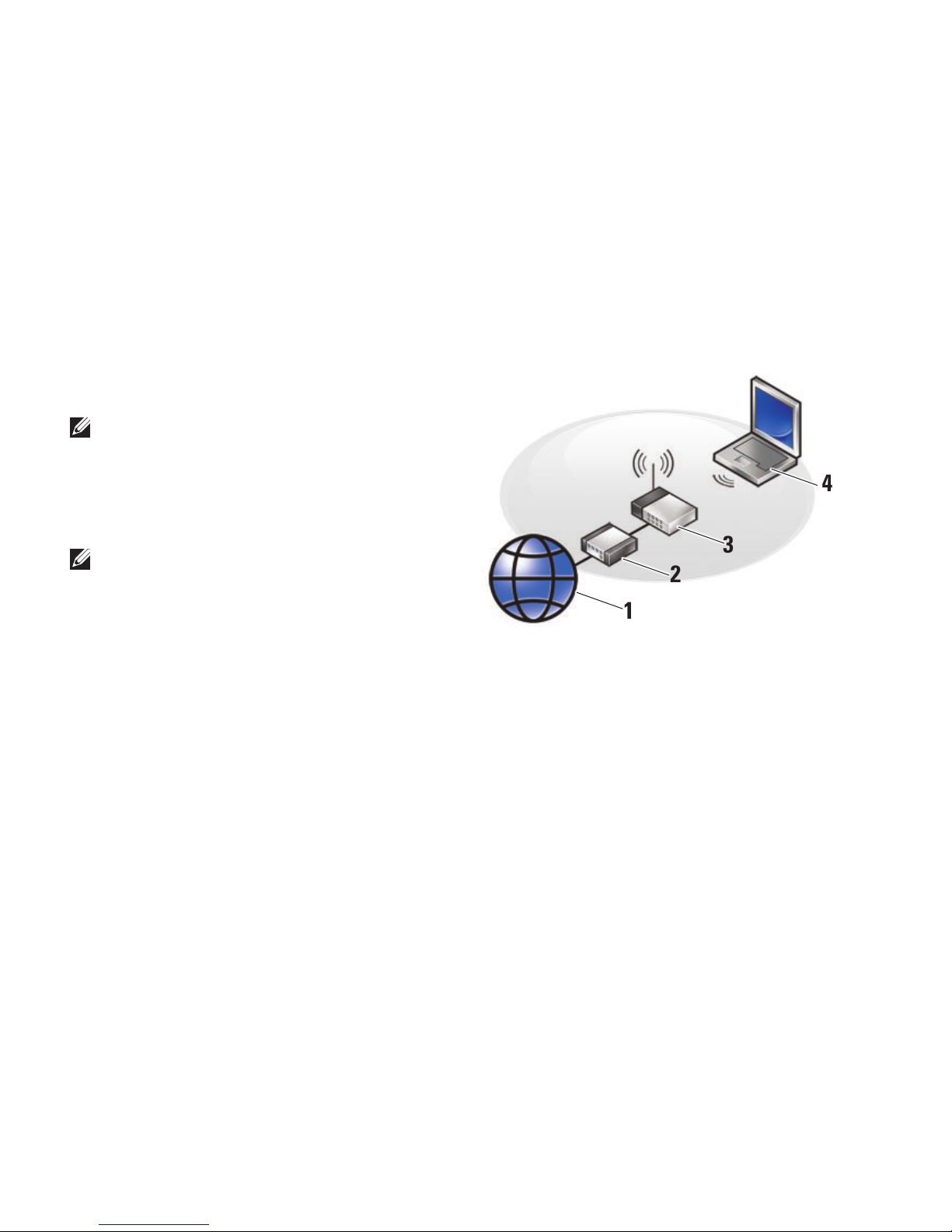

Setting Up a Wireless Connection
2
1
3
4
Internet service1.
cable or DSL modem2.
wireless router3.
portable computer with wireless network4.
card
See the documentation for your computer or
router for more information about how to set up
and use your wireless network.

11
Setting Up Your Studio Laptop
Before you can use your wireless Internet
connection, you need to connect to your
wireless router. To set up your connection to a
wireless router:
Save and close any open files, and exit any1.
open programs.
Click2. Start →Connect To.
Follow the instructions on the screen to3.
complete the setup.
Setting Up Your Internet Connection
NOTE: If you cannot connect to the Internet
but have successfully connected in the
past, the ISP might have a service outage.
Contact your ISP to check the service
status, or try connecting again later.
NOTE: Have your ISP information ready. If
you do not have an ISP, the Connect to the
Internet wizard can help you get one.
Save and close any open files, and exit any1.
open programs.
Click2. Start →Control Panel.
Under3. Network and Internet, click Connect
to the Internet.
The Connect to the Internet window appears.
Select either4. Broadband (PPPoE) or Dial-up,
depending on how you want to connect:
Choosea. Broadband if you will use a DSL,
satellite modem, cable TV modem, or
wireless technology connection.
Chooseb. Dial-up if you will use an optional
USB dial-up modem or ISDN.
NOTE: If you do not know which type of
connection to select, click Help me choose
or contact your ISP.
Follow the instructions on the screen and5.
use the setup information provided by your
ISP to complete the setup.

12
Your Studio 1737 has several indicators, buttons,
and features that provide information at-a-
glance and time-saving shortcuts for common
tasks.

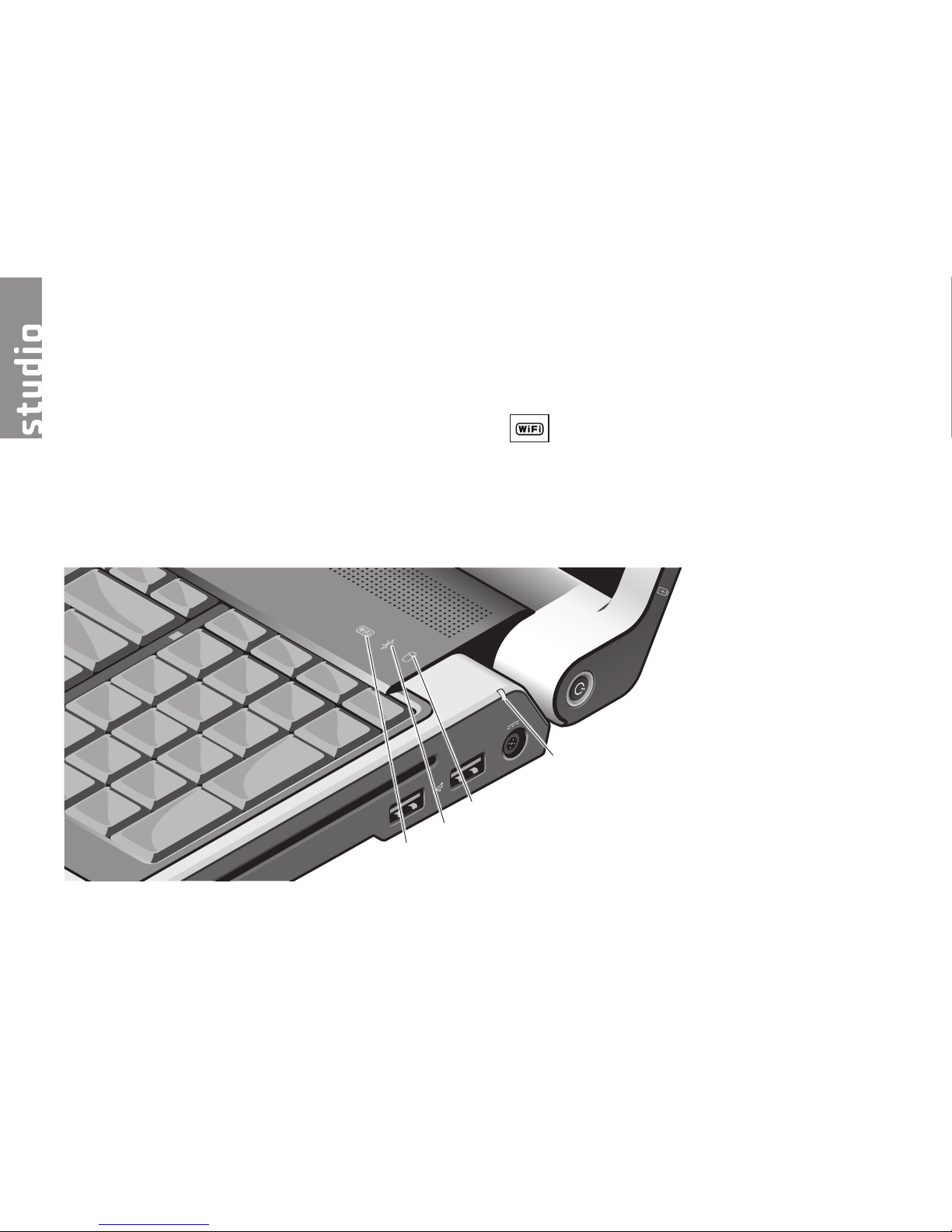

Device Status Lights
1
2
3
4
1WiFi status light – Turns on when
wireless networking is enabled.
See “wireless on/off switch” on page 22
to quickly turn all wireless communication
on and off.
Using Your Studio Laptop

13
Using Your Studio Laptop
2Bluetooth®status light (optional) –
Turns on when a card with Bluetooth
wireless technology is enabled.
NOTE: The card with Bluetooth
wireless technology is an optional
feature.
To turn off Bluetooth wireless, right-click
the bluetooth icon in the notification area
of your desktop, and click Turn Bluetooth
Adapter Off or see “wireless on/off
switch” on page 22.
3Hard drive activity light – Turns on
when the computer reads or writes data. A
flashing light indicates hard drive activity.
NOTE: To avoid loss of data, never
turn off the computer while the hard
drive activity light is flashing.
4Battery status light – Indicates the
battery charging state.
If the computer is connected to an
electrical outlet:
Solid white – the battery is charging.•
Off – the battery is adequately charged.•
If the computer is running on a battery:
Off – the battery is adequately charged•
or the computer is turned off.
Solid orange – the battery charge is•
low.
Flashing orange – the battery charge is•
critically low and you should either plug
in the AC adapter or save and close
your open documents and applications
until you can.

14
Using Your Studio Laptop
Right Side Features
1
2
3
4
5
6

15
Using Your Studio Laptop

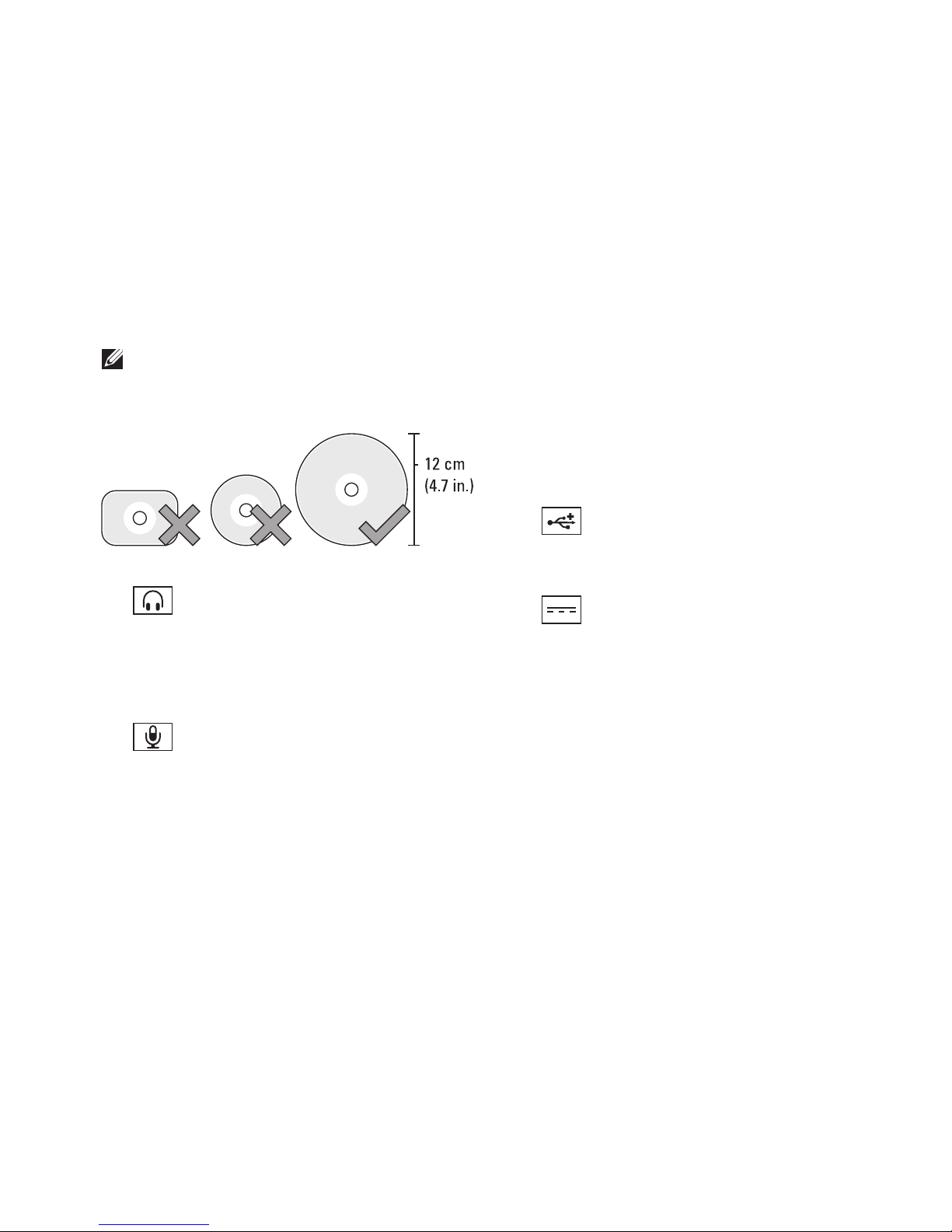

NOTE: Do not uses non-standard-size or
shape discs (including mini-CDs and mini-
DVDs) or you will damage the drive.
1Audio Out/ Headphone
connectors (2) – Connect to headphones,
powered speakers, or sound systems.
The audio signal is the same for both
connectors.
2Audio In/ Microphone connector –
Connects to a microphone or input signal
for use with audio programs.
3Optical Drive – Supports only standard-
size and shape (12 cm) CDs, and DVDs.
Ensure that the side with print or writing is
facing upward when inserting discs.
For more information, see the
Dell
Technology Guide
.
4USB 2.0 connectors (2) – Connect
USB devices, such as a mouse, keyboard,
printer, external drive, or MP3 player.
5AC adapter connector – Attaches an
AC adapter to the computer to power the
computer and charge the battery when
the computer is not in use. The AC adapter
converts AC power to the DC power
required by the computer.
For more information, see “Connect the AC
Adapter” on 8

16
Using Your Studio Laptop
6Power button and light – Turns the
power on or off when pressed.
NOTICE: If the computer stops
responding, press and hold the power
button until the computer turns
off completely (may take several
seconds).
The light in the center of this button
indicates the power state:
Blinking white – the computer is in•
sleep state
Solid white – the computer is in power-•
on state
Off – the computer is switched off or in•
hibernate state

17
Using Your Studio Laptop

18
Using Your Studio Laptop
Left Side Features
12
3
4
5
6
7
