Dell™Latitude™D820ServiceManual
Notes, Notices, and Cautions
Information in this document is subject to change without notice.
©2006DellInc.Allrightsreserved.
Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell, the DELL logo, and Latitude are trademarks of Dell Inc.; Bluetooth is a registered trademark owned by Bluetooth SIG, Inc. and is used by Dell
under license;
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any
proprietary interest in trademarks and trade names other than its own.
Model PP04X
June 2006 Rev. A01
Before You Begin
System Components
Hard Drive
Hinge Cover
Memory
Display Assembly
Communications Cards
Palm Rest
Coin-Cell Battery
Modem
Internal Card with Bluetooth®Wireless Technology
Processor Thermal-Cooling Assembly
Keyboard
Processor Module
PC Card Reader
System Board
Battery Latch
Base
Fan
Flashing the BIOS
Pinout Assignments for I/O Connectors
NOTE: A NOTE indicates important information that helps you make better use of your computer.
NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.
CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.

Back to Contents Page
Base
Dell™Latitude™D820ServiceManual

1. Follow the instructions in Before Working Inside Your Computer.

2. Remove the hard drive (see Hard Drive).

3. Remove the hinge cover (see Hinge Cover).

4. Remove the internal card with Bluetooth®wireless technology.

5. Remove the keyboard (see Keyboard).

6. Remove the display assembly (see Removing the Display Assembly).

7. Remove the palm rest (see Palm Rest).

8. Remove the processor thermal-cooling assembly (see Processor Thermal-Cooling Assembly).

9. Remove the processor (see Removing the Processor Module).

10. Remove the modem (see Modem).

11. Remove the fan (see Fan).

12. Remove the system board (see Removing the System Board).
Back to Contents Page

CAUTION: Before performing the following procedures, follow the safety instructions in the Product Information Guide.
CAUTION: To prevent static damage to components inside your computer, discharge static electricity from your body before you touch any of
your computer's electronic components. You can do so by touching an unpainted metal surface.

Back to Contents Page
Battery Latch
Dell™Latitude™D820ServiceManual

1. Follow the instructions in Before Working Inside Your Computer.

2. Remove the hard drive (see Hard Drive).

3. Remove the hinge cover (see Hinge Cover).

4. Remove the keyboard (see Keyboard).

5. Remove the display assembly (see Removing the Display Assembly).

6. Remove the palm rest (see Palm Rest).

7. Remove the processor thermal-cooling assembly (see Processor Thermal-Cooling Assembly).

8. Remove the system board (see Removing the System Board).

9. To remove the battery latch, use a plastic scribe or screwdriver to carefully dislodge the battery latch from the base, and lift the latch away.
Back to Contents Page

CAUTION: Before performing the following procedures, follow the safety instructions in the Product Information Guide.
CAUTION: To prevent static damage to components inside your computer, discharge static electricity from your body before you touch any of
your computer's electronic components. You can do so by touching an unpainted metal surface.

Back to Contents Page
Before You Begin
Dell™Latitude™D820ServiceManual
Recommended Tools
Turning Off Your Computer
Before Working Inside Your Computer
Computer Orientation
This chapter provides procedures for removing and installing the components in your computer. Unless otherwise noted, each procedure assumes that the
following conditions exist:
lYou have performed the steps in Turning Off Your Computer and Before Working Inside Your Computer.
lYou have follow the safety information in the Product Information Guide.
lA component can be replaced by performing the removal procedure in reverse order.
Recommended Tools
The procedures in this document may require the following tools:
lSmall flat-blade screwdriver
lPhillips screwdriver
lSmall plastic scribe
lHex nut driver
lFlash BIOS-update program CD
Turning Off Your Computer

1. Shut down the operating system:
a. Save and close any open files, exit any open programs, click Start®Shut Down®Shut down®OK.
The computer turns off after the operating system shutdown process finishes.

2. Ensure that the computer and any attached devices are turned off. If your computer and attached devices do not automatically turn off when you shut
down your operating system, press and hold the power button for 4 seconds.
Before Working Inside Your Computer
Use the following safety guidelines to help protect your computer from potential damage and to help ensure your own personal safety.

1. Ensure that the work surface is flat and clean to prevent the computer cover from being scratched.

2. Turn off your computer (see Turning Off Your Computer).

3. Disconnect any telephone, network, and USB cables from the computer.
NOTICE: To avoid losing data, save and close any open files and exit any open programs before you turn off your computer.
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product Information Guide.
CAUTION: Handle components and cards with care. Do not touch the components or contacts on a card. Hold a card by its edges or by its metal
mounting bracket. Hold a component such as a processor by its edges, not by its pins.
NOTICE: Damage due to servicing that is not authorized by Dell is not covered by your warranty.
NOTICE: When you disconnect a cable, pull on its connector or on its pull-tab, not on the cable itself. Some cables have a connector with locking tabs; if
you are disconnecting this type of cable, press in on the locking tabs before you disconnect the cable. As you pull connectors apart, keep them evenly
aligned to avoid bending any connector pins. Also, before you connect a cable, ensure that both connectors are correctly oriented and aligned.
NOTICE: To avoid damaging the computer, perform the following steps before you begin working inside the computer.
NOTICE: To disconnect a network cable, first unplug the cable from your computer and then unplug it from the network wall jack.


4. Disconnect your computer and all attached devices from their electrical outlets.

5. Turn over the computer.

6. Remove the battery.
a. Slide the battery-bay latch release on the bottom of the computer toward the back of the computer until the latch is engaged.
b. Grasp the battery by the battery tab and slide the battery horizontally toward the side of the computer.
c. Lift to remove the battery from the bay.

7. Press the power button to ground the system board.

8. Remove any installed ExpressCards, PC Cards, or smart cards from the computer.
Computer Orientation
Back to Contents Page

NOTICE: To avoid damaging the system board, you must remove the main battery before you service the computer.
1
battery
2
battery-bay latch release


1
front
2
left
3
back
4
right

Back to Contents Page
Internal Card with Bluetooth®Wireless Technology
Dell™Latitude™D820ServiceManual
If you ordered an internal card with Bluetooth wireless technology with your computer, it is already installed.

1. Follow the procedures in Before You Begin.

2. Remove the hinge cover (see Hinge Cover).

3. Remove the card from its compartment in the computer.
a. Slide the card to the right.
b. Lift the card out of the computer.

4. Disconnect the card from the card cable connector.
Back to Contents Page

CAUTION: Before performing the following procedures, follow the safety instructions in your Product Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching a connector on the back panel of
the computer.
NOTICE: To avoid damaging the system board, you must remove the main battery before you begin working inside the computer.
1
metal tab
2
card
3
card cable connector
NOTICE: Be careful when removing the card to avoid damaging the card, card cable, or surrounding components.
1
card
2
card connector
3
card cable connector

Back to Contents Page
Coin-Cell Battery
Dell™Latitude™D820ServiceManual

1. Follow the procedures in Before You Begin.

2. Remove the memory module cover (see Memory).

3. Remove the coin-cell battery connector from the connector on the system board.

4. Slide the battery out of the plastic sleeve.
Back to Contents Page

CAUTION: Before performing the following procedures, follow the safety instructions in your Product Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching a connector on the back panel of
the computer.
NOTICE: To avoid damaging the system board, you must remove the main battery before you begin working inside the computer.
1
plastic sleeve
2
coin-cell battery
3
coin-cell battery connector
4
connector on system board





Back to Contents Page
System Components
Dell™Latitude™D820ServiceManual
Back to Contents Page

CAUTION: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell is
not covered by your warranty.
NOTICE: Unless otherwise noted, each procedure in this document assumes that a part can be replaced by performing the removal procedure in
reverse order.
1
display latch
2
display
3
hinge cover
4
keyboard
5
palm rest
6
system board
7
base
8
modem
9
processor
10
optical drive
11
battery
12
PC Card reader
13
hard drive
14
memory module
15
Mobile Broadband card
16
WLAN card
17
fan
18
processor thermal-cooling assembly

Back to Contents Page
Processor Module
Dell™Latitude™D820ServiceManual
Removing the Processor Module
Installing the Processor Module
Removing the Processor Module

1. Follow the instructions in Before Working Inside Your Computer.

2. Remove the hinge cover (see Hinge Cover).

3. Remove the keyboard (see Keyboard).

4. Remove the display assembly (see Display Assembly).

5. Remove the palm rest (see Palm Rest).

6. Remove the processor thermal-cooling assembly (see Processor Thermal-Cooling Assembly).

7. To loosen the ZIF socket, use a small, flat-blade screwdriver and rotate the ZIF-socket cam screw counterclockwise until it comes to the cam stop.
The ZIF-socket cam screw secures the processor to the system board. Take note of the arrow on the ZIF-socket cam screw.

8. Use a processor extraction tool to remove the processor module.
Installing the Processor Module
CAUTION: Before performing the following procedures, follow the safety instructions in the Product Information Guide.
CAUTION: To prevent static damage to components inside your computer, discharge static electricity from your body before you touch any of
your computer's electronic components. You can do so by touching an unpainted metal surface.
NOTICE: Press and hold the processor down by applying slight pressure to the center of the processor while turning the cam screw to prevent
intermittent contact between the cam screw and processor.
NOTICE: To avoid damage to the processor, hold the screwdriver so that it is perpendicular to the processor when turning the cam screw.
NOTICE: When removing the processor module, pull the module straight up. Be careful not to bend the pins on the processor module.
1
ZIF-socket
2
ZIF-socket cam screw
3
pin-1 corner of processor
NOTICE: Ensure that the cam lock is in the fully open position before seating the processor module. Seating the processor module properly in the ZIF
socket does not require force.


1. Align the pin-1 corner of the processor module so that it points to the triangle on the system board, and insert the processor module into the ZIF socket.
When the processor module is correctly seated, all four corners are aligned at the same height. If one or more corners of the module are higher than the
others, the module is not seated correctly.

2. Tighten the ZIF socket by turning the cam screw clockwise to secure the processor module to the system board.

3. Replace the processor thermal-cooling assembly (see Processor Thermal-Cooling Assembly).

4. Update the BIOS using a flash BIOS-update program CD (see Flashing the BIOS From a CD).
Back to Contents Page

NOTICE: A processor module that is not properly seated can result in an intermittent connection or permanent damage to the processor and ZIF
socket.
NOTICE: Hold the processor down while turning the cam screw to prevent intermittent contact between the cam screw and processor.
NOTE: If a new microprocessor is installed, you will receive one of the following: a new thermal-cooling assembly which will include an affixed thermal
pad; or, you will receive a new thermal pad along with a tech sheet to illustrate proper installation.

Back to Contents Page

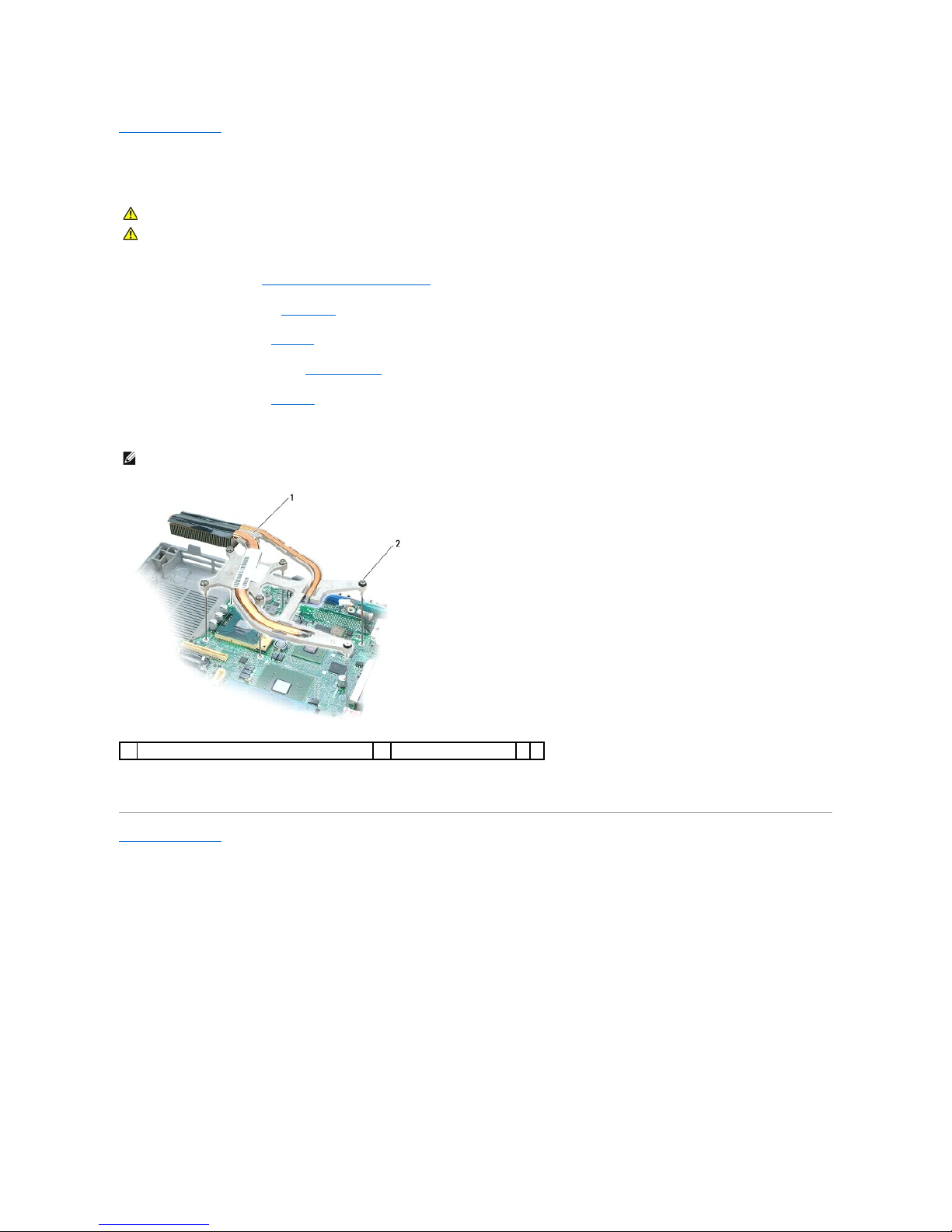

Processor Thermal-Cooling Assembly
Dell™Latitude™D820ServiceManual

1. Follow the instructions in Before Working Inside Your Computer.

2. Remove the hinge cover (see Hinge Cover).

3. Remove the keyboard (see Keyboard).

4. Remove the display assembly (see Display Assembly).

5. Remove the palm rest (see Palm Rest).

6. Loosen in consecutive order the six captive screws, labeled "1" through "6," in the processor thermal-cooling assembly.

7. Lift the assembly out of the computer.
Back to Contents Page

CAUTION: Before performing the following procedures, follow the safety instructions in the Product Information Guide.
CAUTION: To prevent static damage to components inside your computer, discharge static electricity from your body before you touch any of
your computer's electronic components. You can do so by touching an unpainted metal surface.
NOTE: The appearance of the thermal-cooling assembly for system boards with integrated graphics varies from that for system boards with discrete
graphics (shown).
1
processor thermal-cooling assembly
2
captive screws (6)



Back to Contents Page

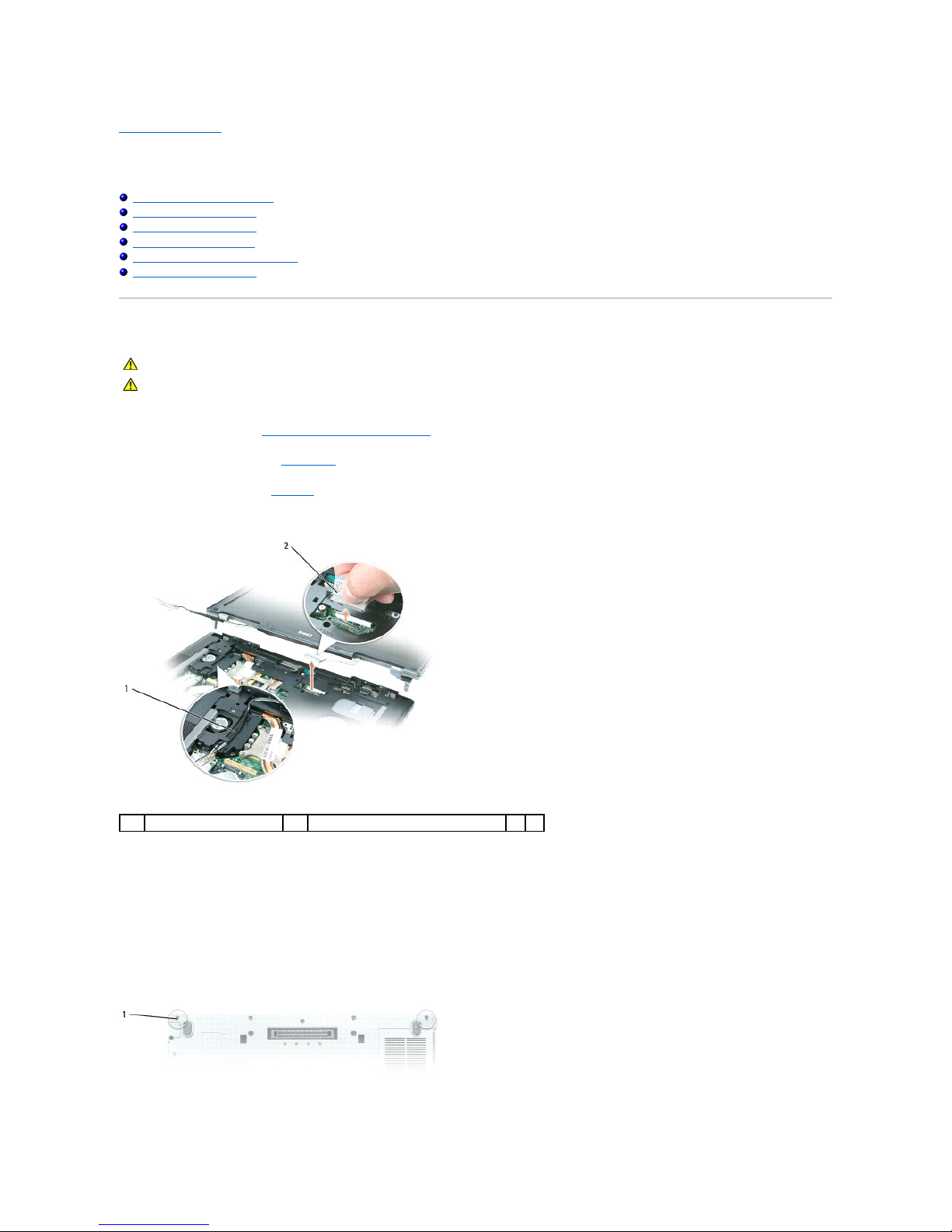

Display Assembly
Dell™Latitude™D820ServiceManual
Removing the Display Assembly
Removing the Display Bezel

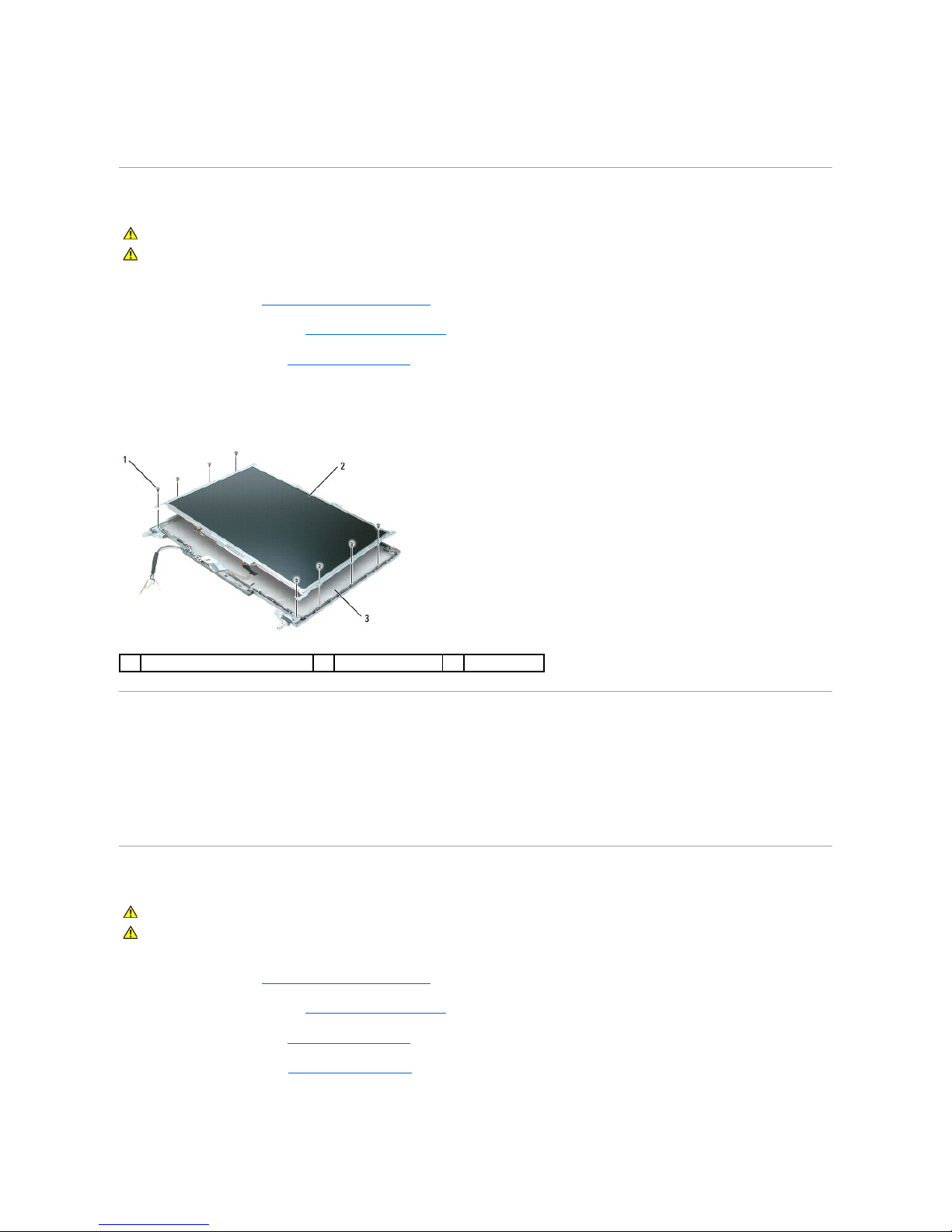

Removing the Display Panel
Installing the Display Panel

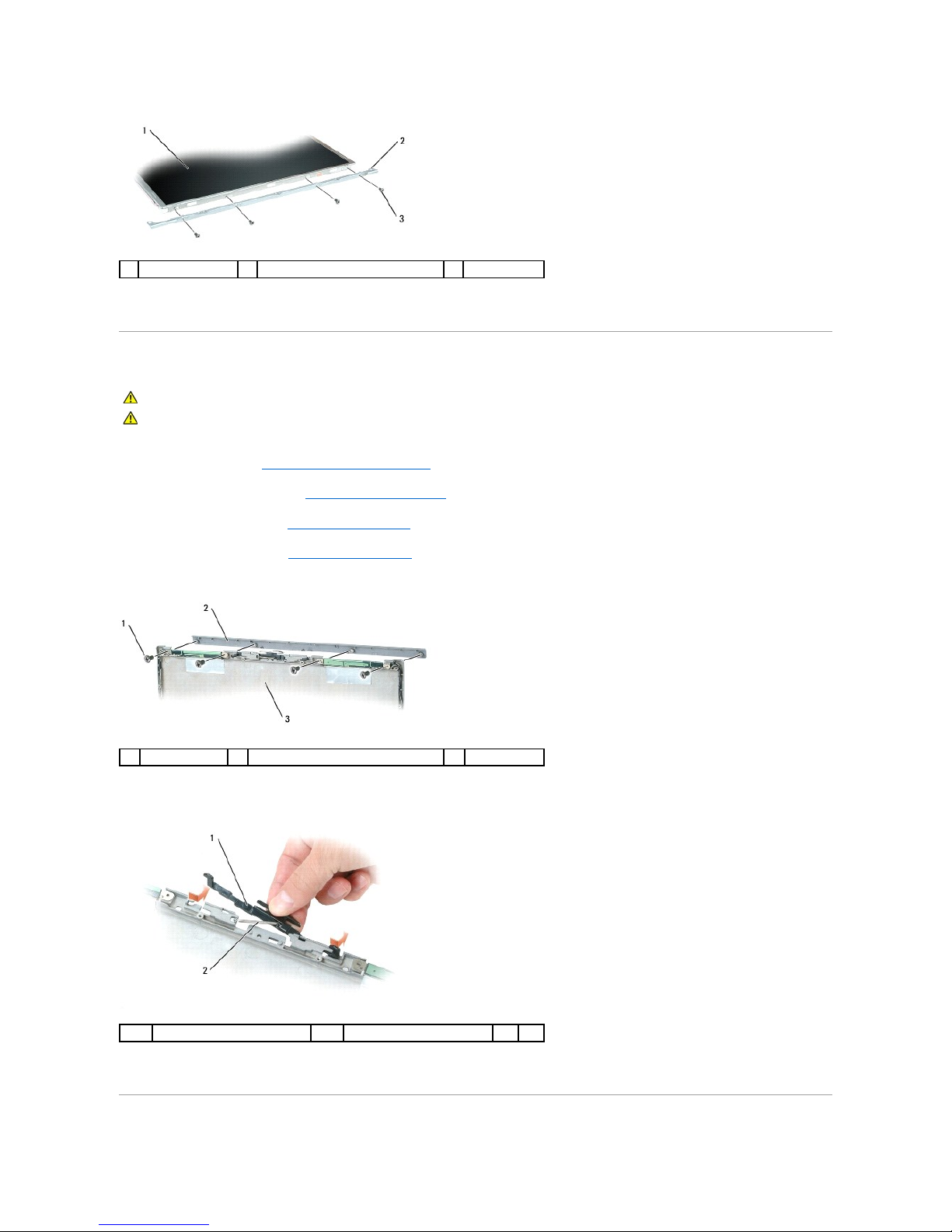

Removing the Display Panel Brackets
Removing the Display Latch
Removing the Display Assembly

1. Follow the instructions in Before Working Inside Your Computer.

2. Remove the hinge cover (see Hinge Cover).

3. Remove the keyboard (see Keyboard).

4. Pull straight up on the pull-tab that is attached to the display-feed flex cable to disconnect the cable from the system board.

5. Disconnect the antenna cable(s).

6. Carefully remove the antenna cable and the display cables from their routing guides.

7. Close the display.

8. Turn the computer upside-down with the back of the computer facing you.

9. From the bottom of the computer, remove the two M2.5 x 8-mm screws labeled "D."
CAUTION: Before performing the following procedures, follow the safety instructions in the Product Information Guide.
CAUTION: To prevent static damage to components inside your computer, discharge static electricity from your body before you touch any of
your computer's electronic components. You can do so by touching an unpainted metal surface.
1
antenna cable
2
display cable pull-tab




10. From the back of the computer, remove the two M2.5 x 8-mm screws.

11. Turn the computer top-side up and open the display.

12. Lift the display assembly out of the computer base.
Removing the Display Bezel

1. Follow the instructions in Before Working Inside Your Computer.

2. Remove the display assembly (see Removing the Display Assembly).

3. Use a plastic scribe to pry the eight circular screw covers/bumpers out of the screw holes on the front of the bezel.

4. Remove the eight screws from the front of the bezel.
1
M2.5 x 8-mm screws labeled "D" (2)
1
M2.5 x 8-mm screws (2)
CAUTION: Before performing the following procedures, follow the safety instructions in the Product Information Guide.
CAUTION: To prevent static damage to components inside your computer, discharge static electricity from your body before you touch any of
your computer's electronic components. You can do so by touching an unpainted metal surface.
1
screw covers/display bumpers (8)
2
display bezel


1
screws (8)
2
display bezel
3
top cover
NOTICE: Carefully separate the bezel from the top cover to avoid damage to the bezel.


5. Starting from the sides of the display panel, use your fingers to separate the bezel from the top cover and lift the bezel away from the top cover.
Removing the Display Panel

1. Follow the instructions in Before Working Inside Your Computer.

2. Remove the display assembly (see Removing the Display Assembly).

3. Remove the display bezel (see Removing the Display Bezel).

4. Remove the four M2 x 3-mm screws from each side of the display panel.

5. Lift the display panel out of the top cover.
Installing the Display Panel

1. Replace the eight M2 x 3-mm screws that secure the display panel to the top cover.

2. Route the display-feed flex cable and antenna cables so that they rest in the notch located in the bottom edge of the top cover.

3. Replace the display bezel.
Removing the Display Panel Brackets

1. Follow the instructions in Before Working Inside Your Computer.

2. Remove the display assembly (see Removing the Display Assembly).

3. Remove the display bezel (see Removing the Display Bezel).

4. Remove the display panel (see Removing the Display Panel).

5. Remove the four screws from the right display-panel side bracket and lift away the bracket.
CAUTION: Before performing the following procedures, follow the safety instructions in the Product Information Guide.
CAUTION: To prevent static damage to components inside your computer, discharge static electricity from your body before you touch any of
your computer's electronic components. You can do so by touching an unpainted metal surface.
1
M2 x 3-mm screws (8)
2
display panel
3
top cover
CAUTION: Before performing the following procedures, follow the safety instructions in the Product Information Guide.
CAUTION: To prevent static damage to components inside your computer, discharge static electricity from your body before you touch any of
your computer's electronic components. You can do so by touching an unpainted metal surface.


6. Remove the four screws from the left display-panel side bracket and lift away the bracket.
Removing the Display Latch

1. Follow the instructions in Before Working Inside Your Computer.

2. Remove the display assembly (see Removing the Display Assembly).

3. Remove the display bezel (see Removing the Display Bezel).

4. Remove the display panel (see Removing the Display Panel).

5. Remove the four screws from the top display-panel bracket and lift away the bracket.

6. Slide the display latch toward the right side of the top cover and straight out.

7. Unhook the latch spring from the display latch, and then lift away the latch.
1
display panel
2
display-panel side bracket
3
screws (4)
CAUTION: Before performing the following procedures, follow the safety instructions in the Product Information Guide.
CAUTION: To prevent static damage to components inside your computer, discharge static electricity from your body before you touch any of
your computer's electronic components. You can do so by touching an unpainted metal surface.
1
screws (4)
2
top display-panel bracket
3
top cover
1
display latch
2
latch spring



Back to Contents Page


Back to Contents Page
Fan
Dell™Latitude™D820ServiceManual

1. Follow the instructions in Before Working Inside Your Computer.

2. Remove the hard drive (see Hard Drive).

3. Remove the memory module(s) (see Memory).

4. Remove any installed wireless communications cards (see Communications Cards).

5. Remove the processor thermal-cooling assembly (see Processor Thermal-Cooling Assembly).

6. Remove the processor (see Removing the Processor Module).

7. Remove the hinge cover (see Hinge Cover).

8. Remove the keyboard (see Keyboard).

9. Remove the palm rest (see Palm Rest).

10. Disconnect the fan power cable from the system board.

11. Remove the M2.5 x 5-mm fan screws and lift the fan out of the base.
Back to Contents Page

CAUTION: Before performing the following procedures, follow the safety instructions in the Product Information Guide.
CAUTION: To prevent static damage to components inside your computer, discharge static electricity from your body before you touch any of
your computer's electronic components. You can do so by touching an unpainted metal surface.
1
fan assembly
2
M2.5 x 5-mm fan screw

Back to Contents Page
Flashing the BIOS
Dell™Latitude™D820ServiceManual
Flashing the BIOS From a CD
Flashing the BIOS From the Hard Drive
If a BIOS-update program CD is provided with the new system board, flash the BIOS from the CD. If you do not have a BIOS-update program CD, flash the
BIOS from the hard drive.
Flashing the BIOS From a CD

1. Ensure that the AC adapter is plugged in and that the main battery is installed properly.

2. Insert the BIOS-update program CD, and restart the computer.
Follow the instructions that appear on the screen. The computer continues to boot and updates the new BIOS. When the flash update is complete, the
computer will automatically reboot.

3. Press <F2> during POST to enter the system setup program.

4. Press <Alt> and <F> to reset the computer defaults.

5. Press <Esc>, select Save changes and reboot, and press <Enter> to save configuration changes.

6. Remove the flash BIOS-update program CD from the drive and restart the computer.
Flashing the BIOS From the Hard Drive

1. Ensure that the AC adapter is plugged in, the main battery is properly installed, and a network cable is attached.

2. Turn on the computer.

3. Locate the latest BIOS update file for your computer at support.dell.com.

4. Click Download Now to download the file.

5. If the Export Compliance Disclaimer window appears, click Yes, I Accept this Agreement.
The File Download window appears.

6. Click Save this program to disk and then click OK.
The Save In window appears.

7. Click the down arrow to view the Save In menu, select Desktop, and then click Save.
The file downloads to your desktop.

8. Click Close if the Download Complete window appears.
The file icon appears on your desktop and is titled the same as the downloaded BIOS update file.

9. Double-click the file icon on the desktop and follow the instructions on the screen.
Back to Contents Page

NOTE: If you use a BIOS-update program CD to flash the BIOS, set up the computer to boot from a CD before inserting the CD.

Back to Contents Page
Hard Drive
Dell™Latitude™D820ServiceManual
To replace the hard drive in the hard drive bay:

1. Follow the procedures in Before You Begin.

2. Turn the computer upside-down, and remove the two screws that secure the hard drive.

3. Remove the two screws from the sides of the hard drive bezel and pull the bezel off the hard drive.

4. Remove the new drive from its packaging.
Save the original packaging for storing or shipping the hard drive.

5. Slide the hard drive bezel that you took off the old hard drive onto the new hard drive and fasten the two screws on the sides of the bezel.

CAUTION: If you remove the hard drive from the computer when the drive is hot, do not touch the metal housing of the hard drive.
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product Information Guide.
NOTICE: To prevent data loss, turn off your computer before removing the hard drive. Do not remove the hard drive while the computer is turned on, in
standby mode, or in hibernate mode.
NOTICE: Hard drives are extremely fragile; even a slight bump can damage the drive.
NOTE: DelldoesnotguaranteecompatibilityorprovidesupportforharddrivesfromsourcesotherthanDell.
NOTE: If you are installing a hard drive from a source other than Dell, you need to install an operating system, drivers, and utilities on the new hard
drive.
1
hard drive screws (2)
NOTICE: When the hard drive is not in the computer, store it in protective antistatic packaging. See "Protecting Against Electrostatic Discharge" in the
Product Information Guide.
1
screws (2) on sides of hard drive bezel
2
hard drive bezel
3
hard drive
NOTICE: Use firm and even pressure to slide the drive into place. If you use excessive force, you may damage the connector.

6. Slide the new hard drive into the bay and into the connector until it is fully seated.

7. Replace the two hard drive screws.
Back to Contents Page

