Dell Studio 1569 User manual

SETUP GUIDE

SETUP GUIDE
Regulatory model: P06F series Regulatory type: P06F001

Notes, Cautions, and Warnings
NOTE: A NOTE indicates important information that helps you make better use of your
computer.
CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells
you how to avoid the problem.
WARNING: A WARNING indicates a potential for property damage, personal injury, or death.
__________________
Information in this document is subject to change without notice.
© 2010 Dell Inc. All rights reserved.
Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell , the DELL logo, Studio , YOURS IS HERE , DellConnect, and Solution Station are
trademarks of Dell Inc.; Core and Centrino are trademarks and Intel is a registered trademark of Intel Corporation in the
U.S. and other countries; Microsoft, Windows , and the Windows start button logo are either trademarks or registered
trademarks of Microsoft Corporation in the United States and/or other countries; Bluetooth is a registered trademark
owned by Bluetooth SIG, Inc. and is used by Dell under license.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and
names or their products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.
March 2010 P/N C1RXR Rev. A00

3
Setting Up Your Studio Laptop . . . . . . . . . . .5
Before Setting Up Your Computer . . . . . . . . . 5
Connect the AC Adapter . . . . . . . . . . . . . . . . .6
Connect the Network Cable (Optional) . . . . . 7
Press the Power Button . . . . . . . . . . . . . . . . .8
Set Up Microsoft Windows. . . . . . . . . . . . . . . 9
Create System Recovery Media
(Recommended). . . . . . . . . . . . . . . . . . . . . . . 10
Install the SIM Card (Optional). . . . . . . . . . . 12
Enable or Disable Wireless (Optional). . . . . 14
Set Up Wireless Display (Optional) . . . . . . . 16
Connect to the Internet (Optional) . . . . . . . . 18
Using Your Studio Laptop . . . . . . . . . . . . . .20
Right View Features. . . . . . . . . . . . . . . . . . . . 20
Left View Features. . . . . . . . . . . . . . . . . . . . . 22
Front View Features. . . . . . . . . . . . . . . . . . . . 26
Computer Base Features. . . . . . . . . . . . . . . . 28
Touch Pad Gestures. . . . . . . . . . . . . . . . . . . . 31
Multimedia Control Keys. . . . . . . . . . . . . . . . 32
Display Features . . . . . . . . . . . . . . . . . . . . . . 34
Switchable Graphics . . . . . . . . . . . . . . . . . . . 36
Dell Extended Battery Life . . . . . . . . . . . . . . 37
Removing and Replacing the Battery . . . . . 38
Software Features . . . . . . . . . . . . . . . . . . . . . 40
Dell DataSafe Online Backup . . . . . . . . . . . . 41
Free Fall Sensor . . . . . . . . . . . . . . . . . . . . . . . 41
Dell Dock . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Solving Problems . . . . . . . . . . . . . . . . . . . . .43
Beep Codes . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Network Problems . . . . . . . . . . . . . . . . . . . . . 44
Wireless Display Problems. . . . . . . . . . . . . . 45
Contents

4
Contents
Power Problems. . . . . . . . . . . . . . . . . . . . . . . 45
Memory Problems . . . . . . . . . . . . . . . . . . . . . 47
Lockups and Software Problems . . . . . . . . . 48
Using Support Tools. . . . . . . . . . . . . . . . . . .50
Dell Support Center . . . . . . . . . . . . . . . . . . . . 50
My Dell Downloads . . . . . . . . . . . . . . . . . . . . 51
System Messages . . . . . . . . . . . . . . . . . . . . . 51
Hardware Troubleshooter. . . . . . . . . . . . . . . 53
Dell Diagnostics . . . . . . . . . . . . . . . . . . . . . . 54
Restoring Your Operating System . . . . . . .58
System Restore . . . . . . . . . . . . . . . . . . . . . . . 59
Dell DataSafe Local Backup. . . . . . . . . . . . . 60
System Recovery Media . . . . . . . . . . . . . . . . 62
Dell Factory Image Restore . . . . . . . . . . . . . 63
Getting Help . . . . . . . . . . . . . . . . . . . . . . . . .65
Technical Support and Customer
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
DellConnect . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Online Services . . . . . . . . . . . . . . . . . . . . . . . 67
Automated Order-Status Service . . . . . . . . . 68
Product Information. . . . . . . . . . . . . . . . . . . . 68
Returning Items for Repair Under
Warranty or for Credit . . . . . . . . . . . . . . . . . . 69
Before You Call. . . . . . . . . . . . . . . . . . . . . . . . 70
Contacting Dell. . . . . . . . . . . . . . . . . . . . . . . . 72
Finding More Information and
Resources . . . . . . . . . . . . . . . . . . . . . . . . . . .74
Basic Specifications . . . . . . . . . . . . . . . . . .76
Appendix. . . . . . . . . . . . . . . . . . . . . . . . . . . .81
Macrovision Product Notice. . . . . . . . . . . . . 81
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82

5
This section provides information about setting
up your Dell™Studio™laptop.
Before Setting Up Your
Computer
When positioning your computer, ensure that
you allow easy access to a power source,
adequate ventilation, and a level surface to
place your computer.
Restricting airflow around your Studio
laptop may cause it to overheat. To prevent
overheating ensure that you leave at least
10.2 cm (4 inches) at the back of the computer
and a minimum of 5.1 cm (2 inches) on all other
sides. You should never place your computer in
an enclosed space, such as a cabinet or drawer
when it is powered on.
WARNING: Do not block, push objects
into, or allow dust to accumulate in the air
vents. Do not place your Dell computer in a
low-airflow environment, such as a closed
briefcase, or on fabric surfaces, such
as carpets or rugs, while it is powered
on. Restricting the airflow can damage
the computer, deteriorate the computer
performance, or cause a fire. The computer
turns on the fan when the computer gets
hot. Fan noise is normal and does not
indicate a problem with the fan or the
computer.
CAUTION: Placing or stacking heavy or
sharp objects on the computer may result
in permanent damage to the computer.
Setting Up Your Studio Laptop

6
Setting Up Your Studio Laptop

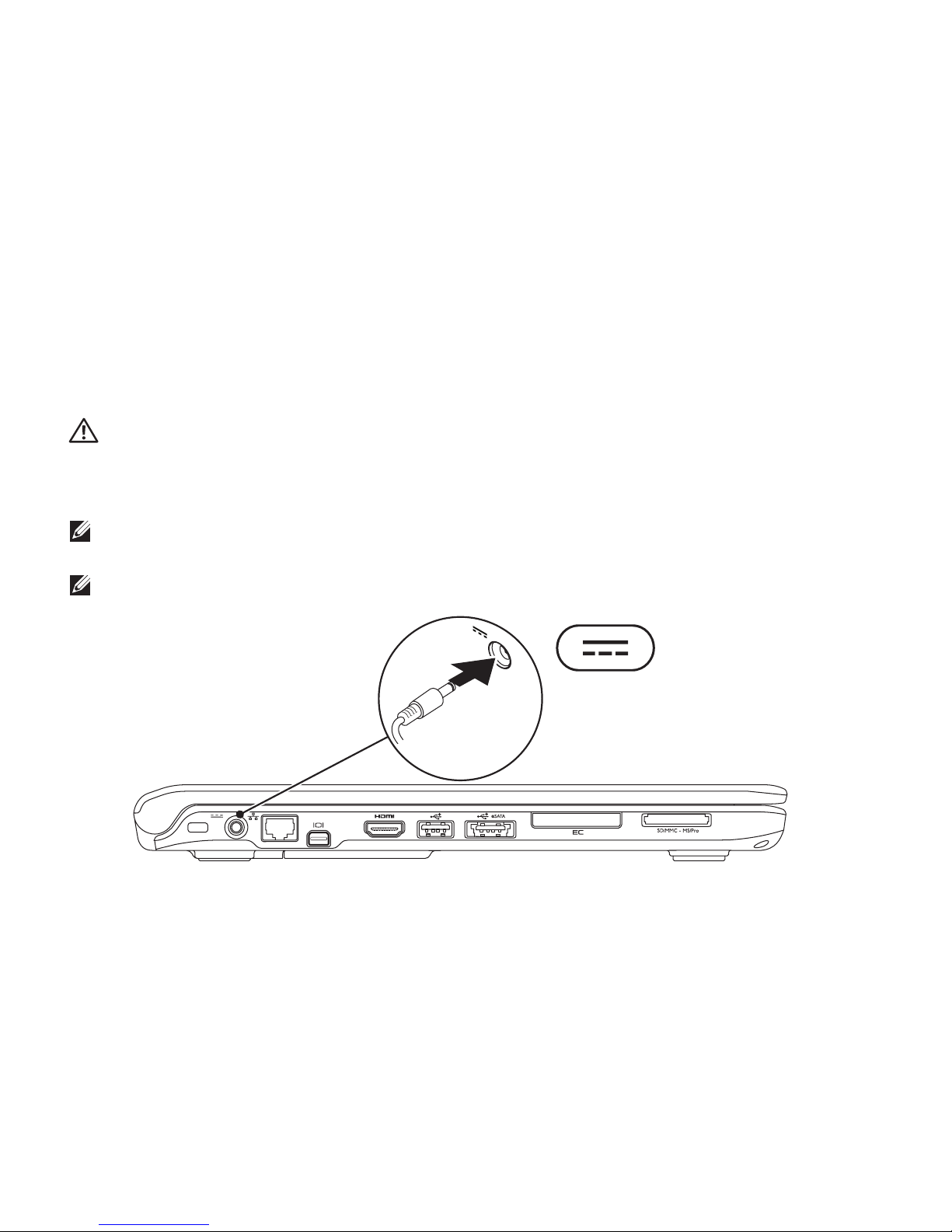

Connect the AC Adapter
Connect the AC adapter to the computer and then plug it into a wall outlet or surge protector.
WARNING: The AC adapter works with electrical outlets worldwide. However, power
connectors and power strips vary among countries. Using an incompatible cable or
improperly connecting the cable to a power strip or electrical outlet may cause fire or
permanent damage to your computer.
NOTE: Connect the power cable to the adapter firmly and ensure that the light on the adapter
is on when you turn on power.
NOTE: Use only Dell AC adapter family PA-3E or PA-12 with your computer.

7
Setting Up Your Studio Laptop
Connect the Network Cable (Optional)
To use a wired network connection, connect the network cable.

8
Setting Up Your Studio Laptop
Press the Power Button

9
Setting Up Your Studio Laptop
Set Up Microsoft Windows
Your Dell computer is preconfigured with the Microsoft®Windows®operating system. To set
up Windows for the first time, follow the instructions on the screen. These steps are mandatory
and may take some time to complete. The Windows setup screens will take you through several
procedures including accepting license agreements, setting preferences, and setting up an Internet
connection.
CAUTION: Do not interrupt the operating system’s setup process. Doing so may render your
computer unusable and you will need to reinstall the operating system.
NOTE: For optimal performance of your computer, it is recommended that you download and
install the latest BIOS and drivers for your computer available at support.dell.com.
NOTE: For more information on the operating system and features, see
support.dell.com/MyNewDell.

10
Setting Up Your Studio Laptop
Create System Recovery Media (Recommended)
NOTE: It is recommended that you create a system recovery media as soon as you set up
Microsoft Windows.
The system recovery media can be used to restore your computer to the operating state it was in
when you purchased the computer, while preserving data files (without the need of the Operating
System disc). You can use the system recovery media if changes to the hardware, software, drivers,
or other system settings have left the computer in an undesirable operating state.
You will require the following to create the system recovery media:
Dell DataSafe Local Backup•
USB key with a minimum capacity of 8 GB or DVD-R/DVD+R/Blu-ray Disc• ™
NOTE: Dell DataSafe Local Backup does not support rewritable discs.

11
Setting Up Your Studio Laptop
To create a system recovery media:
Ensure that the AC adapter is connected (see “Connect the AC Adapter” on page1. 6).
Insert the disc or USB key in the computer.2.
Click3. Start → Programs→Dell DataSafe Local Backup.
Click4. Create Recovery Media.
Follow the instructions on the screen.5.
NOTE: For information on using the system recovery media, see “System Recovery Media” on
page 62.

12
Setting Up Your Studio Laptop
Install the SIM Card (Optional)
NOTE: Installing a SIM card is not required if you are using an EVDO card to access the
Internet.
Installing a Subscriber Identity Module (SIM) card allows you to browse the Internet, check e-mail,
and connect to a Virtual Private Network. To access these features, you must be within the network
of your cellular service provider.
To install the SIM card:
Turn off your computer.1.
Remove the battery (see “Removing and Replacing the Battery” on page2. 38).
In the battery bay, slide the SIM card into the SIM card slot.3.
Replace the battery (see “Removing and Replacing the Battery” on page4. 38).
Turn on your computer.5.
To remove the SIM card, press and eject the SIM card.

13
Setting Up Your Studio Laptop
1battery bay
2SIM card slot
3SIM card
1
2
3

14
Setting Up Your Studio Laptop

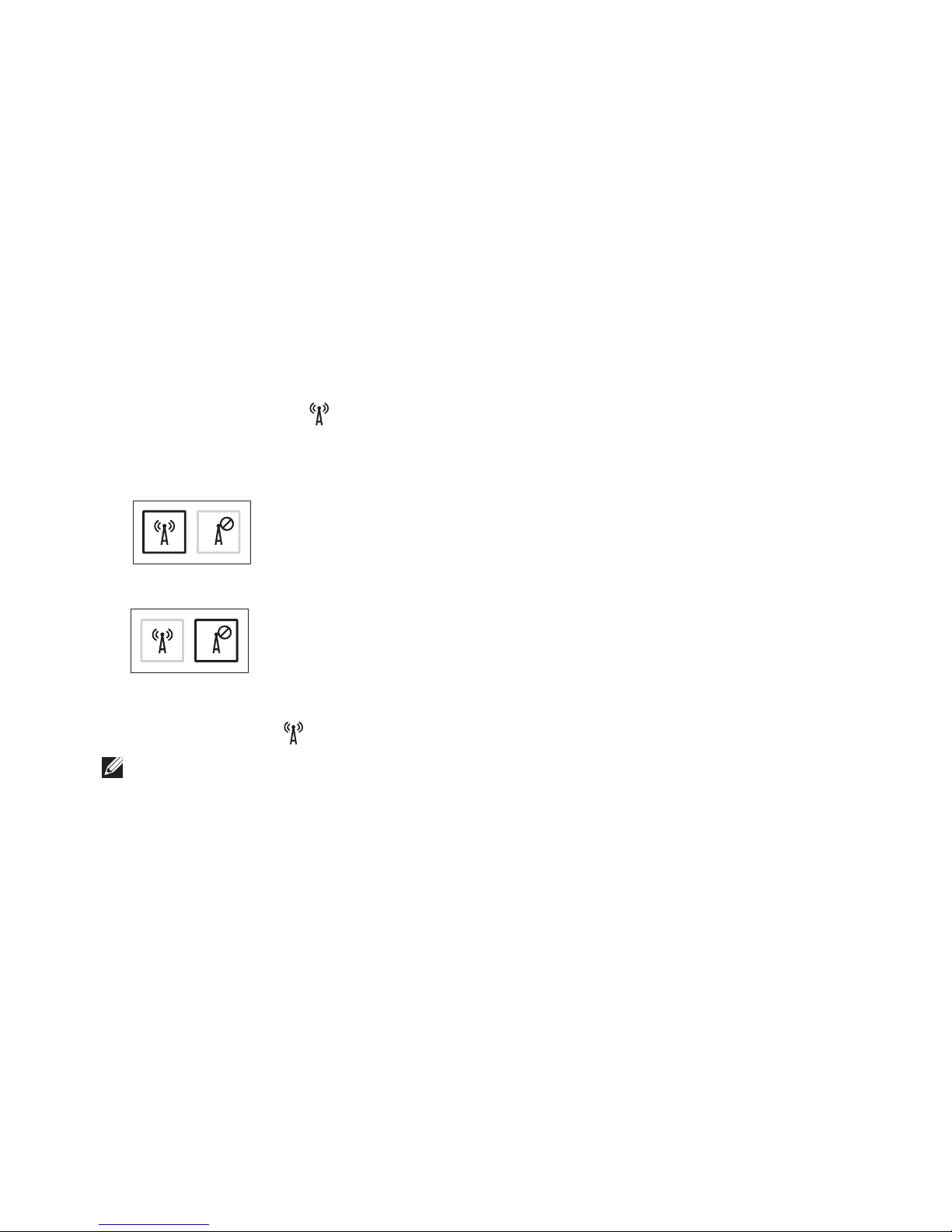

Enable or Disable Wireless (Optional)

15
Setting Up Your Studio Laptop
To enable wireless:
Ensure that your computer is turned on.1.
Press the wireless key2. on the keyboard.
A confirmation of your selection appears on the screen.
Wireless enabled
Wireless disabled
To disable wireless:
Press the wireless key on the keyboard again to turn off all radios.
NOTE: The wireless key allows you to quickly turn off all wireless radios (Wi-Fi and Bluetooth®)
on your computer, such as when you are asked to disable all wireless radios on an airplane
flight.

16
Setting Up Your Studio Laptop
Set Up Wireless Display
(Optional)
NOTE: For more information about wireless
display, see the wireless display adapter
Quick Start Guide .
Wireless display can only be set up on
computers with:
WLAN
card
Intel®Centrino™6200 or
Intel Centrino Ultimate-N 6300
Processor Intel® Core™ i3 and i5
Video
controller
Intel® HD Graphics or
ATI Mobility Radeon HD 5470
Operating
system
Windows 7 Home Premium,
Professional, or Ultimate
To set up wireless display on your computer:
Ensure that your computer is turned on.1.
Ensure that wireless is enabled (see “Enable2.
or Disable Wireless” on page 14).
Connect the wireless display adapter to3.
the TV.
Ensure that Switchable Graphics is set4.
to Power-Saving GPU (see “Switchable
Graphics” on page 36).
Turn on the TV.5.
Select the appropriate video source for your6.
TV, such as HDMI1, HDMI2, or S-Video.

17
Setting Up Your Studio Laptop
Press the wireless display7. <F6> key
on the keyboard.
The Intel®Wireless Display window
appears.
Select8. Scan for available displays.
Select your wireless display adapter from9.
the Detected wireless displays list.
Enter the security code that appears on10.
your TV.
To enable wireless display:
Press the wireless display1. <F6> key on
the keyboard.
The Intel®Wireless Display window
appears.
Select2. Connect to Existing Adapter.
NOTE: For information on wireless display
problems, see “Wireless Display Problems”
on page 45.

18
Setting Up Your Studio Laptop
Connect to the Internet
(Optional)
To connect to the Internet, you need an external
modem or network connection and an Internet
Service Provider (ISP).
If an external USB modem or WLAN adapter
is not a part of your original order, you can
purchase one at www.dell.com.
Setting Up a Wired Connection
If you are using a DSL or cable/satellite•
modem connection, contact your ISP
or cellular telephone service for setup
instructions.
If you are using a dial-up connection,•
connect the telephone line to the optional
external USB modem and to the telephone
wall connector before you set up your
Internet connection.
To complete setting up your wired Internet
connection, follow the instructions in “Setting
Up Your Internet Connection” on page 19.
Setting Up a Wireless Connection
NOTE: To set up your wireless router, see the
documentation that shipped with your router.
Before you can use your wireless Internet
connection, you need to connect to your
wireless router.
To set up your connection to a wireless router:
Ensure that wireless is enabled on your1.
computer (see “Enable or Disable Wireless”
on page 14).
Save and close any open files, and exit any2.
open programs.
Click3. Start → Control Panel.
In the search box, type4. network and
then click Network and Sharing Center→
Connect to a network.
Follow the instructions on the screen to5.
complete the setup.
