Dell Inspiron 11 3000 Series User manual

Inspiron 11
3000 Series
Service Manual
Computer Model: Inspiron 11–3162
Regulatory Model: P24T
Regulatory Type: P24T001

Napomene, mere opreza i
upozorenja
NAPOMENA: NAPOMENA ukazuje na važne informacije koje će vam pomoći
da iskoristite računar na bolji način.
OPREZ: OPREZ ukazuje na potencijalno oštećenje hardvera ili gubitak
podataka i saopštava vam kako da izbegnete problem.
UPOZORENJE: UPOZORENJE ukazuje na potencijalno oštećenje imovine,
telesne povrede i smrtni ishod.
Autorsko pravo ©2016 Dell Inc. Sva prava zadržana. Ovaj proizvod je zaštićen zakonima o
zaštiti autorskih prava i intelektualnoj svojini u SAD i međunarodnim zakonima. Dell™i logotip
Dell su zaštitni znaci kompanije Dell Inc. u Sjedinjenim Američkim Državama i/ili drugim
pravnim nadležnostima. Svi ostali znaci i imena ovde navedeni mogu biti zaštitni znaci svojih
kompanija.
2016 - 01
Pregl. A00

Contents
Pre rada u unutrašnjosti računara............................................ 8
Pre početka rada ...............................................................................................8
Safety instructions..............................................................................................8
Recommended tools......................................................................................... 9
After working inside your computer......................................10
Uklanjanje poklopca osnove....................................................11
Procedure......................................................................................................... 11
Postavljanje poklopca osnove.................................................16
Procedure.........................................................................................................16
Uklanjanje baterije.....................................................................17
Prerequisites..................................................................................................... 17
Procedure......................................................................................................... 17
Postavljanje baterije.................................................................. 21
Procedure.........................................................................................................21
Post-requisites................................................................................................. 21
Uklanjanje U/I ploče..................................................................22
Prerequisites.....................................................................................................22
Procedure.........................................................................................................22
Postavljanje U/I ploče...............................................................25
Procedure.........................................................................................................25
Post-requisites................................................................................................. 25
3

Uklanjanje memorijskog modula........................................... 26
Prerequisites.....................................................................................................26
Procedure........................................................................................................ 26
Postavljanje memorijskog modula.........................................28
Procedure........................................................................................................ 28
Post-requisites.................................................................................................29
Uklanjanje čvrstog diska.......................................................... 30
Prerequisites.................................................................................................... 30
Procedure........................................................................................................ 30
Postavljanje čvrstog diska........................................................33
Procedure.........................................................................................................33
Post-requisites................................................................................................. 33
Uklanjanje porta adaptera za napajanje................................34
Prerequisites.....................................................................................................34
Procedure........................................................................................................ 34
Postavljanje porta adaptera za napajanje.............................36
Procedure........................................................................................................ 36
Post-requisites.................................................................................................36
Uklanjanje bežične kartice.......................................................37
Prerequisites.....................................................................................................37
Procedure.........................................................................................................37
Postavljanje bežične kartice....................................................39
Procedure........................................................................................................ 39
Post-requisites.................................................................................................40
4

Uklanjanje dugmaste baterije................................................. 42
Prerequisites.....................................................................................................42
Procedure........................................................................................................ 42
Postavljanje dugmaste baterije.............................................. 44
Procedure........................................................................................................ 44
Post-requisites.................................................................................................44
Uklanjanje table osetljive na dodir.........................................45
Prerequisites.....................................................................................................45
Procedure........................................................................................................ 45
Postavljanje table osetljive na dodir......................................49
Procedure........................................................................................................ 49
Post-requisites.................................................................................................50
Removing the speaker.............................................................. 51
Prerequisites..................................................................................................... 51
Procedure.........................................................................................................51
Replacing the speaker.............................................................. 53
Procedure.........................................................................................................53
Post-requisites................................................................................................. 53
Uklanjanje sklopa ekrana.........................................................54
Prerequisites.....................................................................................................54
Procedure........................................................................................................ 54
Postavljanje sklopa ekrana...................................................... 58
Procedure........................................................................................................ 58
Post-requisites.................................................................................................58
5

Uklanjanje matične ploče........................................................ 59
Prerequisites.....................................................................................................59
Procedure........................................................................................................ 59
Postavljanje matične ploče......................................................63
Procedure........................................................................................................ 63
Post-requisites.................................................................................................63
Uklanjanje sklopa oslonca za dlanove i tastature............... 65
Prerequisites.....................................................................................................65
Procedure........................................................................................................ 65
Postavljanje sklopa oslonca za dlanove i tastature.............67
Procedure.........................................................................................................67
Post-requisites................................................................................................. 67
Uklanjanje okna ekrana............................................................68
Prerequisites.................................................................................................... 68
Procedure........................................................................................................ 68
Postavljanje okna ekrana..........................................................71
Procedure......................................................................................................... 71
Post-requisites..................................................................................................71
Uklanjanje zglobova ekrana.................................................... 72
Prerequisites.....................................................................................................72
Procedure.........................................................................................................72
Postavljanje zglobova ekrana................................................. 74
Procedure.........................................................................................................74
Post-requisites................................................................................................. 74
6

Uklanjanje ploče ekrana...........................................................75
Prerequisites.....................................................................................................75
Procedure.........................................................................................................75
Postavljanje ploče ekrana........................................................ 78
Procedure.........................................................................................................78
Post-requisites................................................................................................. 78
Uklanjanje kamere.....................................................................79
Prerequisites.....................................................................................................79
Procedure.........................................................................................................79
Postavljanje kamere..................................................................82
Procedure........................................................................................................ 82
Post-requisites.................................................................................................82
Uklanjanje sklopa zadnjeg poklopca ekrana i antene........ 83
Prerequisites.....................................................................................................83
Procedure........................................................................................................ 83
Postavljanje sklopa zadnjeg poklopca ekrana i antene..... 85
Procedure........................................................................................................ 85
Post-requisites.................................................................................................85
Flashing the BIOS...................................................................... 86
Dobijanje pomoći i kontaktiranje kompanije Dell...............87
Resursi za samostalnu pomoć........................................................................ 87
Kontaktiranje kompanije Dell..........................................................................88
7

Pre rada u unutrašnjosti
računara
NAPOMENA: The images in this document may differ from your
computer depending on the configuration you ordered.
Pre početka rada
1 Sačuvajte i zatvorite sve otvorene datoteke i zatvorite sve otvorene
programe.
2 Isključite računar.
– Windows 10: Kliknite ili kucnite na Početak → Napajanje → Isključi.
– Windows 8.1: Na ekranu Početak, kliknite ili kucnite na ikonu za
napajanje → Isključi.
– Windows 7: Kliknite ili kucnite na Start → Isključi.
NAPOMENA: Ako koristite različite operativne sisteme, pogledajte
dokumentaciju vašeg operativnog sistema u vezi uputstava za
isključivanje.
3 Isključite računar i sve priključene uređaje iz pripadajućih električnih
utičnica.
4 Odspojite sve kablove, kao što su kablovi telefona, kablovi za mrežu itd,
sa vašeg računara.
5 Odspojite sve priključene uređaje i periferne uređaje, kao što su tastatura,
miš, monitor, itd, sa vašeg računara.
6 Uklonite medijsku karticu ili optički disk iz računara, ako je moguće.
Safety instructions
Use the following safety guidelines to protect your computer from potential
damage and ensure your personal safety.
WARNING: Before working inside your computer, read the safety
information that shipped with your computer. For more safety best
practices, see the Regulatory Compliance home page at
www.dell.com/regulatory_compliance.
8

WARNING: Disconnect all power sources before opening the
computer cover or panels. After you finish working inside the
computer, replace all covers, panels, and screws before connecting to
the electrical outlet.
CAUTION: To avoid damaging the computer, ensure that the work
surface is flat and clean.
CAUTION: To avoid damaging the components and cards, handle
them by their edges, and avoid touching pins and contacts.
CAUTION: You should only perform troubleshooting and repairs as
authorized or directed by the Dell technical assistance team. Damage
due to servicing that is not authorized by Dell is not covered by your
warranty. See the safety instructions that shipped with the product or
at www.dell.com/regulatory_compliance.
CAUTION: Before touching anything inside your computer, ground
yourself by touching an unpainted metal surface, such as the metal at
the back of the computer. While you work, periodically touch an
unpainted metal surface to dissipate static electricity, which could
harm internal components.
CAUTION: When you disconnect a cable, pull on its connector or on
its pull tab, not on the cable itself. Some cables have connectors with
locking tabs or thumb-screws that you must disengage before
disconnecting the cable. When disconnecting cables, keep them
evenly aligned to avoid bending any connector pins. When connecting
cables, ensure that the ports and connectors are correctly oriented
and aligned.
CAUTION: Press and eject any installed card from the media-card
reader.
Recommended tools
The procedures in this document may require the following tools:
• Philips screwdriver
• Flat-head screwdriver
• Plastic scribe
9

After working inside your
computer
CAUTION: Leaving stray or loose screws inside your computer may
severely damage your computer.
1 Replace all screws and ensure that no stray screws remain inside your
computer.
2 Connect any external devices, peripherals, or cables you removed before
working on your computer.
3 Replace any media cards, discs, or any other parts that you removed
before working on your computer.
4 Connect your computer and all attached devices to their electrical
outlets.
5 Turn on your computer.
10

Uklanjanje poklopca osnove
UPOZORENJE: Before working inside your computer, read the safety
information that shipped with your computer and follow the steps in
Before working inside your computer. After working inside your
computer, follow the instructions in After working inside your
computer. For more safety best practices, see the Regulatory
Compliance home page at www.dell.com/regulatory_compliance.
Procedure
1 Close the display and turn the computer over.

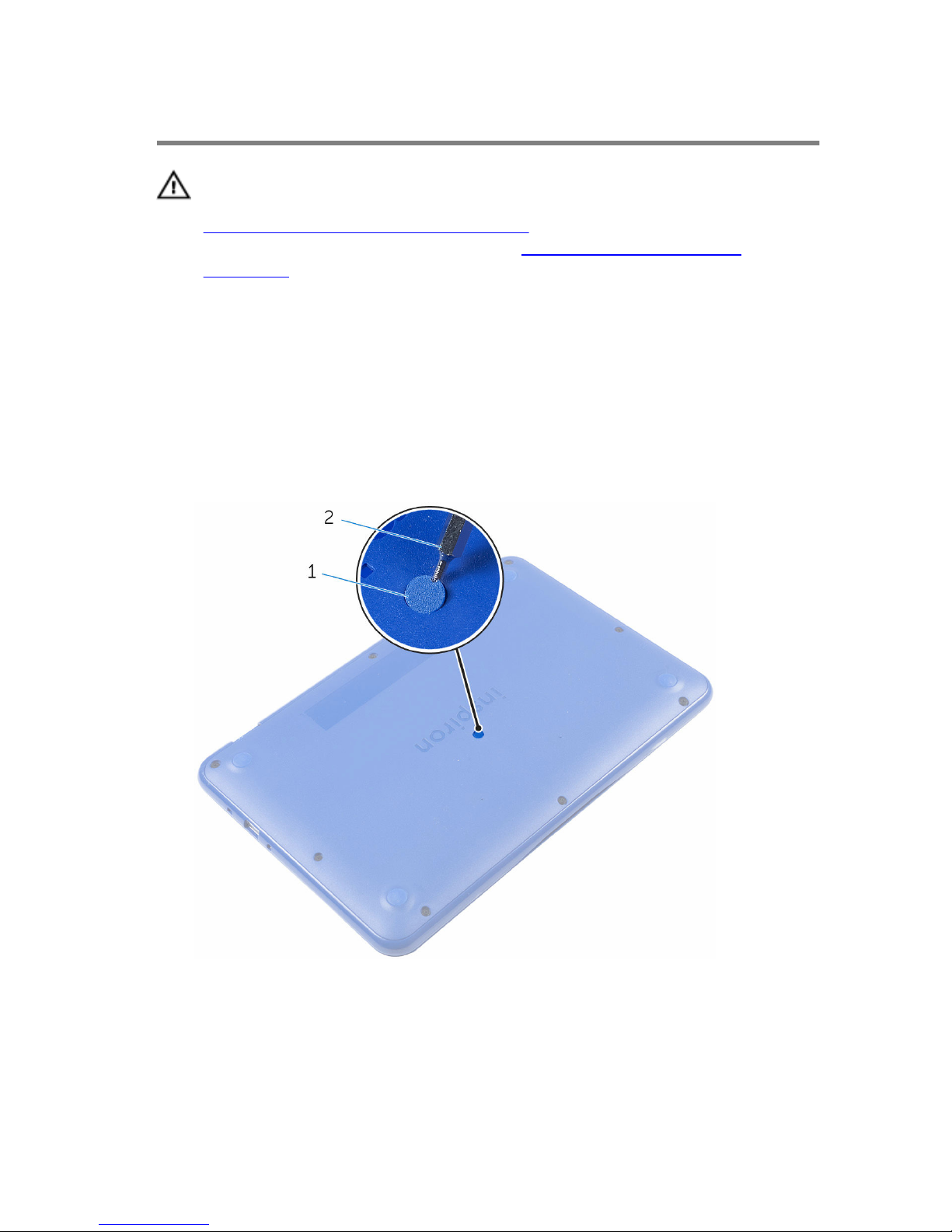

2 Using a plastic scribe, remove the screw cap from the base-cover
assembly.
1 screw cap 2 plastic scribe
11

3 Remove the screws that secure the base-cover assembly to the palm-
rest and keyboard assembly.
1 screws (9) 2 base-cover assembly
12

4 Pry loose the left side of the base-cover assembly from the palm rest and
keyboard assembly.
1 palm-rest and keyboard
assembly 2 base-cover assembly
13

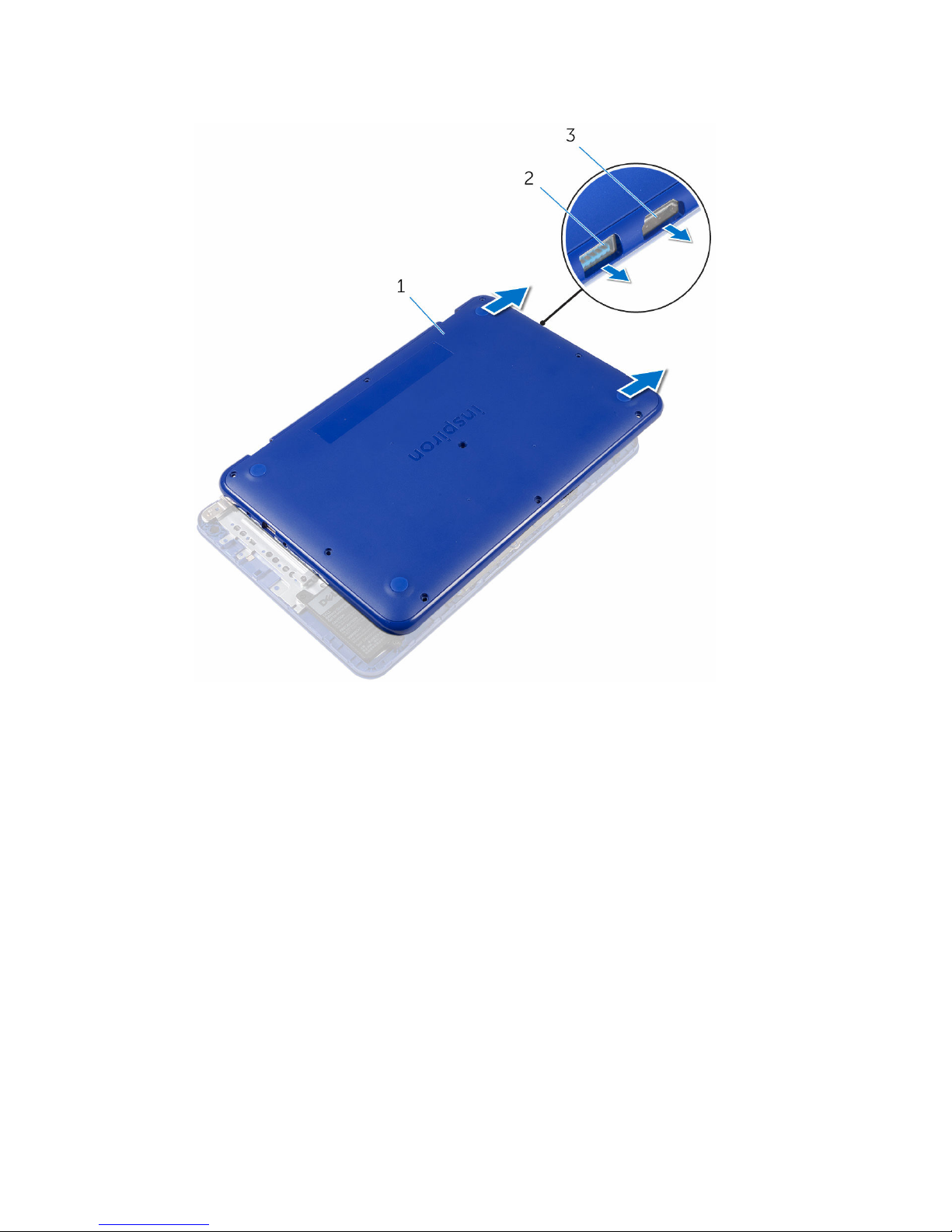

5 Slide the base-cover assembly to the right and release it from the HDMI
and USB ports.
1 base-cover assembly 2 USB port
3 HDMI port
14

6 Carefully turn over the base-cover assembly.
1 base-cover assembly 2 palm-rest and keyboard
assembly
7 Remove the I/O board.
15

Postavljanje poklopca osnove
UPOZORENJE: Before working inside your computer, read the safety
information that shipped with your computer and follow the steps in
Before working inside your computer. After working inside your
computer, follow the instructions in After working inside your
computer. For more safety best practices, see the Regulatory
Compliance home page at www.dell.com/regulatory_compliance.
Procedure
1 Replace the I/O board.
CAUTION: To avoid damage to the computer, ensure that the USB
and HDMI port cut-outs on the base-cover assembly is correctly
aligned with the USB and HDMI ports on the palm rest and
keyboard assembly.
2 Place the base-cover assembly on the palm rest and keyboard assembly
while aligning the USB and HDMI port cut-out on the base-cover
assembly with the USB and HDMI ports.
3 Slide the tabs on the base-cover assembly into the slots on the palm rest
and keyboard assembly and snap the base-cover assembly into place.
4 Replace the screws that secure the base-cover assembly to the palm rest
and keyboard assembly .
5 Replace the screw cap on the base-cover assembly.
16

Uklanjanje baterije
UPOZORENJE: Before working inside your computer, read the safety
information that shipped with your computer and follow the steps in
Before working inside your computer. After working inside your
computer, follow the instructions in After working inside your
computer. For more safety best practices, see the Regulatory
Compliance home page at www.dell.com/regulatory_compliance.
Prerequisites
Follow the procedure from step 1 to step 6 in “Removing the base cover”.
Procedure
1 Disconnect the battery cable from the system board.
17

2 Remove the screws that secure the battery to the palm rest and keyboard
assembly.
1 battery cable 2 screws (3)
3 battery 4 palm rest and keyboard
assembly
3 Tilt the battery (applicable for configuration with hard drive only) to
release the tab on the battery from the hard-drive bracket.
18

4 Lift the battery off the palm rest and keyboard assembly.
1 battery 2 palm rest and keyboard
assembly
3 tab 4 hard-drive bracket
5 Follow the step 1 procedure in “Removing the I/O board”.
19

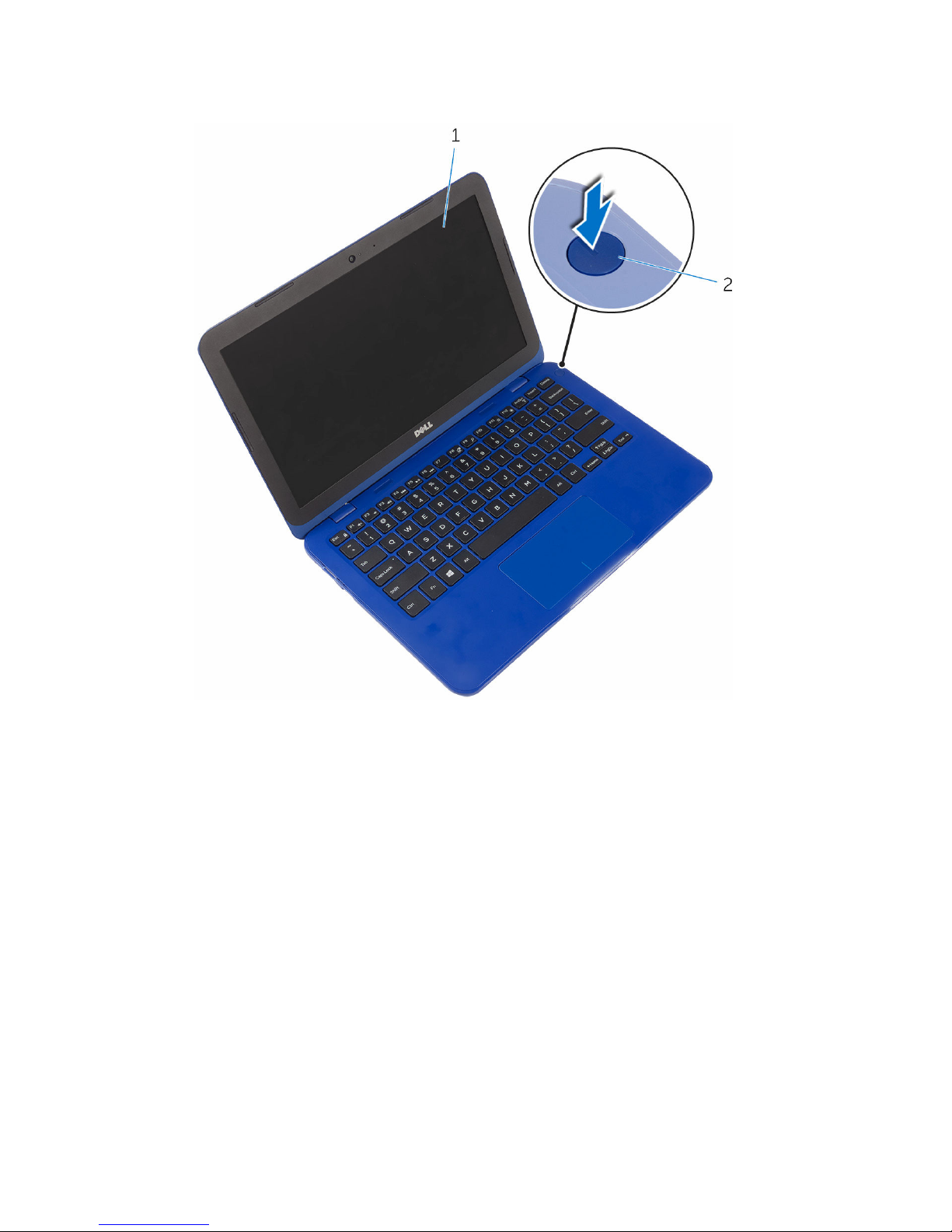

6 Turn the computer over, open the display, and press the power button
for five seconds to ground the system board.
1 display 2 power button
20
