Set up your Precision 7560
NOTE: The images in this document may differ from your computer depending on the configuration you ordered.
1. Connect the power adapter and press the power button.
NOTE: To conserve battery power, the battery might enter power saving mode. Connect the power adapter and press
the power button to turn on the computer.
2. Finish operating system setup.
For Ubuntu:
Follow the on-screen instructions to complete the setup. For more information about installing and configuring Ubuntu, see
the knowledge base articles SLN151664 and SLN151748 at www.dell.com/support.
For Windows:
Follow the on-screen instructions to complete the setup. When setting up, Dell recommends that you:
●Connect to a network for Windows updates.
NOTE: If connecting to a secured wireless network, enter the password for the wireless network access when
prompted.
●If connected to the internet, sign-in with or create a Microsoft account. If not connected to the internet, create an
offline account.
●On the Support and Protection screen, enter your contact details.
3. Locate and use Dell apps from the Windows Start menu—Recommended.
1
Set up your Precision 7560 5

Table 1. Locate Dell apps
Resources Description
Dell Product Registration
Register your computer with Dell.
Dell Help & Support
Access help and support for your computer.
SupportAssist
SupportAssist is the smart technology that keeps your computer running at its best by optimizing
settings, detecting issues, removing viruses and notifies when you need to make system
updates. SupportAssist proactively checks the health of your system's hardware and software.
When an issue is detected, the necessary system state information is sent to Dell to begin
troubleshooting. SupportAssist is preinstalled on most of the Dell devices running Windows
operating system. For more information, see SupportAssist for Home PCs User's Guide on
www.dell.com/serviceabilitytools.
NOTE: In SupportAssist, click the warranty expiry date to renew or upgrade your warranty.
Dell Update
Updates your computer with critical fixes and latest device drivers as they become available.
For more information about using Dell Update, see the knowledge base article 000149088 at
www.dell.com/support.
Dell Digital Delivery
Download software applications, which are purchased but not pre-installed on your computer. For
more information about using Dell Digital Delivery, see the knowledge base article 000129837 at
www.dell.com/support.
6 Set up your Precision 7560

Views of Precision 7560
Right
1. SD-card slot
2. Global headset jack
3. USB 3.2 Gen 1 Type-A port
4. USB 3.2 Gen 1 Type-A port with PowerShare
5. Wedge-shaped lock slot
Left
1. Two USB 3.2 Gen 2 Type-C Thunderbolt 4 ports
2. Smart-card reader (optional)
2
Views of Precision 7560 7

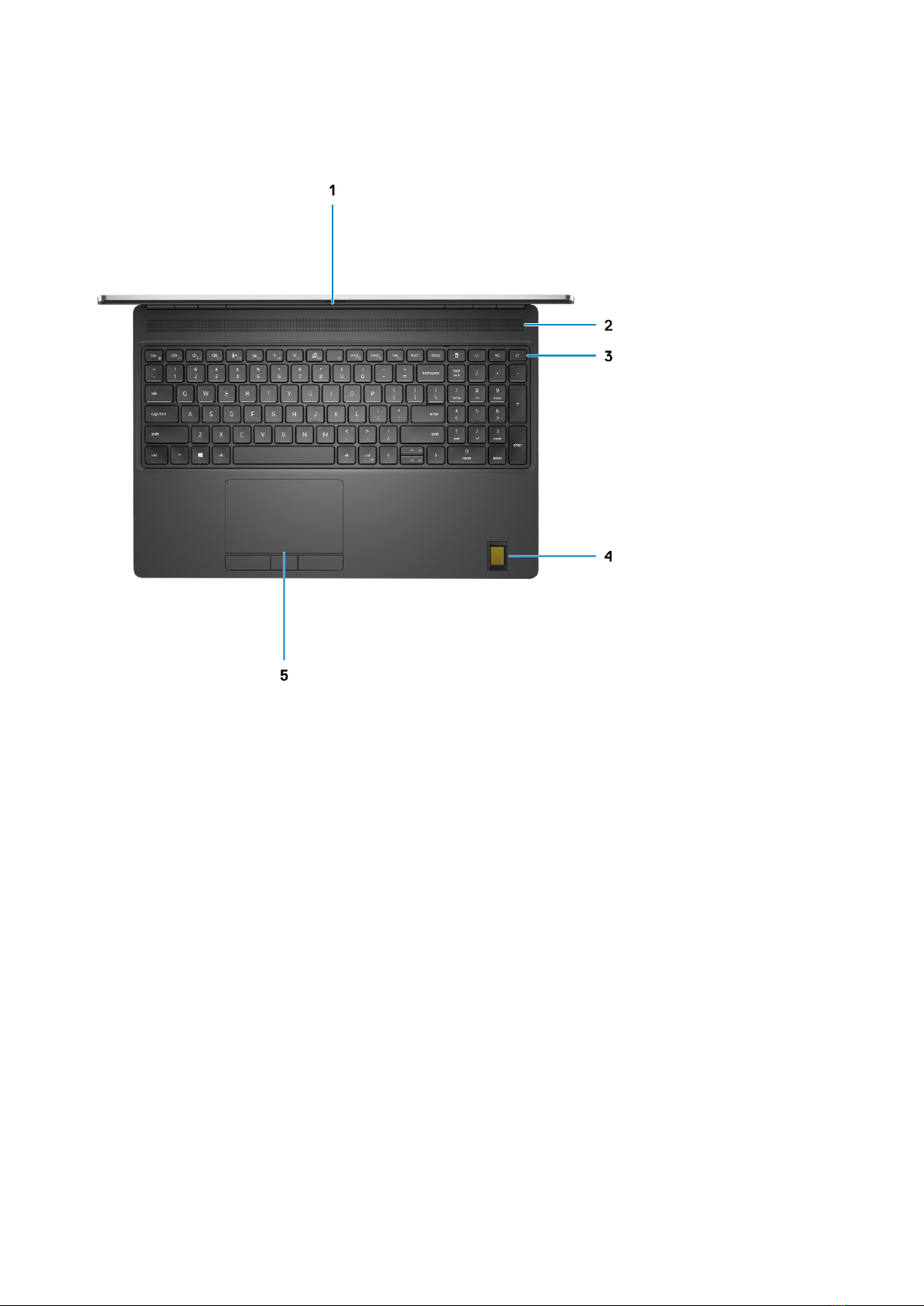

Top
1. Camera shutter
2. Speaker
3. Power button with optional fingerprint reader
4. Palmrest with optional FIPS fingerprint reader
5. Touchpad
8Views of Precision 7560

Front

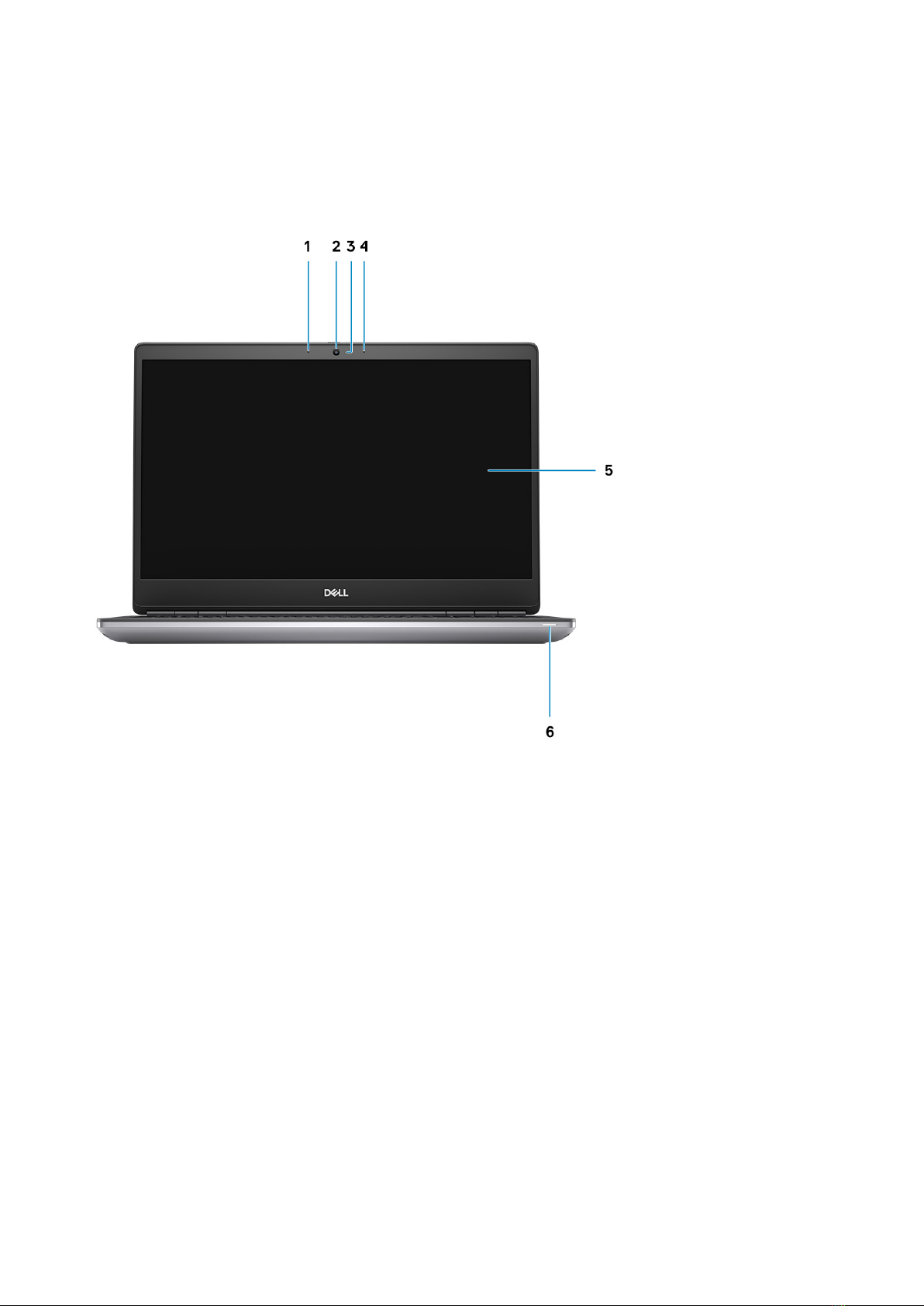

Front view with RGB camera
1. Microphone
2. Camera
3. Camera-status light
4. Microphone
5. Display
6. Battery-status light/Diagnostic-status light
Views of Precision 7560 9

Front view with IR camera
1. Microphone
2. IR camera sensor
3. Camera
4. Camera-status light
5. Microphone
6. Proximity sensor
7. Display
8. Battery-status light/Diagnostic-status light
Back
1. Air vent
2. Mini DisplayPort 1.4
3. HDMI 2.1 port
10 Views of Precision 7560

4. RJ45 Ethernet port
5. Power adapter port
6. Air vent

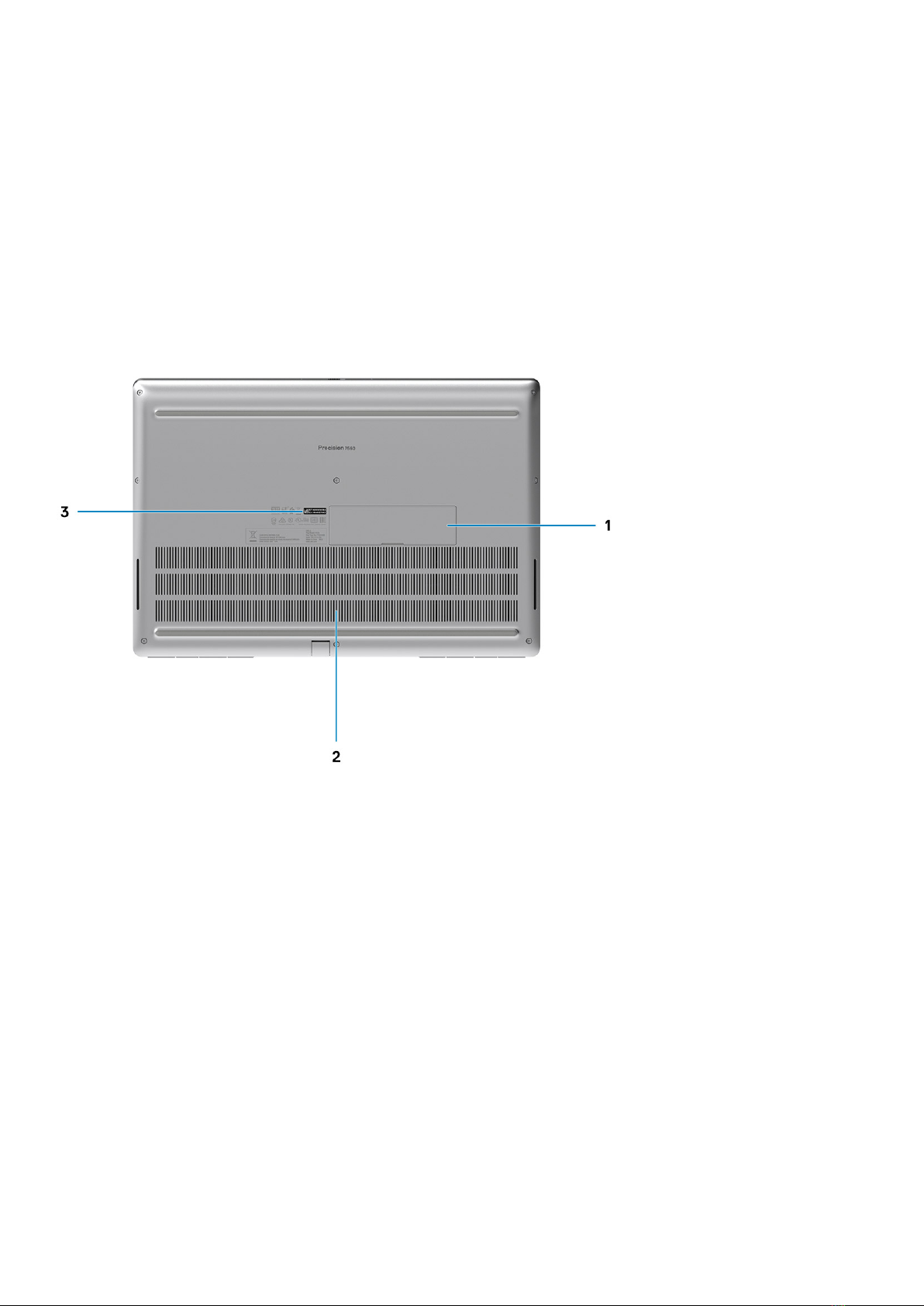

Bottom
1. Solid-state drive door (optional)
2. Air vents
3. Service tag label
Service Tag location
The service tag is a unique alphanumeric identifier that allows Dell service technicians to identify the hardware components in
your computer and access warranty information.
Views of Precision 7560 11

Battery charge and status light
The following table lists the battery charge and status light behavior of your Precision 7560.
Table 2. Battery charge and status light behavior
Power Source LED Behavior System Power State Battery Charge Level
AC Adapter Off S0 - S5 Fully Charged
AC Adapter Solid White S0 - S5 < Fully Charged
Battery Off S0 - S5 11-100%
Battery Solid Amber (590+/-3 nm) S0 - S5 < 10%
●S0 (ON) - System is turned on.
●S4 (Hibernate) - The system consumes the least power compared to all other sleep states. The system is almost at an OFF
state, expect for a trickle power. The context data is written to hard drive.
●S5 (OFF) - The system is in a shutdown state.
12 Views of Precision 7560

Specifications of Precision 7560
Dimensions and weight
The following table lists the height, width, depth, and weight of your Precision 7560.
Table 3. Dimensions and weight
Description Values
Height:
Front height 25.00 mm (0.98 in.)
Rear height 27.36 mm (1.08 in.)
Width 360.00 mm (14.17 in.)
Depth 242.00 mm (9.53 in.)
Weight
NOTE: The weight of your computer depends on the
configuration ordered and manufacturing variability.
2.49 kg (5.49 lb)
Processor
The following table lists the details of the processors that are supported by your Precision 7560 .
Table 4. Processor
Description Option one Option two Option three Option four Option five Option six Option seven
Processor
type
11th
Generation
Intel Core
i5-11500H,
vPro
11th
Generation
Intel Core
i7-11600H
11th
Generation
Intel Core
i7-11800H
11th
Generation
Intel Core
i7-11850H,
vPro
11th
Generation
Intel Core
i9-11950H,
vPro
Intel Xeon
W-11855M,
vPro
Intel Xeon
W-11955M,
vPro
Processor
wattage
45 W 45 W 45 W 45 W 45 W 45 W 45 W
Processor
core count
6 6 8 8 8 6 8
Processor
thread count
12 12 16 16 16 12 16
Processor
speed
2.90 GHz to
4.60 GHz
2.90 GHz to
4.60 GHz
2.30 GHz to
4.60 GHz
2.50 GHz to
4.80 GHz
2.60 GHz to
5.00 GHz
3.20 GHz to
4.90 GHz
2.60 GHz to
5.00 GHz
Processor
cache
12 MB 18 MB 24 MB 24 MB 24 MB 18 MB 24 MB
Integrated
graphics
Intel UHD
Graphics
Intel UHD
Graphics
Intel UHD
Graphics
Intel UHD
Graphics
Intel UHD
Graphics
Intel UHD
Graphics
Intel UHD
Graphics
3
Specifications of Precision 7560 13

Chipset
The following table lists the details of the chipset supported by your Precision 7560.
Table 5. Chipset
Description Values
Chipset WM590
Processor Intel Xeon Processor/11th Generation Intel Core i5/i7/i9
DRAM bus width 64-bit
Flash EPROM 32 MB
PCIe bus Up to Gen4
Operating system
Your Precision 7560 supports the following operating systems:
●Windows 11 Home, 64-bit
●Windows 11 Pro, 64-bit
●Windows 11 Pro National Academic, 64-bit
●Windows 11 Pro for Workstations, 64-bit
●Windows 10 Home, 64-bit
●Windows 10 Pro, 64-bit
●Windows 10 Pro Education, 64-bit
●Windows 10 Pro China, 64-bit
●Windows 10 Enterprise, 64-bit
●RHEL 8.4
●Ubuntu 20.04 LTS, 64-bit
Memory
The following table lists the memory specifications of your Precision 7560.
Table 6. Memory specifications
Description Values
Memory slots Four-SODIMM slots
Memory type DDR4
Memory speed ●3200 MHz
●3466 MHz
Maximum memory configuration 128 GB
Minimum memory configuration 4 GB
Memory size per slot 4 GB, 8GB, 16 GB, 32 GB
Memory configurations supported ●8 GB, 1 x 8 GB, DDR4, 3200 MHz, ECC
●16 GB, 2 x 8 GB, DDR4, 3200 MHz, ECC
14 Specifications of Precision 7560

Table 6. Memory specifications (continued)
Description Values
●32 GB, 2 x 16 GB, DDR4, 3200 MHz, ECC
●32 GB, 4 x 8 GB, DDR4, 3200 MHz, ECC
●64 GB, 2 x 32 GB, DDR4, 3200 MHz, ECC
●64 GB, 4 x 16 GB, DDR4, 3200 MHz, ECC
●96 GB, 2 x 16 GB + 2 x 32 GB, DDR4, 3200 MHz, ECC
●128 GB, 4 x 32 GB, DDR4, 3200 MHz, ECC
●8 GB, 1 x 8 GB, DDR4, 3200 MHz, Non ECC
●16 GB, 2 x 8 GB, DDR4, 3200 MHz, Non ECC
●32 GB, 2 x 16 GB, DDR4, 3200 MHz, Non ECC
●32 GB, 4 x 8 GB, DDR4, 3200 MHz, Non ECC
●64 GB, 2 x 32 GB, DDR4, 3200 MHz, Non ECC
●64 GB, 4 x 16 GB, DDR4, 3200 MHz, Non ECC
●96 GB, 2 x 16 GB + 2 x 32 GB, DDR4, 3200 MHz, Non
ECC
●128 GB, 4 x 32 GB, DDR4, 3200 MHz, Non ECC
●16 GB, 2 x 8 GB, DDR4, 3466 MHz SuperSpeed, Non ECC
●32 GB, 4 x 8 GB, DDR4, 3466 MHz SuperSpeed, Non ECC
●32 GB, 2 x 16 GB, DDR4, 3466 MHz SuperSpeed, Non
ECC
●64 GB, 4 x 16 GB, DDR4, 3466 MHz SuperSpeed, Non
ECC
External ports
The following table lists the external ports of your Precision 7560.
Table 7. External ports
Description Values
Network port One RJ-45 Ethernet port 10/100/1000 Mbps
USB ports ●One USB 3.2 Gen 1 Type-A ports
●One USB 3.2 Gen 1 Type-A port with PowerShare
●Two USB 3.2 Gen 2 Type-C Thunderbolt 4 ports
Audio port One global headset jack
Video port ●One HDMI 2.1 port
●One mini DisplayPort 1.4
Media-card reader One SD-card slot
Smart card reader One smart-card reader
Micro Subscriber Identity Module (uSIM) Card One microSIM card
Power-adapter port One DC-in port (7.4 mm standard plug)
Security-cable slot One wedge-shaped security slot
Specifications of Precision 7560 15

Internal slots
The following table lists the internal slots of your Precision 7560.
Table 8. Internal slots
Description Values
M.2 A combination of three M.2 solid-state drives (one M.2 2280
and/or two M.2 2230 or M.2 2280)
NOTE: To learn more about the features of different
types of M.2 cards, see the knowledge base article
000144170 at www.dell.com/support.
Ethernet
The following table lists the wired Ethernet Local Area Network (LAN) specifications of your Precision 7560.
Table 9. Ethernet specifications
Description Values
Model number Intel Ethernet Connection I219-LM
Transfer rate 10/100/1000 Mbps
Wireless module
The following table lists the Wireless Local Area Network (WLAN) module supported on your Precision 7560.
Table 10. Wireless module specifications
Description Values
Model number Intel Wi-Fi 6E AX210
Transfer rate 3000 Mbps
Frequency bands supported 2.40 GHz/5 GHz/6 GHz
Wireless standards ●WiFi 802.11a/b/g
●Wi-Fi 4 (WiFi 802.11n)
●Wi-Fi 5 (WiFi 802.11ac)
●Wi-Fi 6 (WiFi 802.11ax)
Encryption ●64-bit/128-bit WEP
●AES-CCMP
●TKIP
Bluetooth Bluetooth 5.2
16 Specifications of Precision 7560

WWAN module
The following table lists the Wireless Wide Area Network (WWAN) module supported on your Precision 7560.
Table 11. WWAN module specifications
Description Values
Model number Qualcomm Snapdragon X55 Global 5G Modem (DW5930E)
Transfer rate Up to 3 Gbps DL/250 Mbps UL (3GPP Release15 NR/LTE
CAT20)
Frequency bands supported ●LTE (1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 25, 26, 28,
29, 30, 32, 38, 39, 40, 41, 42, 43, 46, 66)
●NR (1, 2, 3, 5, 7, 8, 12, 20, 28, 38, 41, 66, 71, 77, 78, 79)
●HSPA+ (1, 2, 4, 5, 6, 8, 9,19)
Wireless standards ●NR FR1(Sub6) FDD/TDD
●LTE FDD/TDD
●WCDMA/HSPA+
●GPS/GLONASS/Beidou/Galileo
Encryption Supported
Global Navigation Satellite System (GNSS) Multi-constellation GNSS receiver
NOTE: For instructions on how to find your computer's IMEI (International Mobile Station Equipment Identity) number,
see the knowledge base article 000143678 at www.dell.com/support.
Audio
The following table lists the audio specifications of your Precision 7560.
Table 12. Audio specifications
Description Values
Audio controller ALC3204
Stereo conversion Supported
Internal audio interface High definition audio
External audio interface Global headset jack
Number of speakers Two
Internal-speaker amplifier Supported (audio codec integrated)
External volume controls Keyboard shortcut controls
Speaker output:
Average speaker output 2 W
Peak speaker output 2.5 W
Specifications of Precision 7560 17

Table 12. Audio specifications (continued)
Description Values
Subwoofer output Not supported
Microphone Dual-array microphones
Storage
This section lists the storage options on your Precision 7560.
Your computer supports one of the following configurations:
●One M.2 2230 or M.2 2280 solid-state drive
●A combination of two M.2 solid-state drives (M.2 2230 or M.2 2280)
●A combination of three M.2 solid-state drives (one M.2 2280 and/or two M.2 2230 or M.2 2280)
The primary drive of your computer varies with the storage configuration. For systems with a M.2 drive, the M.2 drive is the
primary drive .
Table 13. Storage specifications
Storage type Interface type Capacity
M.2 2230 solid-state drive PCIe NVMe Gen3 x4 256 GB
M.2 2280 solid-state drive PCIe NVMe Gen3 x4 Up to 1 TB
M.2 2280 solid-state drive, self-
encrypting drive
PCIe NVMe Gen3 x4 512 GB
M.2 2280 solid-state drive PCIe NVMe Gen4 x4 Up to 4 TB
Media-card reader
The following table lists the media cards supported by your Precision 7560.
Table 14. Media-card reader specifications
Description Values
Media-card type SD card
Media-cards supported ●Secure Digital (SD)
●Secure Digital High Capacity (SDHC)
●Secure Digital Extended Capacity (SDXC)
NOTE: The maximum capacity supported by the media-card reader varies depending on the standard of the media card
installed in your computer.
Keyboard
The following table lists the keyboard specifications of your Precision 7560.
Table 15. Keyboard specifications
Description Values
Keyboard type Backlit keyboard
18 Specifications of Precision 7560

Table 15. Keyboard specifications (continued)
Description Values
Keyboard layout QWERTY
Number of keys ●United States and Canada: 101 keys
●United Kingdom: 102 keys
●Japan: 105 keys
Keyboard size X=18.70 mm key pitch
Y=18.05 mm key pitch
Keyboard shortcuts Some keys on your keyboard have two symbols on them.
These keys can be used to type alternate characters or to
perform secondary functions. To type the alternate character,
press Shift and the desired key. To perform secondary
functions, press Fn and the desired key.
NOTE: You can define the primary behavior of the
function keys (F1–F12) changing Function Key Behavior
in BIOS setup program.
Camera
The following table lists the camera specifications of your Precision 7560.
Table 16. Camera specifications
Description Values
Number of cameras One
Camera type There are 2 camera options:
●HD RGB camera
●IR camera
Camera location Front camera
Camera sensor type Proximity sensor technology
Camera resolution:
Still image 0.92 megapixel
Video 1280 x 720 (HD) at 30 fps
Infrared camera resolution:
Still image 0.30 megapixel
Video 1280 x 720 (HD) at 30 fps
Diagonal viewing angle:
Camera 74.9 degrees
Infrared camera 70 degrees
Specifications of Precision 7560 19

Touchpad
The following table lists the touchpad specifications of your Precision 7560.
Table 17. Touchpad specifications
Description Values
Touchpad resolution: >300 dpi
Touchpad dimensions:
Horizontal 105 mm (4.13 in.)
Vertical 65 mm (2.56 in.)
Touchpad gestures For more information about touchpad gestures available on
Windows, see the Microsoft knowledge base article 4027871
at support.microsoft.com.
Power adapter
The following table lists the power adapter specifications of your Precision 7560.
Table 18. Power adapter specifications
Description Values
Type 180 W E5 DC-in
Connector dimensions:
External diameter 7.40 mm
Internal diameter 5.10 mm
Input voltage 100 VAC x 240 VAC
Input frequency 50 Hz x 60 Hz
Input current (maximum) 2.34 A
Output current (continuous) 9.23 A
Rated output voltage 19.50 VDC
Temperature range:
Operating 0°C to 40°C (32°F to 104°F)
Storage -40°C to 70°C (-40°F to 158°F)
Battery
The following table lists the battery specifications of your Precision 7560.
Table 19. Battery specifications
Description Option one Option two Option three
Battery type 6-cell, 68 WHr, Lithium-ion,
ExpressChargeBoost
6-cell, 95 WHr, Lithium-ion,
ExpressChargeBoost
6-cell, 95 WHr,
Lithium-ion LcL
20 Specifications of Precision 7560
